Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

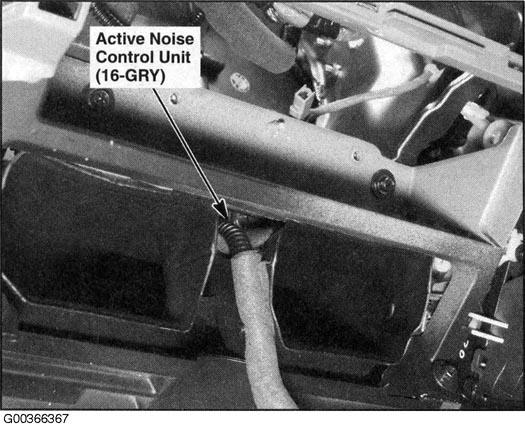

| Active Noise Control Unit | Behind middle of dash. See Figure. |

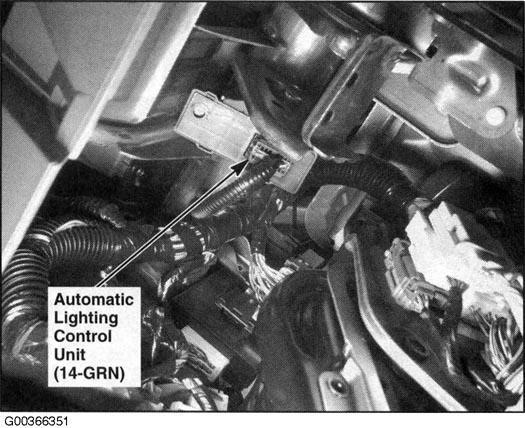

| Automatic Lighting Control Unit | Under left side of dash. See Figure. |

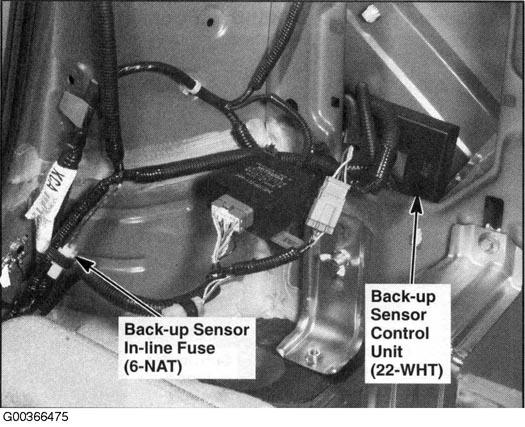

| Back-Up Sensor Control Unit | Left rear of vehicle. See Figure. |

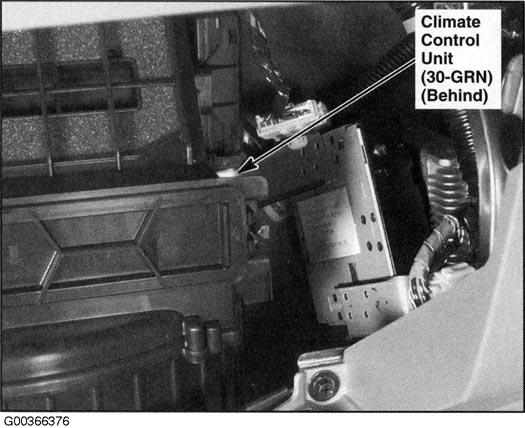

| Climate Control Unit | Behind glove box. See Figure. |

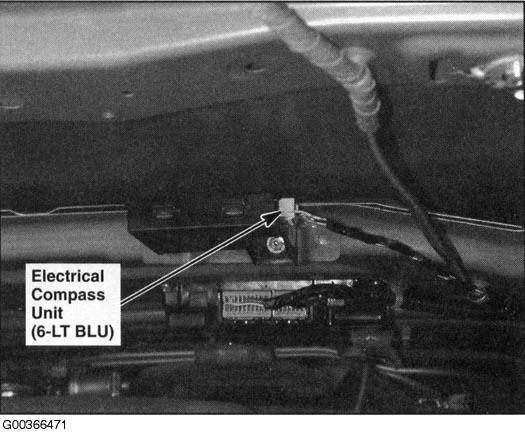

| Electrical Compass Unit | In rear of roof. See Figure. |

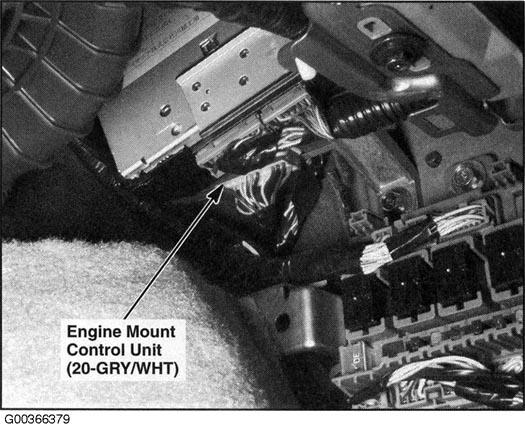

| Engine Mount Control Unit | Under right side of dash. See Figure. |

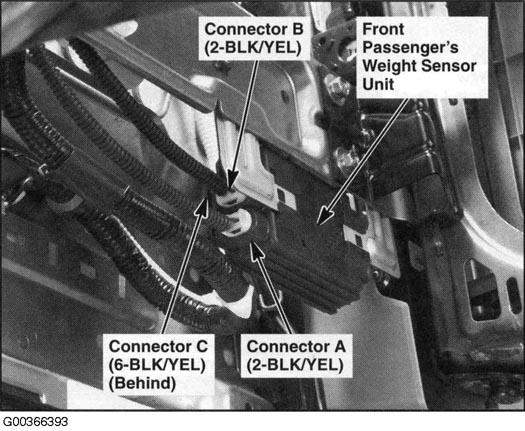

| Front Passenger's Weight Sensor Unit | Under front passenger's seat. See Figure. |

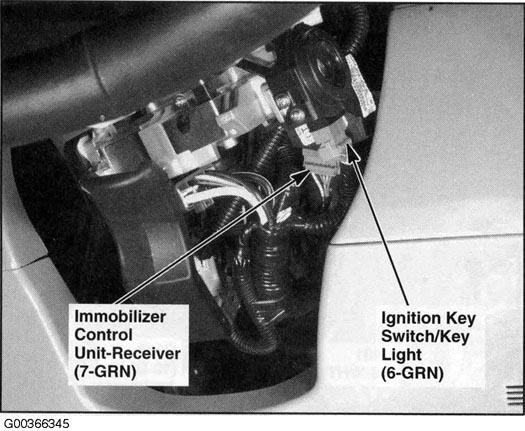

| Immobilizer Control Unit-Receiver | On steering column, near steering lock. See Figure. |

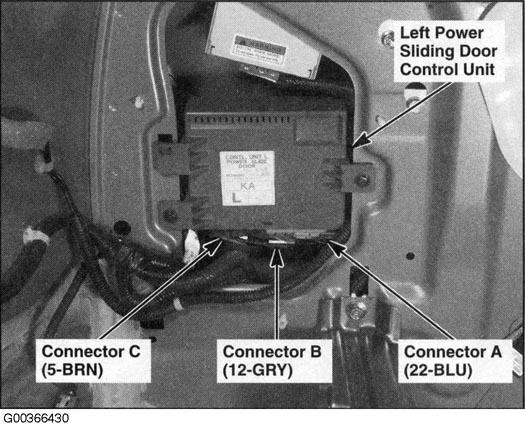

| Left Power Sliding Door Control Unit | Behind left rear side trim panel. See Figure. |

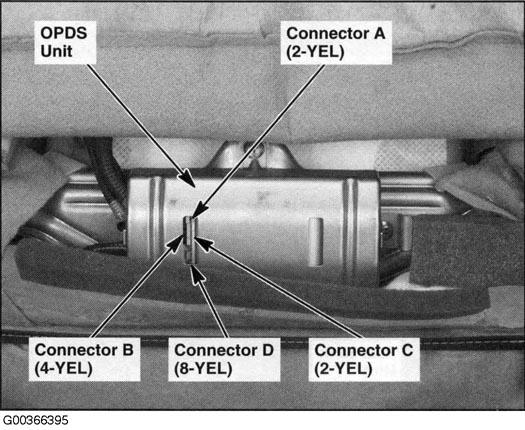

| OPDS Unit | Inside passenger seat. See Figure. |

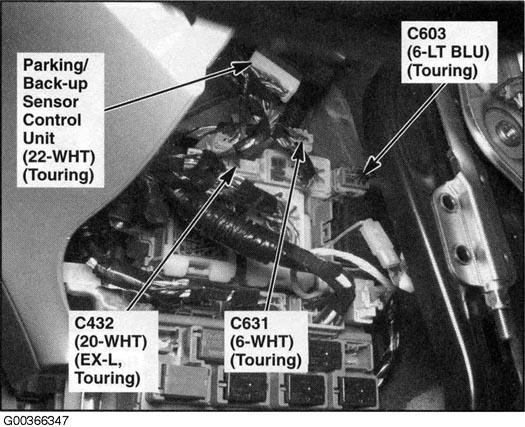

| Parking/Back-Up Sensor Control Unit | Under left side of dash. See Figure. |

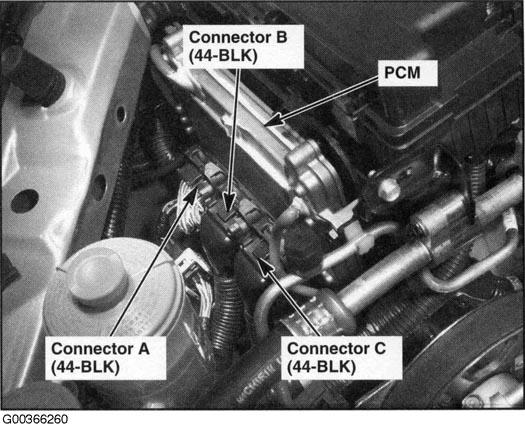

| PCM | Right side of engine compartment. See Figure. |

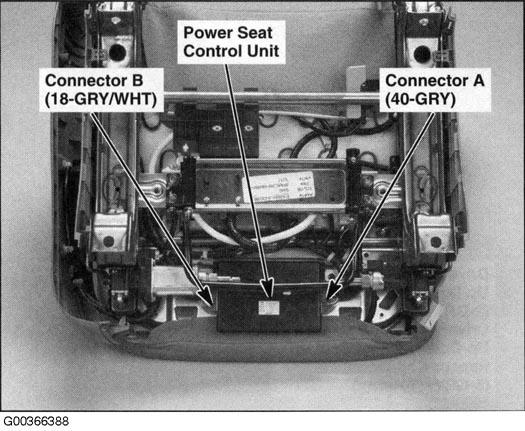

| Power Seat Control Unit | Under driver's seat. See Figure. |

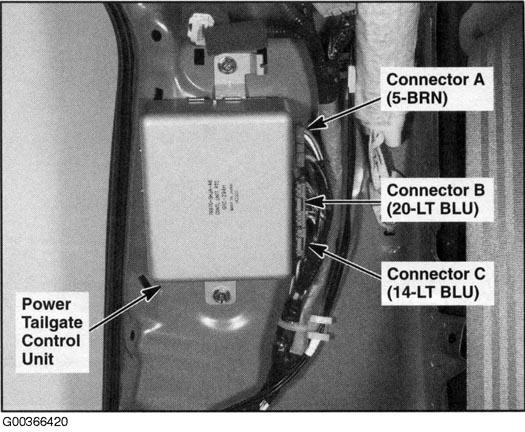

| Power Tailgate Control Unit | At left "D" pillar. See Figure. |

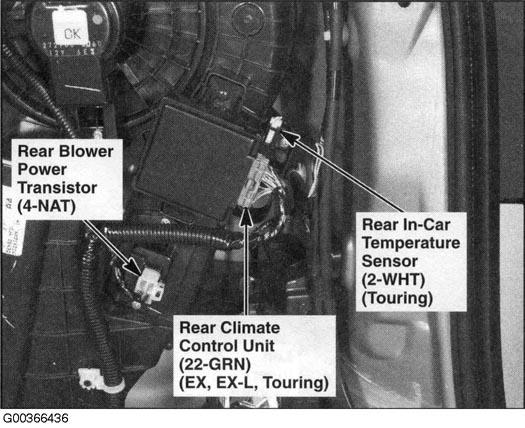

| Rear Climate Control Unit | Right rear of vehicle. See Figure. |

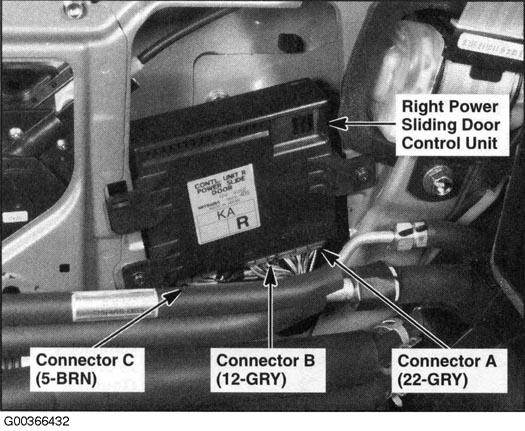

| Right Power Sliding Door Control Unit | Behind right rear side trim panel. See Figure. |

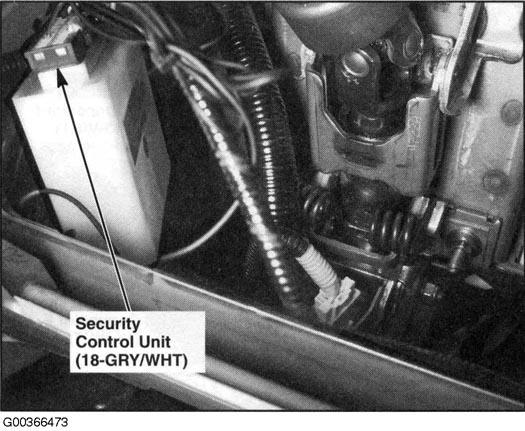

| Security Control Unit | Under left side of dash. See Figure. |

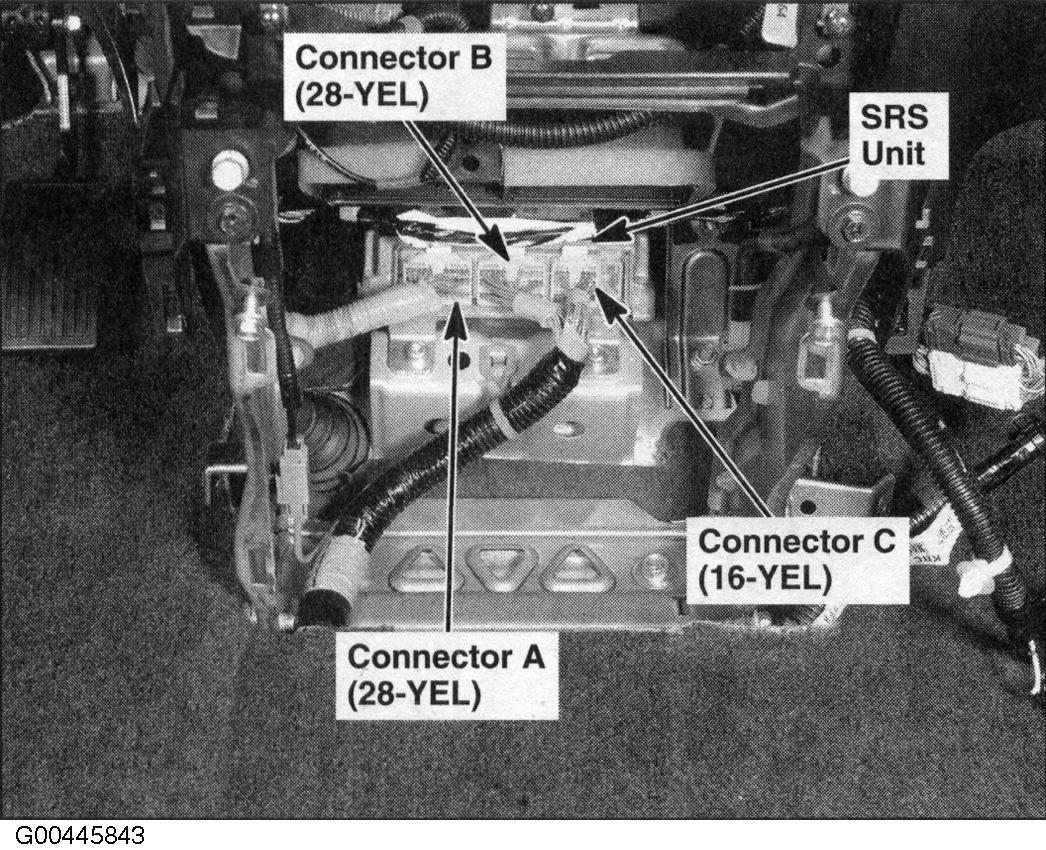

| SRS Unit | Behind lower center of dash. See Figure. |

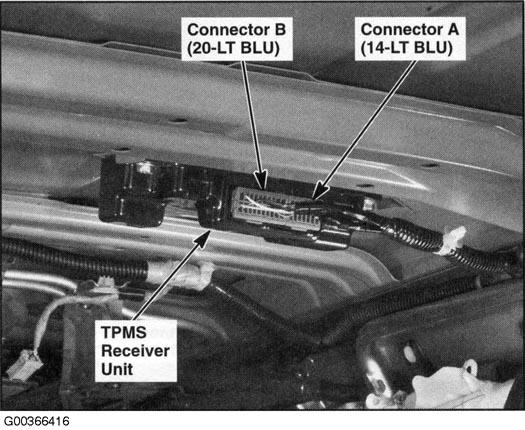

| TPMS Receiver Unit | On middle of roof. See Figure. |

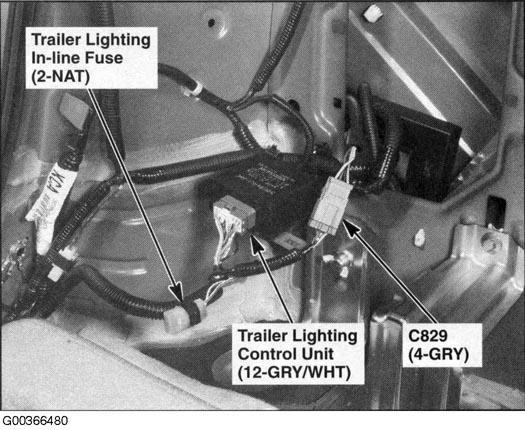

| Trailer Lighting Control Unit | Left "D" pillar. See Figure. |

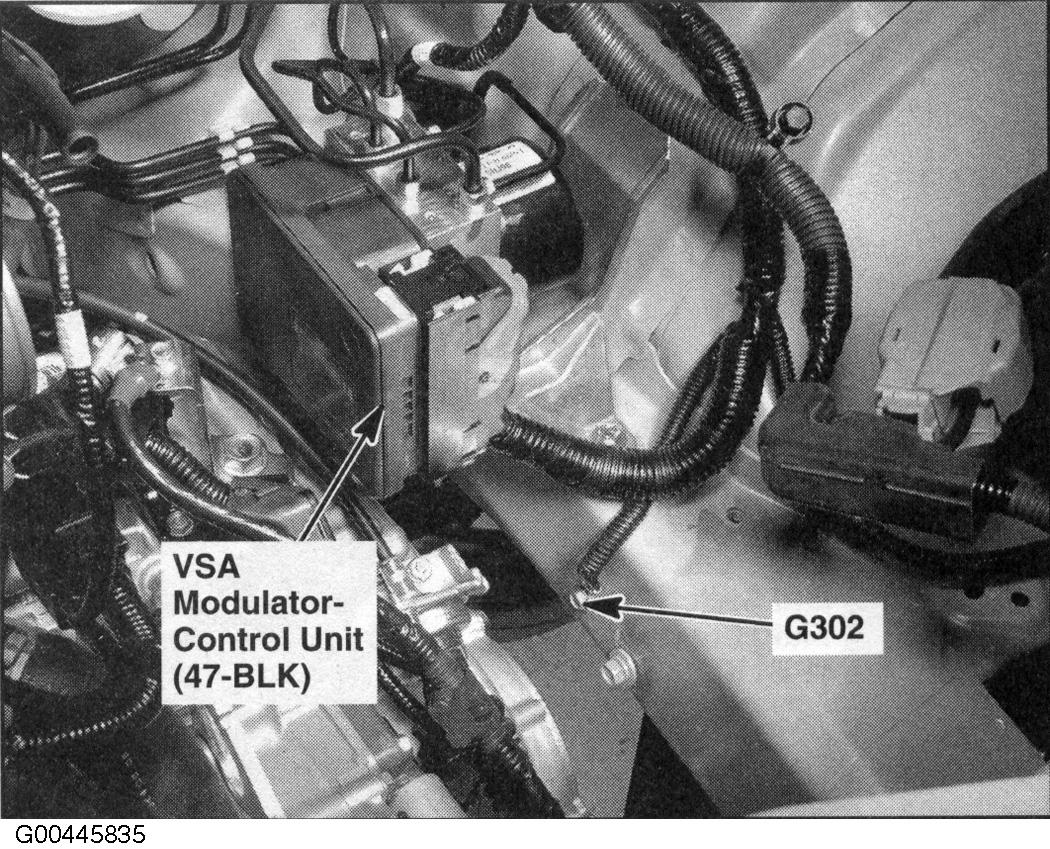

| VSA Modulator Control Unit | Left side of engine compartment. See Figure. |
