Blower Motor Removal: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The blower motor is located on the A/C unit as shown in the figure.
  • Perform the work from the front passenger's side in the posture shown in the figure.

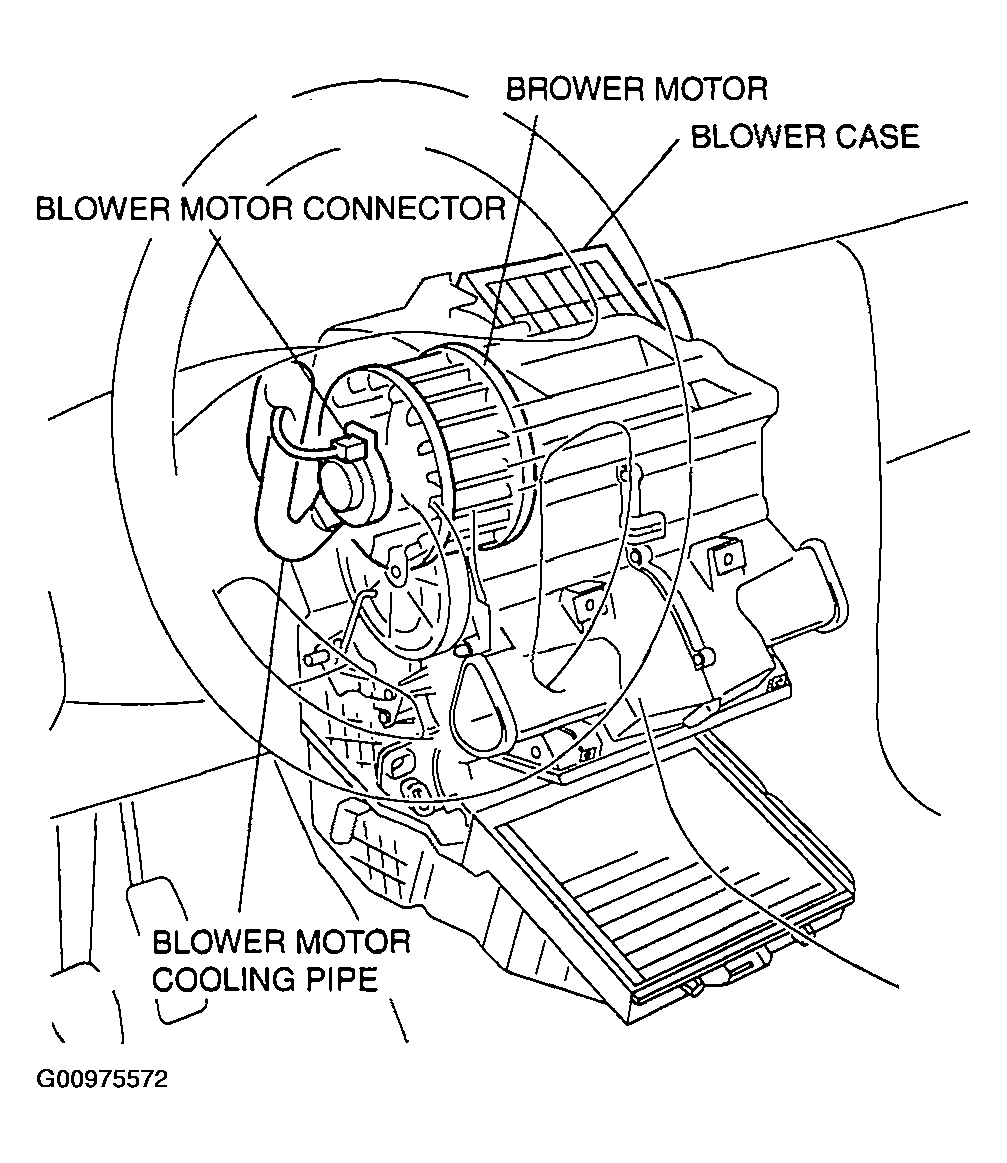

    Fig 1: Identifying Blower Motor On A/C Unit
    G00975572Courtesy of MAZDA MOTORS CORP.

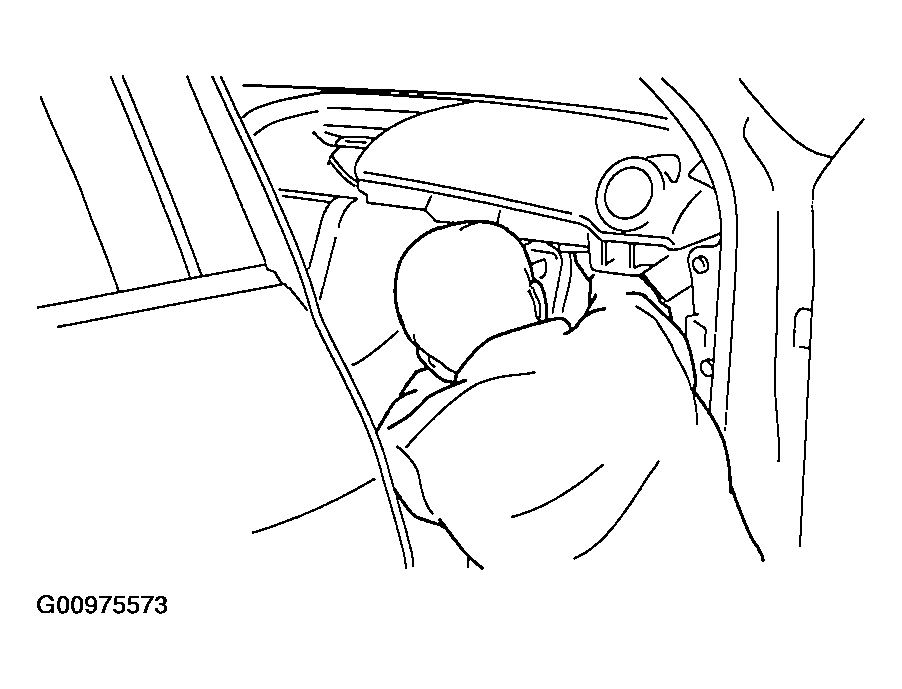

    Fig 2: Posture For Removing Blower Motor
    G00975573Courtesy of MAZDA MOTORS CORP.
  1. Set the air intake mode to FRESH.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Front side trim (RH). See FRONT SIDE TRIM REMOVAL/INSTALLATION .
    2. Front scuff plate (RH). See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
    3. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    4. Glove compartment. See GLOVE COMPARTMENT REMOVAL/INSTALLATION .
    5. PJB and PJB bracket. See FUSES & CIRCUIT BREAKERS .
    6. Car-navigation unit. See CAR-NAVIGATION SYSTEM .
    7. Auto leveling control module. See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .
  4. Disconnect the air intake actuator connector.
  5. Remove the screws shown in the figure, then remove the blower case.

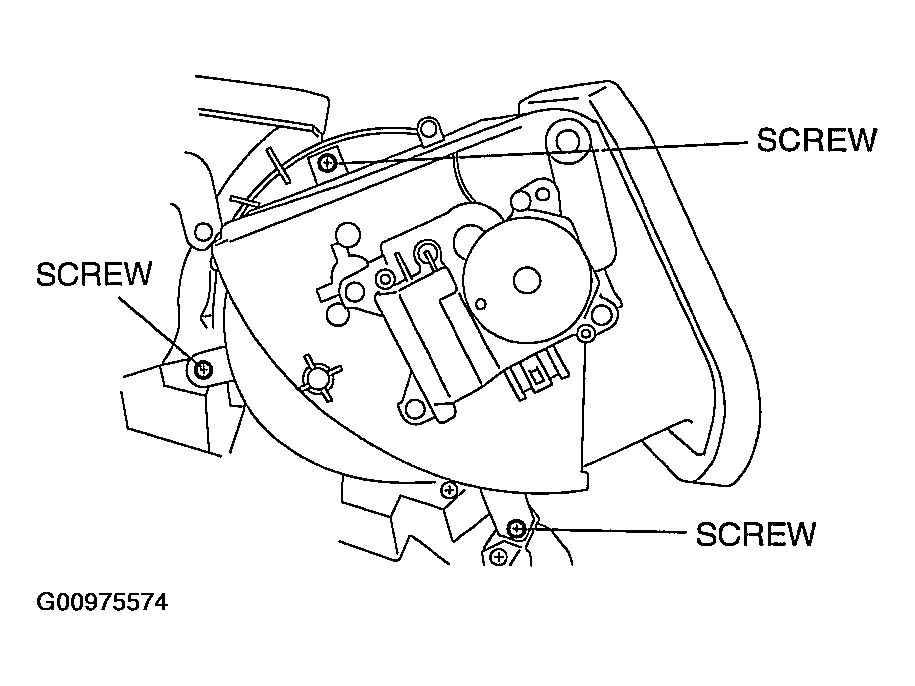

    Fig 3: Identifying Blower Case Screws
    G00975574Courtesy of MAZDA MOTORS CORP.

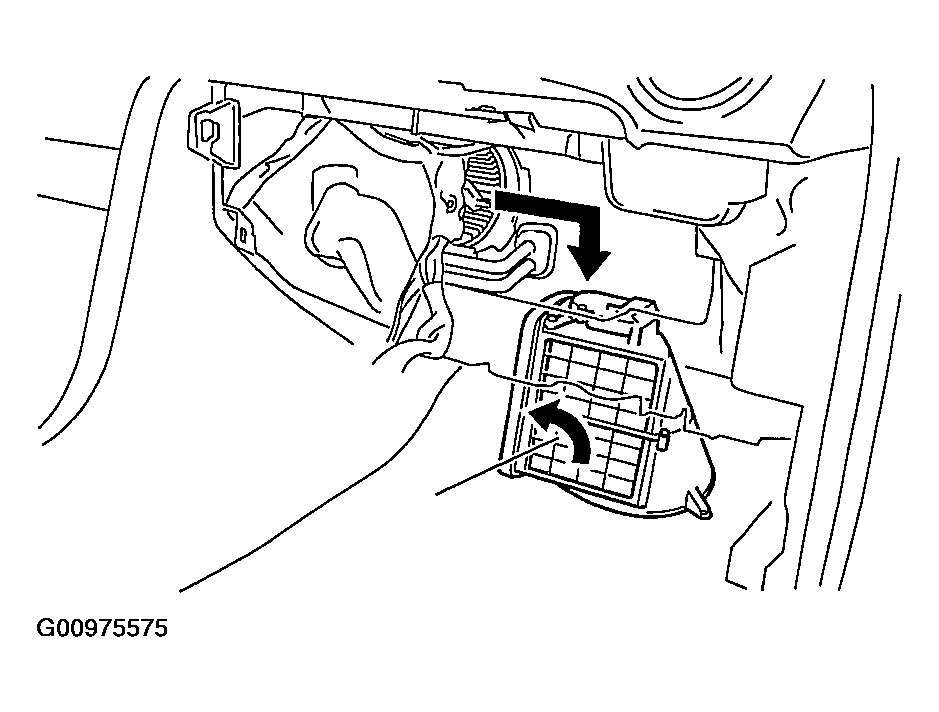

    Fig 4: Removing Blower Case
    G00975575Courtesy of MAZDA MOTORS CORP.
  6. Remove the air guide.
  7. Install the SST (49 B061 015)  to the blower motor. See SST Installation Note .

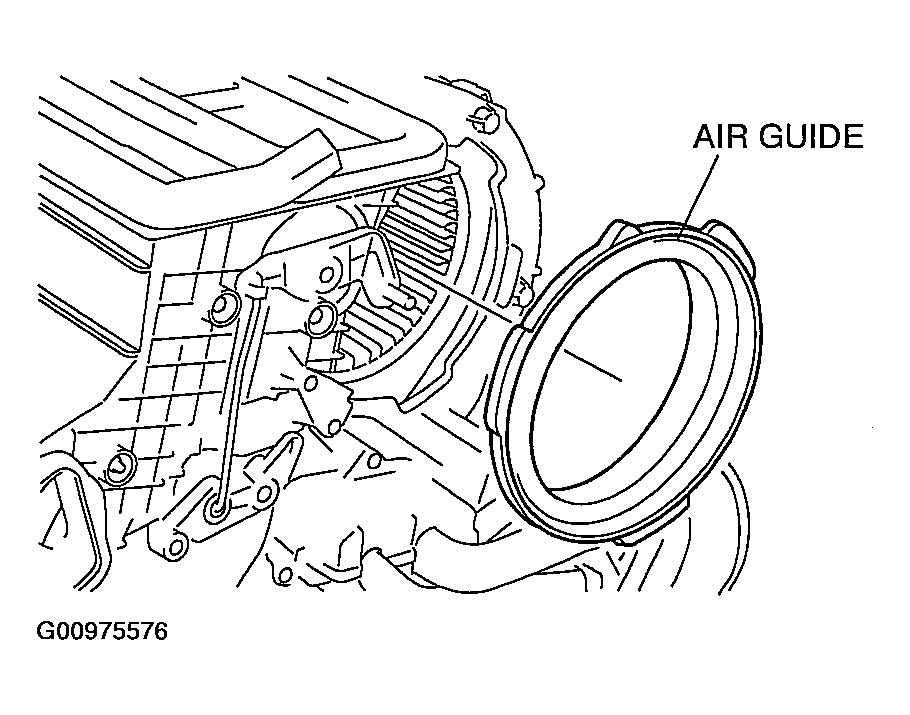

    Fig 5: Removing Air Guide
    G00975576Courtesy of MAZDA MOTORS CORP.
  8. Detach the hood release lever from the lower panel. See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .
  9. Remove the front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
  10. Remove the front side trim. See FRONT SIDE TRIM REMOVAL/INSTALLATION .
  11. Remove the lower panel. See LOWER PANEL REMOVAL/INSTALLATION .
  12. Disconnect the resistor connector.
  13. Disconnect the blower motor cooling pipe connected to the blower motor.

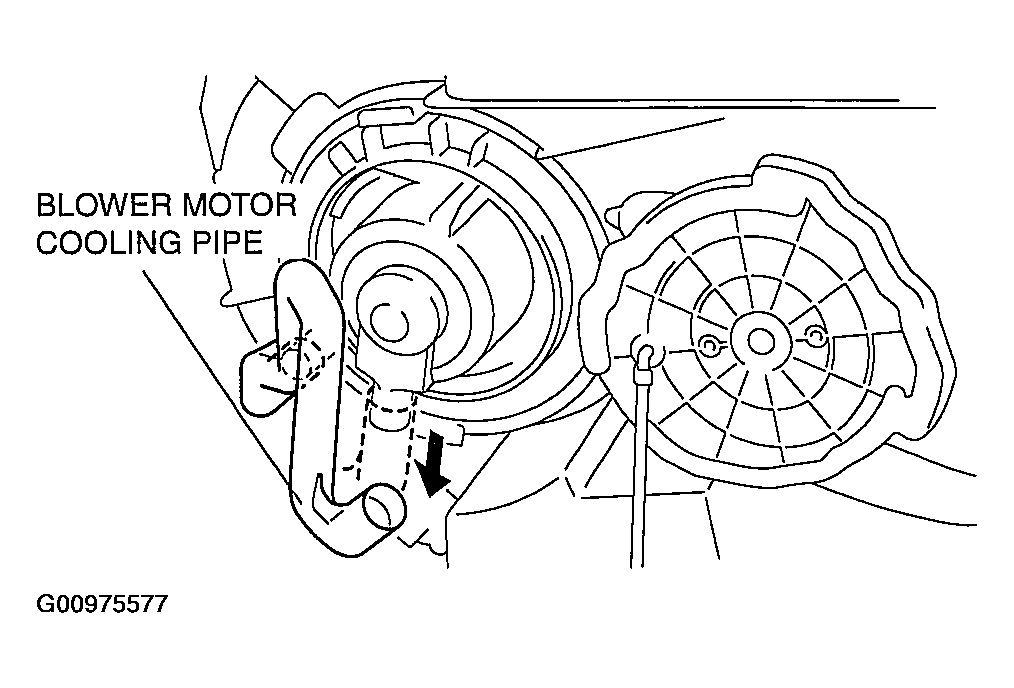

    Fig 6: Disconnecting Blower Motor Cooling Pipe
    G00975577Courtesy of MAZDA MOTORS CORP.
  14. Disconnect the blower motor connector as shown in the figure.
    Fig 7: Disconnecting Blower Motor Connector
    G00975578Courtesy of MAZDA MOTORS CORP.
  15. Remove the blower motor cover. See BLOWER MOTOR COVER REMOVAL NOTE .
    CAUTION:
    • When the blower motor cover is removed, the blower motor could fall in the A/C unit case causing the sirocco fan to be damaged. Therefore another person must hold the blower motor at the installation position.
  16. Remove the blower motor by pulling it out. See BLOWER MOTOR REMOVAL NOTE .

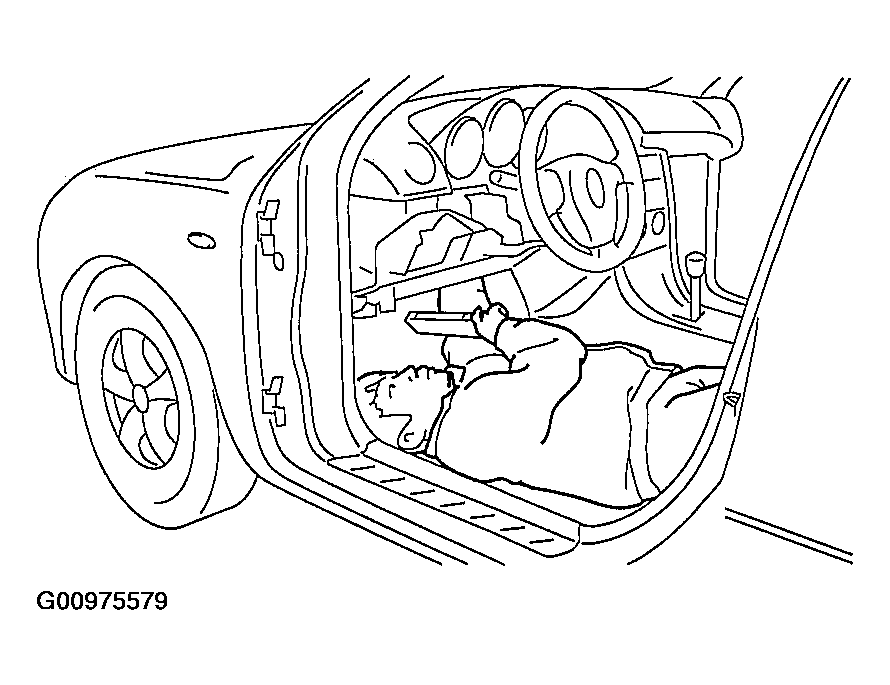

    Fig 8: Removing Blower Motor
    G00975579Courtesy of MAZDA MOTORS CORP.
