Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Dash Fuse Box | Behind dash, left of steering column. |
| Diode Box A | On right side of engine compartment, in fuse/relay box. |
| Diode Box B | On right side of engine compartment, in fuse/relay box. |
| Diode Box C | On right side of engine compartment, in fuse/relay box. |
| Diode Box D | Behind left side of dash, taped to harness. |
| Diode Box E | On left side of luggage room. |
| Diode Box F | In dash fuse box. |
| Diode Box G | In dash fuse box. |

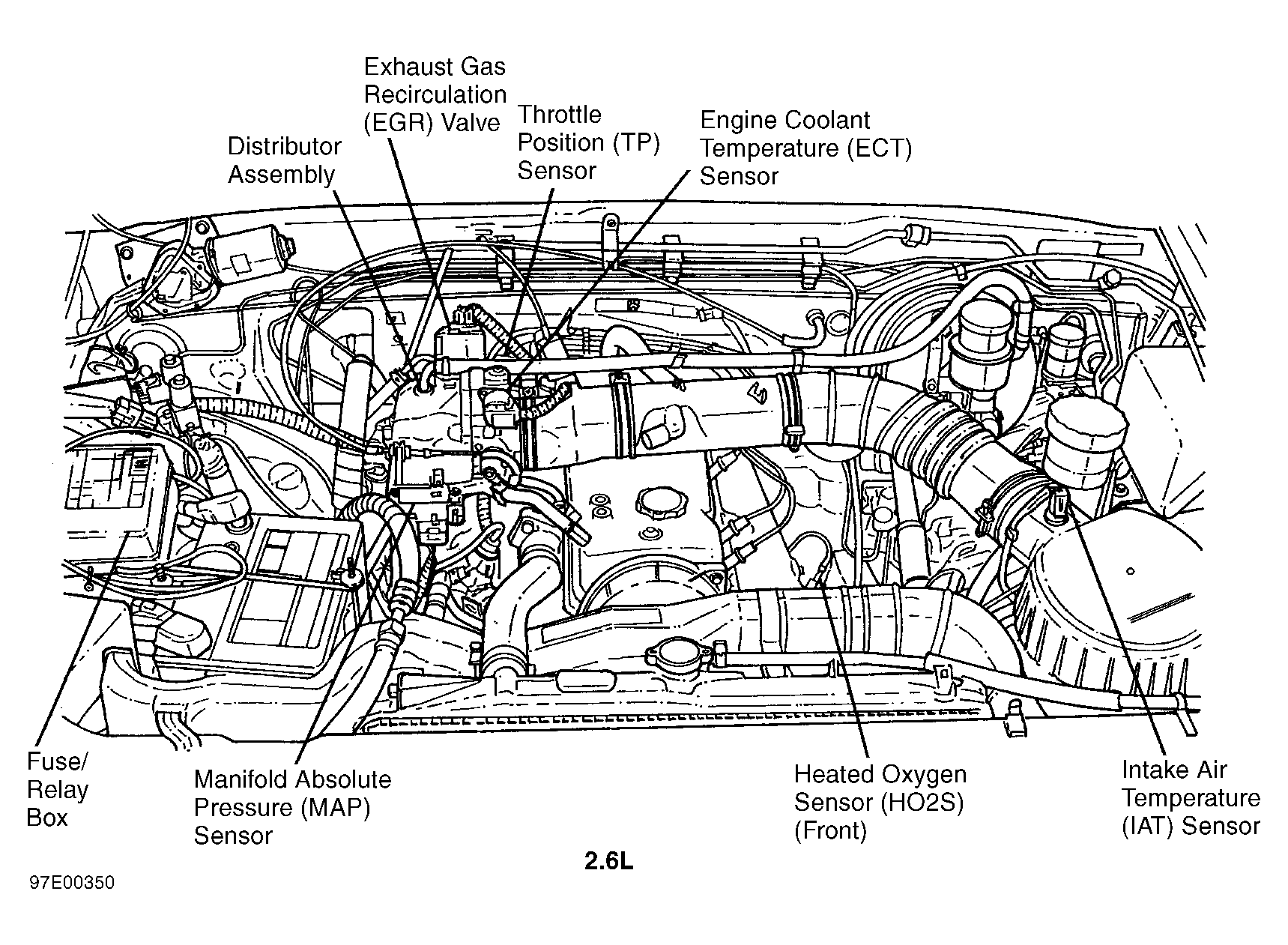

| Fuse/Relay Box (2.6L) | On right side of engine compartment. See Figure . |

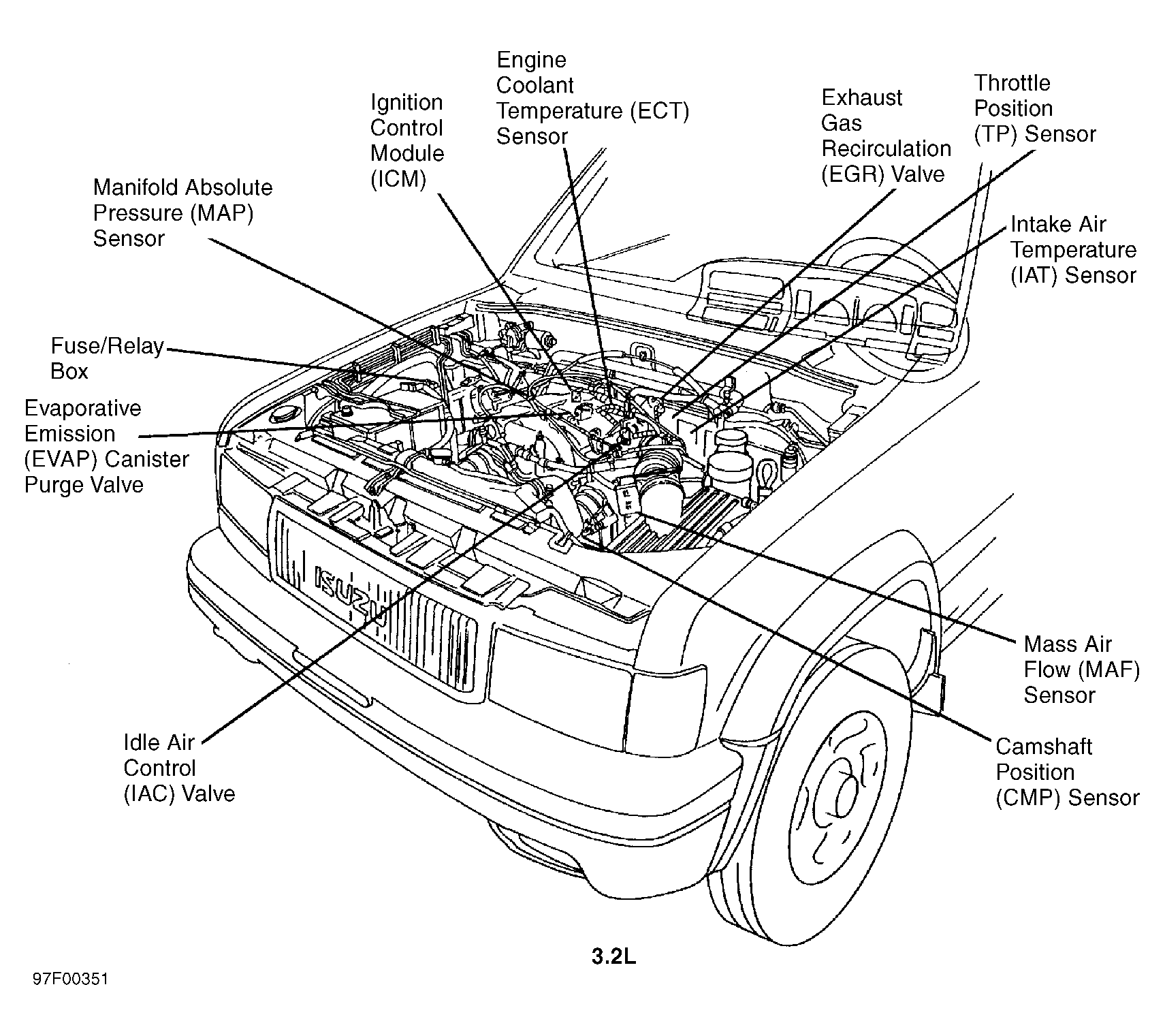

| Fuse/Relay Box (3.2L) | On right side of engine compartment. See Figure . |
