Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Control Processor | Below right side of dash. See Figure . |
| Body Control Module (BCM) | Beneath left rear seat, on rear fuse block. See Figure . |
| Driver's Door Module | On lower part of driver's door switch panel. See Figure . |
| Electronic Brake Control Module | On inner left frame rail, adjacent to transmission. See Figure . |
| Front Passenger's Door Module | On lower part of passenger's door switch panel. See Figure . |
| HVAC Control Module (Auxiliary) | At rear of lower console. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module | Beneath lower console. See Figure . |
| Liftgate Module | Inside liftgate. See Figure . |
| Memory Seat Module (Driver's) | Under driver's seat. See Figure . |
| Powertrain Control Module (PCM) (4.2L) | On left front of engine. See Figure . |

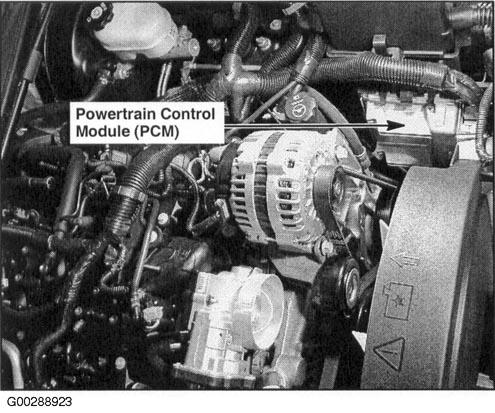

| Powertrain Control Module (PCM) (5.3L) | On left front of engine compartment. See Figure . |

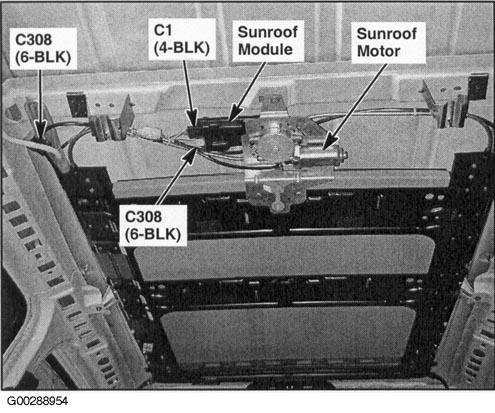

| Sun Roof Module | Above headliner, at rear of sun roof. See Figure . |

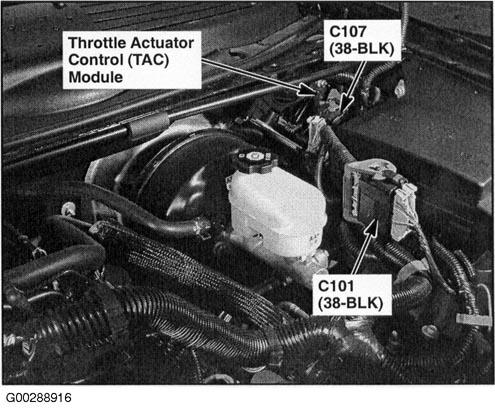

| Throttle Actuator Control Module | On left rear of engine compartment. See Figure . |
| Transfer Case Shift Control Module | Behind left lower dash. See Figure . |
| Turn Signal/Hazard Flasher Module | Behind left side of dash. See Figure . |
| Vehicle Communication Interface Module (VCIM) | Upper right rear seat. See Figure . |
