Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Beneath center of dash, on transmission tunnel. |
| Body Control Module | Integral with junction block. |

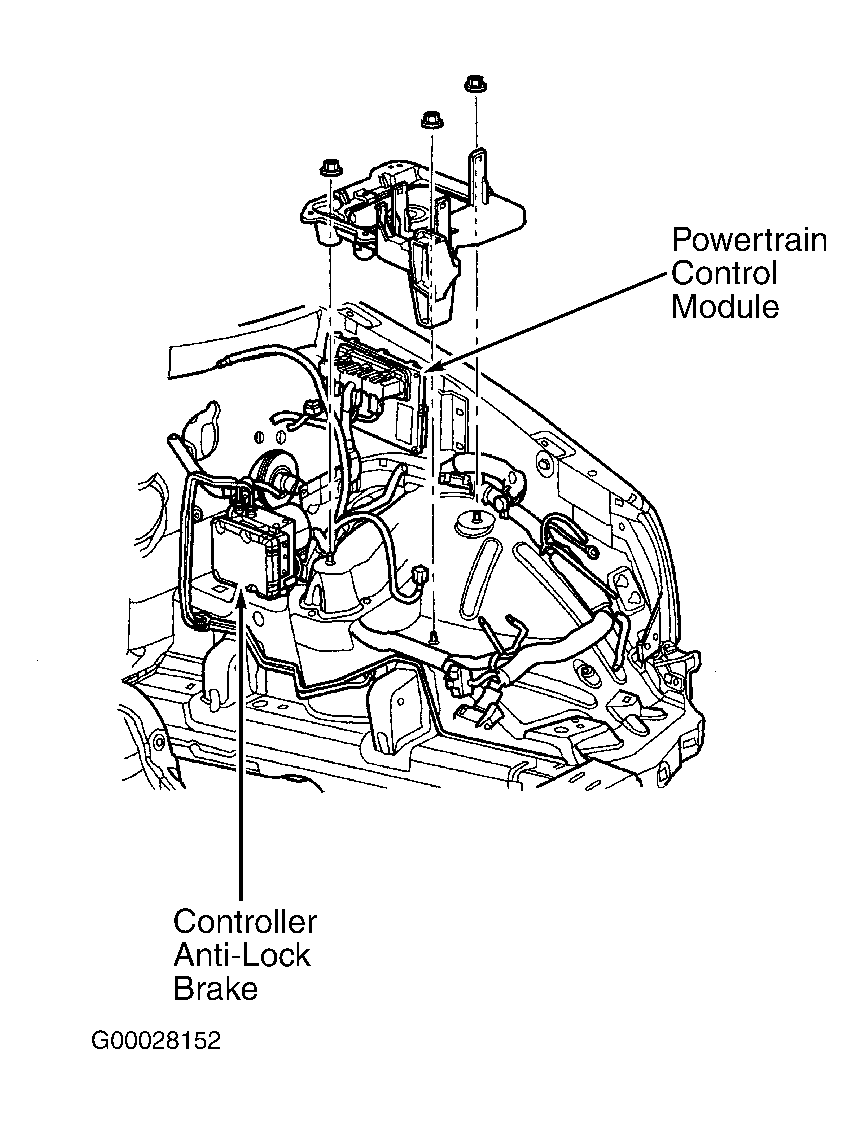

| Controller Anti-Lock Brake | On left rear of engine compartment. See Figure. |
| Fuel Pump Module | In fuel tank. |
| Heated Seat Module | Beneath left front seat. |
| Powertrain Control Module | On left side of engine compartment, above fenderwell. See Figure. |
| Sentry Key Immobilizer Module | On right side of steering column. |

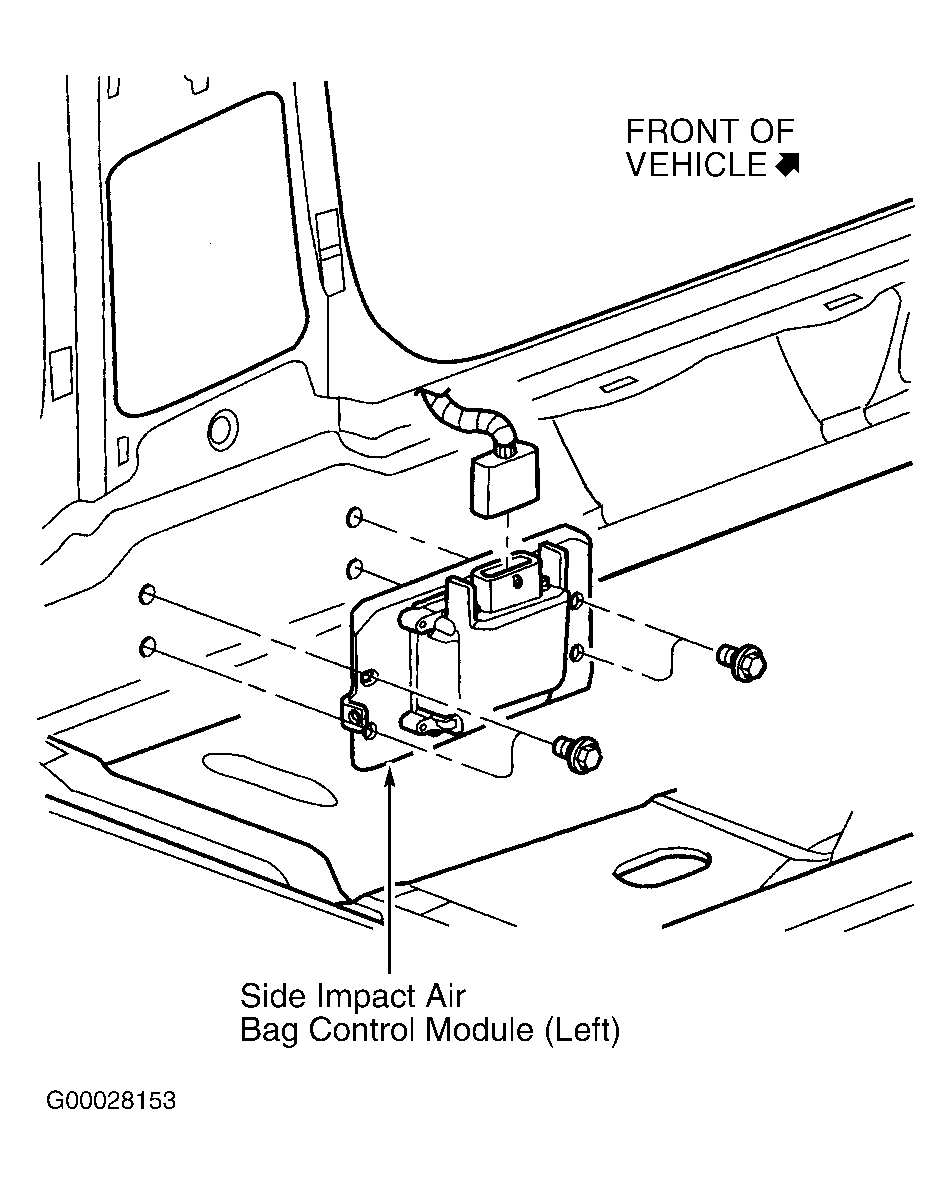

| Side Impact Air Bag Control Module (Left) | At base of left "B" pillar, behind trim. See Figure. |
| Side Impact Air Bag Control Module (Right) | At base of right "B" pillar, behind trim. |
| Transmission Control Module (3.7L) | On right side of engine compartment, above fenderwell. |
