Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

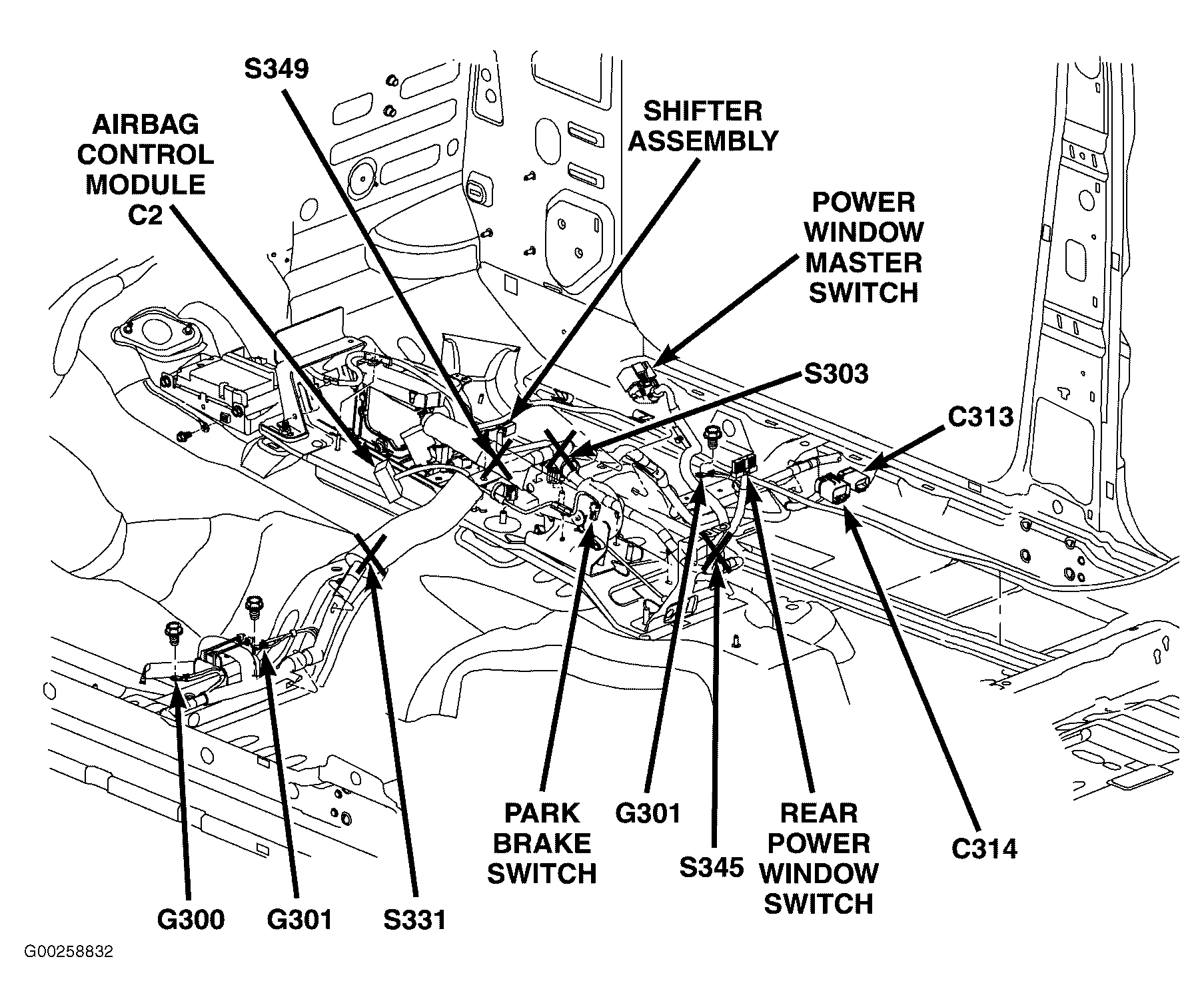

| Air Bag Control Module | Beneath center of dash, on transmission tunnel. See Figure . |

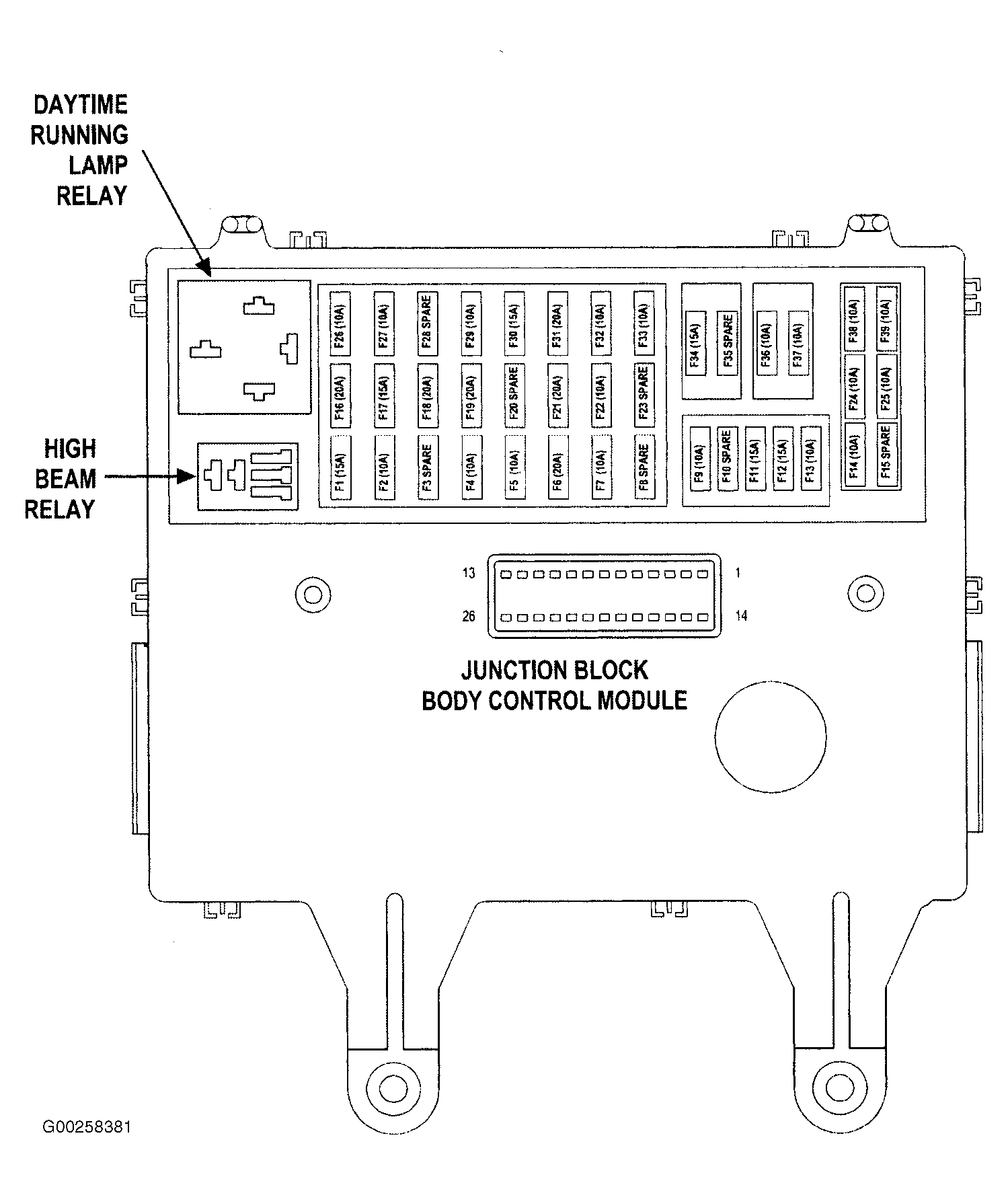

| Body Control Module | Integral with outboard junction block. See Figure . |

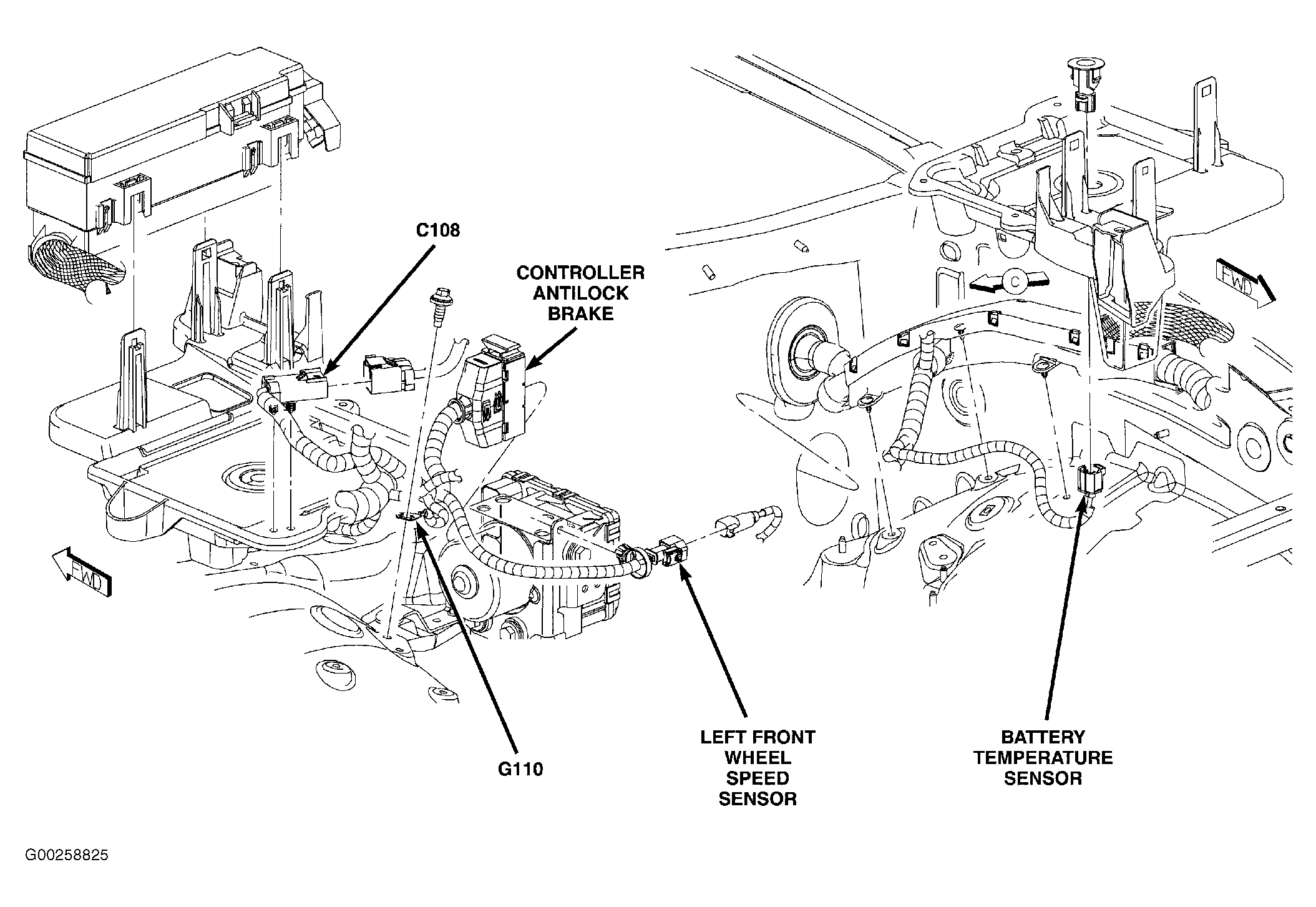

| Controller Antilock Brake | Left side of engine compartment. See Figure . |

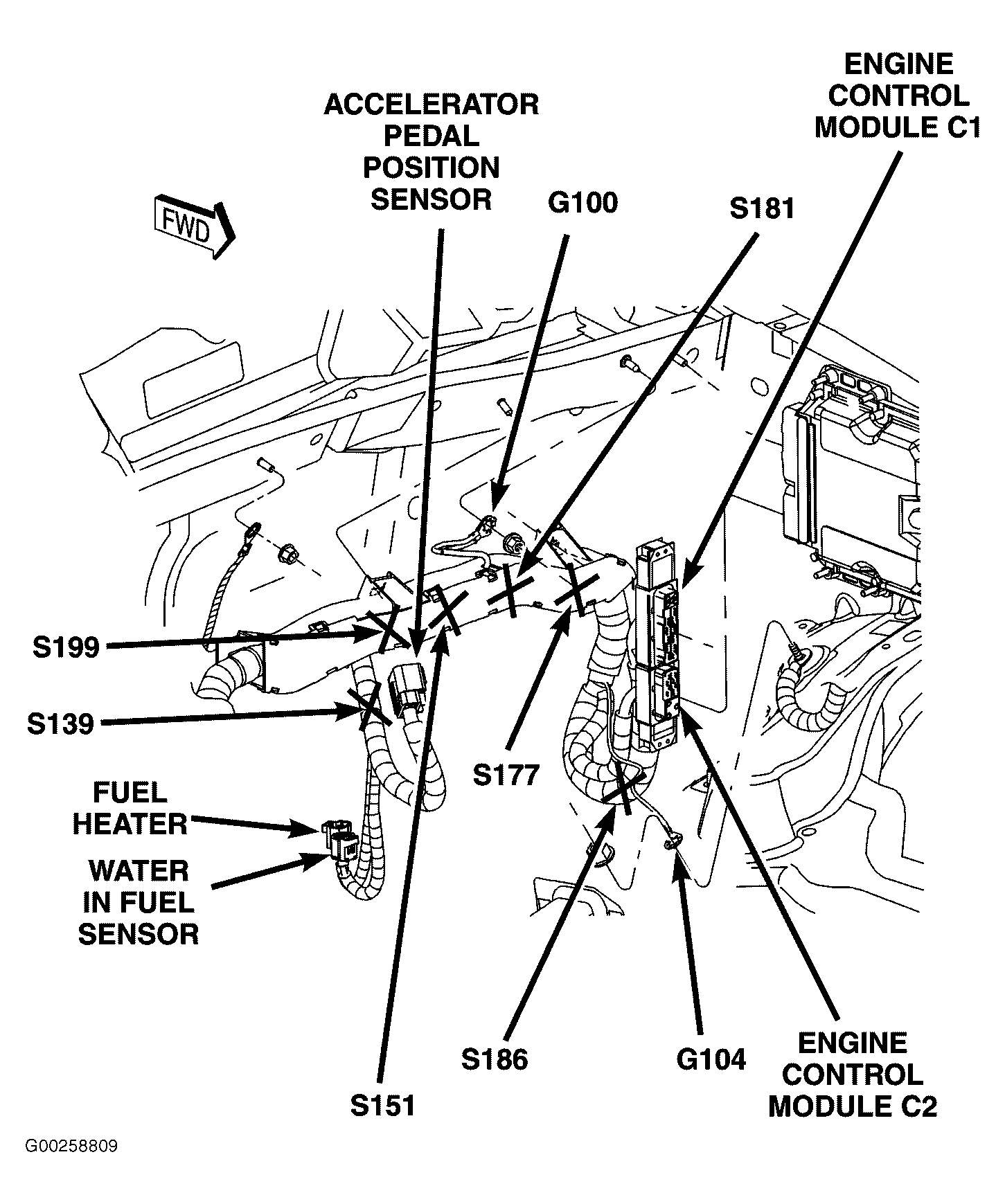

| Engine Control Module (Diesel) | Left rear of engine compartment. See Figure . |
| Fuel Pump Module | In fuel tank. |
| Heated Seat Module (Highline) | Beneath left front seat. |

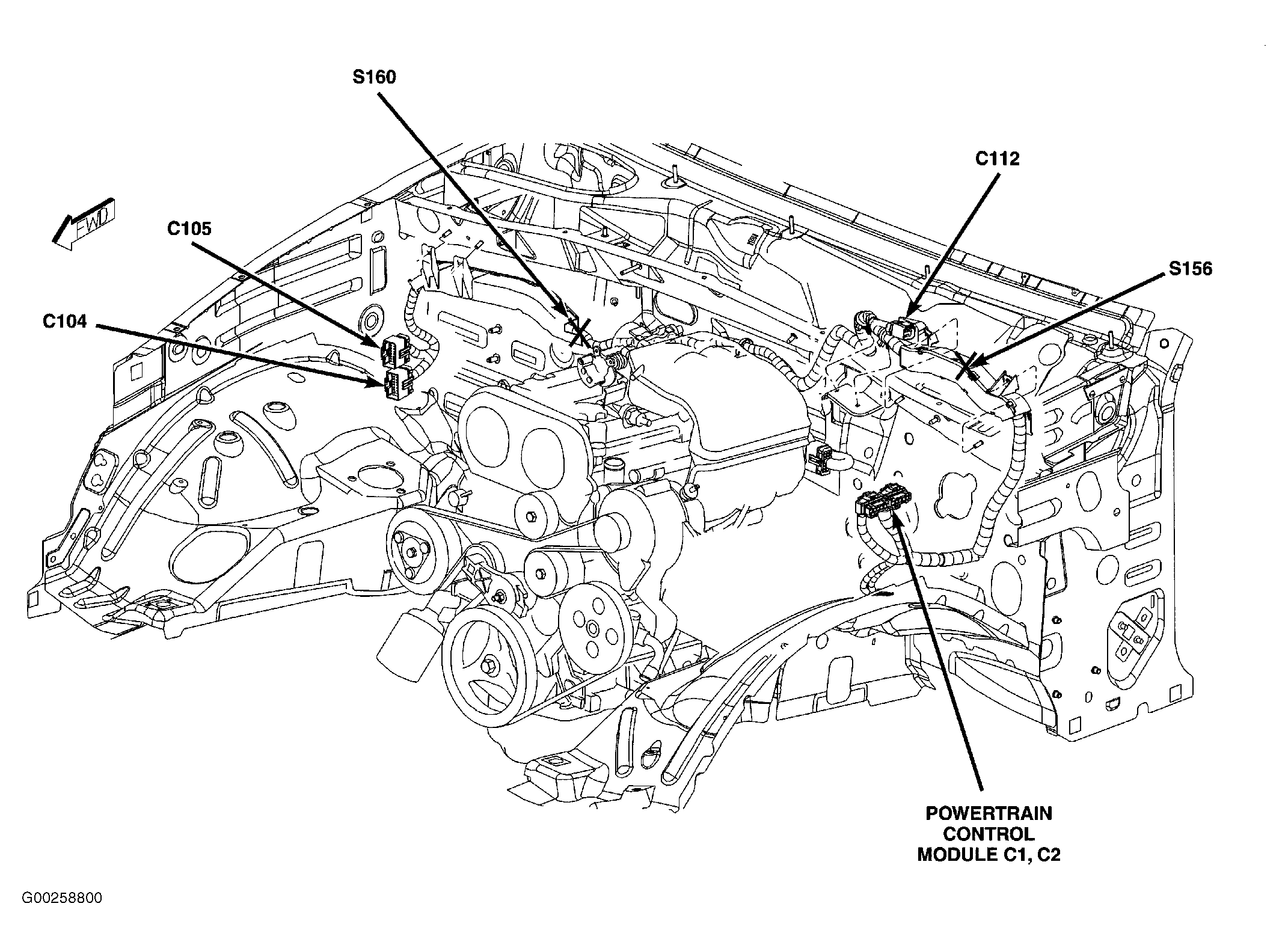

| Powertrain Control Module (2.4L) | Left side of engine compartment. See Figure . |

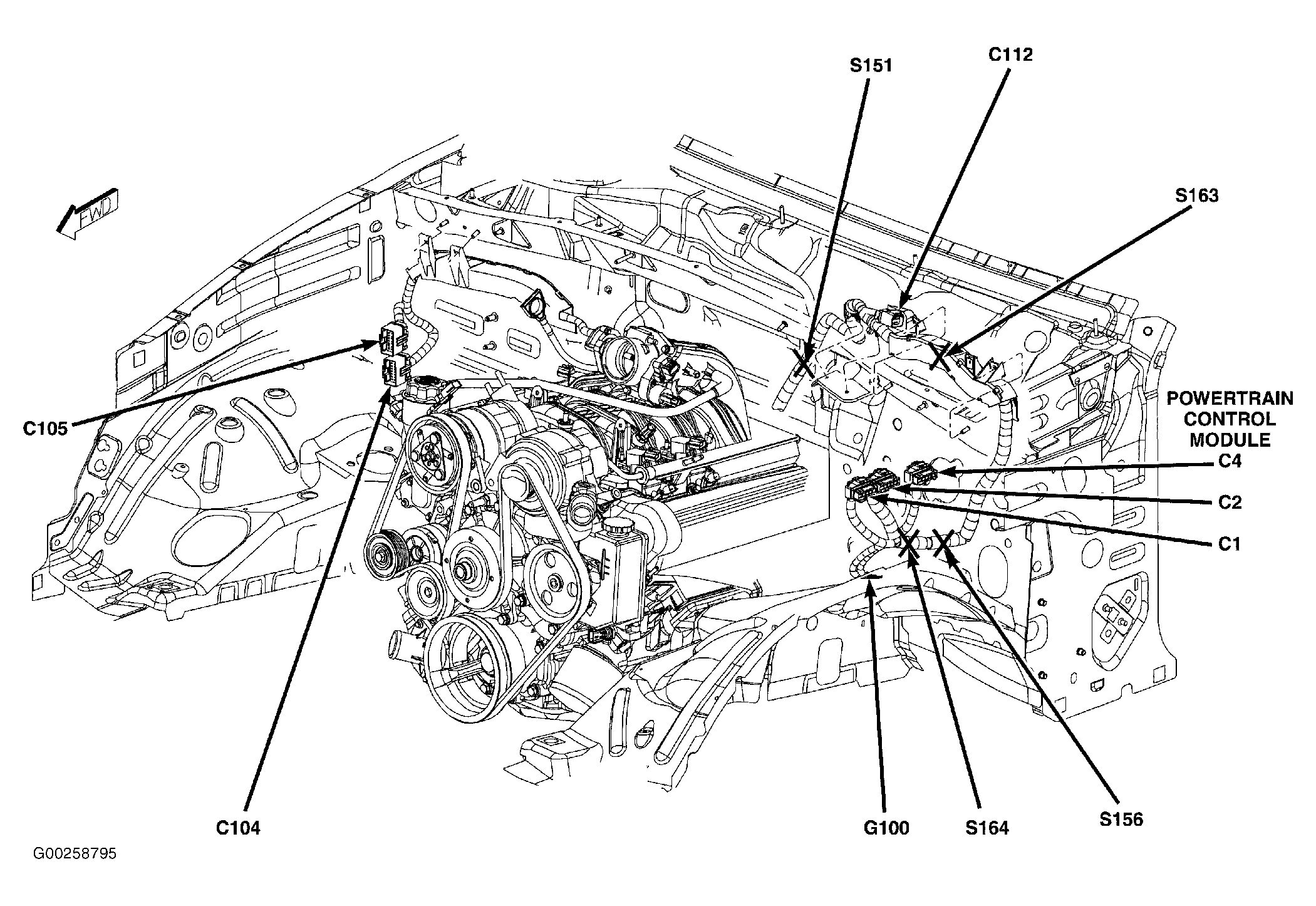

| Powertrain Control Module (3.7L) | Left side of engine compartment. See Figure . |
| Sentry Key Immobilizer Module | On right side of steering column. |

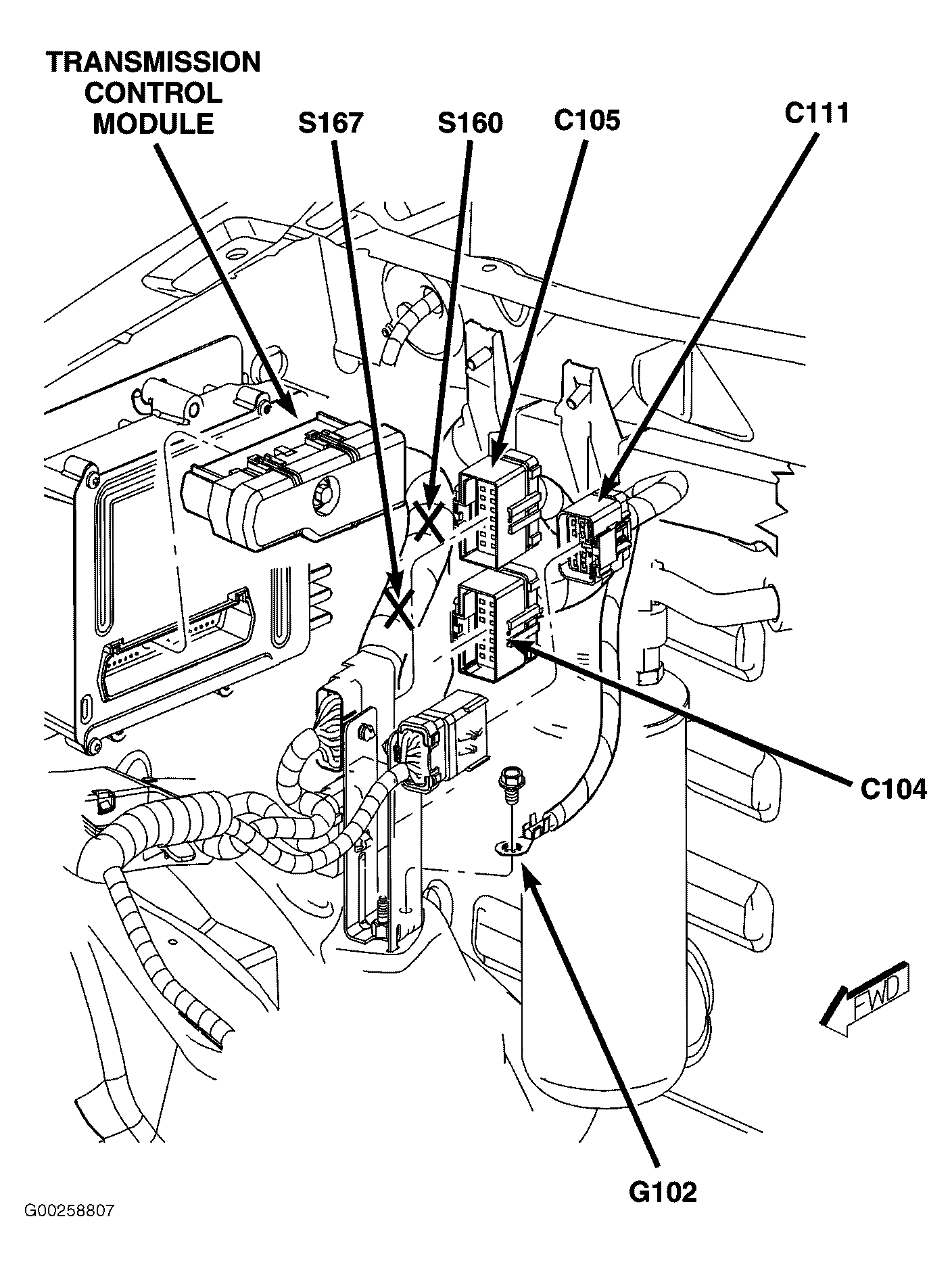

| Transmission Control Module (Diesel) | Right rear of engine compartment. See Figure . |
