Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

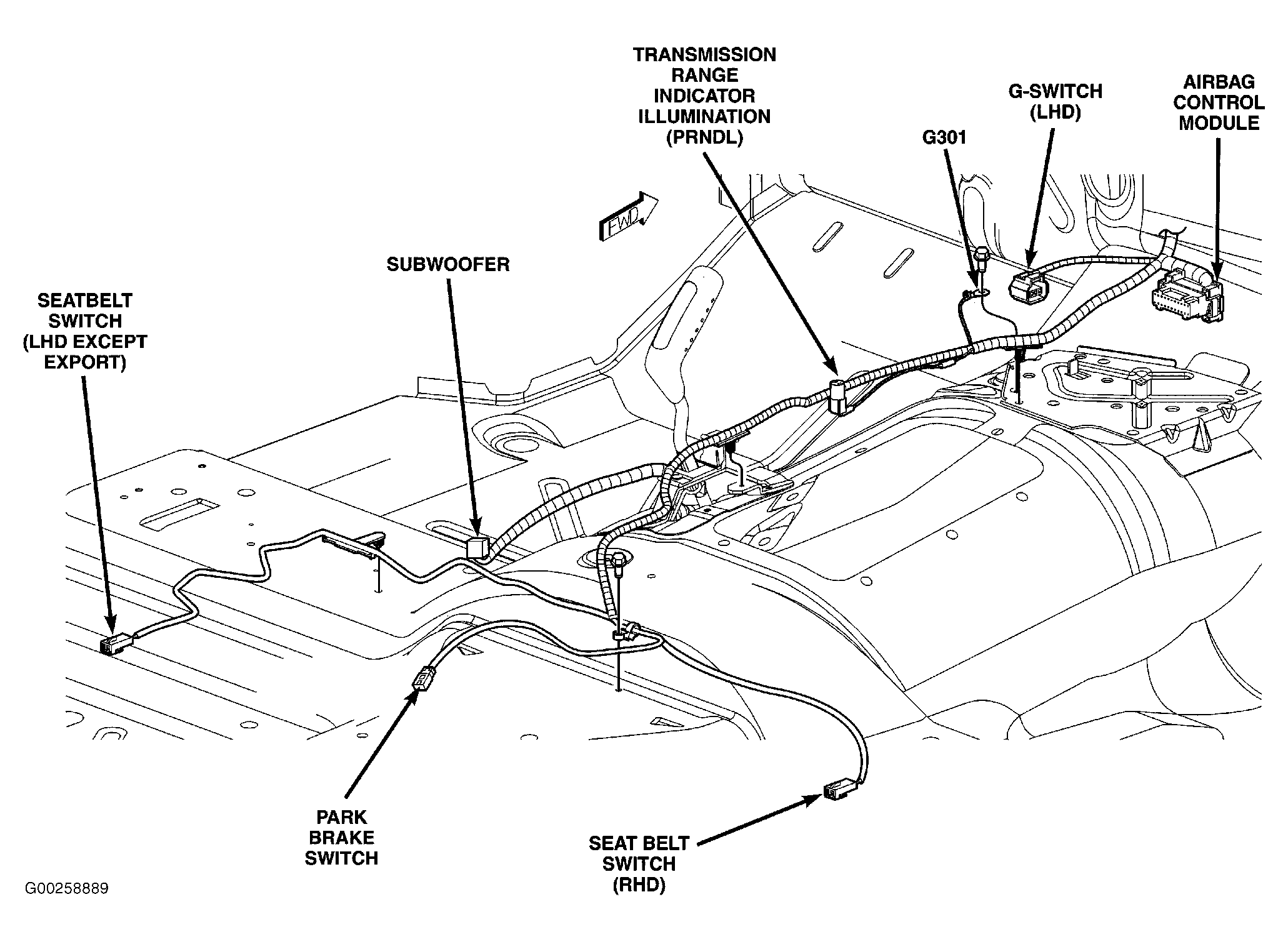

| Airbag Control Module | Front of floorpan tunnel. See Figure . |

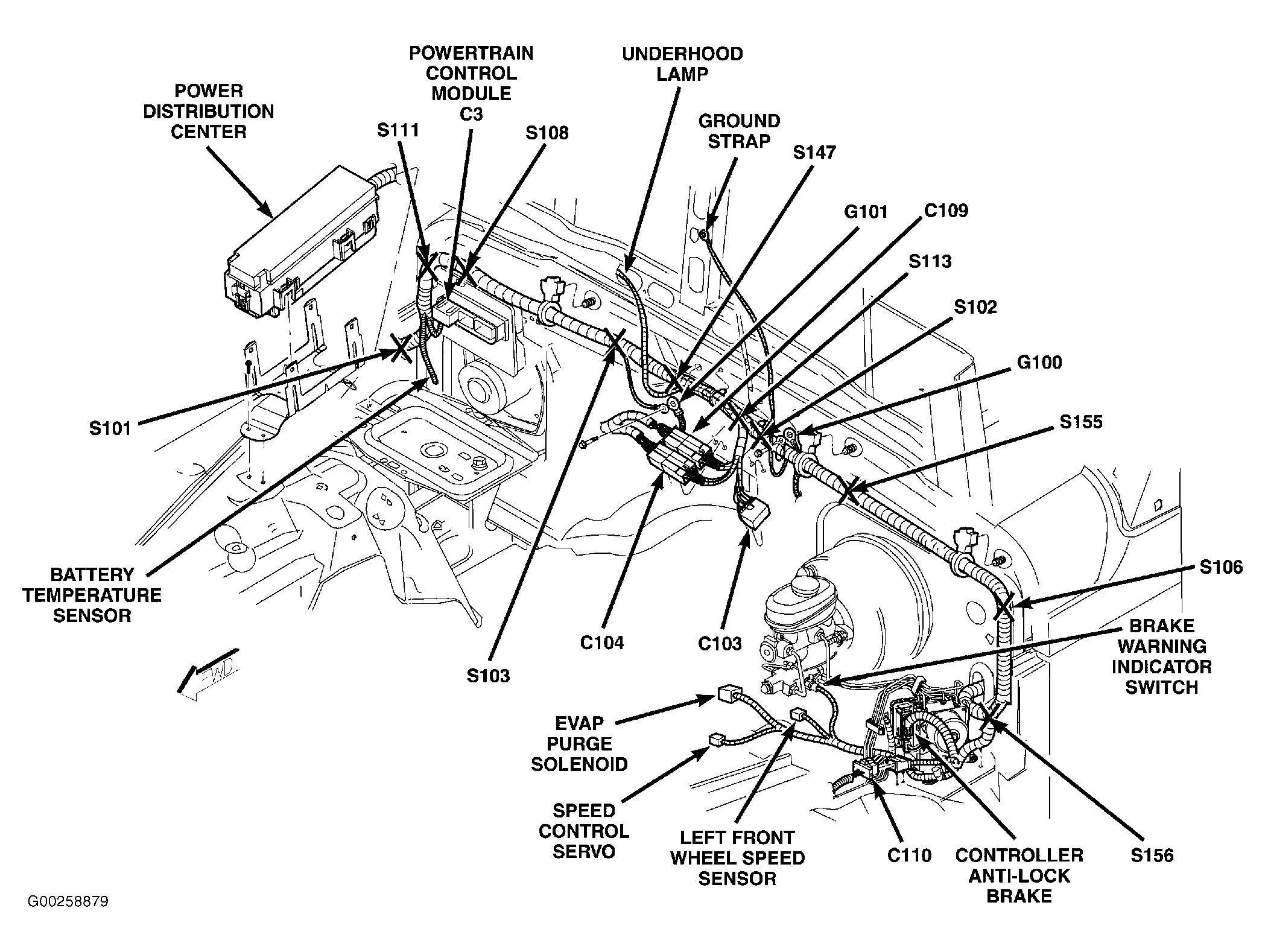

| Controller Anti-Lock Brake | At left rear corner of engine compartment. See Figure . |
| Daytime Running Lamp (DRL) Module | In rear of engine compartment, on firewall. |
| Powertrain Control Module | In right rear of engine compartment, on firewall. See Figure . |

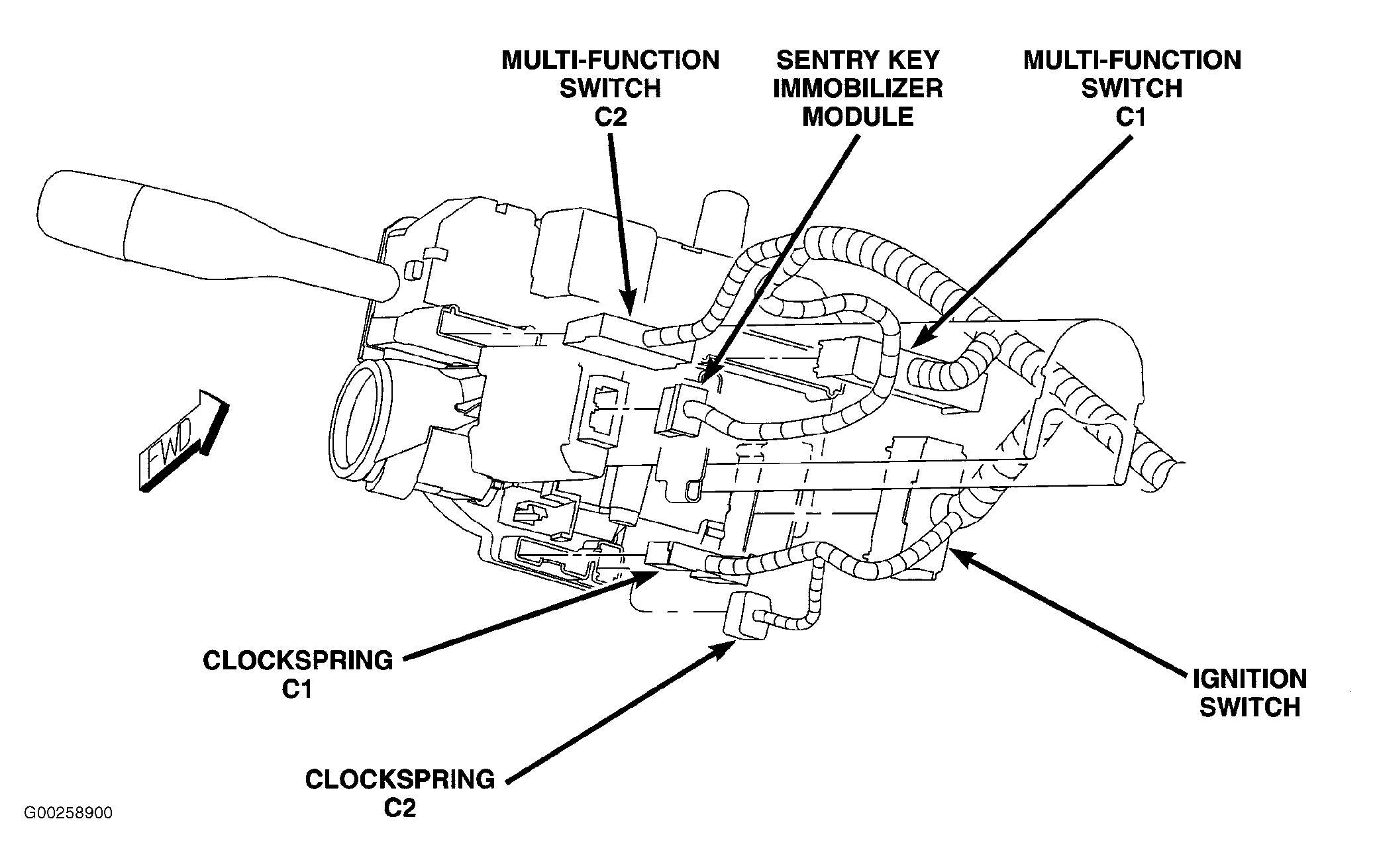

| Sentry Key Immobilizer Module | On steering column, near ignition lock cylinder. See Figure . |

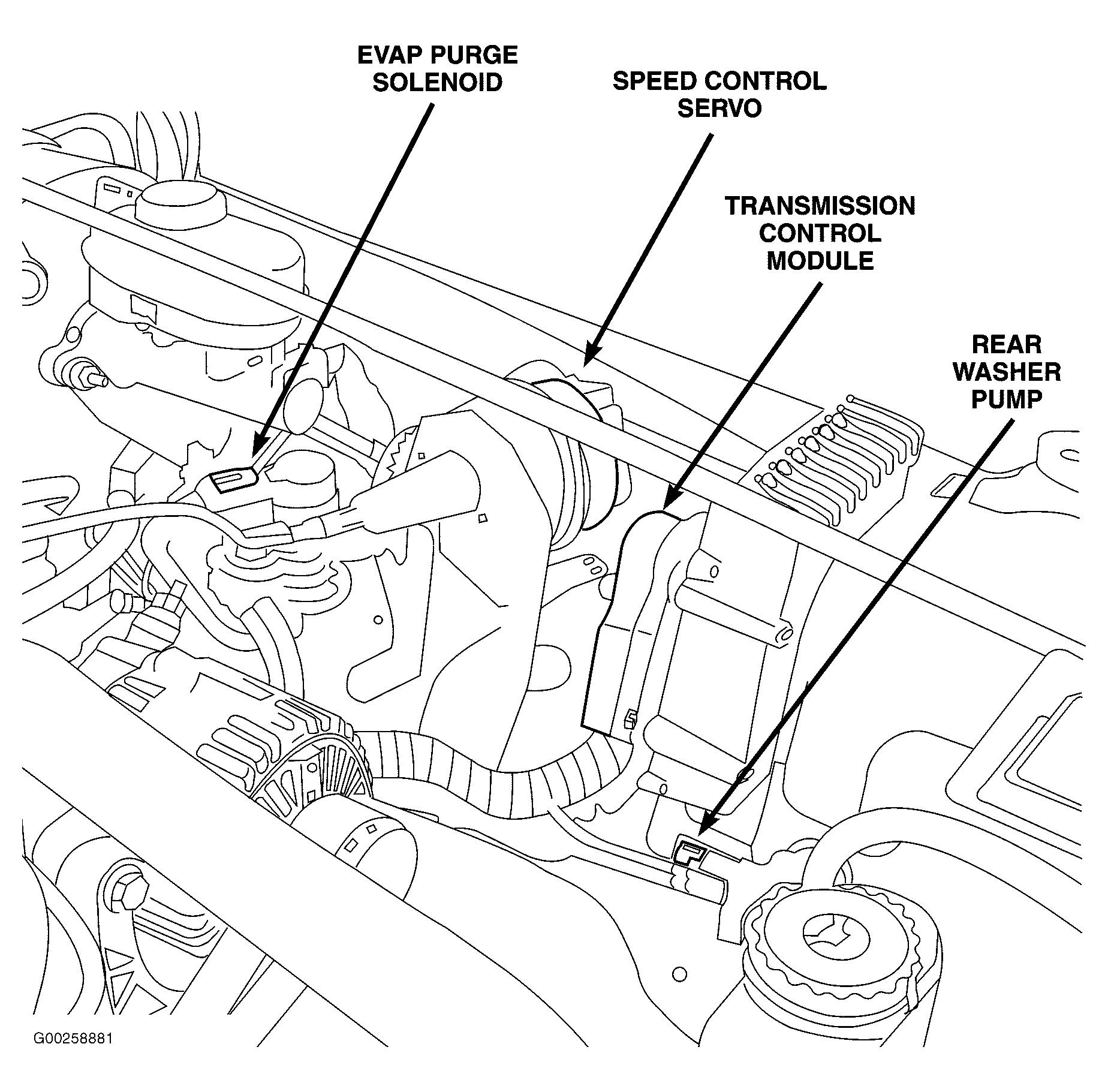

| Transmission Control Module | On left fender shield. See Figure . |
