Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Unit | At left rear of engine compartment. |
| Air Bag Control Unit | At rear of center console. See Figure. |

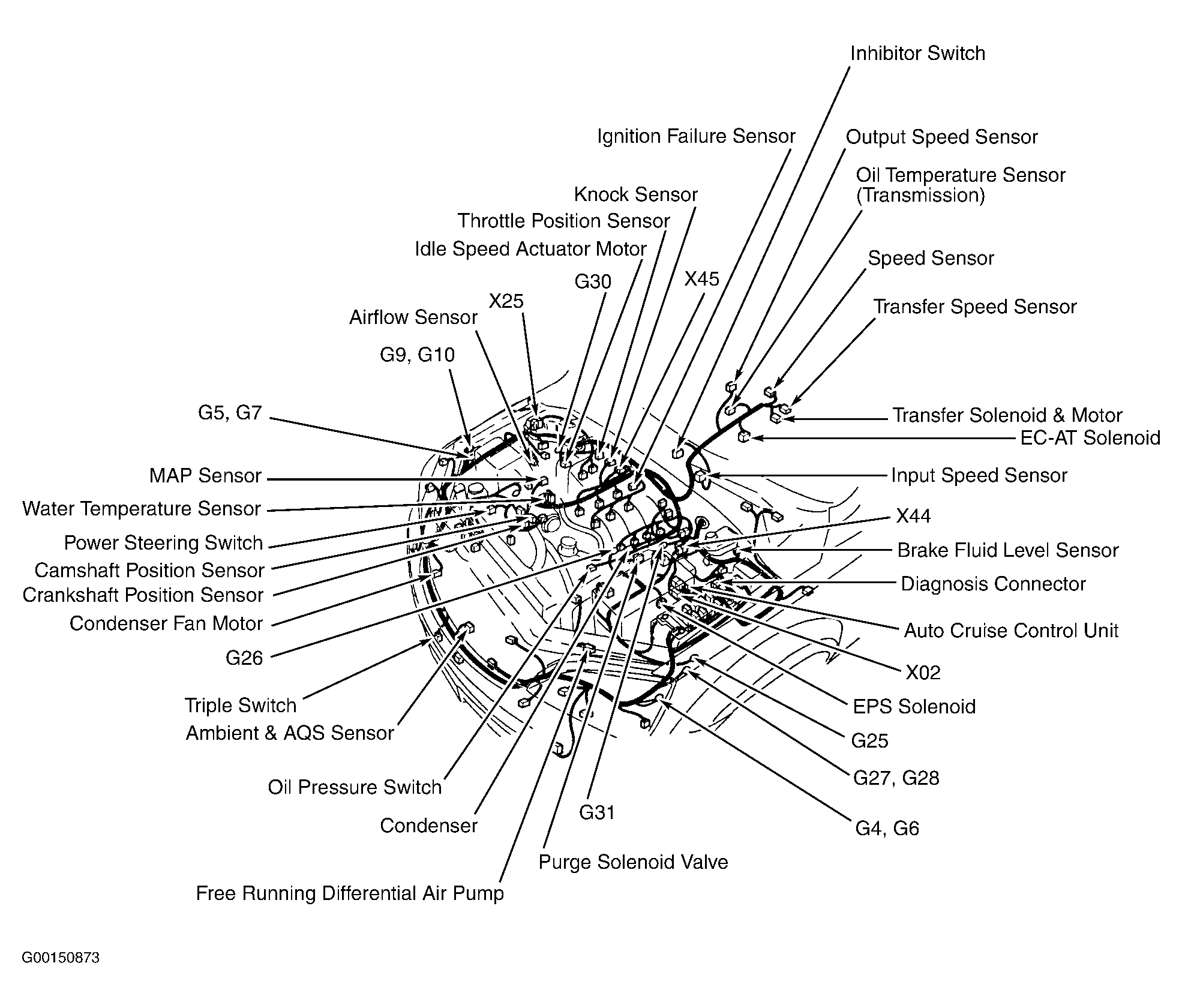

| Auto Cruise Control Unit | At left rear corner of engine compartment. See Figure. |

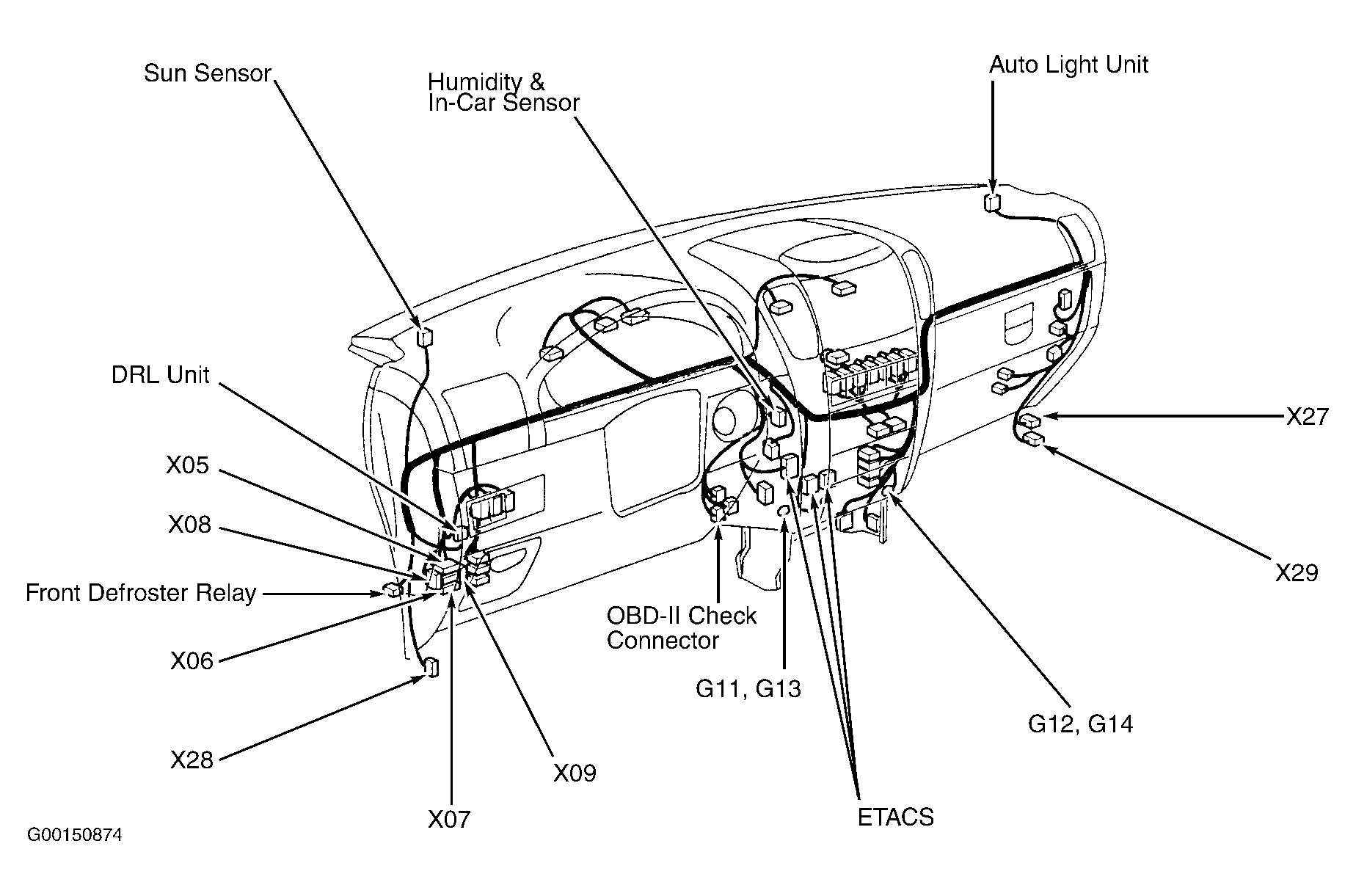

| DRL Unit | Behind left side of dash. See Figure. |

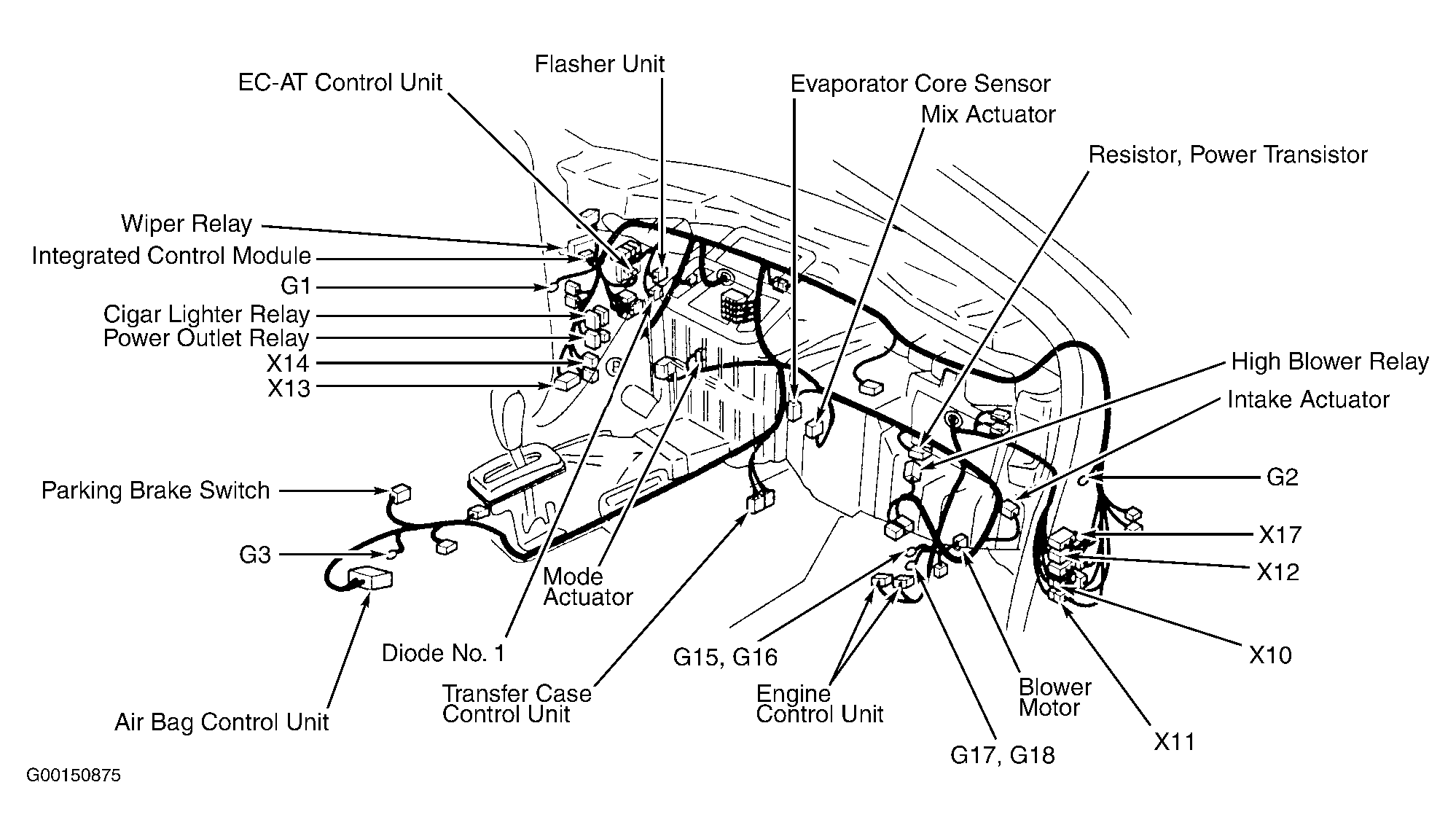

| EC-AT Control Unit | Behind left kick panel. See Figure. |
| Engine Control Unit | Behind lower right side of dash. See Figure. |
| EPS Unit | Behind center of dash. |
| ETACS | Below center of dash. See Figure. |
| Flasher Unit | Behind left side of dash. See Figure. |
| Integrated Control Module | Behind left kick panel. See Figure. |

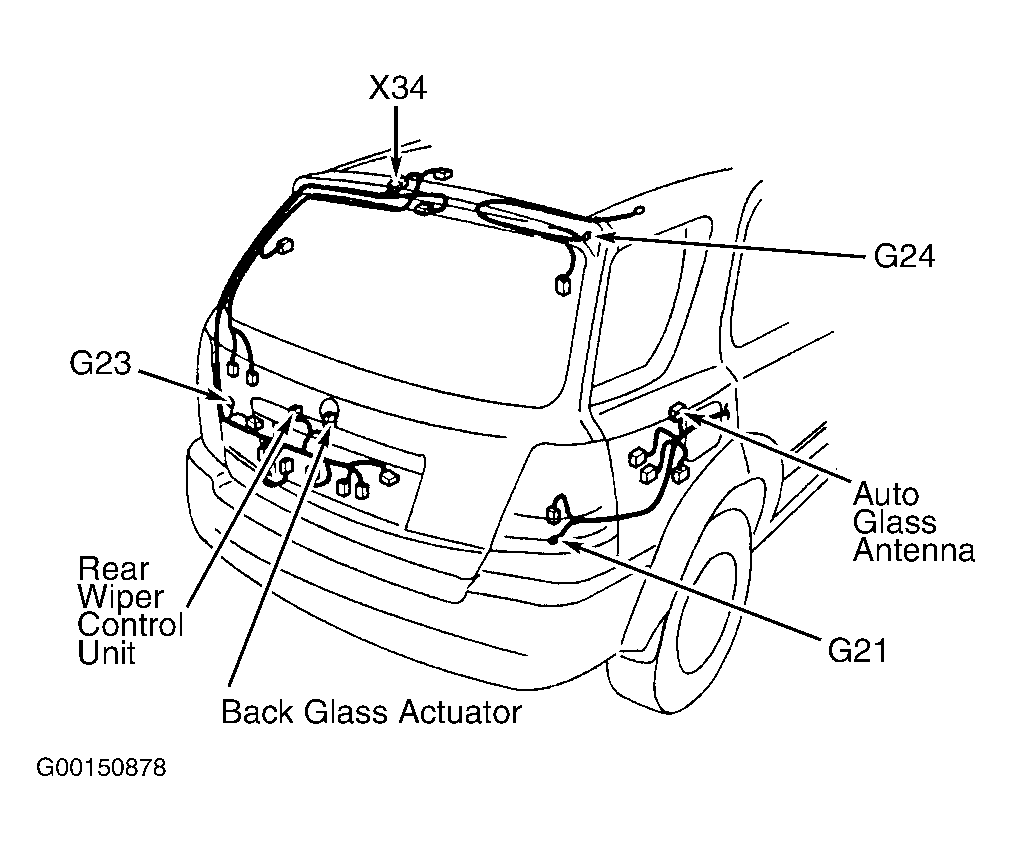

| Rear Wiper Control Unit | At lower center of back door. See Figure. |
| Transfer Case Control Unit | Below front of center console. See Figure. |
