Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

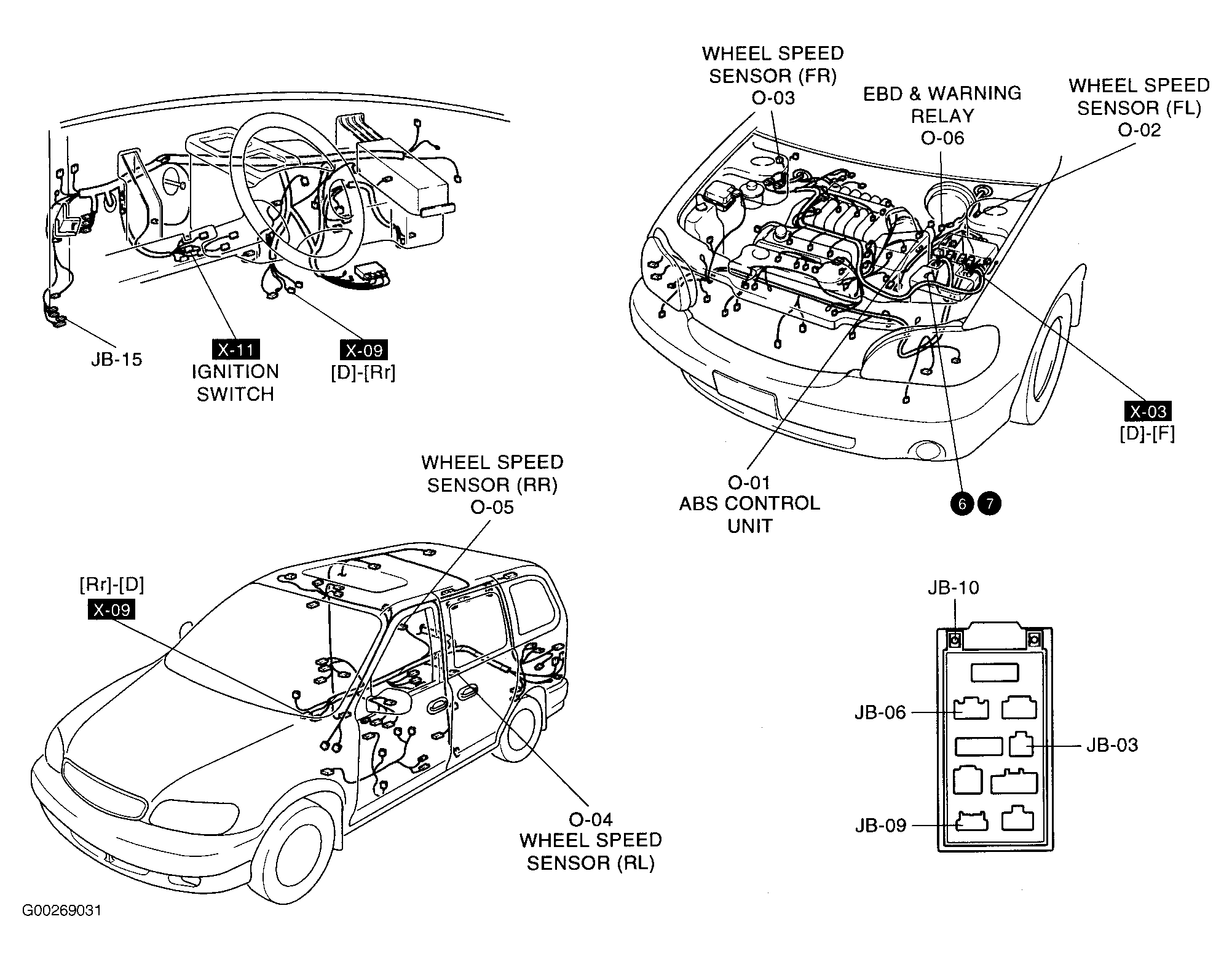

| ABS Control Unit | At left rear of engine compartment. See Figure. |

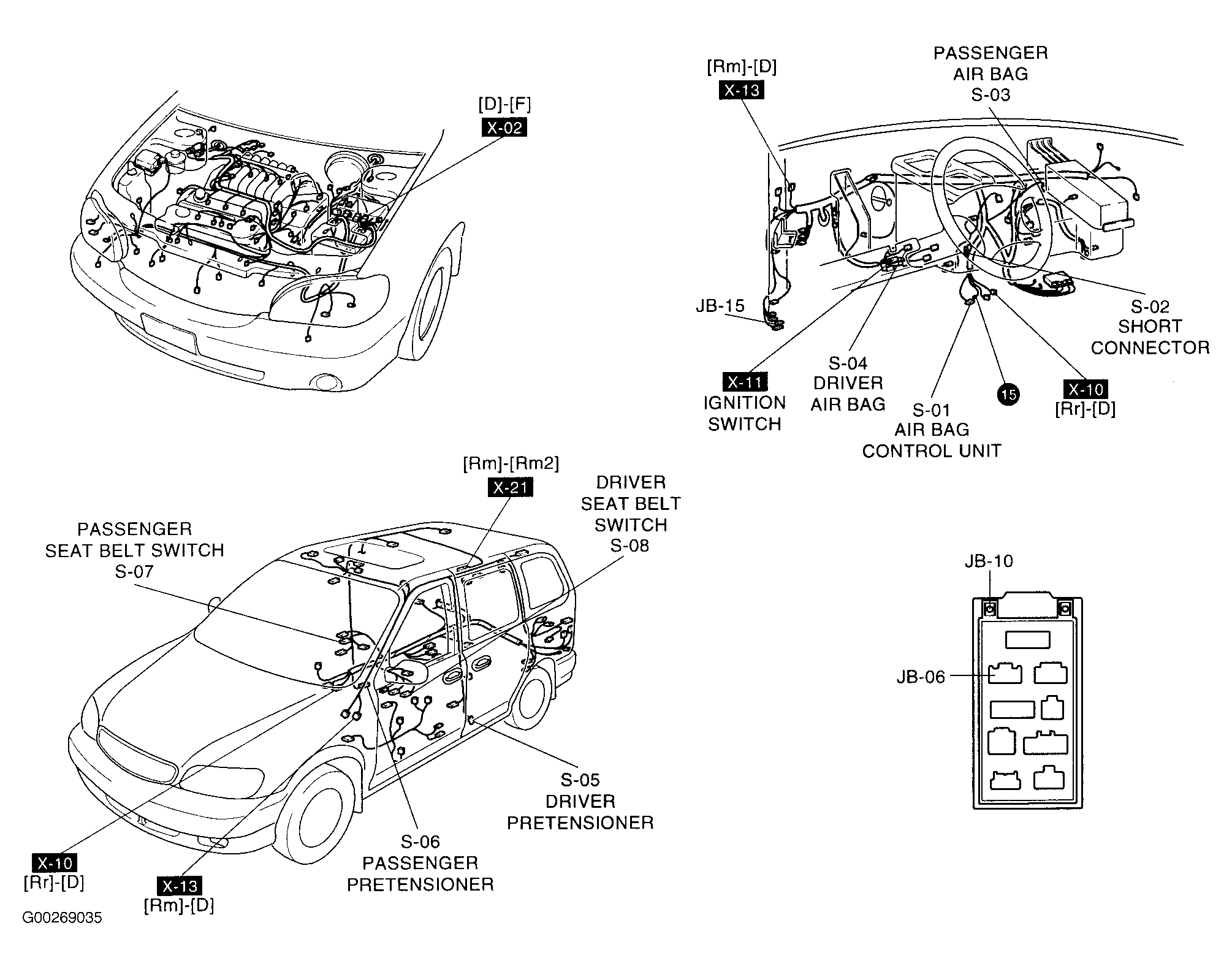

| Air Bag Control Unit | At lower center of dash, on floor tunnel. See Figure. |

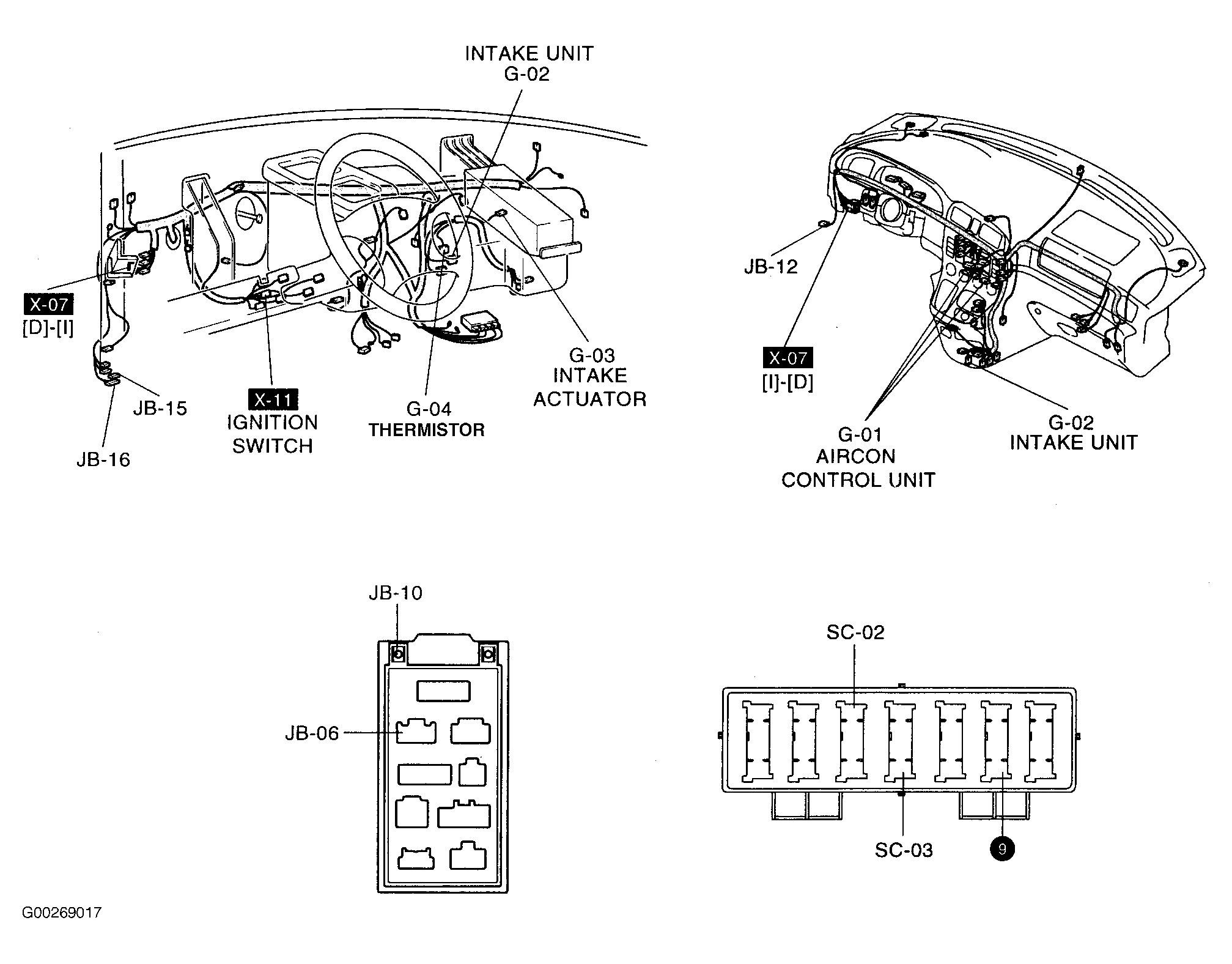

| AIRCON Control Unit | Center of dash. See Figure. |

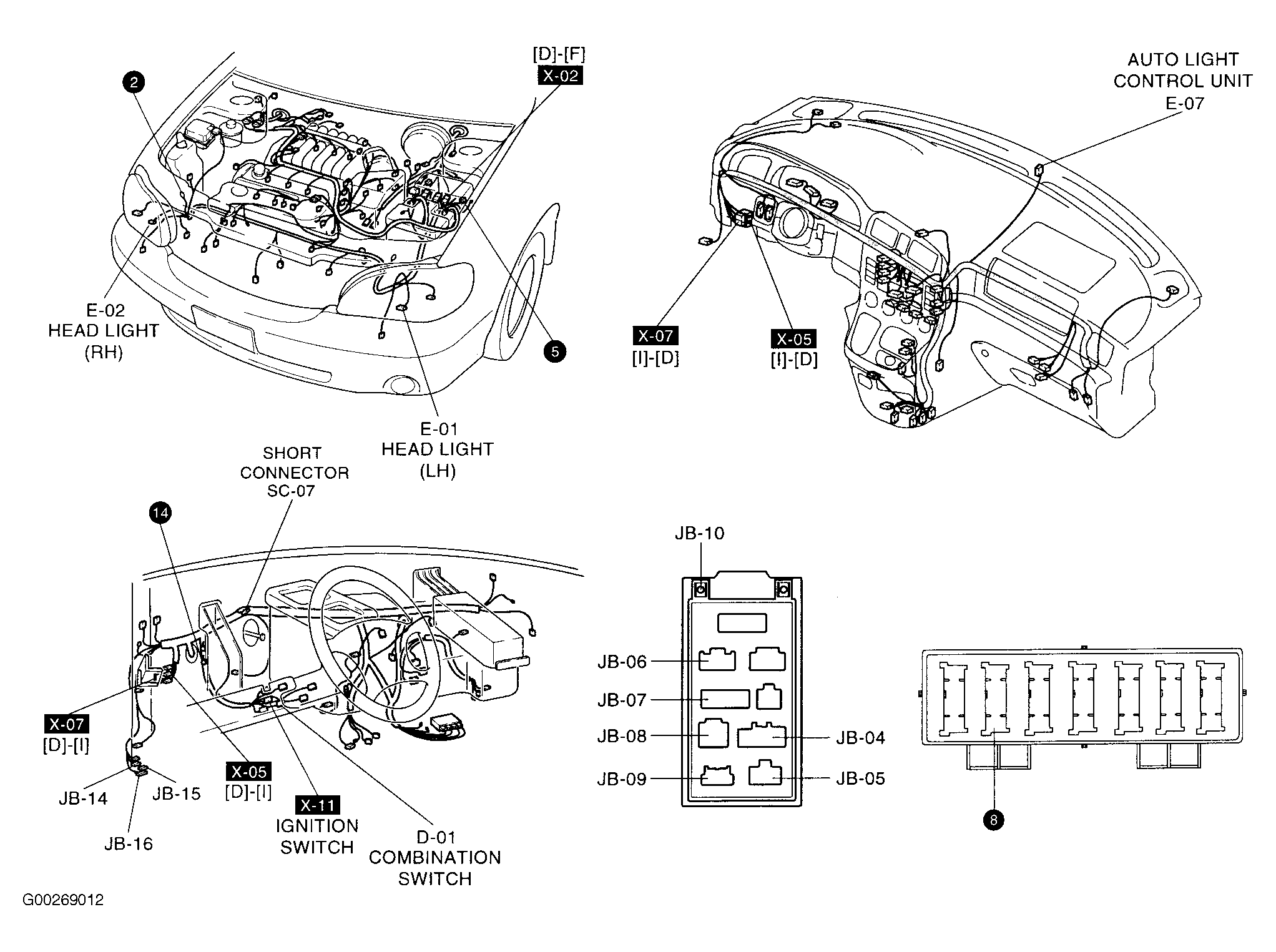

| Auto Light Control Unit | Behind center of dash. See Figure. |

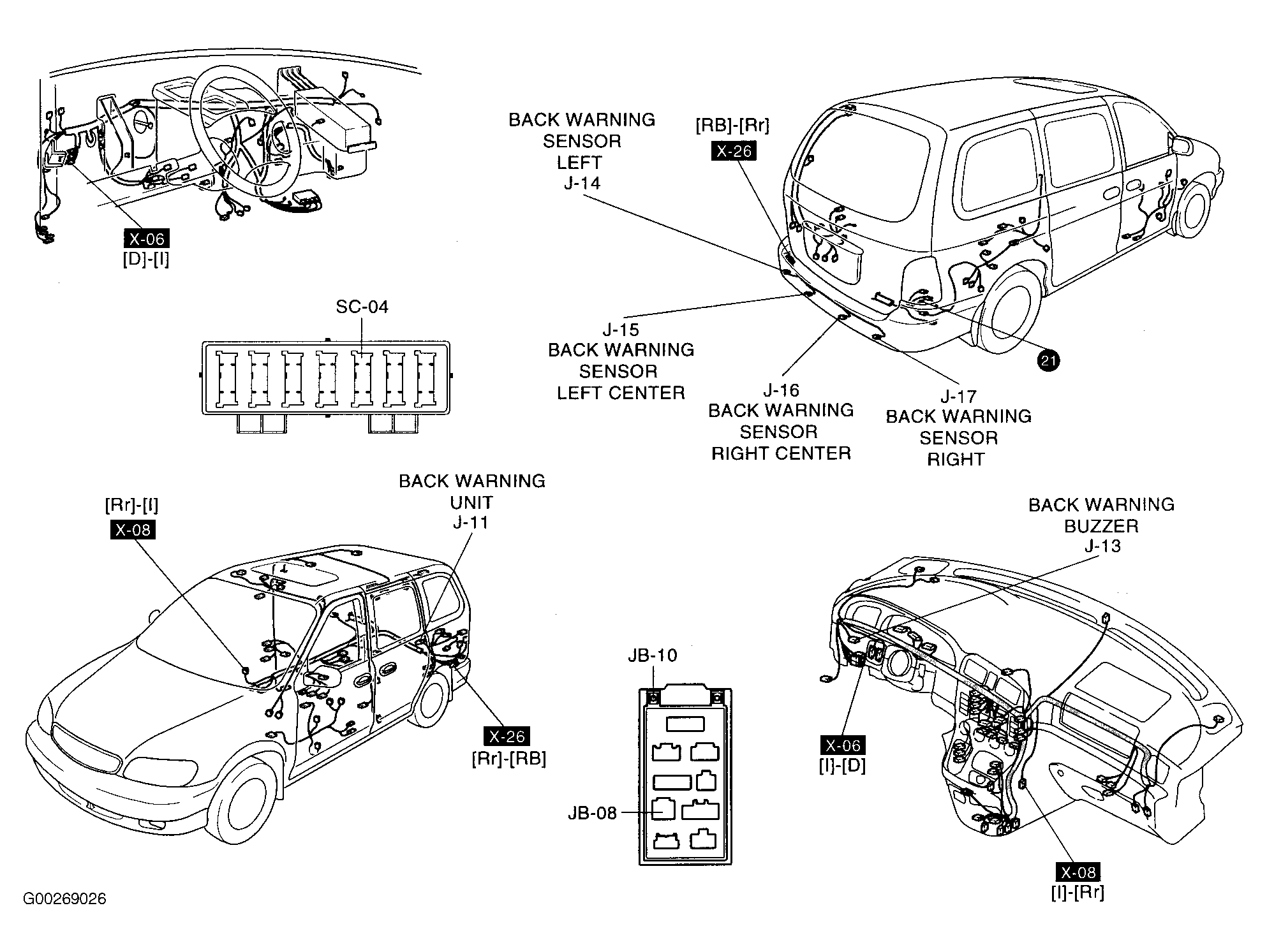

| Back Warning Unit | In rear of vehicle. See Figure. |

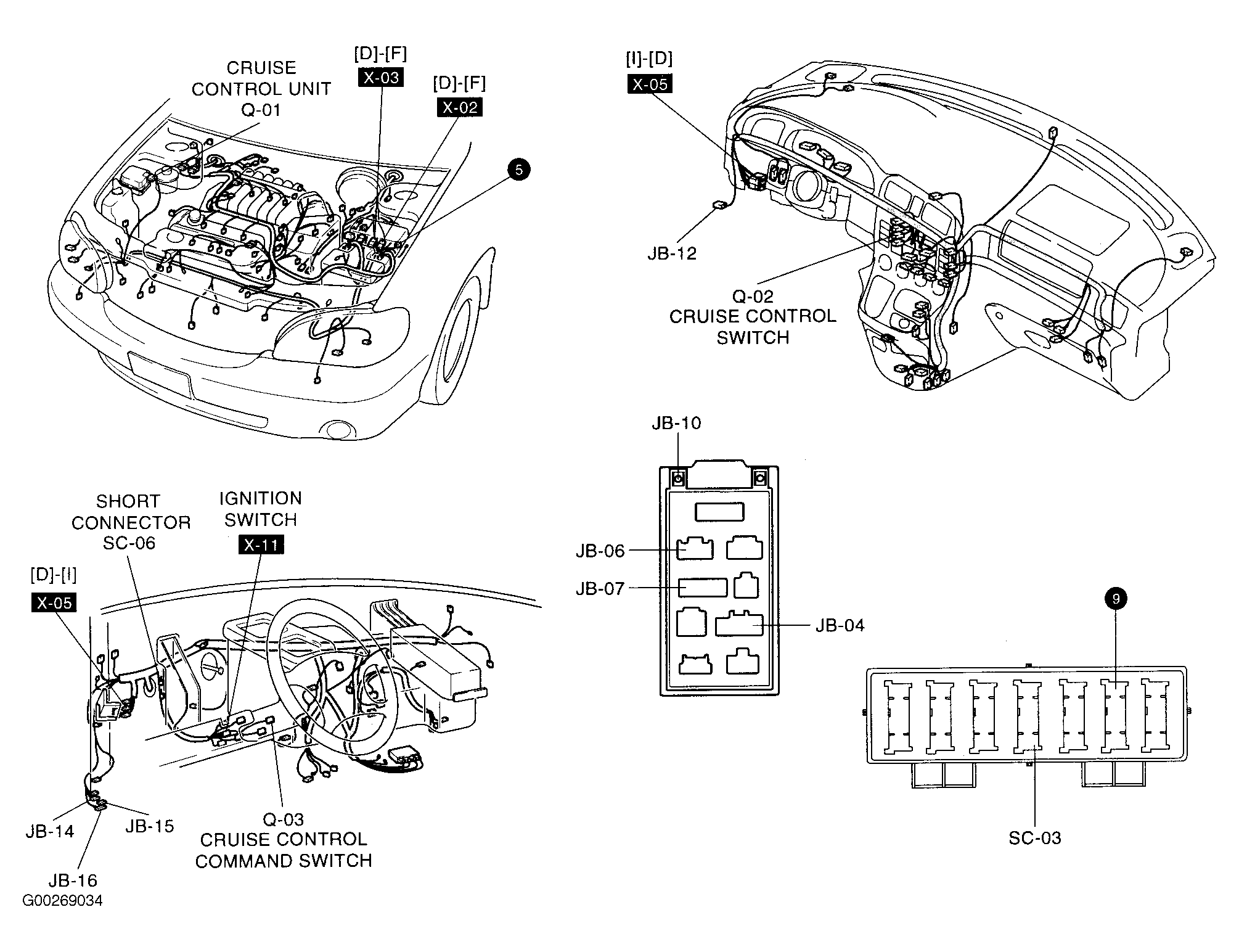

| Cruise Control Unit | At right rear of engine compartment. See Figure. |

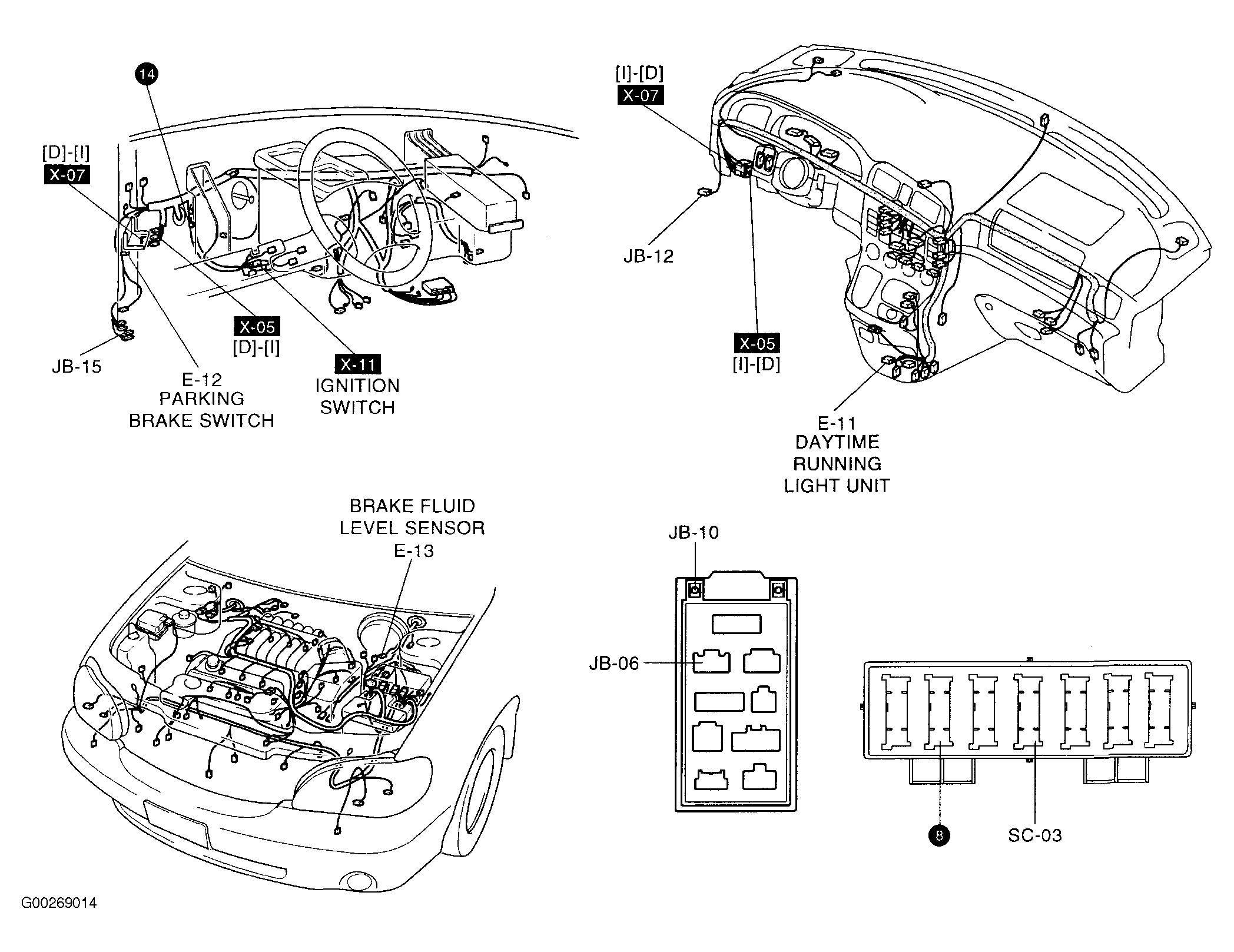

| Daytime Running Light Unit | Below center of dash. See Figure. |

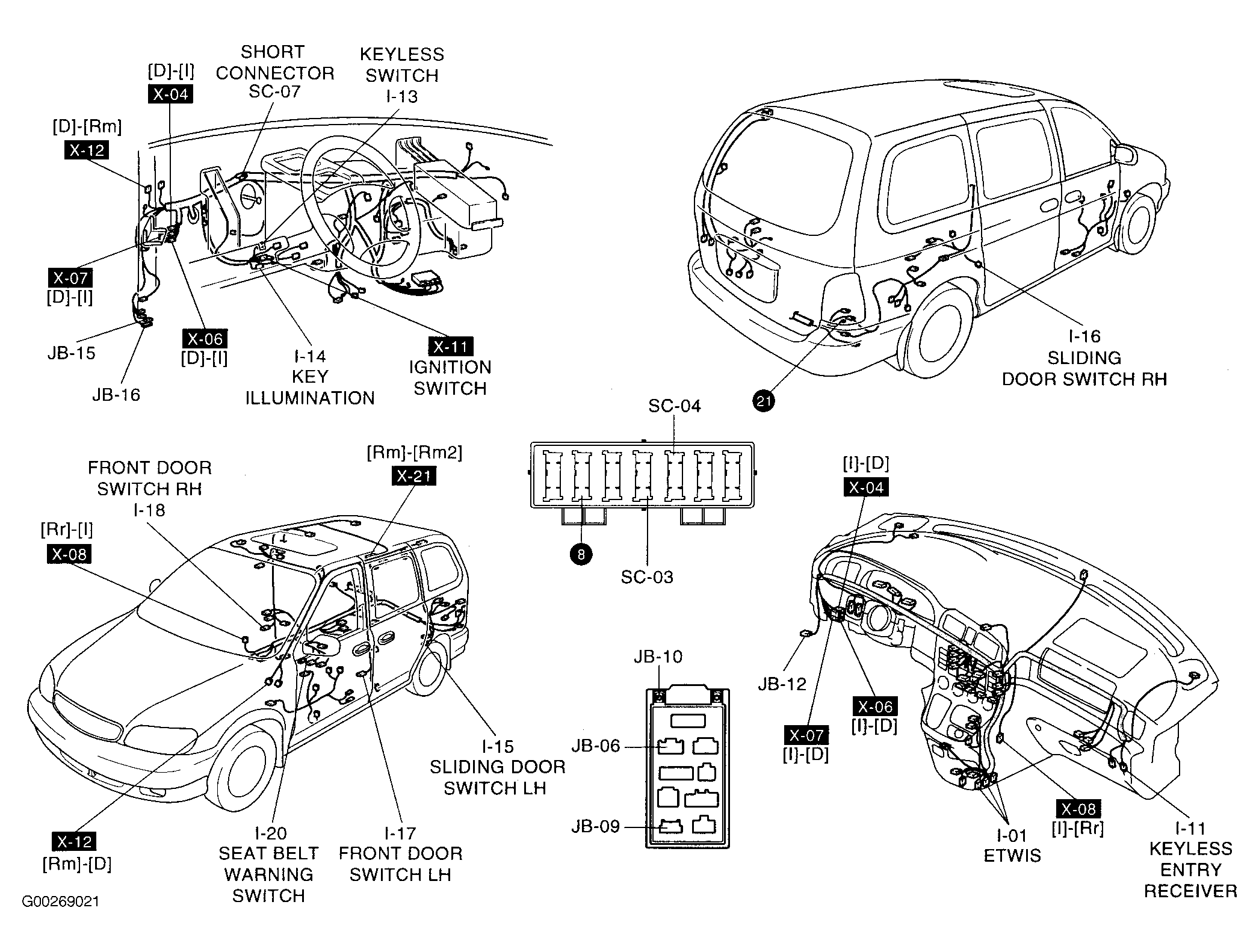

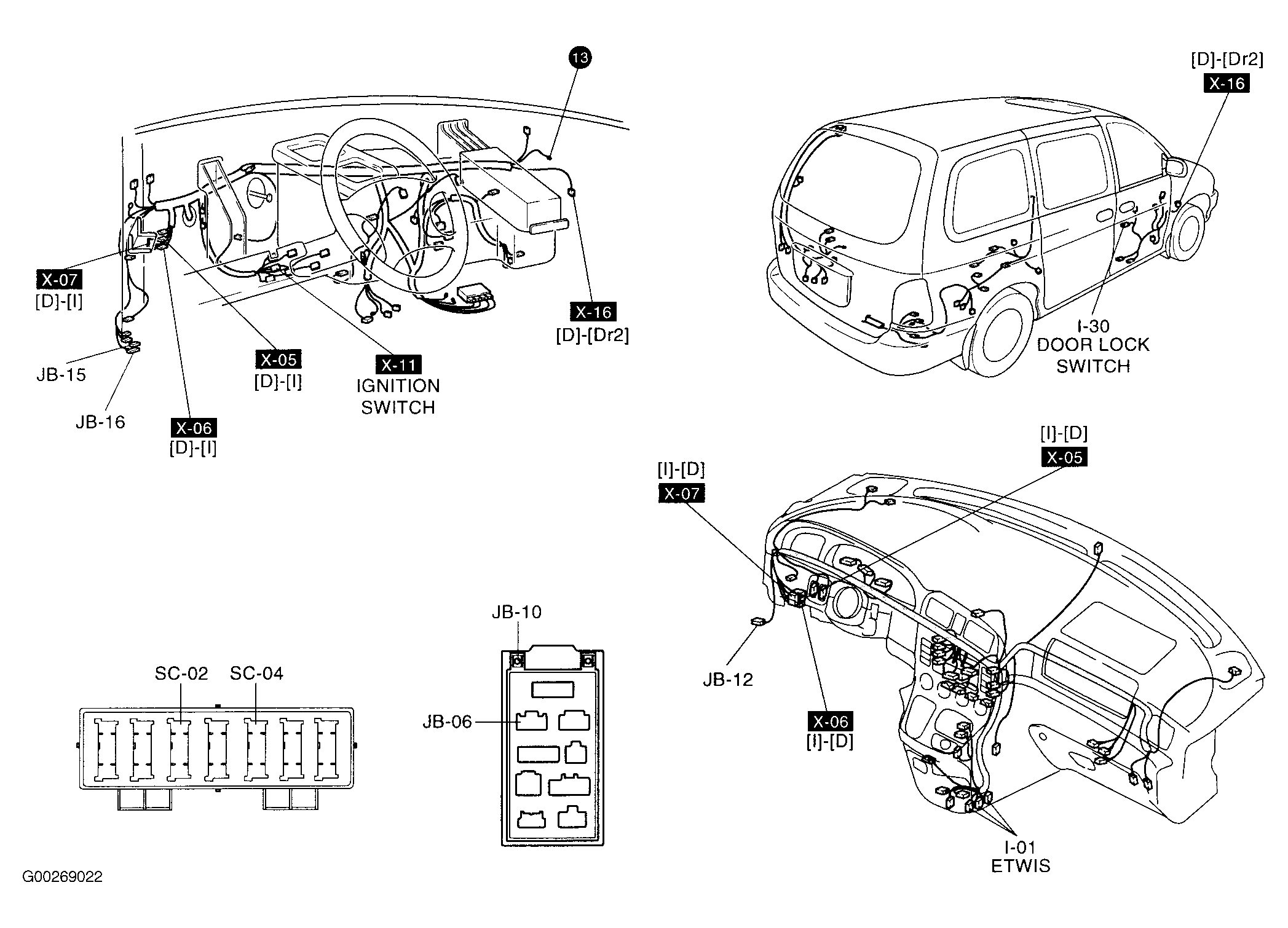

| ETWIS | Below center of dash. See Figure. |

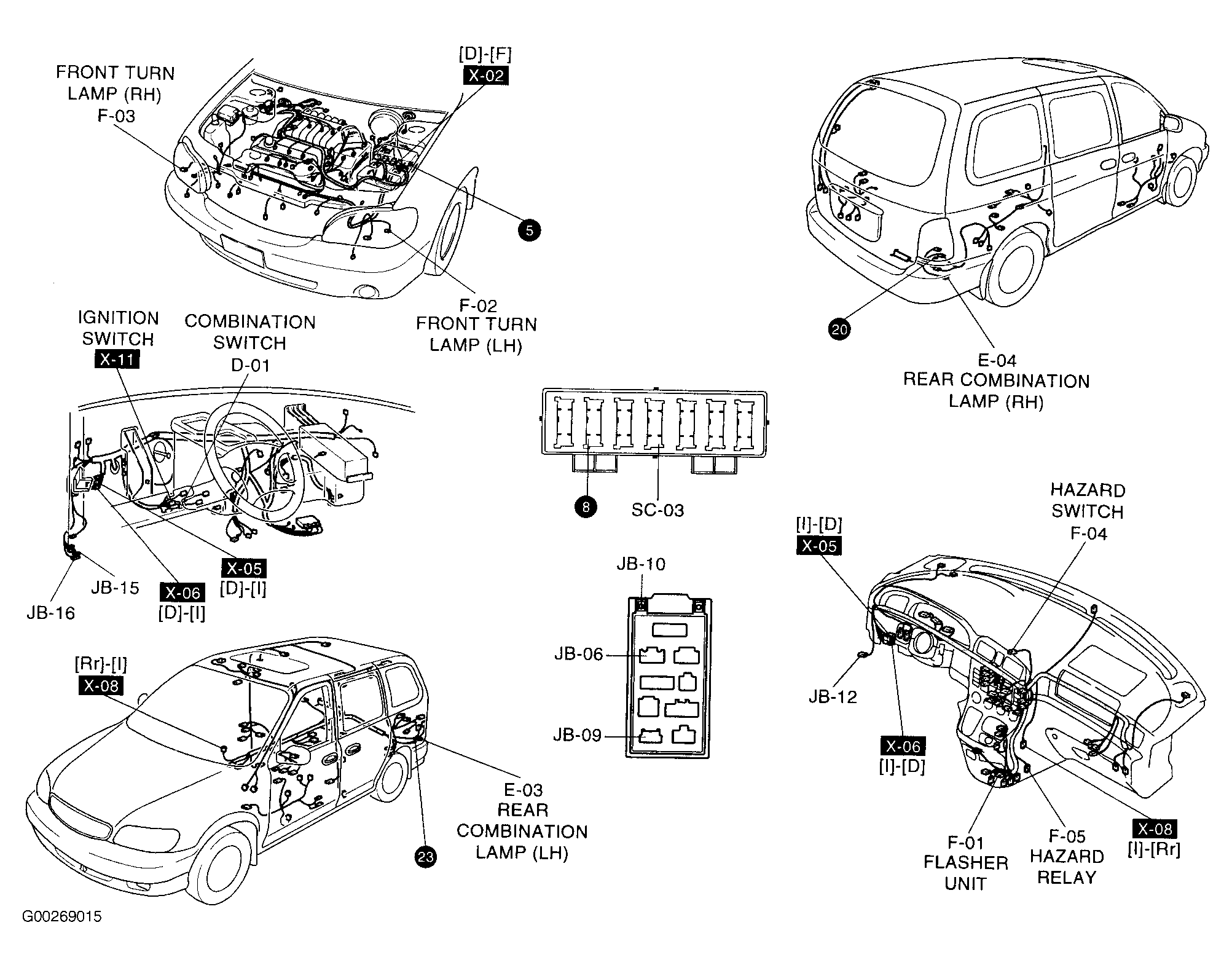

| Flasher Unit | Below center of dash. See Figure. |

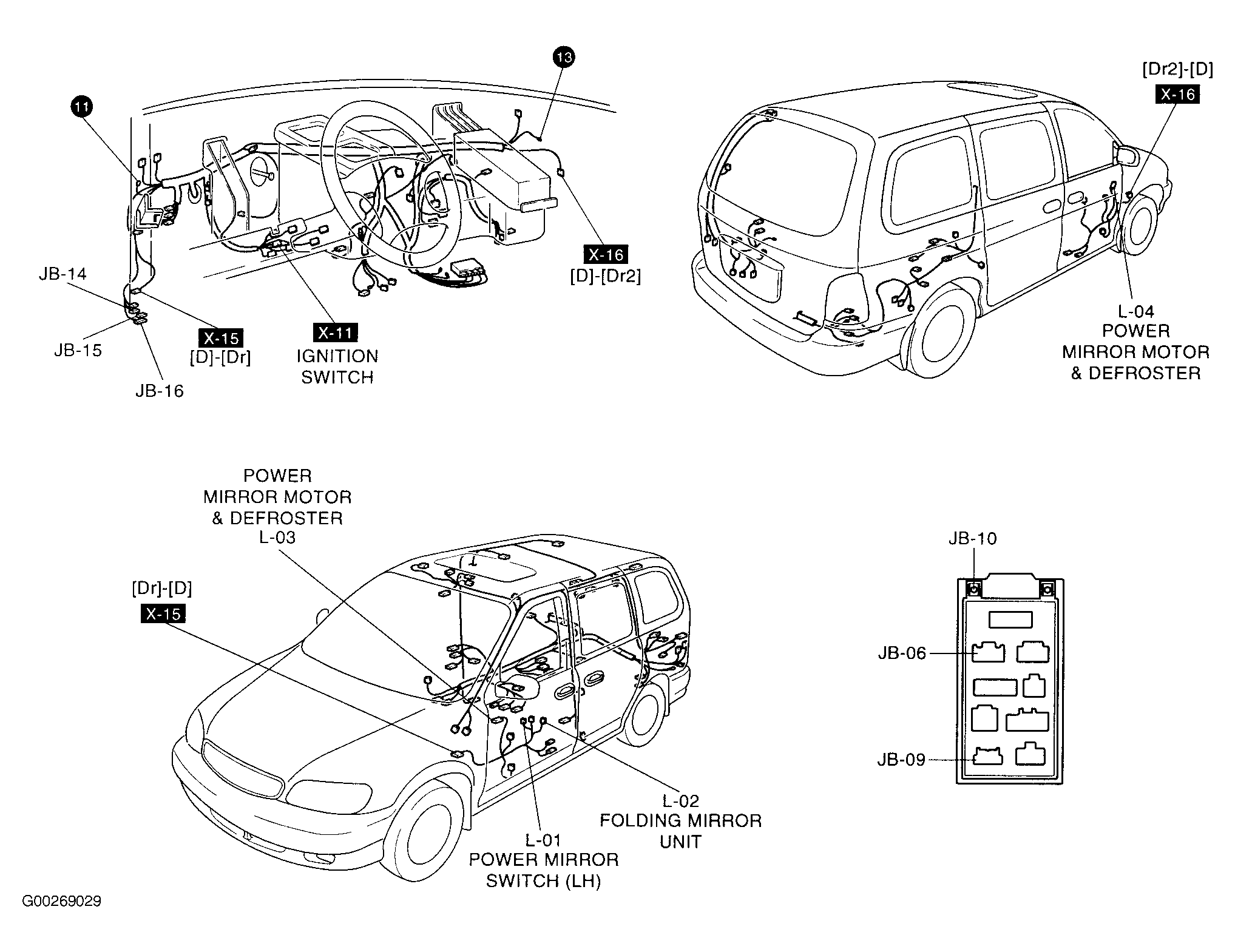

| Folding Mirror Unit | Left side of vehicle. See Figure. |

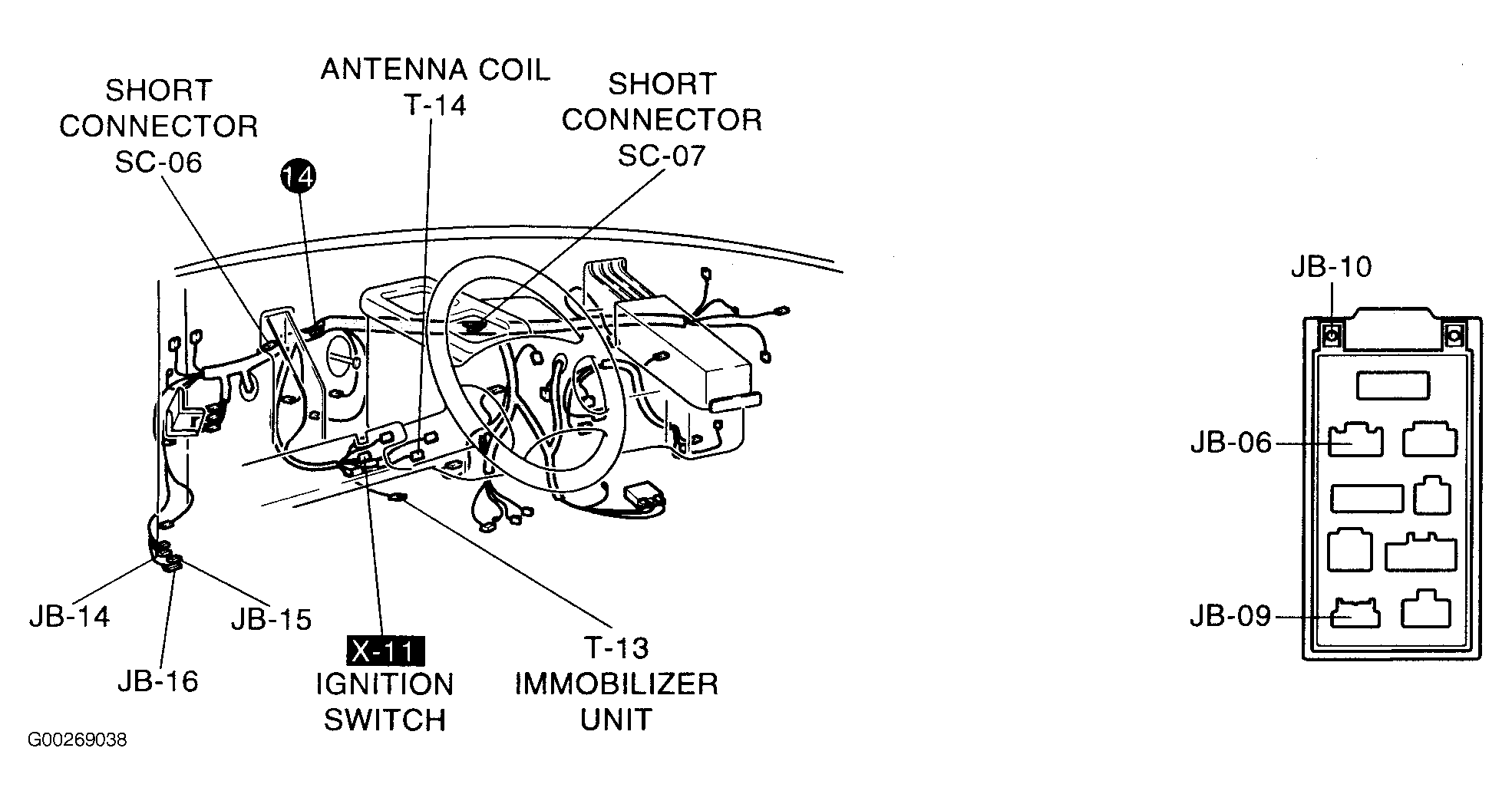

| Immobilizer Unit | Below left side of dash. See Figure. |
| Keyless Entry Receiver | Behind lower right side of dash. See Figure. |

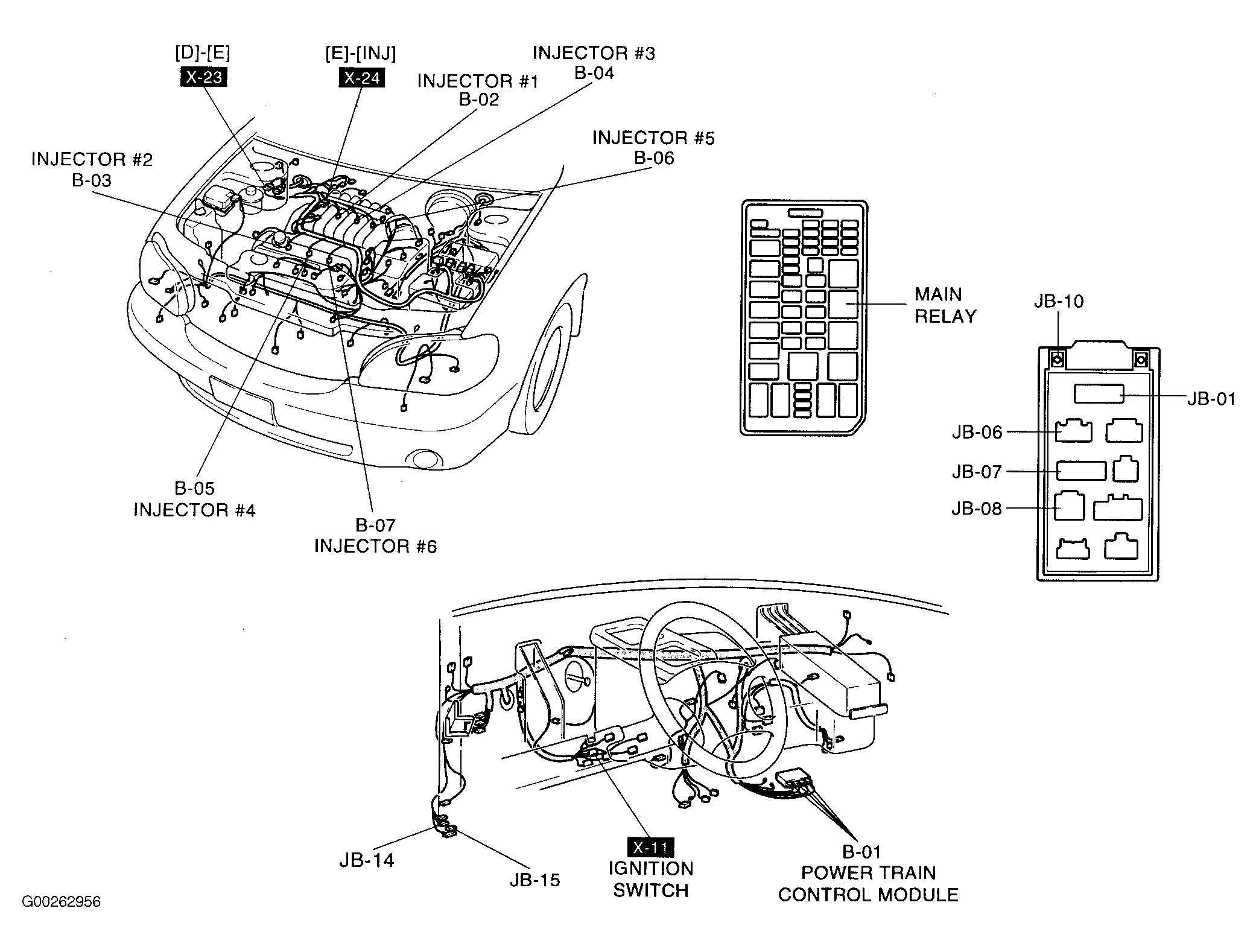

| Powertrain Control Module | Under right front passenger floorboard. See Figure. |

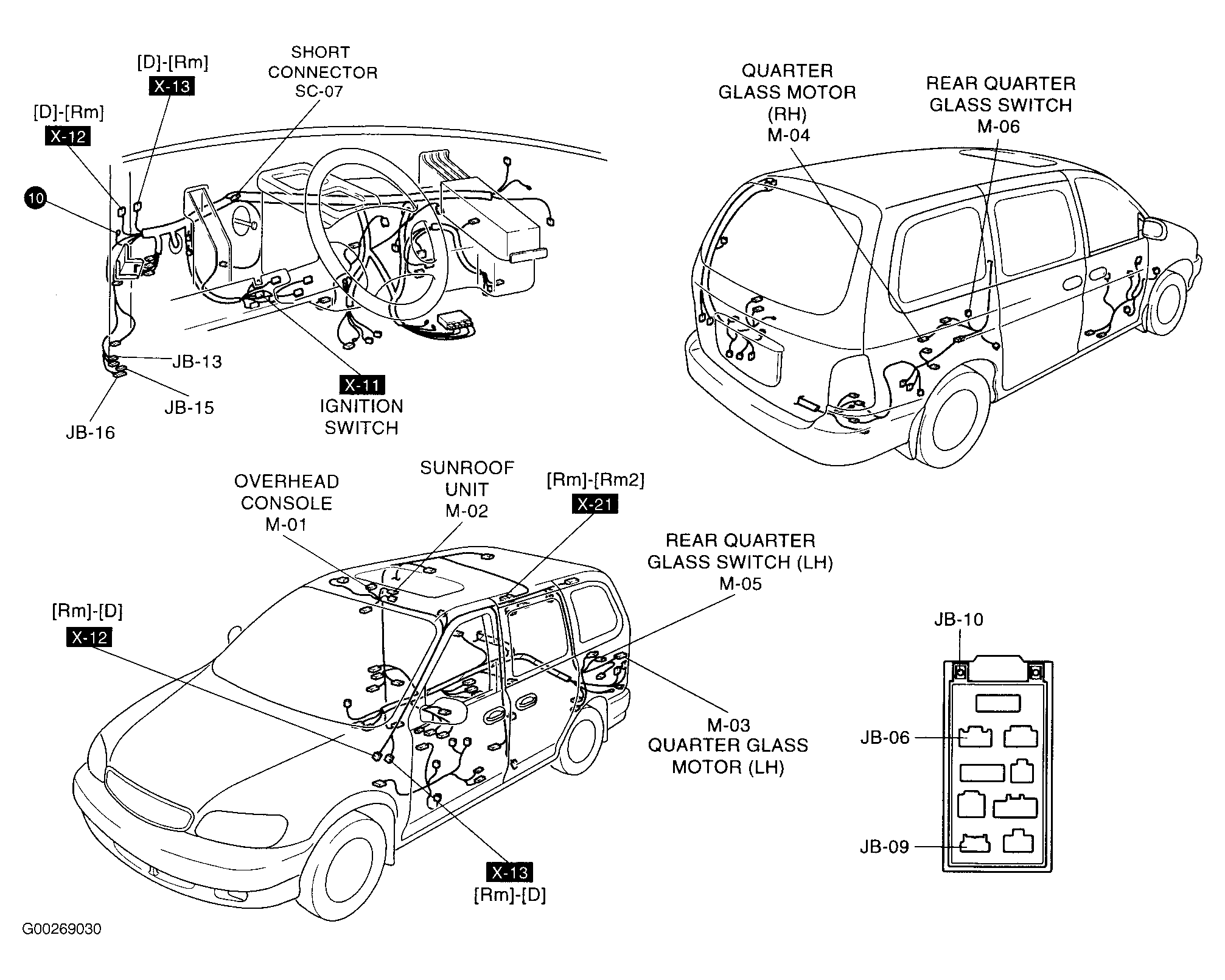

| Sun Roof Unit | At front center of roof, in sun roof unit. See Figure. |

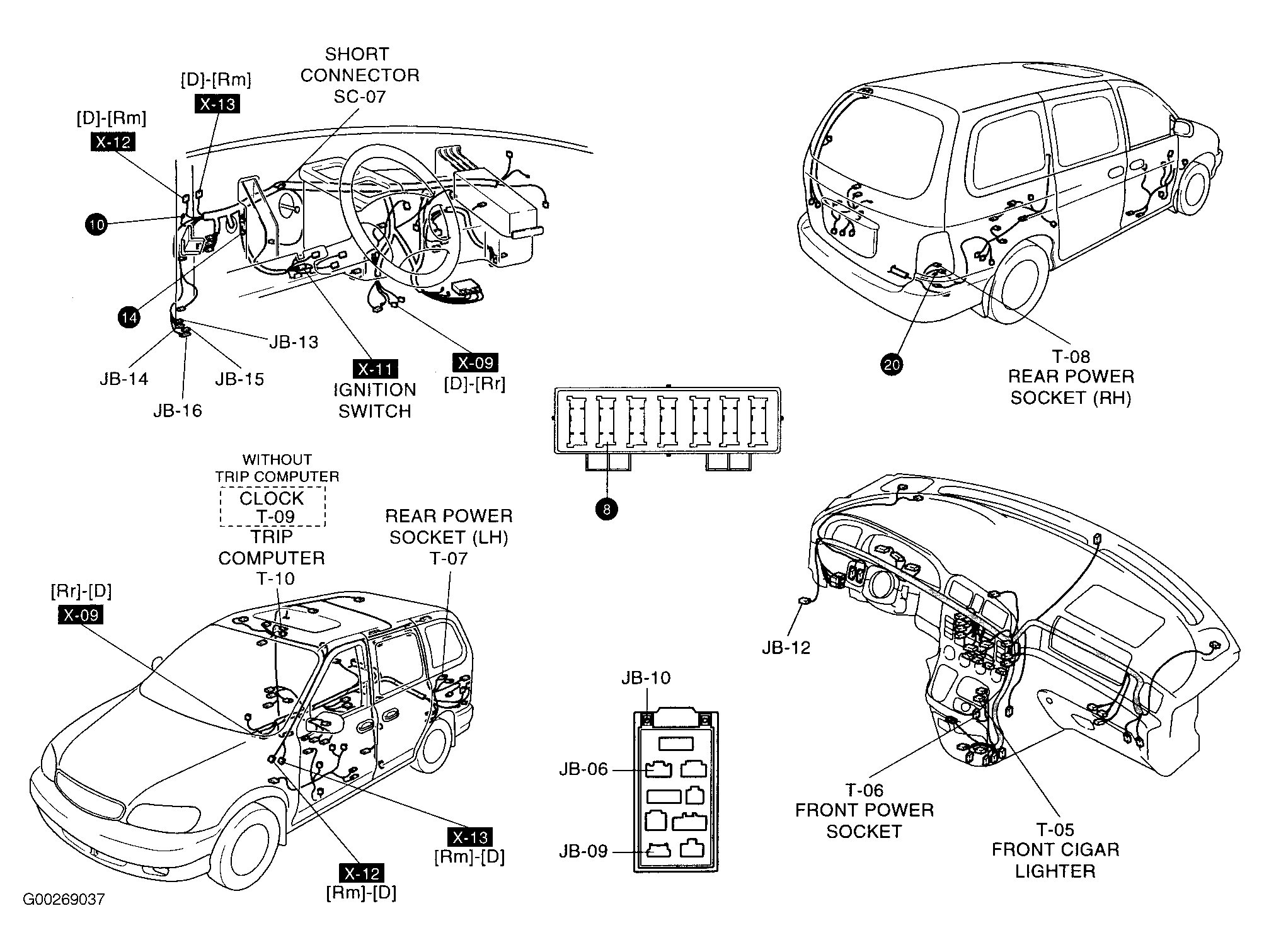

| Trip Computer | In overhead console. See Figure. |
