Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

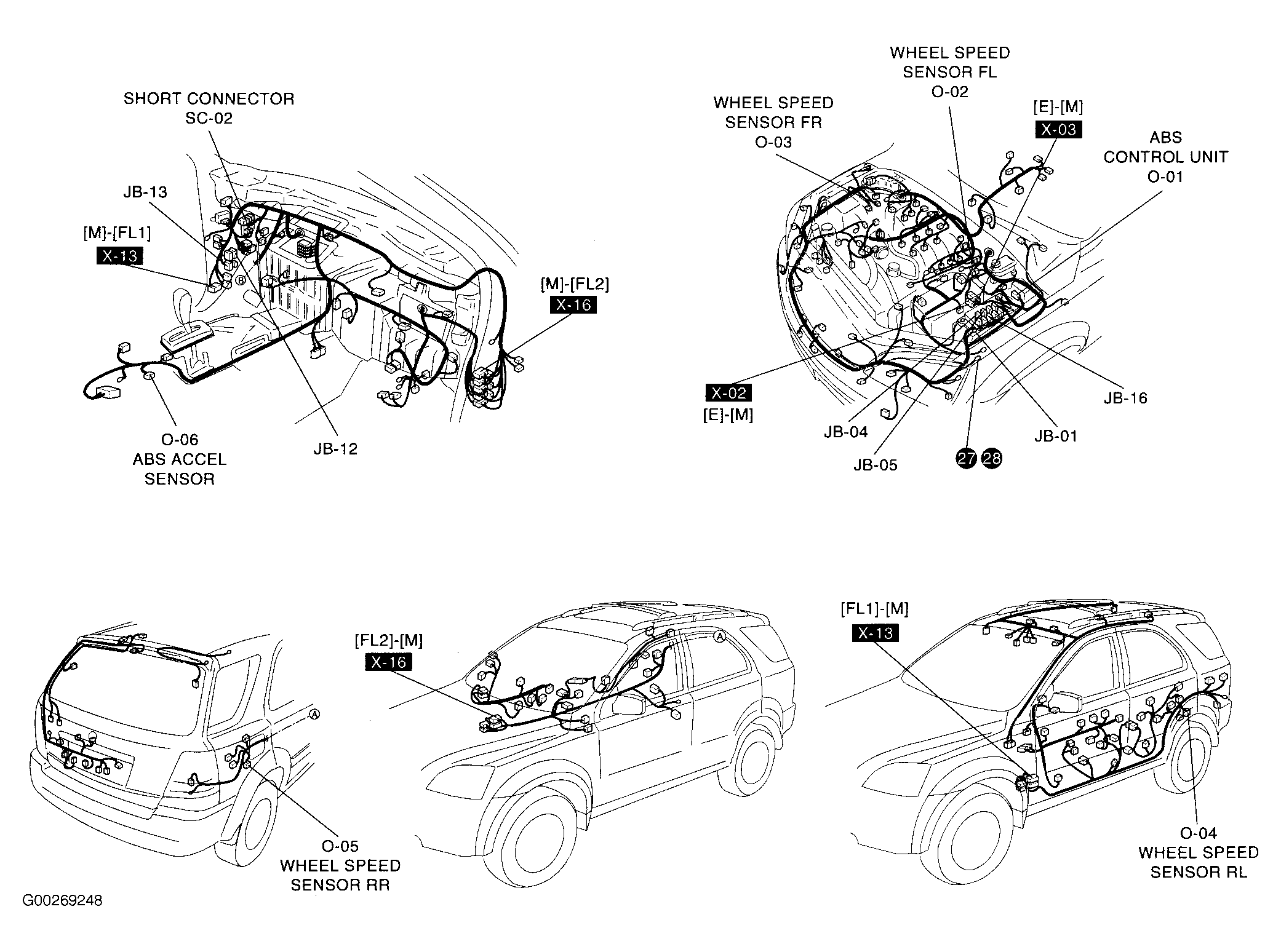

| ABS Control Unit | At left rear of engine compartment. See Figure. |

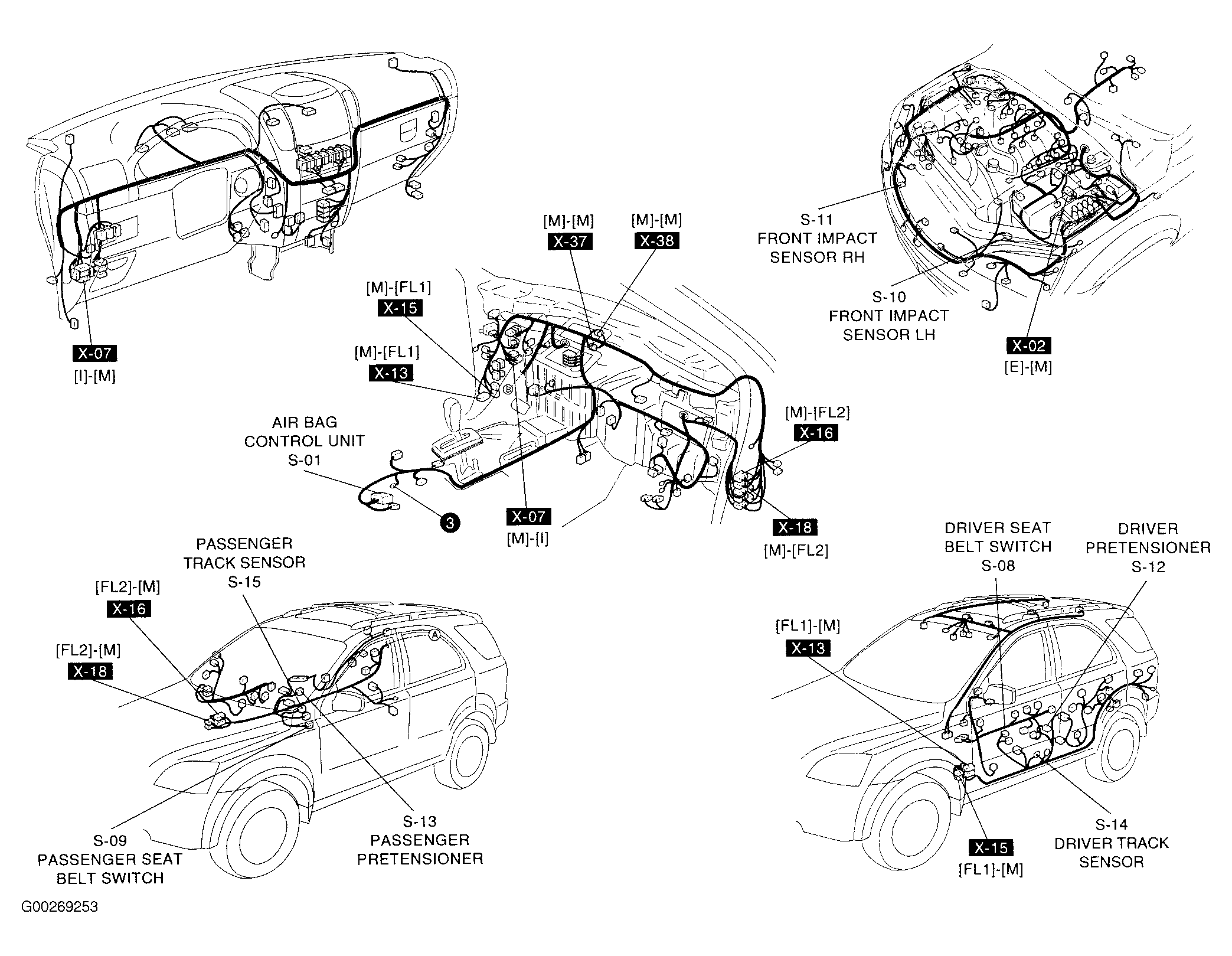

| Air Bag Control Unit | At rear of center console. See Figure. |

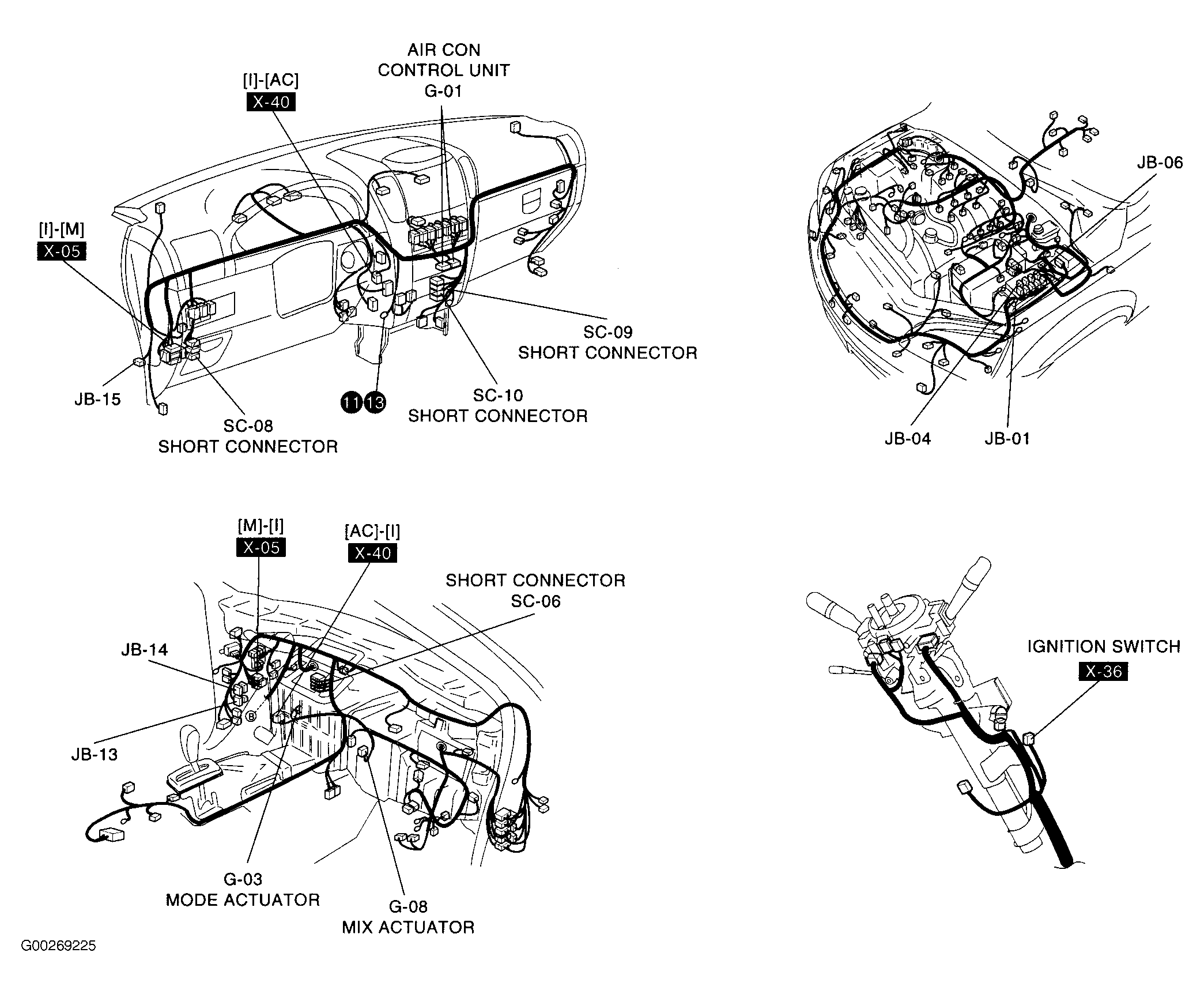

| AIR CON Control Unit (FATC) | In center of dash. See Figure. |

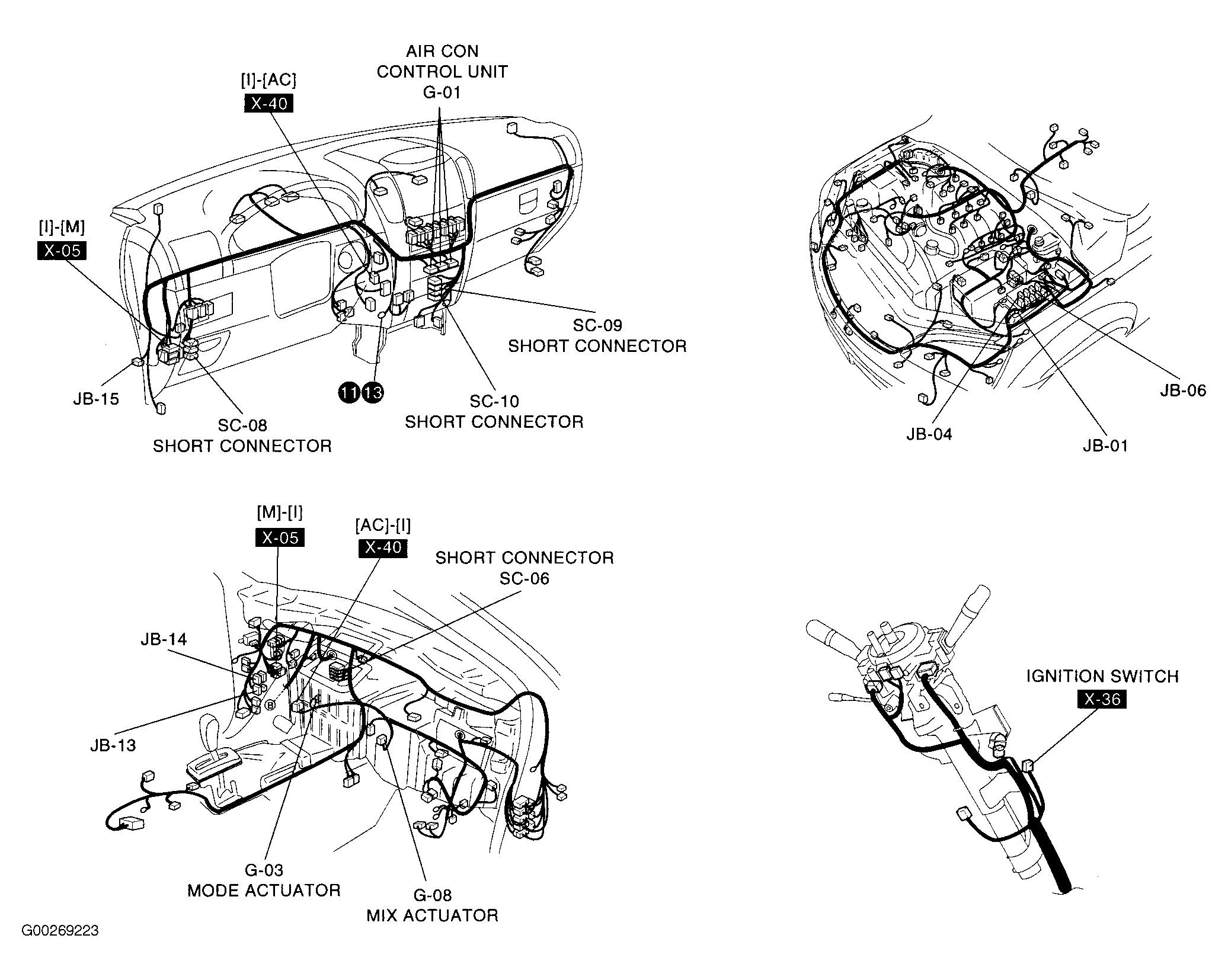

| AIR CON Control Unit (Logic) | In center of dash. See Figure. |

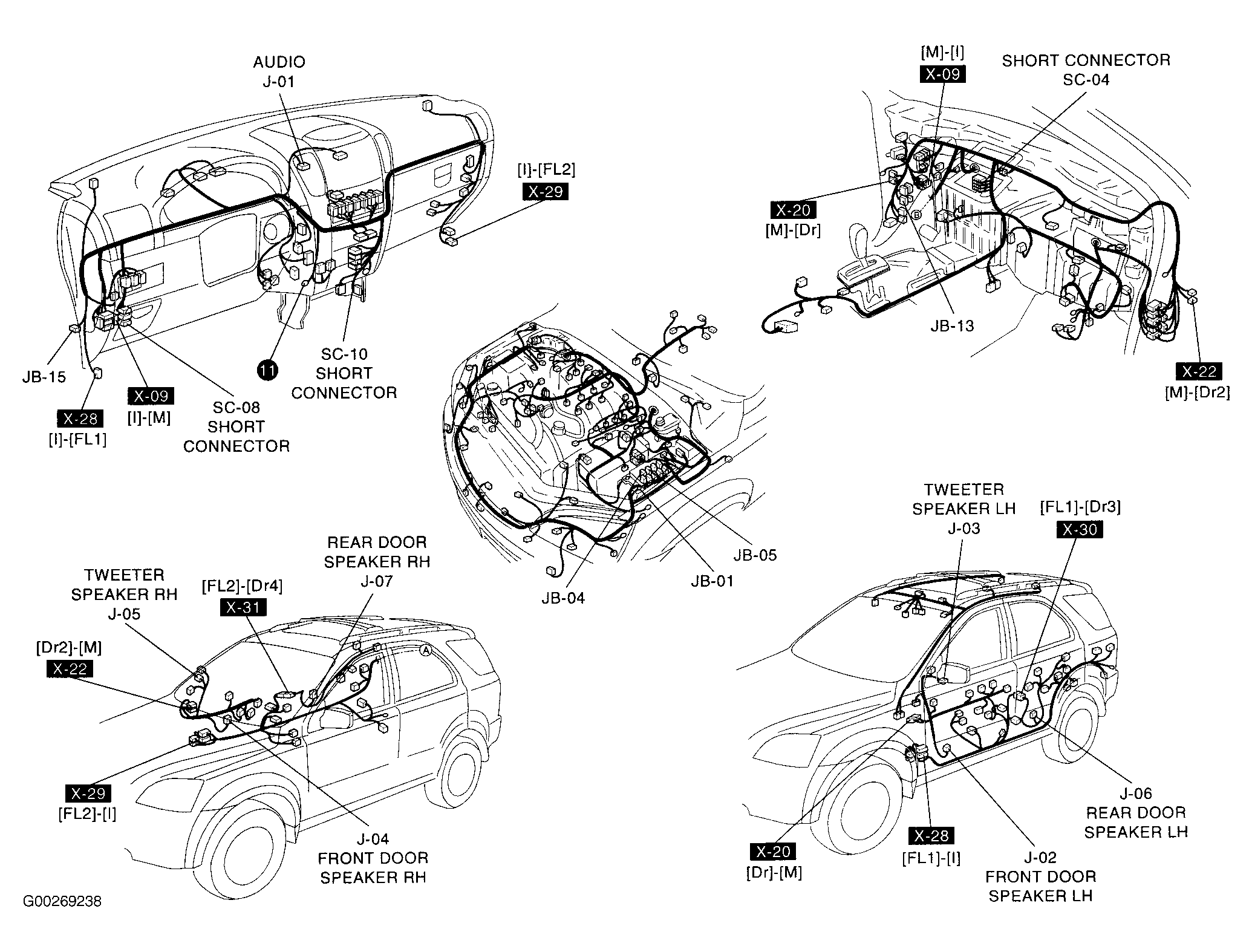

| Audio Unit | Center of dash. See Figure. |

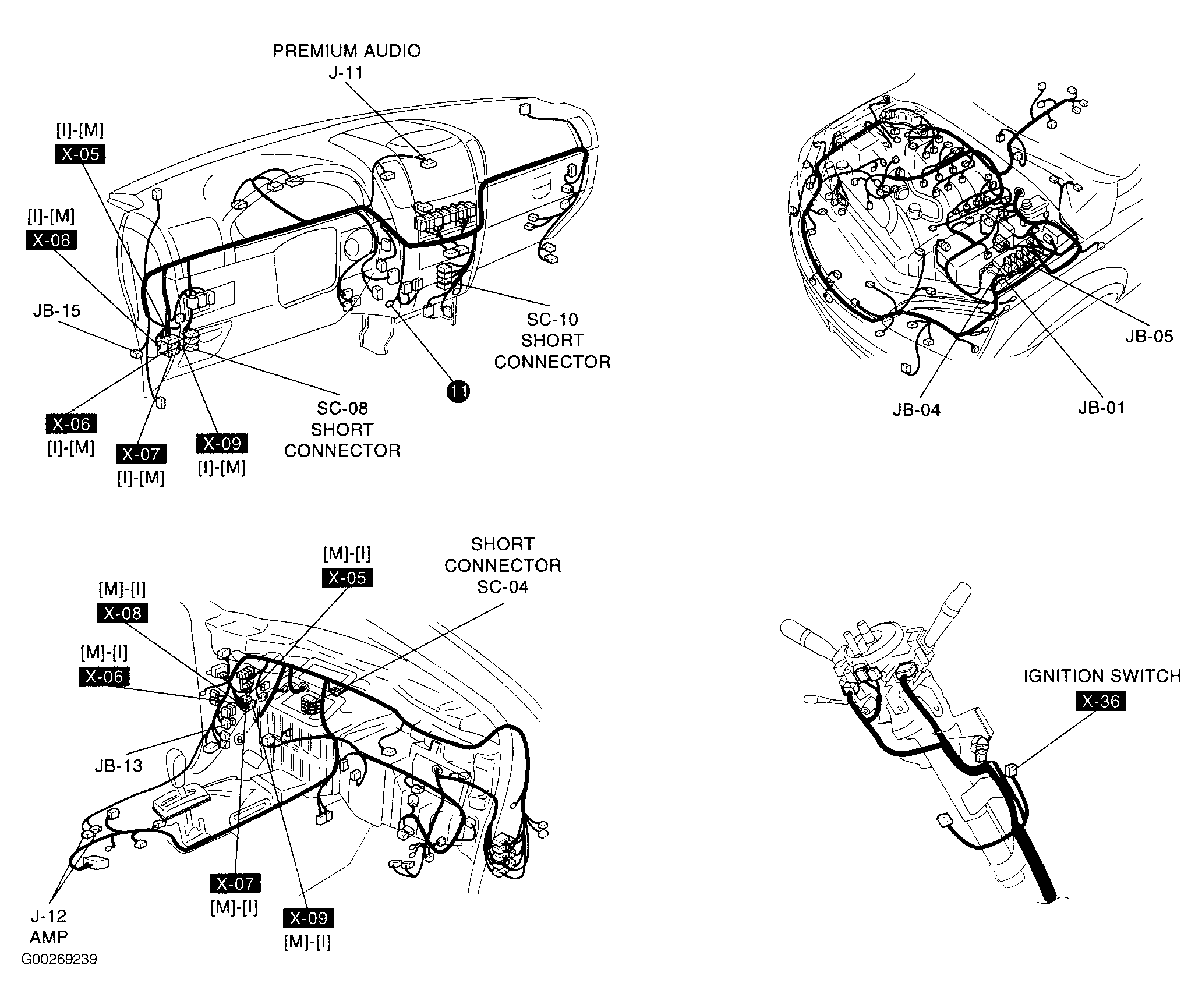

| Audio Unit (Premium) | Center of dash. See Figure. |

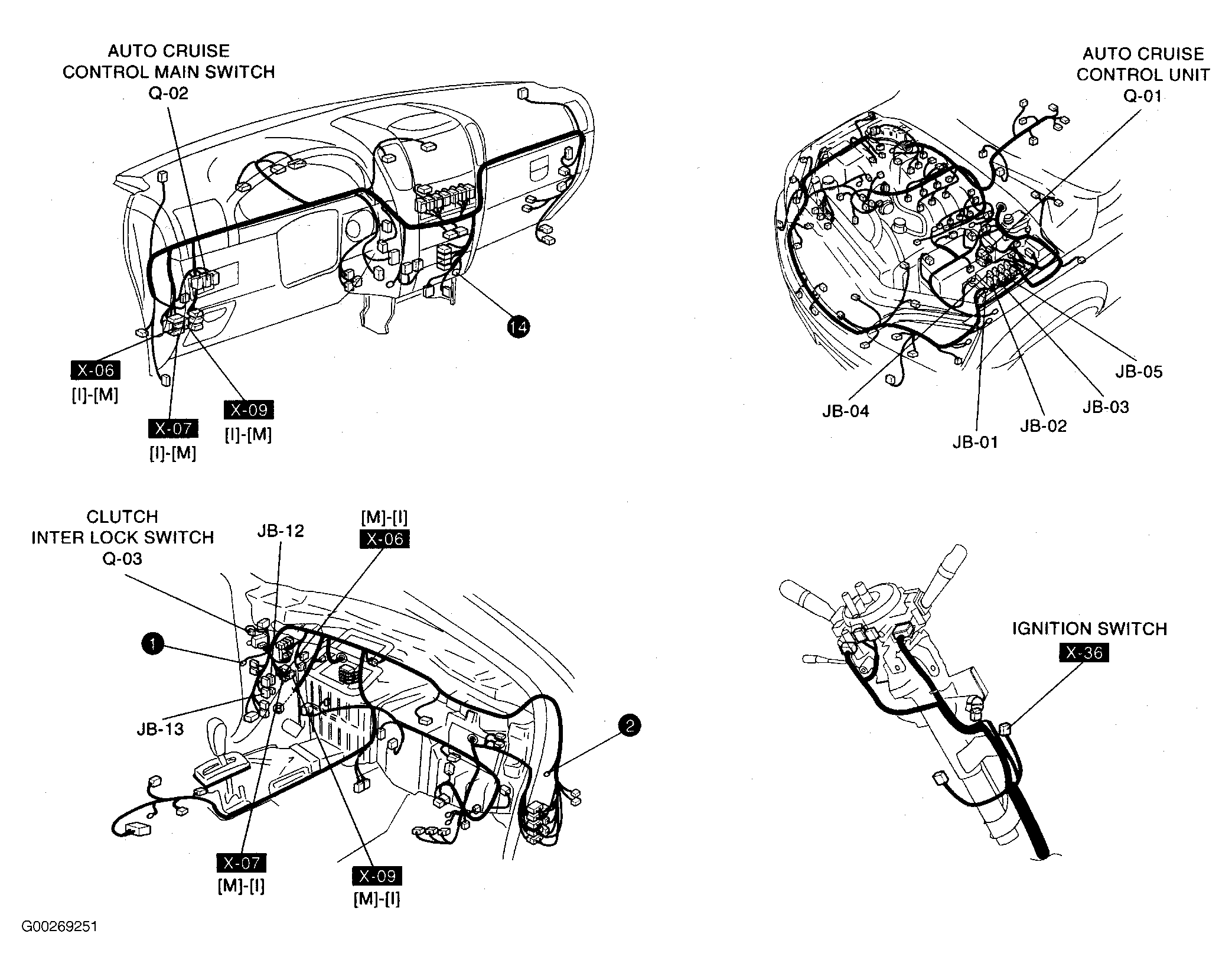

| Auto Cruise Control Unit | At left rear corner of engine compartment. See Figure. |

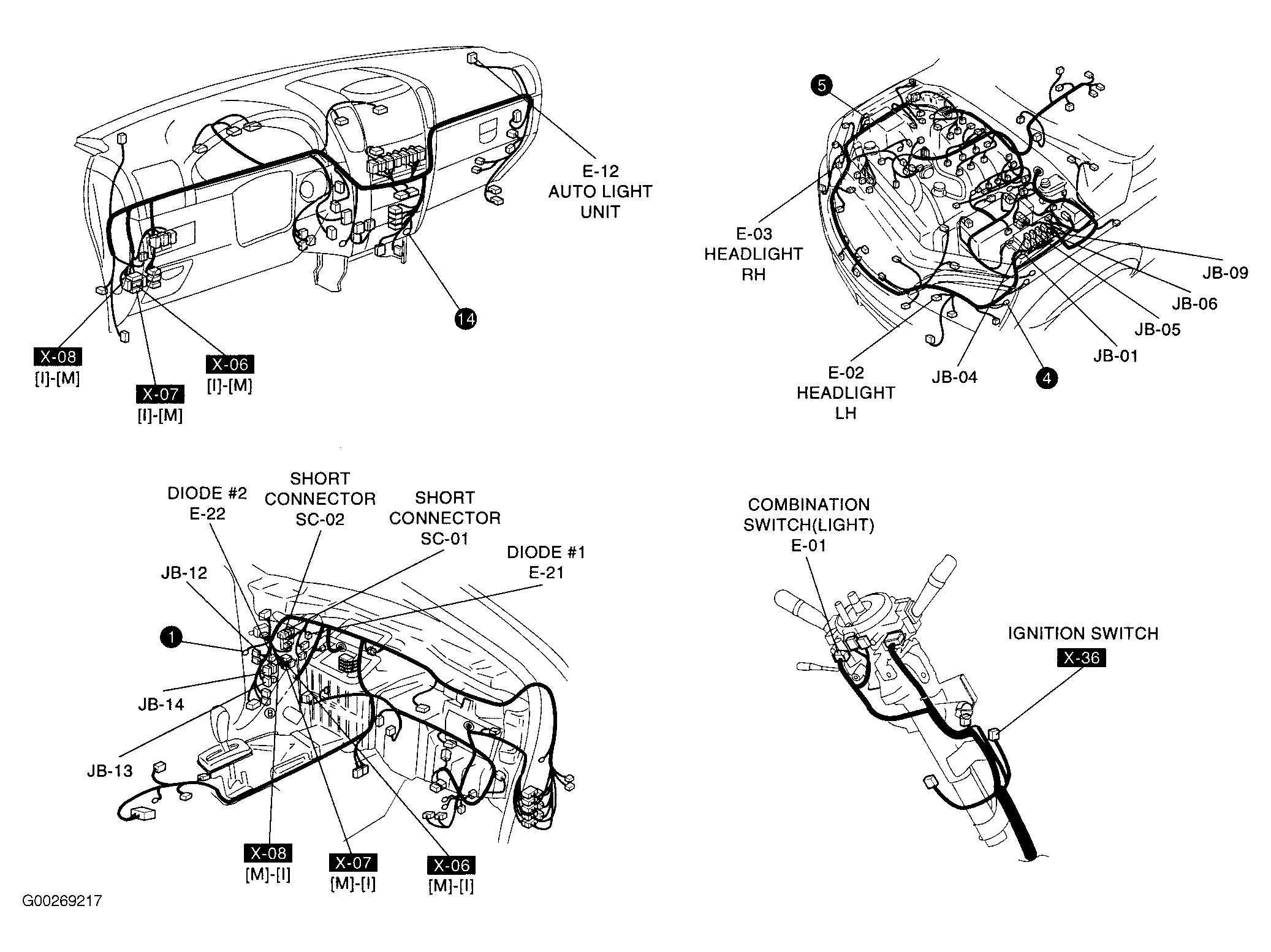

| Auto Light Unit | Behind right side of dash. See Figure. |

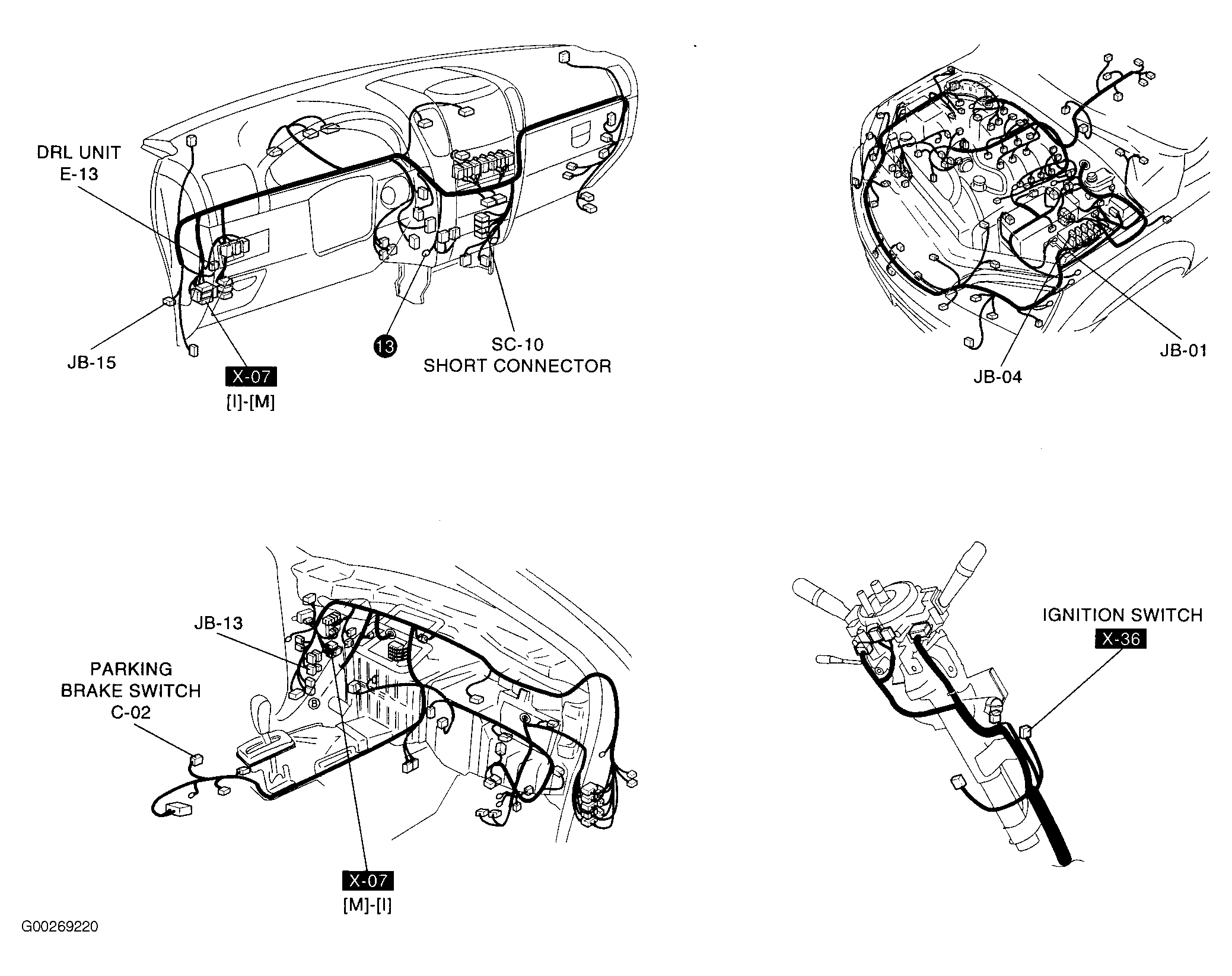

| DRL Unit | Behind left side of dash. See Figure. |

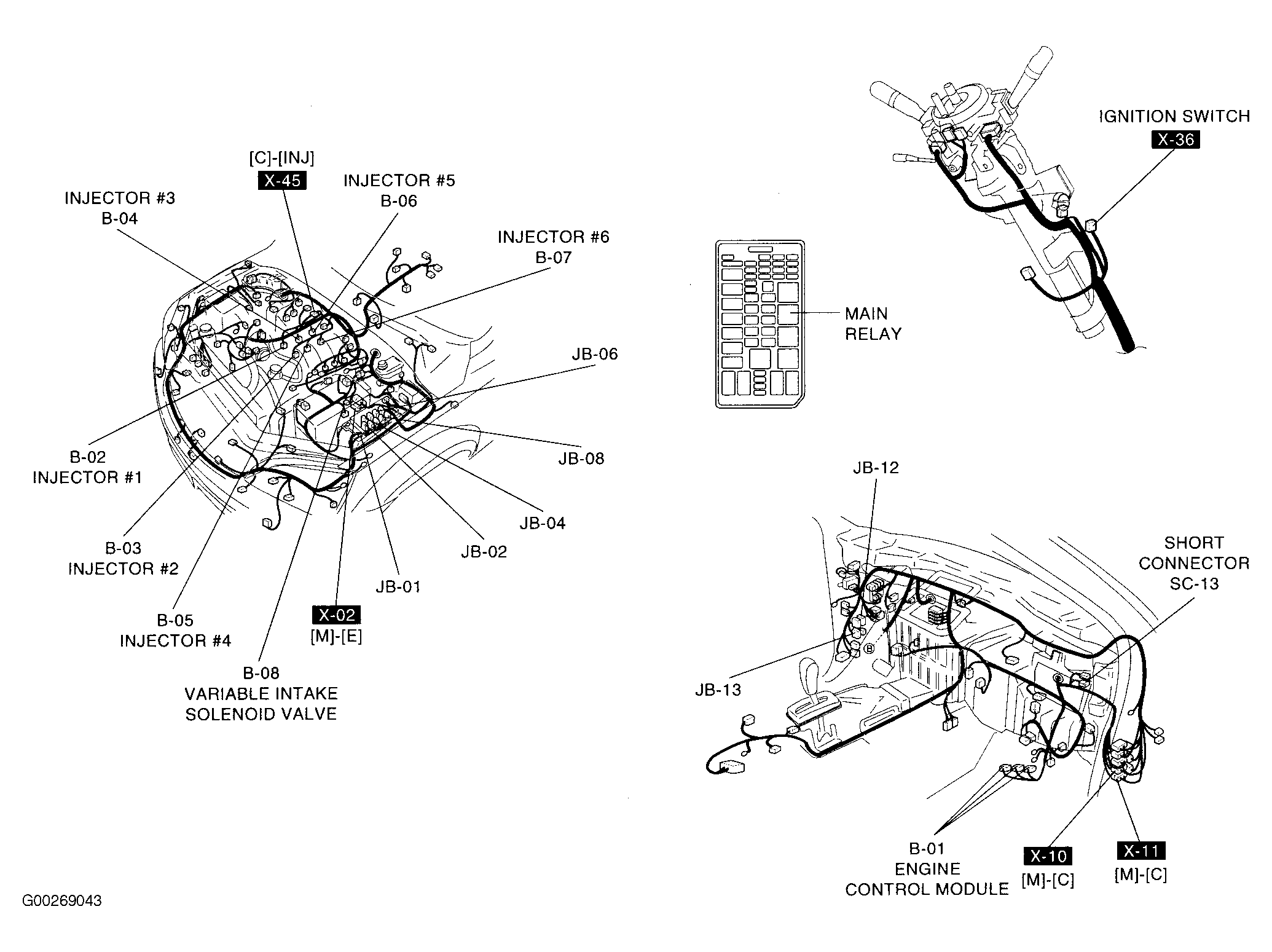

| Engine Control Module | Behind lower right side of dash. See Figure. |

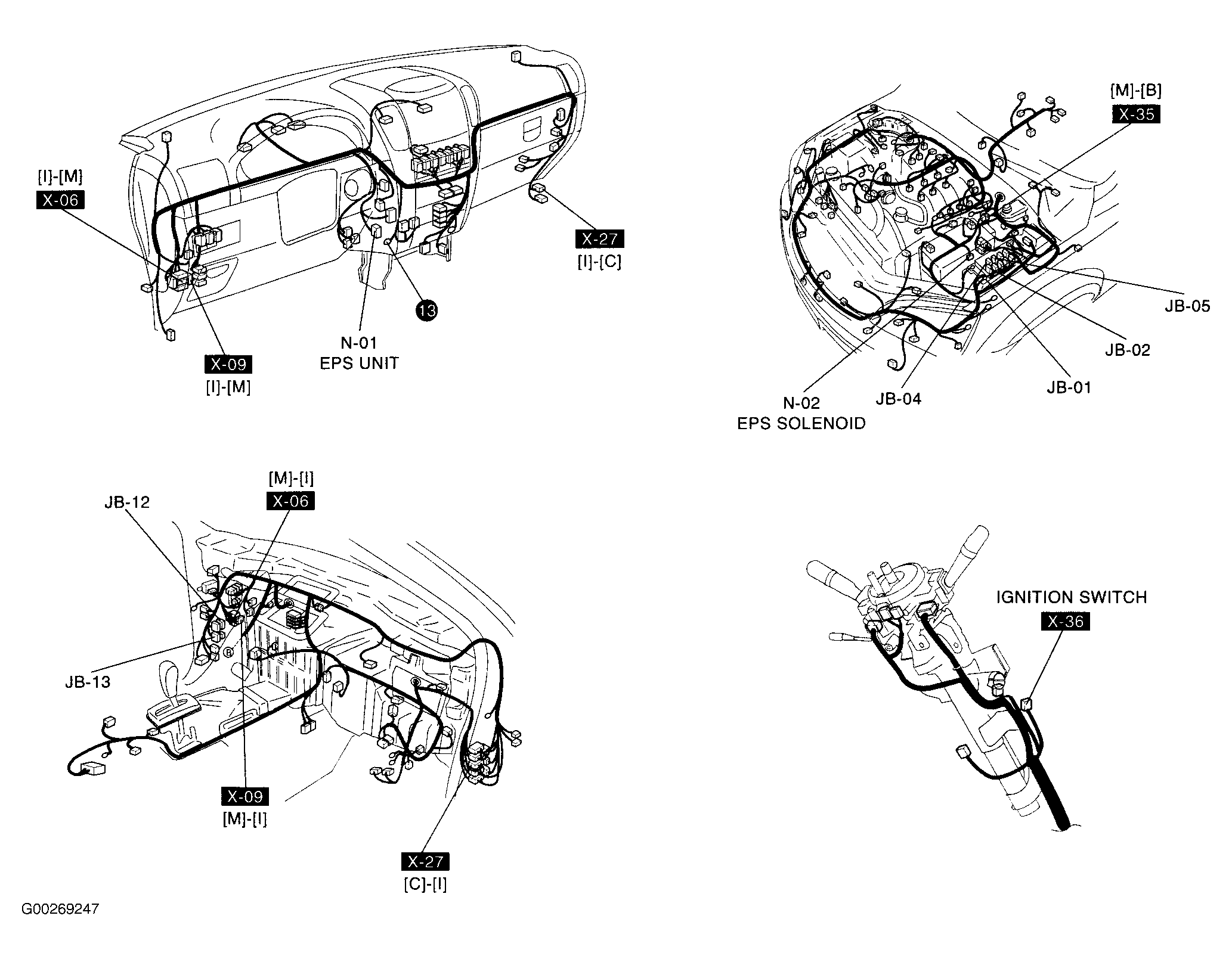

| EPS Unit | Behind center of dash. See Figure. |

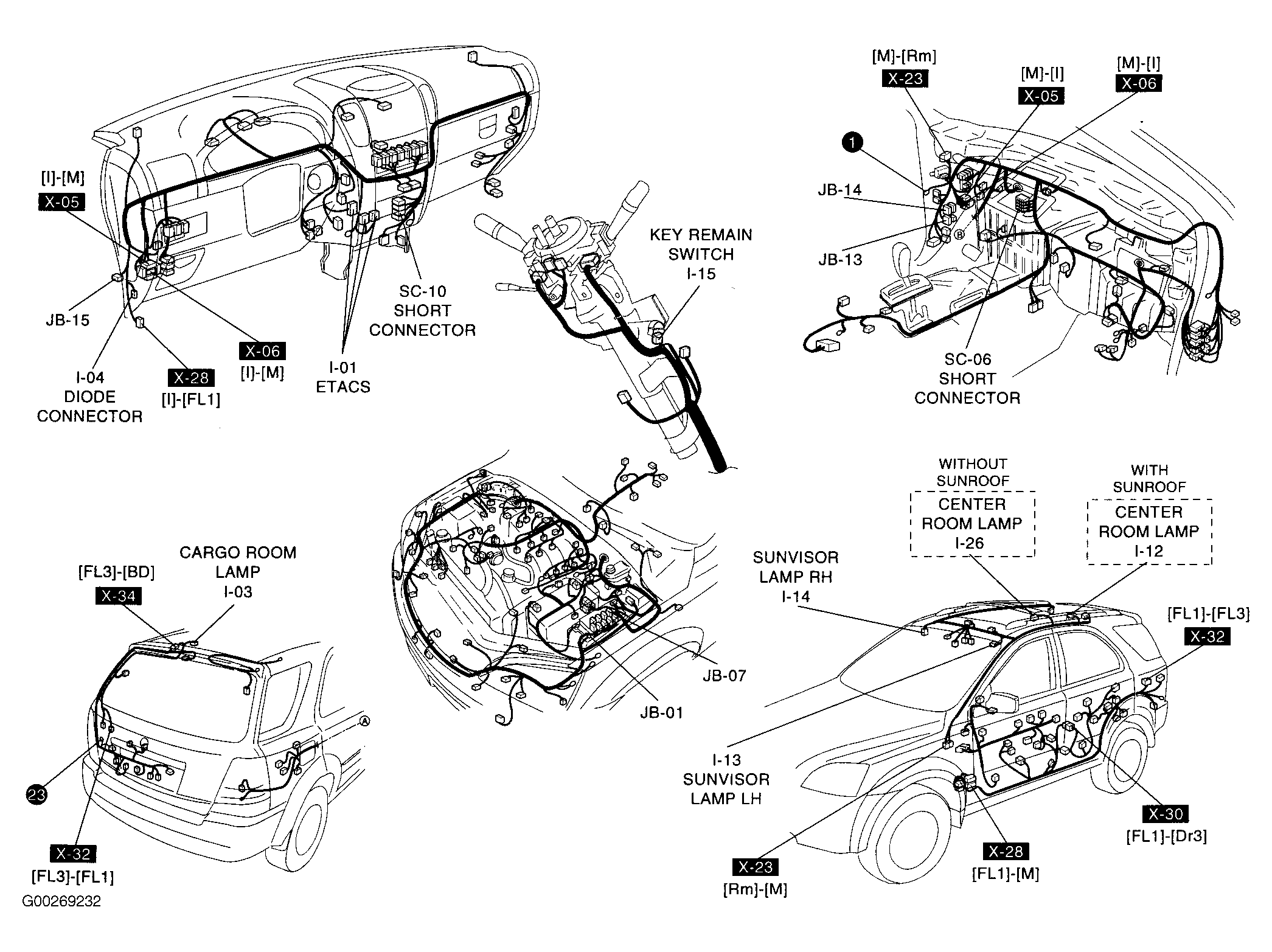

| ETACS | Below center of dash. See Figure. |

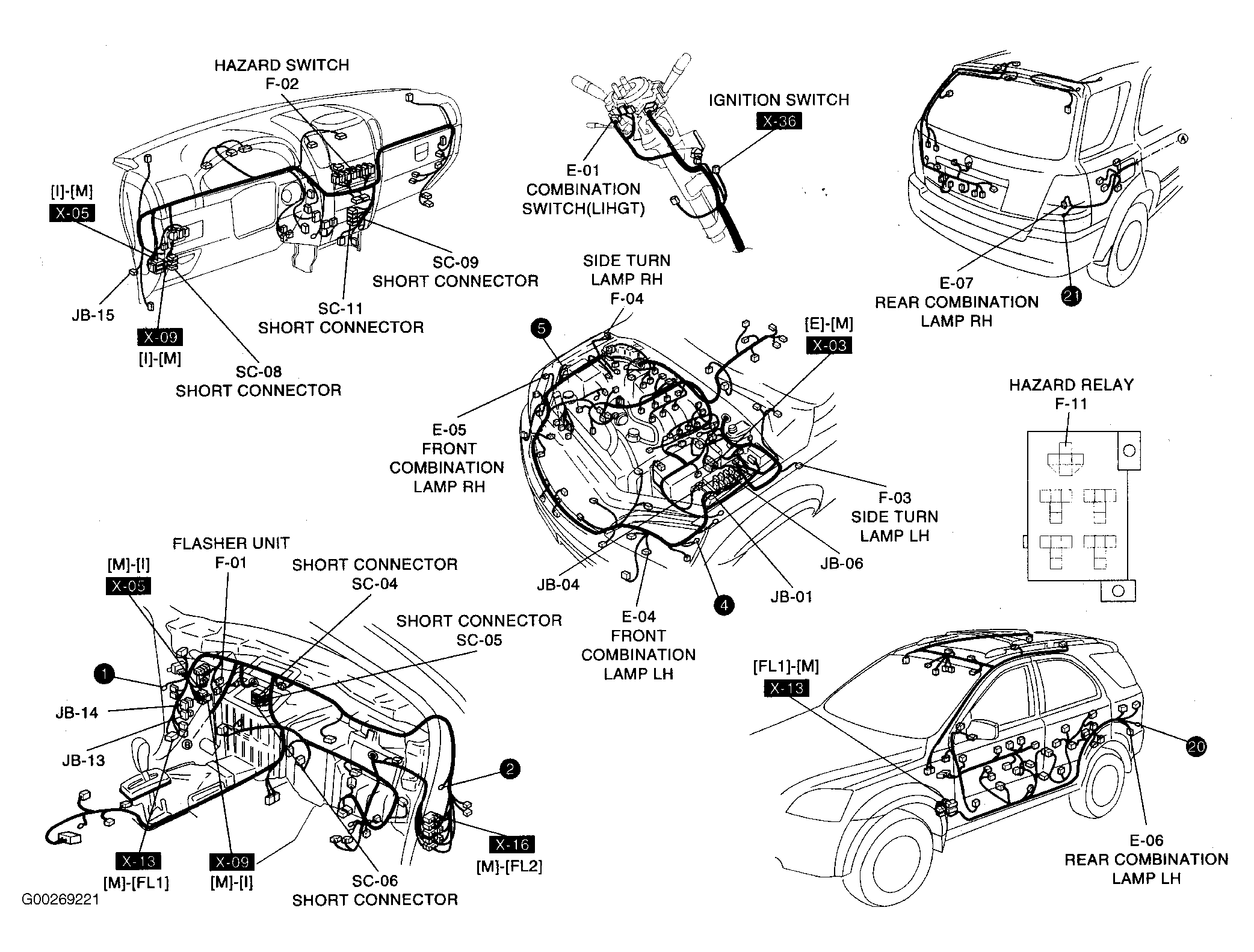

| Flasher Unit | Behind left side of dash. See Figure. |

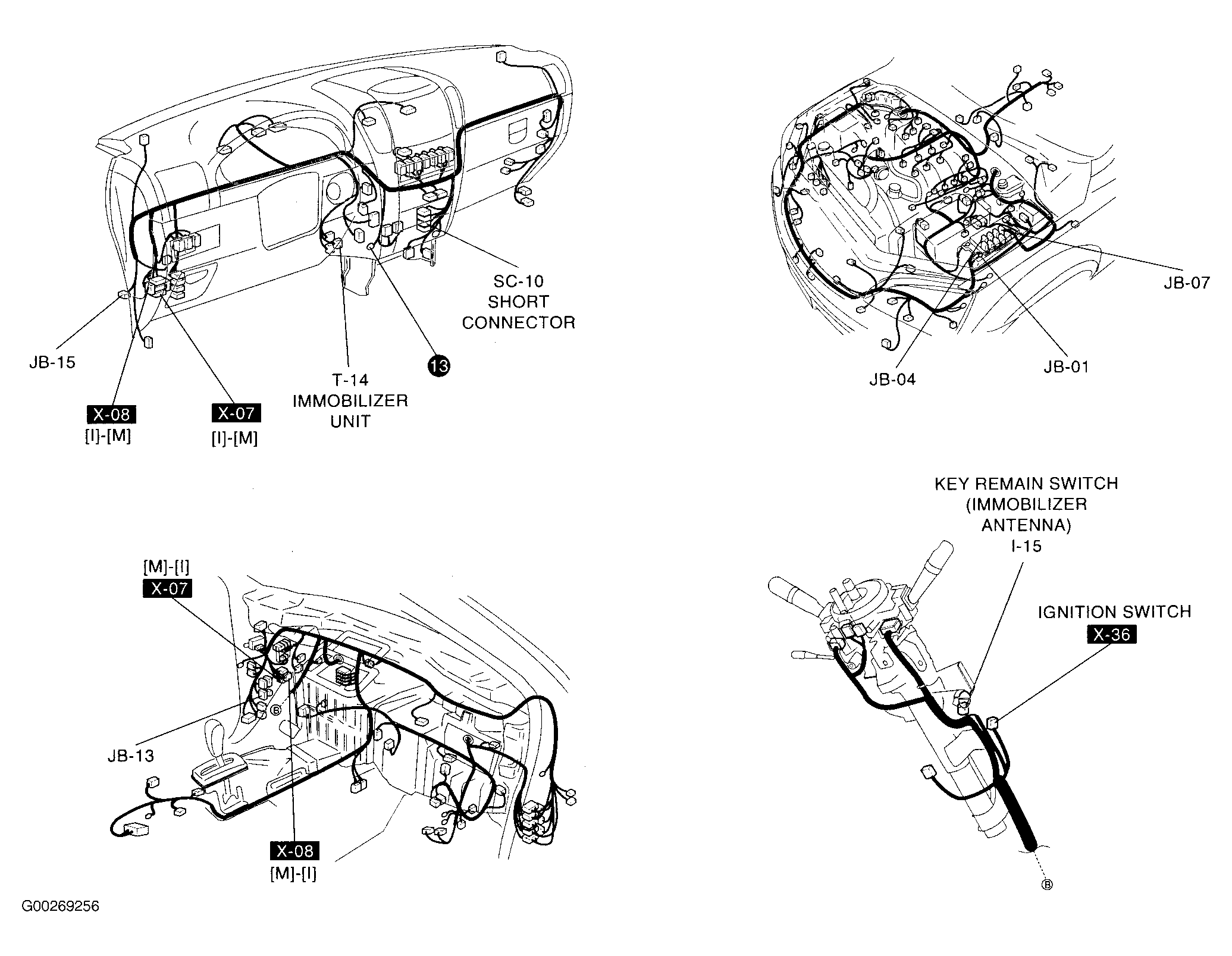

| Immobilizer Unit | Behind center of dash. See Figure. |

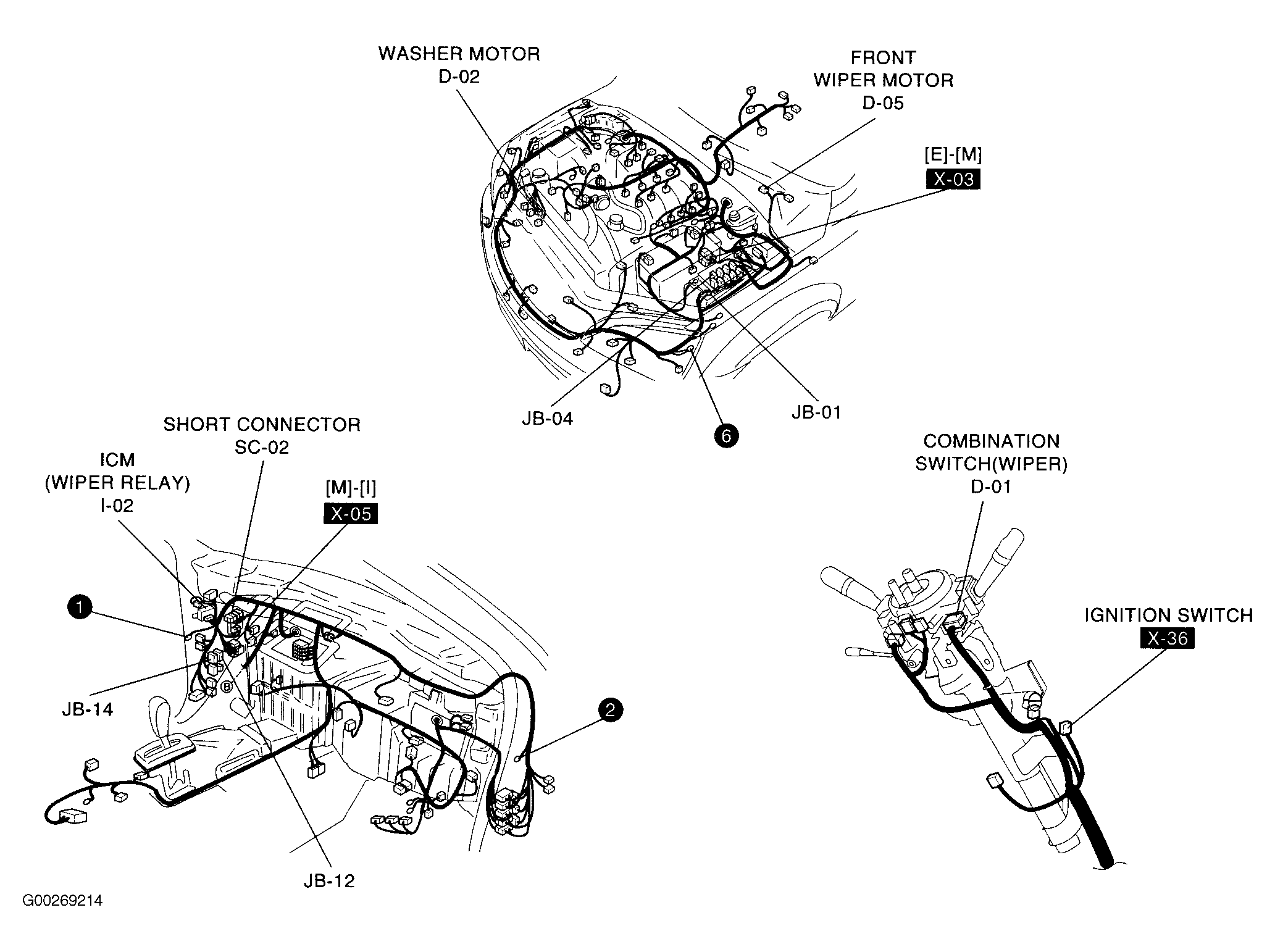

| Integrated Control Module (ICM) | Behind left kick panel.Figure. |

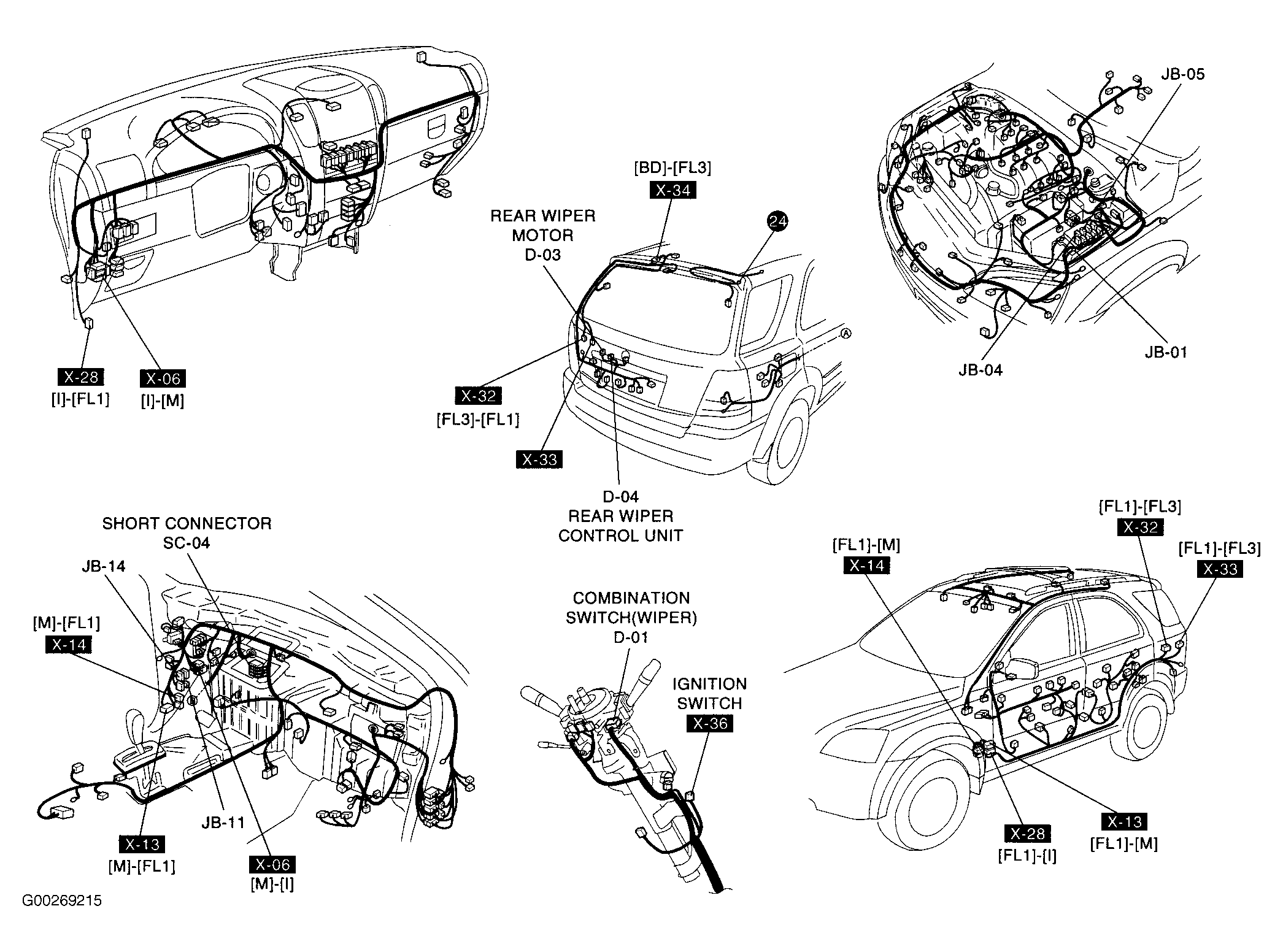

| Rear Wiper Control Unit | At lower center of back door. See Figure. |

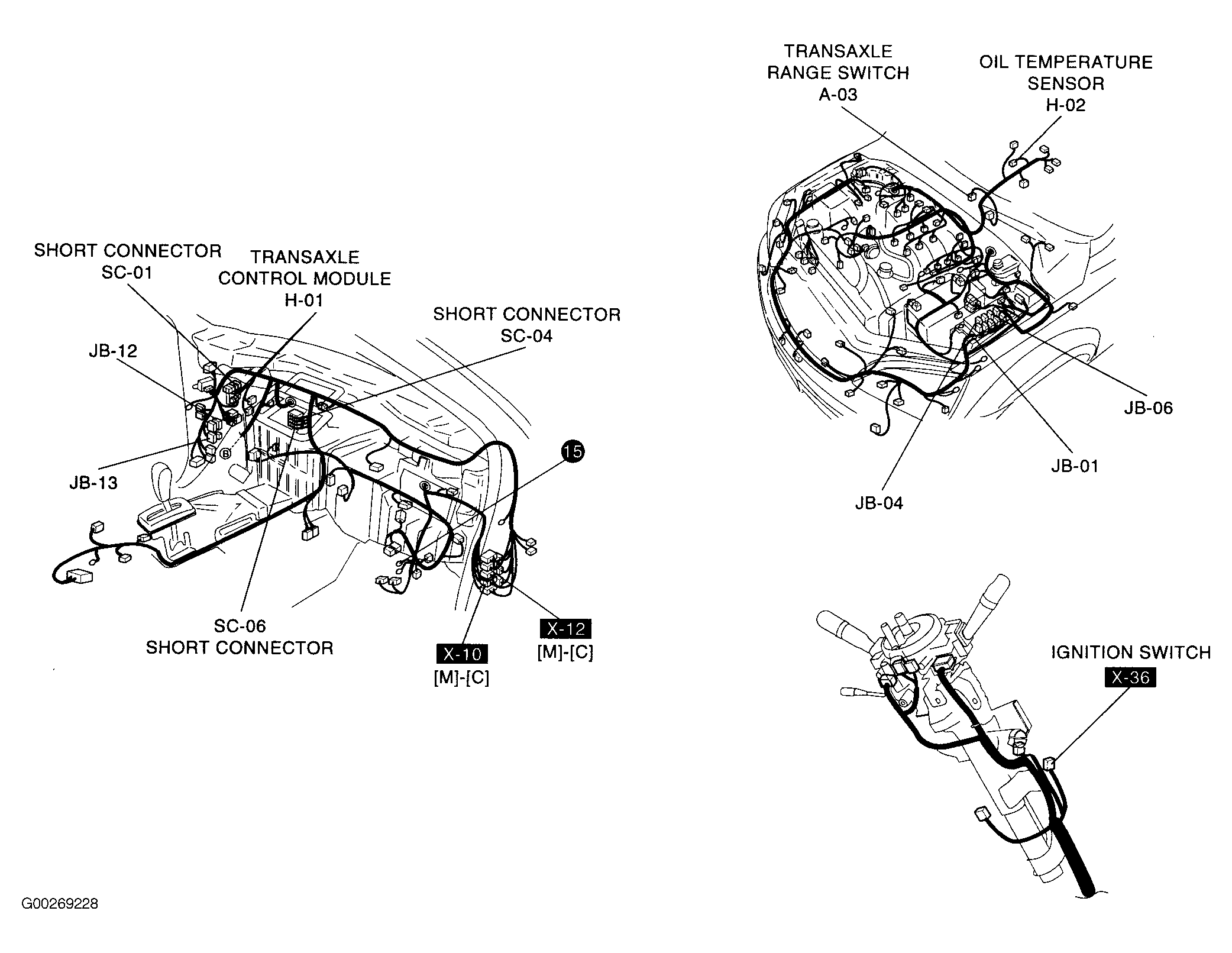

| Transaxle Control Module | Behind left side of dash. See Figure. |

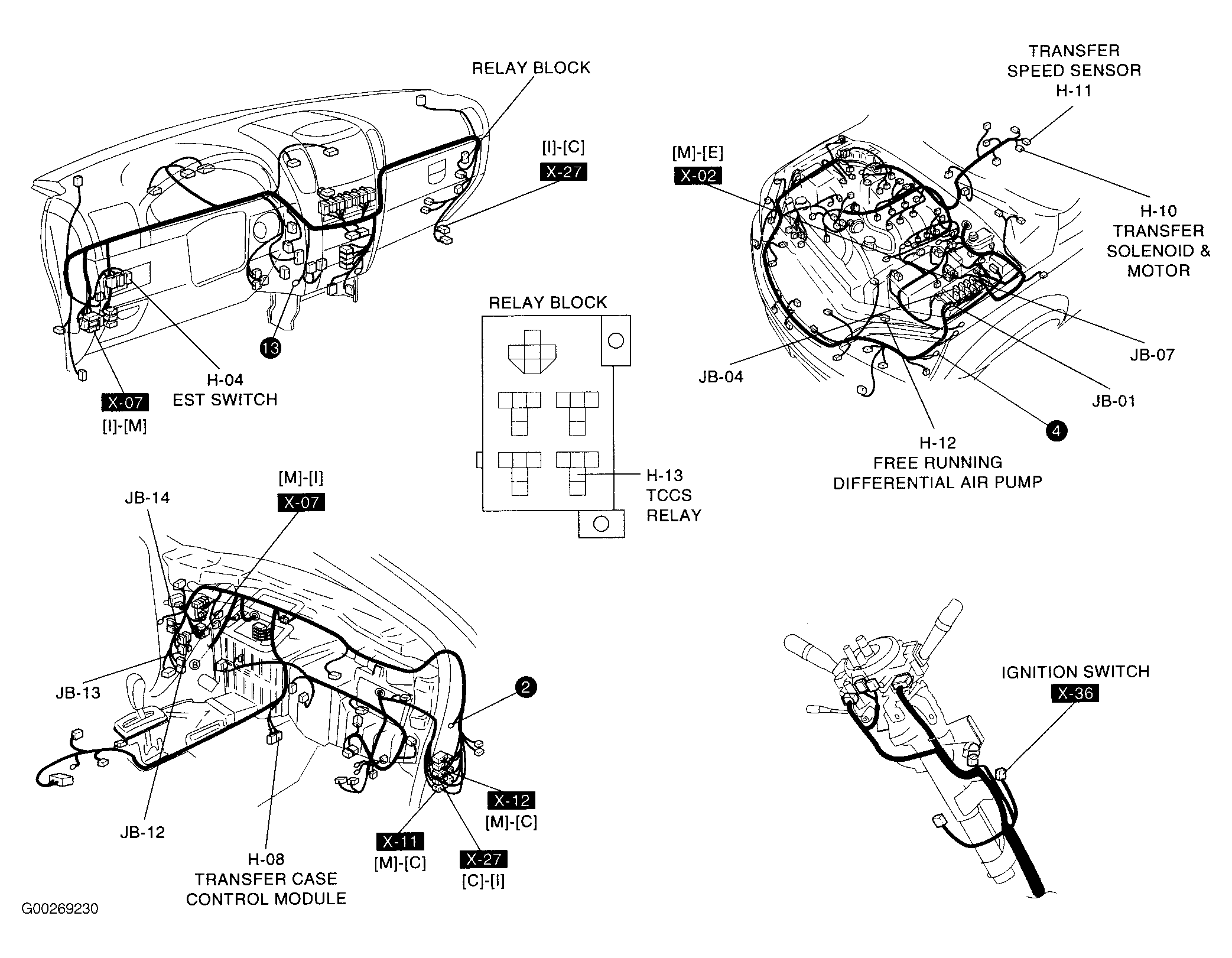

| Transfer Case Control Module | Below front of center console. See Figure. |
