Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

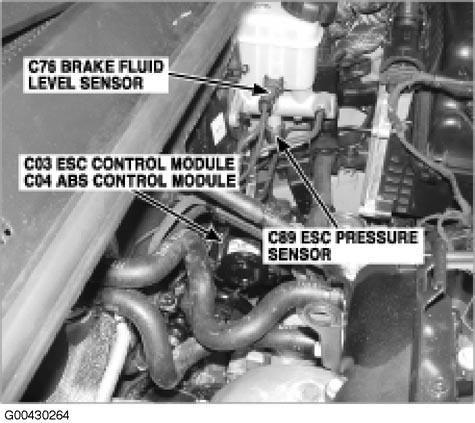

| ABS Control Module | Left rear of engine compartment. See Figure. |

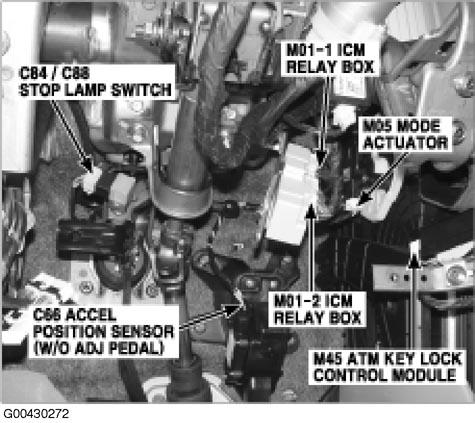

| ATM Key Lock Control Module | Left side of dash, right of accelerator pedal. See Figure. |

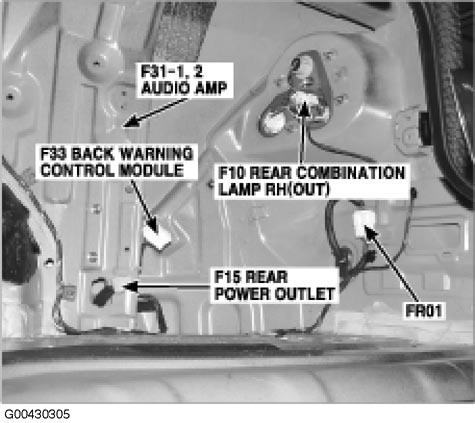

| Back Warning Control Module | Right front of trunk. See Figure. |

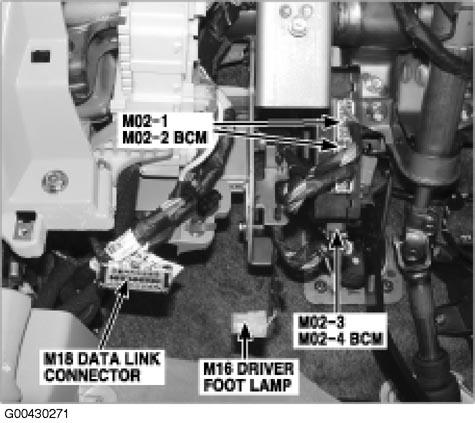

| BCM | Under left side of dash. See Figure. |

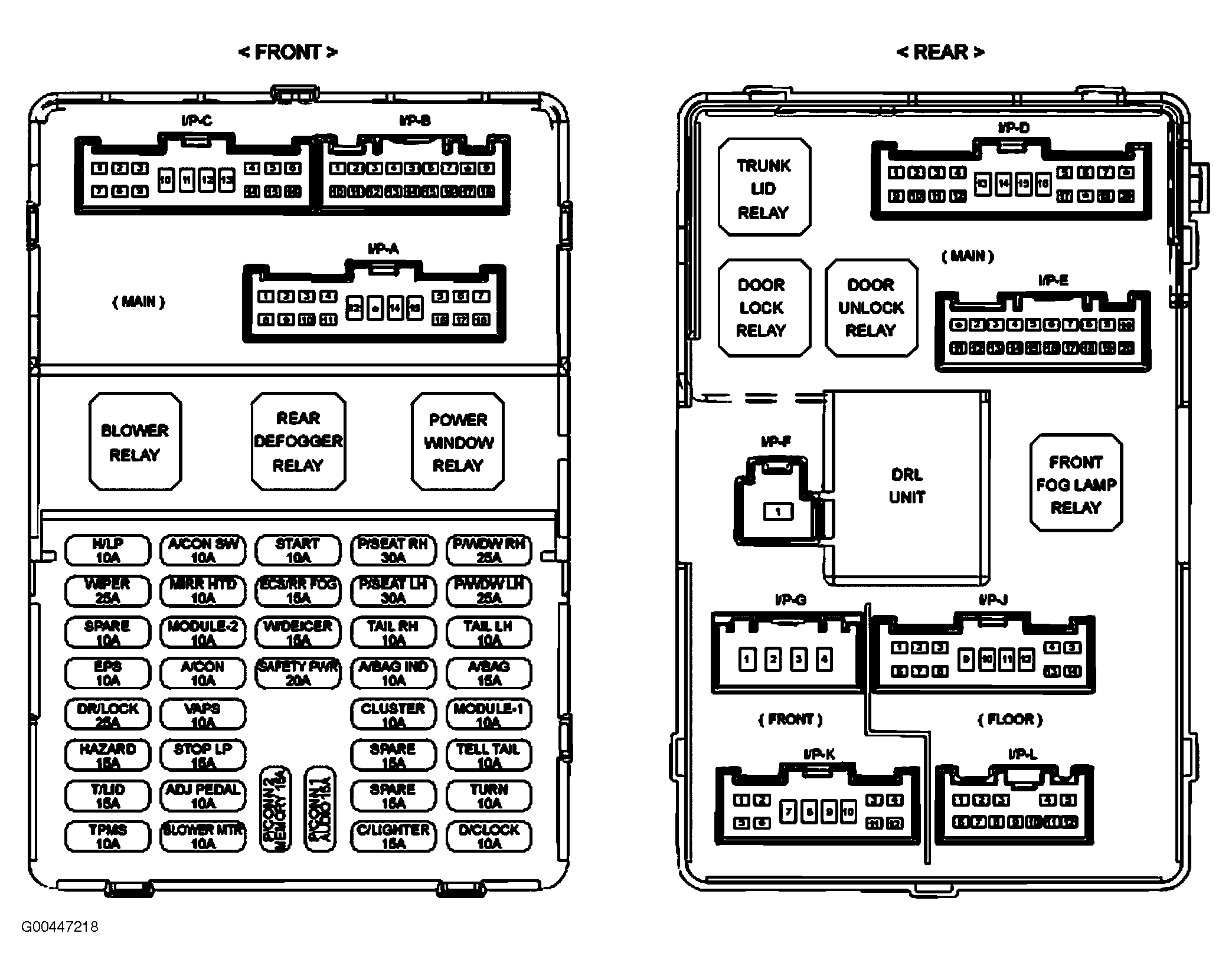

| DRL Unit | On rear of instrument panel junction box. See Figure. |
| ESC Control Module | Left rear of engine compartment. See Figure. |

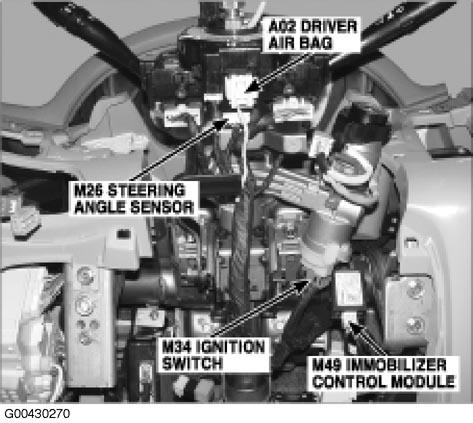

| Immobilizer Control Module | Left side of dash. See Figure. |

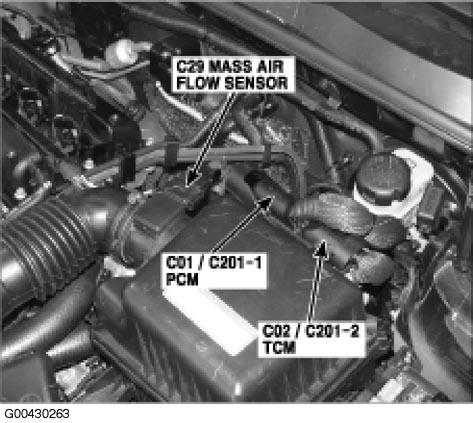

| PCM | Left rear of engine compartment. See Figure. |

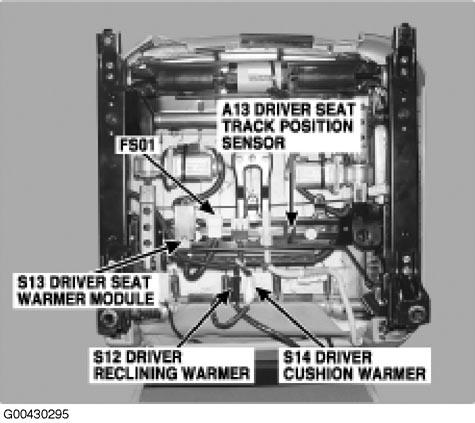

| Seat Warmer Module (Driver's) | Under driver's seat. See Figure. |

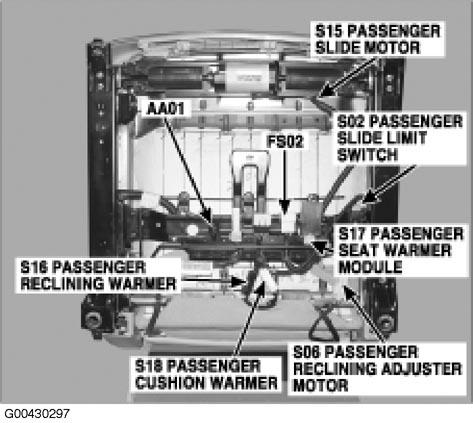

| Seat Warmer Module (Passenger's) | Under passenger's seat bottom. See Figure. |

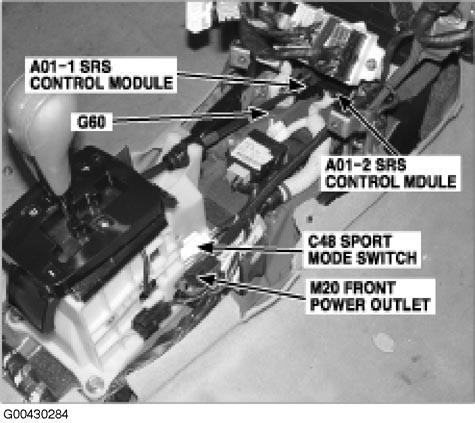

| SRS Control Module | Front of center console. See Figure. |

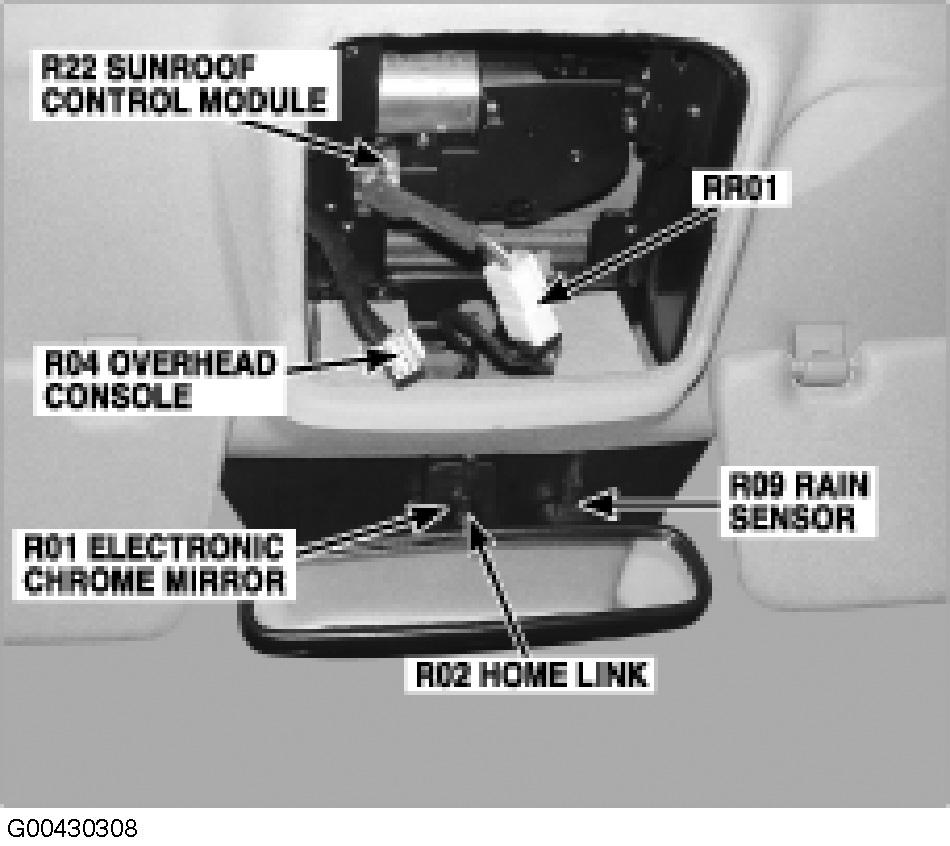

| Sunroof Control Module | Under overhead console. See Figure. |
| TCM | Left rear of engine compartment. See Figure. |

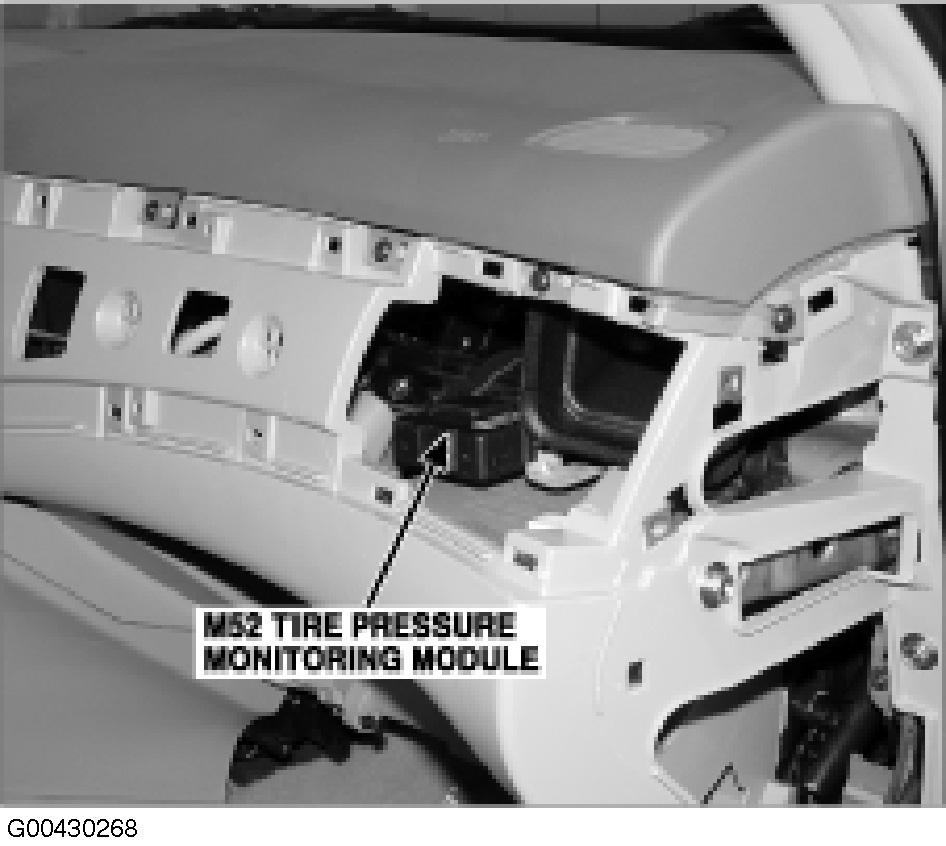

| Tire Pressure Monitoring Module | Behind right side of dash. See Figure. |
