Home >> Kia >> 2022 >> Sorento Plug-In Hybrid SX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> ETC (Electronic Throttle Control) System >> Repair Procedures >> Cleaning

Repair Procedures: Cleaning

  1. Remove the Electronic Throttle Control (ETC) module.

    (Refer to ETC (Electronic Throttle Control) System - "REMOVAL ")

    NOTE: Cleaning the ETC after removing it.

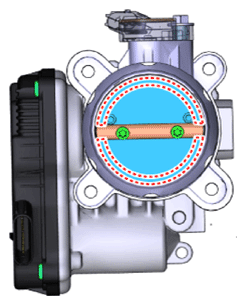

  2. Clean the pollutant in the throttle body using a soft cloth moistened with cleaning fluid.
    G14956987Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Take care not to getting foreign matter into ETC.
    • Do not spray cleaning fluid to ETC directly and use a lint free cloth moistened by cleaning fluid.
    • Be careful as fingers or cloth may get caught in the valve.
  3. Install the ETC module.

    (Refer to Electronic Throttle Control System - "INSTALLATION ")

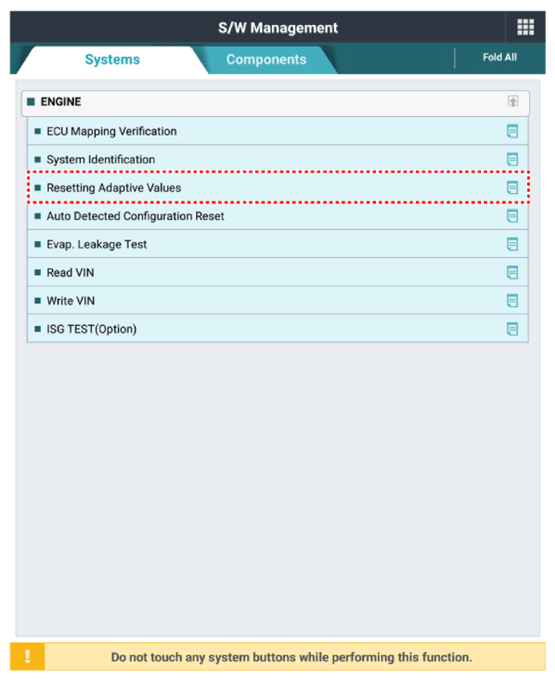

  4. Reset the Engine Control Module (ECM) adaptive values after replacing the ETC module.
    G14956988Courtesy of KIA MOTORS AMERICA, INC.
  5. Perform the ETC learning procedure.

    (Refer to ETC - "ADJUSTMENT ")
