Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

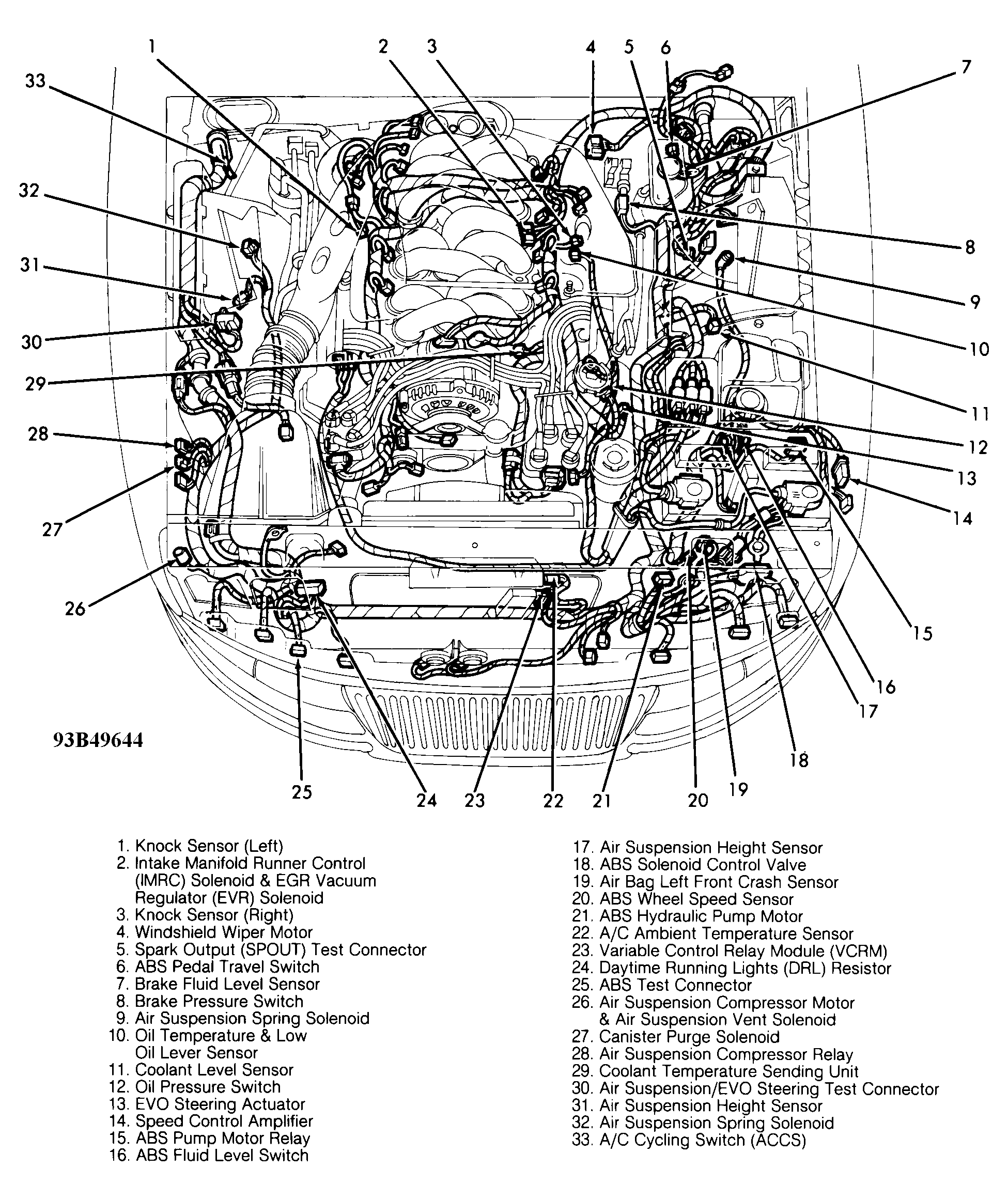

| ABS Control Module | In lower left front corner of engine bay. See Figure . |
| A/C-Heater Blower Motor Speed Controller | Behind right side of dash, on evaporator assembly. See Figure . |
| Air Bag Diagnostic Module | Behind right side of dash, to right of glove box. See Figure . |
| Air Suspension/EVO Steering Module | Behind right kick panel, above connector bracket. |
| Anti-Theft Control Module | Behind right side of dash, near kick panel. See Figure . |
| Compass Module | Below left side of rear package shelf. See Figure . |
| Daytime Running Lights (DRL) Module | Behind right side of dash, above kick panel. See Figure . |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash, below radio. See Figure . |
| Front Seat Memory Module | Under driver's and passenger's seat. |
| Ignition Control Module (ICM) | In left side of engine bay. See Figure . |
| Light Out Warning Module | Behind right side of dash, left of glove box. See Figure . |
| One Touch Window Down Module | On top front of driver's door. See Figure . |
| Power Antenna Module | Behind right side of dash, right of glove box. See Figure . |
| Powertrain Control Module (PCM) | Behind left side of dash. |
| Pulse Width Dimming Module | On top left side of dash, to left of steering column. See Figure . |
| Remote Keyless Entry Module | In trunk, behind left wheelwell. See Figure . |
| Shock Damping Control Module | Below center rear of rear package shelf. See Figure . |
| Variable Control Relay Module (VCRM) | In lower front center of engine bay. See Figure . |
| Warning Chime Module | Behind left side of dash, right of steering column. See Figure . |
| Wiper/Washer Interval Module | Behind left side of dash. See Figure . |
