Component Locations

COMPONENT LOCATIONS

Component	Location
Engine Compartment Fuse Box Fig 1	Right Front Of Engine Compartment, Front Of Wheel Well
Instrument Panel Fuse Panel	Behind Instrument Panel, Left Of Steering Column. See Fig 4 .
Lighting Control Module	Behind Center Of Instrument Panel. See Fig 4 .
Starter Interrupt Relay	Behind Right Side Of Instrument Panel Near Air Bag Diagnostic Module. See Fig 5 .
Starter Motor/Solenoid	Lower Right Side Of Engine. See Fig 6
System Ground (G100)	Lower Right Side Of Engine, Near Starter Motor/Solenoid. See Fig 6 .
Transmission Range (TR) Sensor Switch	Lower Left Side Of Transmission. See Fig 6 .

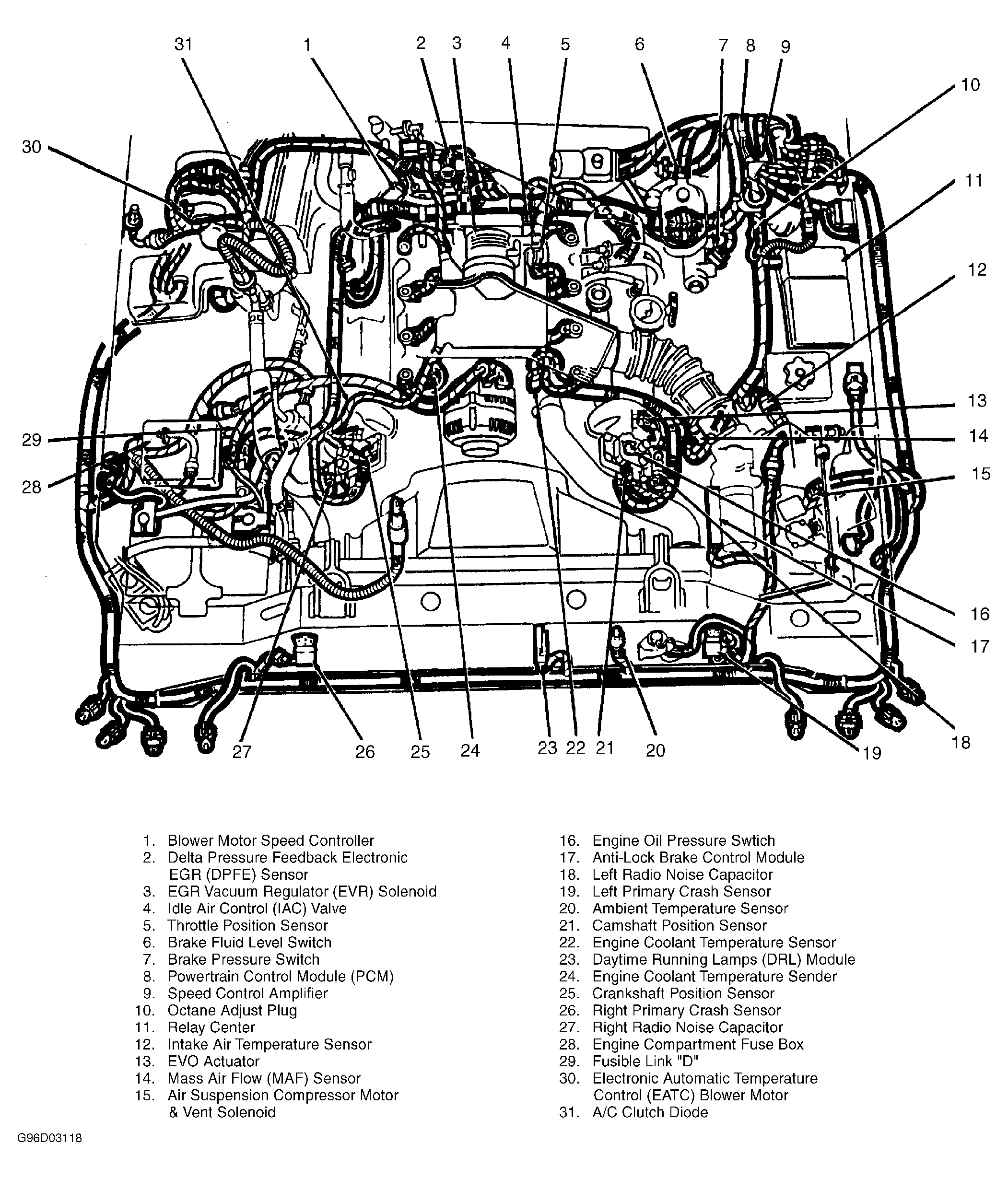

Fig 1: Locating Engine Compartment Fuse Box

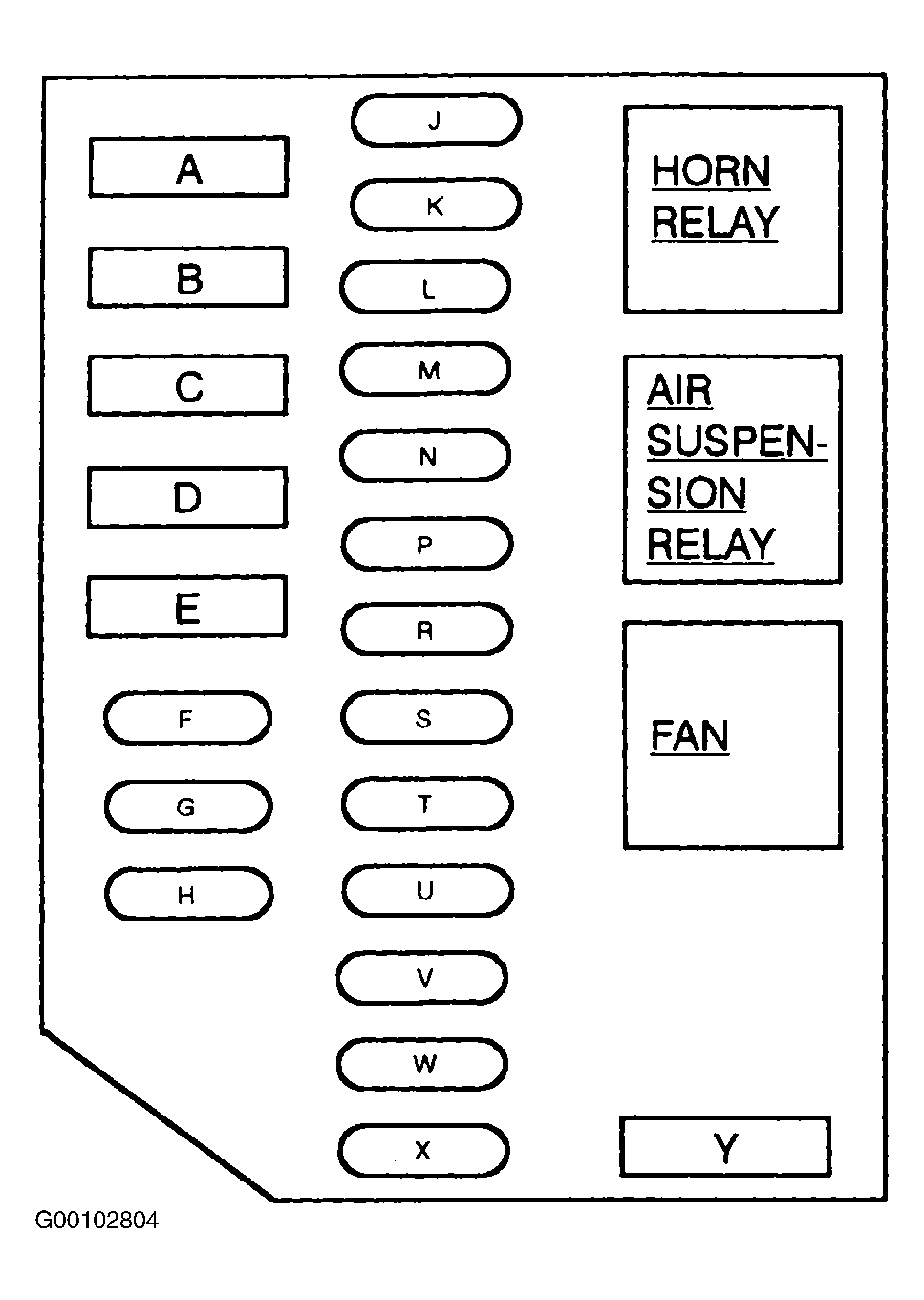

Fig 2: Identifying Engine Compartment Fuse Box Components

Courtesy of FORD MOTOR CO.

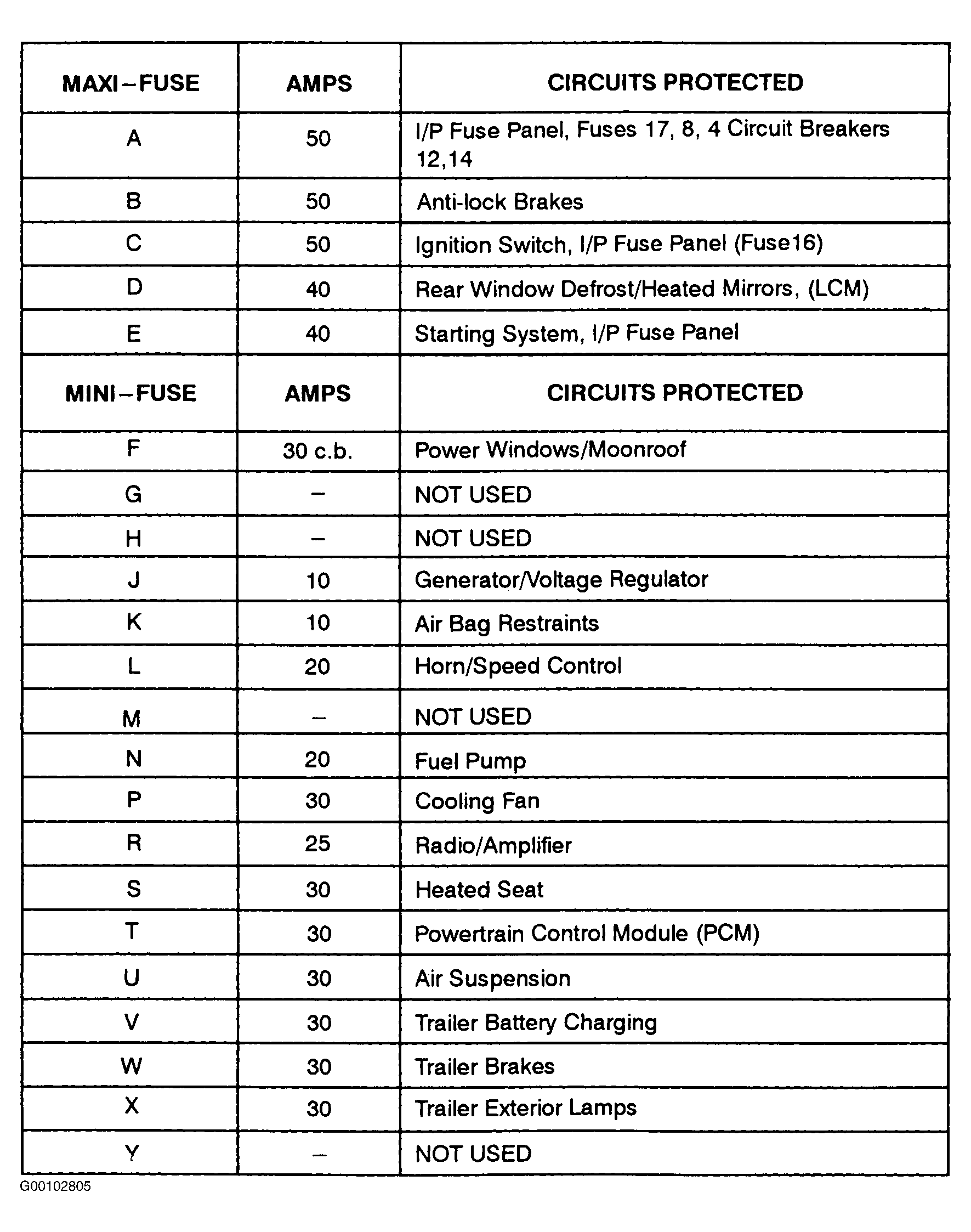

Fig 3: Engine Compartment Fuse Box Legend

Courtesy of FORD MOTOR CO.

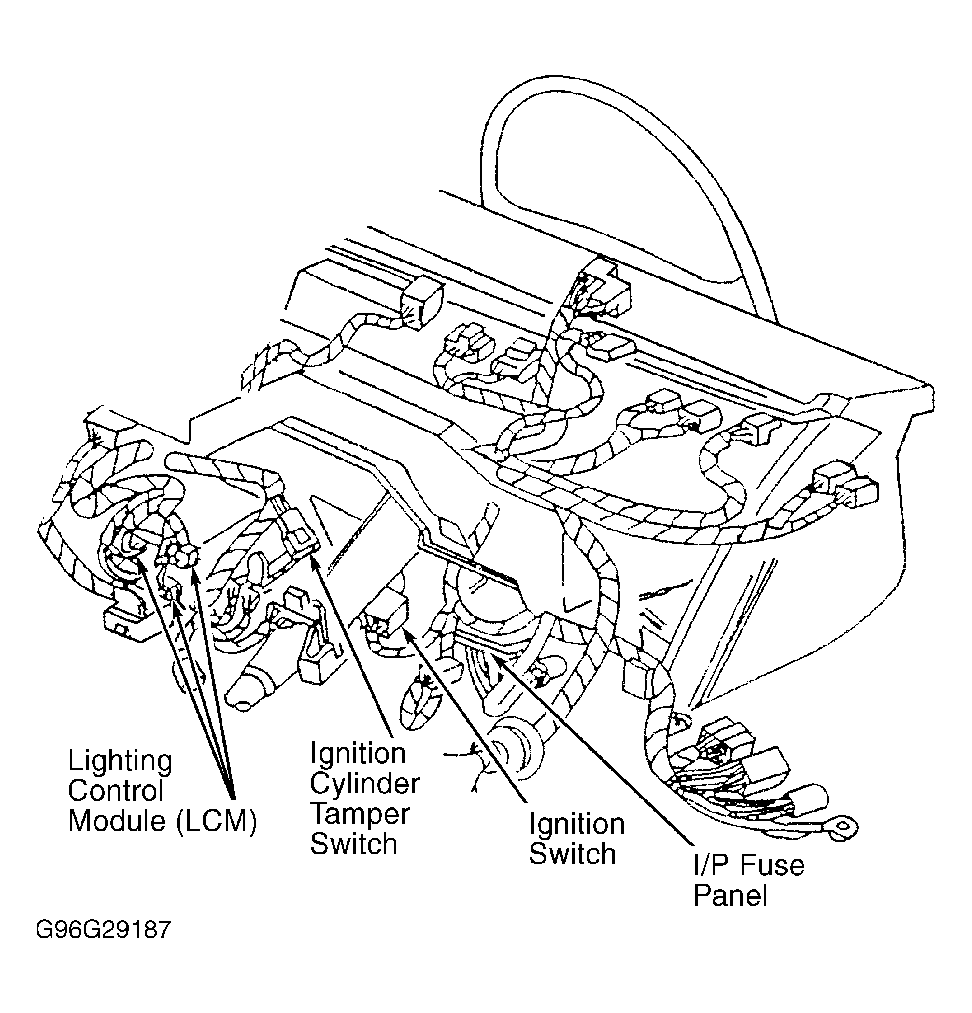

Fig 4: Locating Lighting Control Module

Courtesy of FORD MOTOR CO.

Fig 5: Locating Starter Interrupt Relay

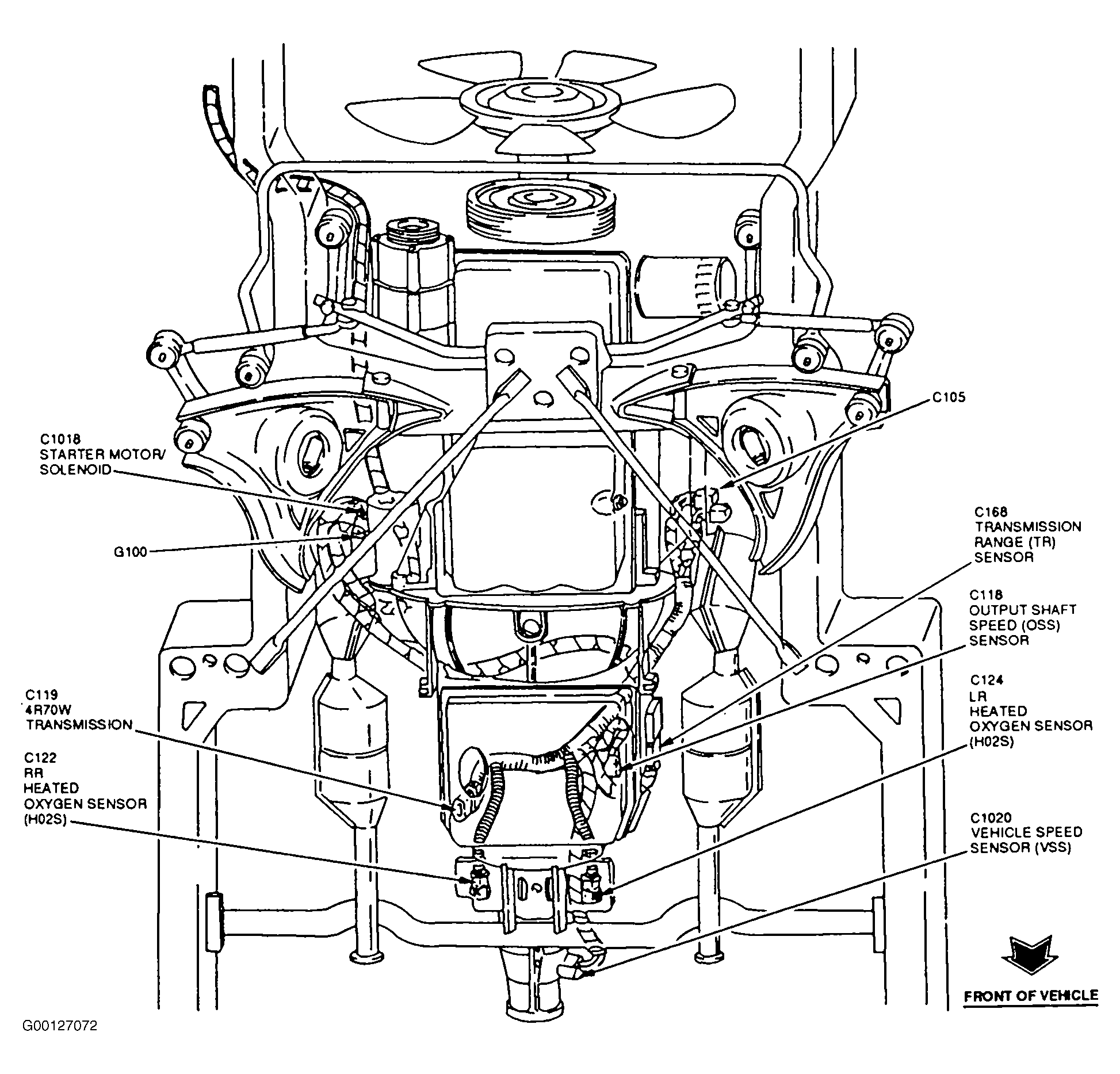

Fig 6: Locating Ground G100, Starter Motor/Solenoid & Transmission Range Sensor

Courtesy of FORD MOTOR CO.

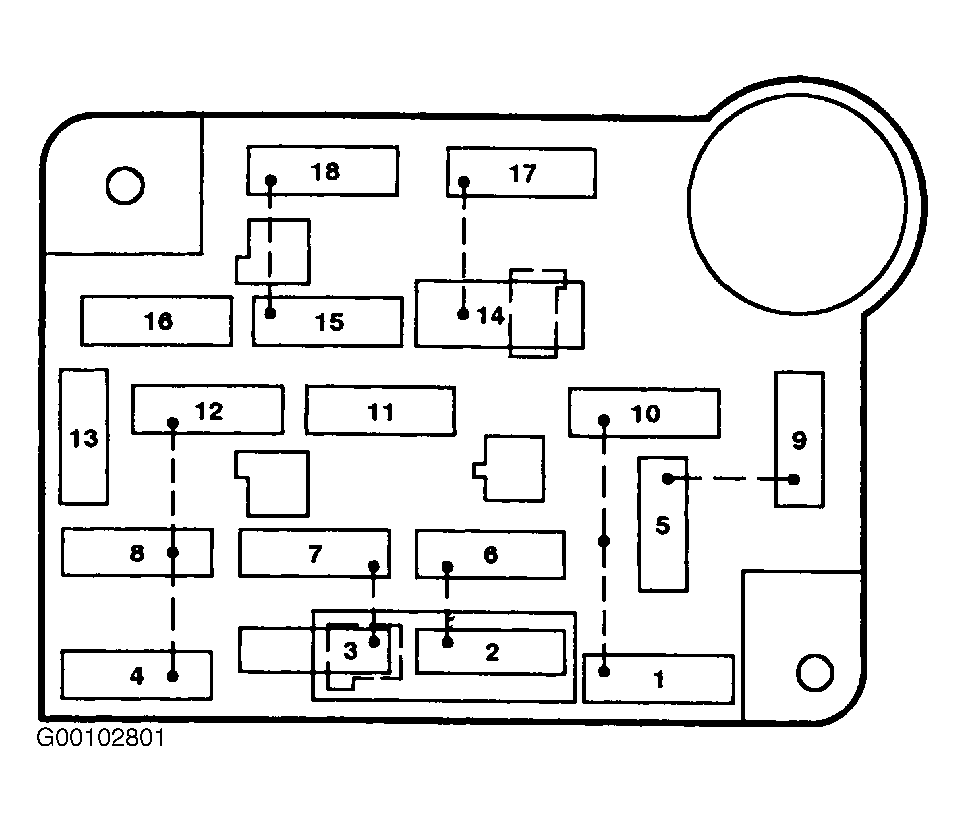

Fig 7: Identifying Instrument Panel Fuse Panel Components

Courtesy of FORD MOTOR CO.
