Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

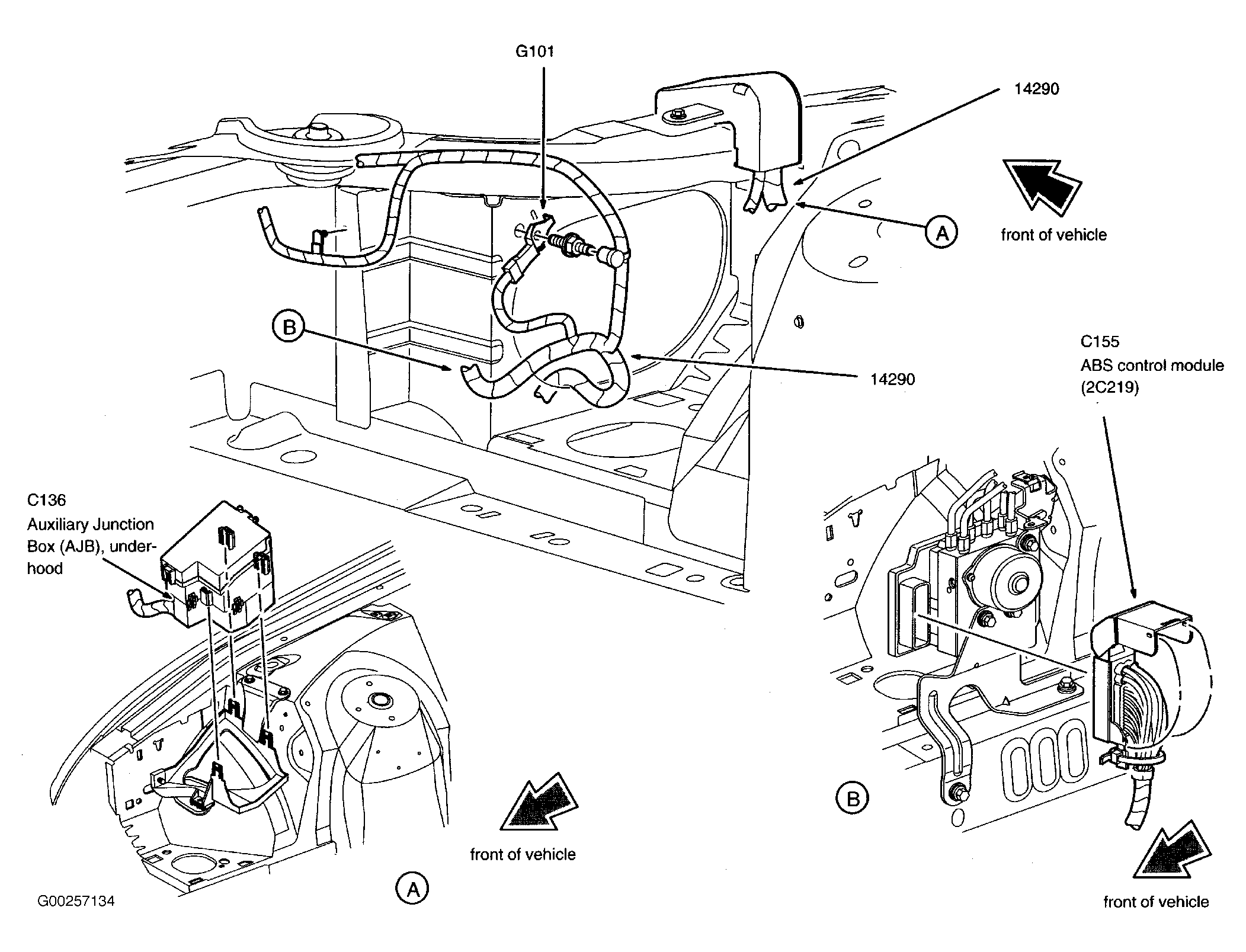

| ABS Control Module | Right front side of engine compartment. See Figure. |

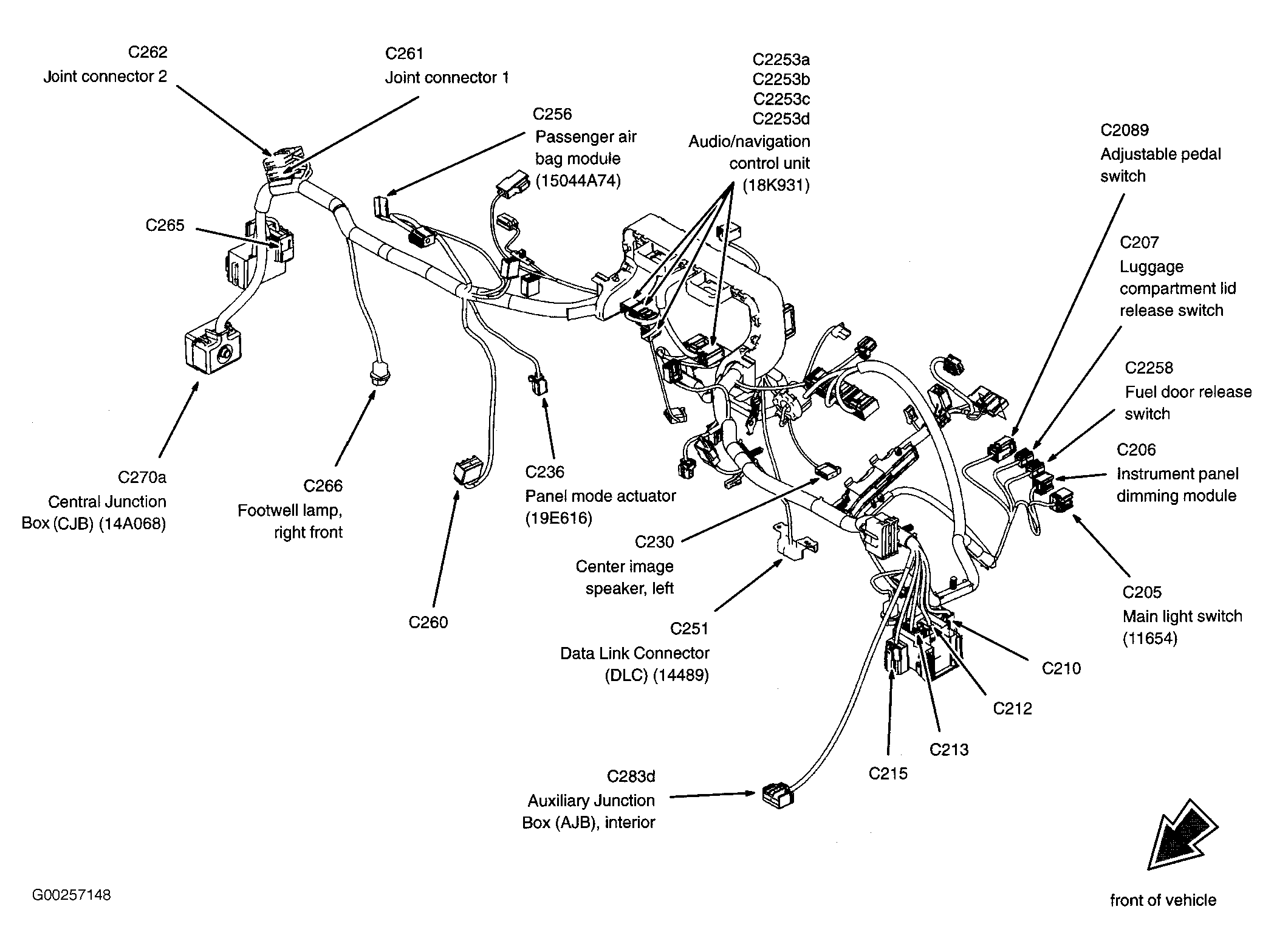

| Audio/Navigation Control Unit | Behind center of dash. See Figure. |
| Audio Unit | Behind center of dash. See Figure. |

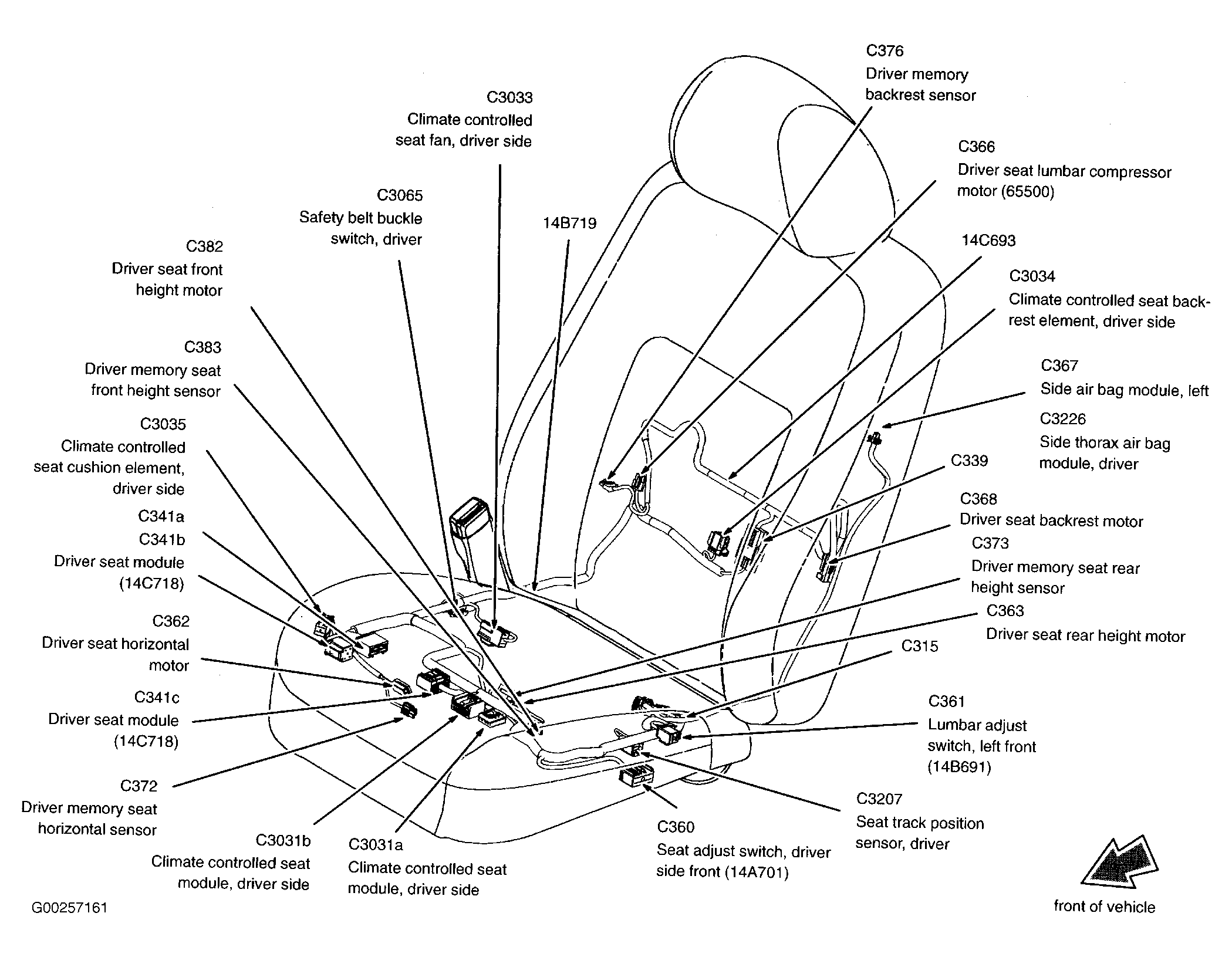

| Climate Controlled Seat Module (Driver Side) | Under driver's seat. See Figure. |

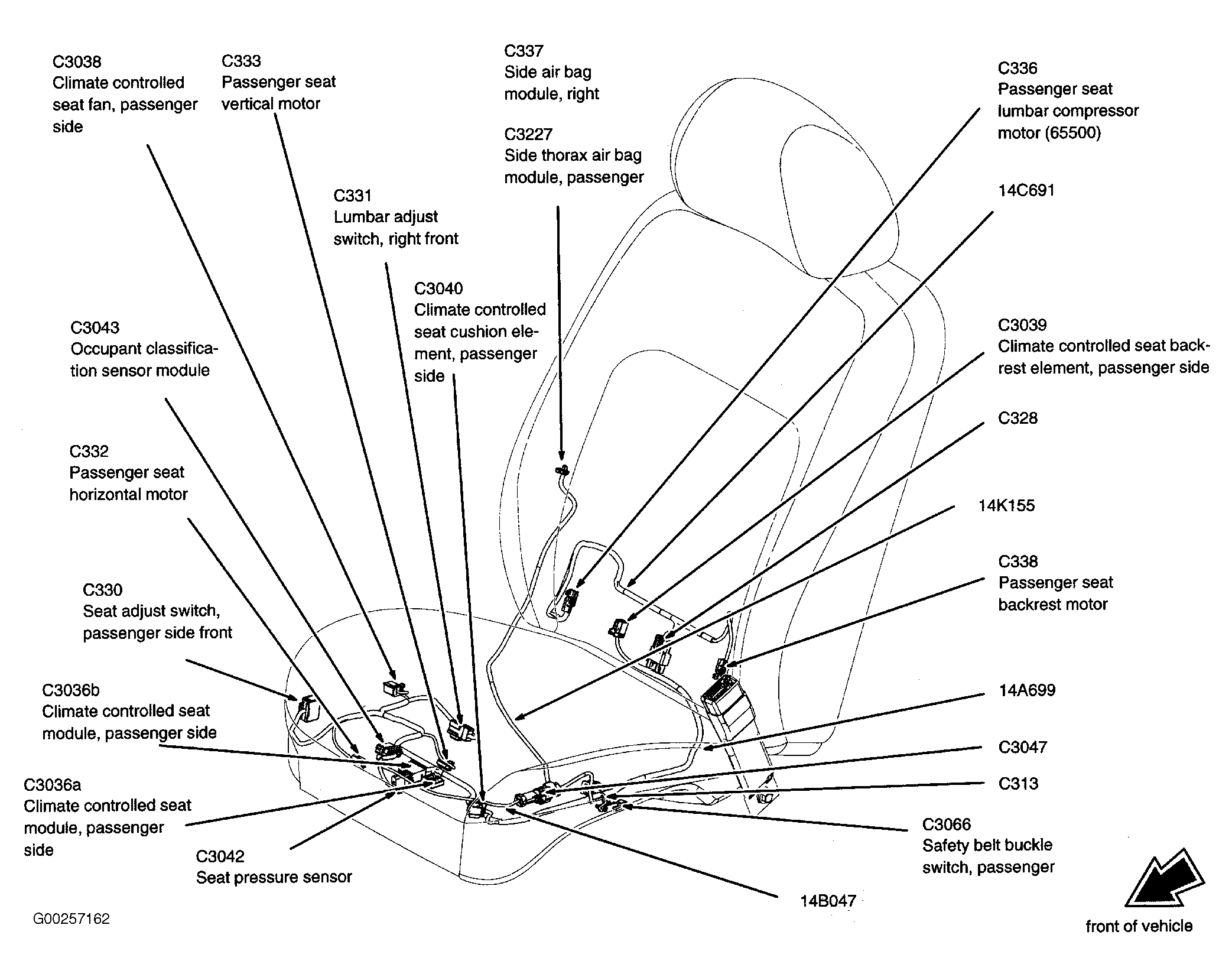

| Climate Controlled Seat Module (Passenger Side) | Under right front seat. See Figure. |
| Driver Air Bag Unit | At center of steering wheel. See Figure. |

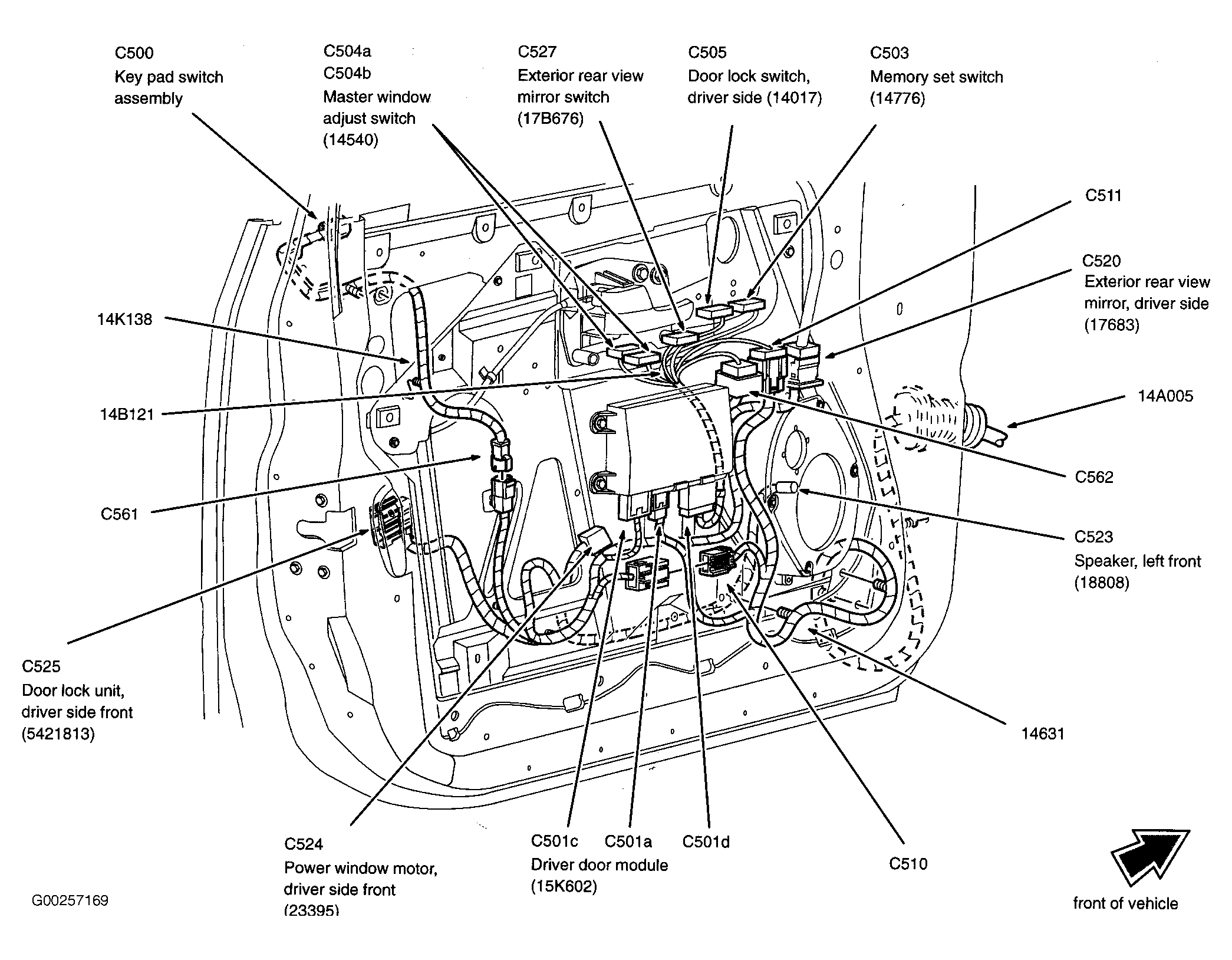

| Driver Door Module | In driver's door. See Figure. |
| Driver Seat Module | Under driver's seat. See Figure. |

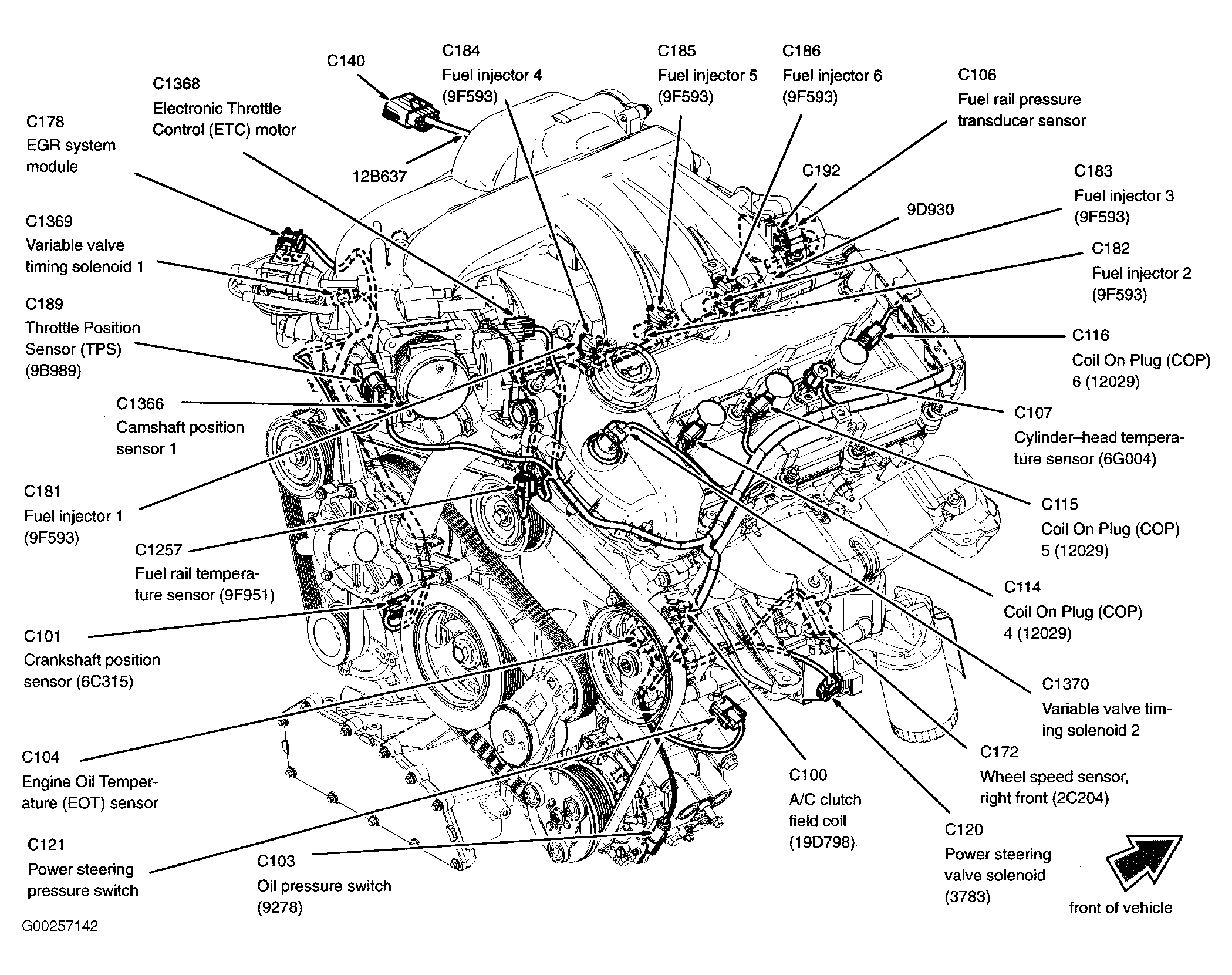

| EGR System Module (3.0L) | At upper right front of engine. See Figure. |

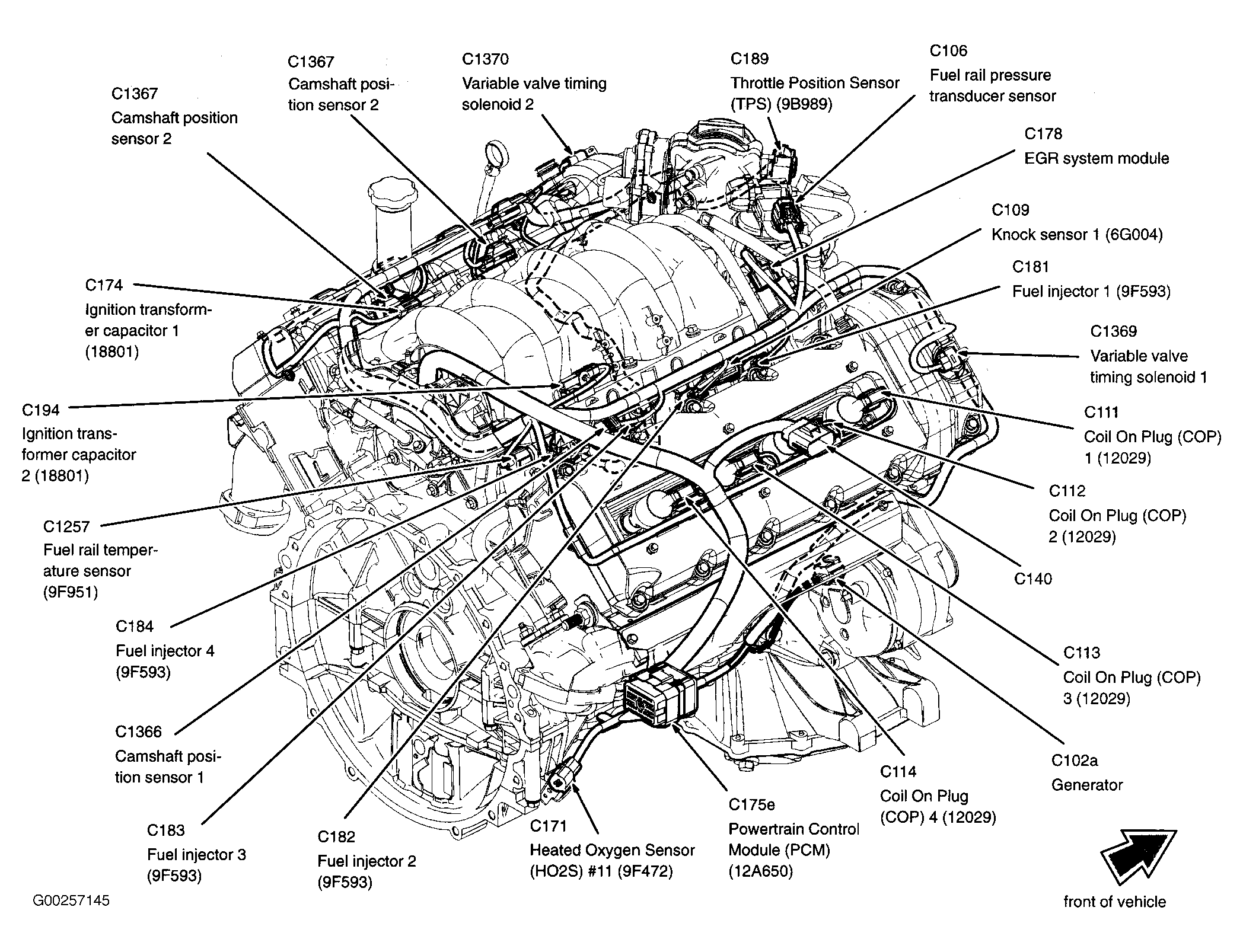

| EGR System Module (3.9L) | At upper right front of engine. See Figure. |

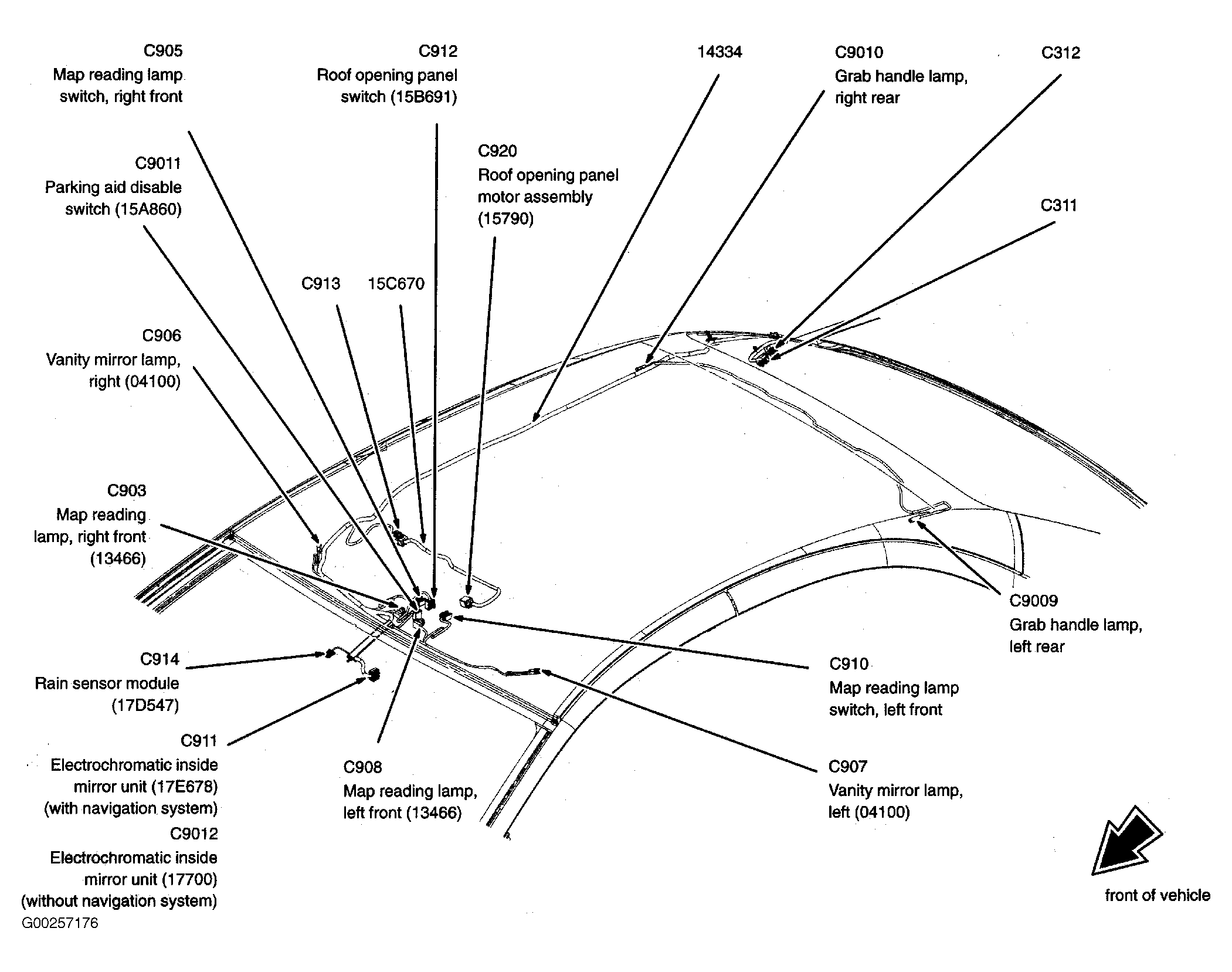

| Electrochromatic Inside Mirror Unit | In center of roof panel. See Figure. |

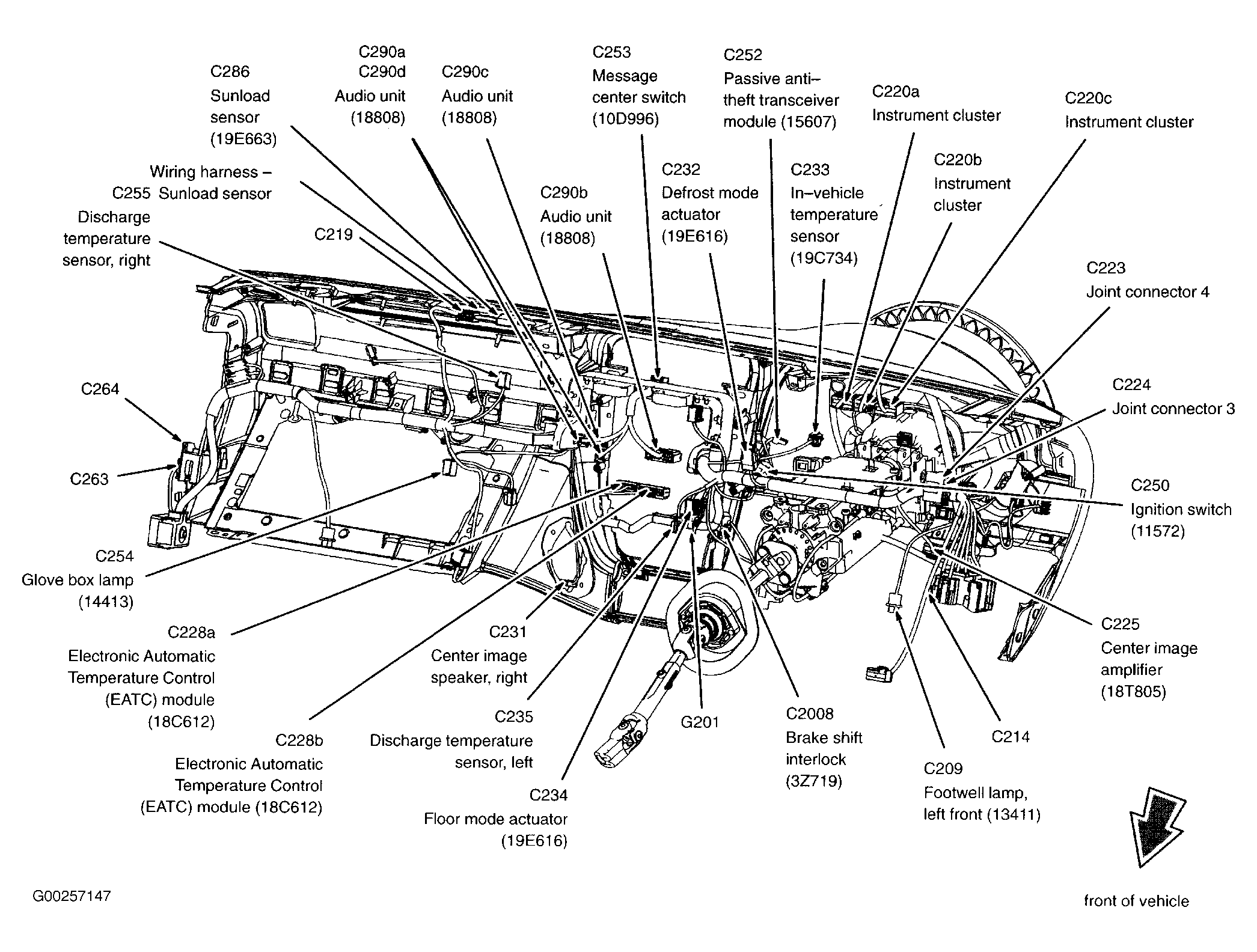

| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure. |
| Electronic Hidden Antenna Module (EHAM) | On rear center of roof. See Figure. |

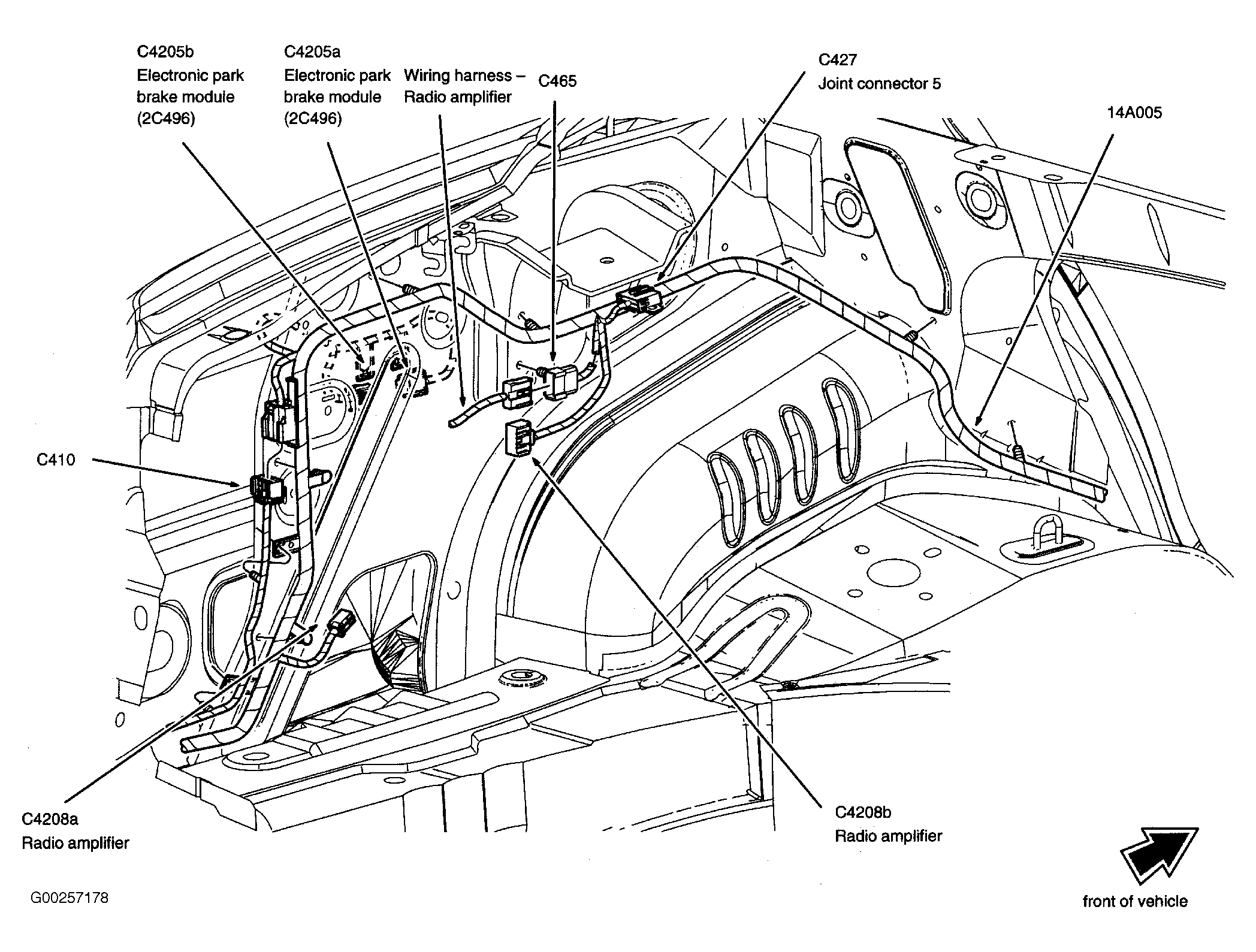

| Electronic Park Brake Module | At left side of luggage compartment. See Figure. |

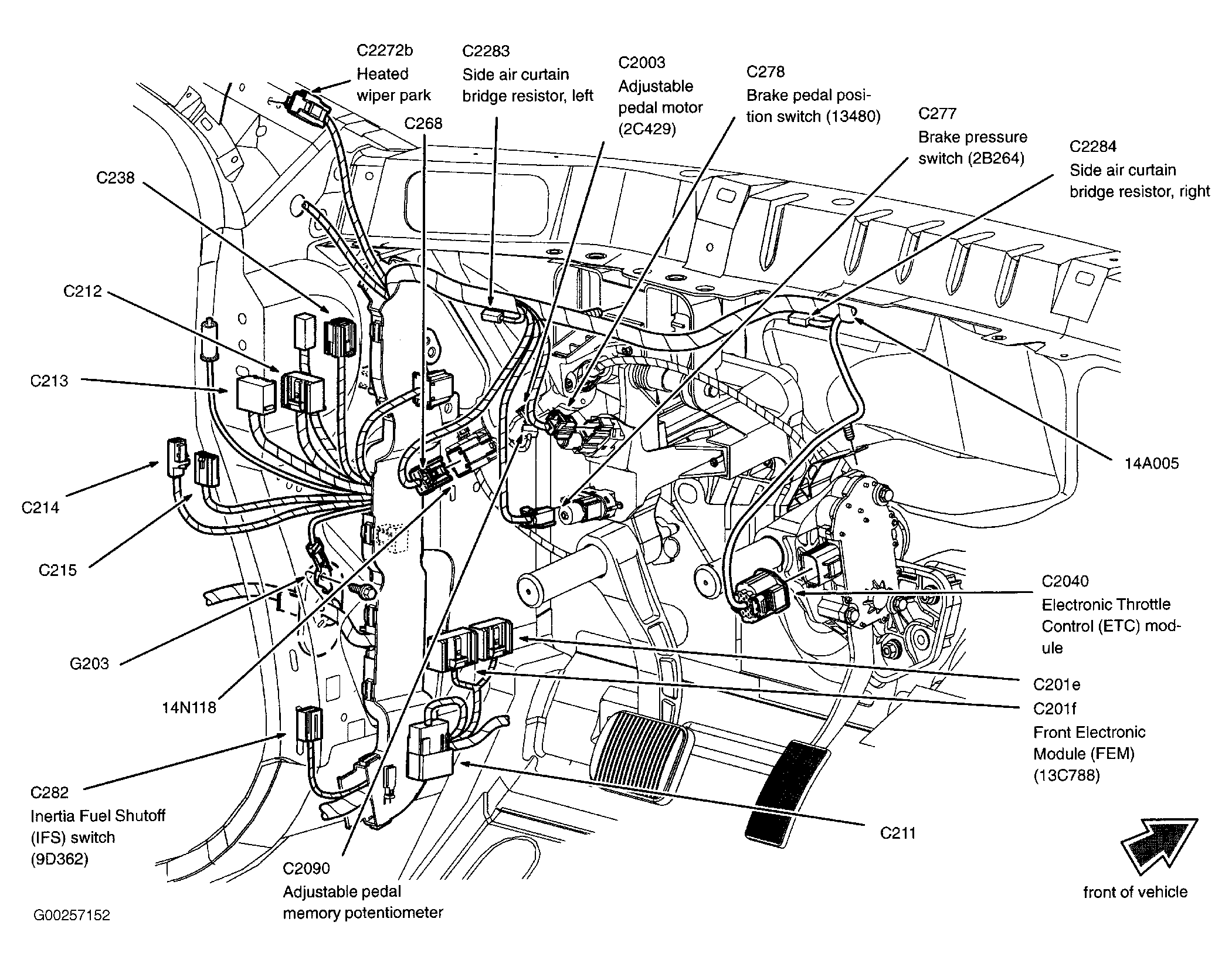

| Electronic Throttle Control (ETC) Module | Behind left side of dash. See Figure. |
| Front Electronic Module (FEM) | On left kick panel. See Figure. |
| Heated Seat Module (Left Rear) | In left rear seat. See Figure. |
| Heated Seat Module (Right Rear) | In right rear seat. See Figure. |

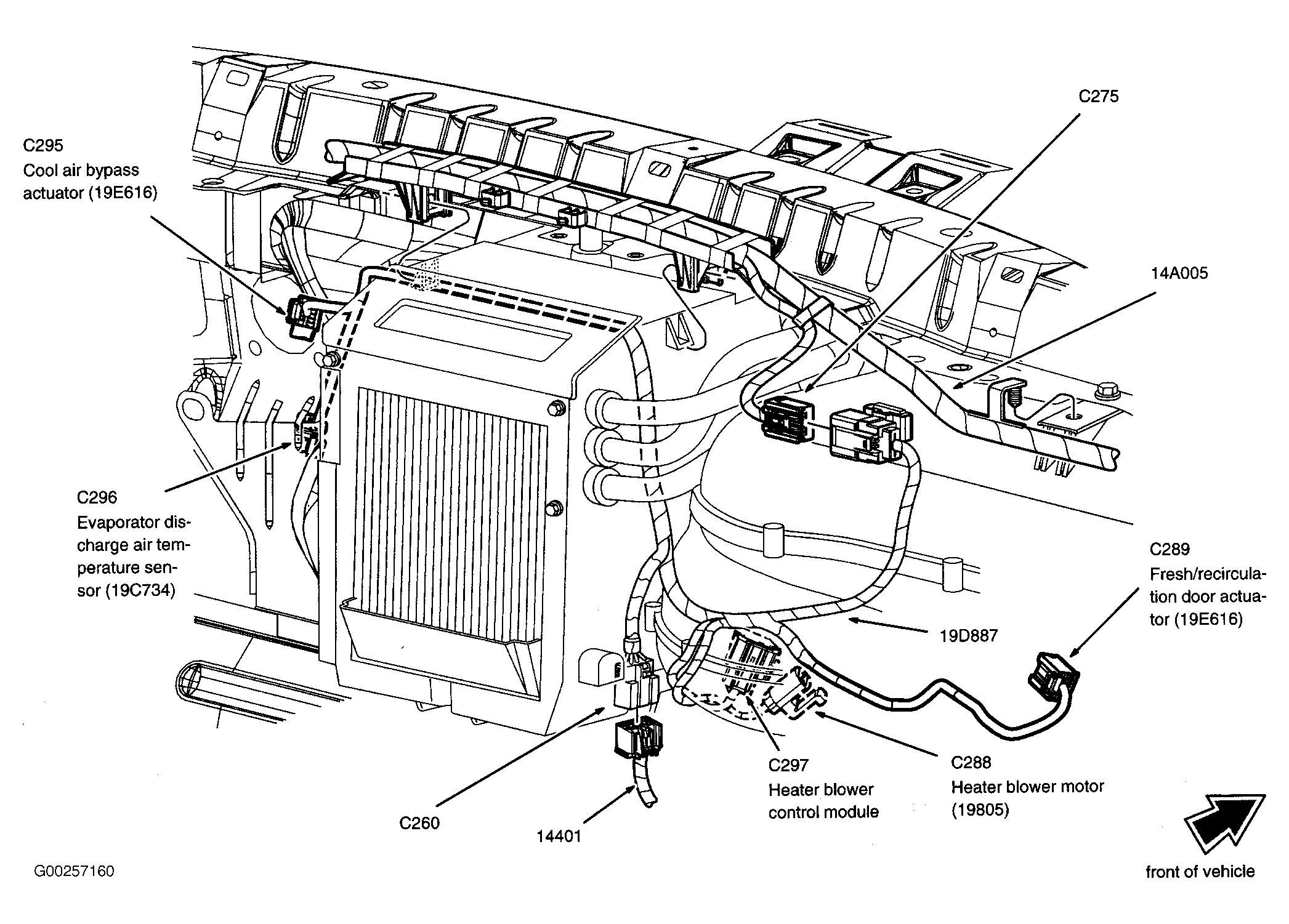

| Heater Blower Control Module | Behind right center of dash. See Figure. |
| Instrument Panel Dimming Module | Behind left side of dash. See Figure. |

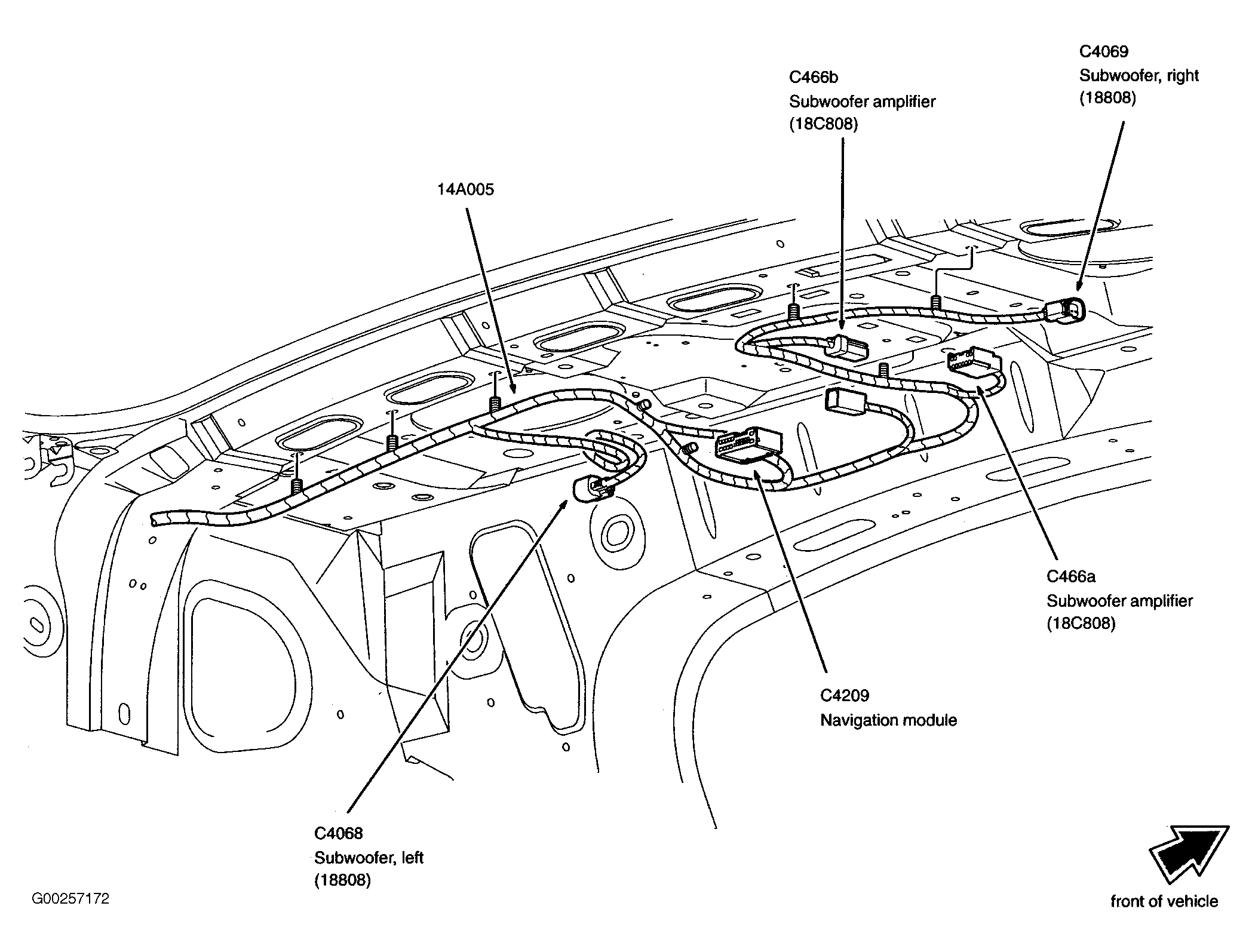

| Navigation Module | On package tray. See Figure. |
| Occupant Classification Sensor Module | Under right front seat. See Figure. |
| Parking Aid Module (PAM) | On left rear of package tray. See Figure. |
| Passenger Air Bag Module | At lower right side of dash. See Figure. |
| Passive Anti-Theft Transceiver Module | Behind center of dash. See Figure. |
| Powertrain Control Module (PCM) | Right rear of engine compartment. See Figure. |
| Rain Sensor Module | In roof panel. See Figure. |

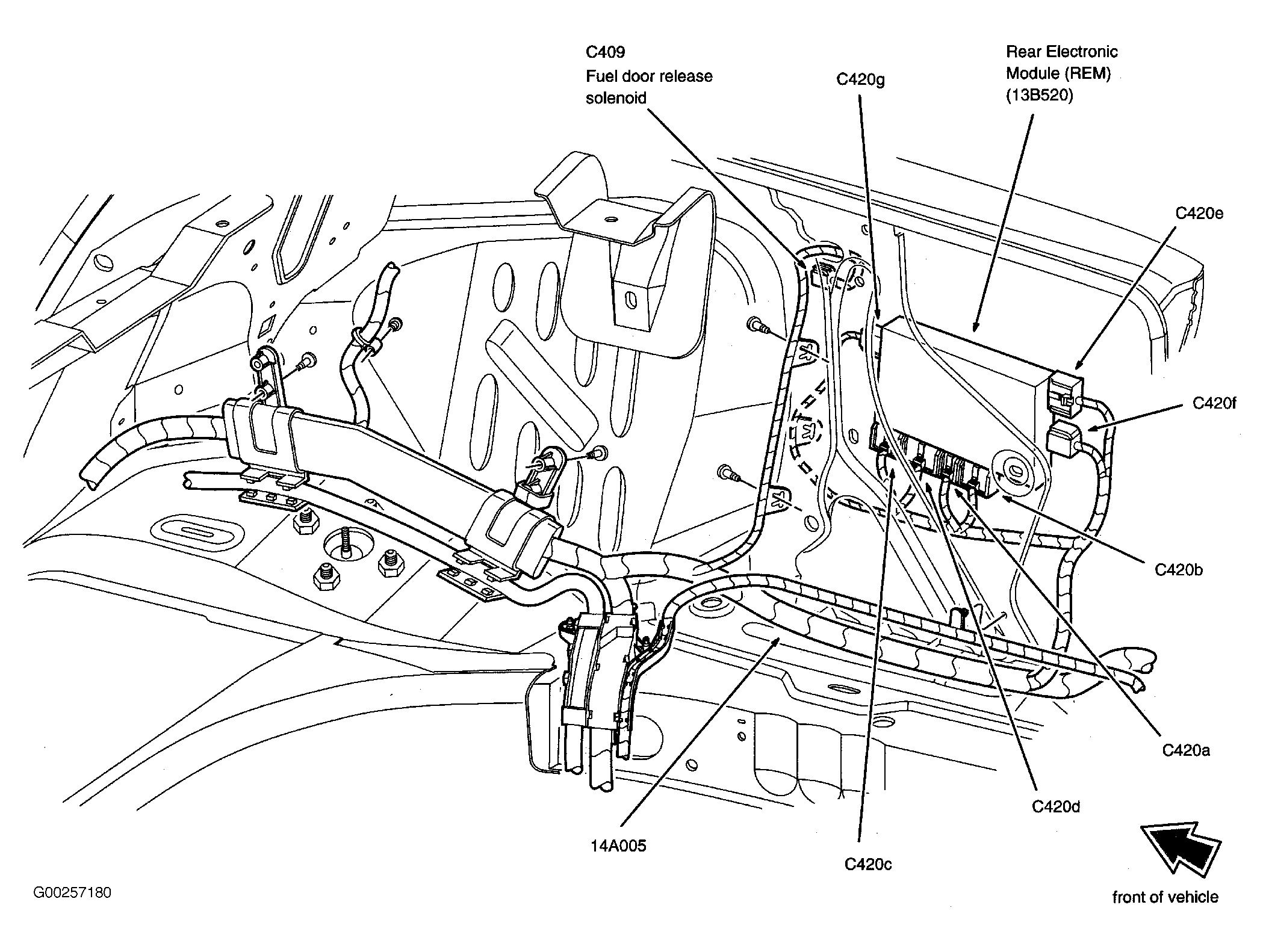

| Rear Electronic Module (REM) | In right side of luggage compartment. See Figure. |
| Restraints Control Module | On center floor pan. See Figure. |
| Side Air Bag Module (Left) | On driver's seat backrest. See Figure. |
| Side Air Bag Module (Right) | On right front seat backrest. See Figure. |
| Side Air Curtain Module (Driver) | On left "A" pillar. See Figure. |
| Side Air Curtain Module (Passenger) | On right "A" pillar. See Figure. |
| Side Thorax Air Bag Module (Driver) | On driver's seat backrest. See Figure. |
| Side Thorax Air Bag Module (Passenger) | On right front seat backrest. See Figure. |
