Control Units

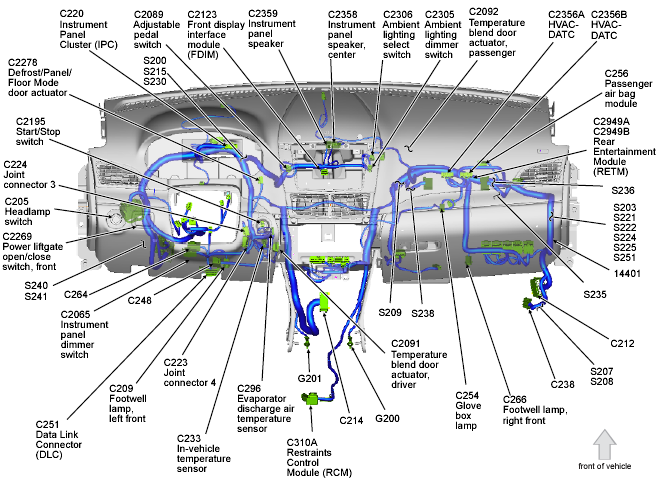

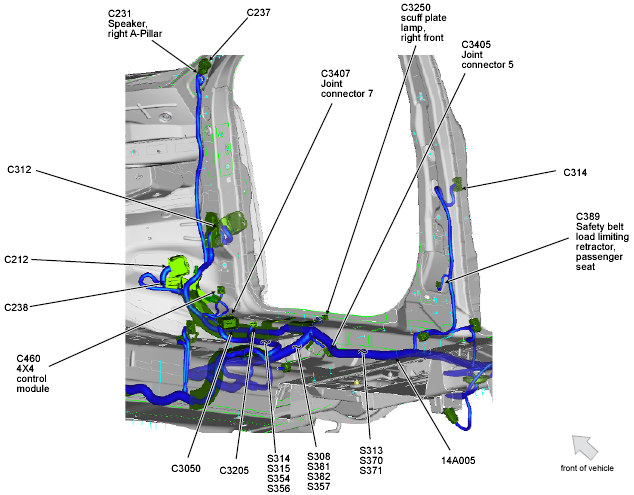

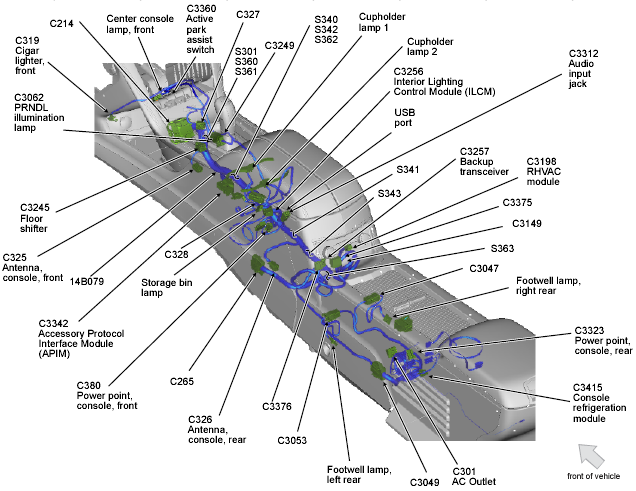

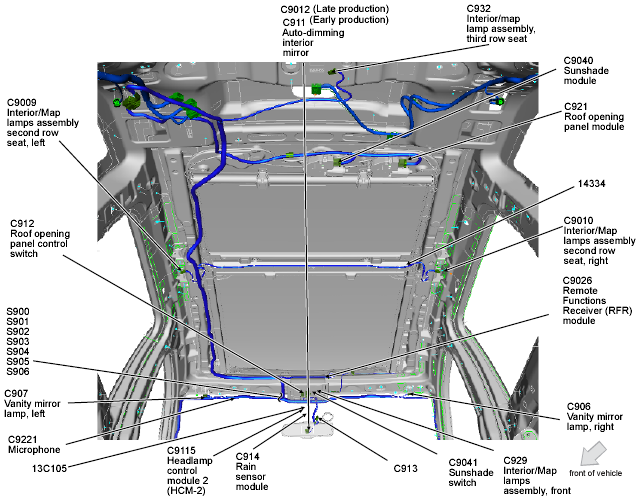

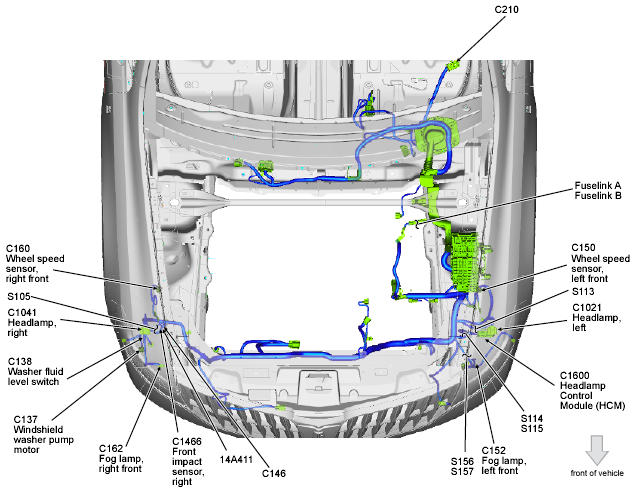

CONTROL UNITS LOCATION

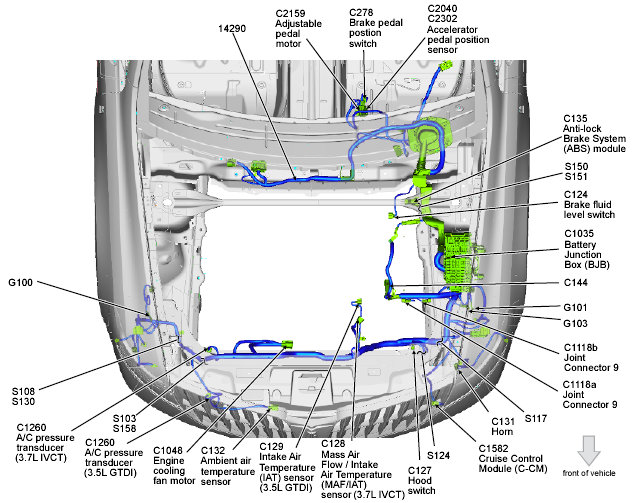

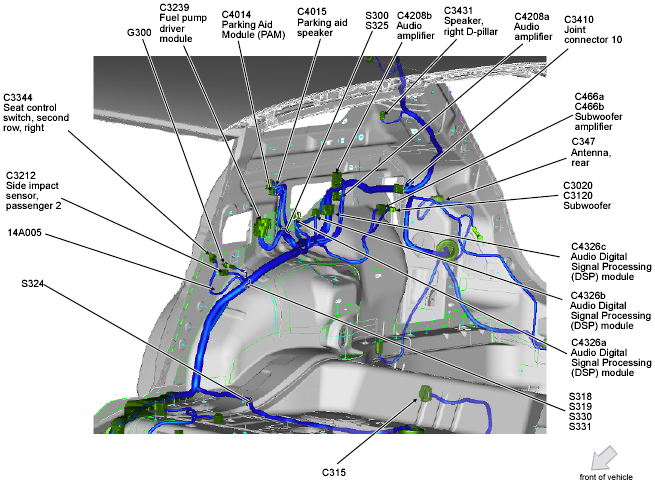

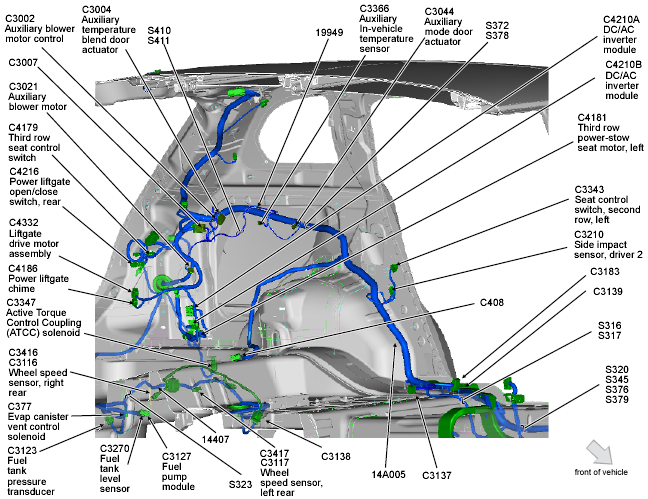

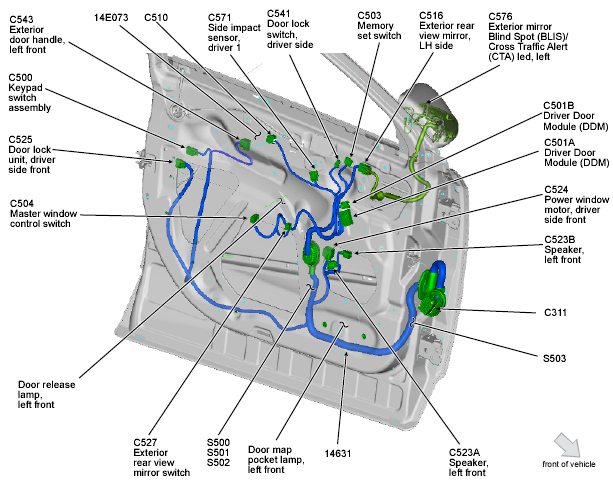

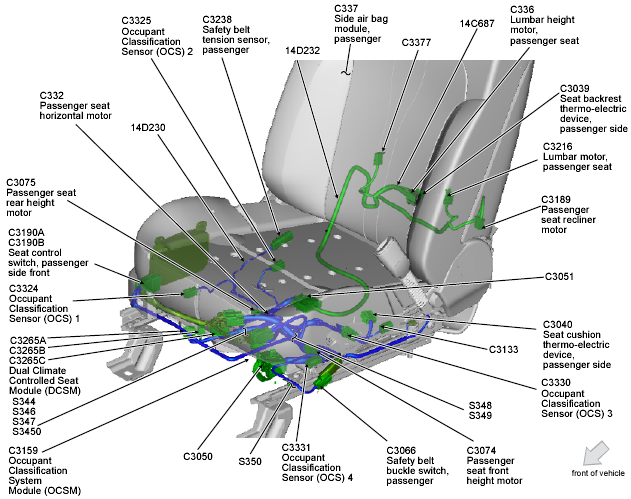

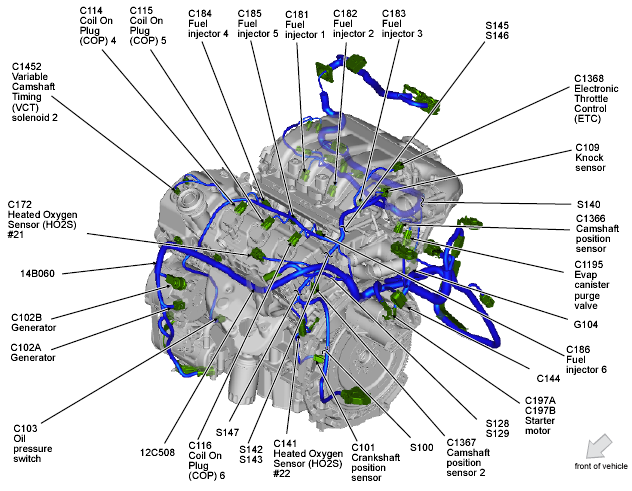

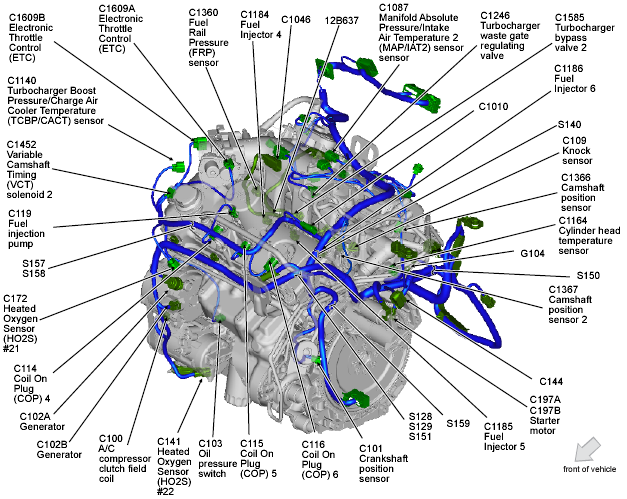

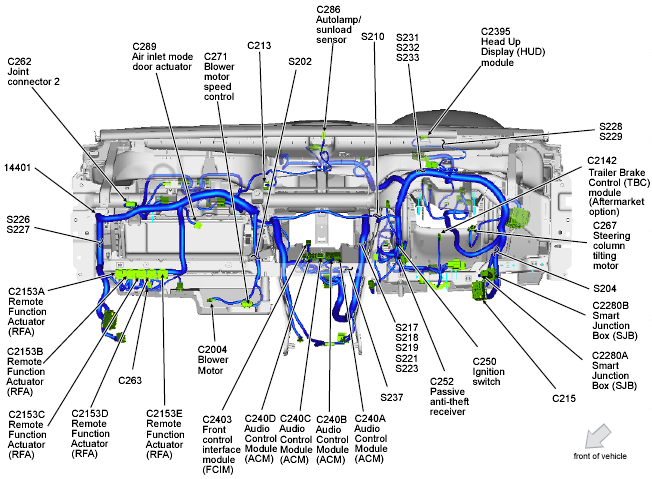

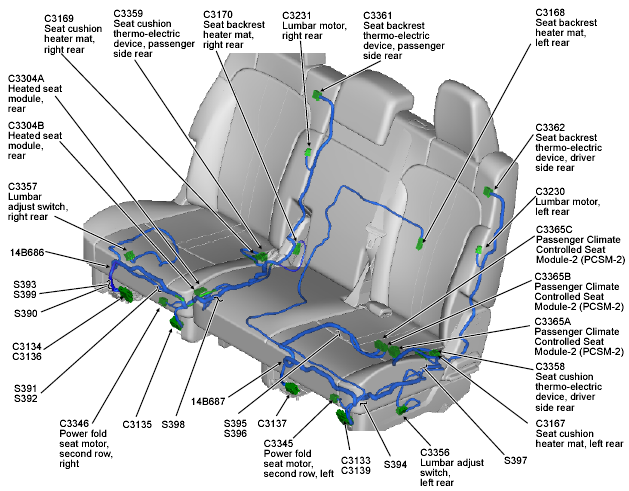

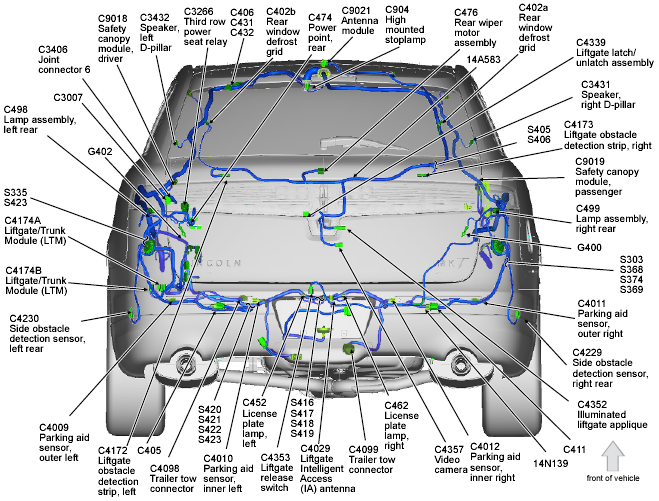

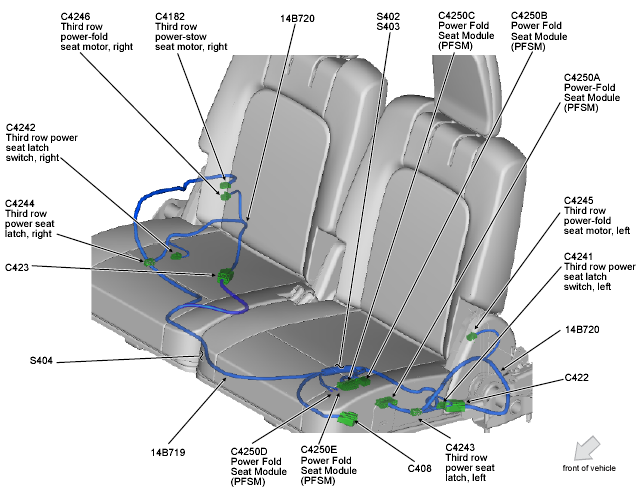

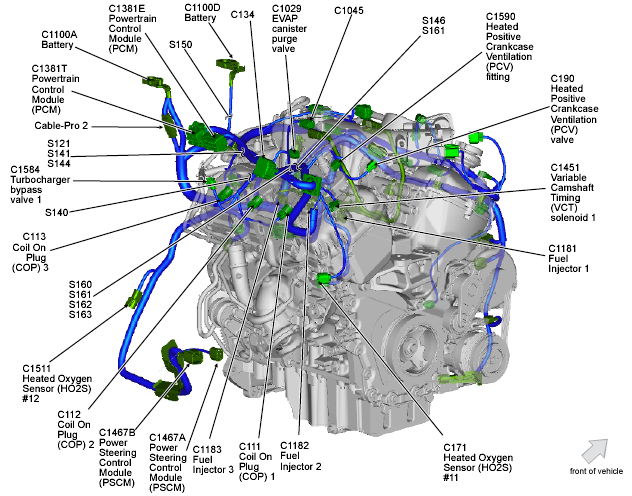

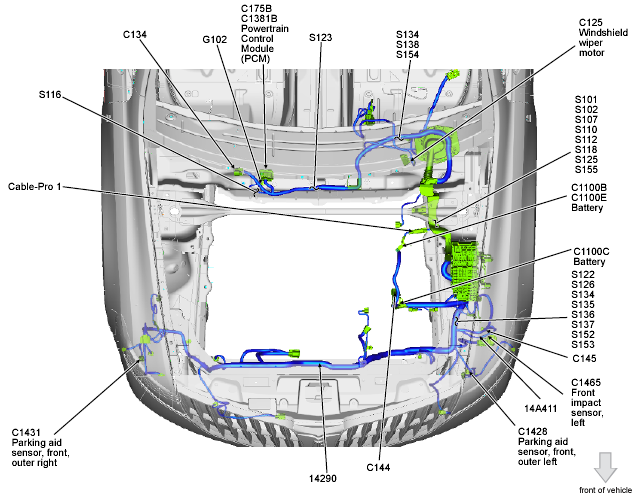

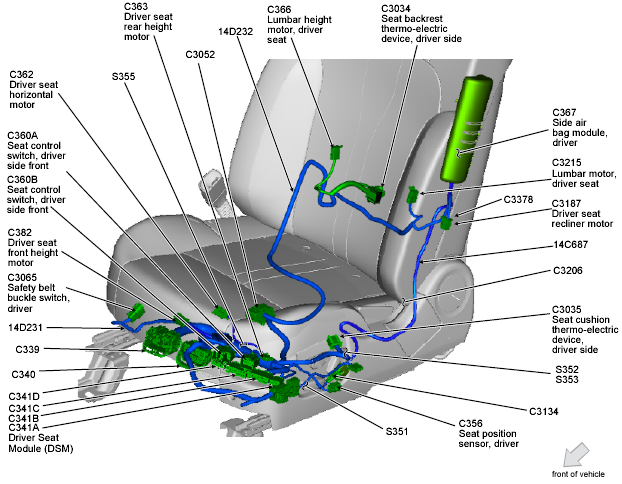

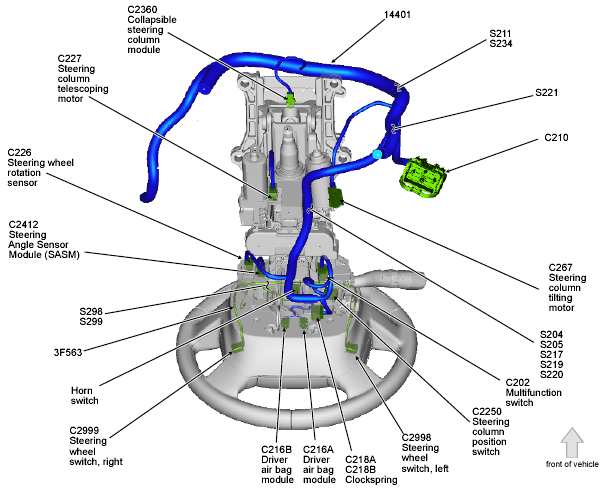

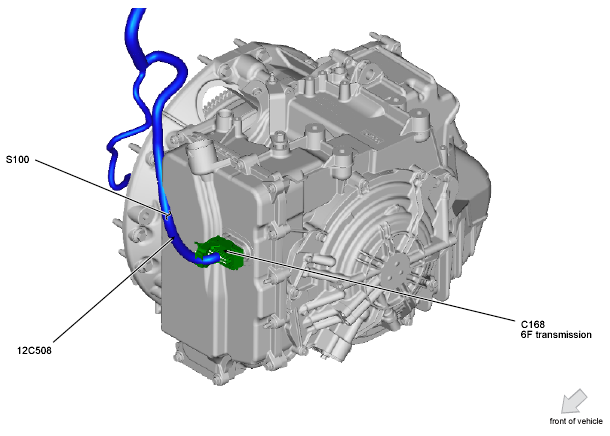

| Component | Location |
|---|---|
| Accessory Protocol Interface Module (APIM) | Center console. See Figure. |
| Antenna Module | Center rear of roof. See Figure. |
| Anti-Lock Brake System (ABS) Module | Left rear of engine compartment. See Figure. |
| Audio Control Module (ACM) | Center of dash. See Figure. |
| Audio Digital Signal Processing (DSP) Module | Right quarterpanel. See Figure. |
| Auxiliary Blower Control Module | Left rear quarterpanel. See Figure. |
| Blower Motor Speed Control | Right side of HVAC unit. See Figure. |
| Cruise Control Module (C-CM) | Left front corner of engine compartment. See Figure. |
| DC/AC Inverter Module | Base of right "D" pillar. See Figure. |
| Driver Door Module (DDM) | Driver's door. See Figure. |
| Dual Climate Controlled Seat Module (DCSM) | Under front passenger's seat. See Figure. |
| Electronic Throttle Control (ETC) (3.5L) | Top front of engine. See Figure. |
| Electronic Throttle Control (ETC) (3.7L) | Top right rear of engine. See Figure. |
| Front Control Interface Module (FCIM) | Lower center of dash. See Figure. |
| Front Display Interface Module (FDIM) | Center of dash. See Figure. |
| Fuel Pump Driver Module | Right "C" pillar. See Figure. |
| Fuel Pump Module | In fuel tank. See Figure. |
| Headlamp Control Module (HCM) | Behind left headlight assembly. See Figure. |
| Headlamp Control Module 2 (HCM-2) | Center front of roof. See Figure. |
| Heated Seat Module (Rear) | Under right second row seat. See Figure. |
| HVAC-DATC Module | Right side of dash. See Figure. |
| Interior Lighting Control Module (ILCM) | Under center console. See Figure. |
| Liftgate/Trunk Module (LTM) | Left "D" pillar. See Figure. |
| Occupant Classification System Module (OCSM) | Under front passenger's seat. See Figure. |
| Parking Aid Module (PAM) | Right "C" pillar. See Figure. |
| Passenger Climate Controlled Seat Module 2 (PCSM-2) | Under left second row seat. See Figure. |
| Power Fold Seat Module (PFSM) | Under left third row seat. See Figure. |
| Power Steering Control Module (PSCM) | Right rear of engine. See Figure. |
| Powertrain Control Module (PCM) | Rear of engine compartment. See Figure. |
| Rain Sensor Module | Center front of roof. See Figure. |
| Rear Entertainment Module (RETM) | Right side of dash. See Figure. |
| Remote Functions Receiver (RFR) Module | Center front of roof. See Figure. |
| Restraints Control Module (RCM) | Center console. See Figure. |
| RHVAC Module | Under center console. See Figure. |
| Seat Module (DSM) (Driver) | Under driver's seat. See Figure. |
| Steering Angle Sensor Module (SASM) | Top of steering column. See Figure. |
| Trailer Brake Control (TBC) Module | Left side of dash. See Figure. |
| 4X4 Control Module | Right kick panel. See Figure. |
| 6F Transmission (Control Module) | On transmission. See Figure. |
