Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C-Heater Circuit Breaker | On passenger compartment fuse block. |

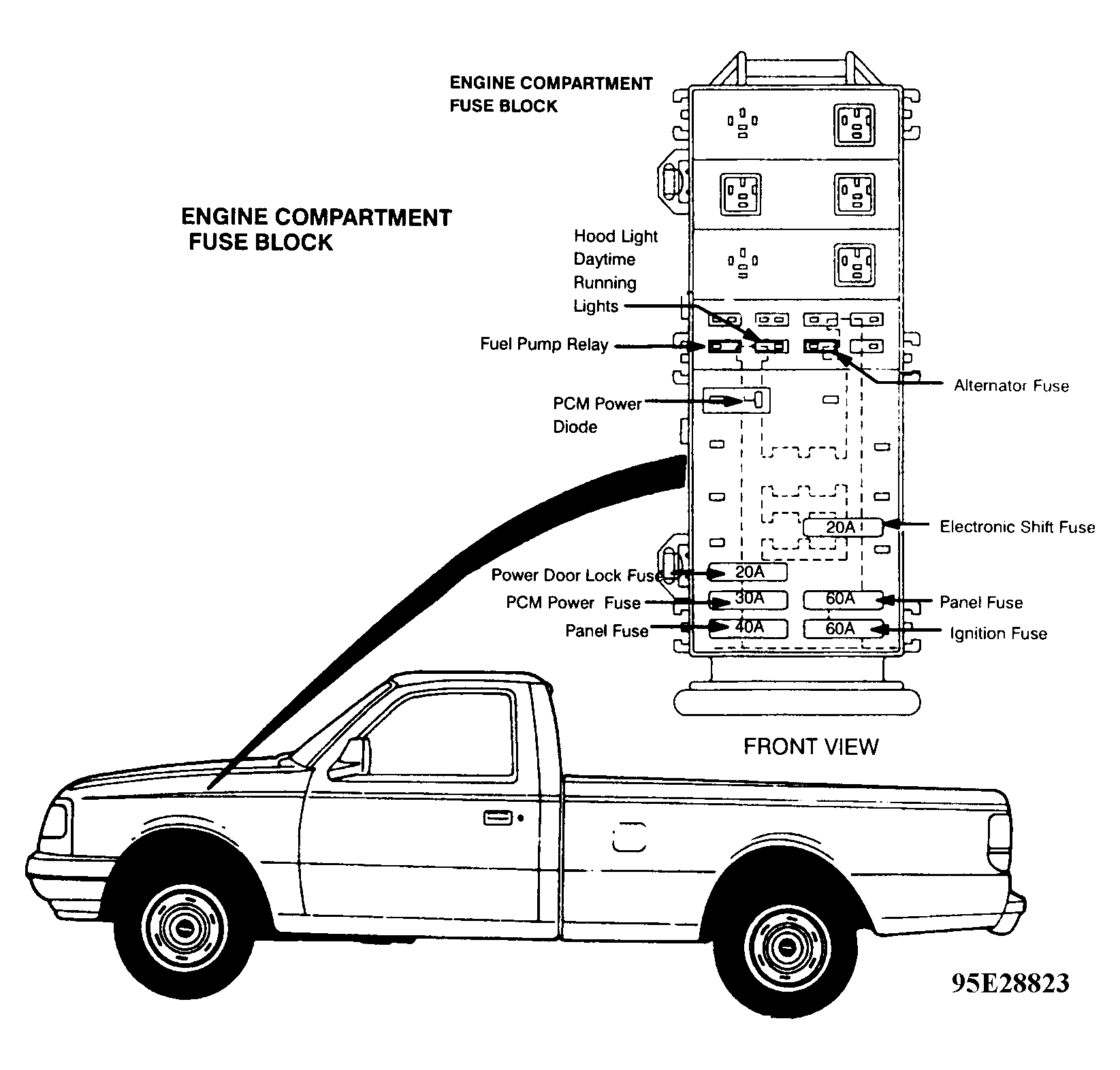

| Engine Compartment Fuse Block (Panel Identification) | On right front corner of engine compartment, behind battery. See Figure . |
| Engine Compartment Fuse Block (B2300) | On right front corner of engine compartment, behind battery. See Figure . |

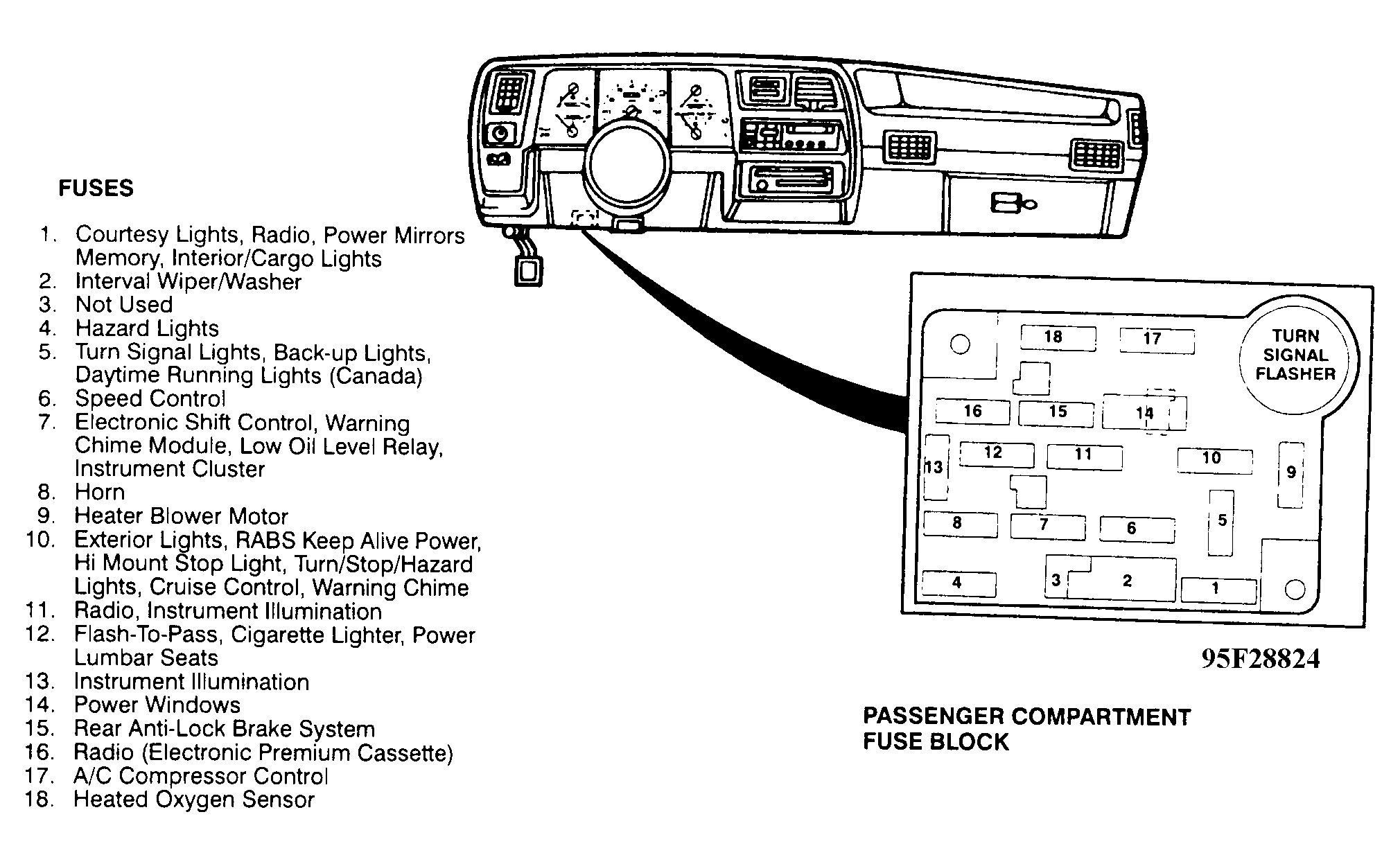

| Passenger Compartment Fuse Block (Panel Identification) | Behind left side of dash, near kick panel. See Figure . |

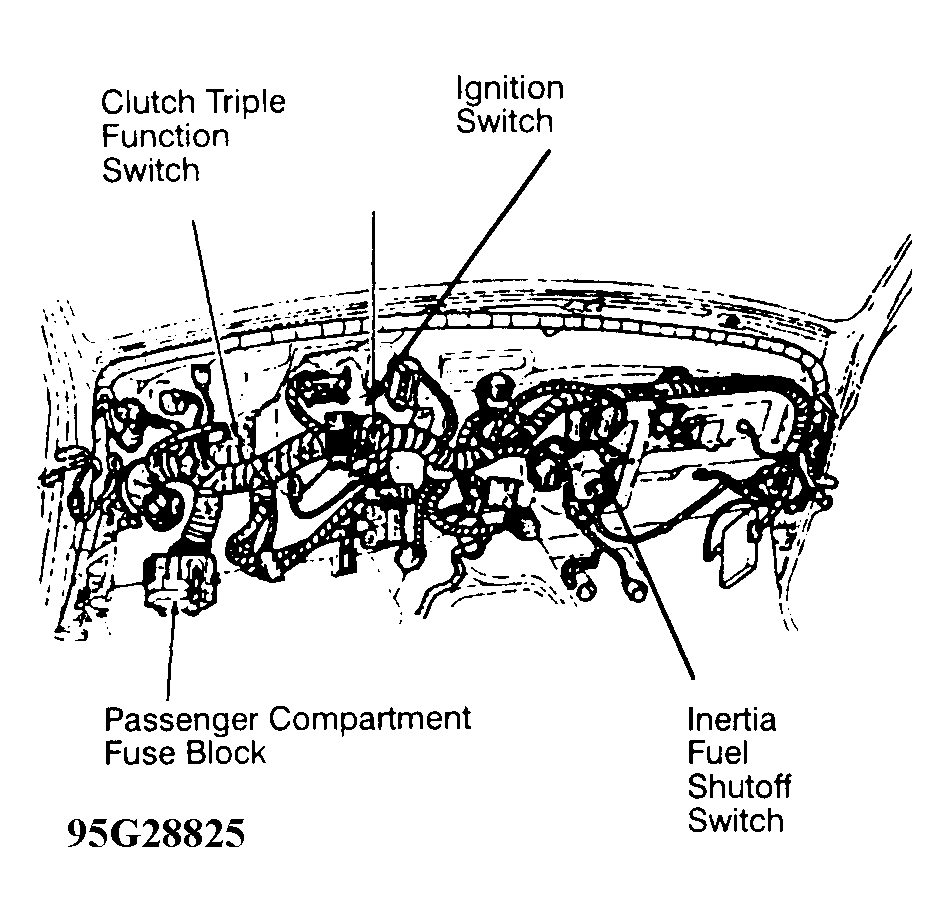

| Passenger Compartment Fuse Block (Location) | Behind left side of dash, near kick panel. See Figure . |
| Relay Block | Behind left side of dash, near kick panel. |
