Transfer Location Index [C66MX-R]

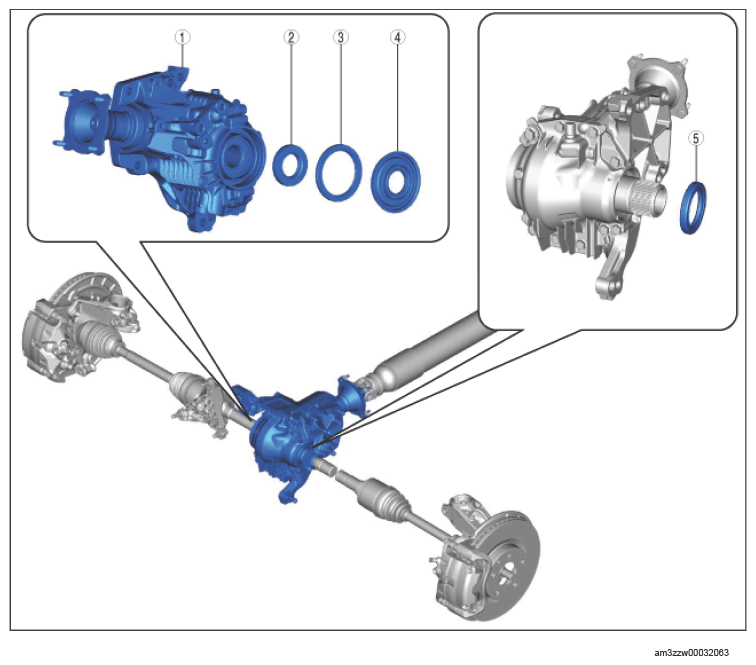

Fig 1: Transfer Components Location (C66MX-R)

Courtesy of MAZDA MOTORS CORP.

TRANSFER COMPONENT OPERATIONS

Component No.	Refer to
1	Transfer (See TRANSFER OIL INSPECTION [C66MX-R] .) (See TRANSFER OIL REPLACEMENT [C66MX-R] .) (See TRANSFER REMOVAL/INSTALLATION [C66MX-R] .)
2	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [C66MX-R] .)
3	Transfer oil seal (RH) No. 2 (See TRANSFER OIL SEAL REPLACEMENT [C66MX-R] .)
4	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [C66MX-R] .)
5	Transfer oil seal (LH) (See TRANSFER OIL SEAL REPLACEMENT [C66MX-R] .)
