Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS/ASR Control Module (C280) | Right rear corner of engine compartment. |
| ABS Control Module | Right rear corner of engine compartment. |
| ABS Hydraulic Unit | Left front side of engine compartment. |
| Anti-Theft Alarm Control Module | In center of luggage compartment. |
| Automatic Locking Differential Control Module (C220) | In luggage compartment. |
| Central Locking Control Module | Right rear corner of luggage compartment. |
| Convenience Control Module (Power Windows, Sliding/Pop-Up Roof) | In luggage compartment, next to battery. |
| Cruise Control/Idle Speed Control Module (C280) | Right rear corner of engine compartment. |

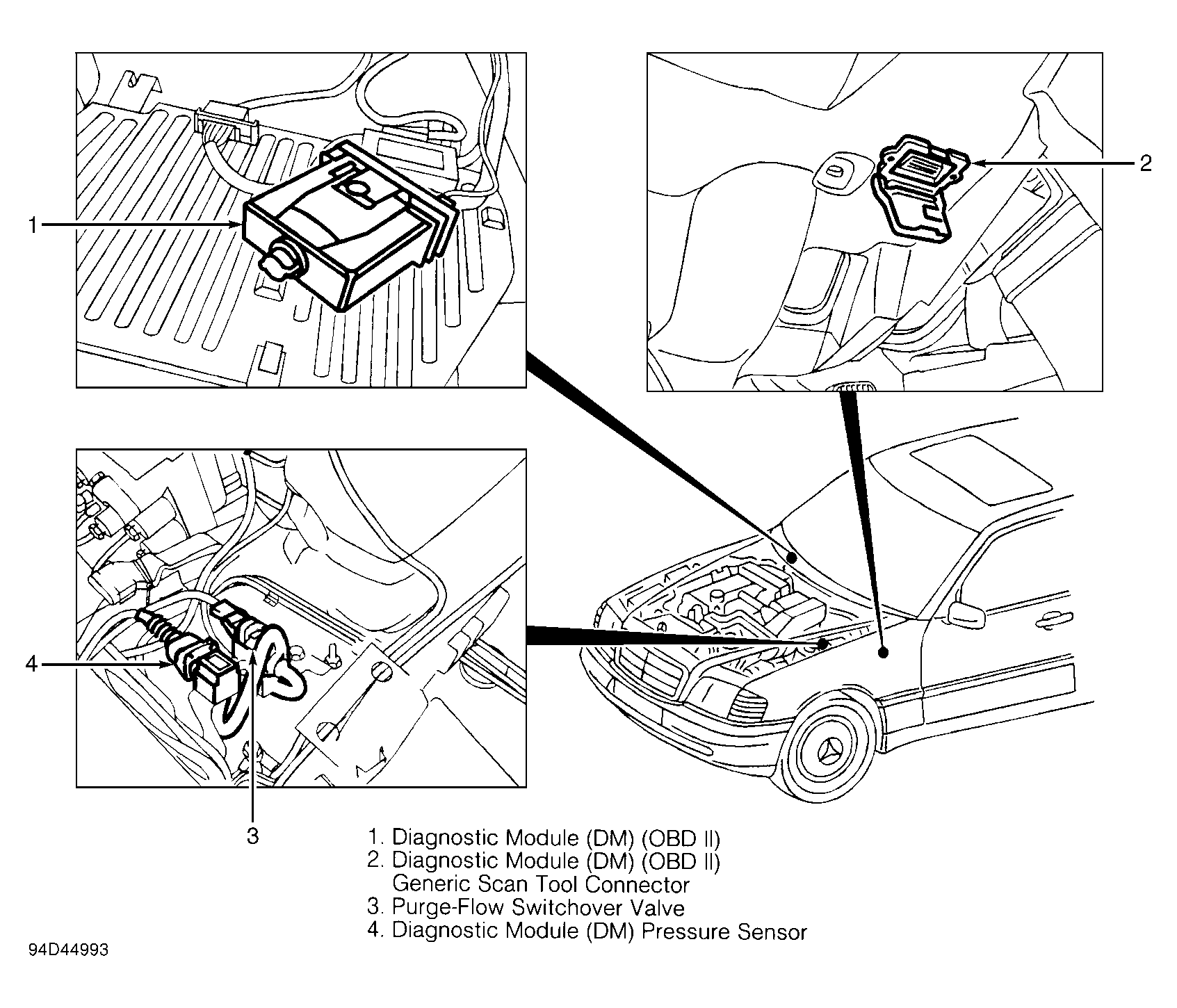

| Diagnostic Module (OBD II) | Right side under dash. See Figure. |

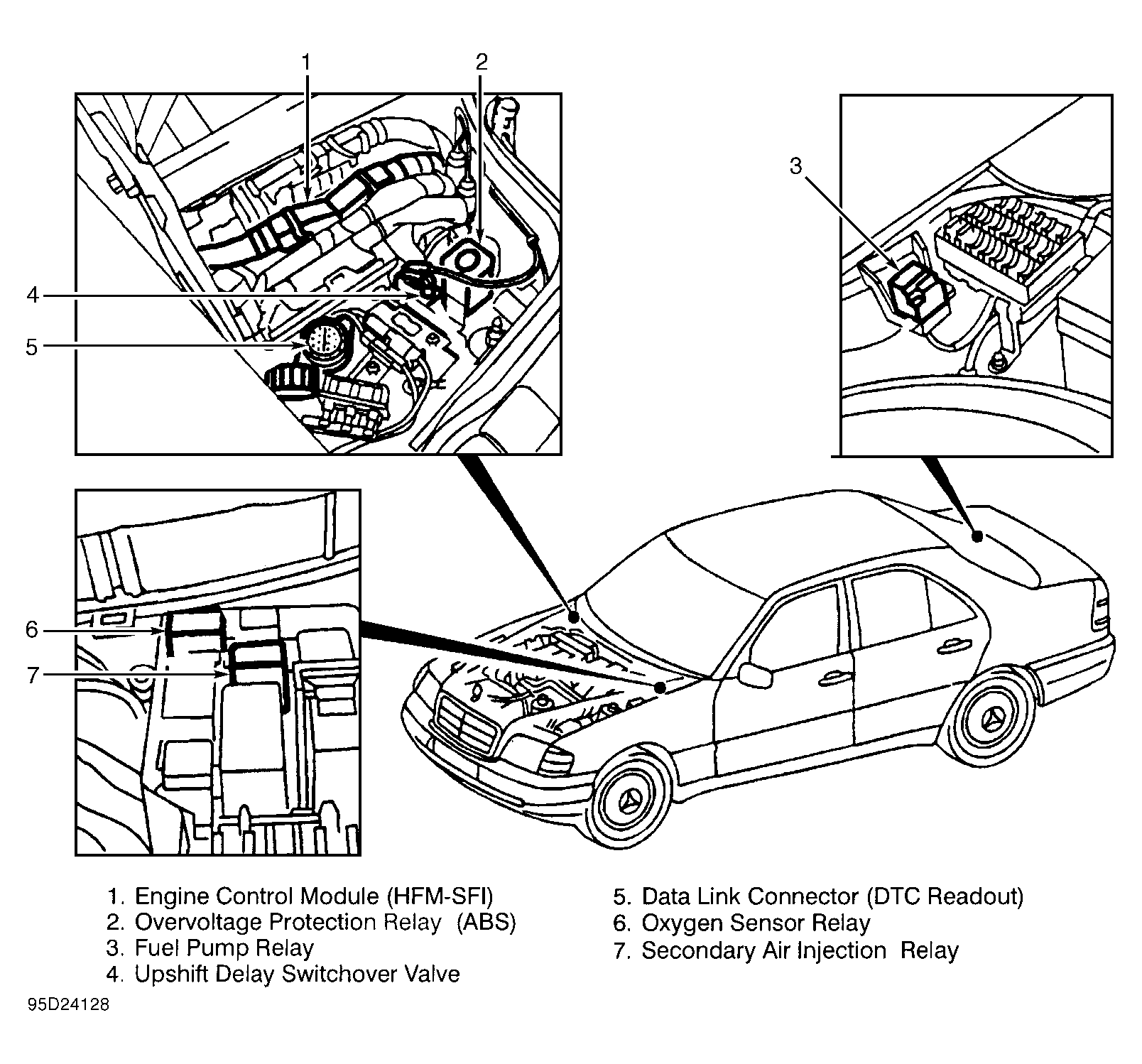

| Engine Control Module (HFM-SFI) | Right rear corner of engine compartment. See Figure. |
| Front Seat Heater Control Module | Right side under dash. |
| SRS Control Module | In center console. |
| Warning Module (Seatbelt/Keys/Lights) | Left side under dash. |
