Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

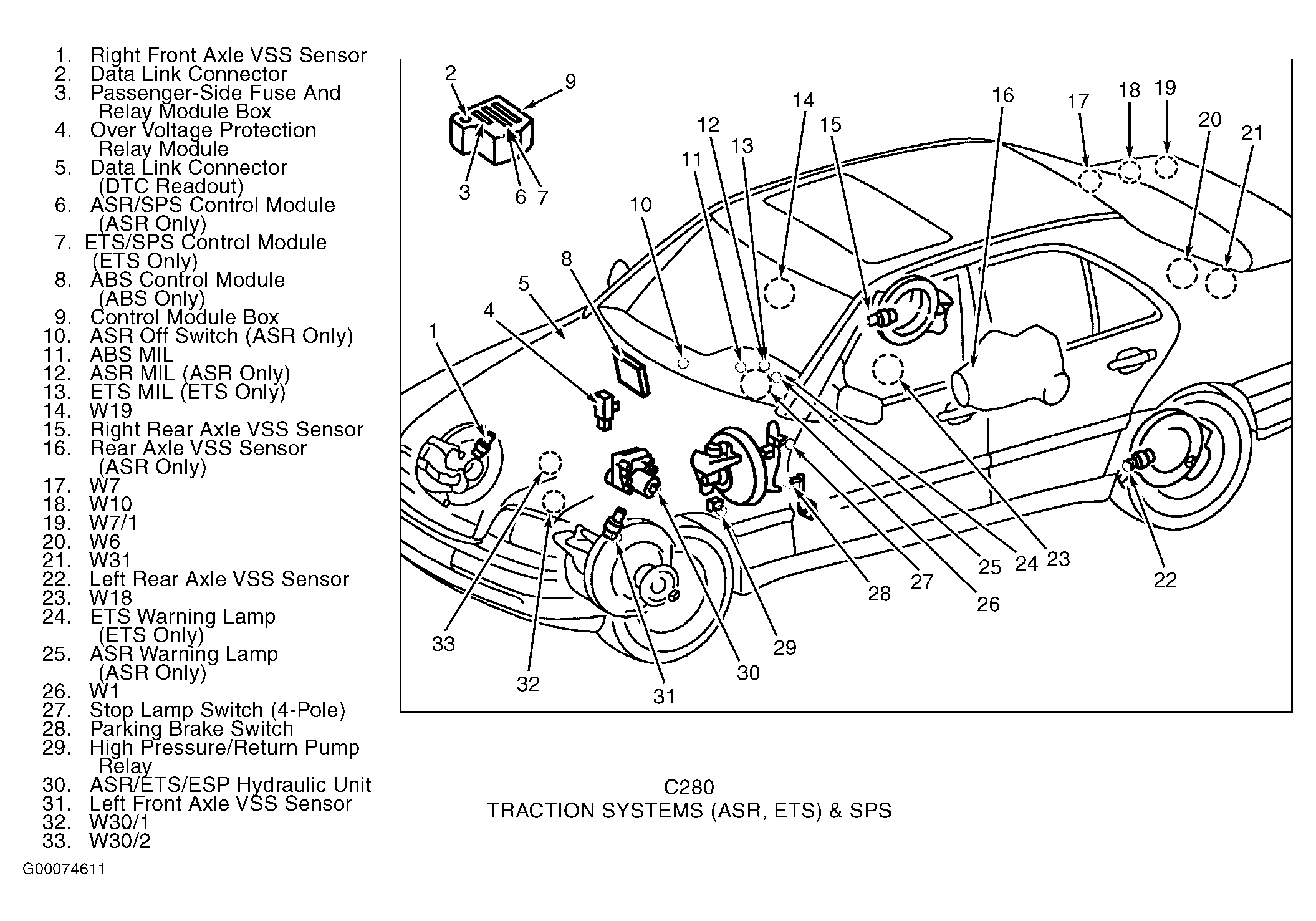

| ABS Control Module (ABS Only) (C280) | On right rear of engine compartment. See Figure . |
| Air Bag Triggering Unit | On right rear of engine compartment. |
| Amplifier (Left/Right Speakers) Control Module | On left side of trunk. |
| Anti-Theft Alarm (ATA) Control Module | In trunk, below trim panel. |
| ASR/ETS/ESP Hydraulic Unit (C280) | On left side of engine compartment. See Figure . |
| ASR/SPS Control Module (ASR Only) (C280) | On right rear of engine compartment. See Figure . |
| Convenience Feature Control Unit | On front of trunk compartment. |
| Daytime Running Lamp Control Module | Behind left side of dash. |

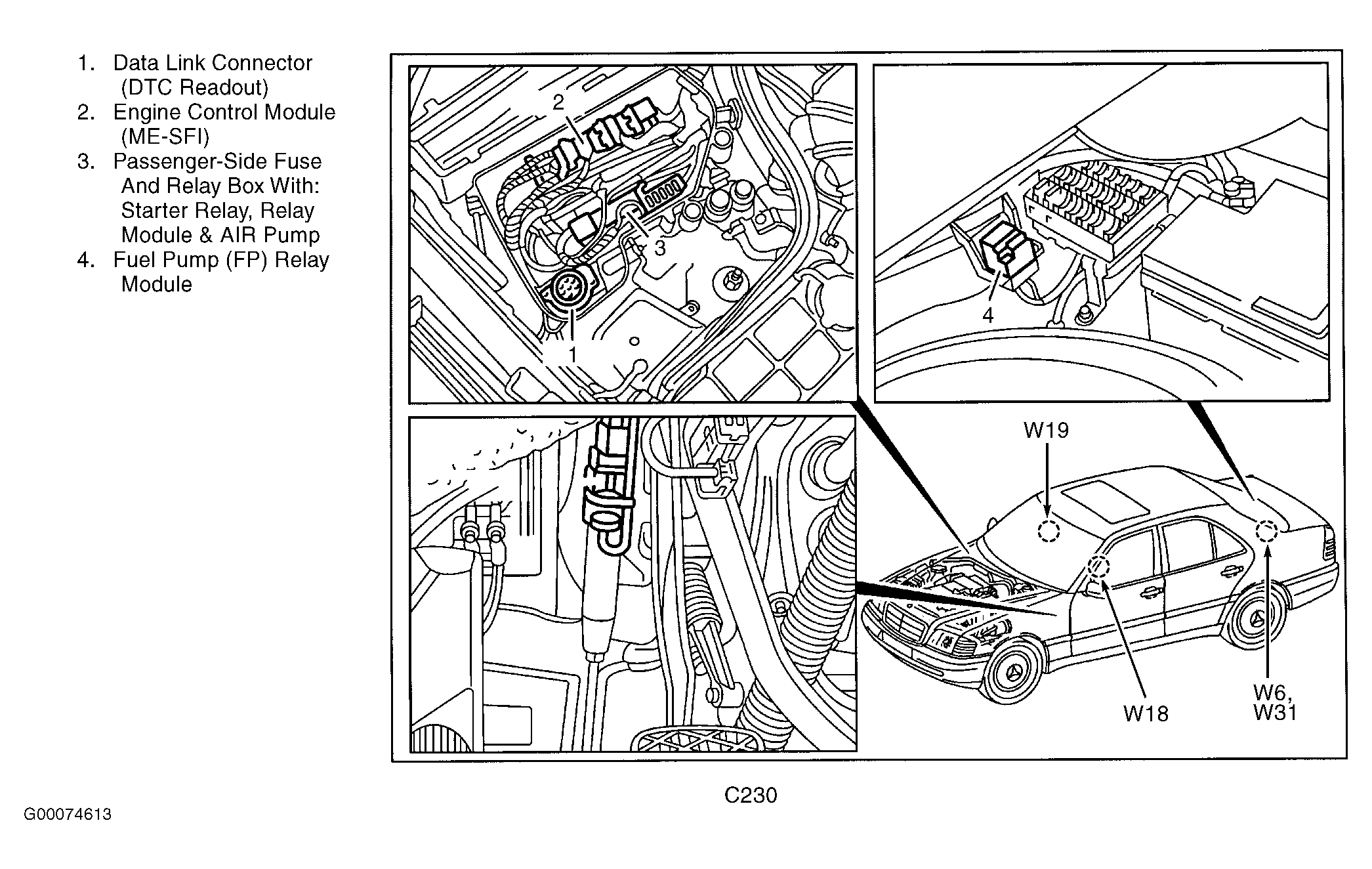

| Engine Control Module (ME-SFI) (C230) | In module box, on right rear of engine compartment. See Figure . |
| Engine Control Module (C280) | In module box, on right rear of engine compartment. |
| ETS/SPS Control Module (ETS Only) (C280) | On right rear of engine compartment. See Figure . |
| Exterior Lamp Failure Monitoring Module | On left rear of engine compartment. |
| Fuel Pump (FP) Relay Module (C230) | On right side of trunk. See Figure . |
| Headlamp Range Adjustment Control Module | Below left side of rear seat. |
| Infrared Remote Central Locking (IRCL) Control Module | In trunk, below package shelf. |
| Infrared Remote Central Locking (IRCL) Receiver | On interior rear view mirror. |
| Left Infrared Transmitter & Receiver | On top of left "B" pillar. |
| Over Voltage Protection Relay Module (C280) | On center of engine compartment. See Figure . |
| Pneumatic System Equipment (PSE) Multi-Function Control Module | On right rear of passenger compartment. |
| Relay Module | In module box, on right rear of passenger compartment. |
| Right Infrared Transmitter & Receiver | On top of right "B" pillar. |
| Seat Belt Reminder Control Unit | Behind left side of dash. |
| Starter Lock-Out Relay Module (ATA) | Below left side of dash, near kick panel. |
| Traction System Control Module | In module box, on right rear of engine compartment. |

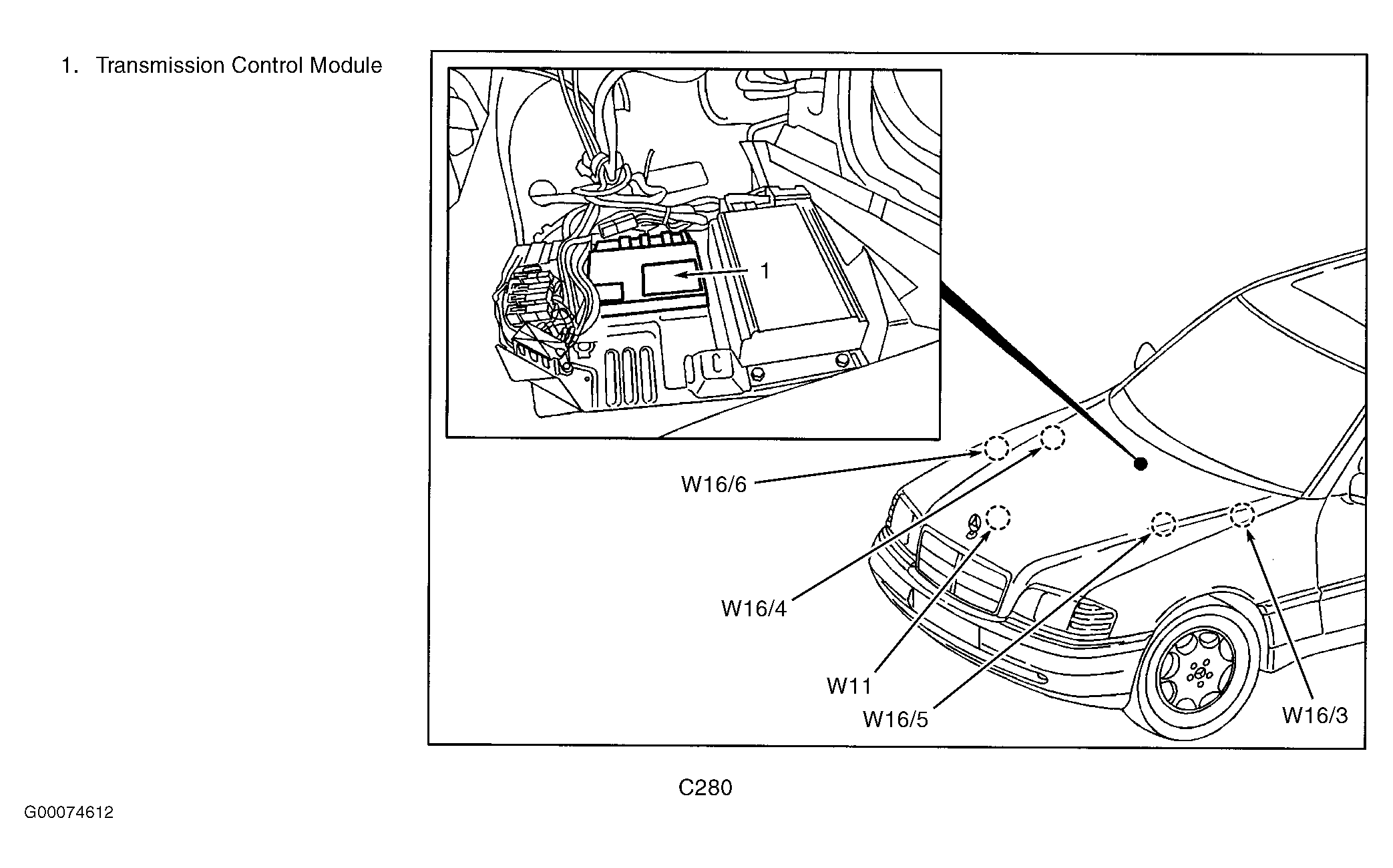

| Transmission Control Module (C280) | On rear of engine compartment. See Figure . |
