Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

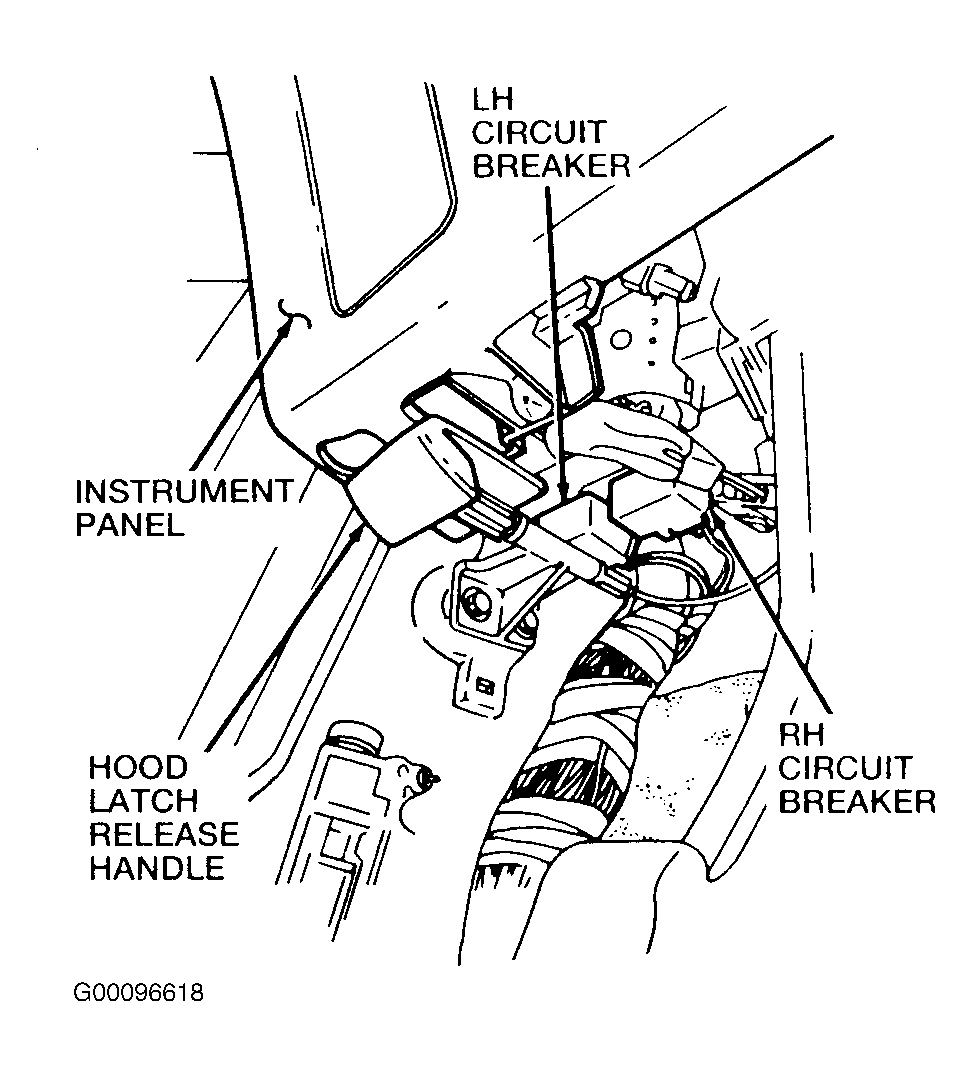

| Circuit Breakers (Left & Right Hand) | Above Left Kick Panel. See Fig 1 and Figure . |

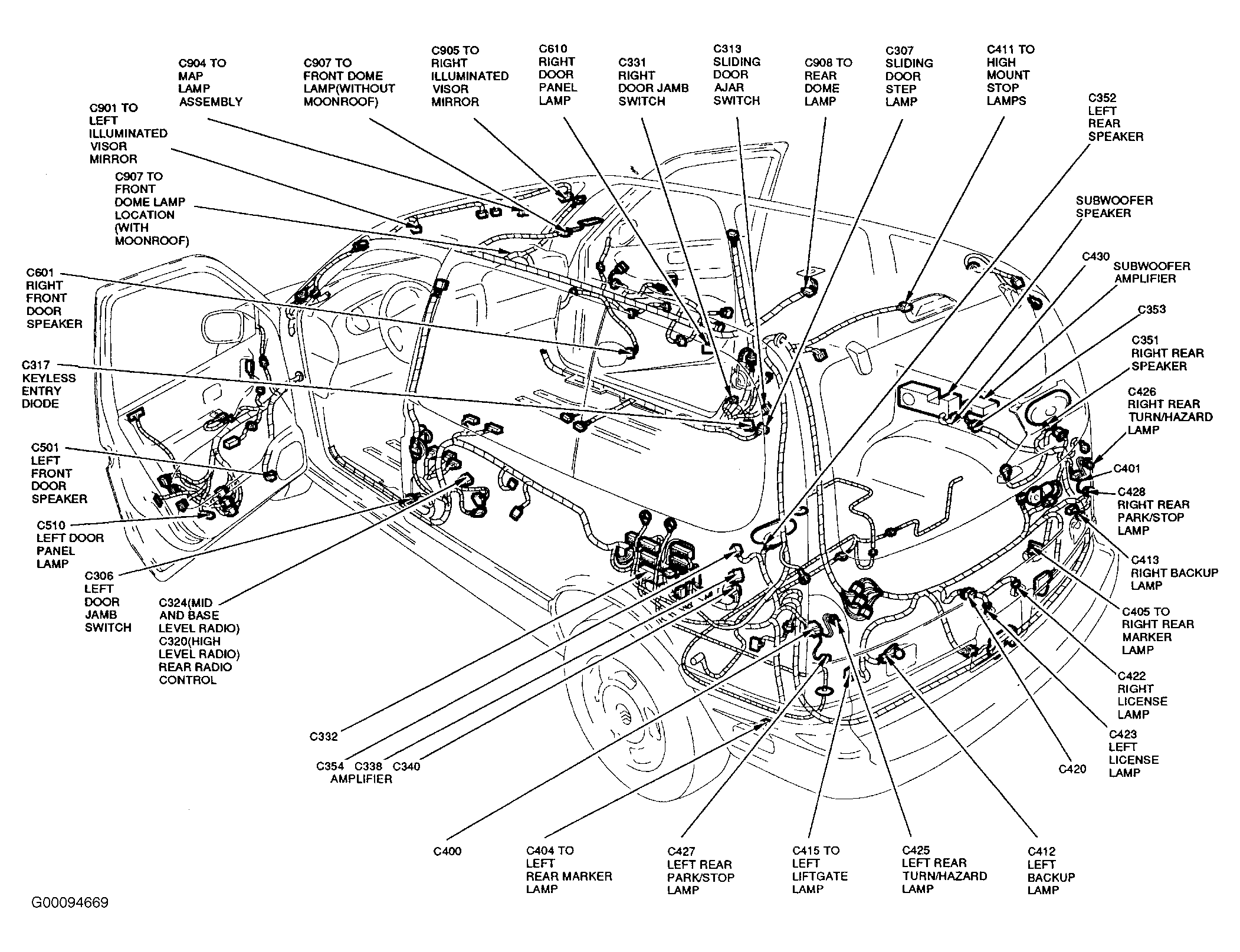

| Diode Junction Box | Taped To Harness, Behind Upper Left Side of Instrument Panel. See Fig 2 . |
| Ground G200 | Above Left Kick Panel. See Fig 1 . |
| Left Door Lock Switch | Center Of Left Front Door, On Armrest |
| Left Engine Compartment Fuse Panel | Left Side Of Engine Compartment, Left Of Battery, On Fender Apron |
| Keyless Entry Beeper Connector | Inside Drivers Door |
| Keyless Entry Keypad Assembly | Rear Of Left Front Door |

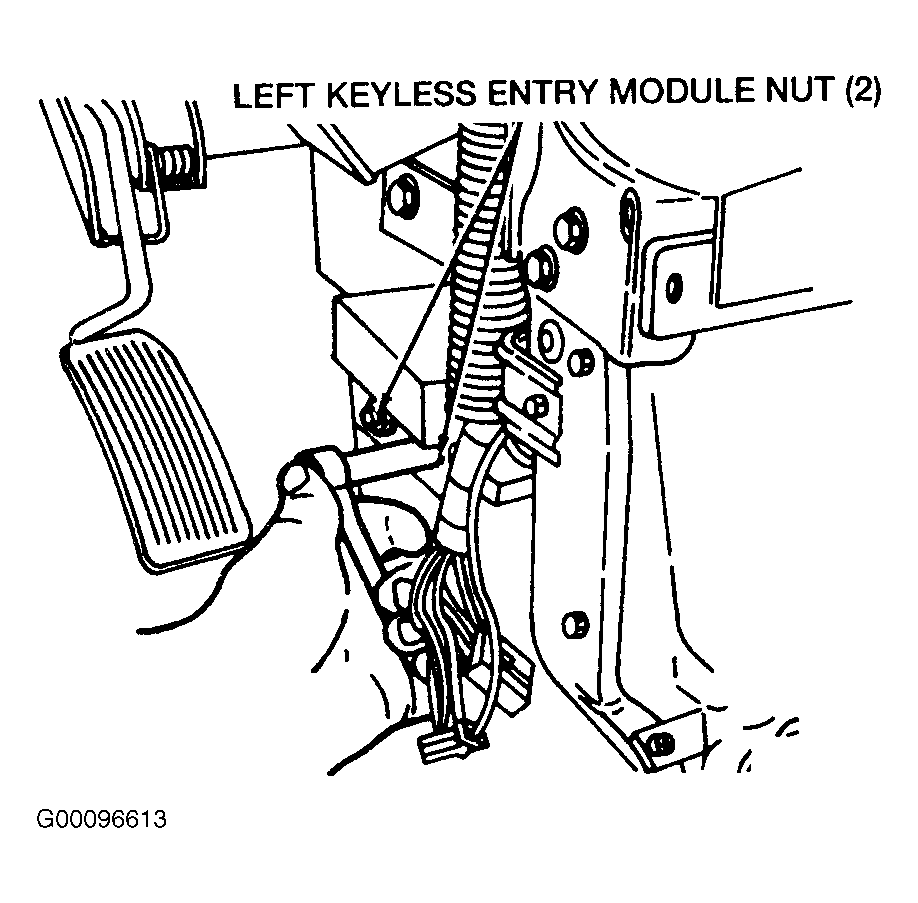

| Keyless Entry Module | Below Center Of Instrument Panel, Mounted On Center Instrument Panel Support Brace. See Figure . |

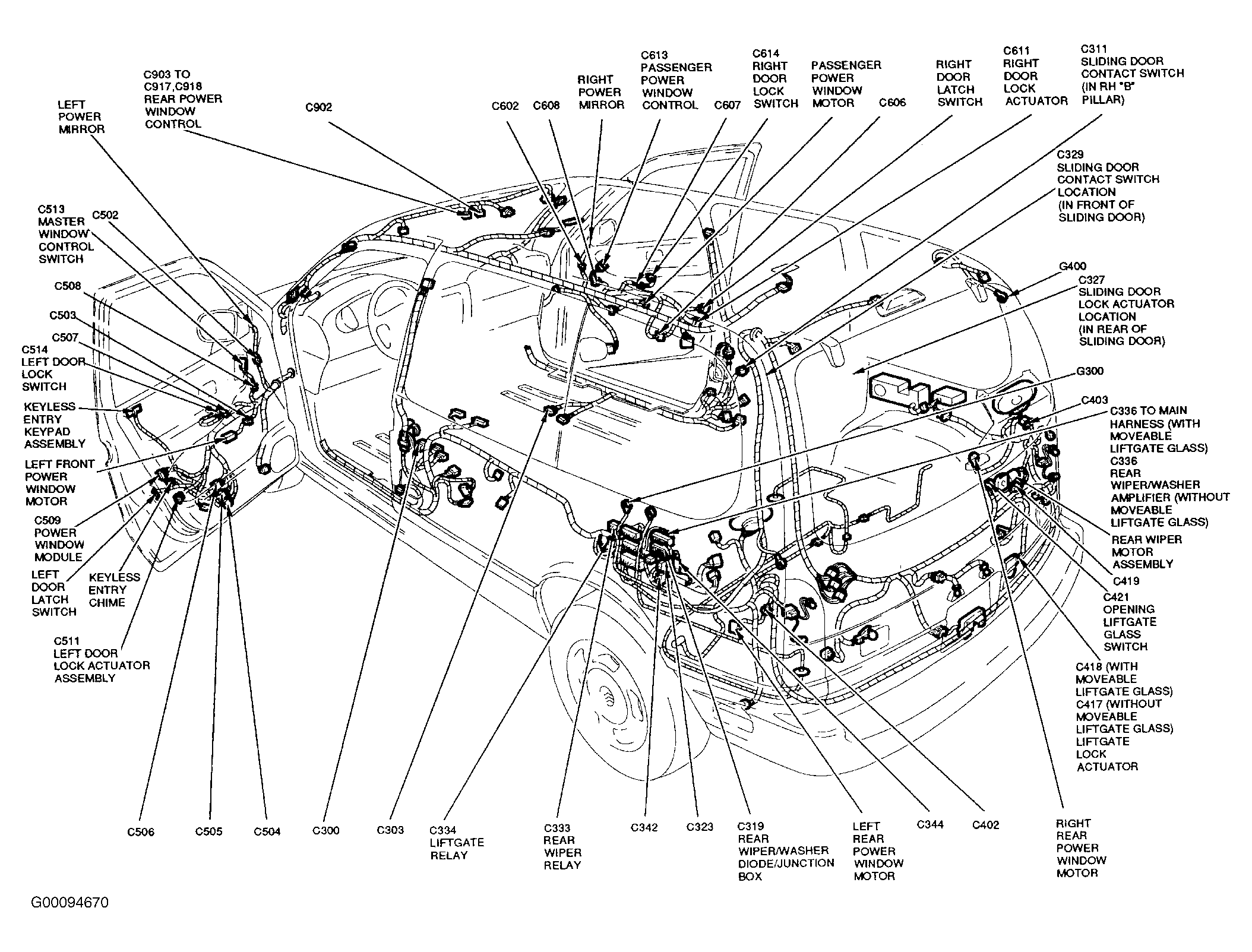

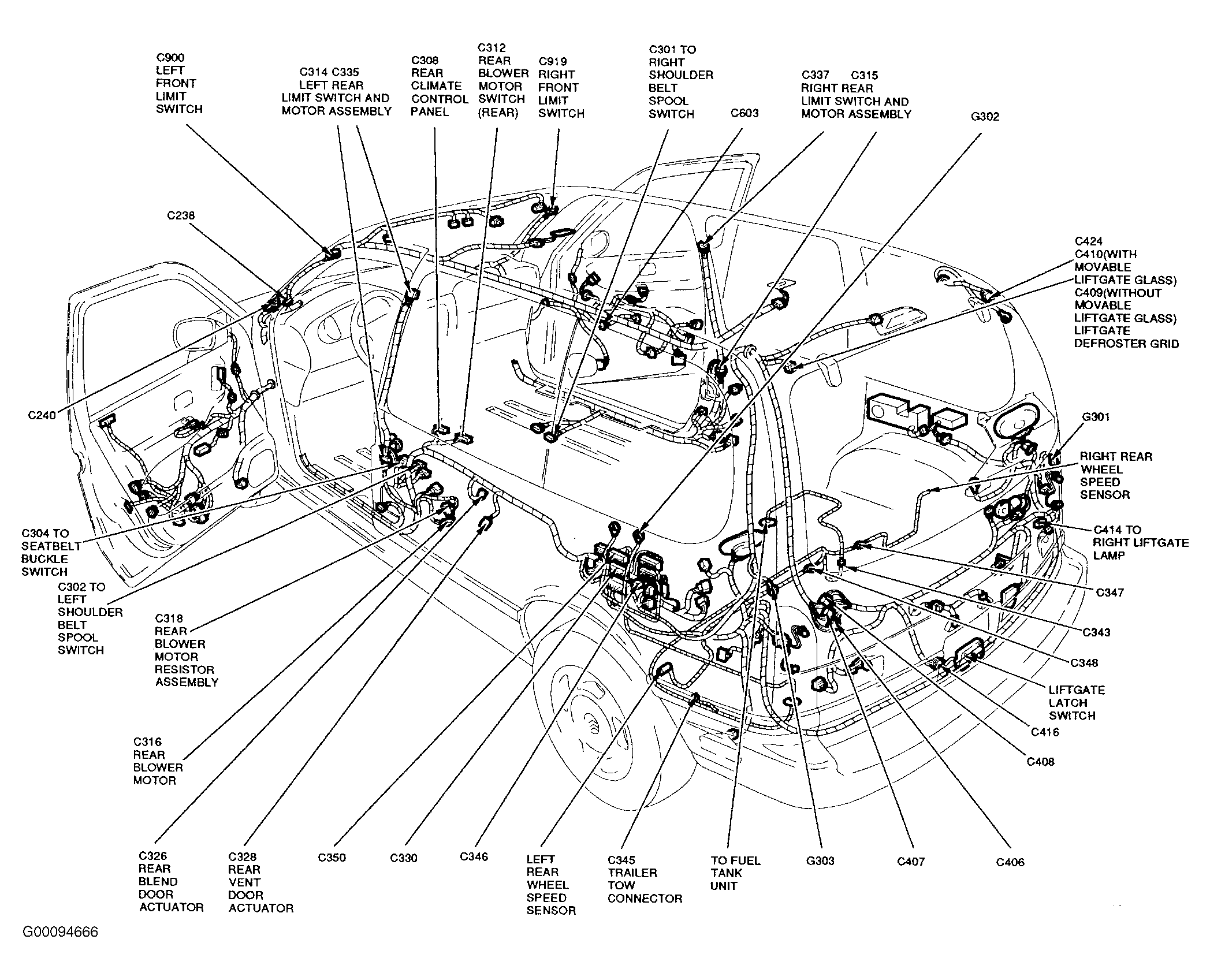

| Liftgate Relay | Behind Left Quarter Trim Panel. See Fig 5 . |
| Timer Module | Behind Left Outer Kick Panel. See Fig 1 . |
