Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

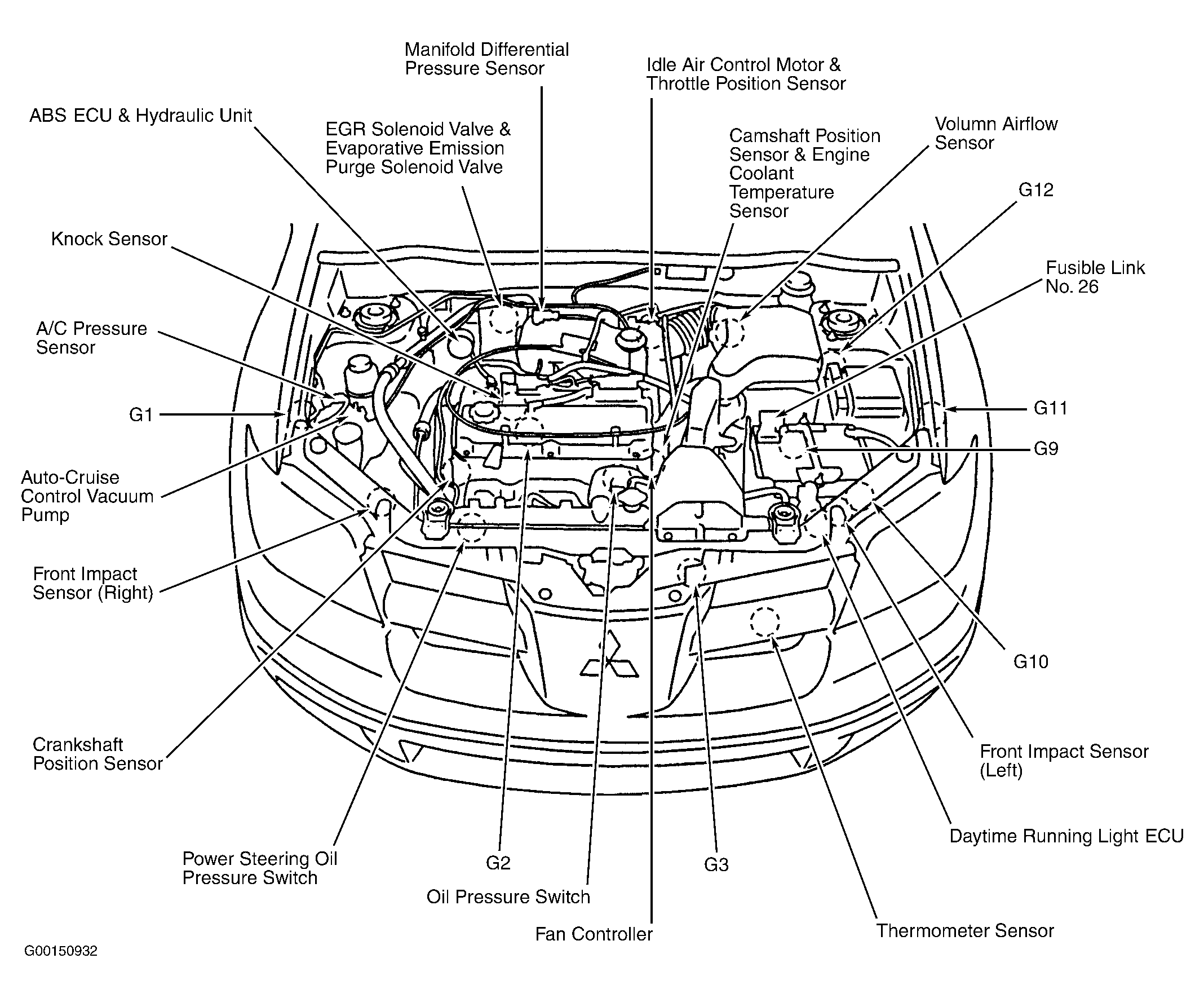

| ABS ECU | On right rear of engine compartment. See Figure . |

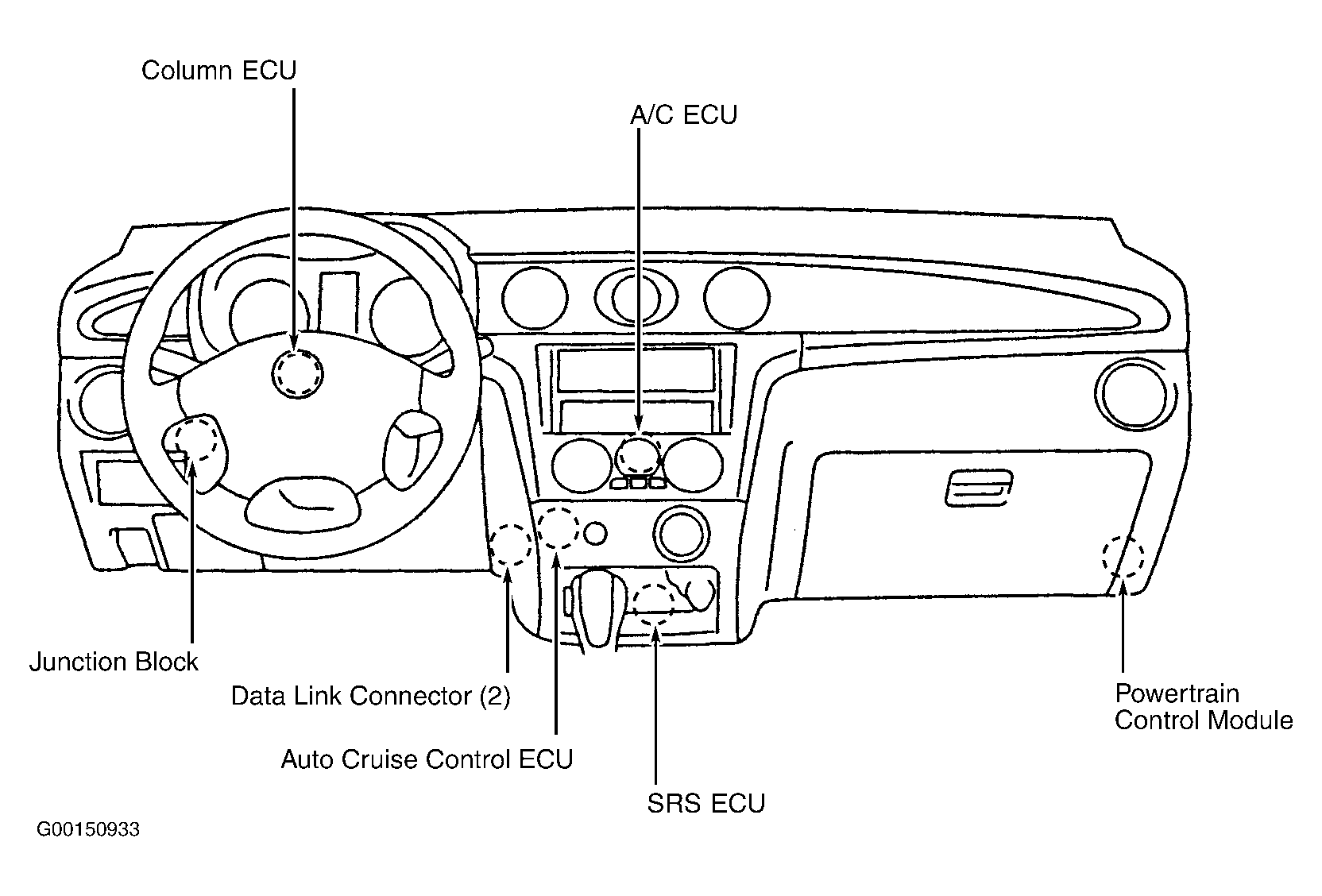

| A/C ECU | Behind center of dash, below radio. See Figure . |
| Auto Cruise Control ECU | Behind center of dash, below radio. See Figure . |
| Column ECU | On top of steering column. See Figure . |
| Daytime Running Light ECU | At left front corner of engine compartment. See Figure . |

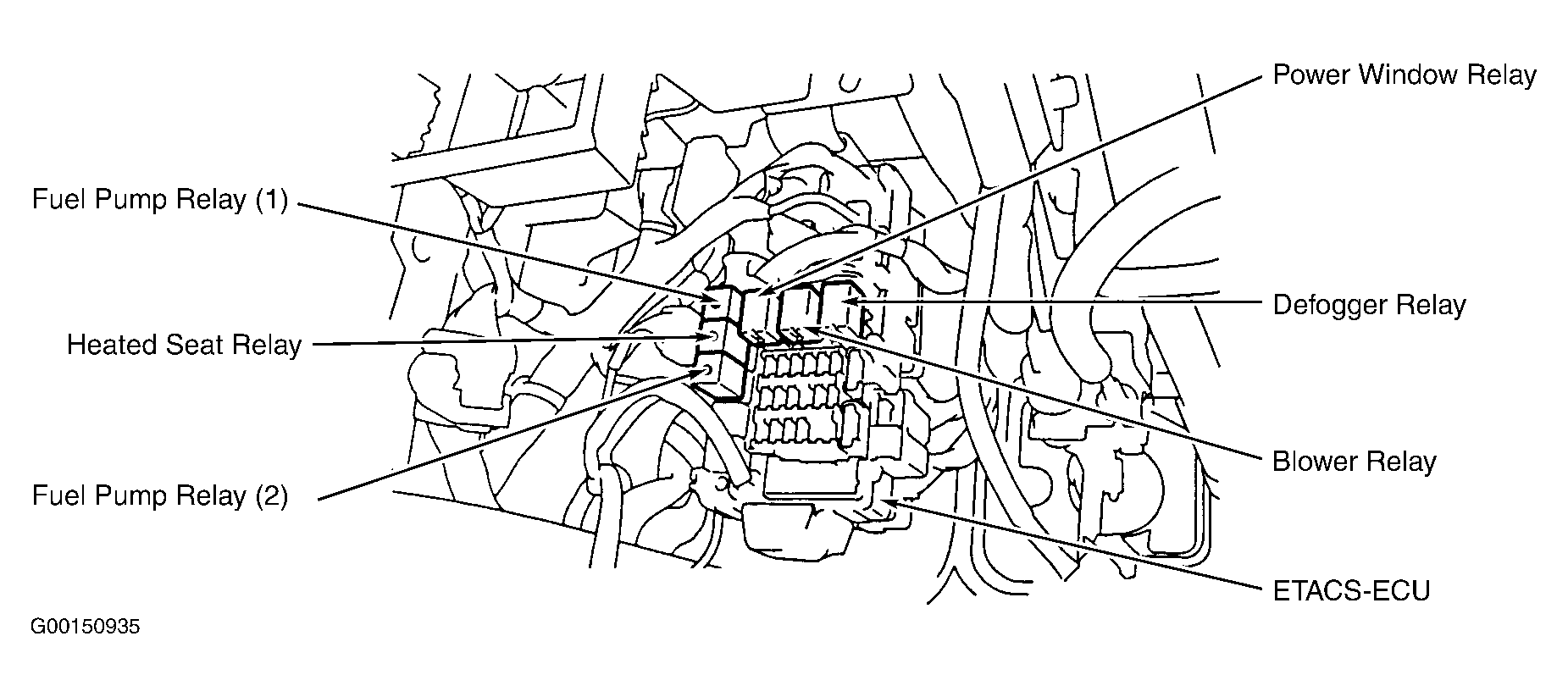

| ETACS ECU | On rear of junction block, behind left side of dash. See Figure . |
| Fan Controller | On fan shroud, at left front of engine compartment. See Figure . |

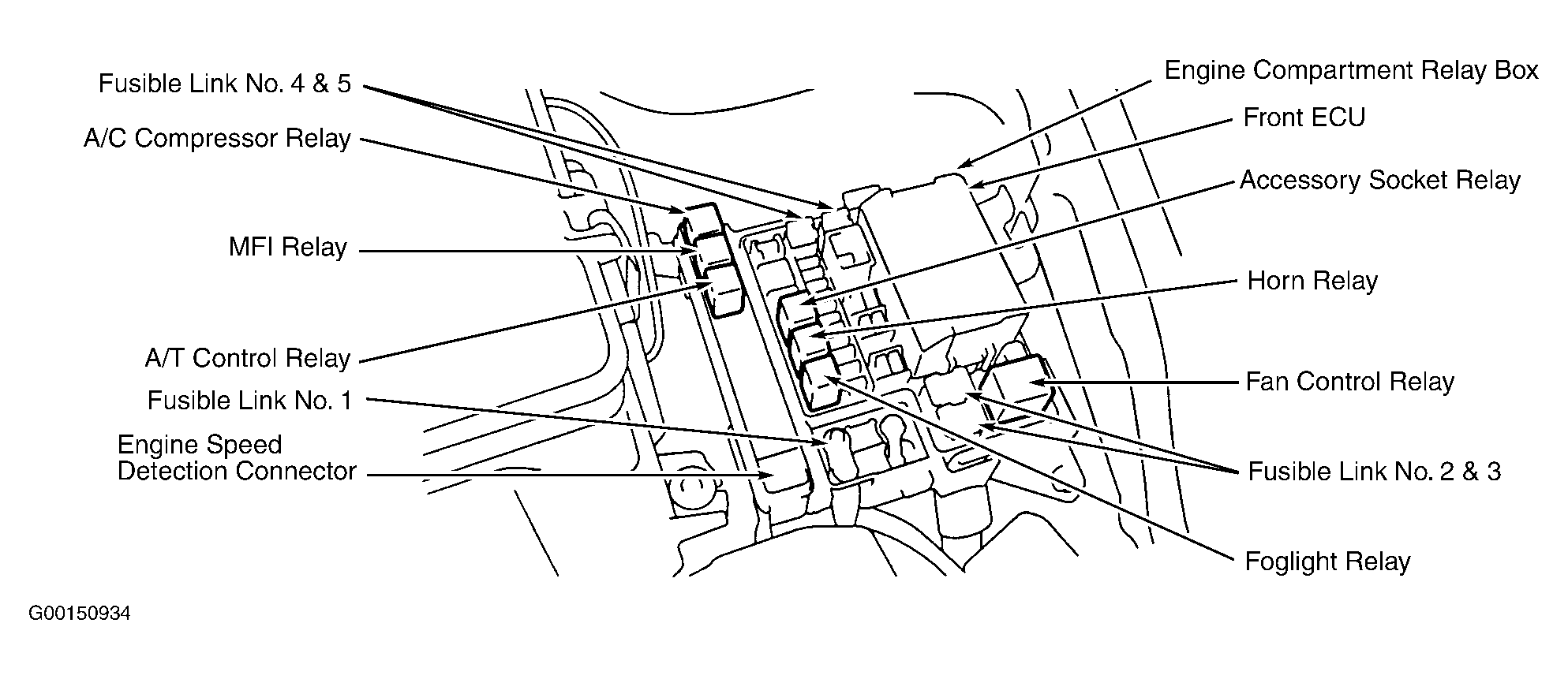

| Front ECU | In engine compartment relay box. See Figure . |
| Powertrain Control Module | Behind glove box. See Figure . |
| SRS ECU | Behind lower center of dash. See Figure . |
