Opening Dimensions: Specifications

OPENING DIMENSION SPECIFICATIONS INDEX

DESCRIPTION	FIGURE
ENGINE BOX - EXTENDED CAB (33) AND DOUBLE CAB (84)	Fig 14
WINDSHIELD OPENING - EXTENDED CAB (33) AND DOUBLE CAB (84)	Fig 2
DOOR OPENINGS - EXTENDED CAB (33) ONLY	Fig 3
DOOR OPENINGS - DOUBLE CAB (84) ONLY	Fig 4
CAB REAR WINDOW - EXTENDED CAB (33) AND DOUBLE CAB (84)	Fig 5

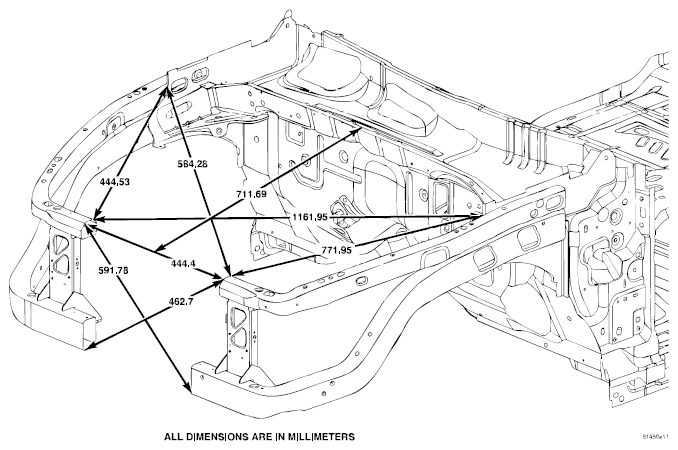

Fig 1: Specifications - Open Dimensions - Engine Box - Extended Cab (33) And Double Cab (84)

G04857219

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

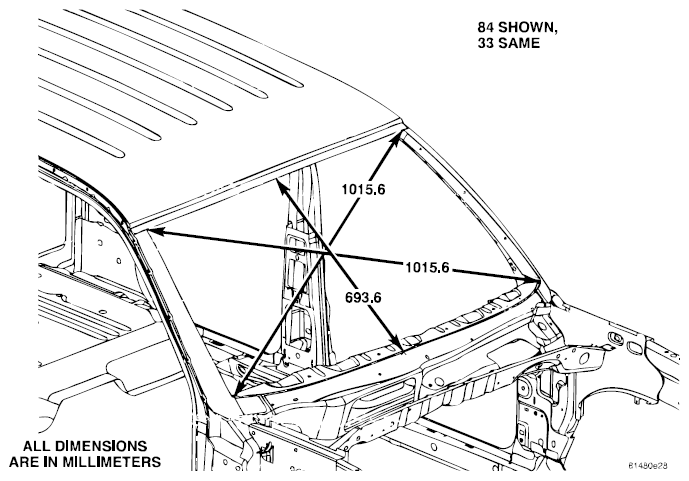

Fig 2: Specifications - Open Dimensions - Windshield Opening - Extended Cab (33) And Double Cab (84)

G04857220

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Specifications - Open Dimensions - Door Openings - Extended Cab (33) Only

G04857221

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

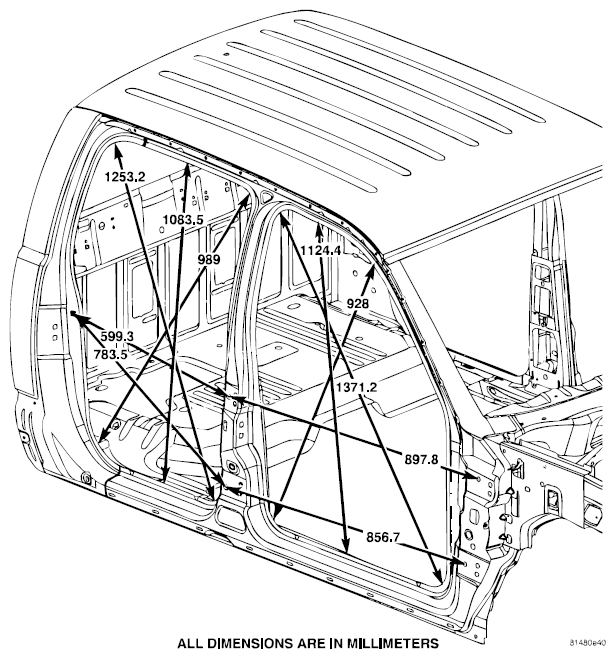

Fig 4: Specifications - Open Dimensions - Door Openings - Double Cab (84) Only

G04857222

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

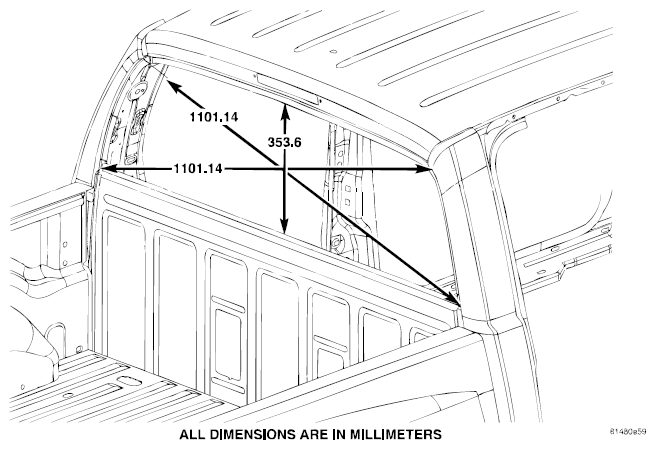

Fig 5: Specifications - Open Dimensions - Cab Rear Window - Extended Cab (33) And Double Cab (84)

G04857223

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
