Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

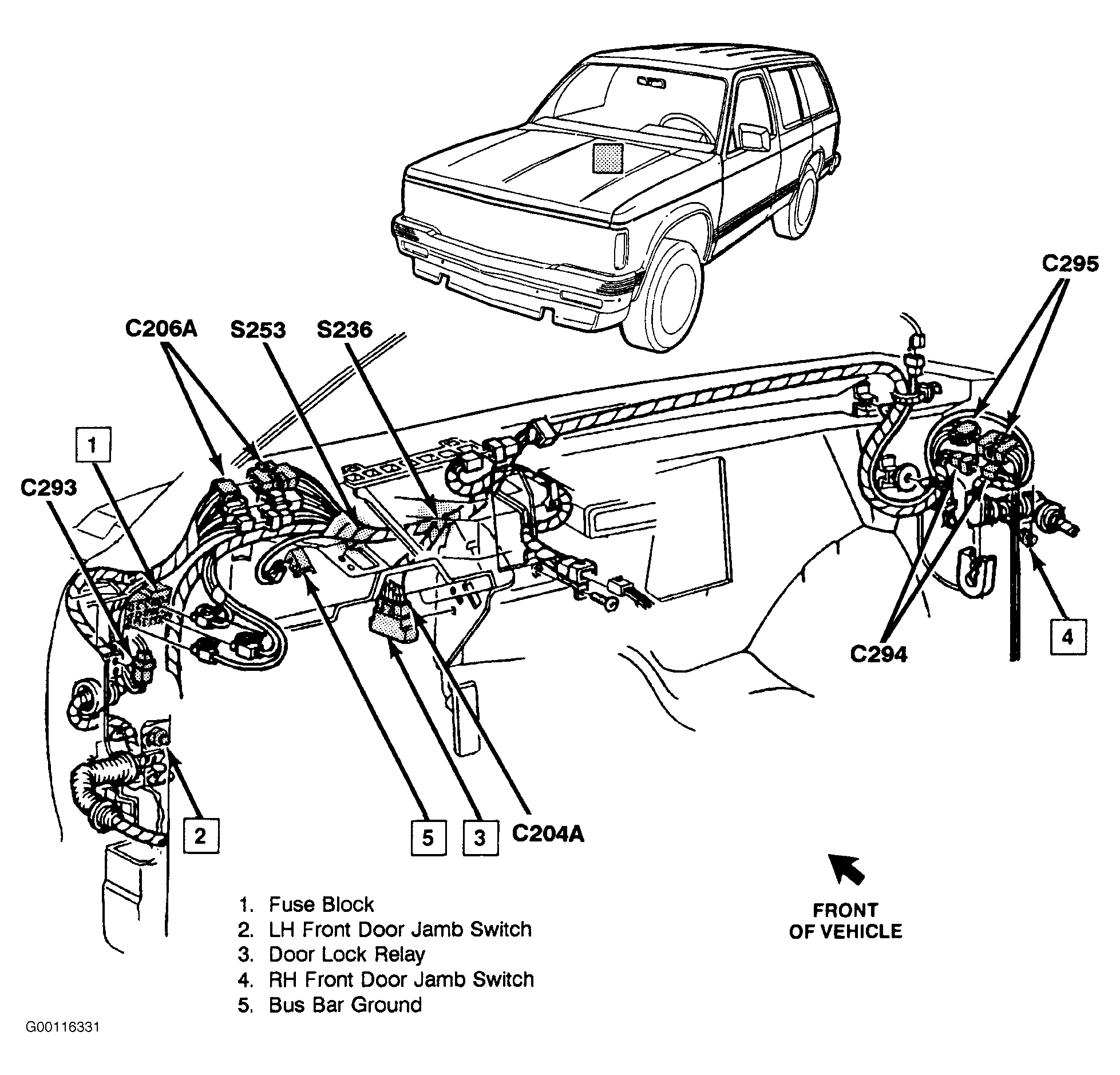

| Busbar Ground | On steering column bracket Fig 1 |
| Door Lock Relay | Behind left hand side of instrument panel, on right hand side of steering column support bracket Fig 1 |
| Fuse Block | Behind left hand side of instrument panel Fig 1 |

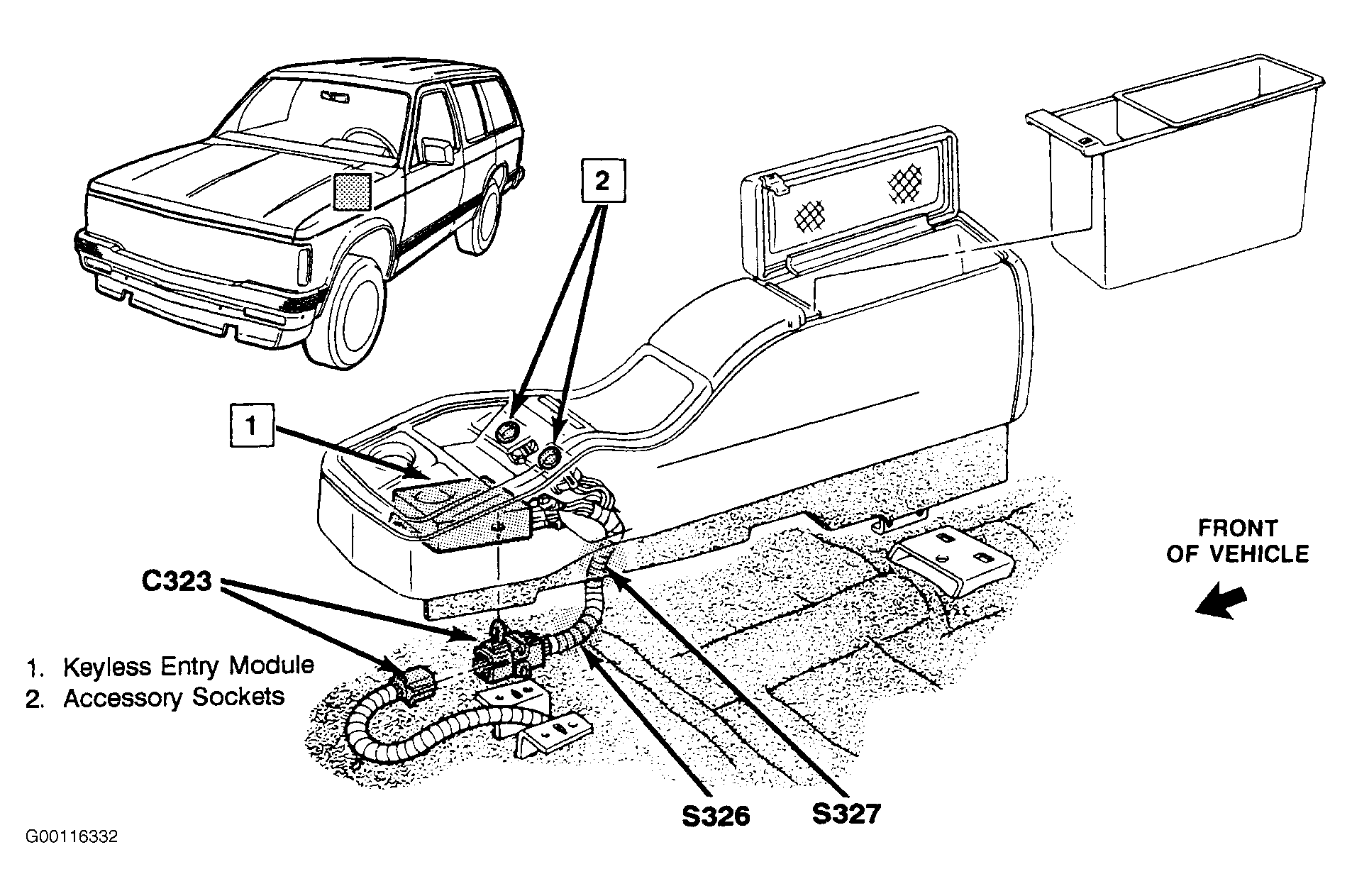

| Keyless Entry Module | Under Console Fig 2 |

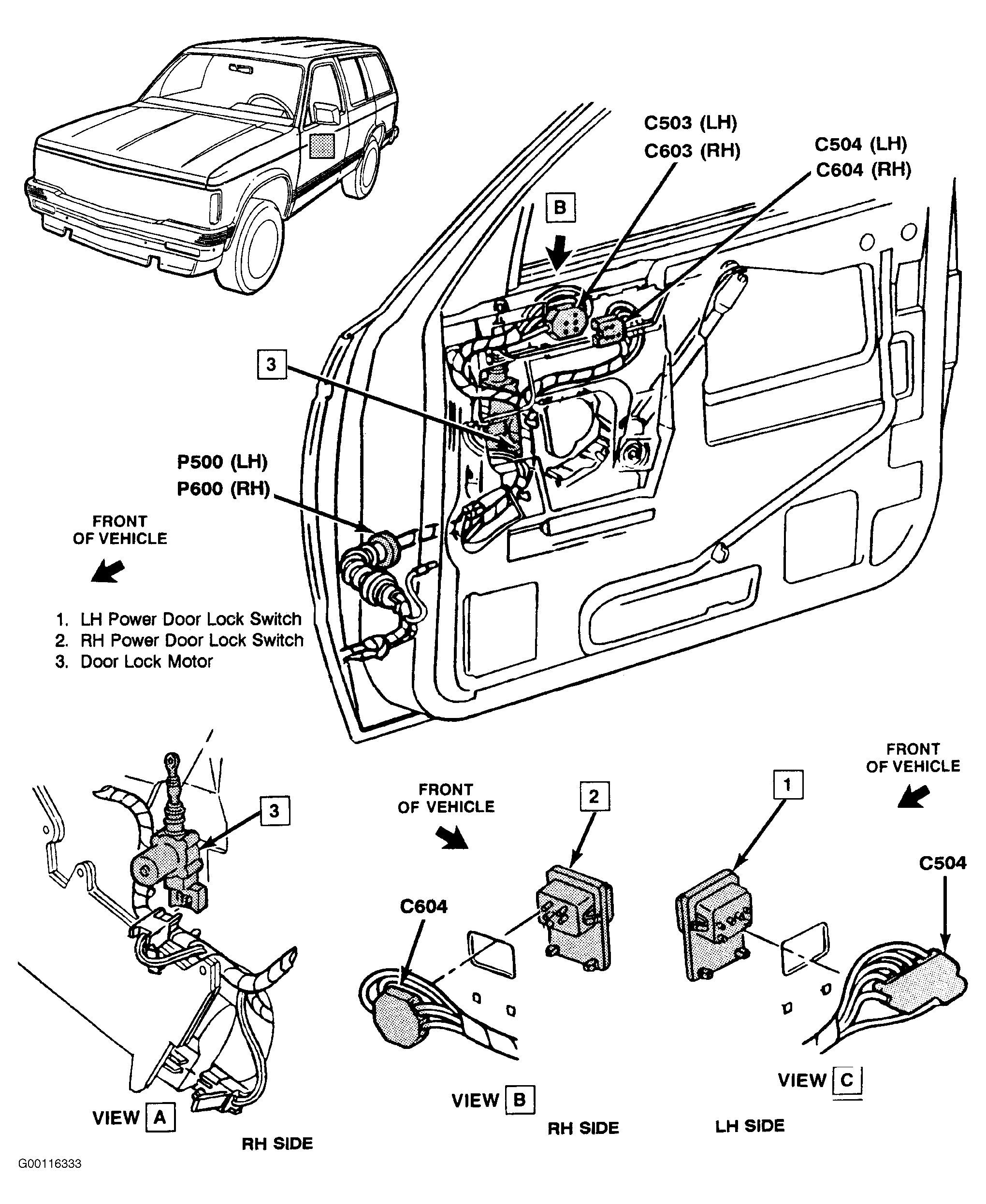

| Left Hand Front Door Lock Motor | Front center of left hand front door Fig 3 |
| Left Hand Front Door Lock Switch | Top of left hand front door below window Fig 3 |

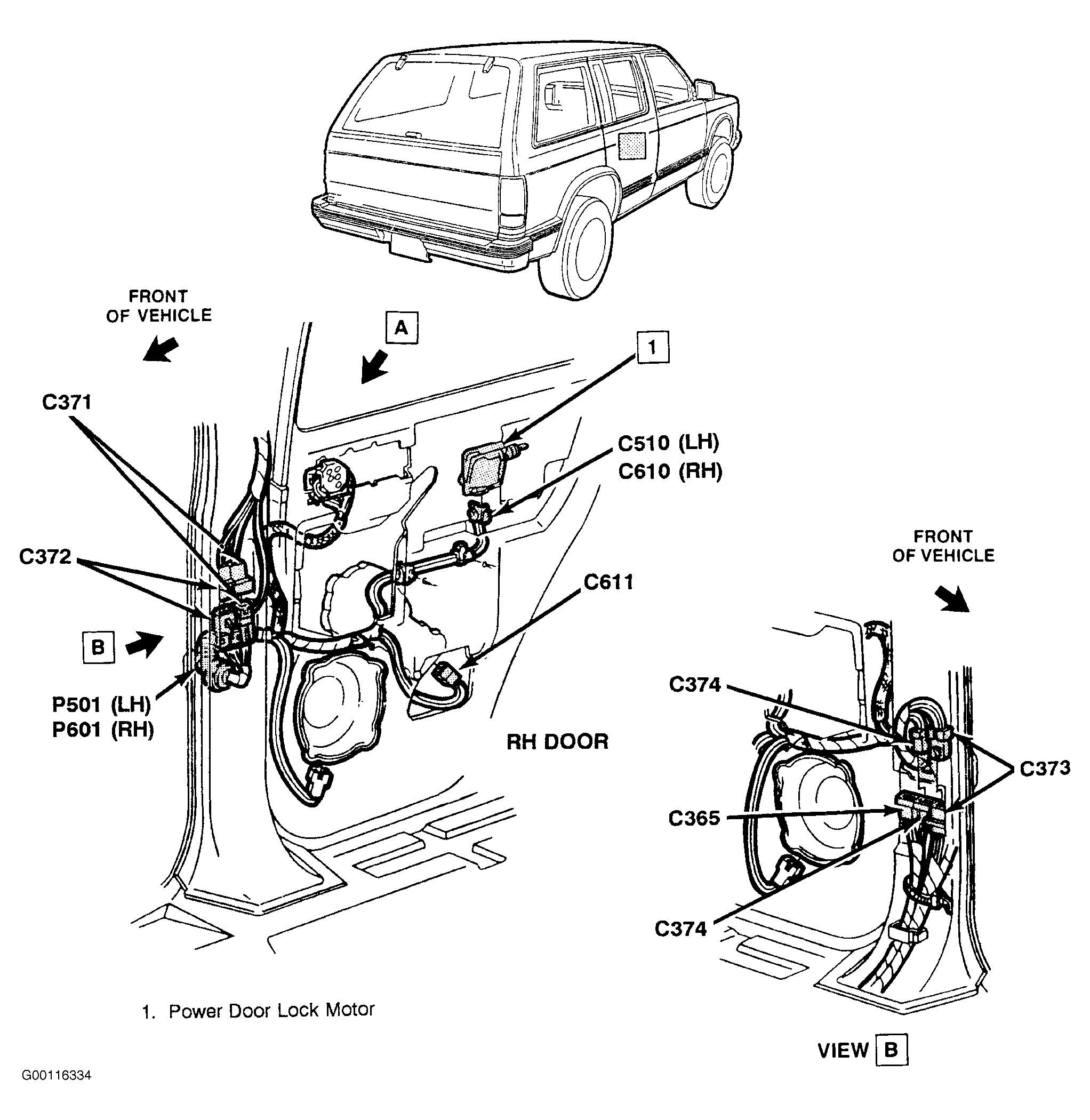

| Left Hand Rear Door Lock Motor | Front center of left hand rear door Fig 4 |
| Right Hand Front Door Lock Motor | Front center of right hand front door Fig 3 |
| Right Hand Front Door Lock Switch | Top of right hand front door, below window Fig 3 |
| Right Hand Rear Door Lock Motor | Front center of right hand rear door Fig 4 |
| C206A | Behind left hand side of instrument panel, above brake pedal support bracket Fig 1 |
| C293 | Behind left hand side of instrument panel Fig 1 |
| C294 | Behind right hand side of instrument panel Fig 1 |
| C295 | Behind right hand side of instrument panel Fig 1 |

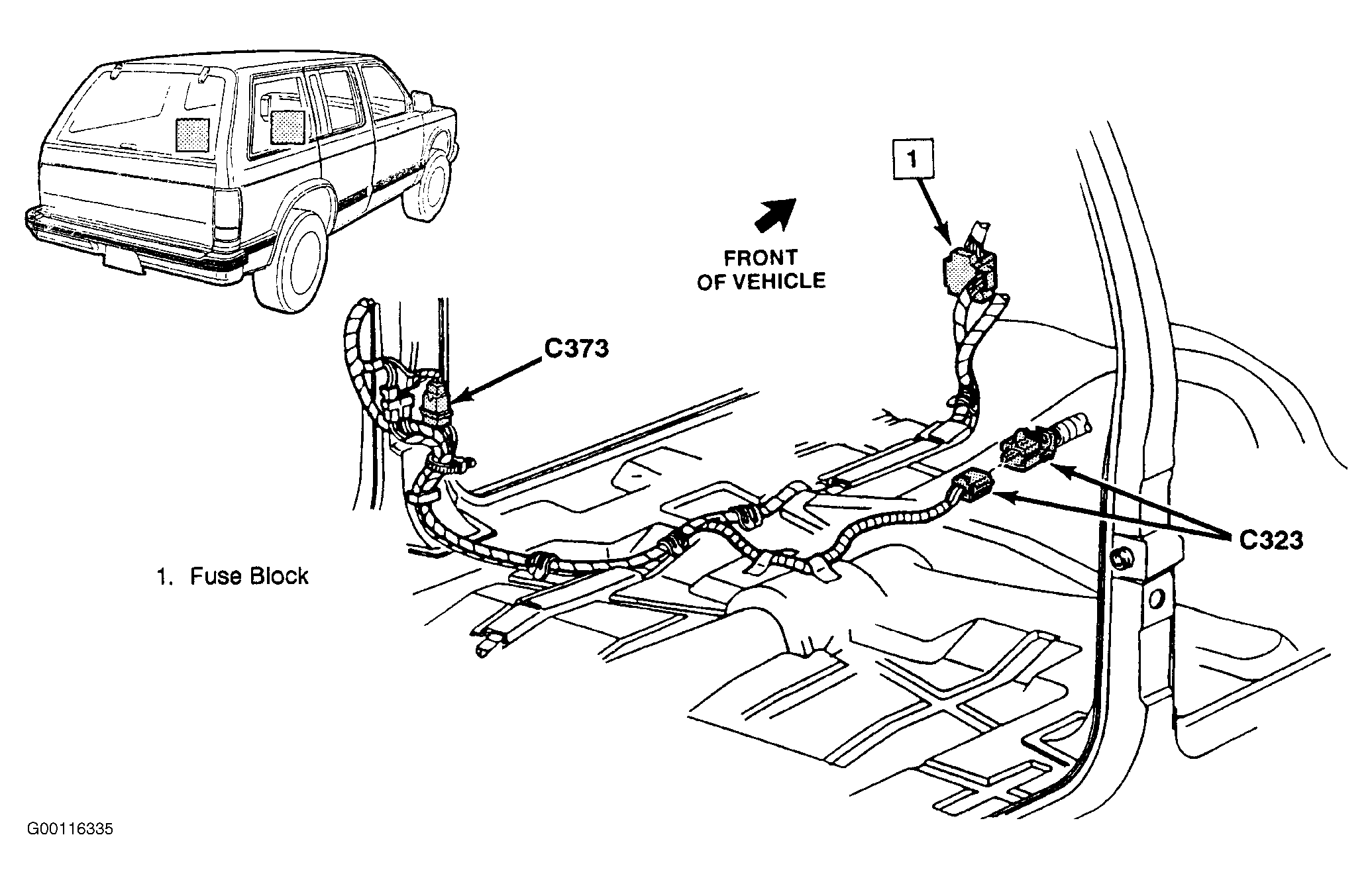

| C323 | Below center of instrument panel Fig 5 |
| C371 | At right hand B-pillar Fig 4 |
| C373 | At left hand B-pillar Fig 5 |
| P500 | At left hand front door Fig 3 |
| P501 | At left hand rear door Fig 4 |
| P600 | At right hand front door Fig 3 |
| P601 | At right hand rear door Fig 4 |
| S233 | Behind center of instrument panel |
| S234 | Behind center of instrument panel |
| S235 | Behind center of instrument panel |
| S236 | Behind left hand side of instrument panel, near busbar ground Fig 1 |
| S253 | Behind left hand side of instrument panel, above fuse block Fig 1 |
| S325 | Under console Fig 2 |
| S327 | Under console Fig 2 |
