Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C Clutch Diode | Inside A/C compressor connector. | |

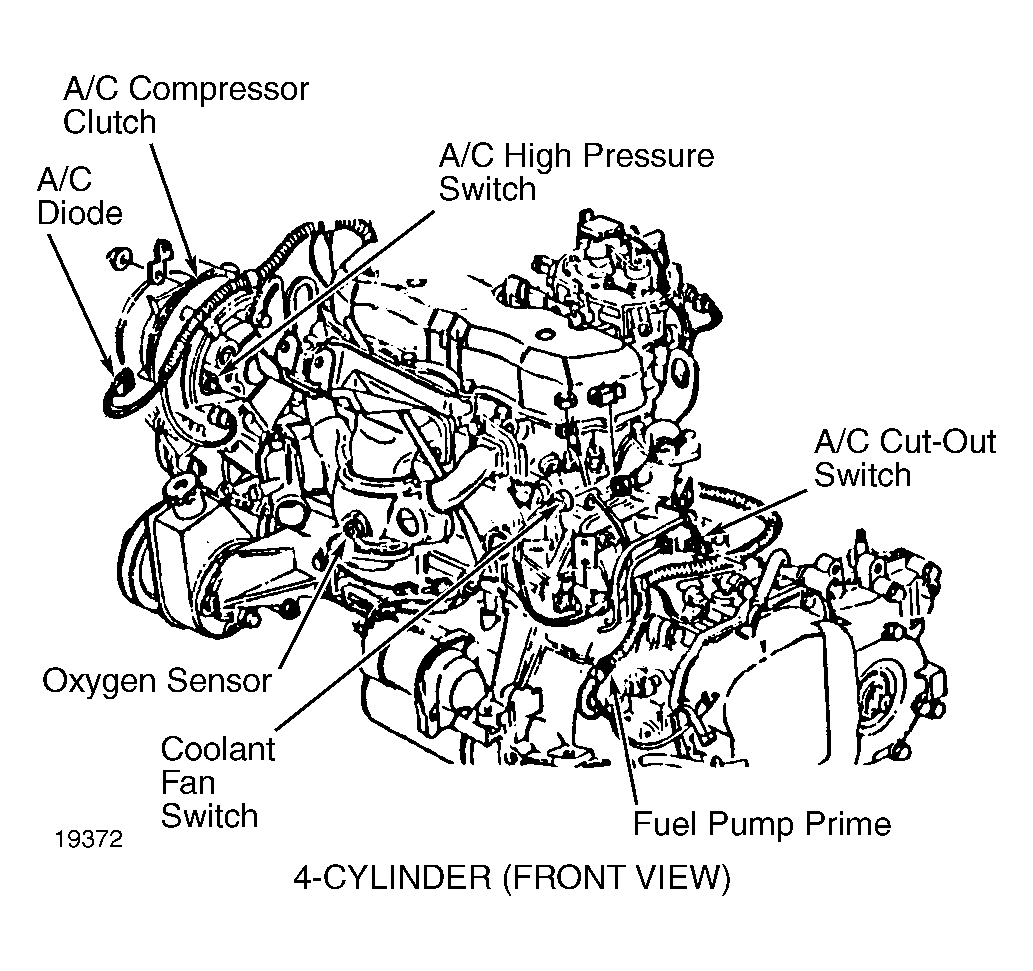

| A/C Diode | In A/C harness, near vacuum tank. See Figure, Figure & 3. | |

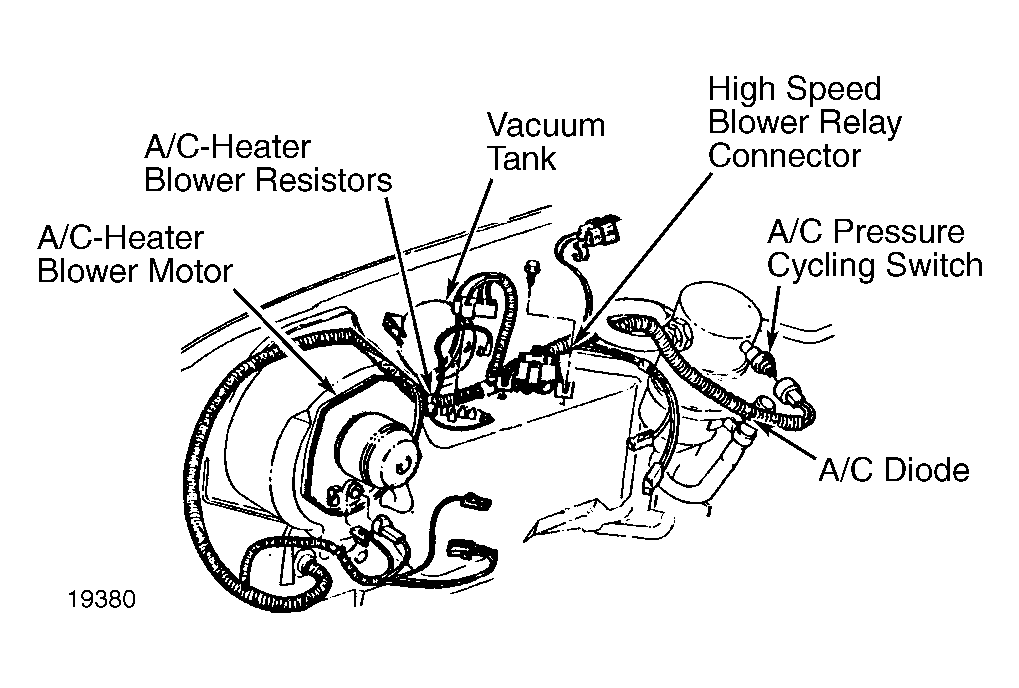

| A/C-Heater Blower Resistors | On front of plenum. See Figure. | |

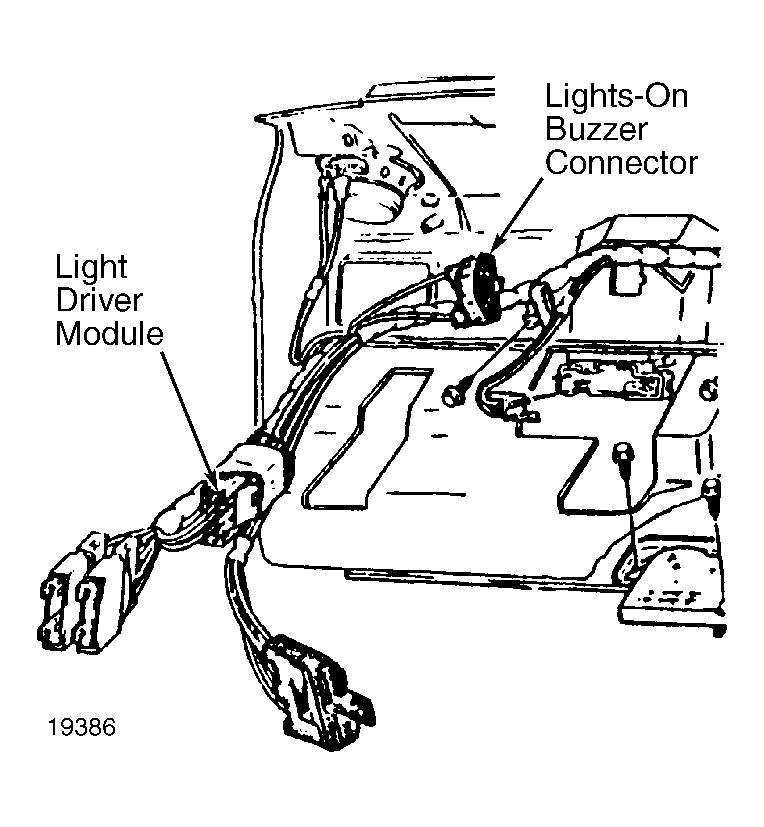

| "CHECK ENGINE" Light Driver | Taped to right side of instrument panel harness. See Figure. | |
| Convenience Center | Behind instrument panel, left of glove box. | |
| Fuse Block | Under dash, near left side of glove box. | |
| Fusible Links | ||

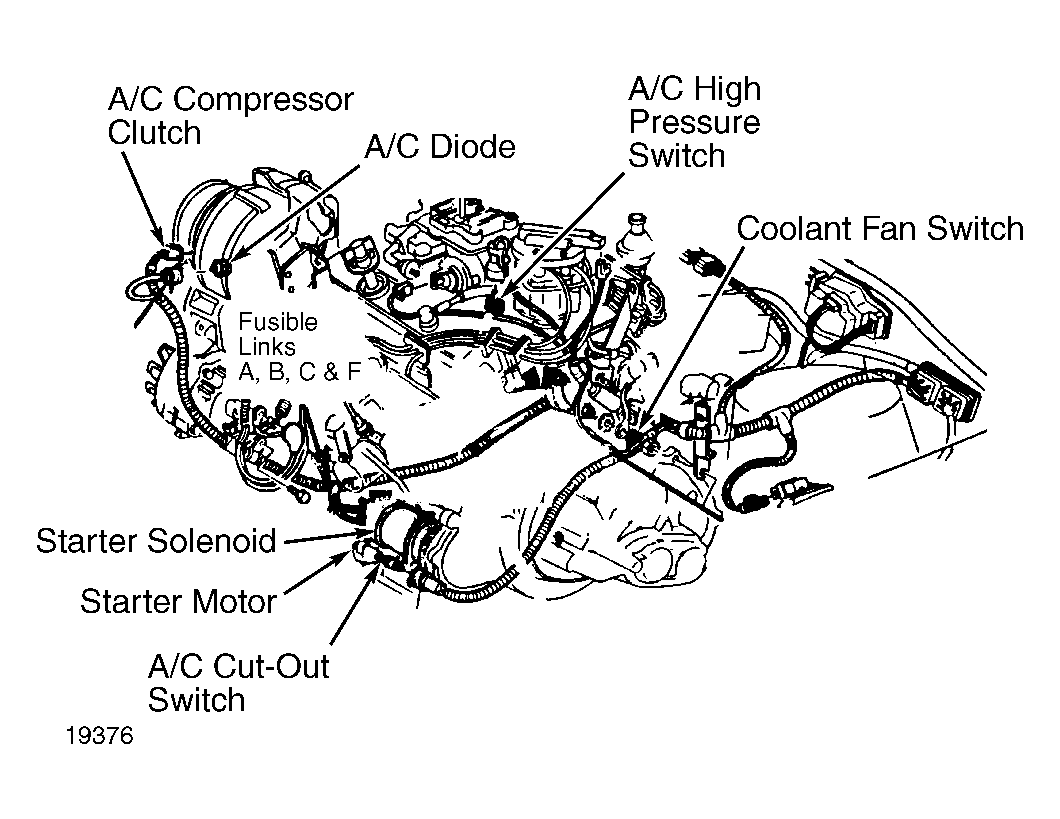

| A, B, C, F & M (Red) | At front of engine, near starter solenoid. See Figure. | |
| E (Red) | Ahead of left shock tower, behind battery. | |
| G (Orange) | Near positive battery connection. | |
| H (Blue) L4 | At front of engine, near starter solenoid. | |
| Power Acc. Circuit Breaker | In fuse block. | |
| Power Window Circuit Breaker | In fuse block. | |
