Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Control Module (Berlinetta) | In right pod. |
| Cruise Control Module | Behind right center of dashboard. |
| Electronic Control Module (ECM) | Behind right side of dashboard. |

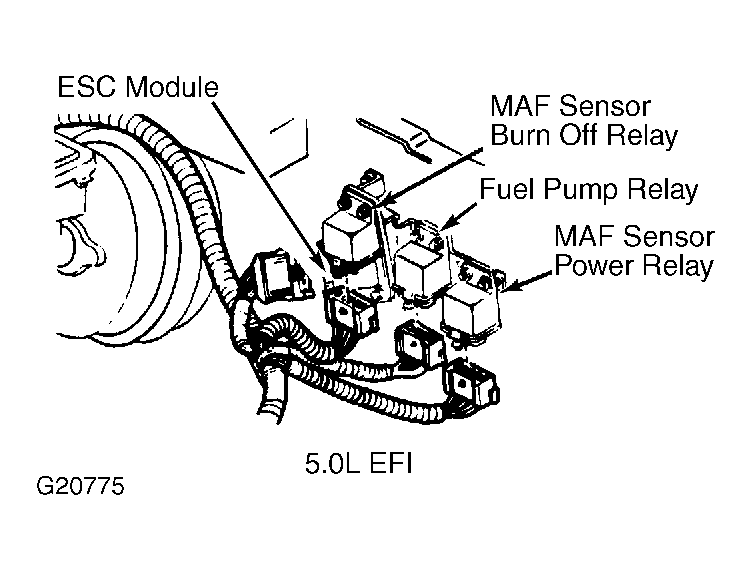

| Elect. Spark Control (ESC) Module | On left side of firewall in engine compartment. See Figure. |
| Headlight Door Module (Firebird Only) | Left side of firewall, behind brake booster. |
| Light Control Module (Berlinetta) | Under right side of dashboard by ECM. |
| Light Driver Module | Taped on dashboard wiring harness behind radio. |
| Lights Monitoring Module (M/T) | Above clutch pedal. |
| Lights Monitoring Module (A/T) | On brace above gas pedal. |
| Remote Dimmer Module | Right hand side of steering column, in instrument panel retainer. |
| Road Rally Assembly | Under right side of dashboard below glove box. |
| Wiper/Washer Motor Module | On upper center of firewall in engine compartment. See Figure & 5. |
