Component Locations

Component	Location

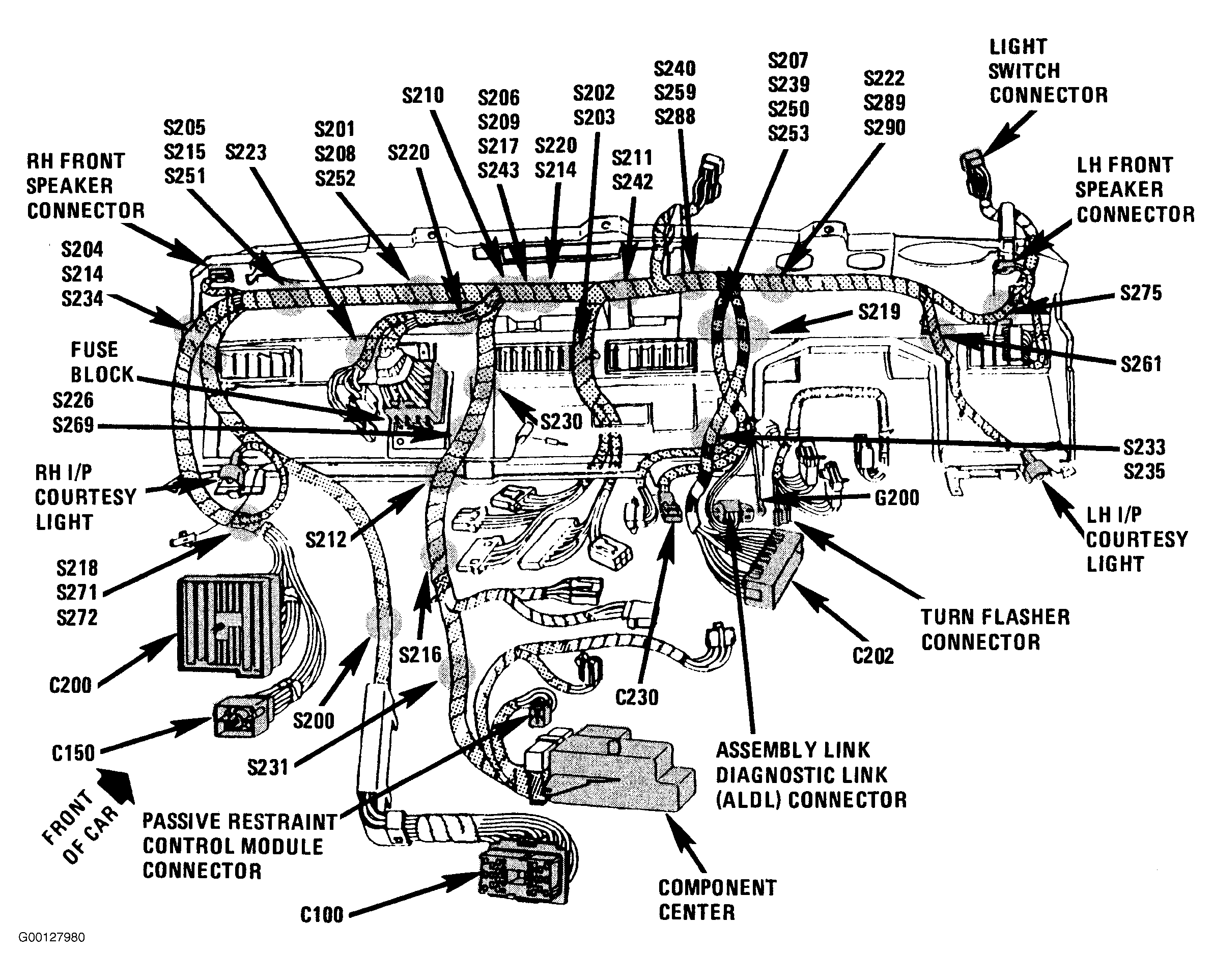

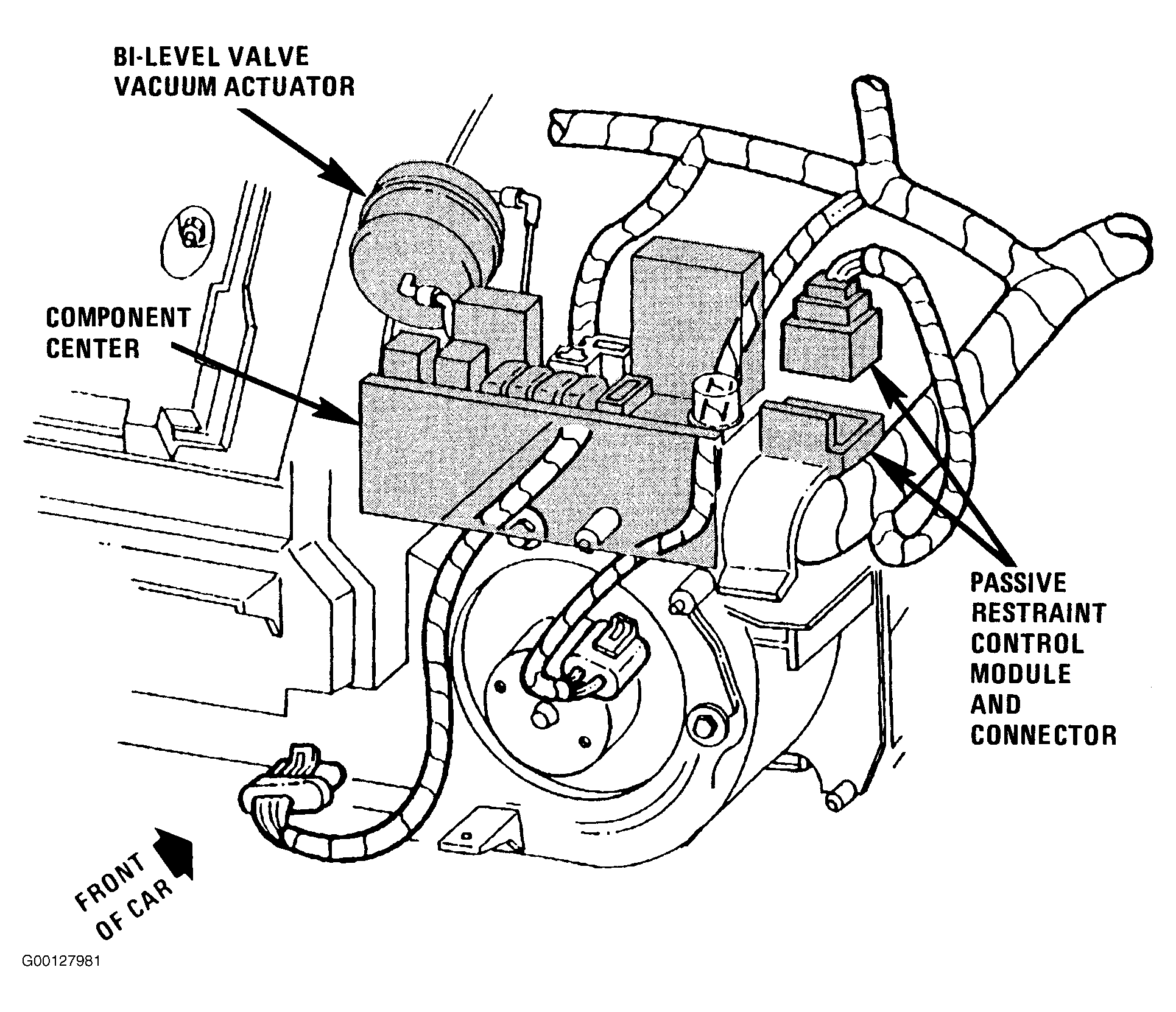

Component Center	Behind Right Side Of Instrument Panel. See Fig 1 .

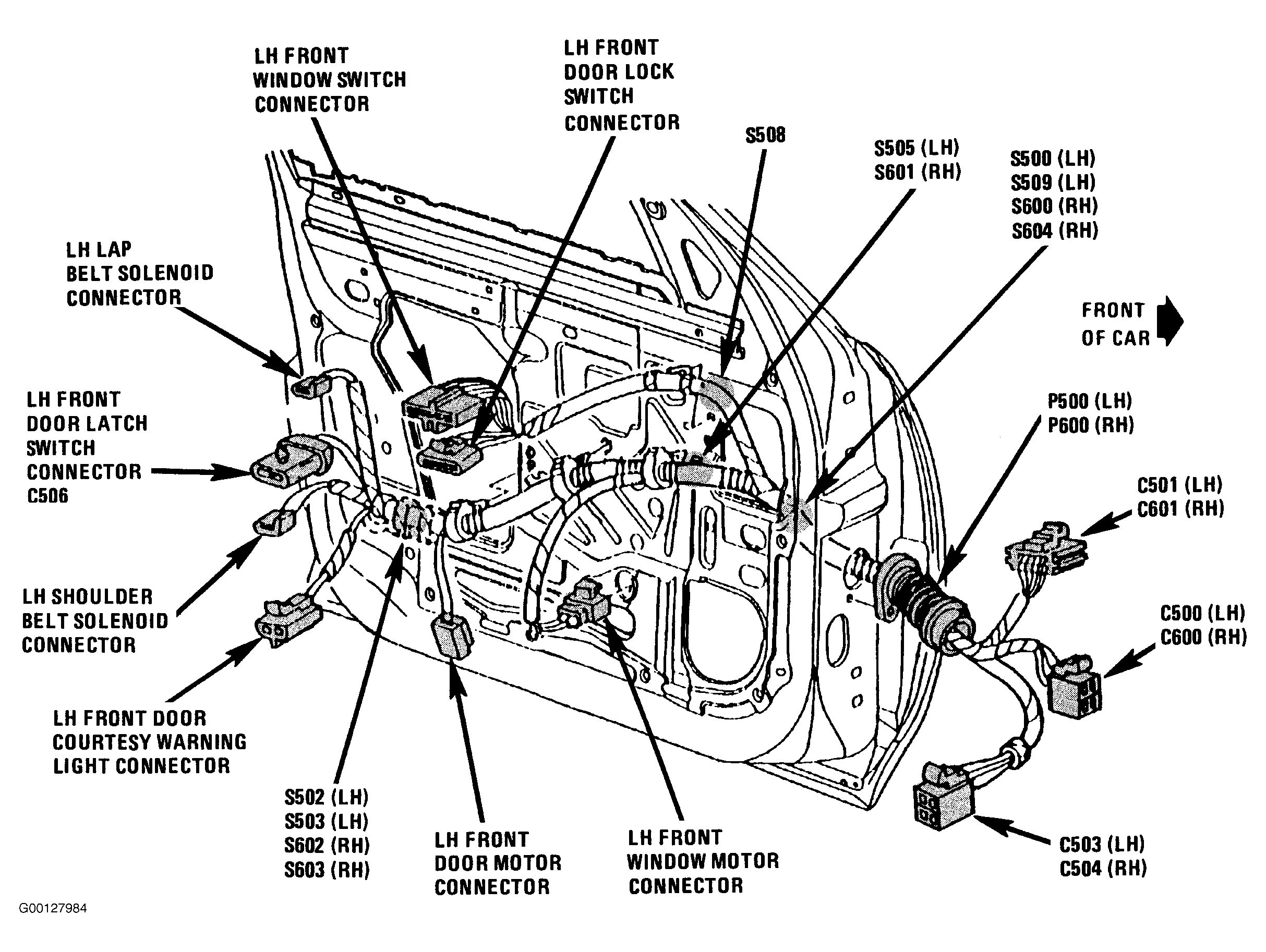

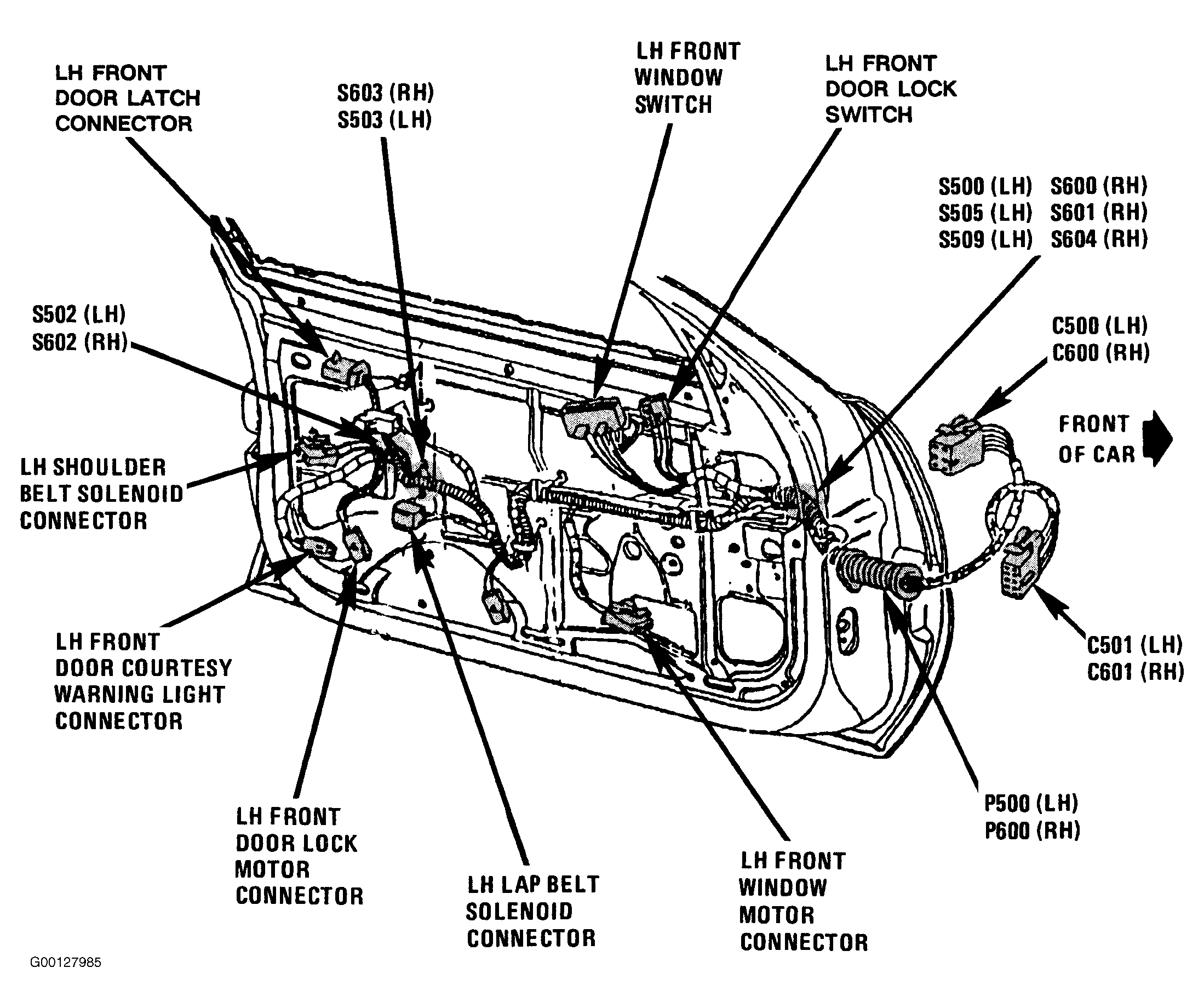

Left Front Window Motor	In Center Of Left Front Door. See Fig 2 .
Left Front Window Switch (2-Door)	Middle Of Left Front Door Panel. See Fig 2 .
Left Front Window Switch (4-Door)	Middle Of Left Front Door Panel. See Fig 2 .

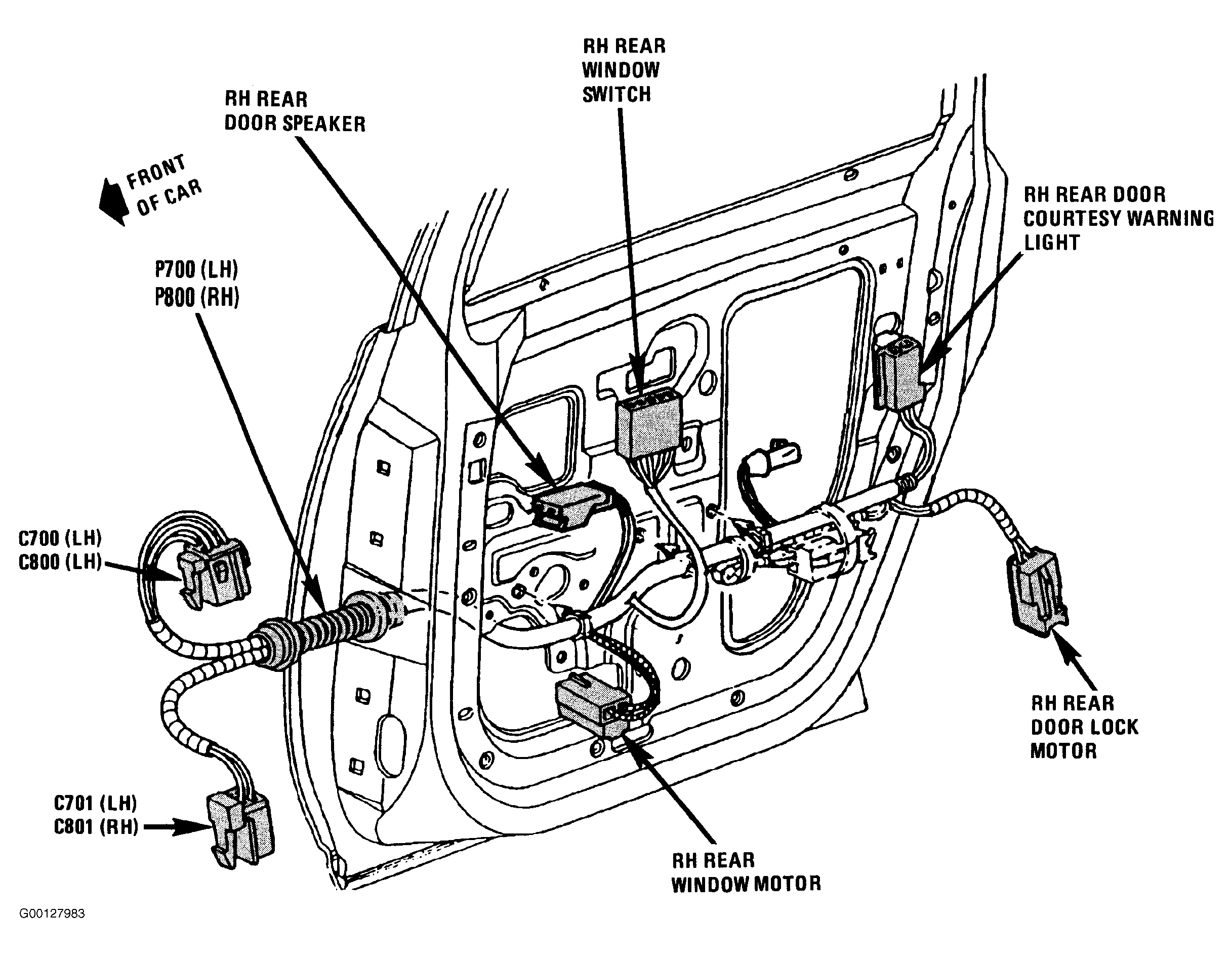

Left Rear Window Motor	In Front Of Door. See Fig 3 .
Left Rear Window Switch	Middle Of Left Rear Door Panel. See Fig 3 .
Right Front Window Motor	In Center Of Right Front Door. See Fig 2 .
Right Front Window Switch (2-Door)	Middle Of Right Front Door Panel. See Fig 2 .
Right Front Window Switch (4-Door)	Middle Of Right Front Door Panel. See Fig 2 .
Right Rear Window Motor	In Front Of Door. See Fig 3 .
Right Rear Window Switch	Middle Of Right Rear Door Panel. See Fig 3 .

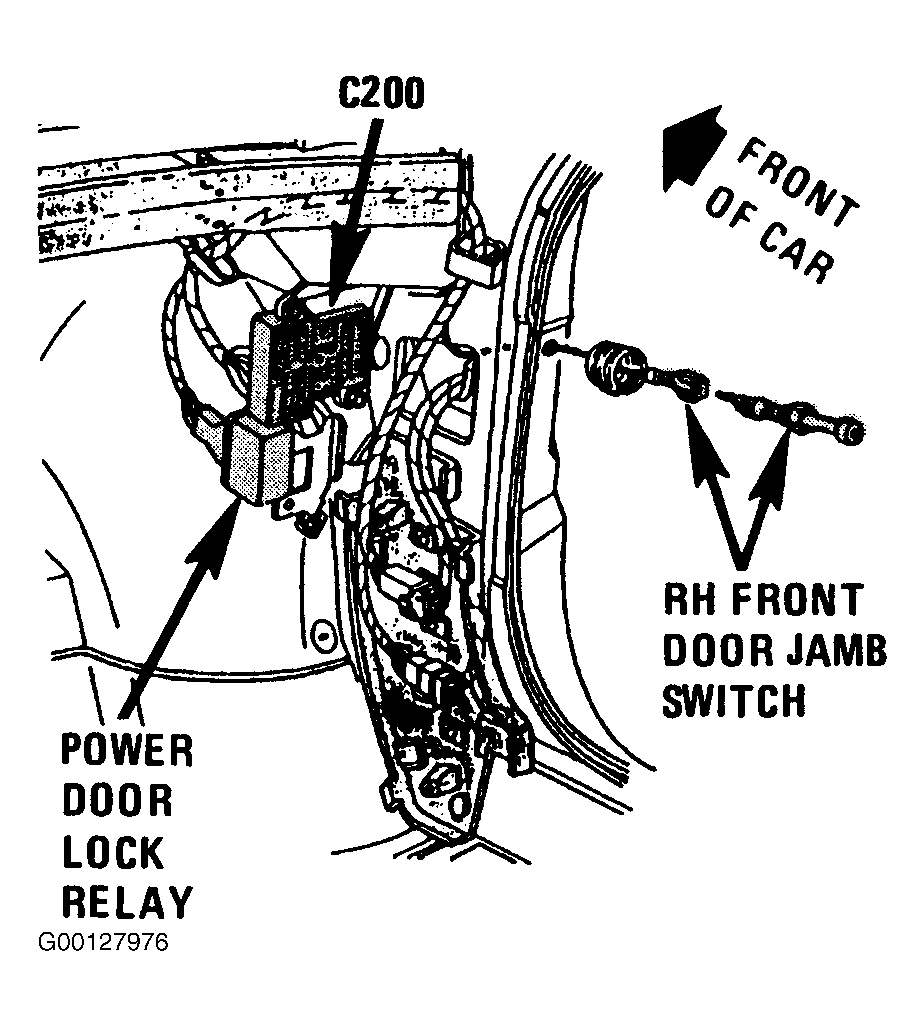

C200 (106 Cavities)	Behind Right Side Of Instrument Panel, Near Shroud. See Fig 4 .

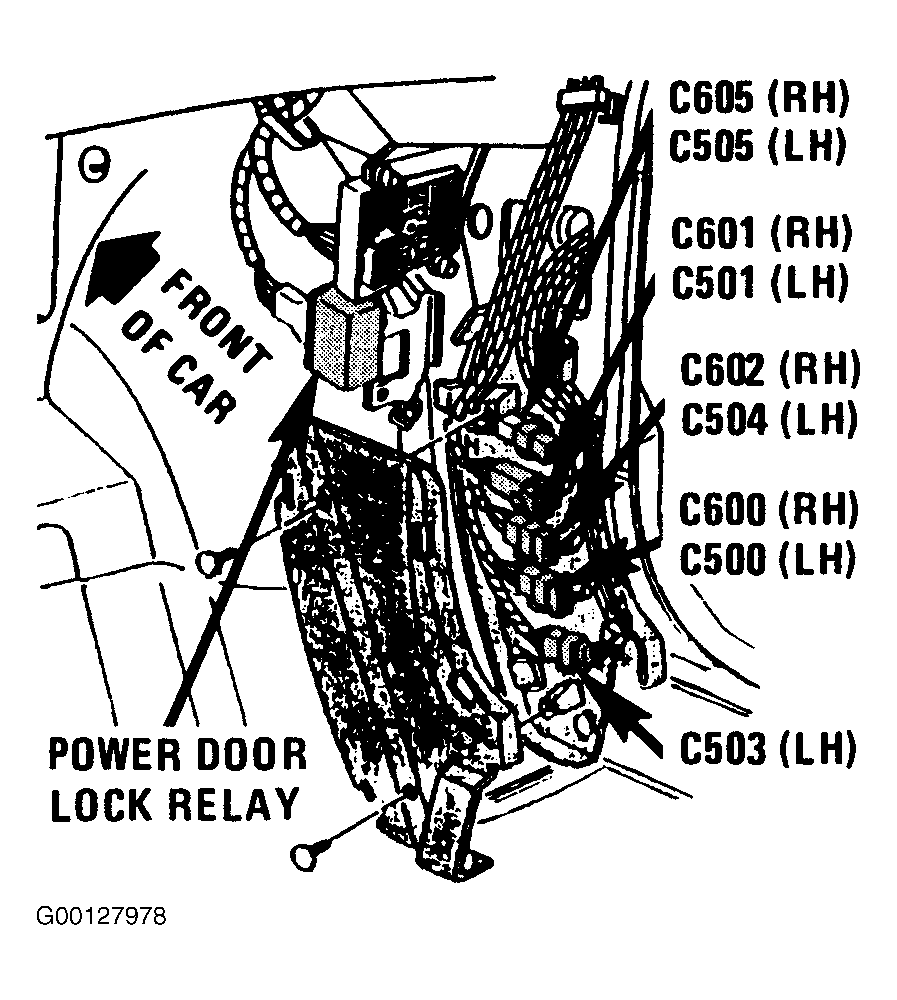

C500 (6 Cavities)	Below Instrument Panel, At Left Shroud. See Fig 5 .
C503 (6 Cavities)	Below Instrument Panel, At Left Shroud. See Fig 5 .
C600 (6 Cavities)	Below Instrument Panel, At Right Shroud. See Fig 5 .
C700 (6 Cavities)	In Left Rear Door Jamb. See Fig 3 .
C701 (Grand Prix, 4 Cavities)	In Left Rear Door Jamb. See Fig 3 .
C701 (STE, 8 Cavities)	In Left Rear Door Jamb. See Fig 3 .

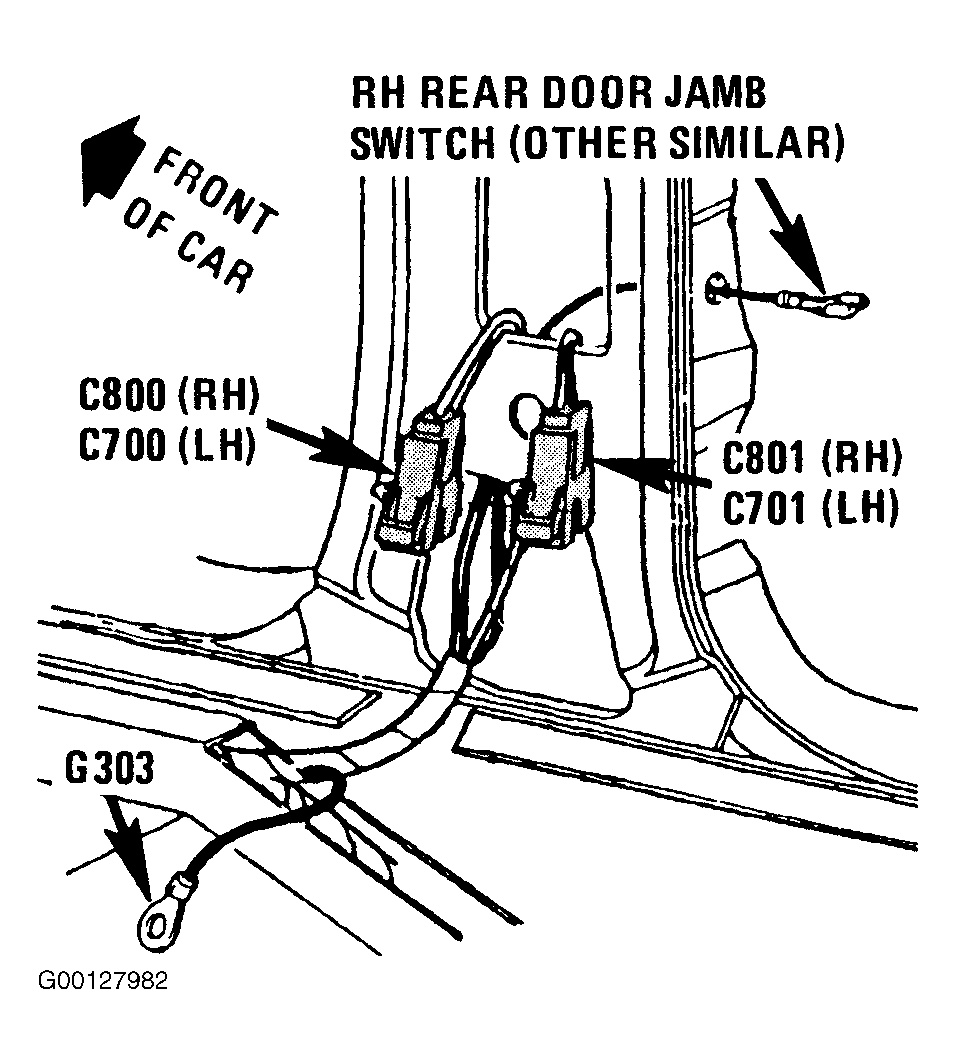

C800 (6 Cavities)	In Right Rear Door Jamb. See Fig 6 .
C801 (Grand Prix, 4 Cavities)	In Right Rear Door Jamb. See Fig 6 .
C801 (STE, 8 Cavities)	In Right Rear Door Jamb. See Fig 3 .

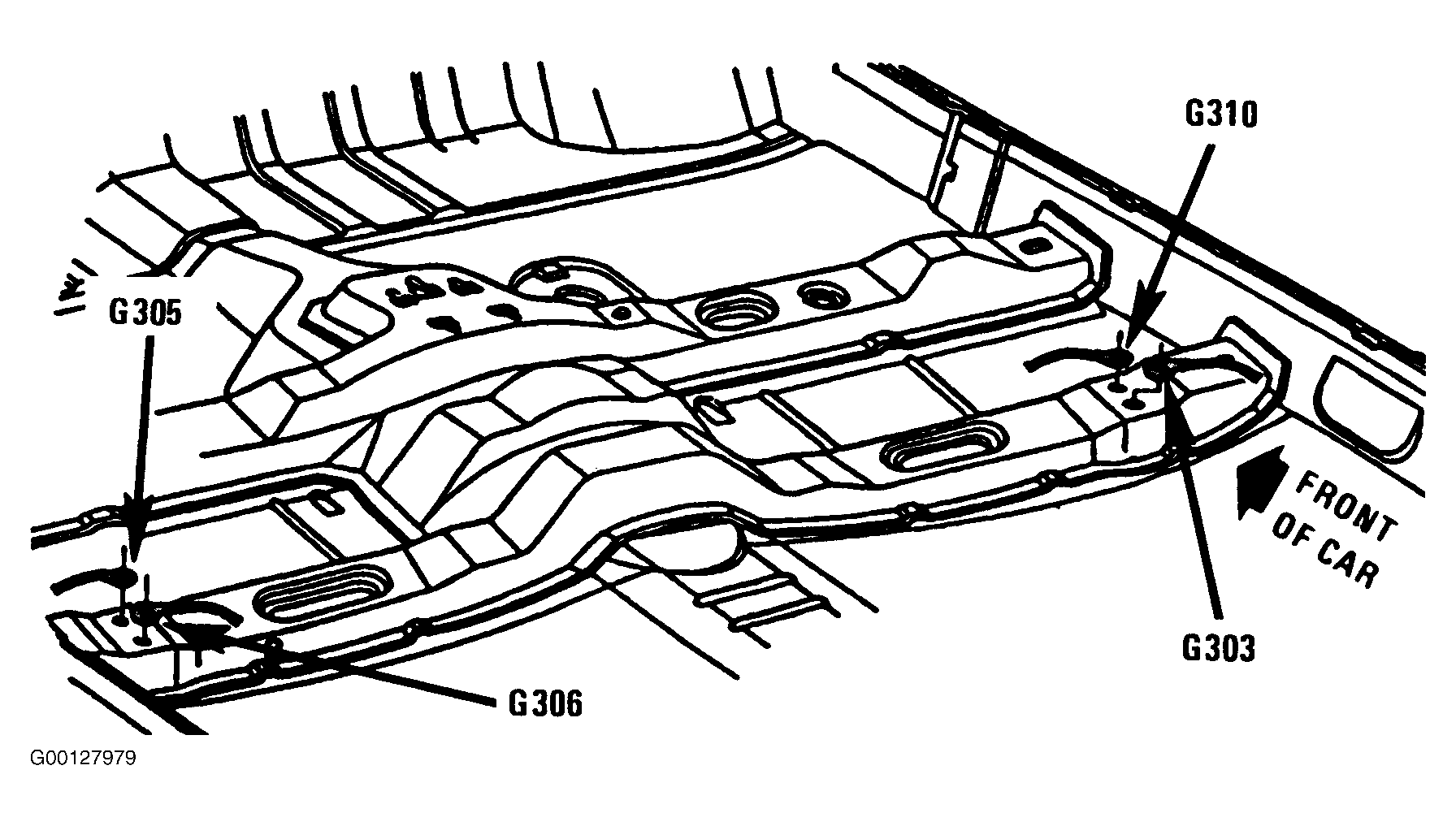

G305	Under Left Front Seat. See Fig 7 .
P500	In Left Front Door Jamb. See Fig 8 .
P600	In Right Front Door Jamb. See Fig 2 .
P700	In Left Rear Door Jamb. See Fig 3 .
P800	In Right Rear Door Jamb. See Fig 3 .

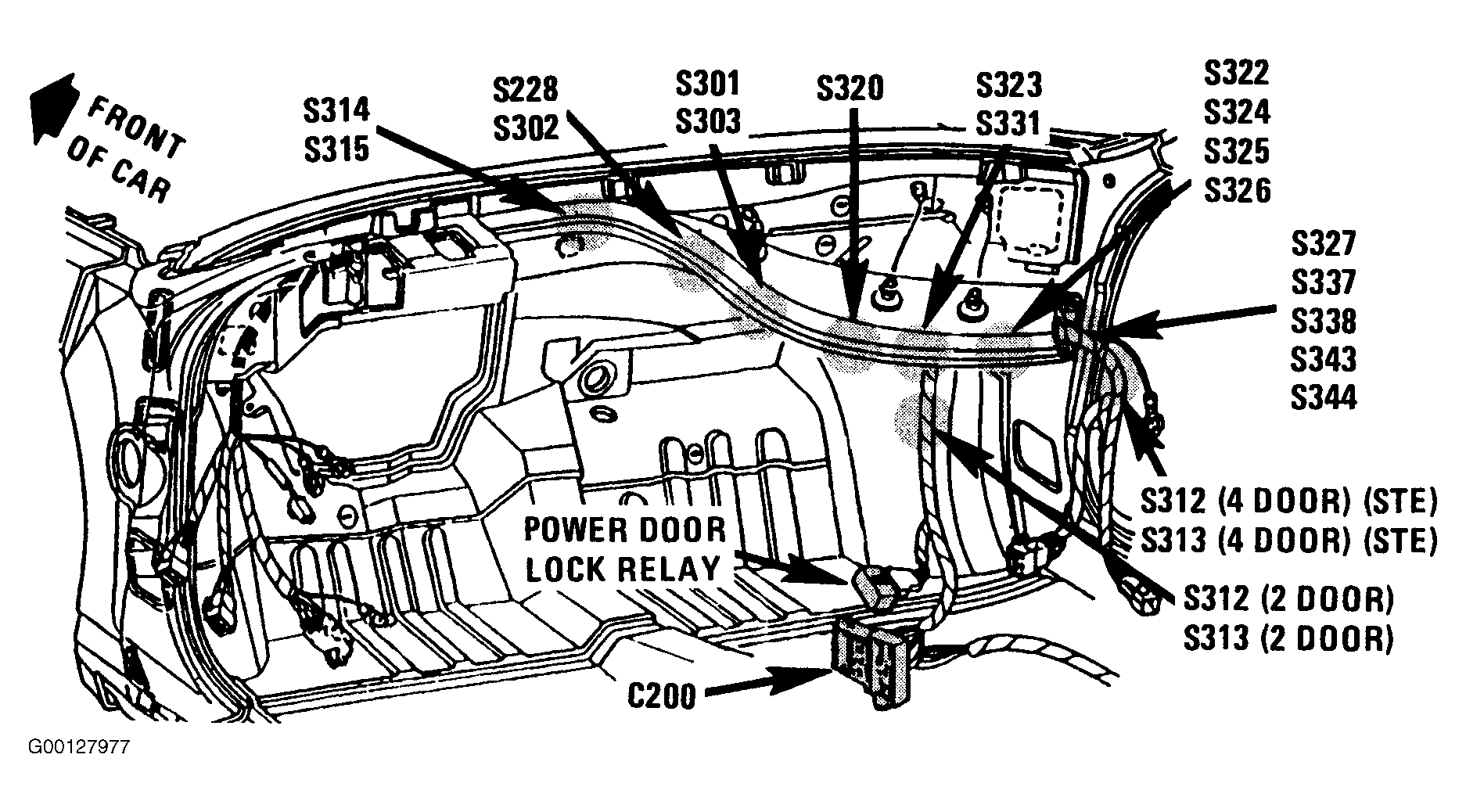

S228	Crosscar Harness. See Fig 9 .
S231	Instrument Panel Harness. See Fig 10 .
S303	Crosscar Harness. See Fig 9 .
S500	Left Front Door Harness. See Fig 2 .
S600 (2-Door)	Right Front Door Harness. See Fig 2 .
