Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cooling Water Blower Control Unit | Right side of front luggage compartment. |

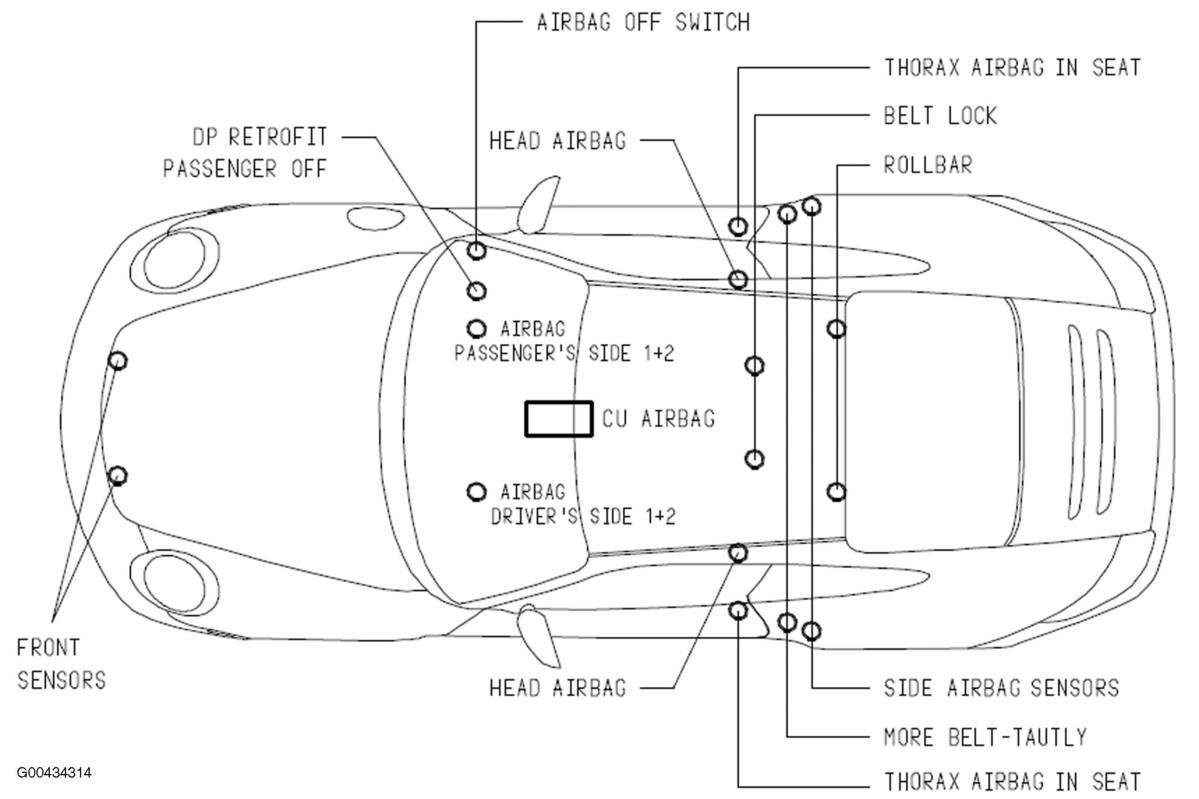

| CU Airbag | Below center console. See Figure. |
| CU Climatronic | Behind center of dash. See Figure. |

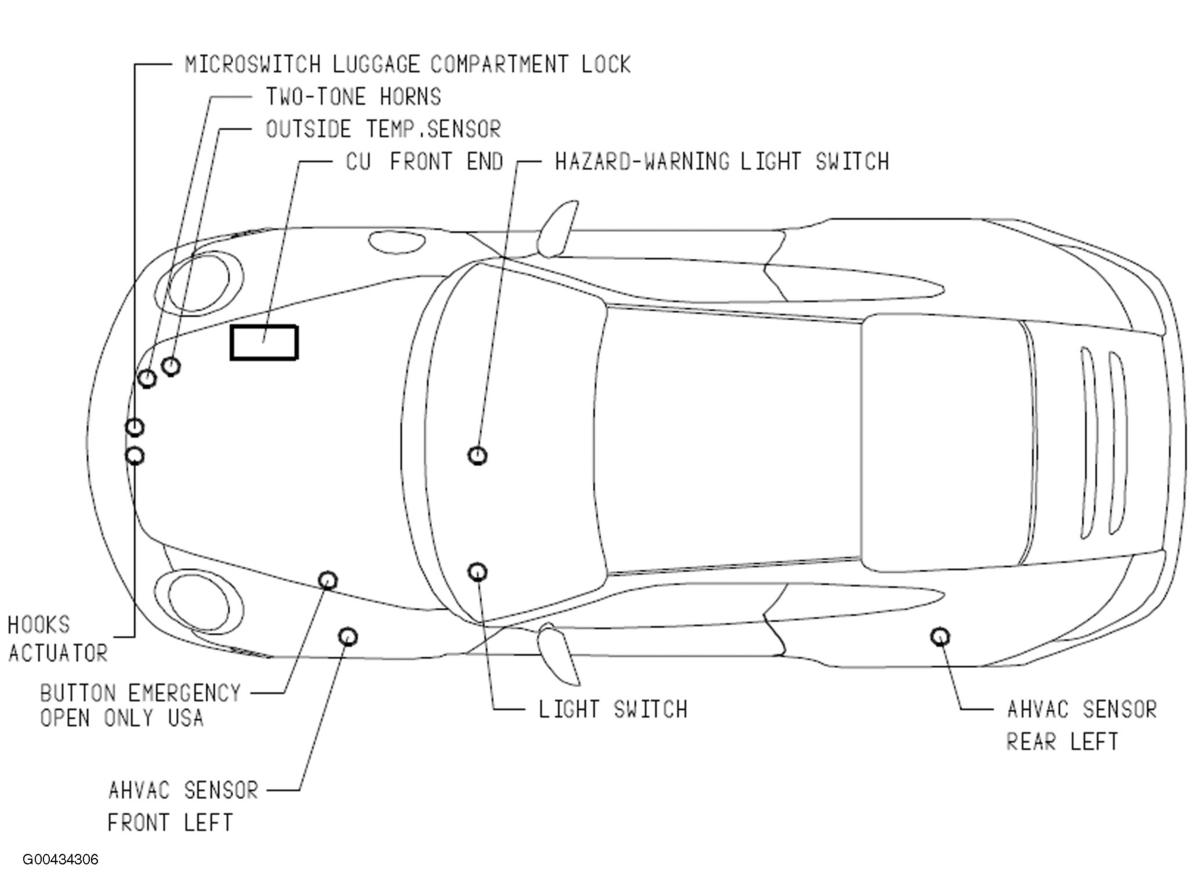

| CU Front End | Right side of luggage compartment. See Figure. |

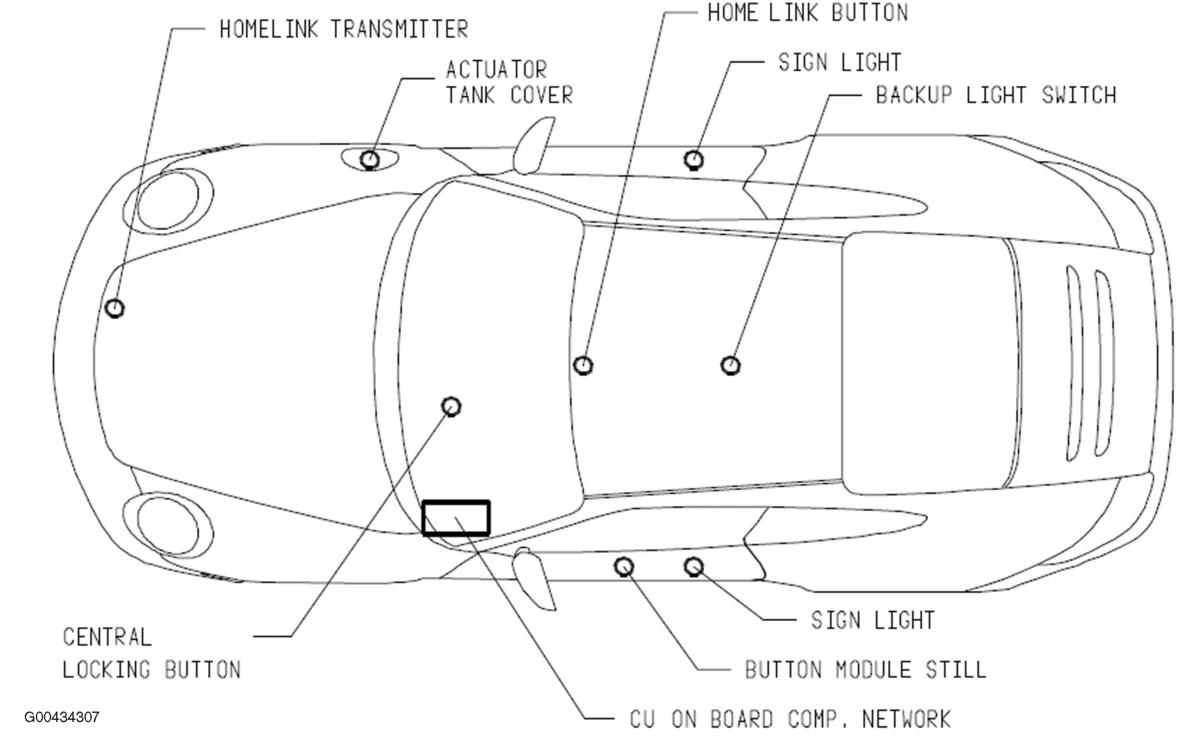

| CU On Board Comp. Network | Behind left side of dash. See Figure. |

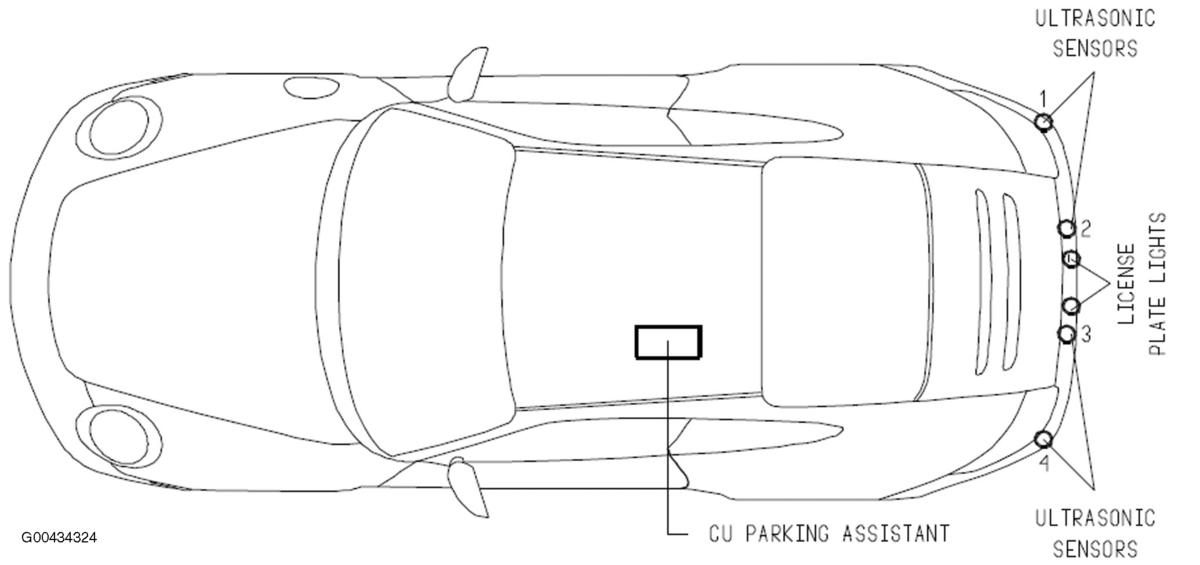

| CU Parking Assistant | Under driver's seat. See Figure. |

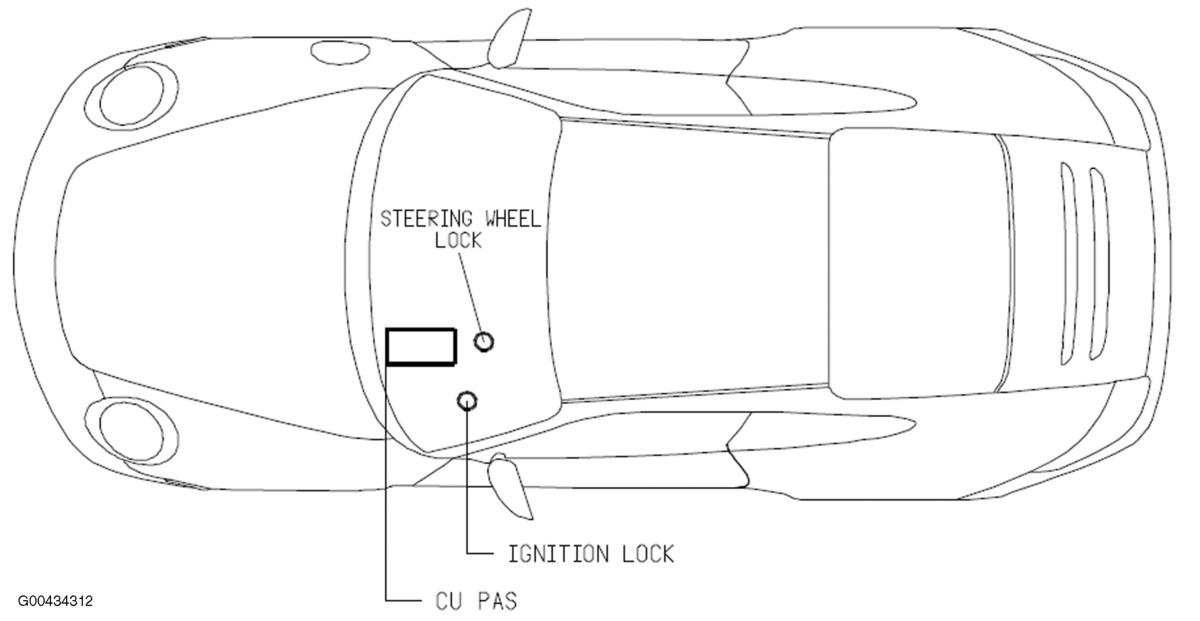

| CU PAS | Behind left side of dash. See Figure. |

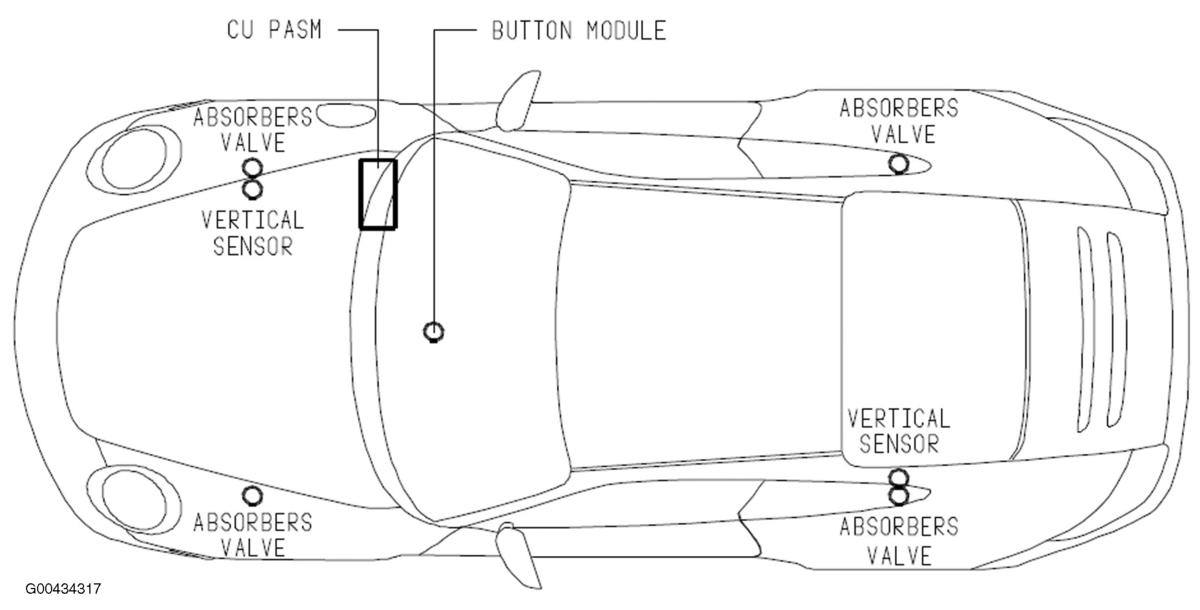

| CU PASM | Behind right side of dash. See Figure. |

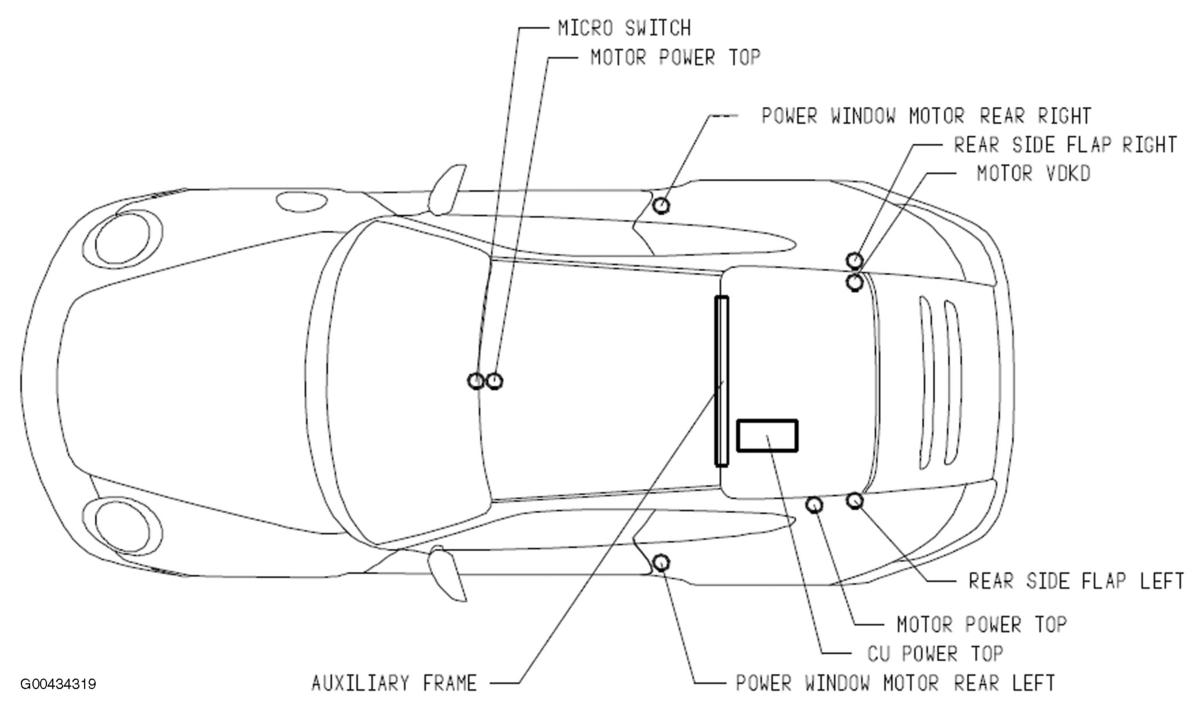

| CU Power Top | Left center of auxiliary frame. See Figure. |

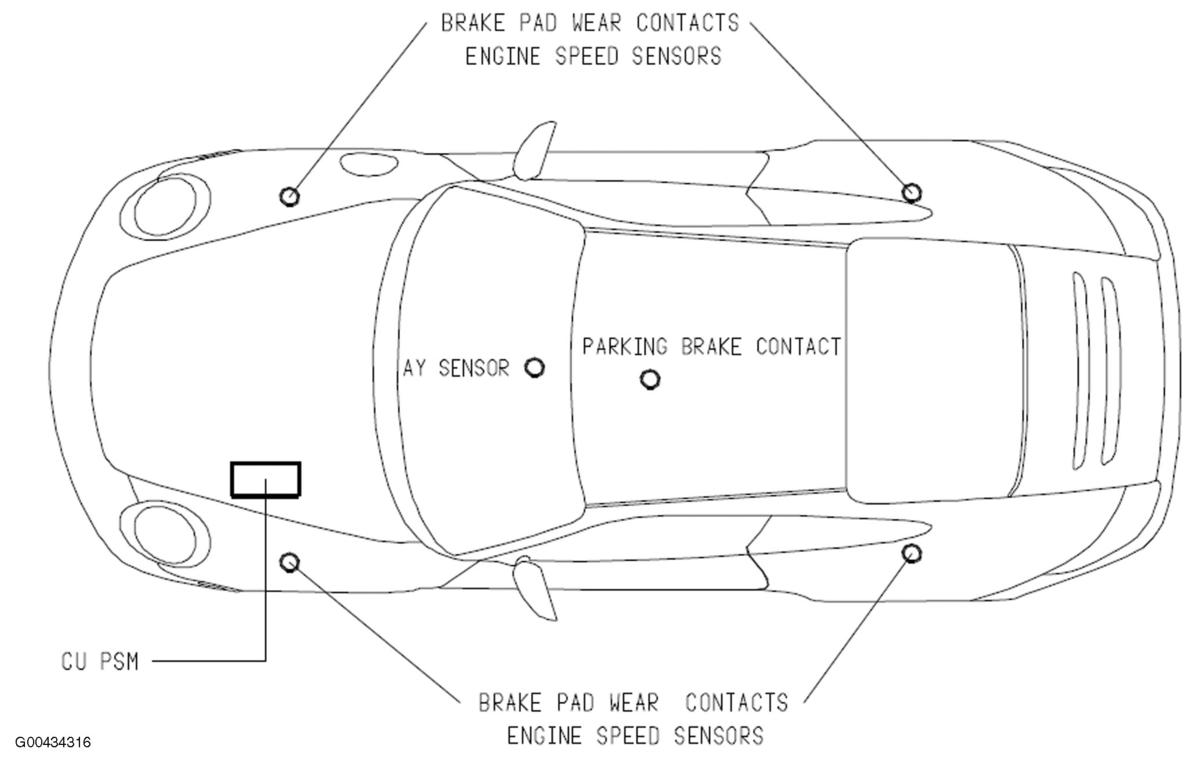

| CU PSM | Left side of front luggage compartment. See Figure. |

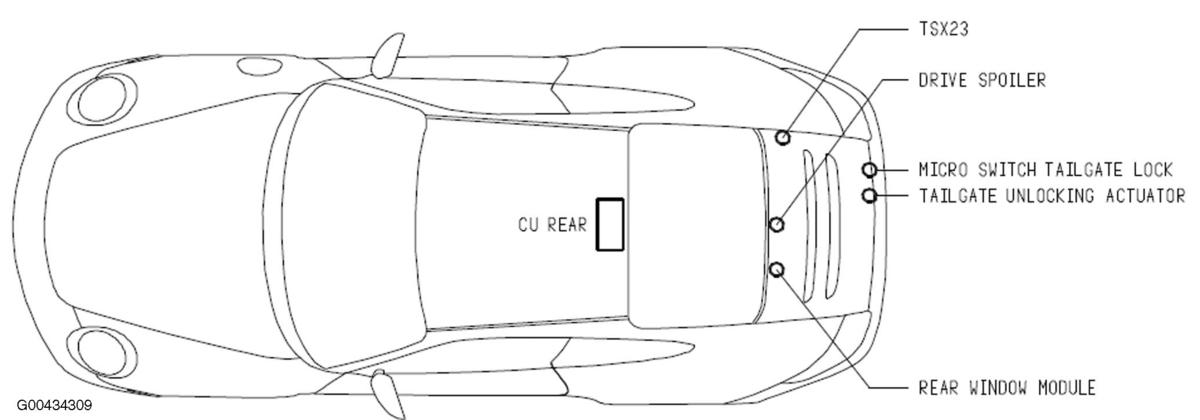

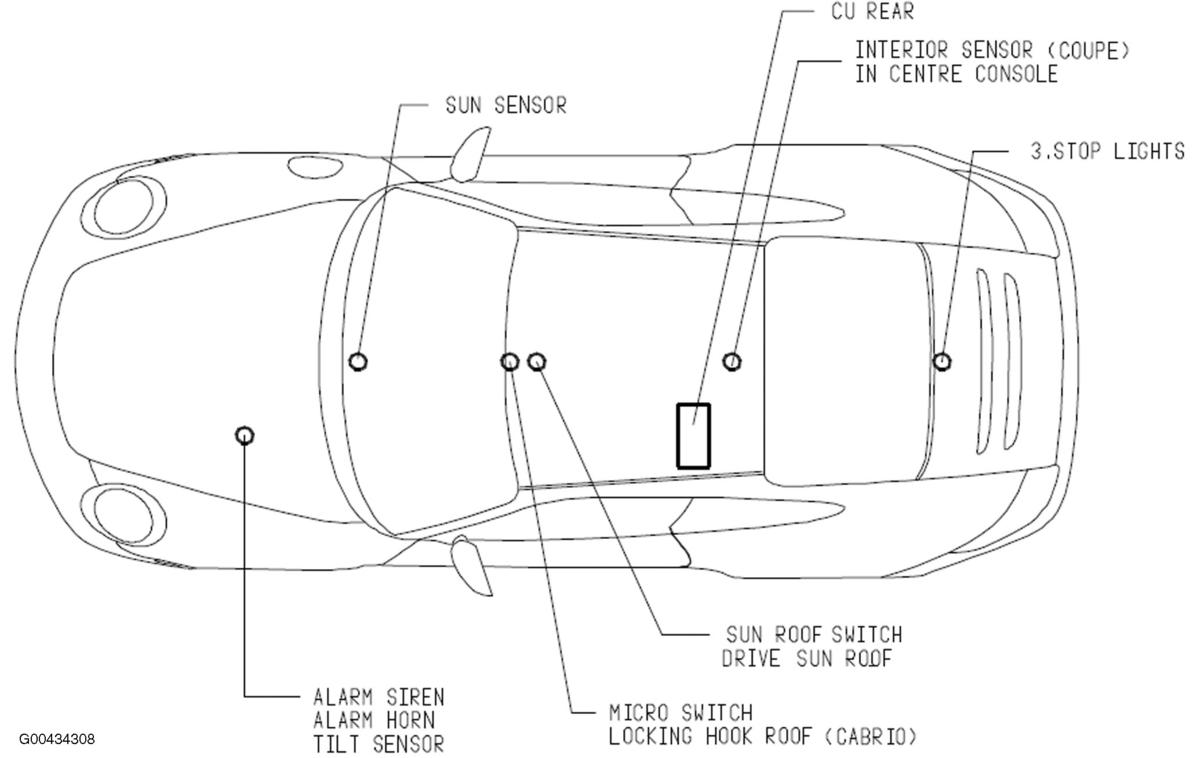

| CU Rear | Under driver's seat. See Figure. |
| Current Distributor | Behind right side of dash. See Figure. |

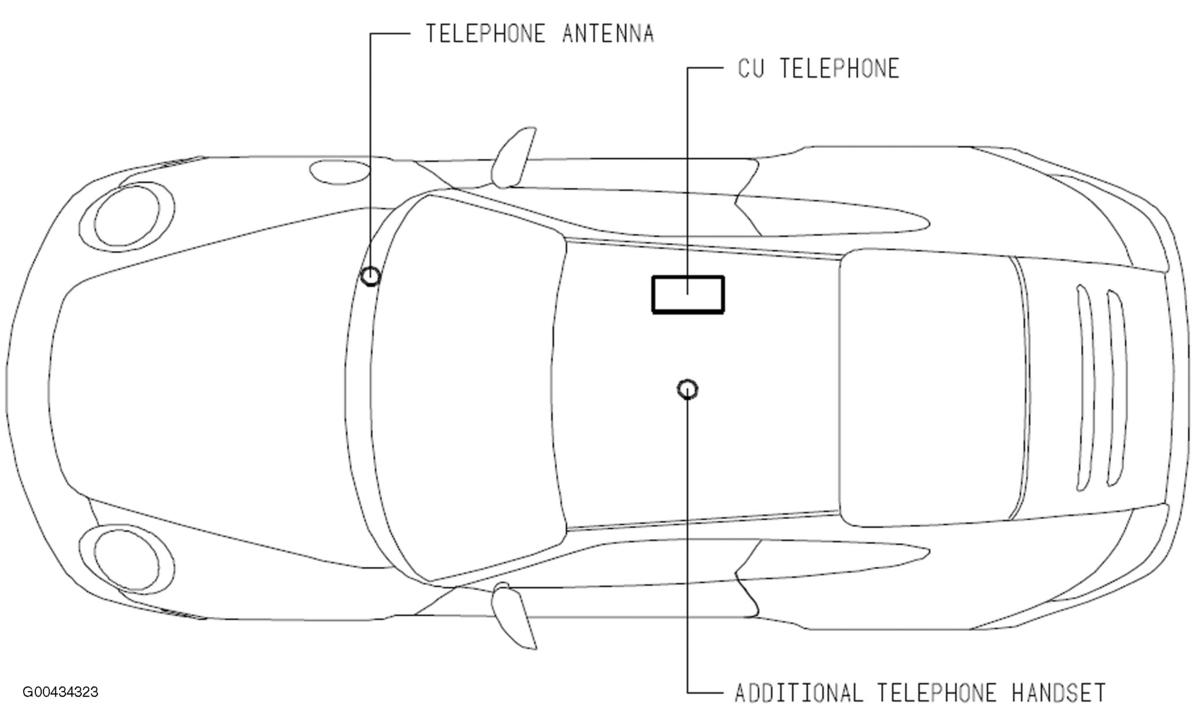

| CU Telephone | Under front passenger's seat. See Figure. |

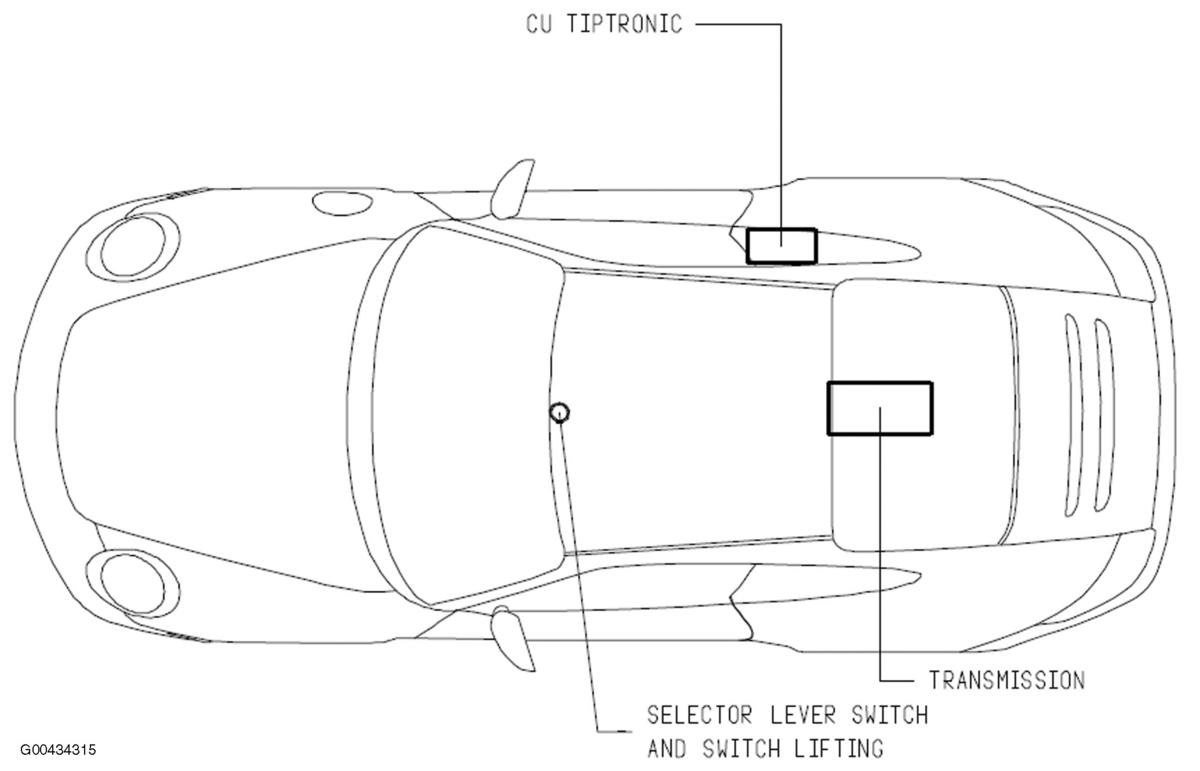

| CU TIPTRONIC | Behind right "B" pillar. See Figure. |

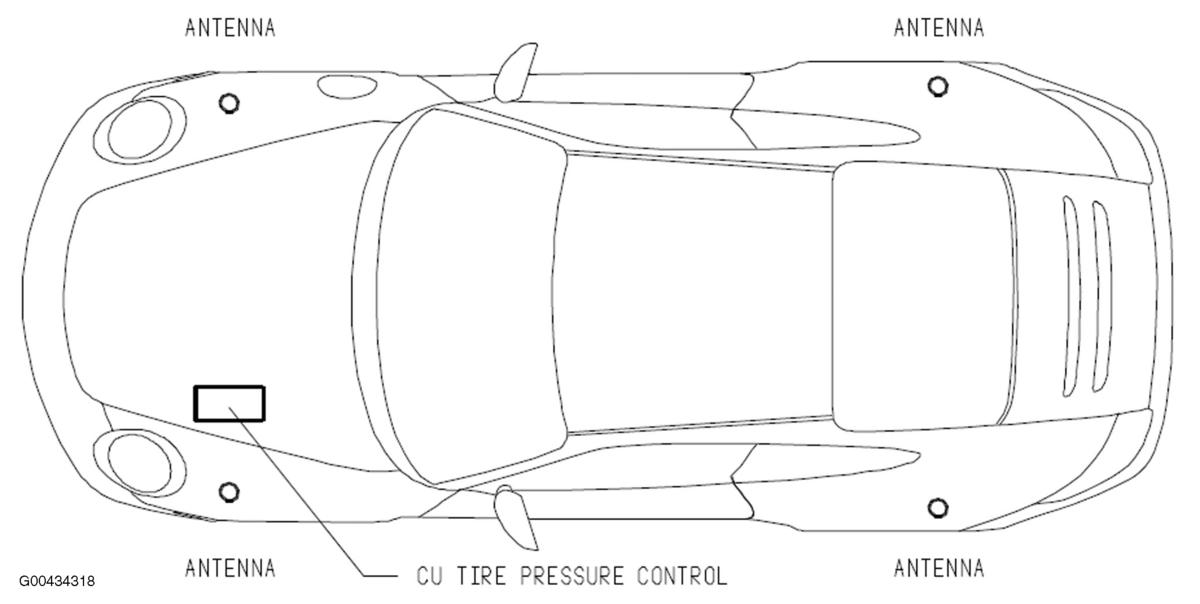

| CU Tire Pressure Control | In left front wheelwell. See Figure. |
| DME Control Unit | Left front of engine compartment. |
| Electric Fuel Pump Control Unit | In rear of luggage compartment. |
| Gateway Control Unit | In left footwell. |

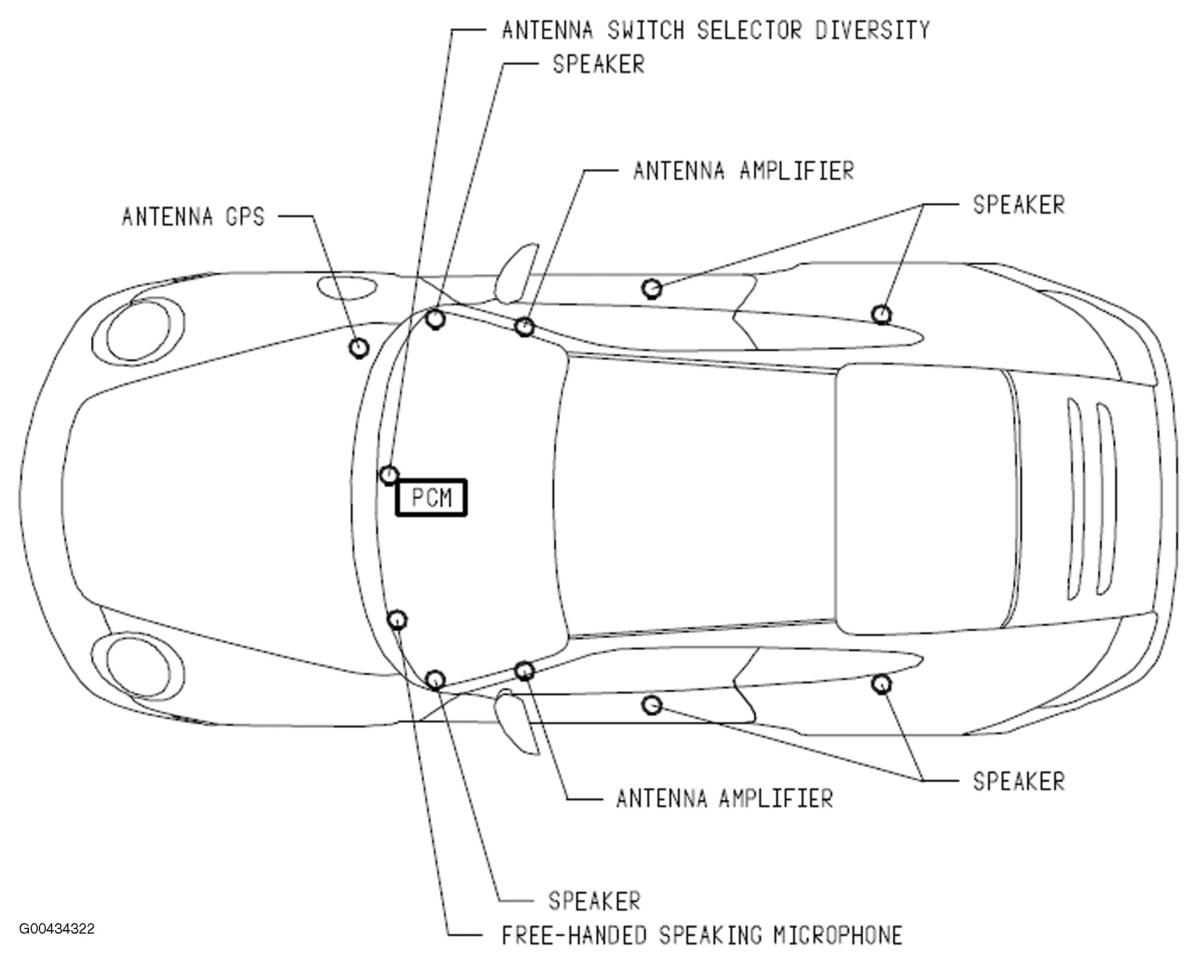

| PCM | Behind center of dash. See Figure. |
| Rear Window Module | On rear window wiper motor. See Figure. |
| Seat Memory Control Unit (Left/Right) | Under respective front seat. |
| Transmission Control Unit | On transmission. |
| Valve-Lift Control | At cylinder head cover. |
