Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

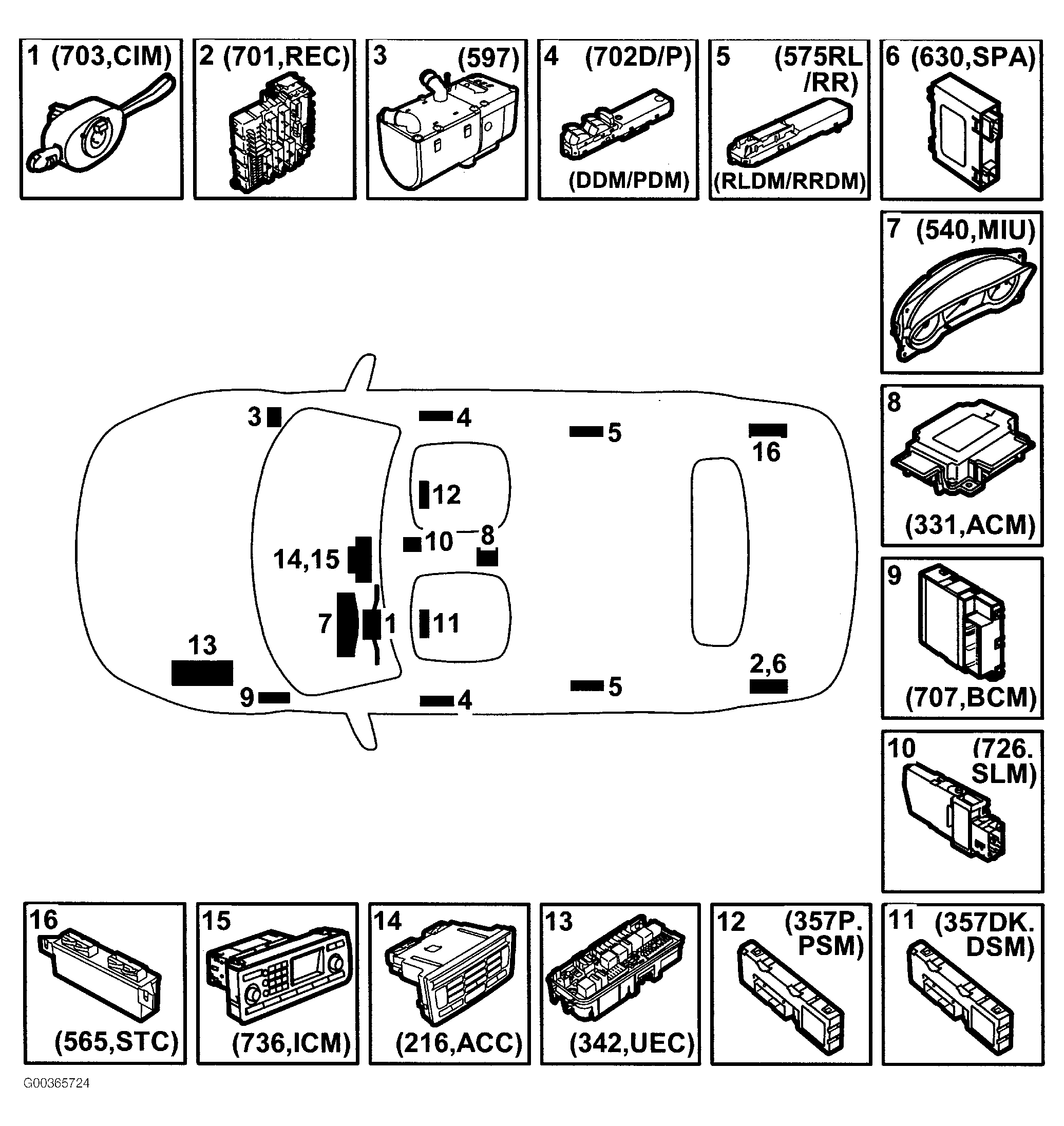

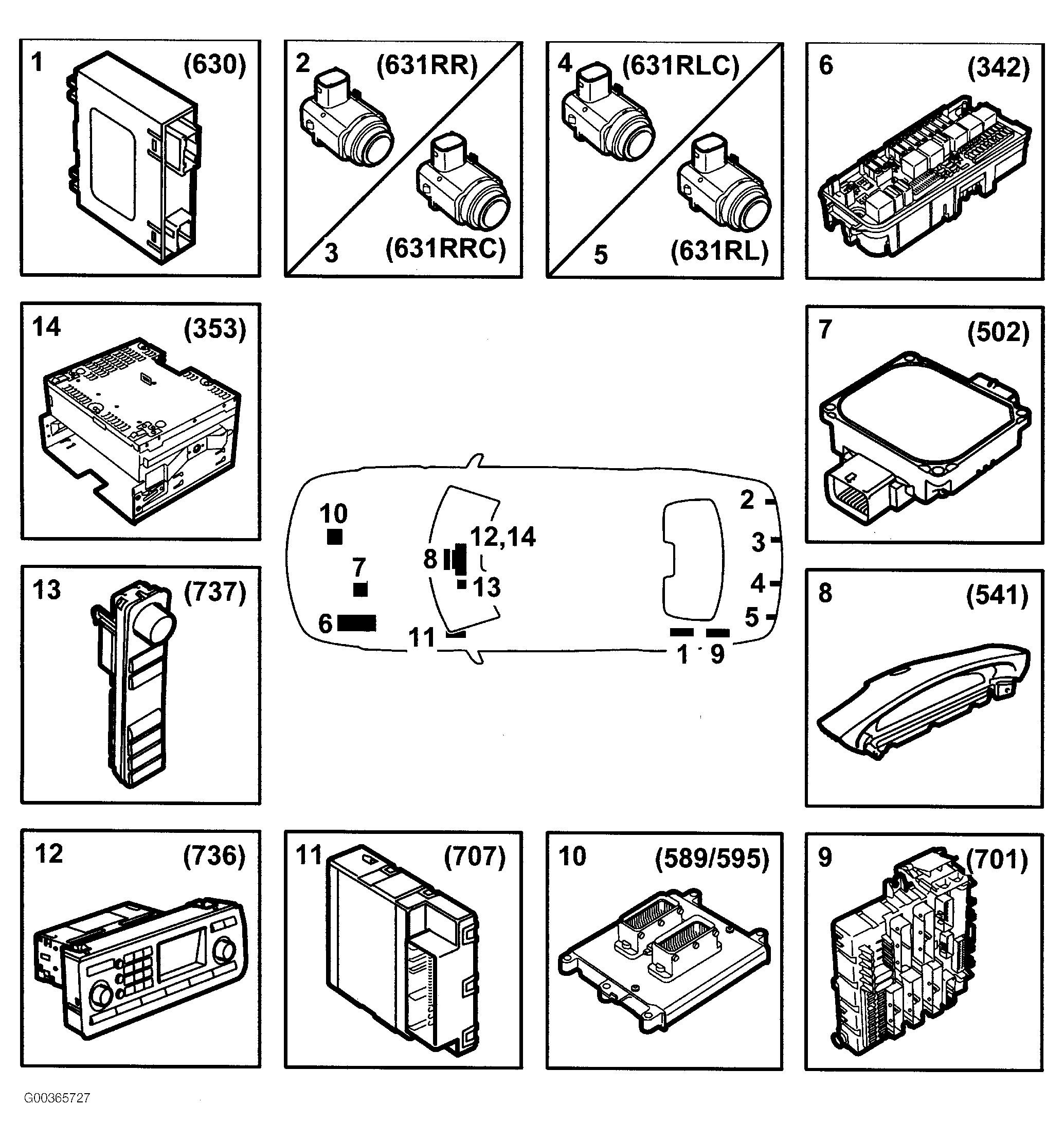

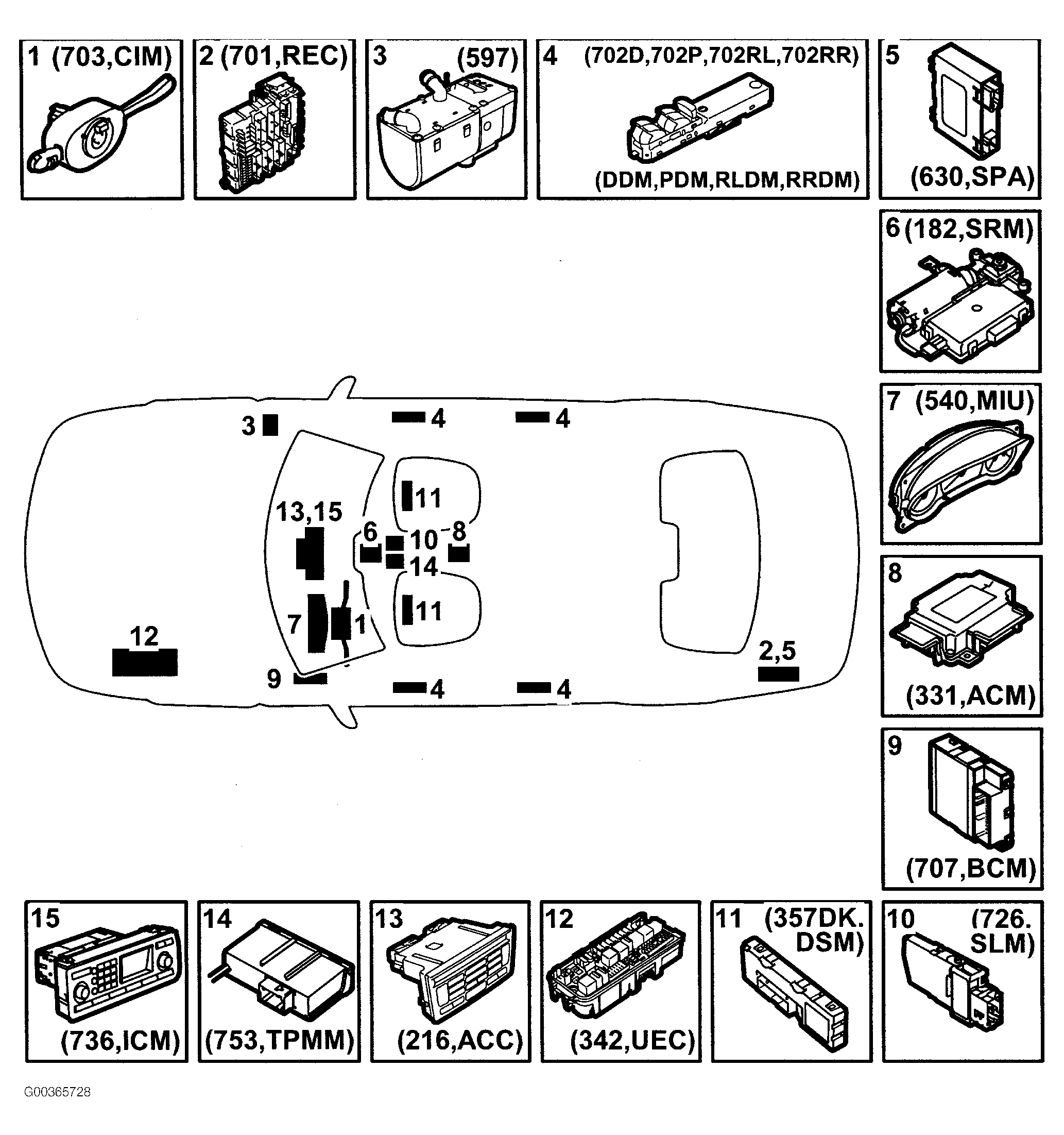

| ACM (Air Bag Control Module) (Convertible) (8) | Under floor console, behind gear selector. See Figure . |
| ACM (Air Bag Control Module) (Sedan) (8) | Under floor console, behind gear selector. See Figure . |
| ADM Control Module | In overhead console. |
| AHL (Automatic Headlight Leveling Control Module) (4) | Behind left headlight assembly. See Figure . |
| BCM (Body Control Module) (11) | In dashboard main fuse box. See Figure . |
| CDCR (Rear CD Changer) (4) | Left rear corner of luggage compartment. See Figure . |
| CIM (Column Integration Module) (8) | Integral to steering column unit. See Figure . |
| CU/PU (Telematics Unit) (7) | Below parcel shelf. See Figure . |
| DDM/PDM (Driver/ Passenger Door Control Module) (Convertible) (4) | In respective front door. See Figure . |
| DDM/PDM (Driver/ Passenger Door Control Module) (Sedan) (4) | In respective front door. See Figure . |
| DSM (Driver Seat Module) (Convertible) (11) | In driver's seat. See Figure . |
| DSM (Driver Seat Module) (Sedan) (11) | In driver's seat. See Figure . |

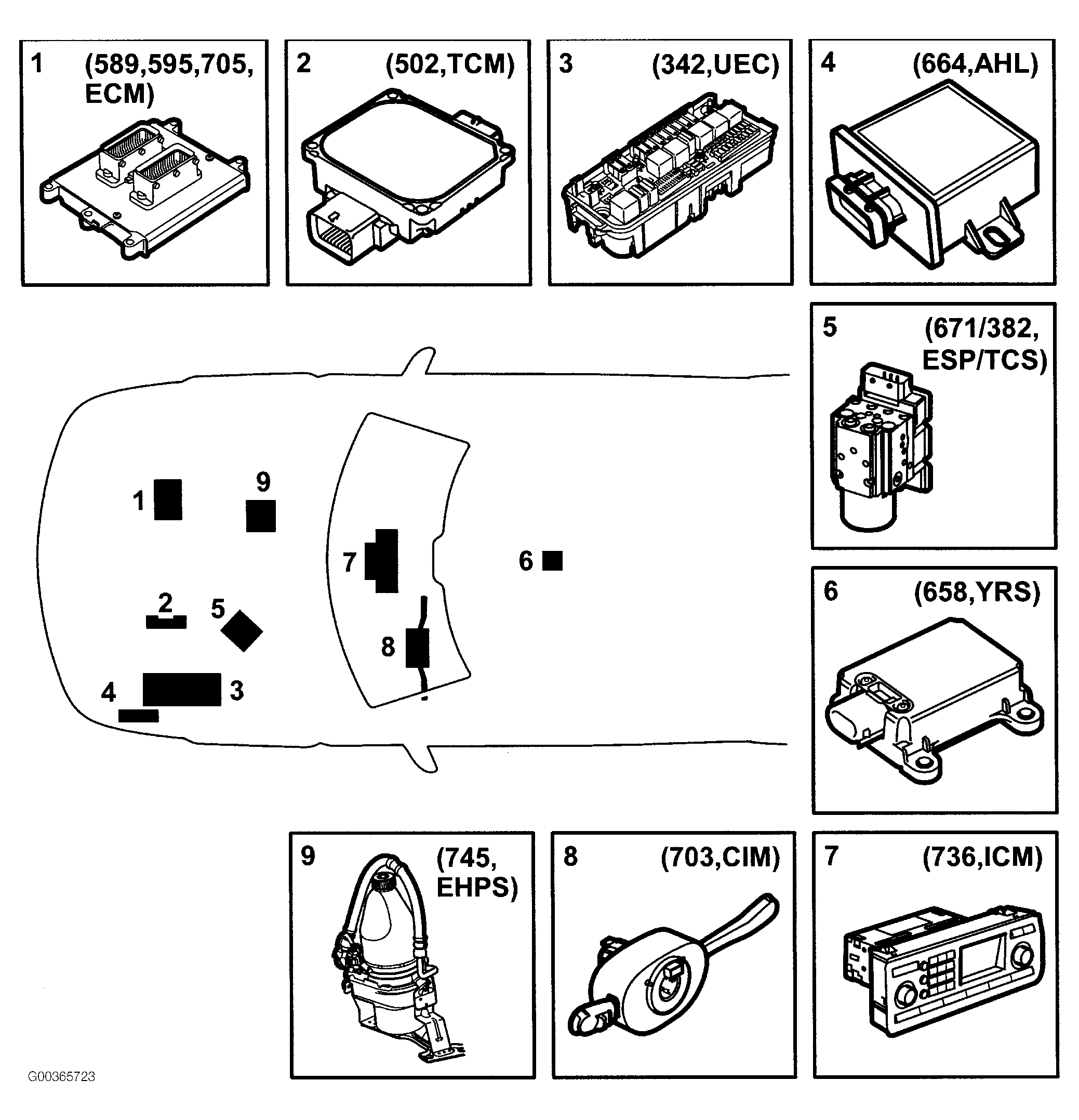

| ECM (Engine Control Module) (1) | On engine. See Figure . |
| EHPS (Power Steering System Unit) (9) | Right rear of engine compartment. See Figure . |

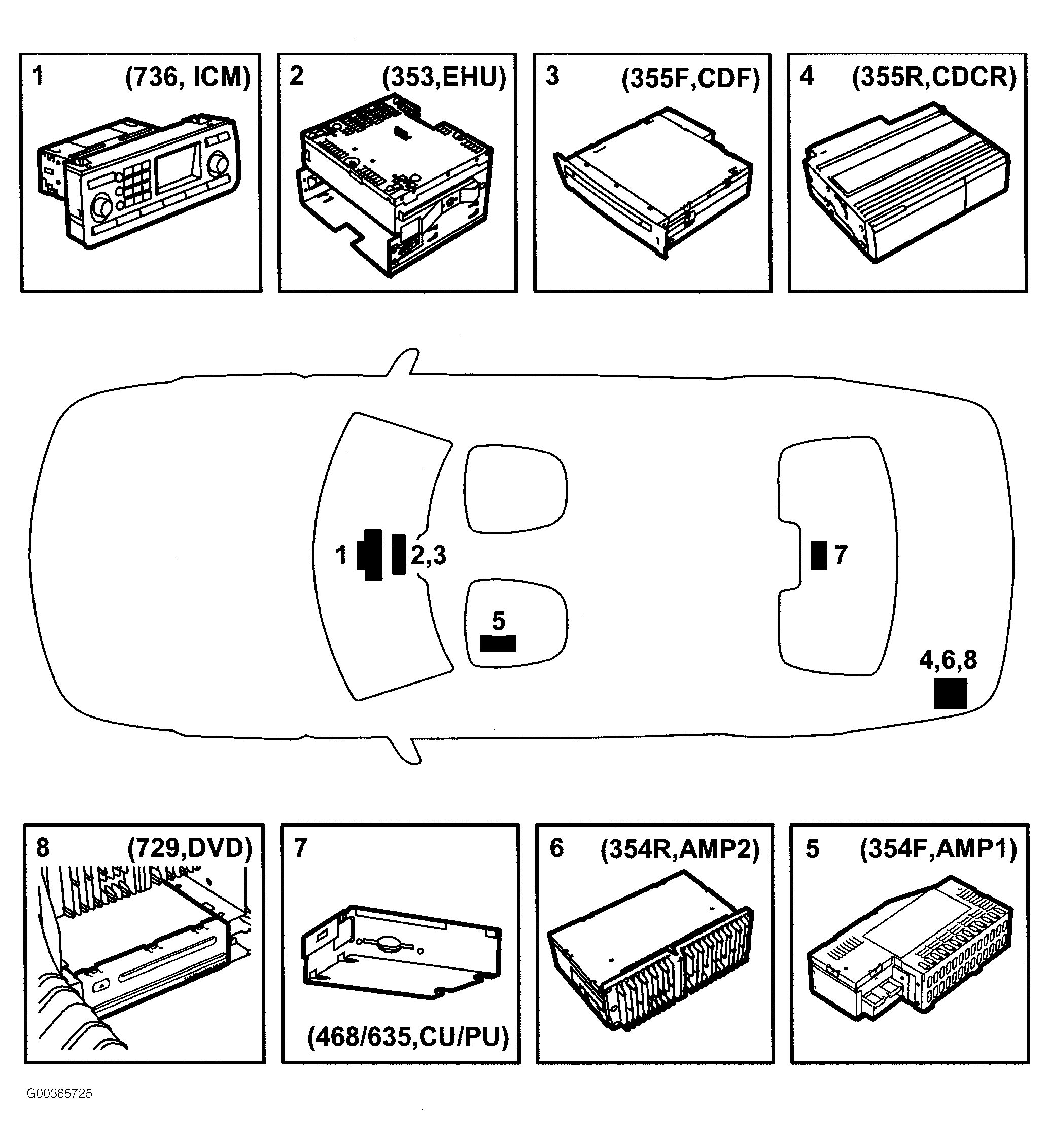

| EHU (Entertainment Head Unit) (14) | In center console. See Figure . |
| Electrically Adjustable Driver's Seat Control Module (W/Memory) | Under driver's seat cushion. |
| ESP/TCS (Control Module) (5) | Integral to hydraulic unit, at left rear corner of engine compartment. See Figure . |
| Ignition Coil Unit | On top rear of engine. |
| Ionization Detection Module | Left rear of engine compartment. |
| PHM/AHM (Parking/Auxiliary Heater Control Module) (3) | Right side of firewall. See Figure . |
| PHM (Park Heater Module) (3) | On right side of firewall. See Figure . |
| PSM (Passenger Seat Module) (12) | In passenger's seat. See Figure . |
| RLDM/RRDM (Left/Right Rear Door Control Module) (Sedan) (4) | In respective rear door. See Figure . |
| RLDM/RRDM (Left/Right Rear Window Lift Control Module) (Convertible) (5) | Inside respective rear seat side trim. See Figure . |
| SLM (Shift Lever Module) (Convertible) (10) | Base of gear selector. See Figure . |
| SLM (Shift Lever Module) (Sedan) (10) | Base of gear selector. See Figure . |
| SPA (Control Module) (1) | Left rear of luggage compartment. See Figure . |
| SRM (Sunroof Control Module) (6) | In front of sunroof. See Figure . |
| STC (Control Module) (16) | Right side of luggage compartment. See Figure . |
| STC Soft Top Control Module (Convertible) | On right rear wheel housing. |
| TCM (Transmission Control Module) (2) | On bracket between battery and engine. See Figure . |
| Telematics Unit (Convertible) | At front edge of boot. |
| Tire Pressure Monitoring Module | On left support member of center console. |
| Transmission Control Module (A/T) | On transmission casing. |
| Trionic Control Module | Right front of engine compartment. |
| Trionic Engine Control Module | Front of engine. |
| Ventilation Fan Control Unit (Auto) | On fan motor housing. |
| Ventilation Fan Control Unit (Manual) | On underside of fan housing. |
