Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

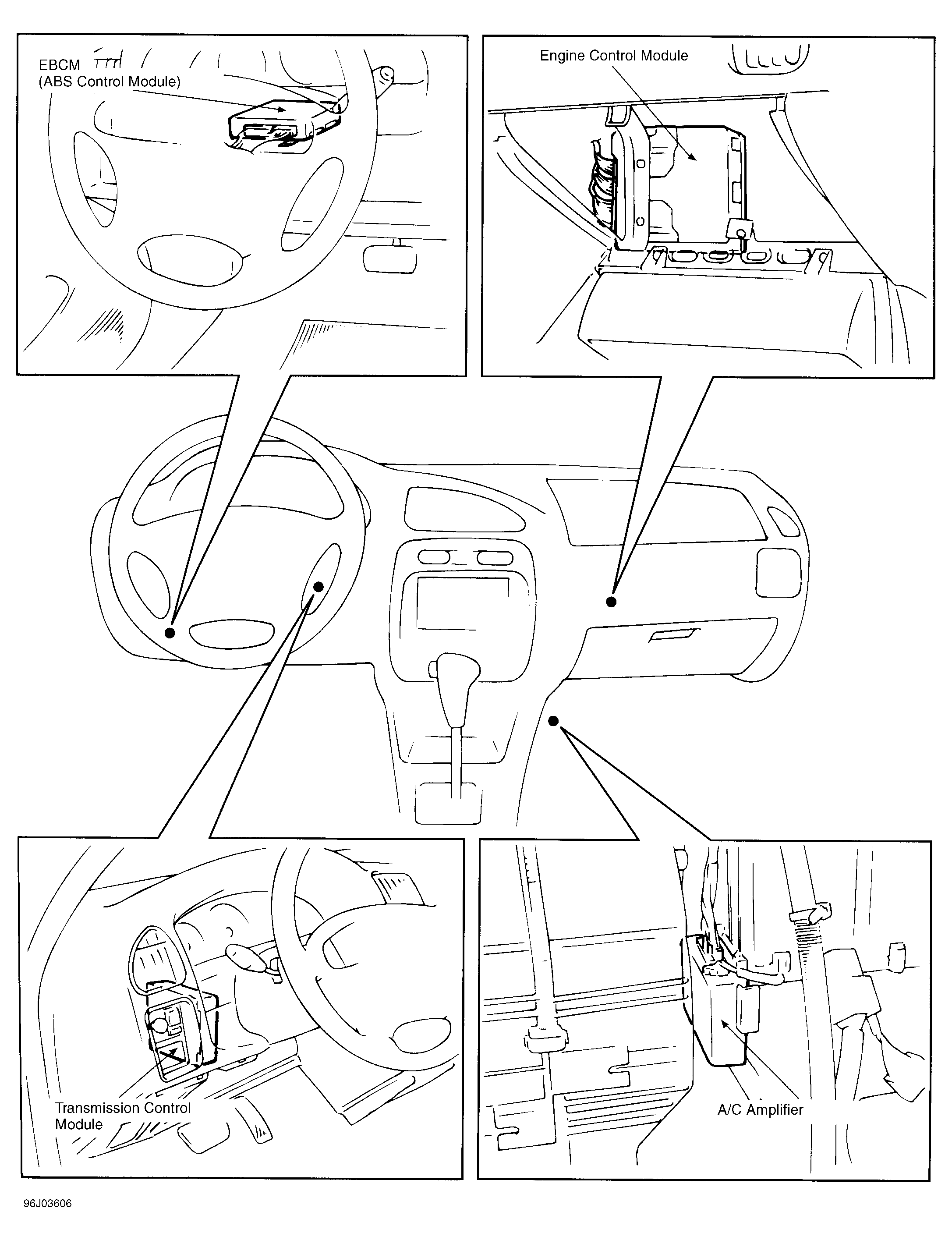

| A/C Amplifier | Below left side of glove box. See Figure . |

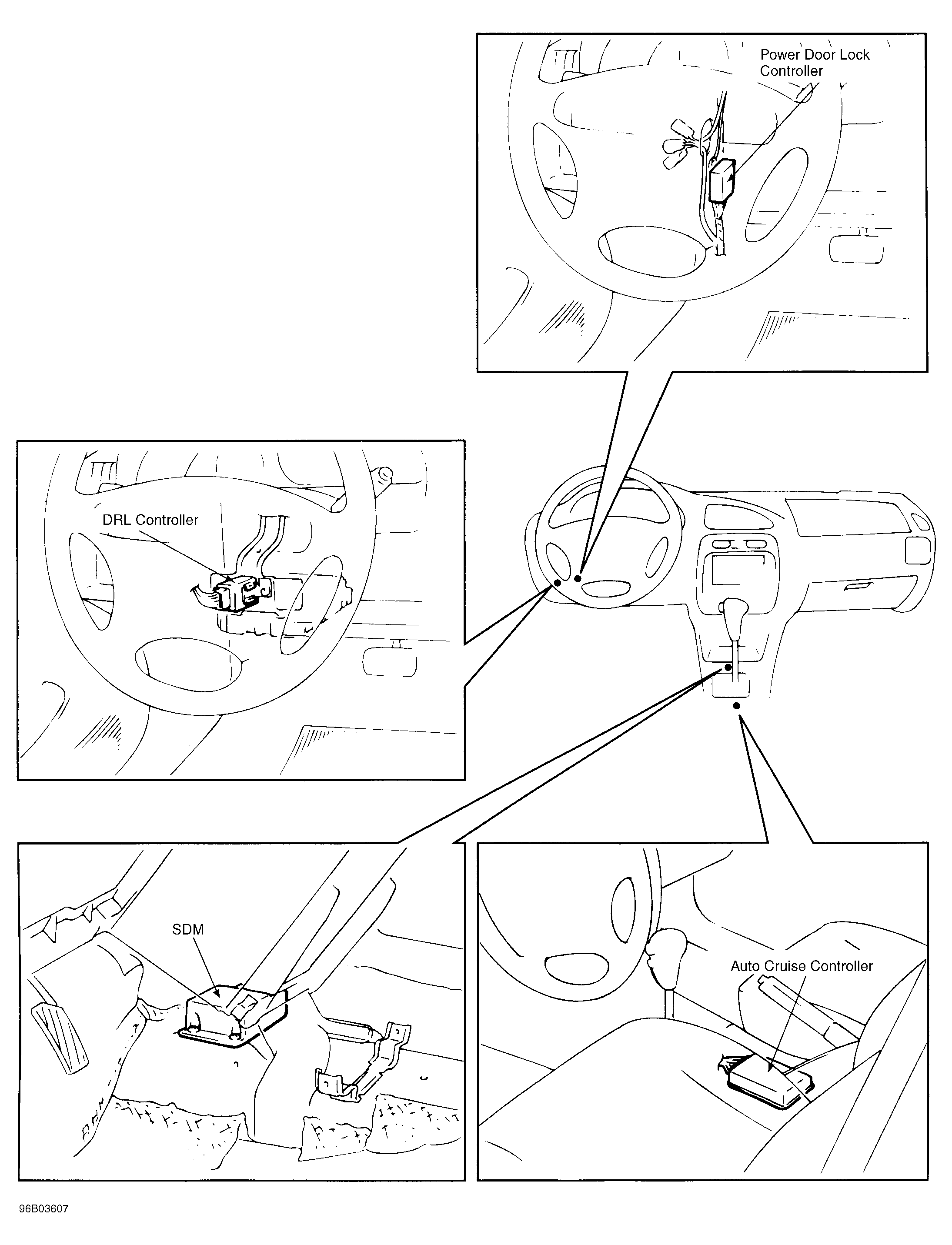

| Auto Cruise Controller | Below front console, rear of shift lever. See Figure . |
| DRL Controller | Behind dash, left of steering column. See Figure . |
| EBCM (ABS Control Module) | Behind dash, left of steering column. See Figure . |
| Engine Control Module | Behind glove box. See Figure . |
| Power Door Lock Controller | Behind dash, left of steering column. See Figure . |
| SDM | Below front console, forward of shift lever. See Figure . |
| Transmission Control Module | Behind dash, right of steering column. See Figure . |
