Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

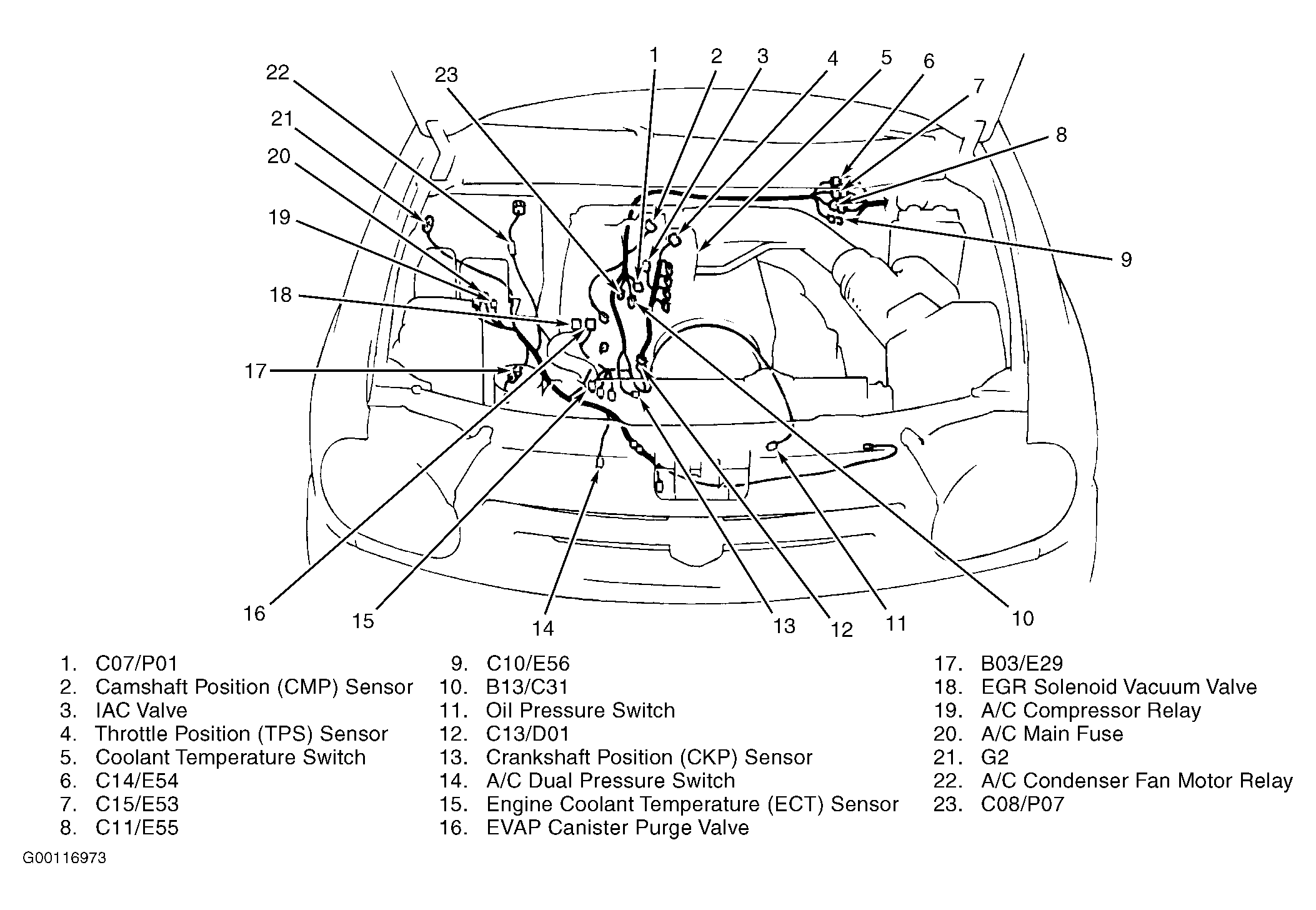

| A/C Main Fuse | On engine compartment fuse block. See Figure . |
| Fuse Block (Engine Compartment) | On right fender inner panel, in front of battery. |
| Fuse Block (Passenger Compartment) | Behind dash, under steering column. |

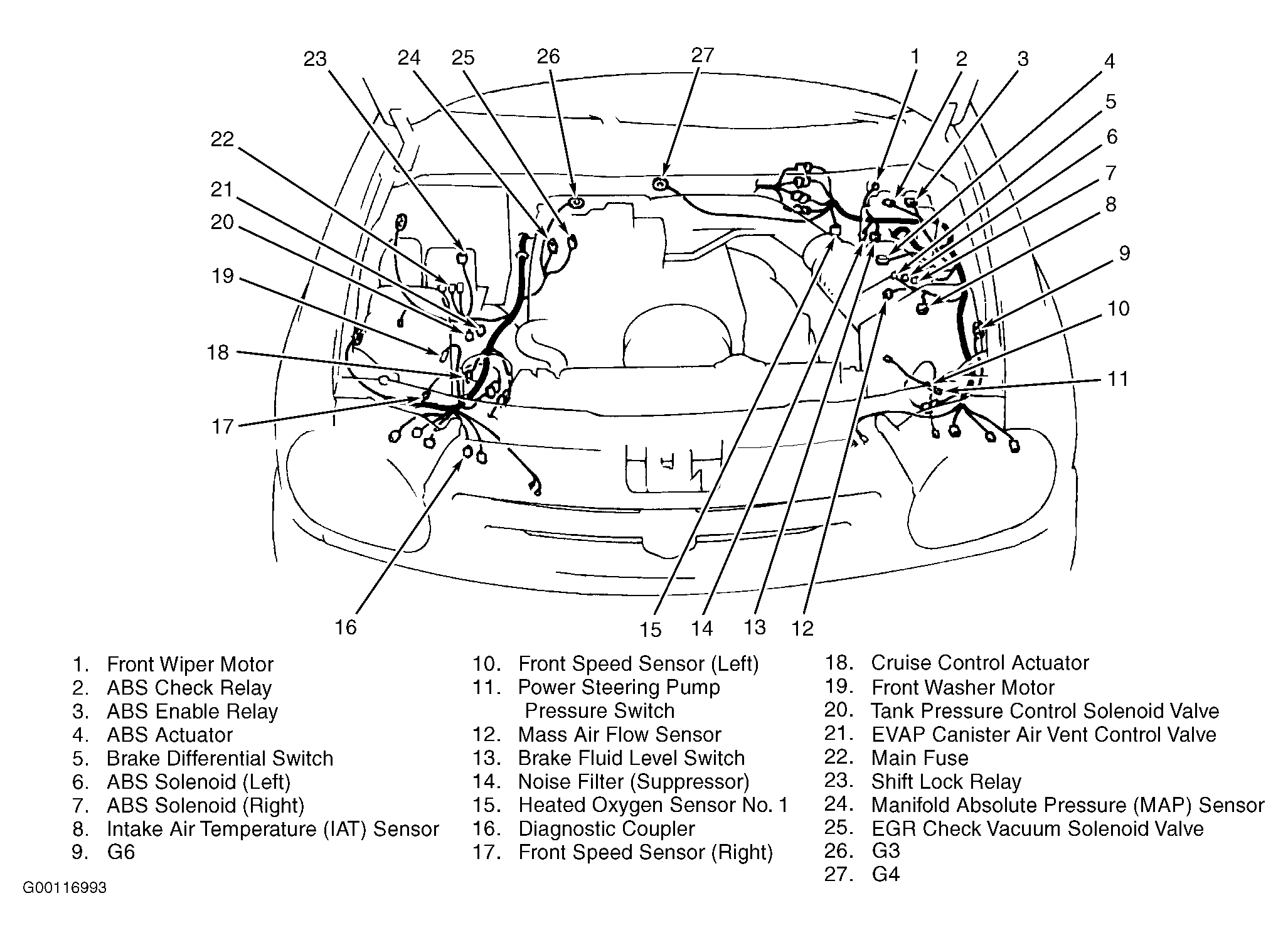

| Main Fuse | On engine compartment fuse block. See Figure . |
