Ignition Timing

IGNITION TIMING (Degrees BTDC @ RPM) ⁽¹⁾

Application

⁽¹⁾ Timing Setting

2.0L ⁽²⁾

⁽³⁾ 4-6 BTDC @ 700-800

2.5L ⁽²⁾

⁽³⁾ 4-6 BTDC @ 625-725

2.7L ⁽²⁾

⁽³⁾ 4-6 BTDC @ 640-740

⁽¹⁾	See Figure-Figure for timing mark location.

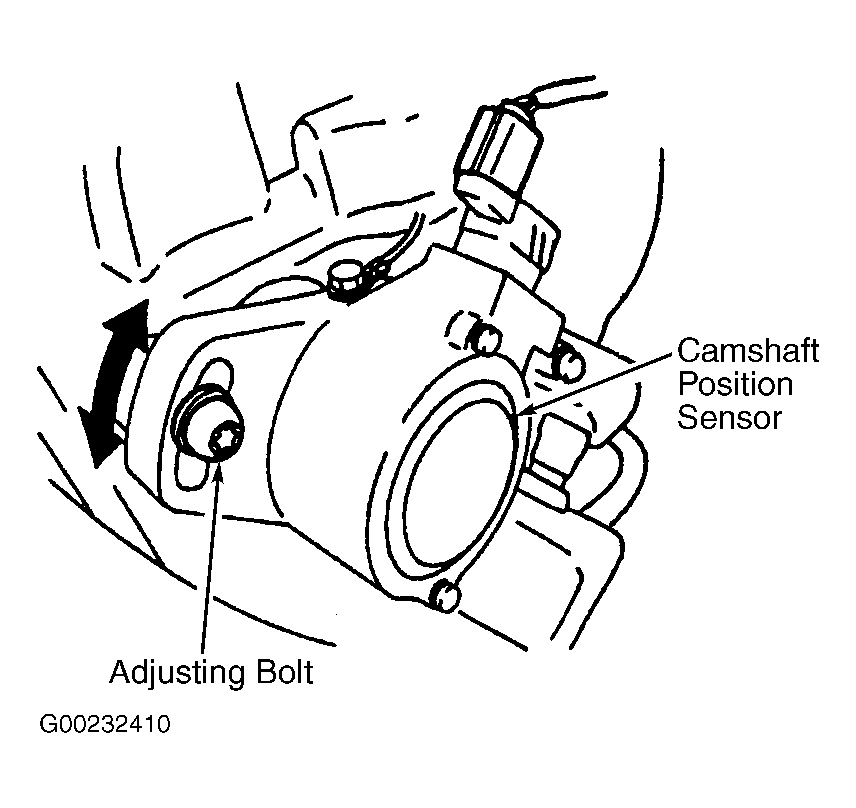

⁽²⁾	Adjust CMP sensor to change ignition timing. See Figure-Figure

⁽³⁾	Connect Suzuki scan tool to DLC and set to Fixed Spark Mode when checking timing. See Figure.
