Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C Idle Stabilizer Amplifier | Attached to front of evaporator housing. | |
| A/C Resistor | On left side of evaporator housing. | |
| A/C Thermistor | On left side of evaporator housing. | |
| "CHECK ENGINE" Test Connector | Near coolant overflow bottle. | |
| Circuit Breakers | ||
| Heater | On passenger side kick panel. | |
| Main Power | On drivers side kick panel. | |
| Rear Window Defogger | On fuse/relay panel No. 2. See Figure & Figure . | |
| Cruise Control Actuator | In left rear corner of engine compartment. | |
| Fuel Pump Test Connector | On front of right shock tower in engine compartment. | |

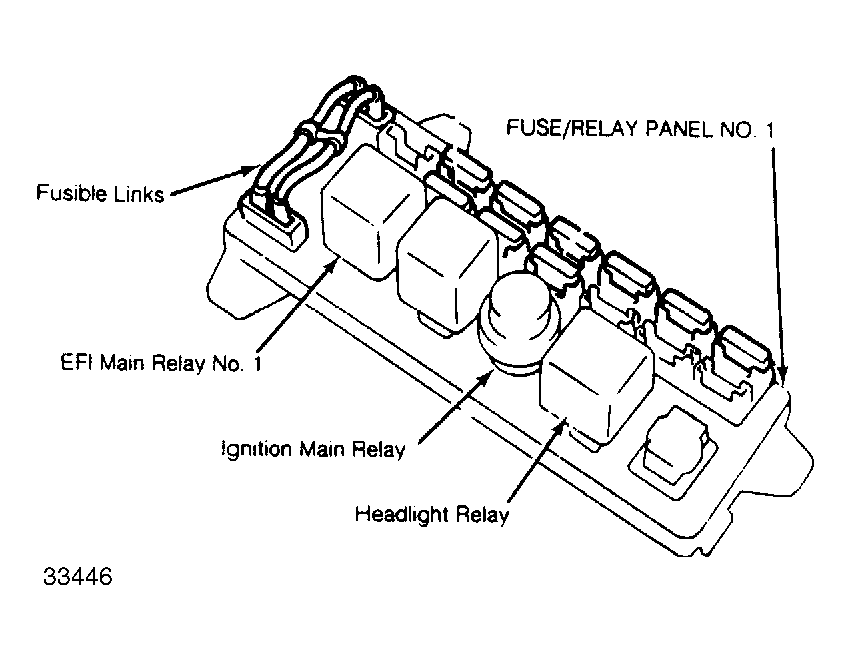

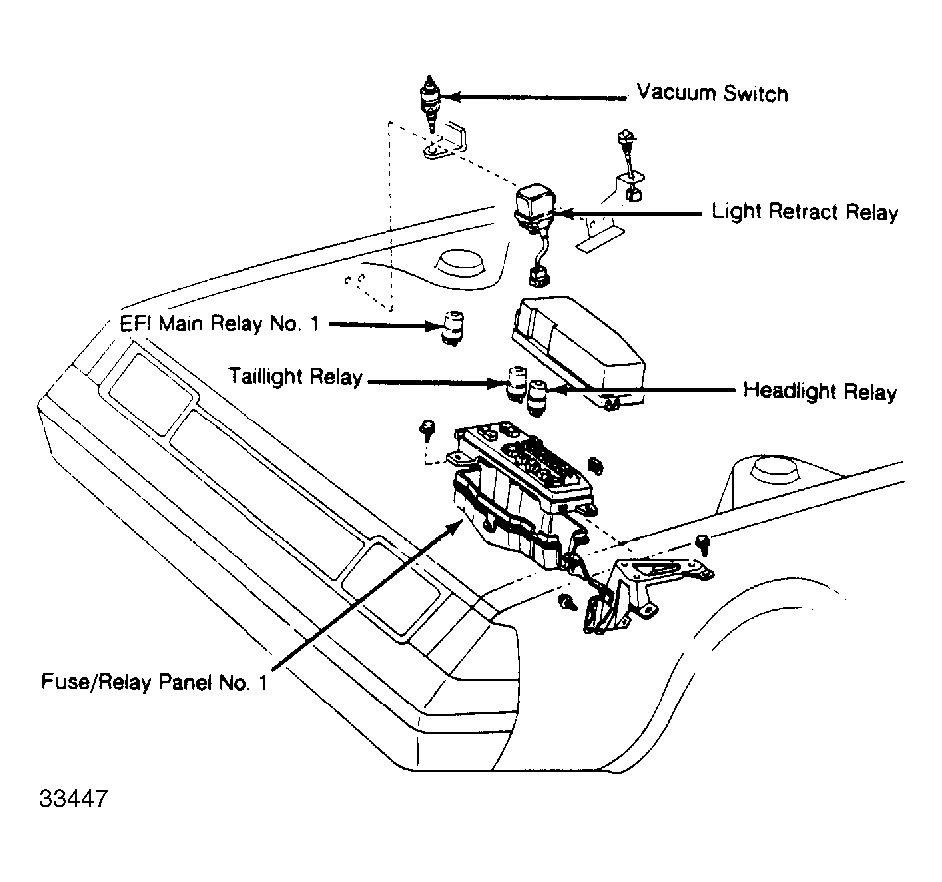

| Fuse/Relay Panel No. 1 | Behind battery. See Figure & Figure . | |

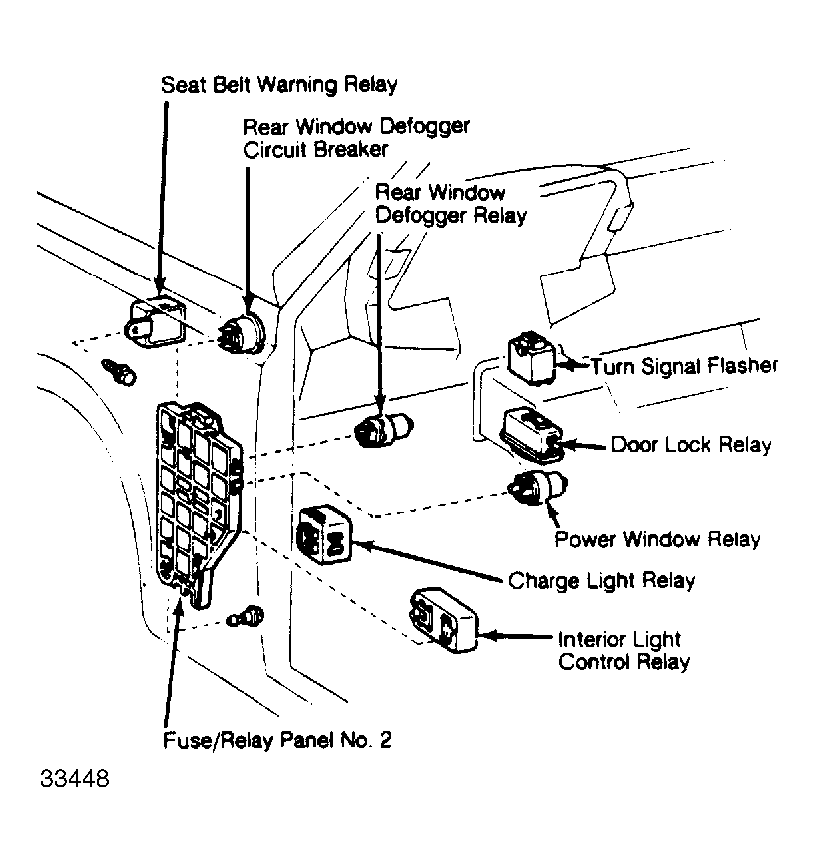

| Fuse/Relay Panel No. 2 | Behind left kick panel. See Figure & Figure . | |

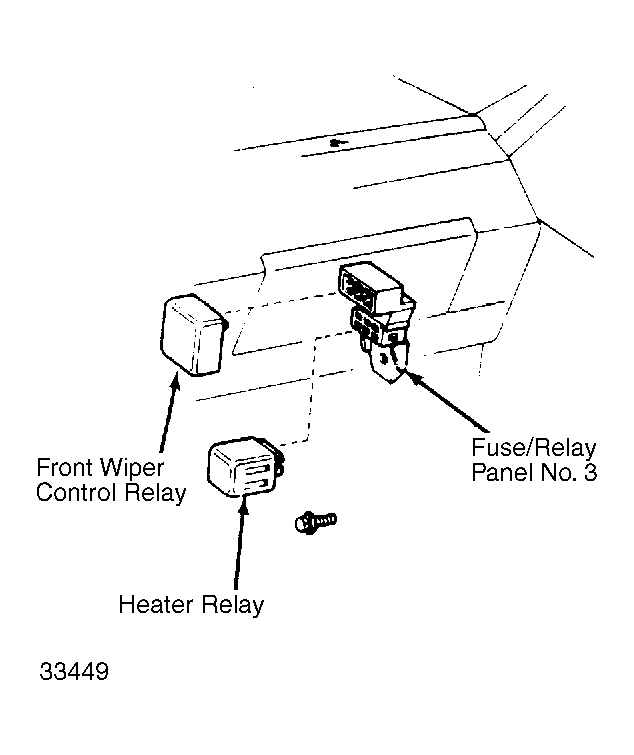

| Fuse/Relay Panel No. 3 | Under right side of dash, to right of glove compartment. See Figure. | |
| Fusible Links | ||
| EFI | On fuse/relay panel No. 1. See Figure & Figure . | |
| Headlight Motors | Attached to battery positive cable, at battery. | |
| Solenoid Resistor (EFI) | On front of right shock tower in engine compartment. See Figure. | |
