Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

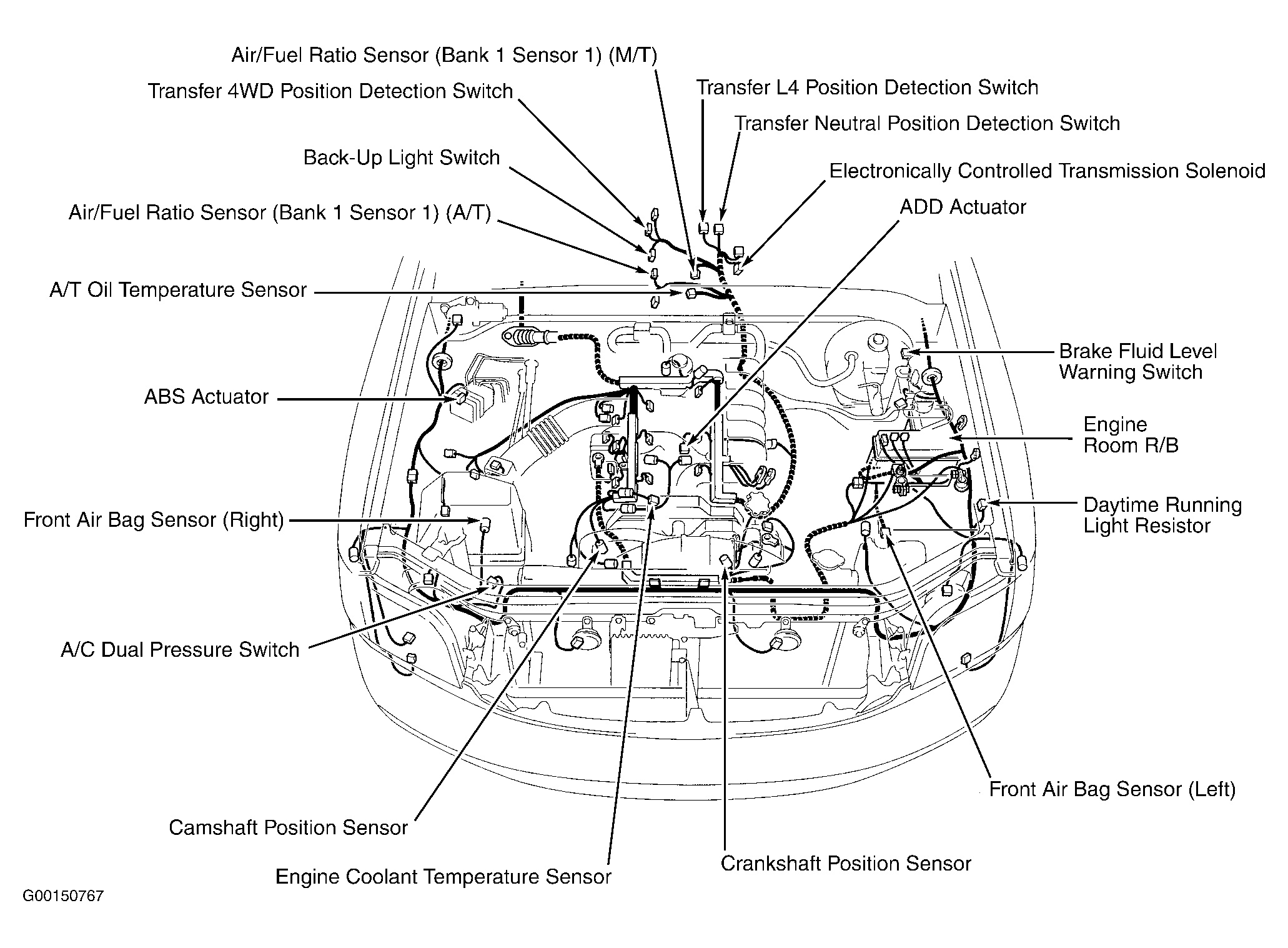

| ABS Actuator (3.4L) | In right rear corner of engine compartment. See Figure. |

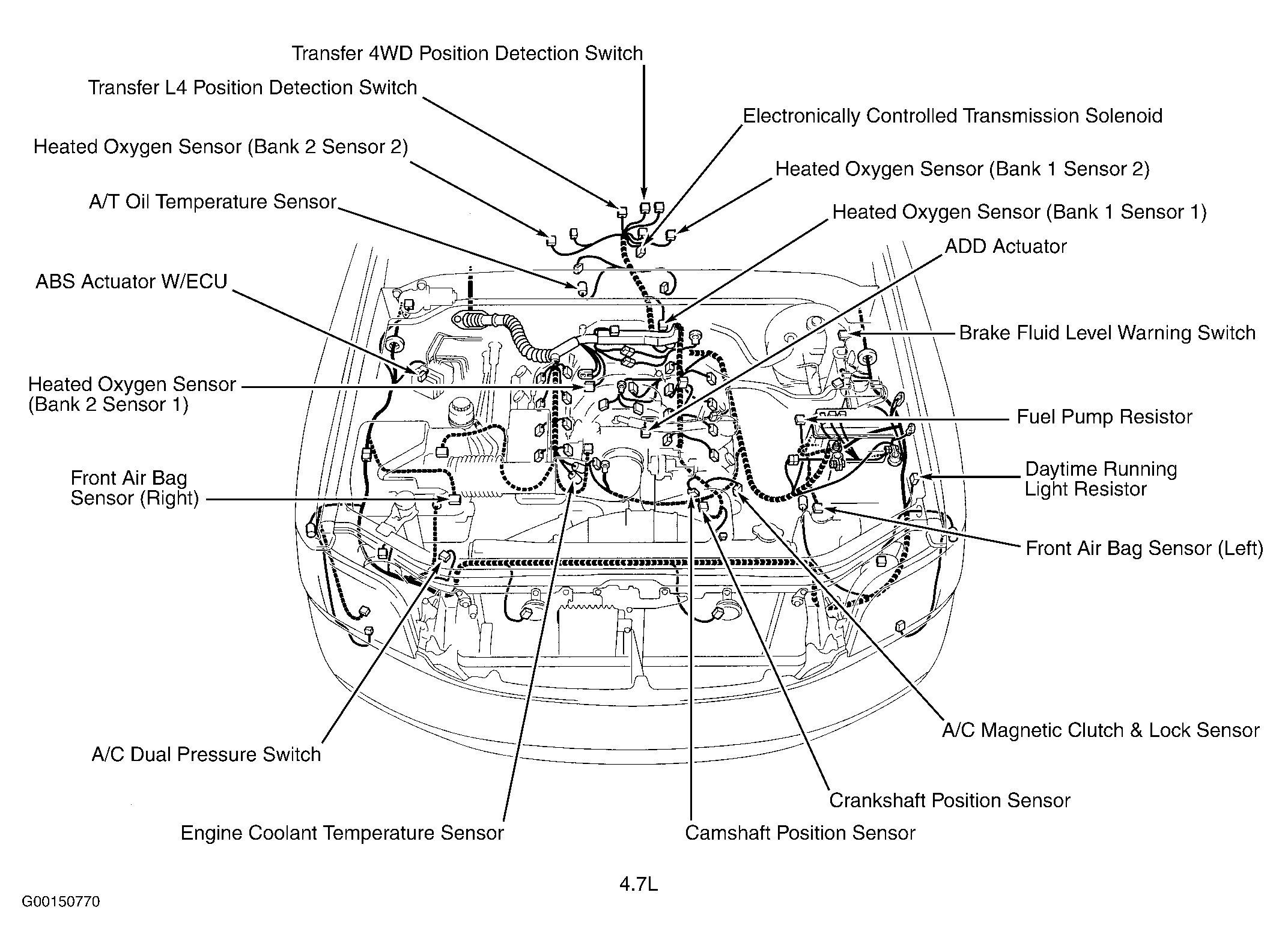

| ABS Actuator (W/ECU) (4.7L) | In right rear corner of engine compartment. See Figure. |

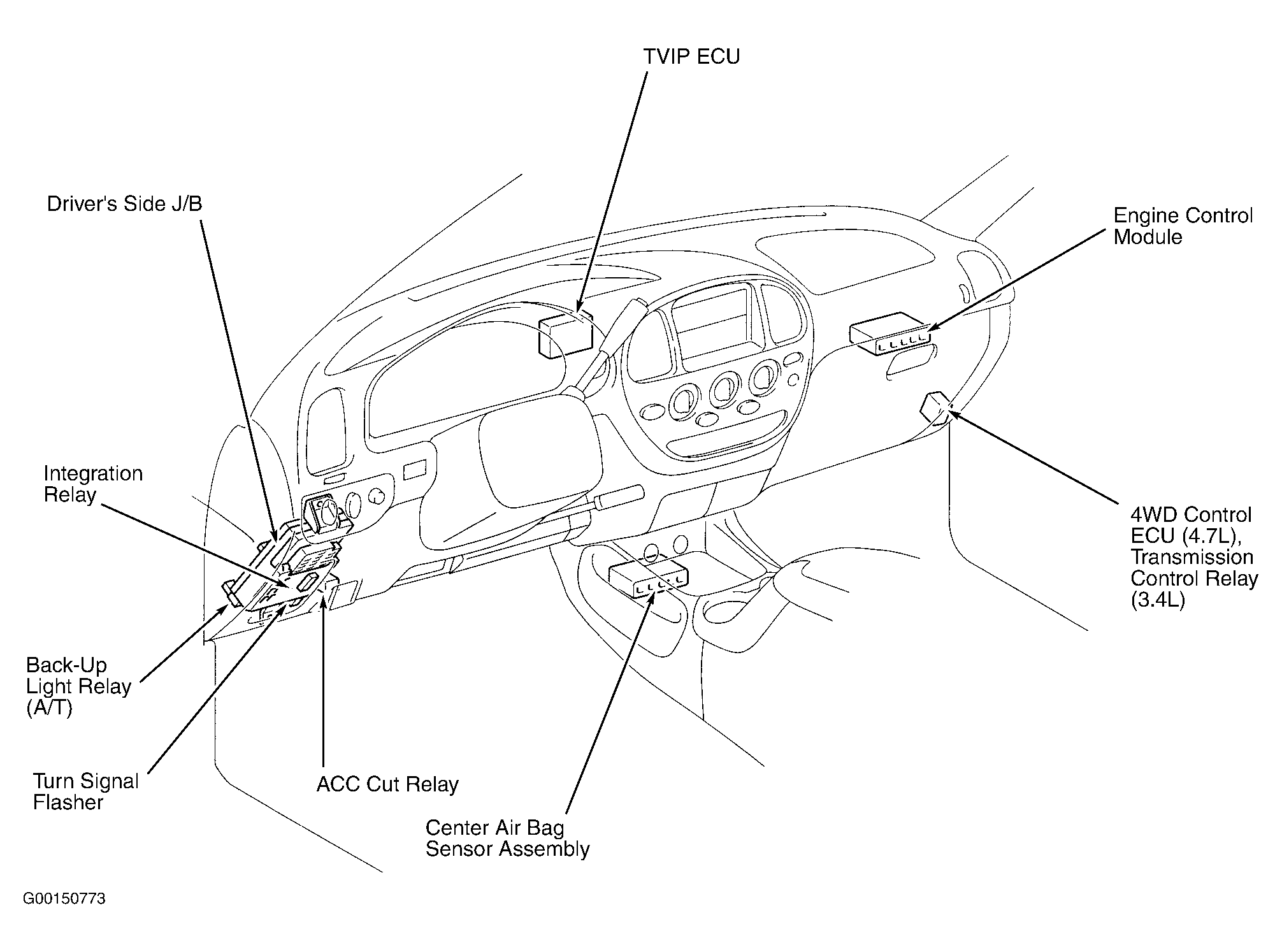

| Center Air Bag Sensor Assembly | Behind lower center of dash, on transmission tunnel. See Figure. |
| Engine Control Module | Behind right side of dash, near "A" pillar. See Figure. |
| TVIP ECU | Behind center of dash. See Figure. |
| 4WD Control ECU (4.7L) | Behind lower right side of dash. See Figure. |
