Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Controller | Behind right side of dash. See Figure. |

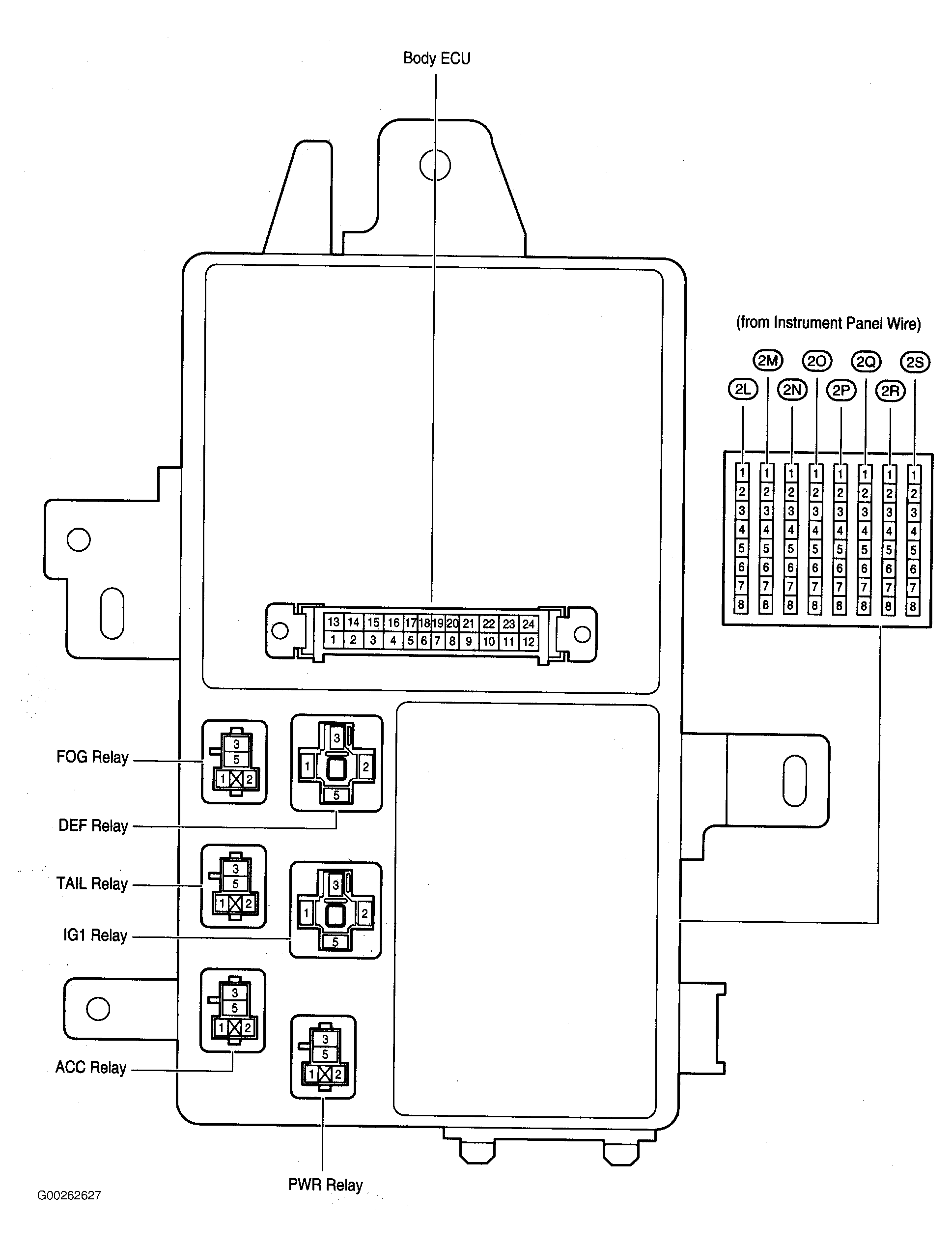

| Body ECU | Attached to driver side J/B. See Figure. |

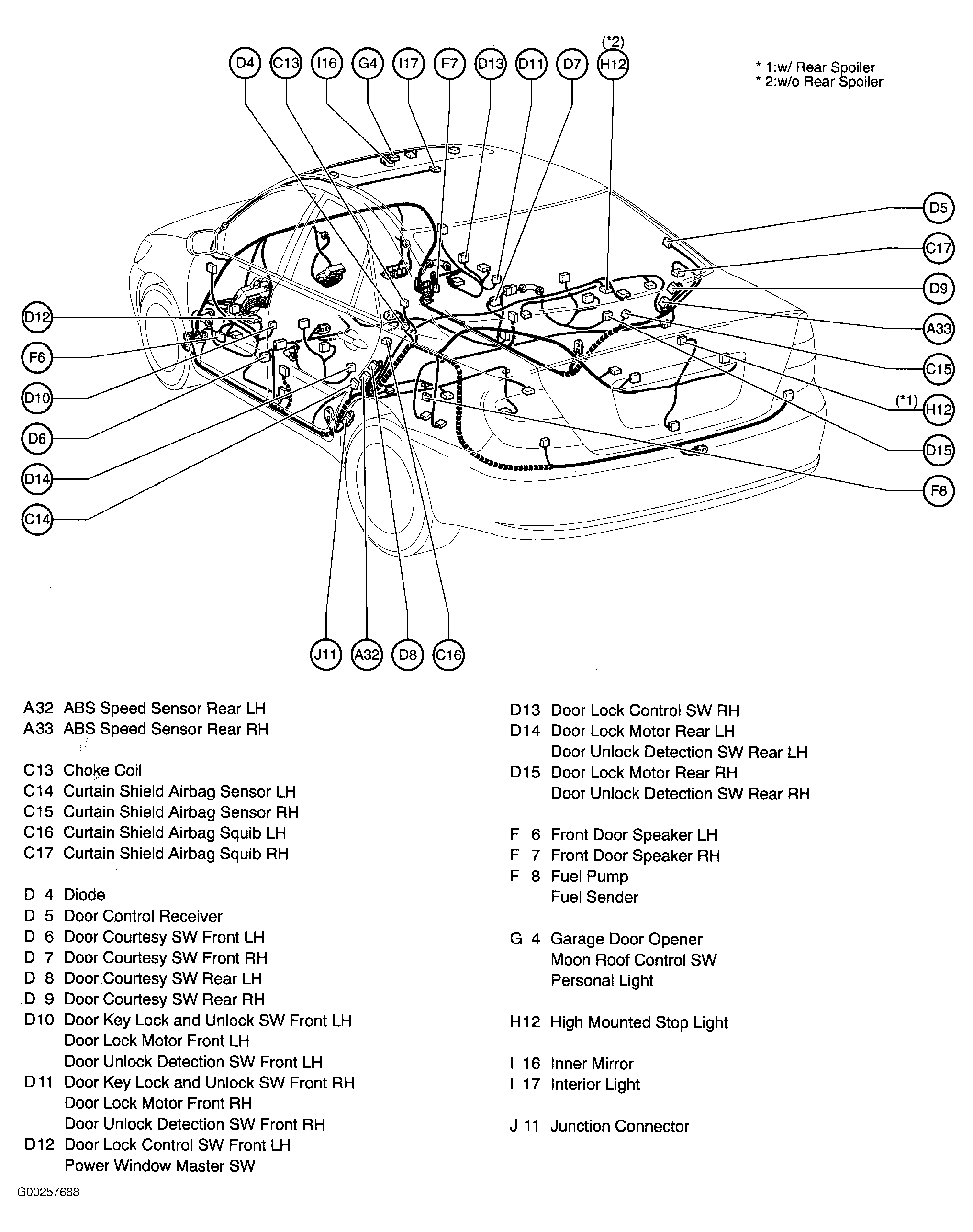

| Door Control Receiver | At right "C" pillar. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |

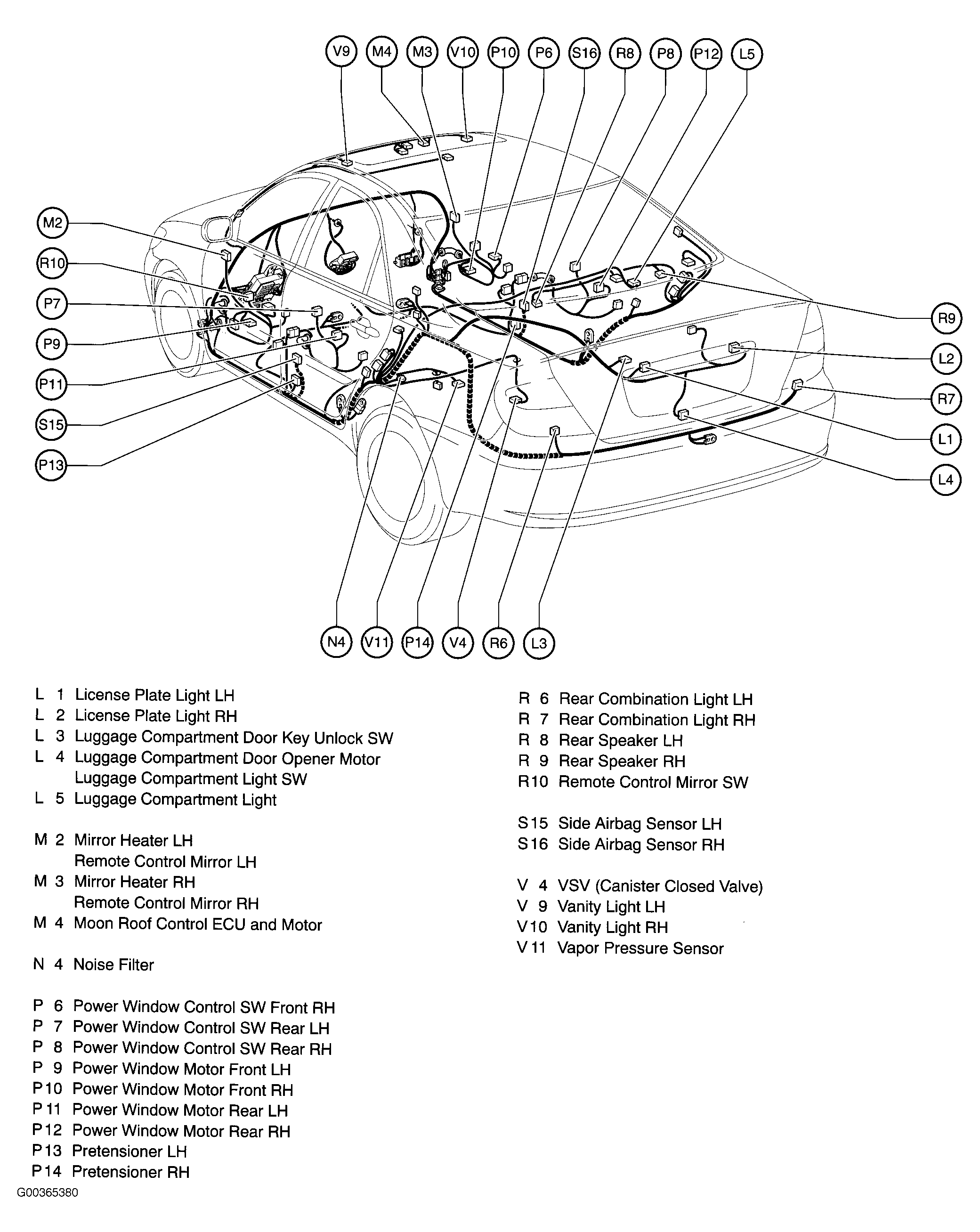

| Moon Roof Control ECU & Motor | At center front of roof. See Figure. |

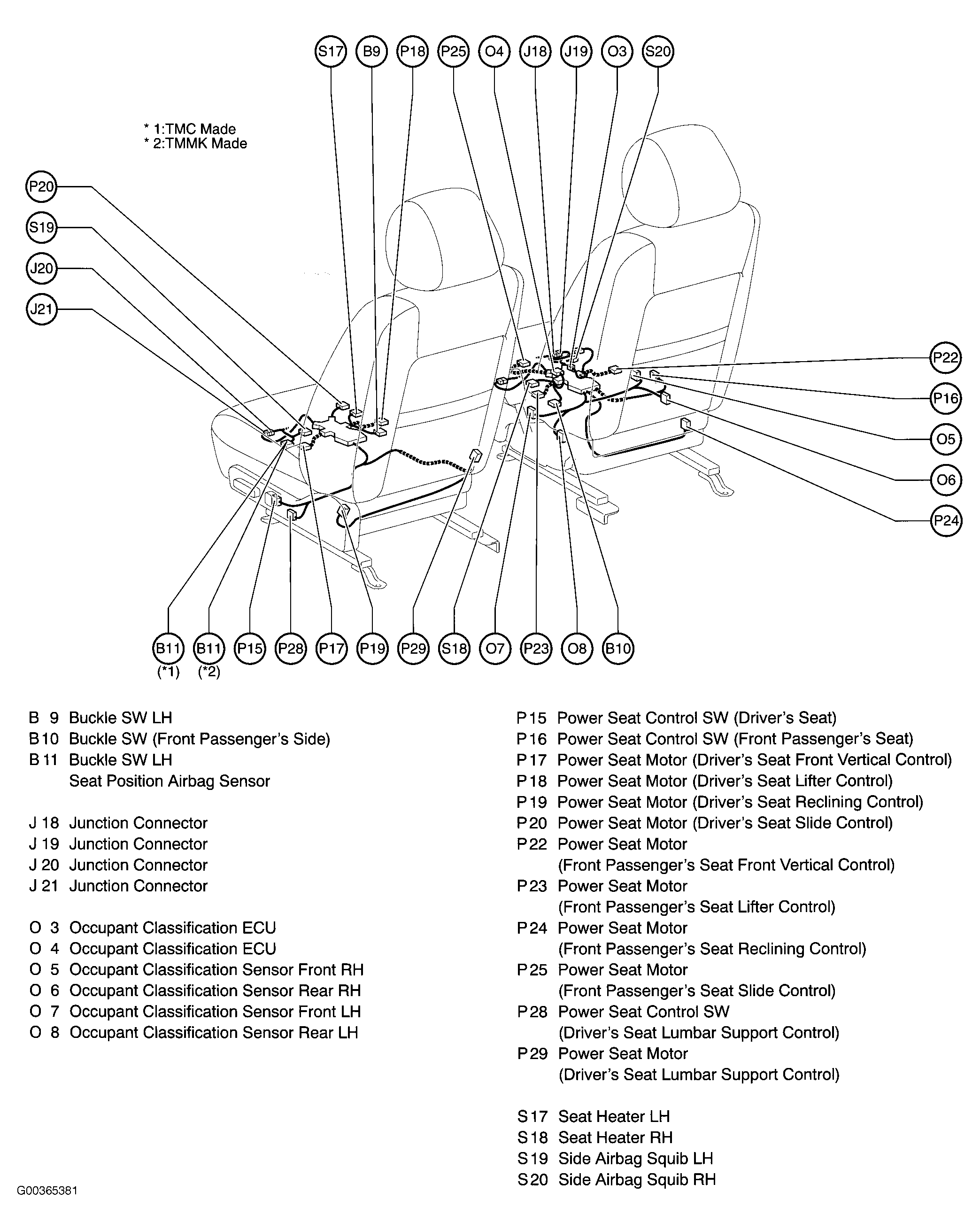

| Occupant Classification ECU (W/O Power Seats) | In front passenger's seat. See Figure. |

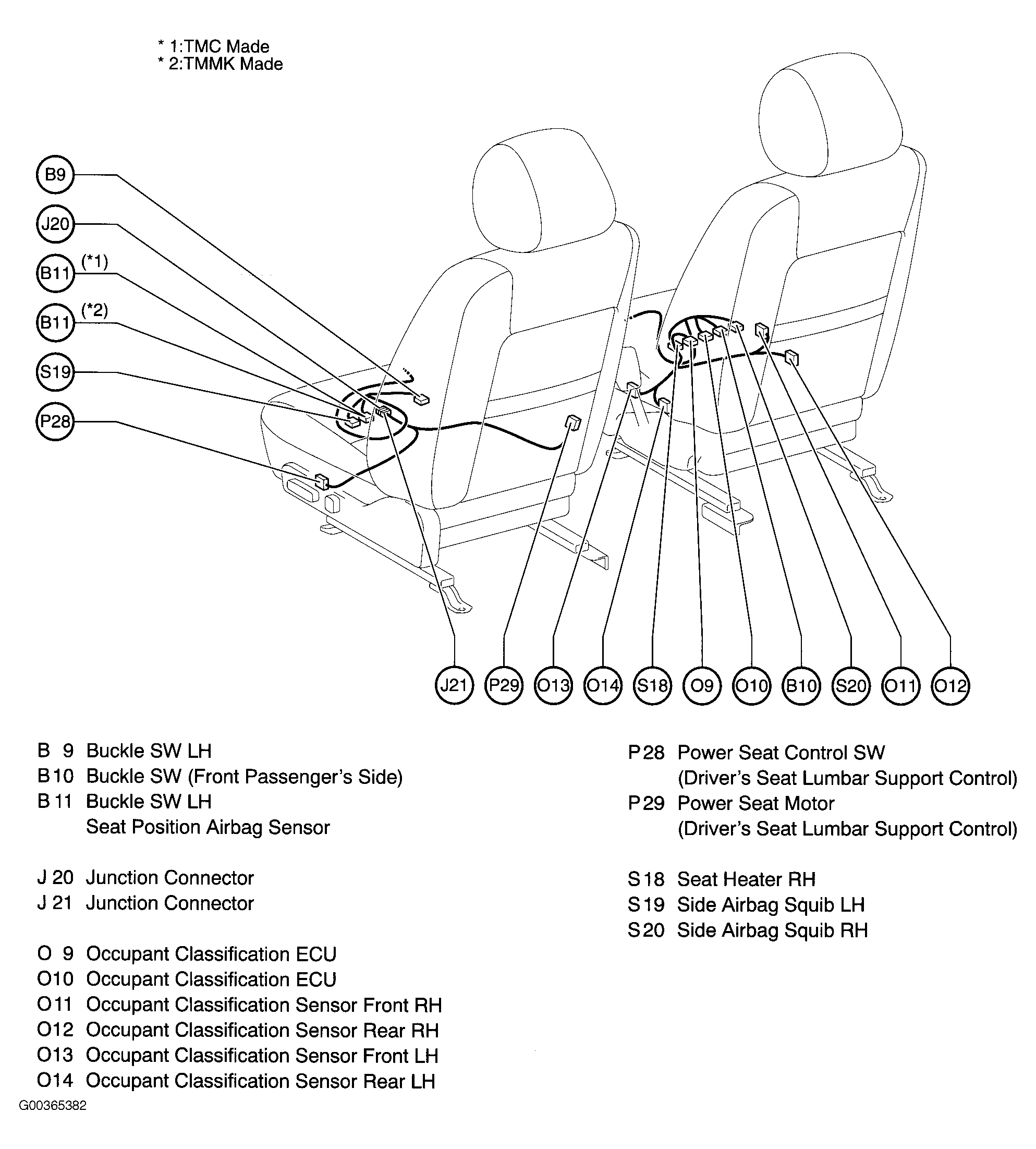

| Occupant Classification ECU (W/ Power Seats) | In front passenger's seat.Figure. |

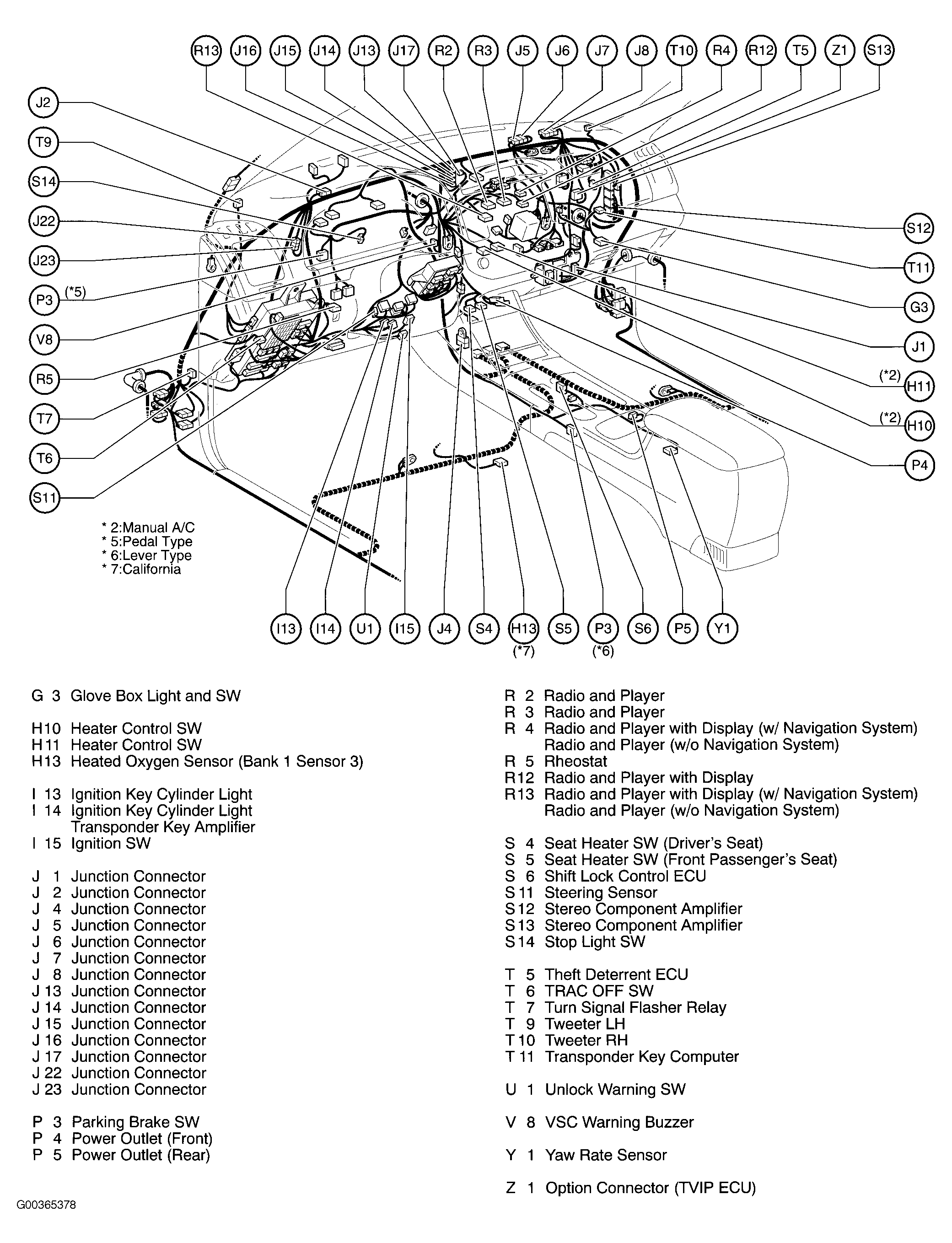

| Option Connector (TVIP ECU) | Behind right side of dash. See Figure. |
| Shift Lock Control ECU | Under center floor console, near parking brake lever. See Figure. |

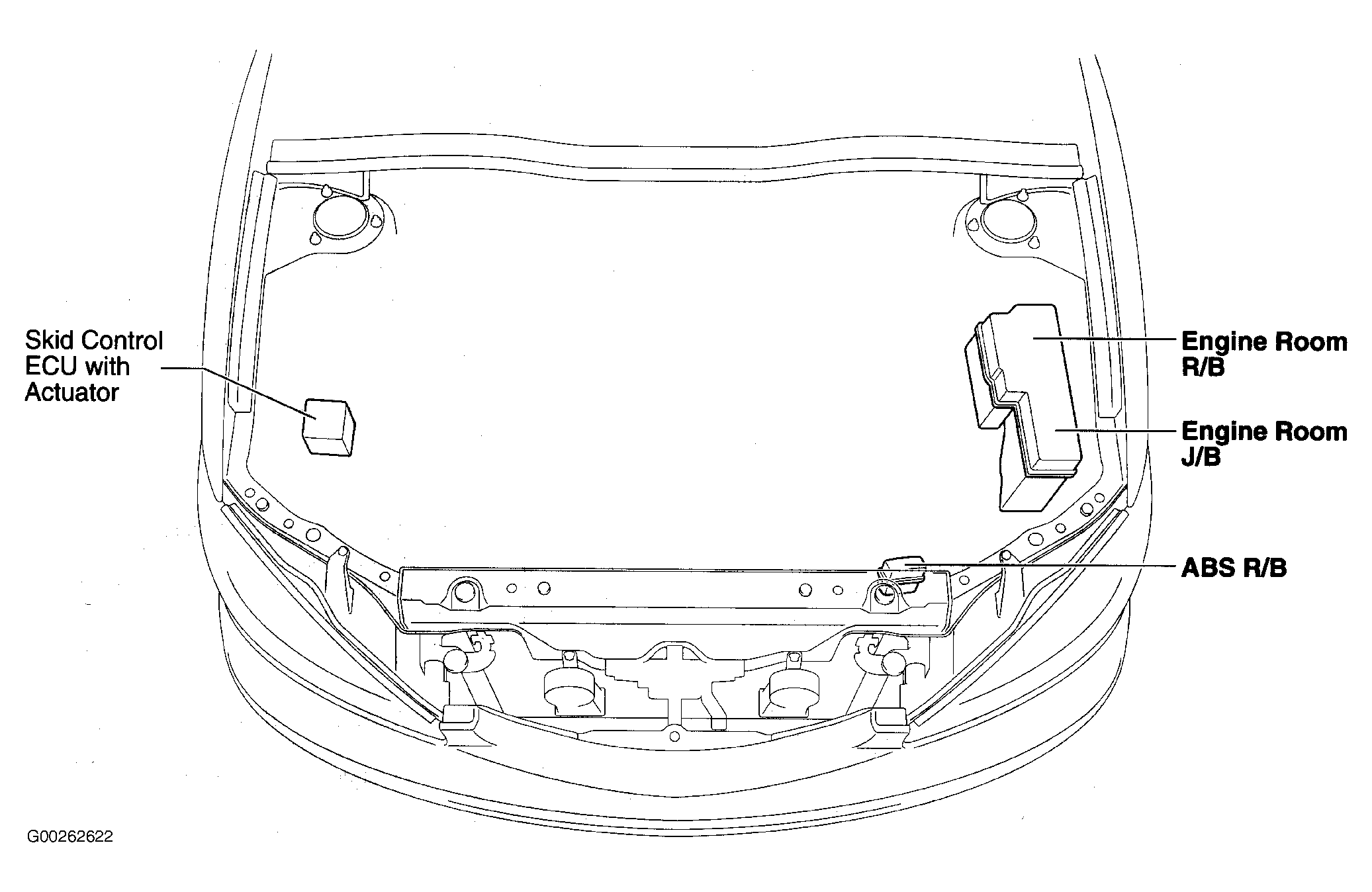

| Skid Control ECU W/Actuator | At right side of engine compartment. See Figure. |

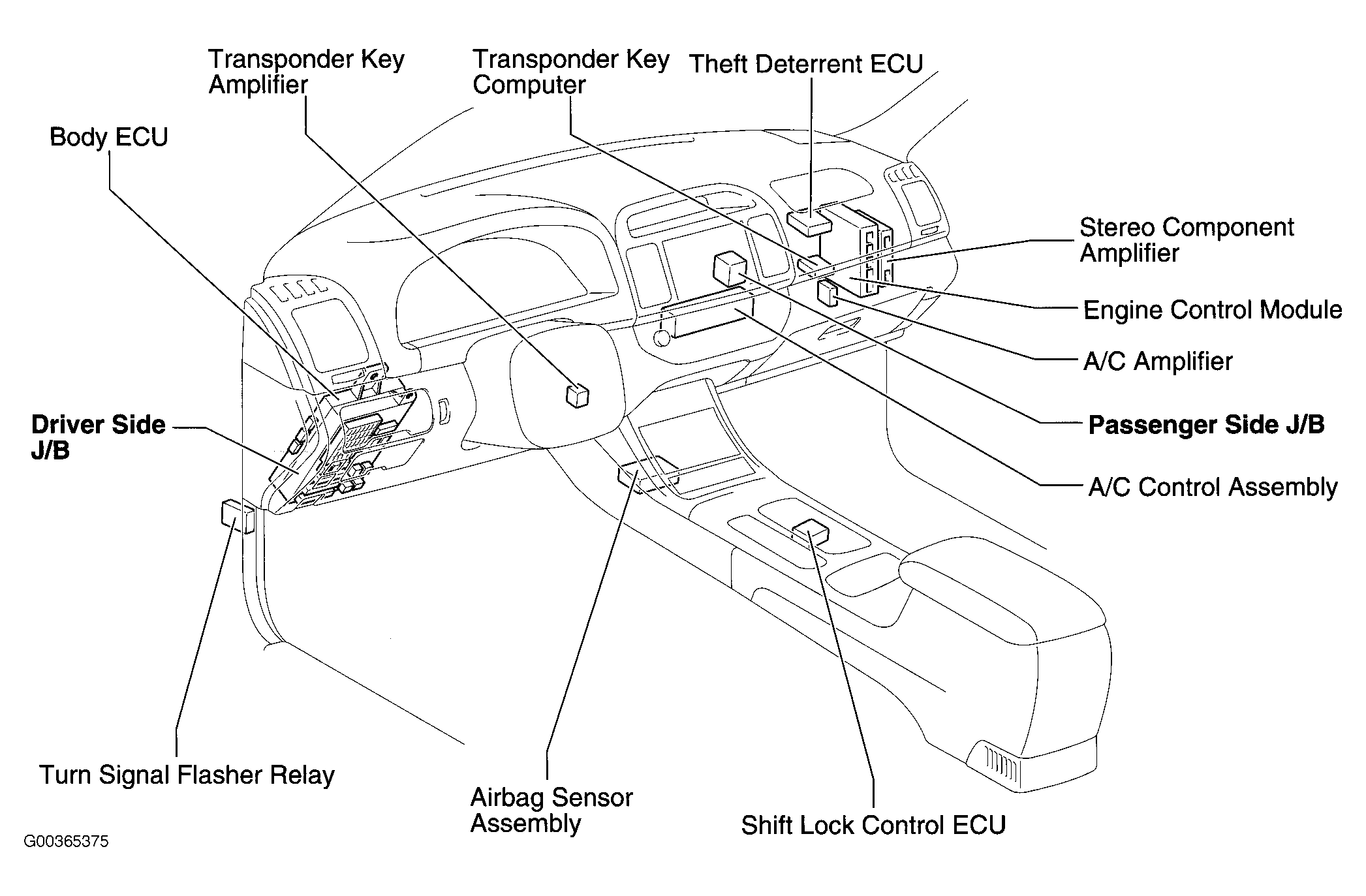

| Theft Deterrent ECU | Behind right side of dash. See Figure. |
| Transponder Key Computer | On right side of steering column. See Figure. |
