Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | At left side of engine compartment. |
| ABS Hydraulic Control Unit | Left rear of engine compartment. |
| Air Bag Control Module | Beneath center of dash, on central tunnel. |
| Comfort System Central Control Module | Behind left side of dash. |
| Coolant Fan Control Module | On left front of engine compartment. |

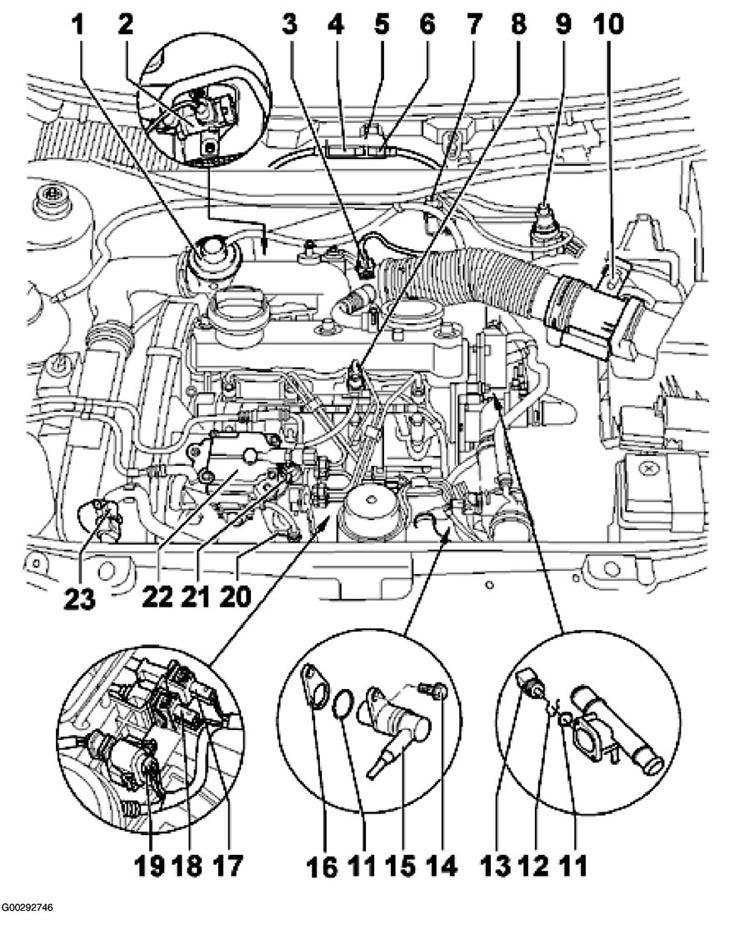

| Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) (5) | At base of windshield, in center of plenum. See Figure. |
| Door Control Module | Integral to window regulator motor, in respective door. |

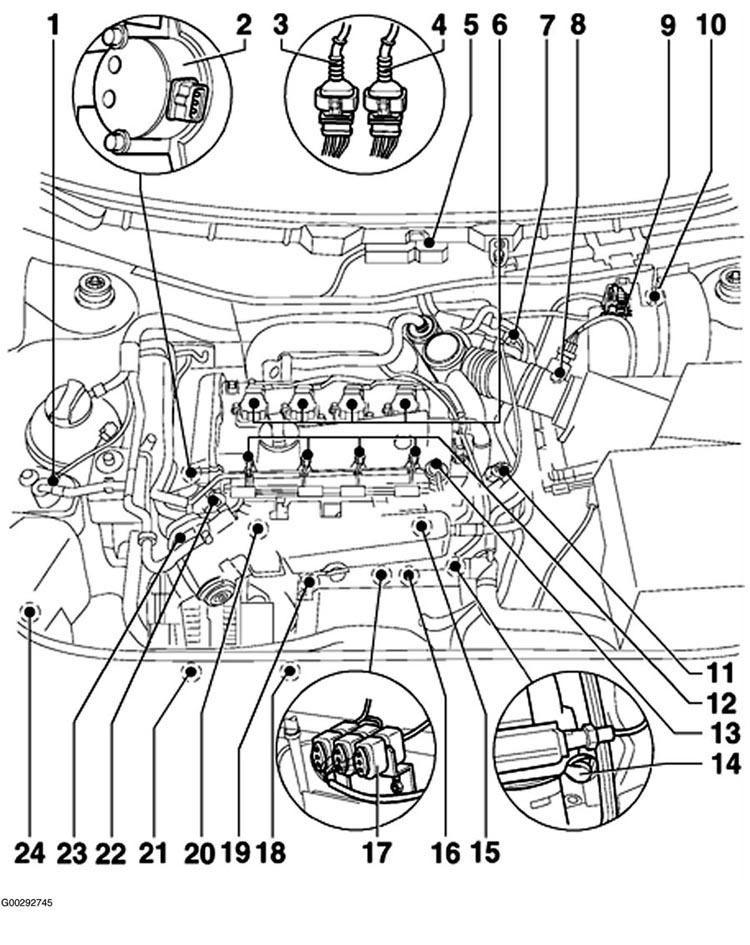

| Engine Control Module (1.8L) (5) | Center rear of engine compartment. See Figure. |
| Glow Plug Triggering Control Module | In plenum, left side, under plastic cover. See Figure. |
| Memory Seat Control Module | Under left side of driver's seat. |
| Motronic Engine Control Module (ECM) (1.8L) | At base of windshield, in center of plenum. See Figure. |
| Motronic Engine Control Module (ECM) (2.0L) | At base of windshield, in center of plenum. |

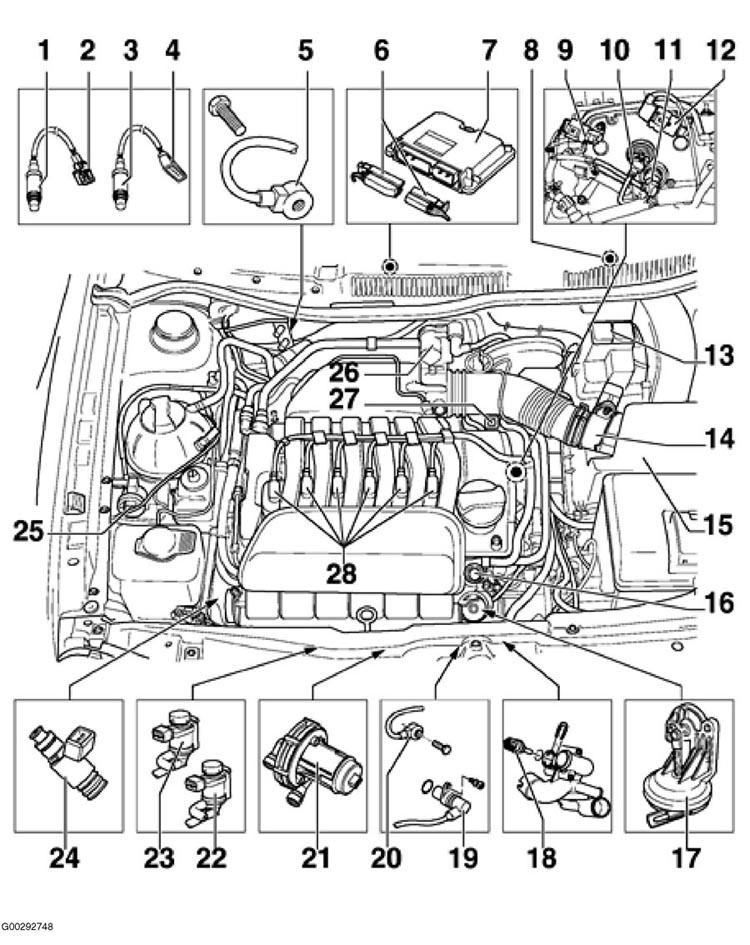

| Motronic Engine Control Module (ECM) (2.8L VR6 2V) (10) | At base of windshield, in center of plenum. See Figure. |

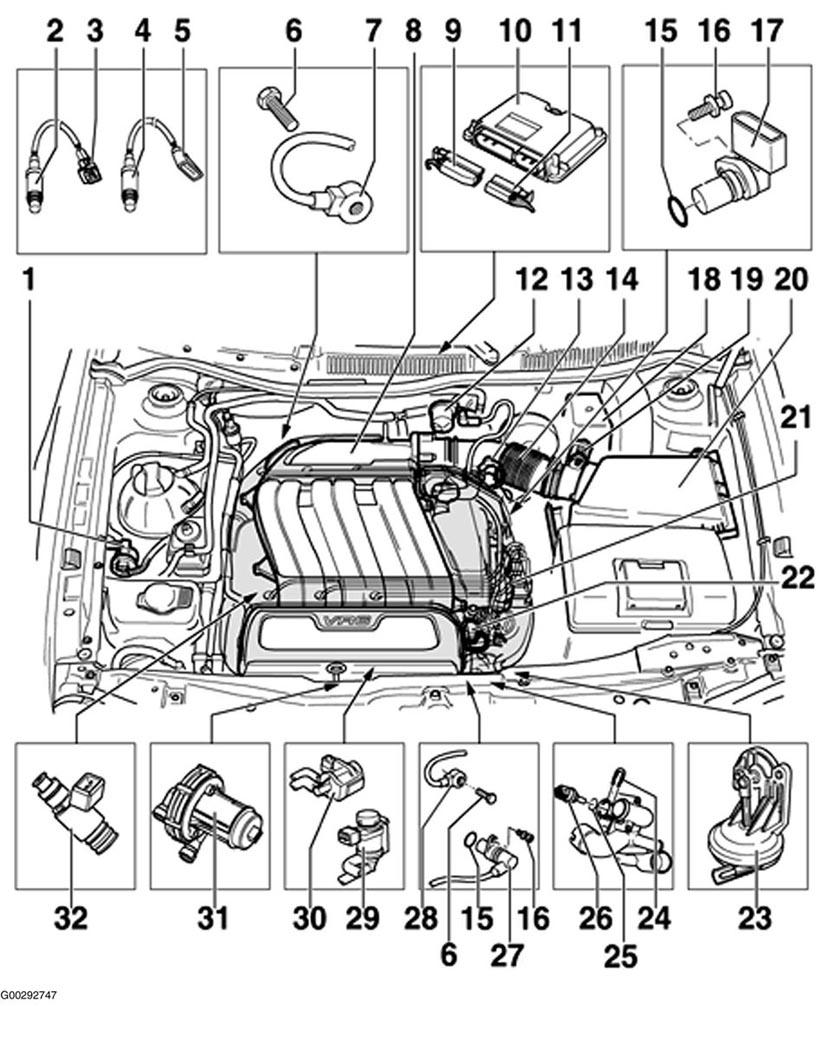

| Motronic Engine Control Module (ECM) (2.8L VR6 4V) (7) | At base of windshield, in center of plenum. See Figure. |
| Power Sun Roof Control Module | Behind front interior light. |

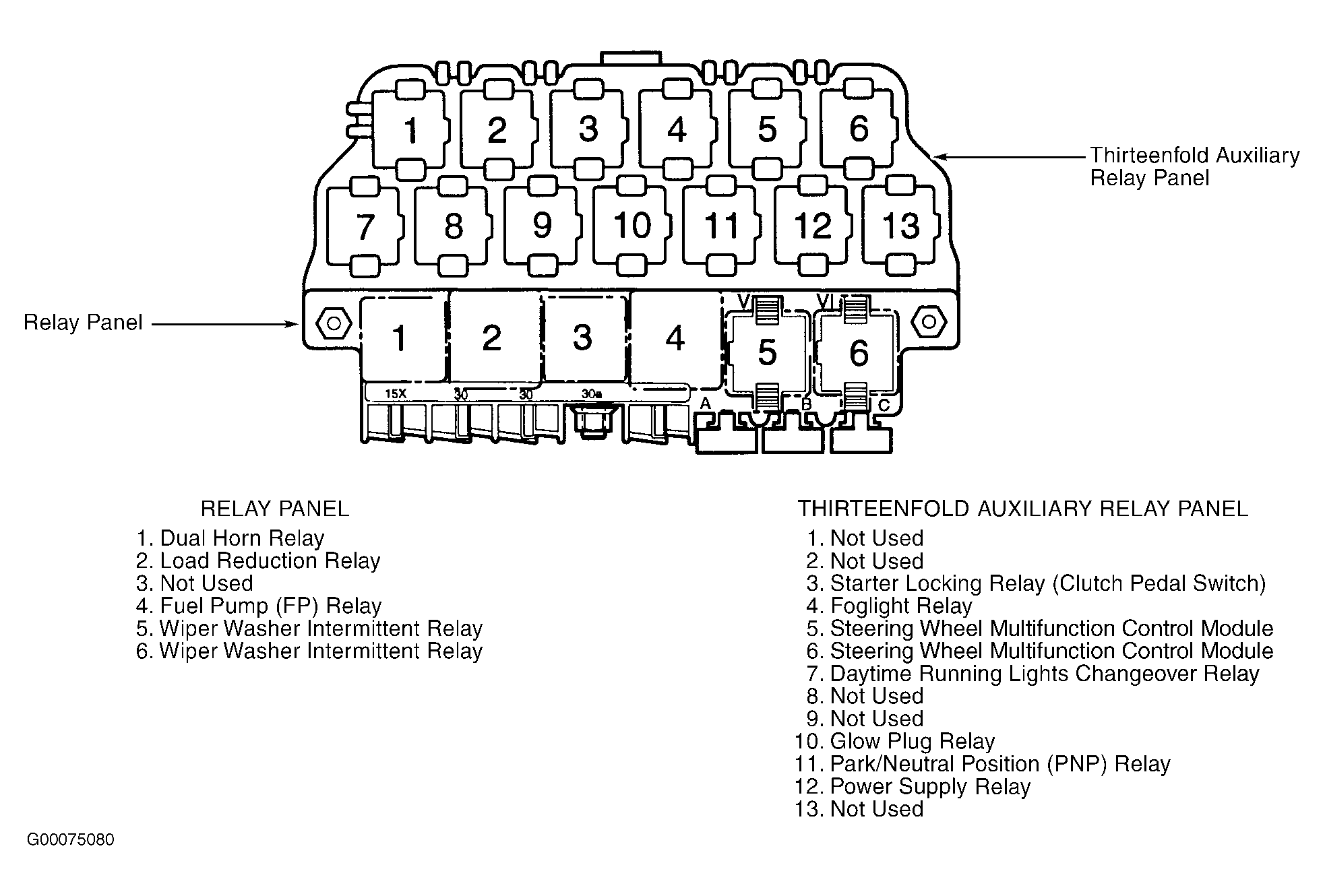

| Steering Wheel Multifunction Control Module (2) | On thirteenfold auxiliary relay panel. See Figure. |
| Sunroof Regulator | Integral w/ interior reading/light unit/switch assembly. |
| Throttle Valve Control Module (1.8L) (23) | On throttle body. See Figure. |
| Throttle Valve Control Module (2.8L VR6 2V) (12) | On throttle body. See Figure. |
| Throttle Valve Control Module (2.8L VR6 4V) (26) | On throttle body. See Figure. |
| Transmission Control Module | At base of windshield, in right side of plenum. |
