Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

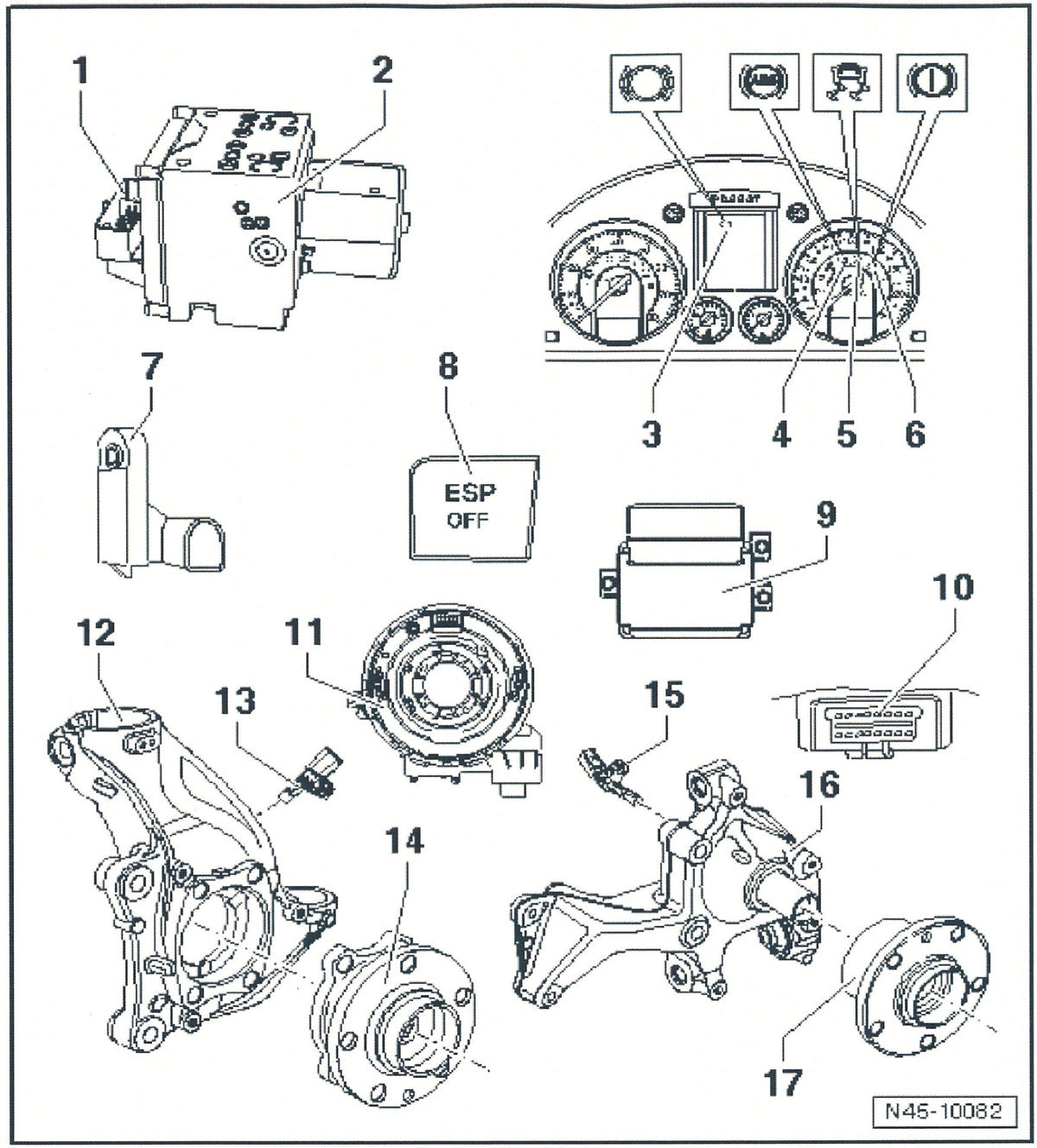

| ABS/EDL Control Module (3) | On right side of firewall. See Figure. |

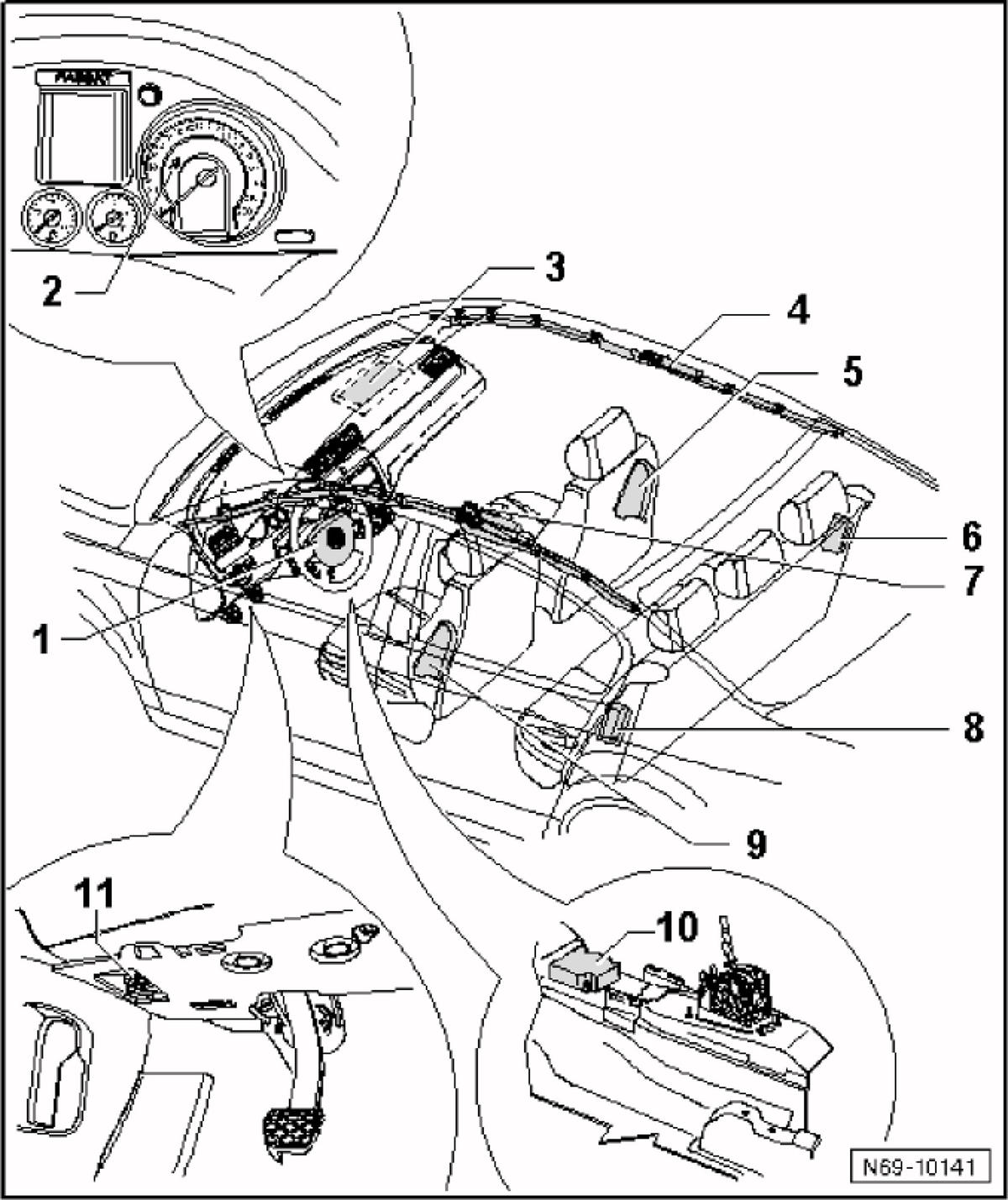

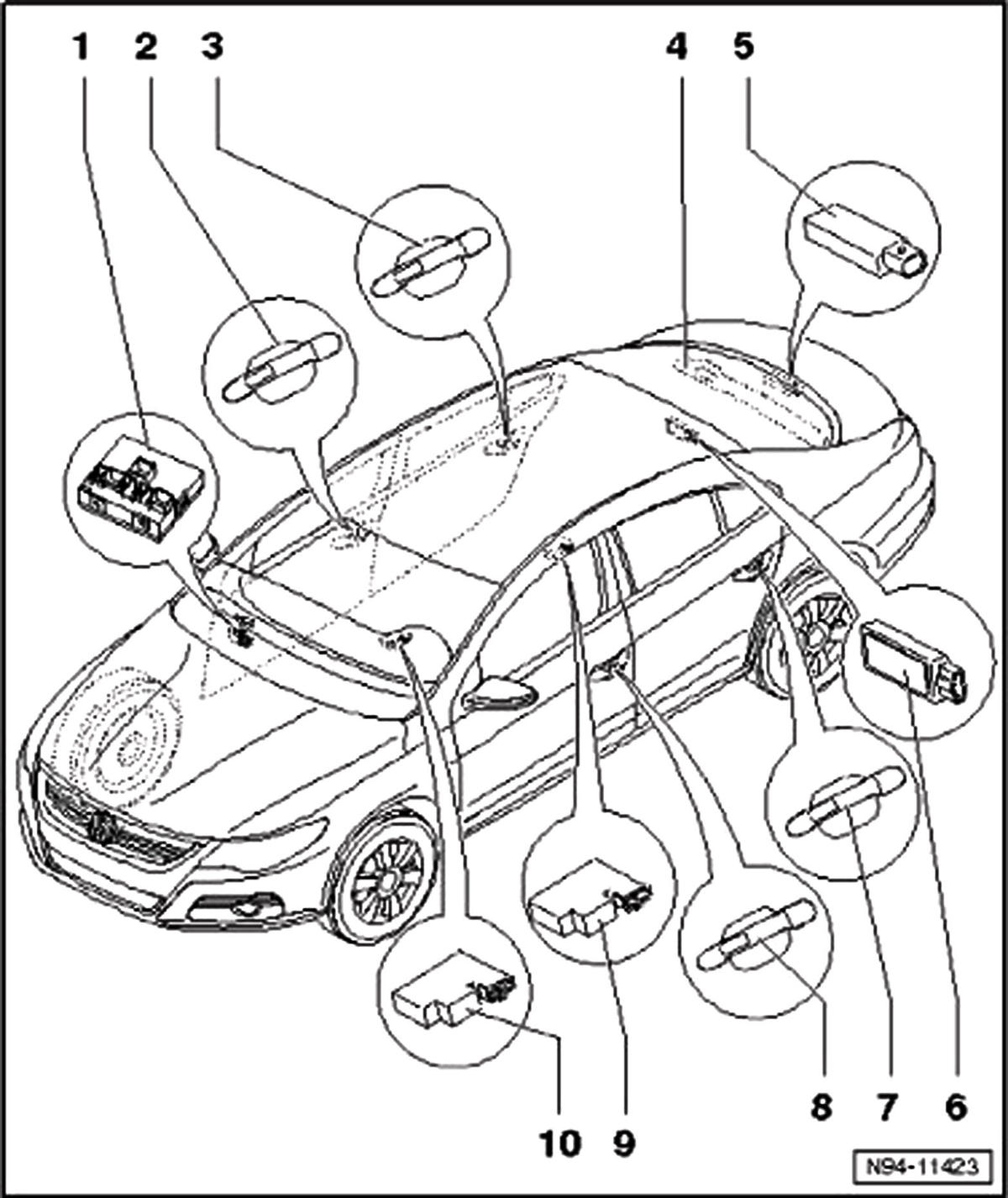

| Airbag Control Module (10) | Under front of center console. See Figure. |
| Antenna Selection Control Module (7) | Under front passenger's seat. See Figure. |
| Auxiliary Heater Control Module (1) | Forward of right front wheelwell housing, on auxiliary heater assembly. See Figure. |

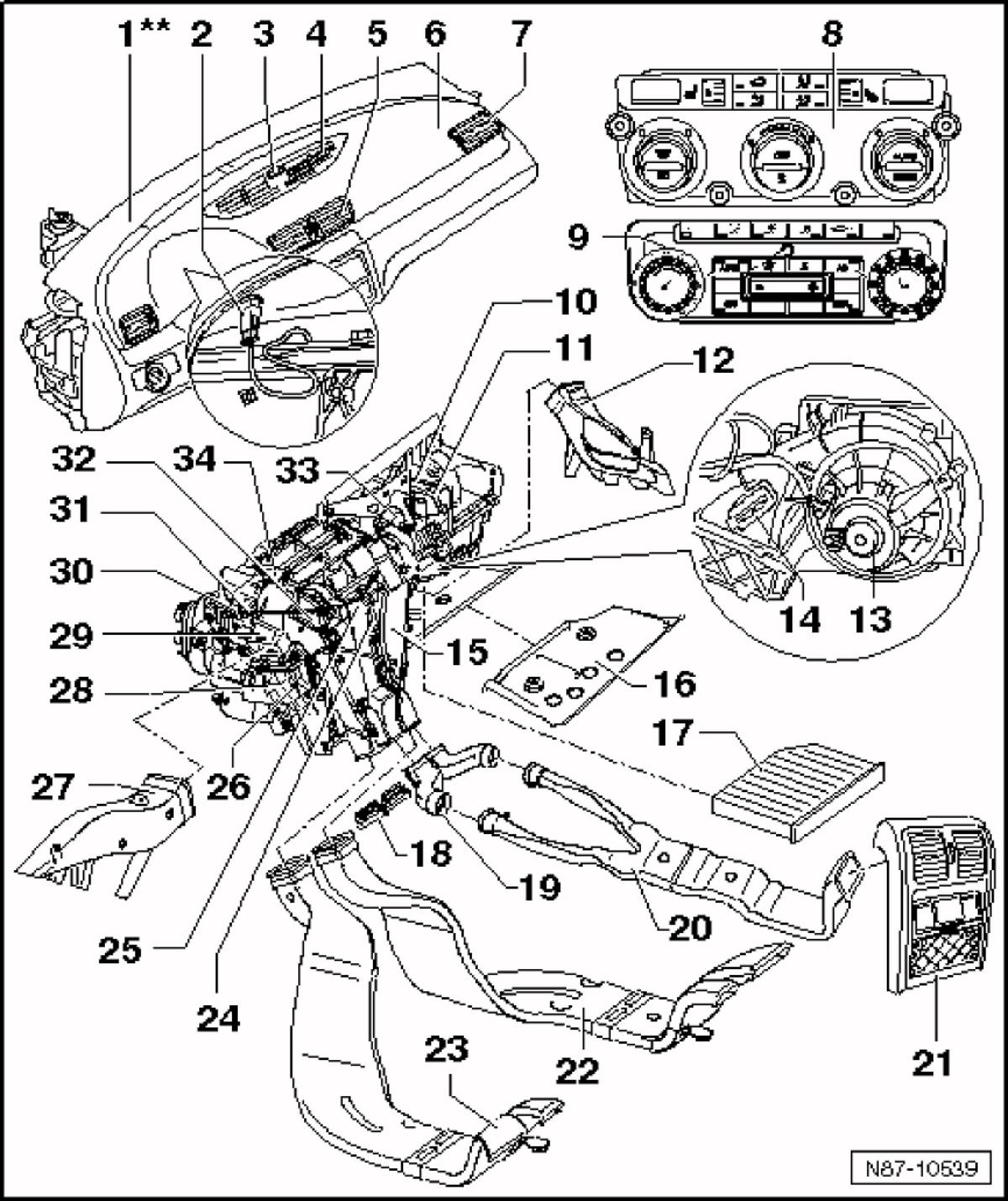

| Climatronic Control Module (9) | Integral to climatronic control head. See Figure. |
| Comfort System Central Control Module (1) | Behind right side of dash. See Figure. |
| Coolant Fan Control (FC) Module | On coolant fan motor. |

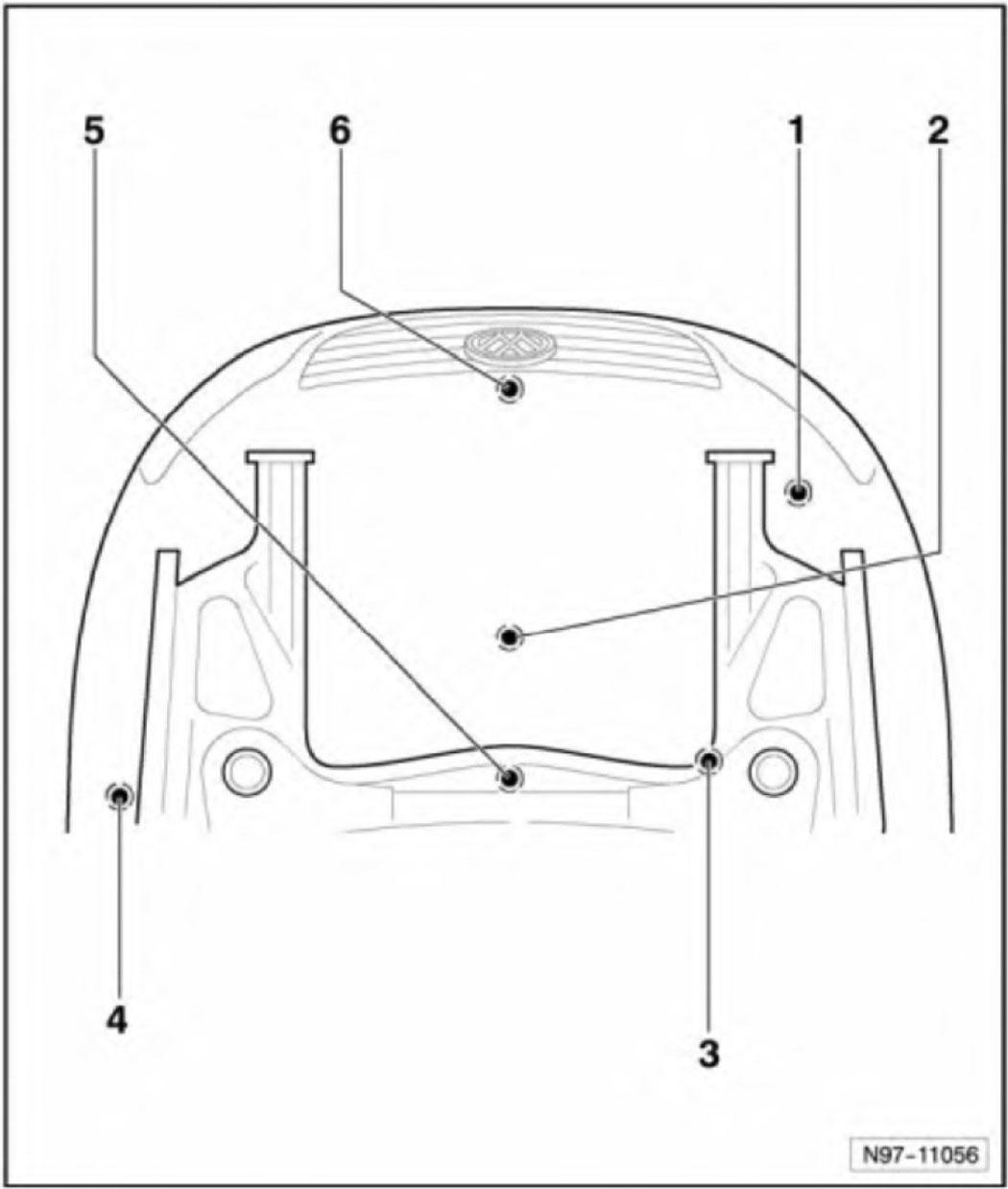

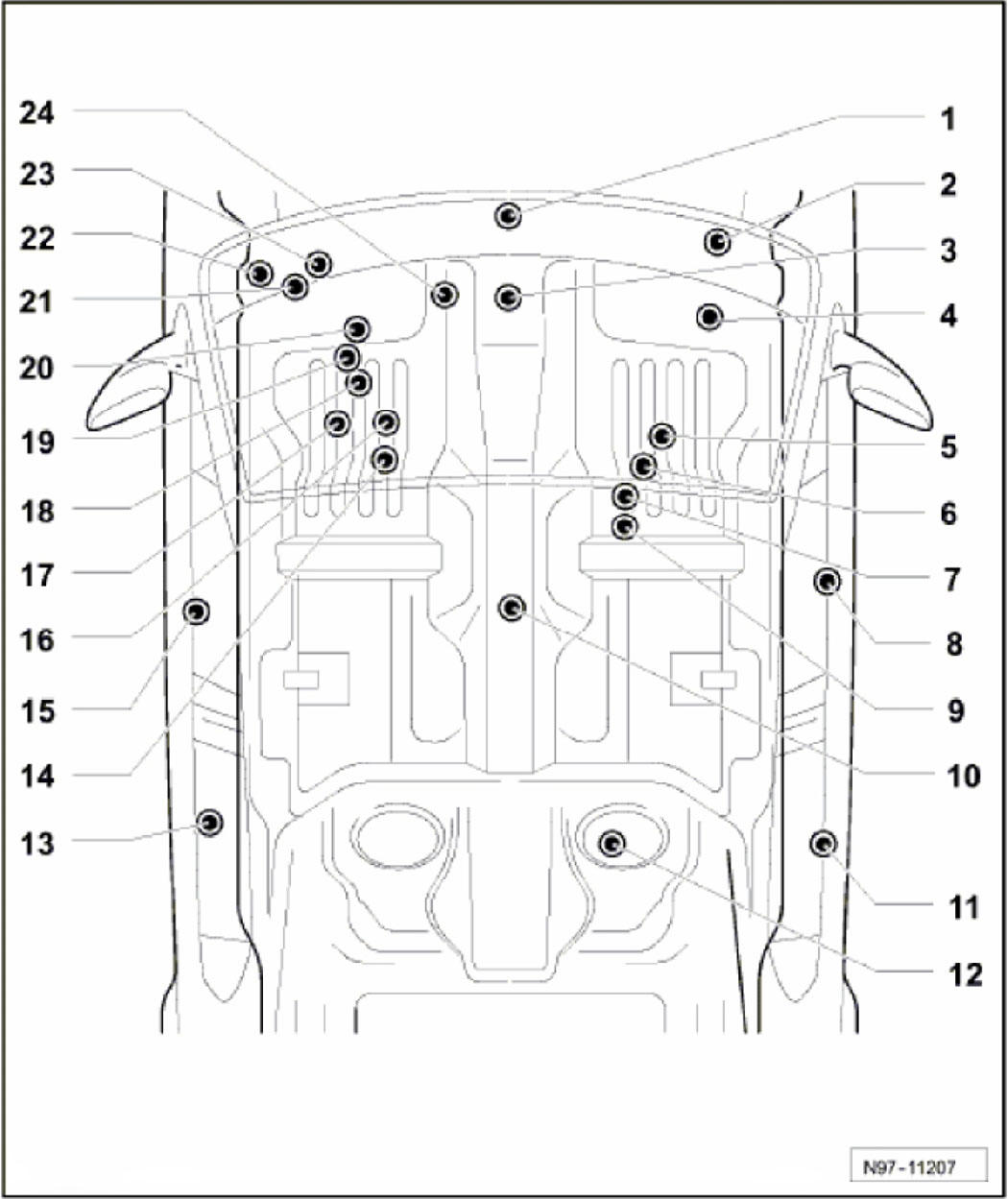

| Distance Regulation Control Module (6) | Behind center of front grille. See Figure. |
| Door Control Module (Driver's Side) (15) | In driver's door. See Figure. |
| Door Control Module (Front Passenger's) (8) | In front passenger's door. See Figure. |
| Door Control Module (Left Rear) (13) | In left rear door. See Figure. |
| Door Control Module (Right Rear) (11) | In right rear door. See Figure. |
| Electric Park/Handbrake Control Module (10) | Under rear of center console. See Figure. |
| Electro-Mechanical Parking Brake Control Module (9) | Under center console. See Figure. |
| Electronic Steering Column Lock Control Module (20) | Near base of steering column. See Figure. |
| Engine Control Module (ECM) (5) | In center of plenum. See Figure. |
| Fresh Air Blower Control Module (13) | On fresh air blower motor. See Figure. |
| Front Heated Seats Control Module (17) | Under driver's seat. See Figure. |
| Fuel Pump (FP) Control Module (12) | In top of fuel tank. See Figure. |
| Headlight Range/Cornering Lamp Control Module (4) | Behind glove compartment. See Figure. |
| Heated Rear Seats Control Module (5) | Under front passenger's seat. See Figure. |
| Instrument Cluster Control Module (19) | Behind instrument cluster. See Figure. |
| Memory Seat/Steering Column Adjustment Control Module (14) | Under driver's seat. See Figure. |

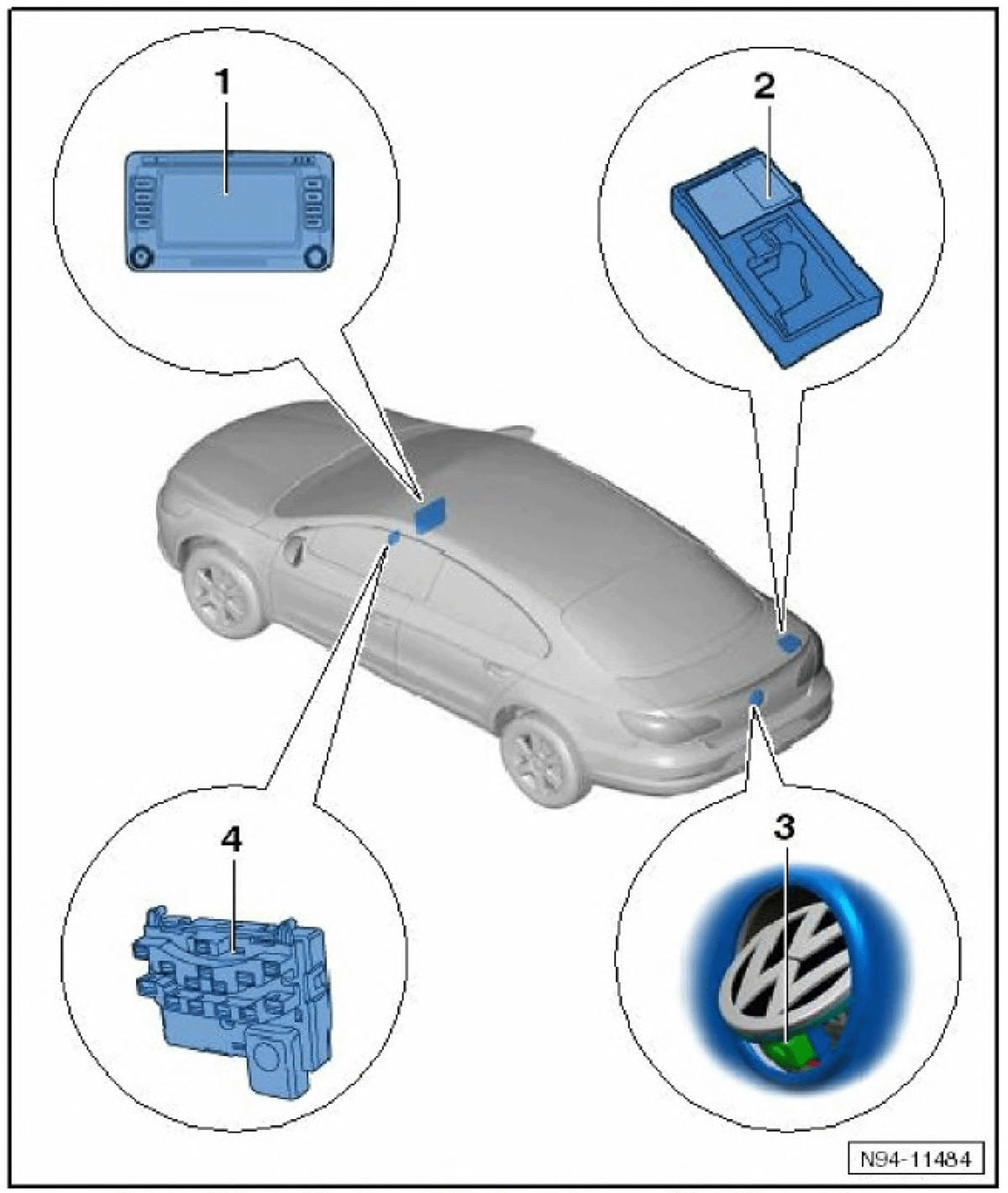

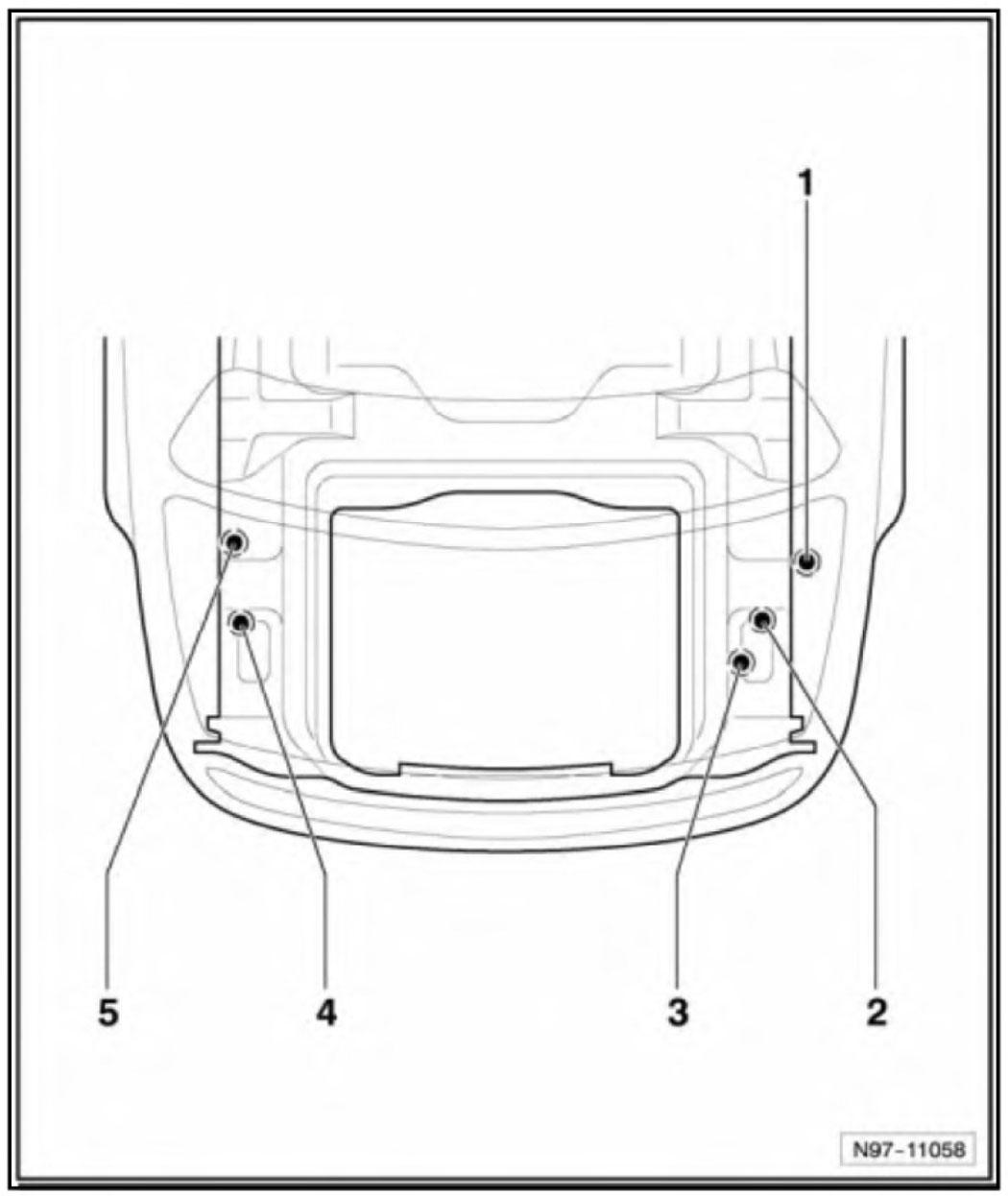

| Multimedia Control Module (5) | Left side of luggage compartment. See Figure. |
| Operating Electronics & Telephone Control Module (9) | Under front passenger's seat. See Figure. |
| Parallel Parking Assistance Control Module (23) | Behind left side of dash. See Figure. |
| Parking Aid Control Module (3) | Right side of luggage compartment. See Figure. |
| Power Steering Control Module (2) | Integral with steering gear assembly. See Figure. |
| Radar Interior Monitoring Control Module 1 (6) | In roof console. |
| Radiator Fan Control Unit | Integrated into radiator fan assembly. |
| Rear Lid Control Module | Left rear of roof. |
| Rear Lid Control Module 2 | Right rear of roof. |
| Rearview Camera System Control Module (2) | Right side of luggage compartment. See Figure. |

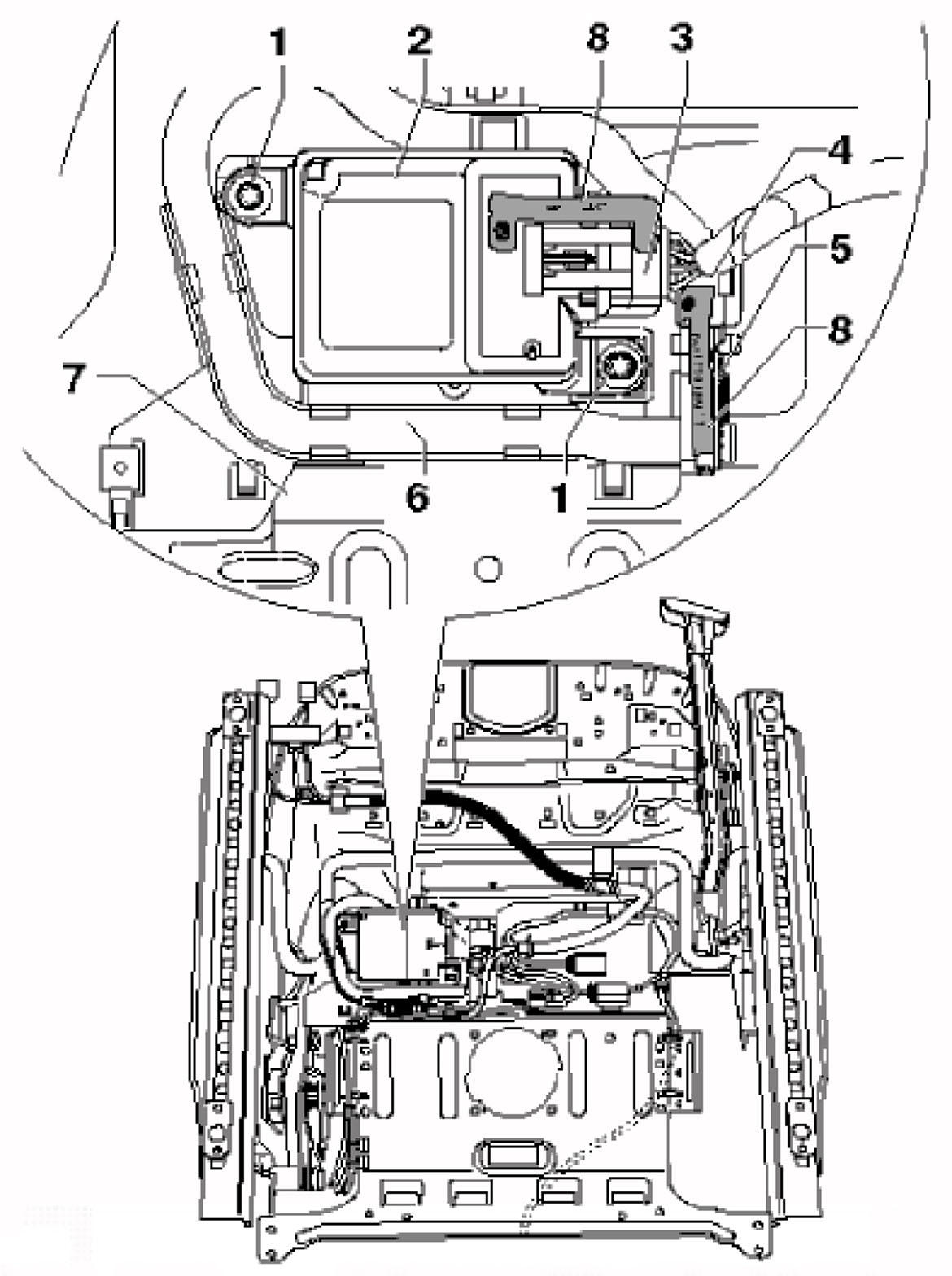

| Seat Occupied Recognition Control Module (2) | Under front passenger's seat. See Figure. |
| Special Purpose Vehicle Control Module (16) | Under driver's seat. See Figure. |
| Steering Column Electronic Systems Control Module (18) | Underside of steering column. See Figure. |

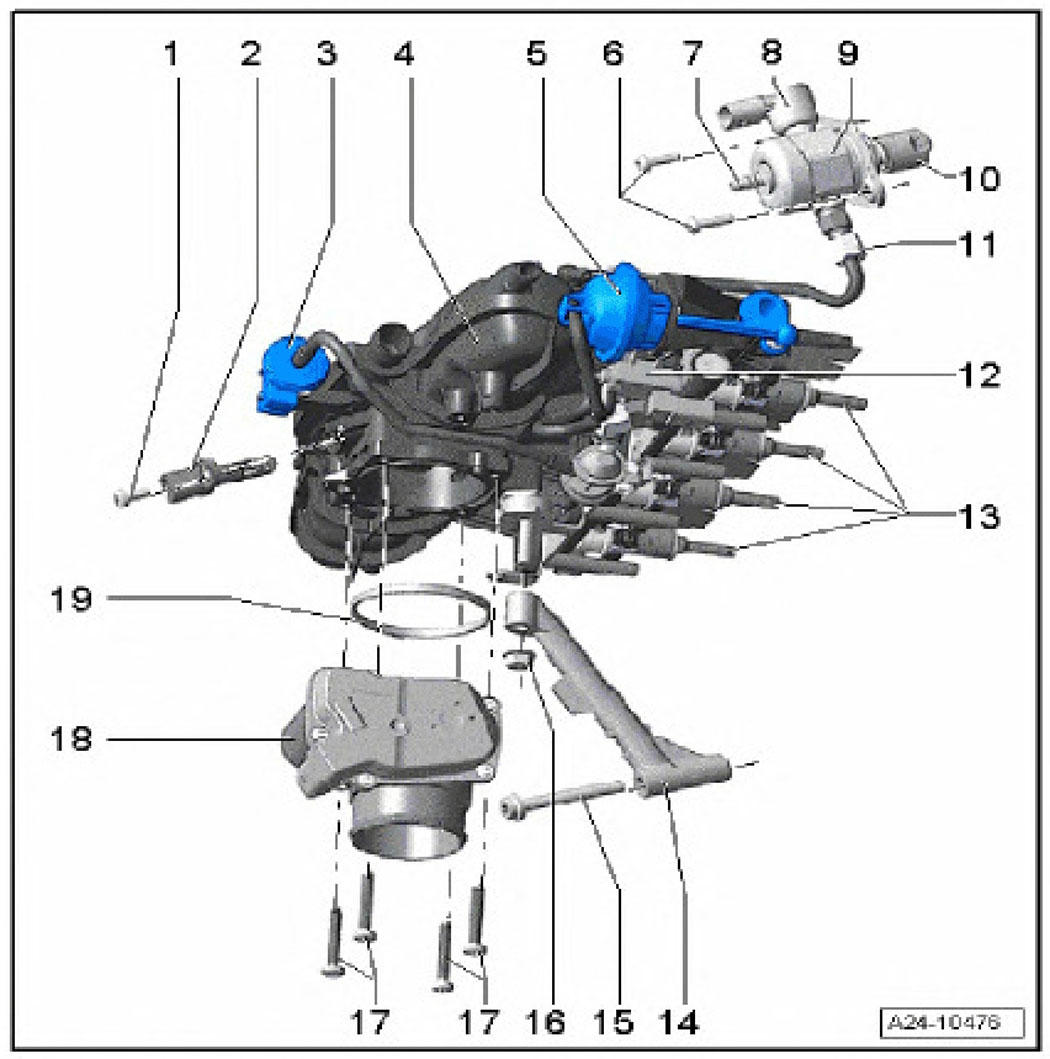

| Throttle Valve Module (2.0L) (18) | On intake manifold assembly. See Figure. |

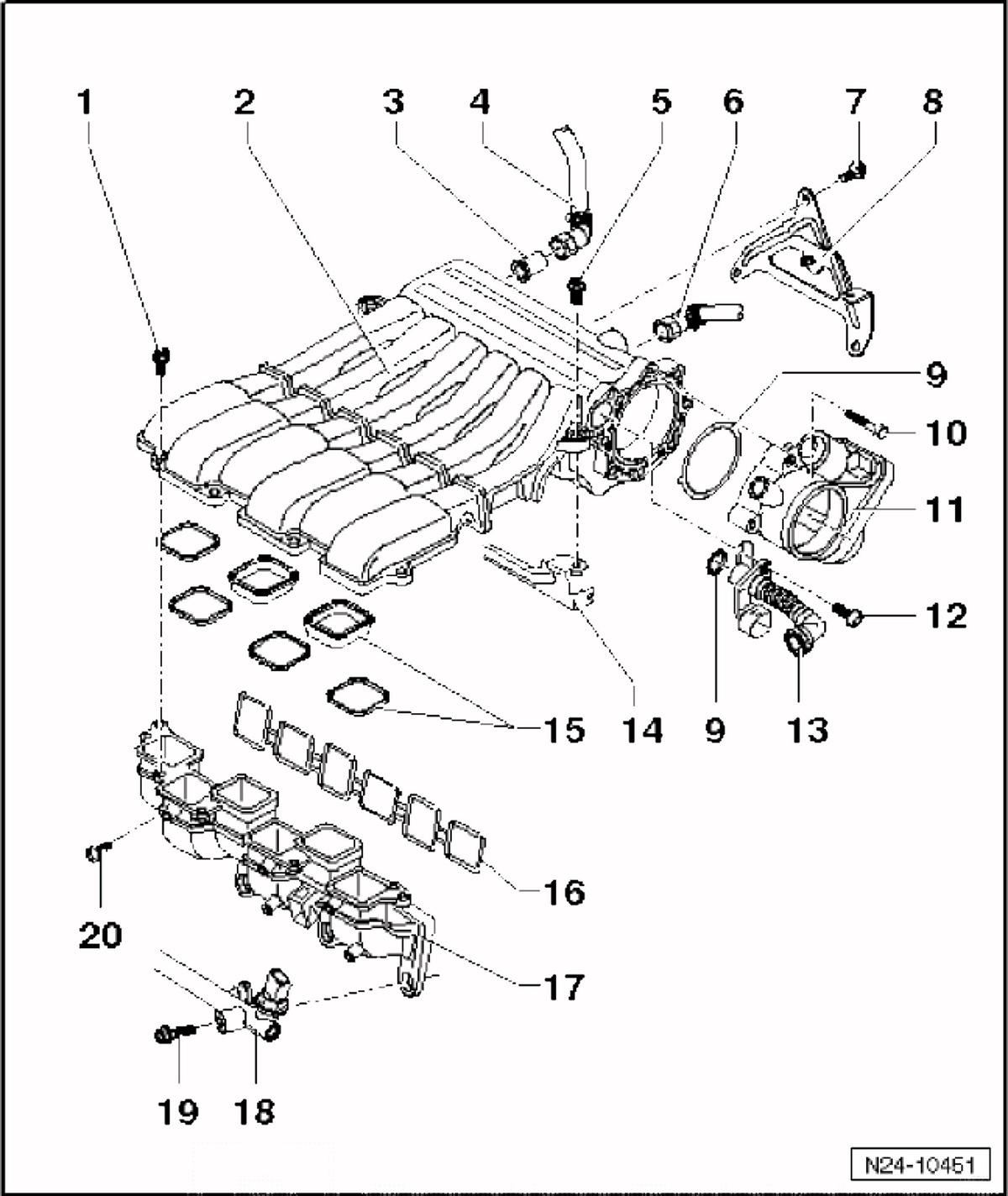

| Throttle Valve Module (3.6L) (11) | On intake manifold. See Figure. |
| Towing Recognition Control Module (4) | Left side of luggage compartment. See Figure. |
| Transmission Control Module (TCM) (4) | On left front wheelwell. See Figure. |
| TV Tuner (2) | Right side of luggage compartment. See Figure. |
| Vehicle Electrical System Control Module (21) | Under driver's side relay carrier. See Figure. |
| Wiper Motor Control Module | In left side of plenum. |
