Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

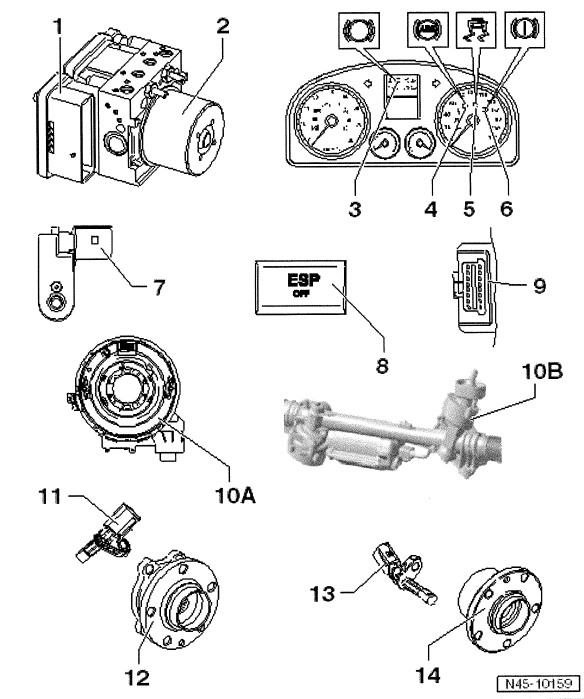

| ABS Control Module (4) | Right rear of engine compartment. See Figure. |
| ABS Hydraulic Unit (2) | Right side of engine compartment. See Figure. |
| Air Bag Control Module (5) | Front of center console. See Figure. |
| Antenna Selection Control Module (2) | Right front seat. See Figure. |
| Automatic Glow Time Control Module (2) | Auxiliary relay carrier. See Figure. |

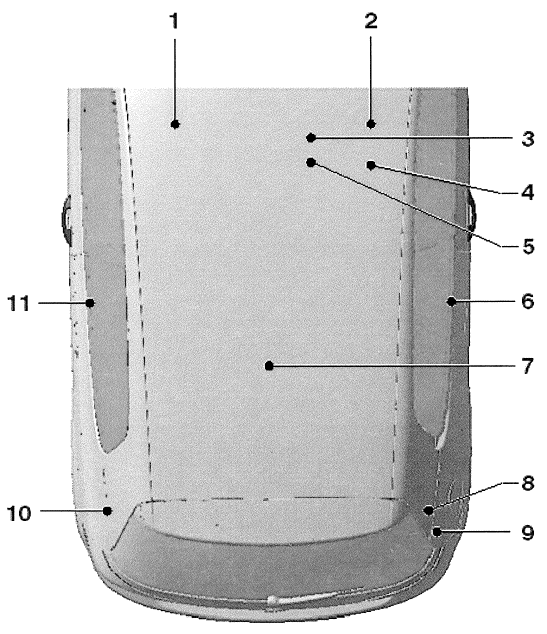

| Auxiliary Engine Coolant Heating RF Receiver (8) | Right rear side panel. See Figure. |
| Door Control Module (Driver's) (9) | Driver's door. See Figure. |
| Door Control Module (Front Passenger's Door) (7) | Front passenger's door. See Figure. |
| Door Control Module (Left Rear) (11) | Left rear door. See Figure. |
| Door Control Module (Right Rear) (6) | Right rear door. See Figure. |
| Electronic Damping Control Module (9) | Right rear side panel. See Figure. |
| Engine Control Module (2) | Right rear of engine compartment. See Figure. |

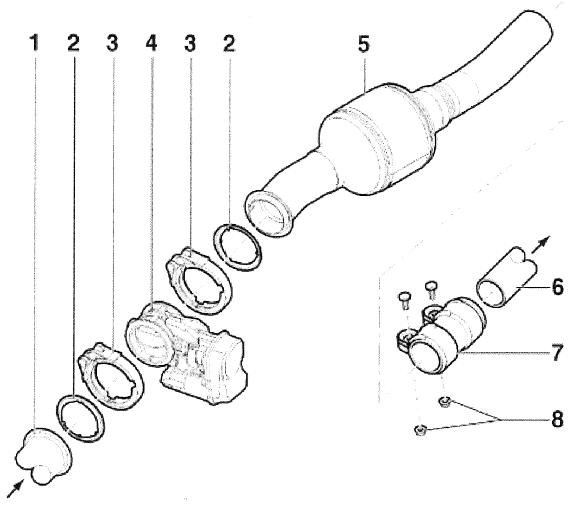

| Exhaust Flap Control Module (4) | Reduction catalytic converter. See Figure. |

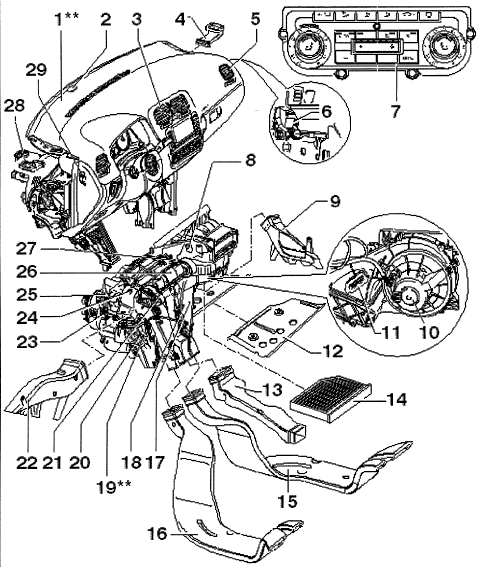

| Fresh Air Blower Control Module (10) | Fresh air blower motor. See Figure. |
| Fuel Pump Control Module (7) | Below right rear seat. See Figure. |
| Headlight Range Control Module (6) | Right side of glove compartment. See Figure. |

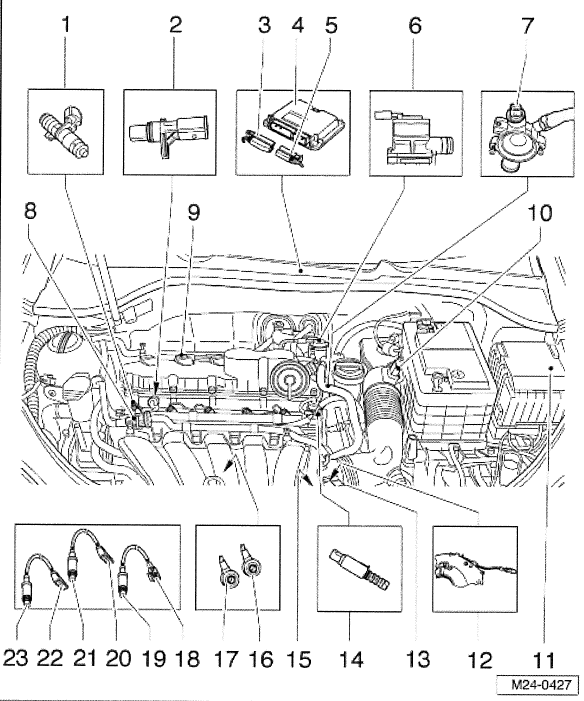

| Motronic Engine Control Module (4) | Rear center of engine compartment. See Figure. |
| NG Control Module (3) | Right rear of engine compartment. See Figure. |
| Operating Electronics & Telephone Control Module (5) | Right front seat. See Figure. |

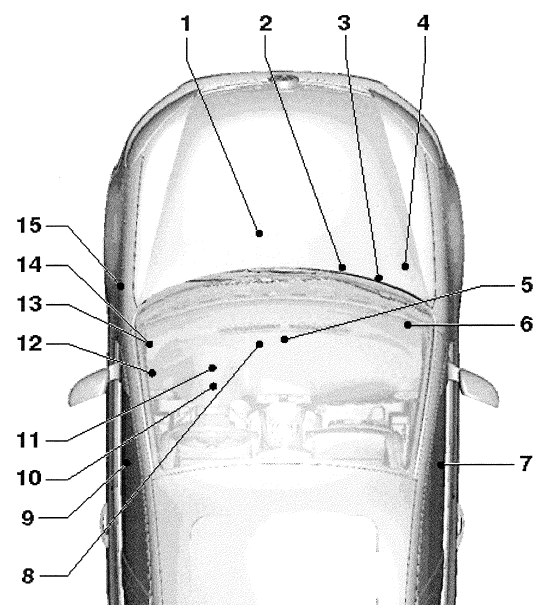

| Parallel Parking Assistance Control Module (14) | Left side of dash. See Figure. |
| Parking Aid Control Module (13) | Left side of dash. See Figure. |
| Power Steering Control Module (1) | Front subframe. See Figure. |
| Seat Occupied Recognition Control Module | Under front passenger's seat. |
| Steering Column Electronic Systems Control Module (10) | Steering column. See Figure. |
| Telephone Transceiver (4) | Right front seat. See Figure. |
| Towing Recognition Control Module (10) | Left rear side panel. See Figure. |
| Transmission Control Module (15) | Left front wheel housing. See Figure. |
| TV Tuner (3) | Under right front seat. See Figure. |
| Vehicle Electrical System Control Module (12) | Left side of dash. See Figure. |
