Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

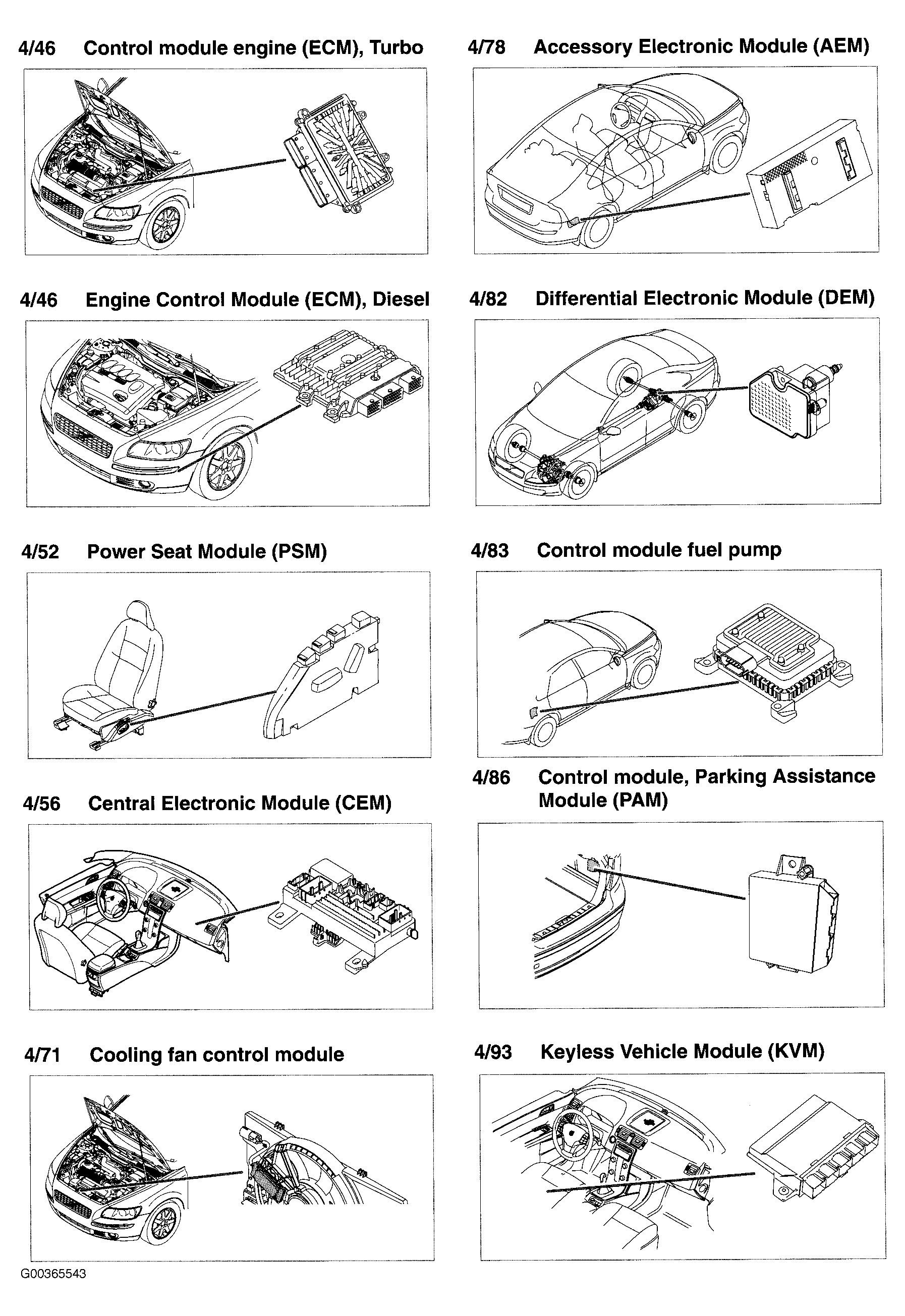

| Accessory Electronic Module (AEM) (4/78) | At right rear corner of cargo compartment. See Figure . |
| Additive Dosing Module (ADM) (4/111) | Behind left rear seat. See Figure . |
| Audio Module (16/105) | Left side of trunk. See Figure . |
| Brake Control Module (BCM) (4/16) | At left rear corner of engine compartment. See Figure . |

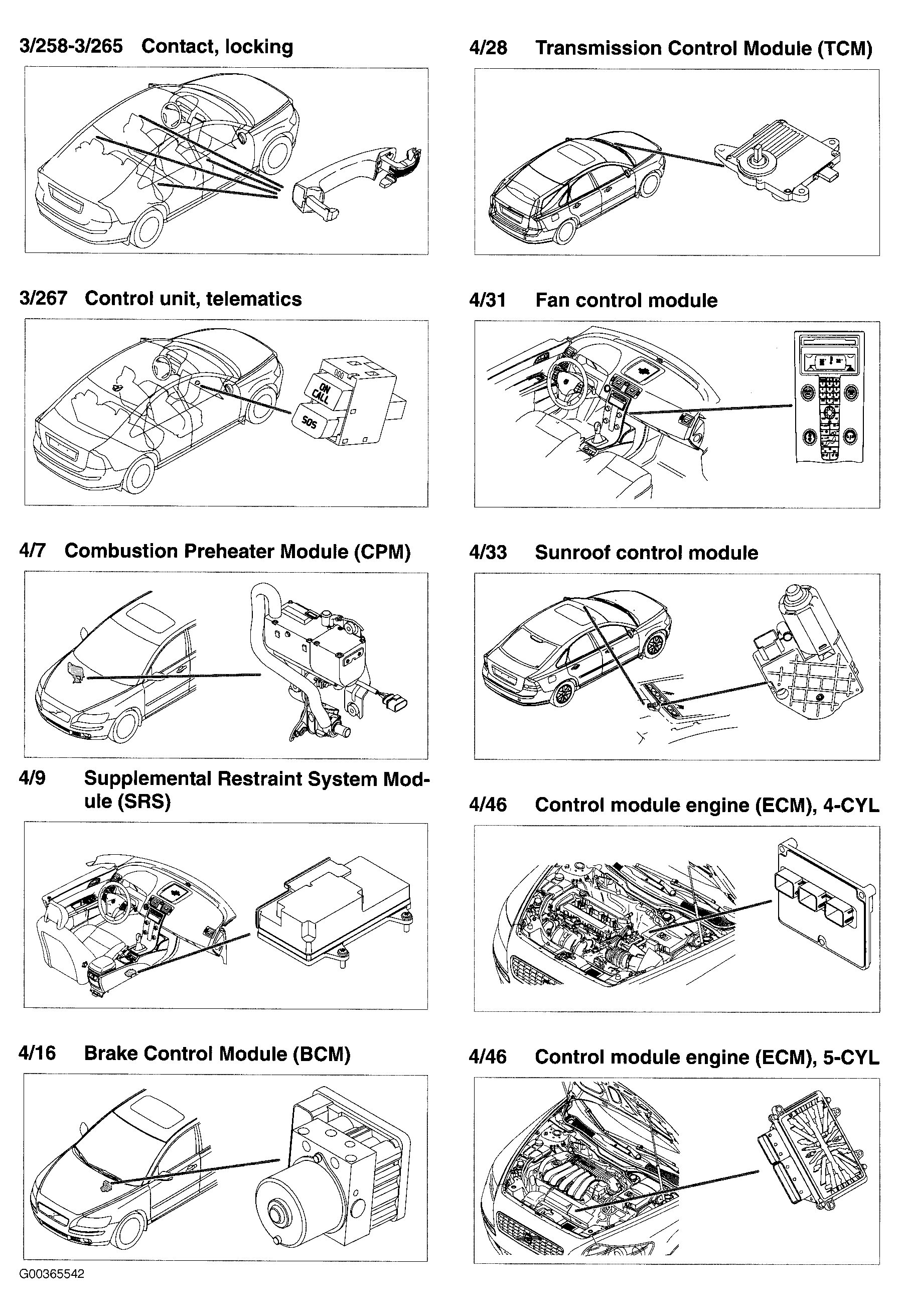

| Combustion Preheater Module (CPM) (4/7) | Right front of engine compartment. See Figure . |
| Cooling Fan Control Module (4/71) | At front center of engine compartment. See Figure . |
| Differential Electronic Module (DEM) (4/82) | At rear differential. See Figure . |
| Engine Control Module (ECM) (2.4L) (4/46) | Left front of engine compartment. See Figure . |
| Engine Control Module (ECM) (2.5L Turbo) (4/46) | Left front of engine compartment. See Figure . |
| Fuel Pump Control Module (4/83) | At fuel tank. See Figure . |

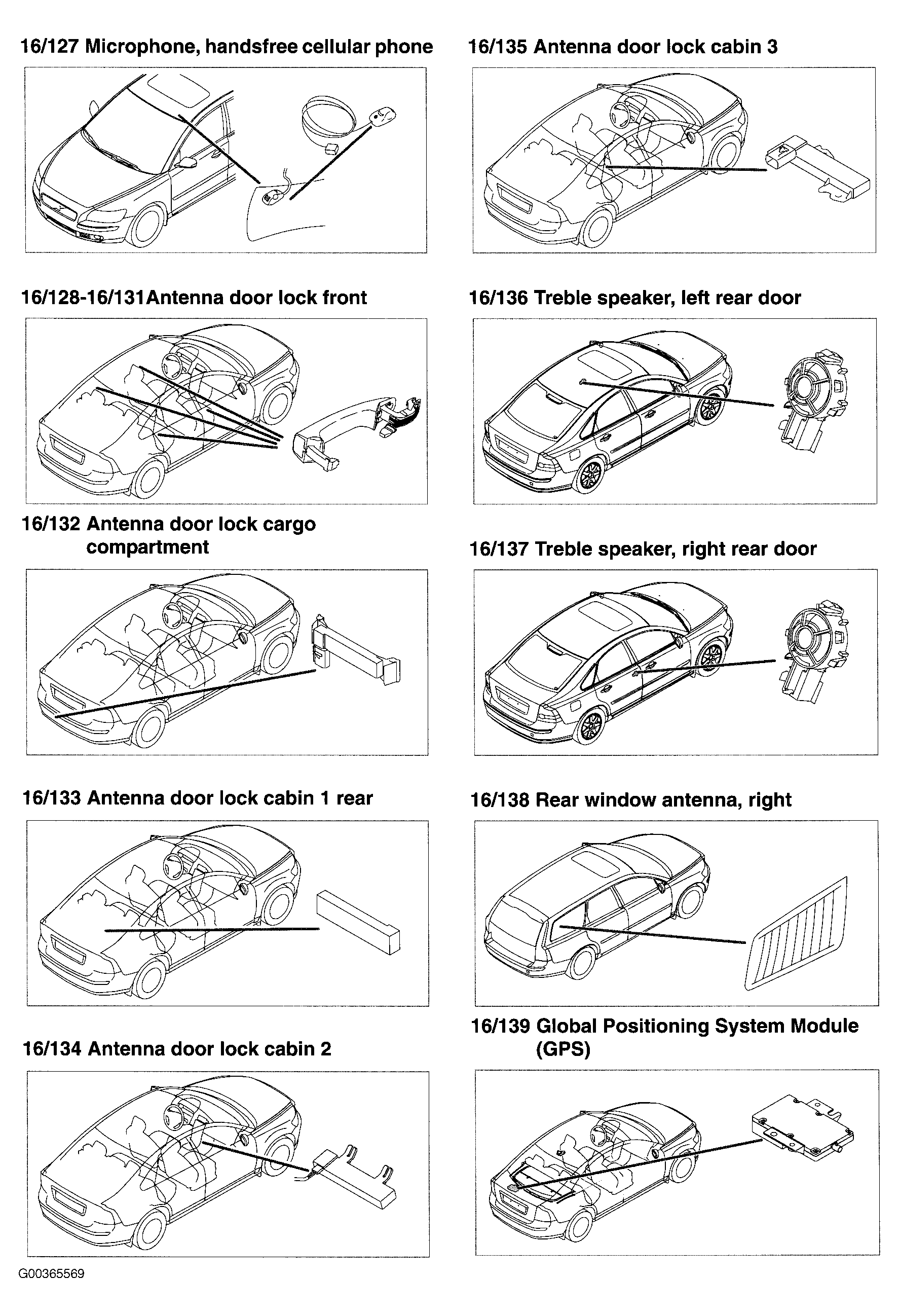

| Global Positioning System Module (GPS) (16/139) | Left side of trunk. See Figure . |

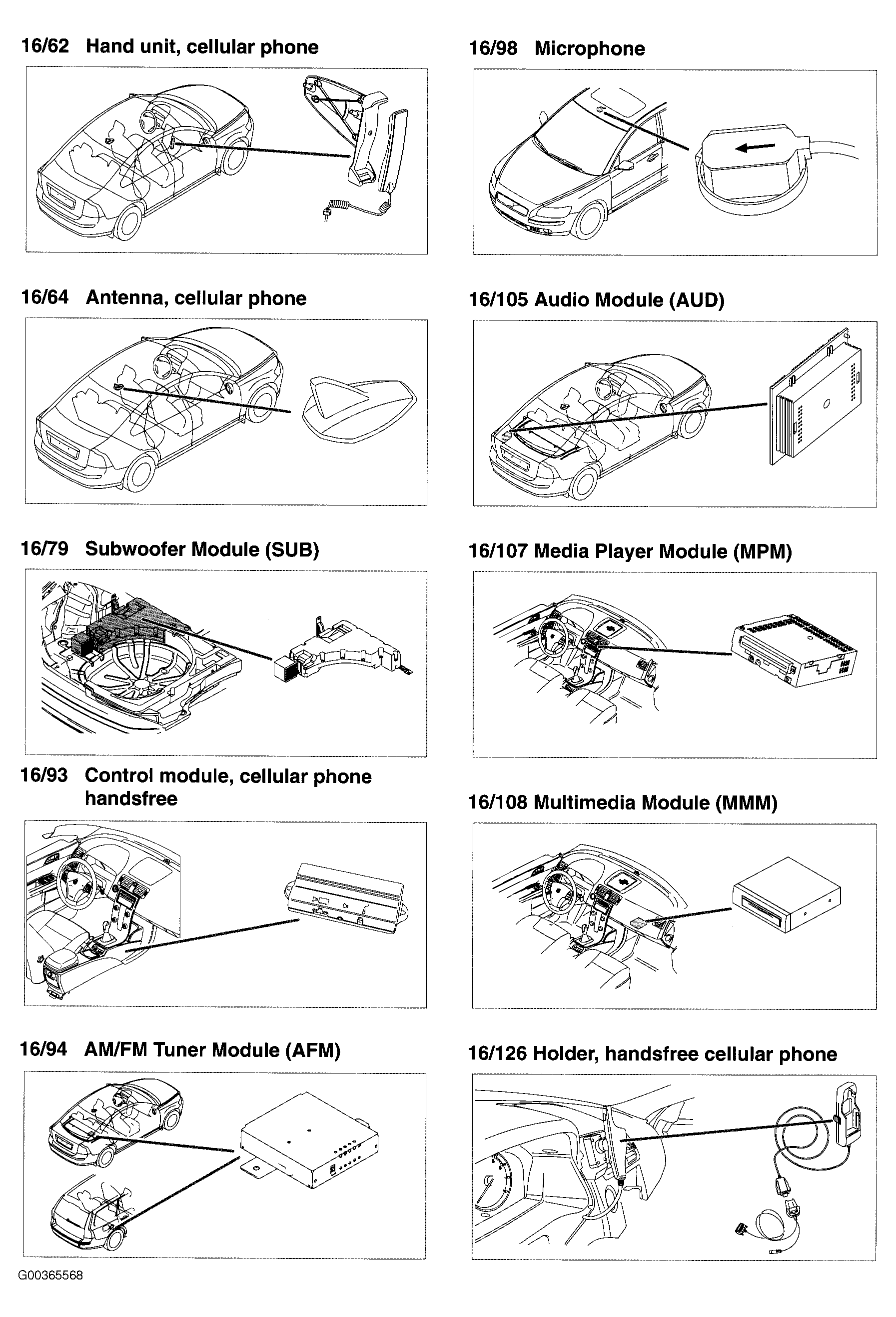

| Handsfree Cellular Phone Control Module (16/93) | Under front of center console. See Figure . |
| Keyless Vehicle Module (KVM) (4/93) | Under driver's seat. See Figure . |
| Master Gas Discharge Lamp Control Module (Left) (4/112) | Behind left headlight. See Figure . |
| Parking Assistance Control Module (PAM) (4/86) | At right rear corner of cargo compartment. See Figure . |

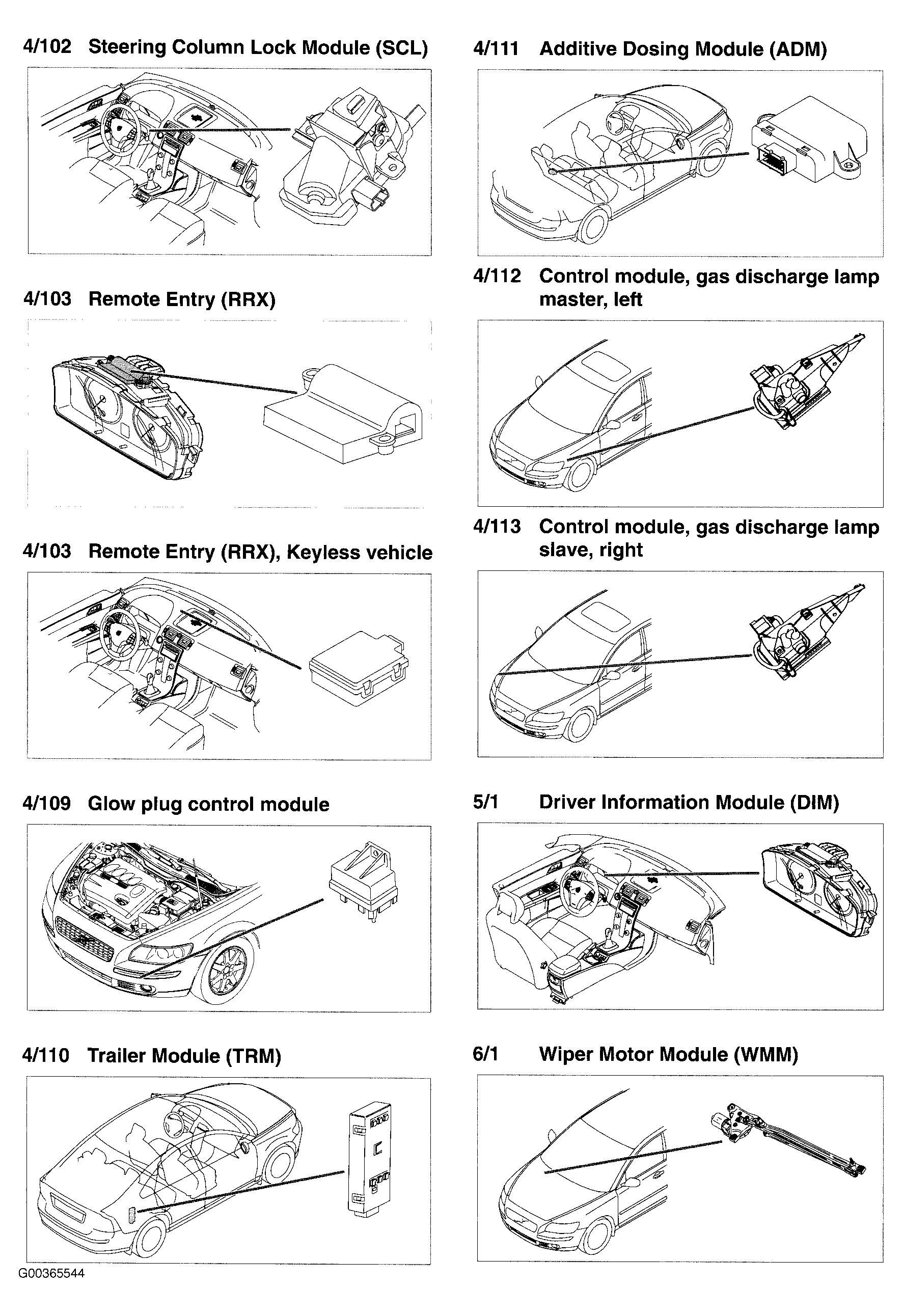

| Remote Entry (RRX) (Keyless Vehicle) (4/103) | Behind left side of dash. See Figure . |
| Remote Entry (RRX) (4/103) | Top of instrument cluster. See Figure . |

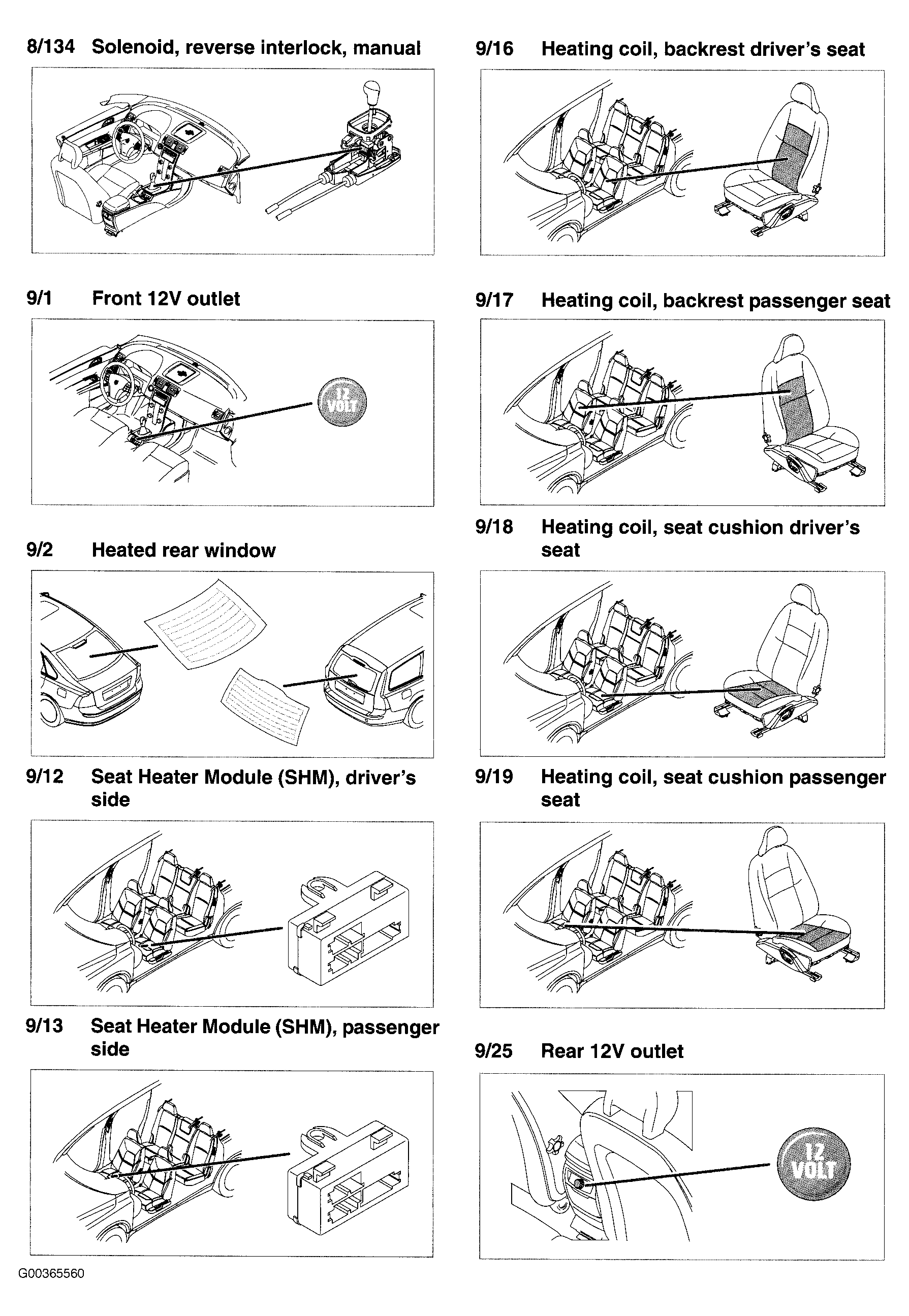

| Seat Heater Module (SHM) (Driver's Side) (9/12) | Under driver's seat. See Figure . |
| Seat Heater Module (SHM) (Passenger's Side) (9/13) | Under front passenger's seat. See Figure . |
| Slave Gas Discharge Lamp Control Module (Right) (4/113) | Behind right headlight. See Figure . |

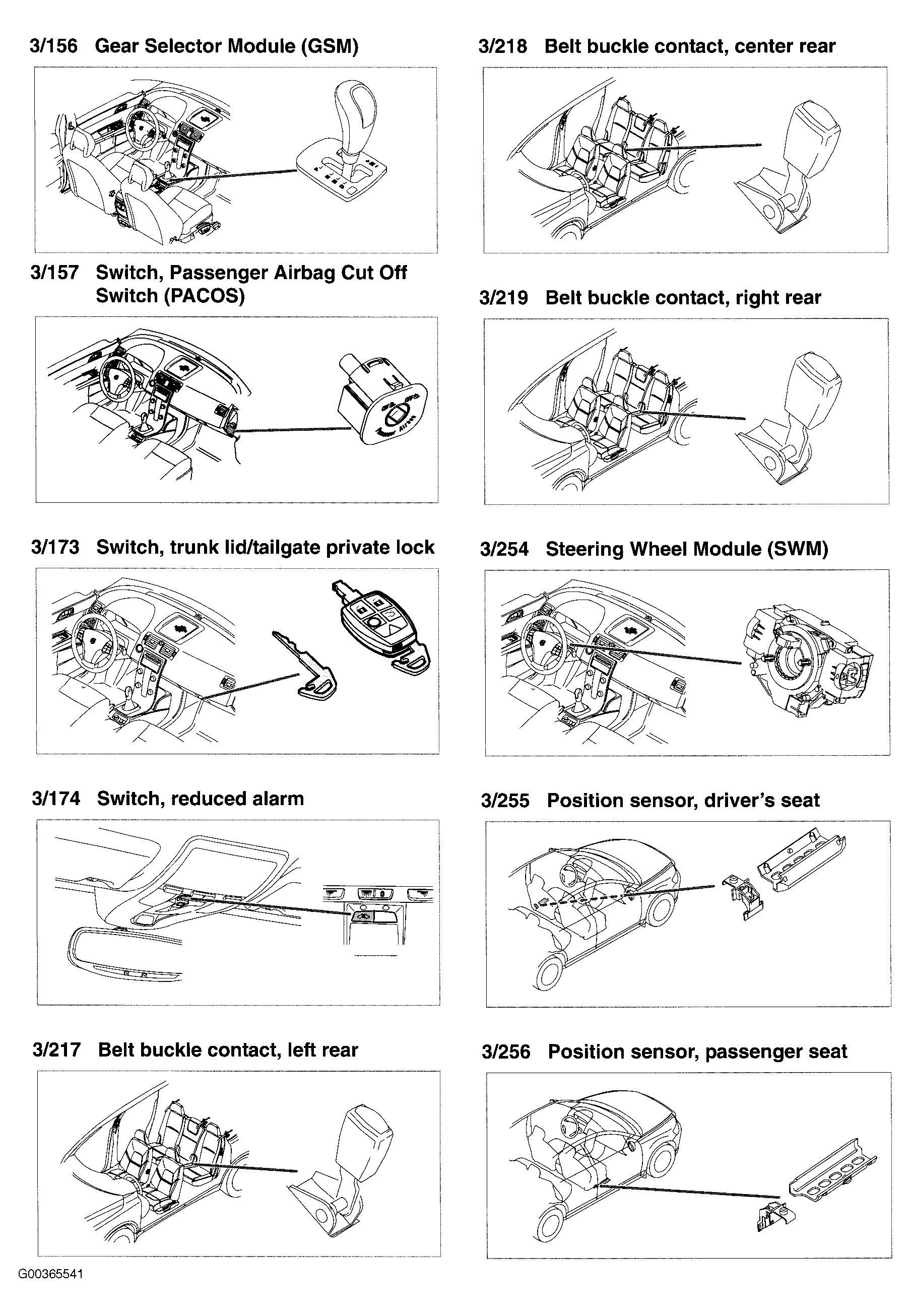

| Steering Wheel Module (SWM) (3/254) | Top of steering column. See Figure . |
| Supplemental Restraint System Module (SRS) (4/9) | Below floor console, behind gear selector lever. See Figure . |
| Trailer Module (TRM) (4/110) | Left rear of trunk. See Figure . |
| Transmission Control Module (TCM) (4/28) | At rear of engine compartment. See Figure . |
