Control Units
CONTROL UNITS
| Description (Component) | Location |
|---|---|
| Anti-Theft Control Module (Alpine) (N12w) | Underside of LH rear seat. |

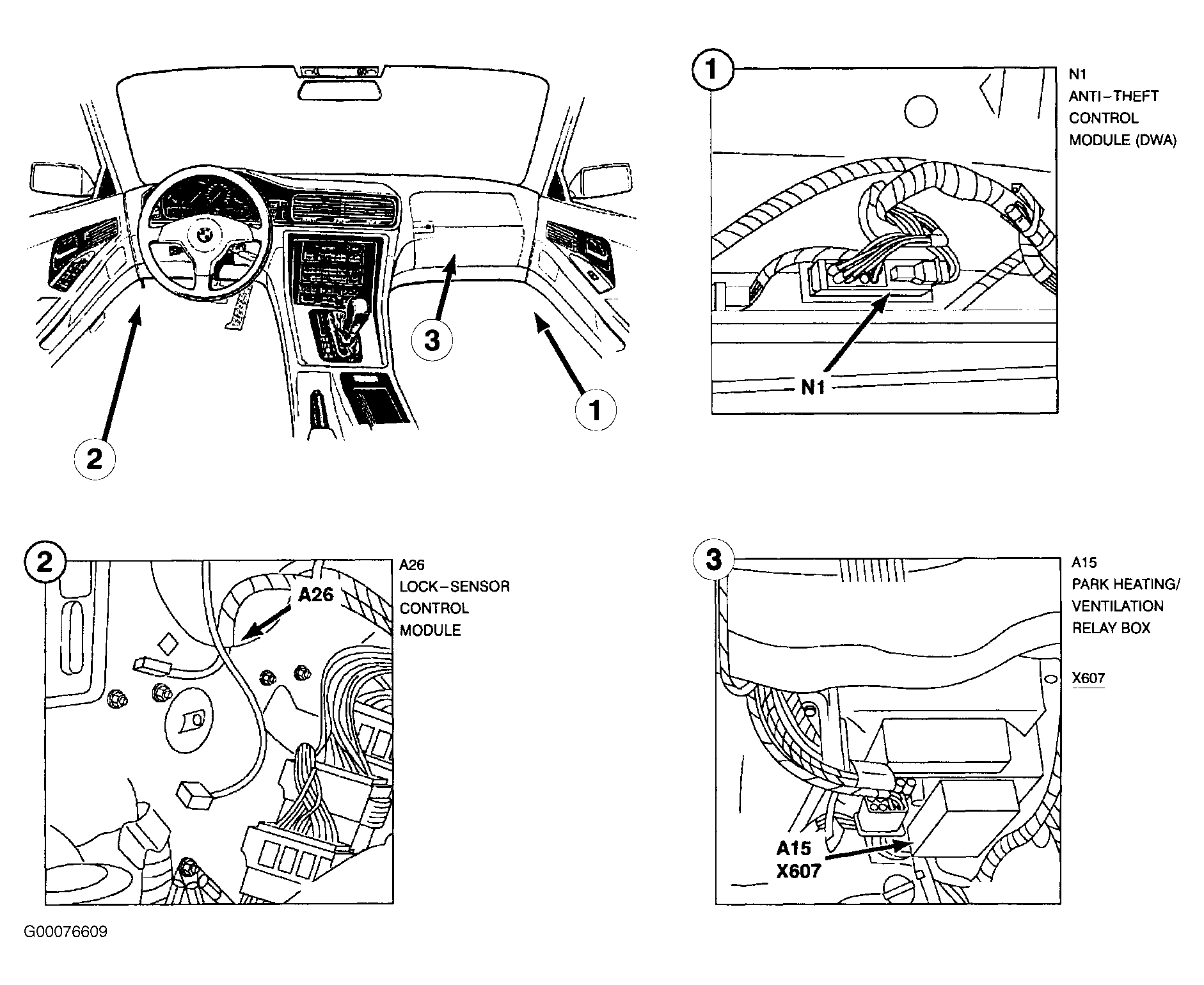

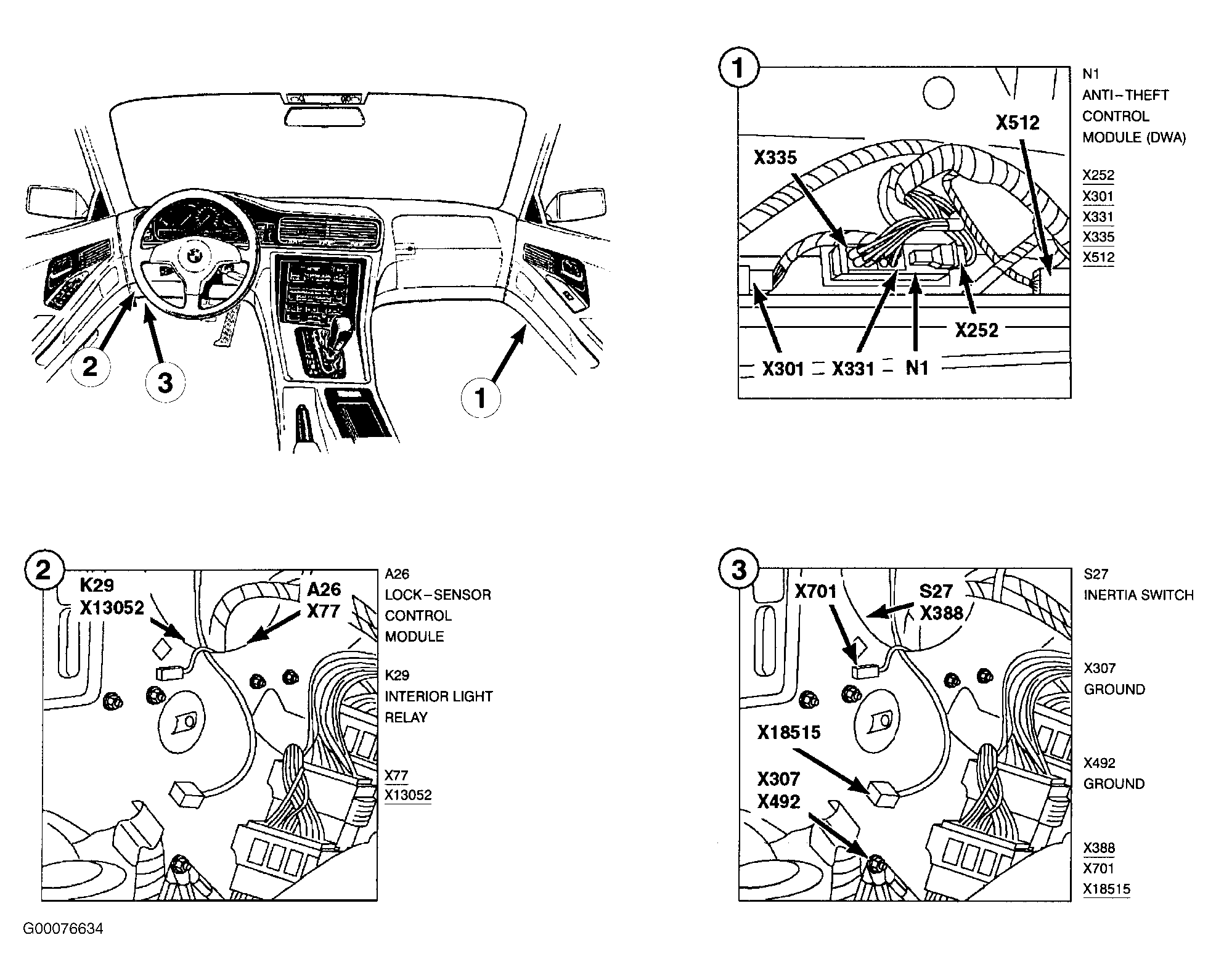

| Anti-Theft Control Module (DWA) (N1) | Inside box on interior side of RH door sill. See Figure & Figure . |

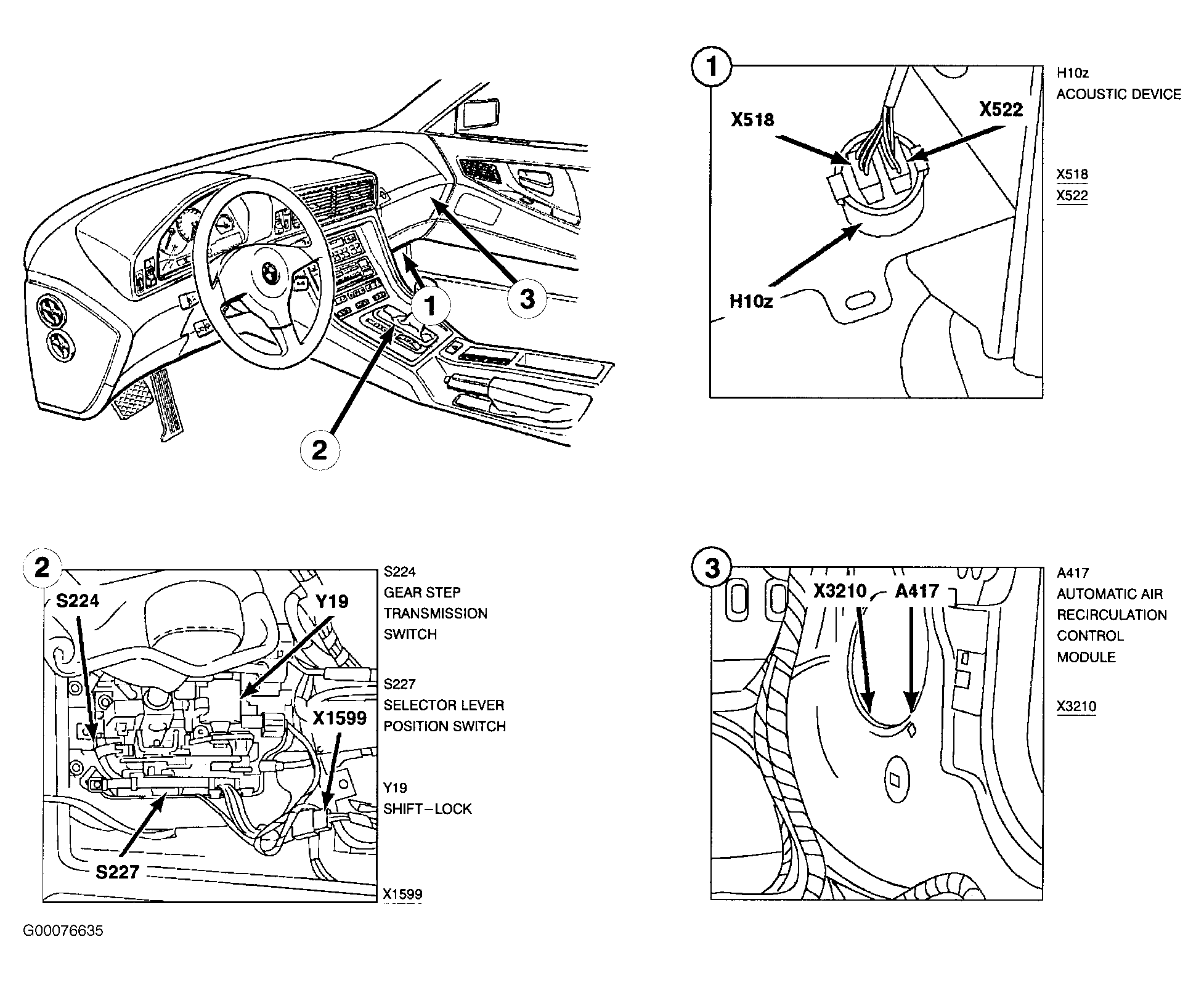

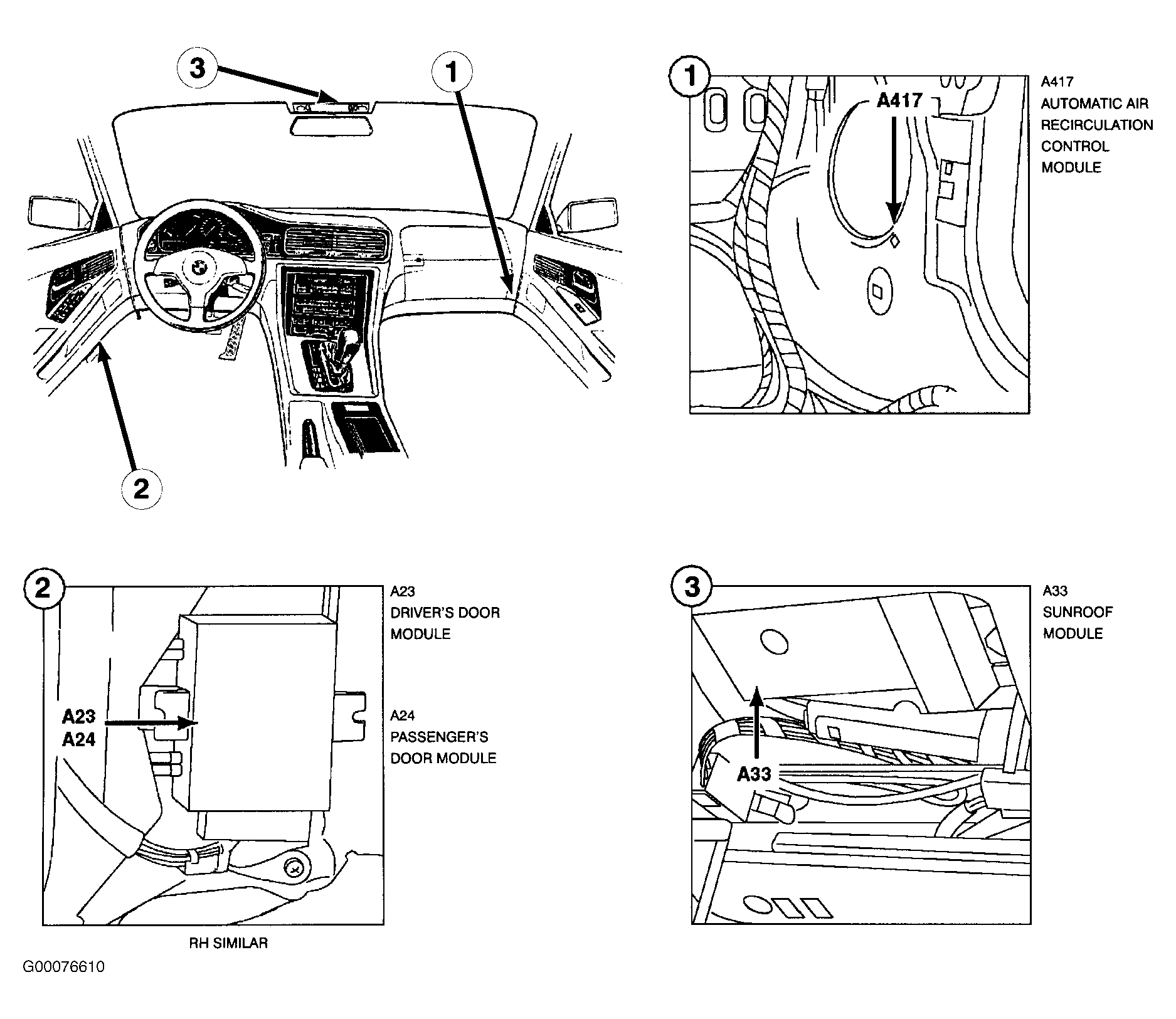

| Automatic Air Recirculation Control Module (A417) | Behind RH footwell speaker grille. See Figure & Figure . |
| Automatic Heating/AC Control Module (IHKA) (A11) | Between front footwells. |
| Body Electronics Module (A25) | Below LH side of dash. See Figure & Figure . |

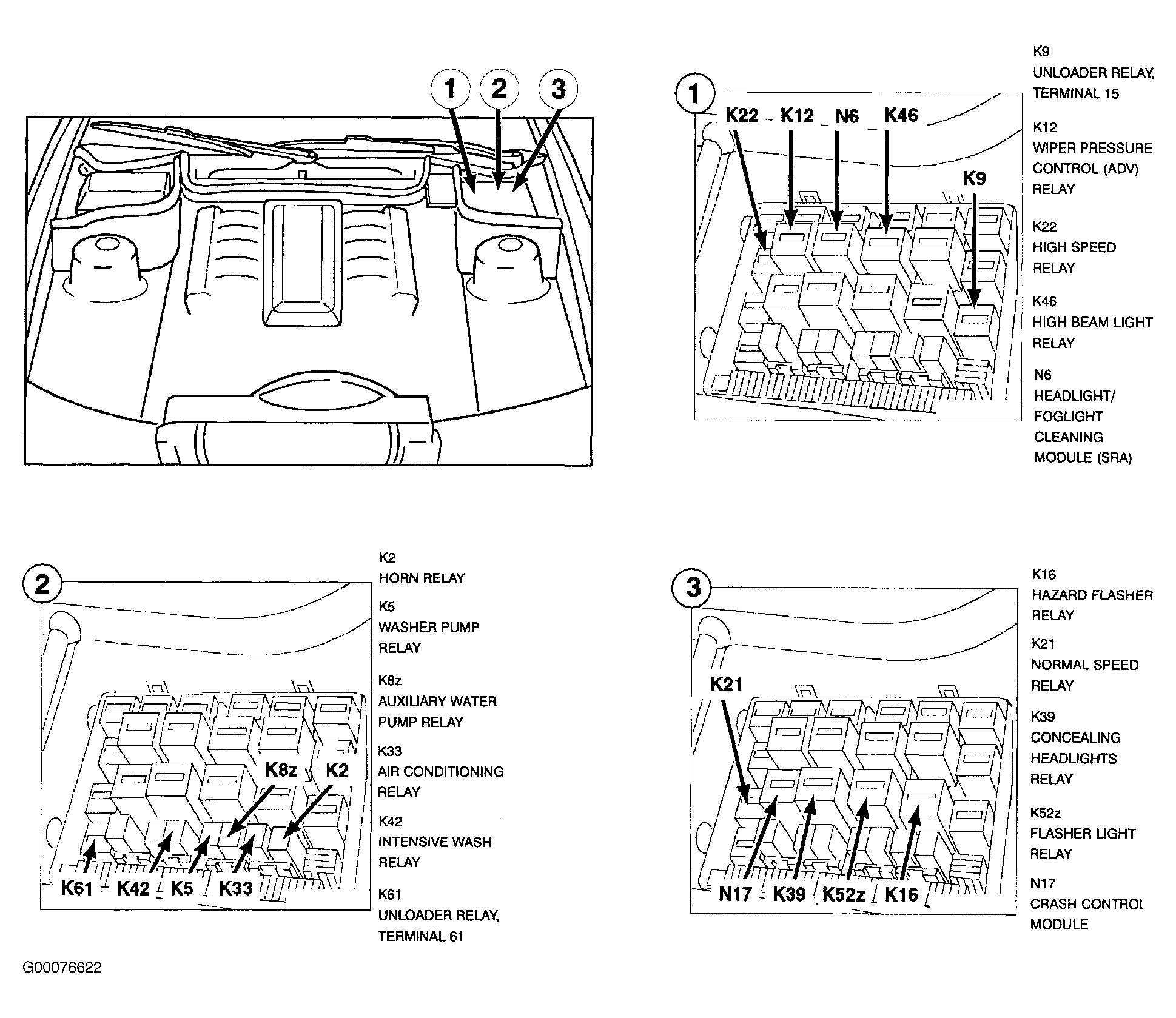

| Crash Control Module (N17) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure & Figure . |
| Cruise Control Module (Tempomat) (A8) | In RH side of luggage compartment. See Figure . |
| CYL. 1-6 Engine Control Module (DME) (A6010) | Rear RH side of engine compartment in E-Box (850Ci, 850CSi). See Figure . |
| CYL. 7-12 Engine Control Module (DME) (A6020) | Rear RH side of engine compartment in E-Box (850Ci, 850CSi). See Figure . |

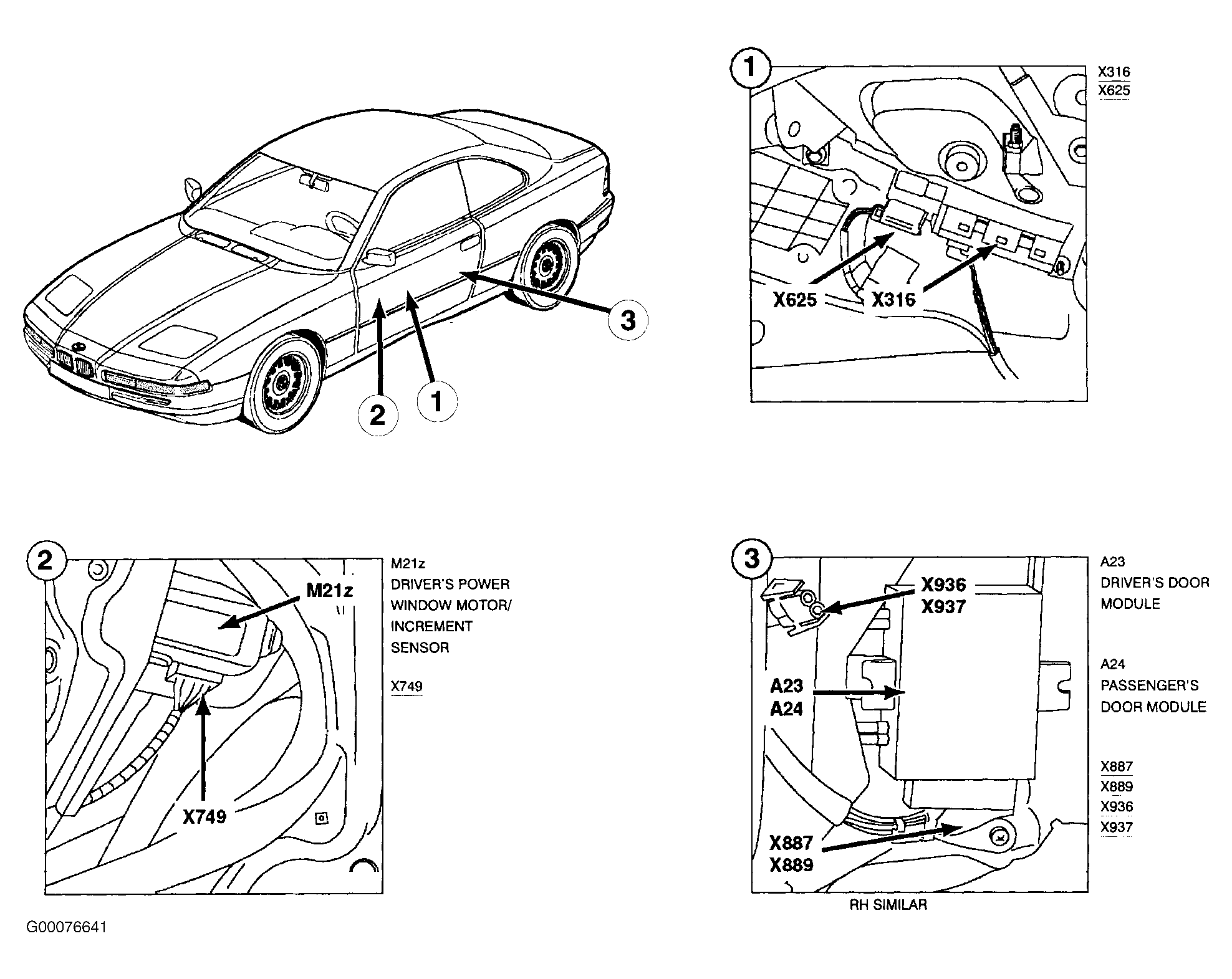

| Driver's Door Module (A23) | In lower LH front door. See Figure & Figure . |
| Electronic Immobilizer Control Module (EWS II) (A836) | Behind glove box. |

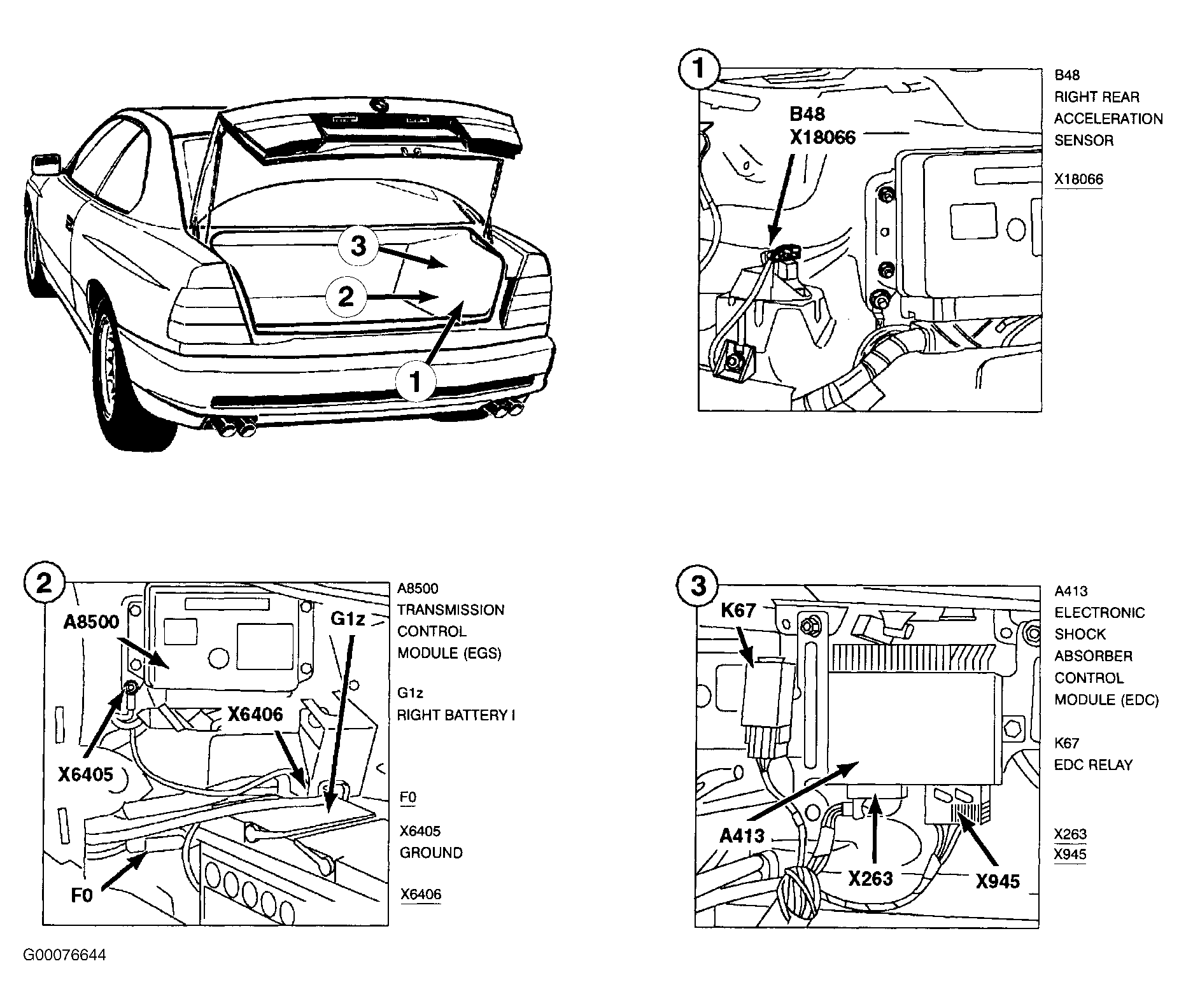

| Electronic Shock Absorber Control Module (EDC) (A413) | In RH side of luggage compartment. See Figure & Figure . |
| Electronic Throttle Module (EML) (A6004) | Rear RH side of engine compartment in E-Box. |
| Engine Control Module (DME) (A6000) | In E-Box (840Ci). |
| Front Dome Light/Map Reading Assembly (E34) | Underside of trunk lid. |

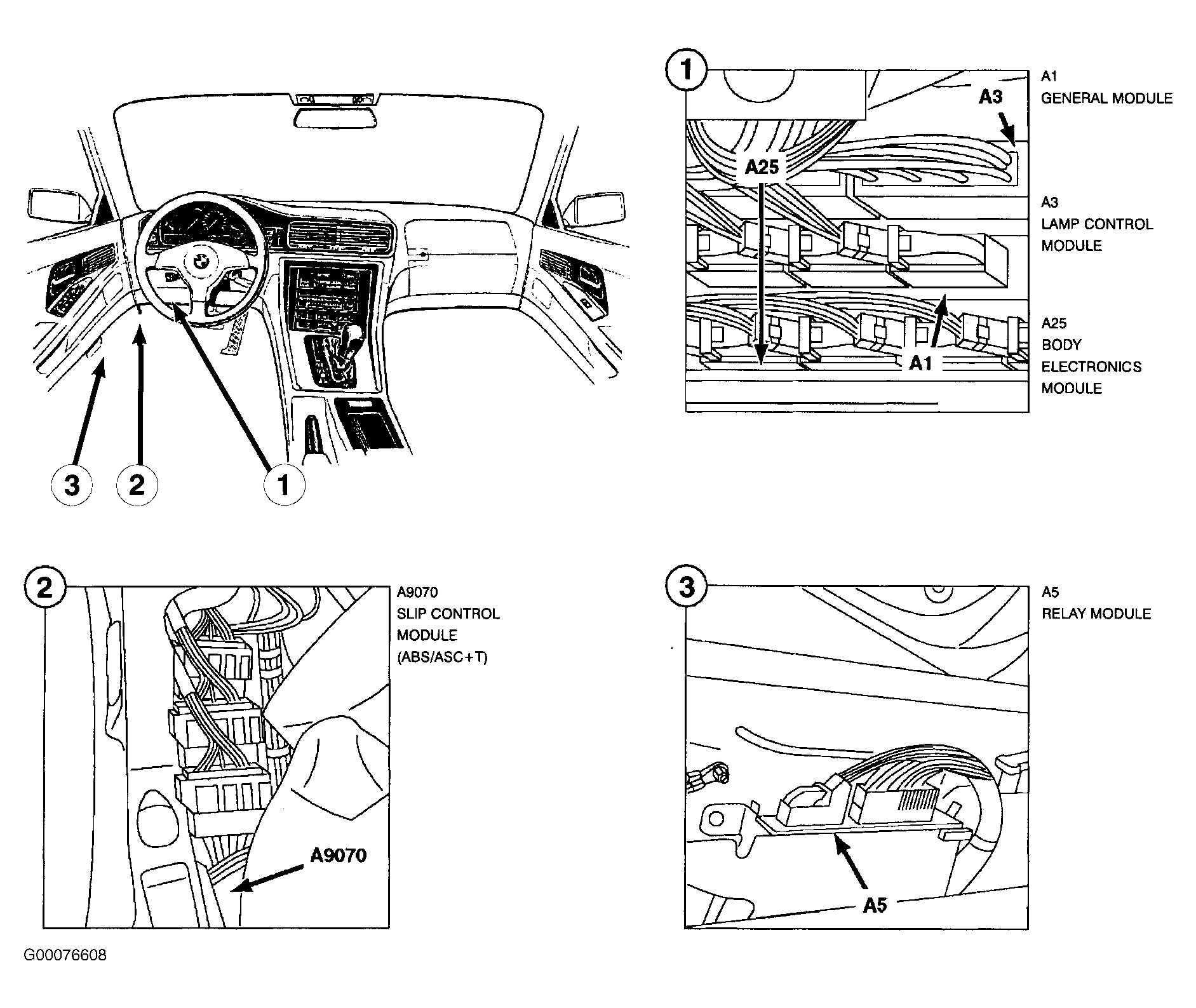

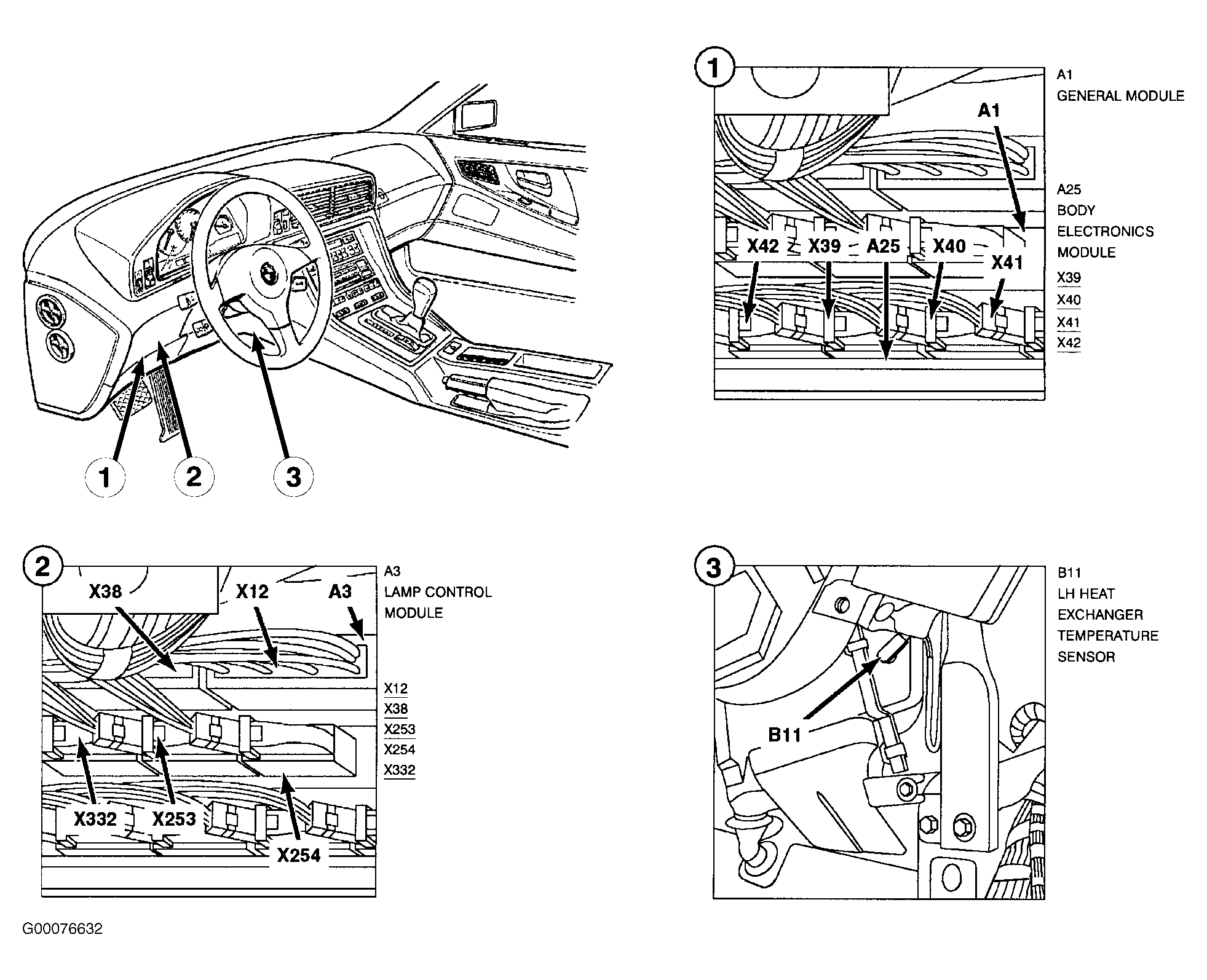

| General Module (A1) | Below LH side of dash. See Figure & Figure . |

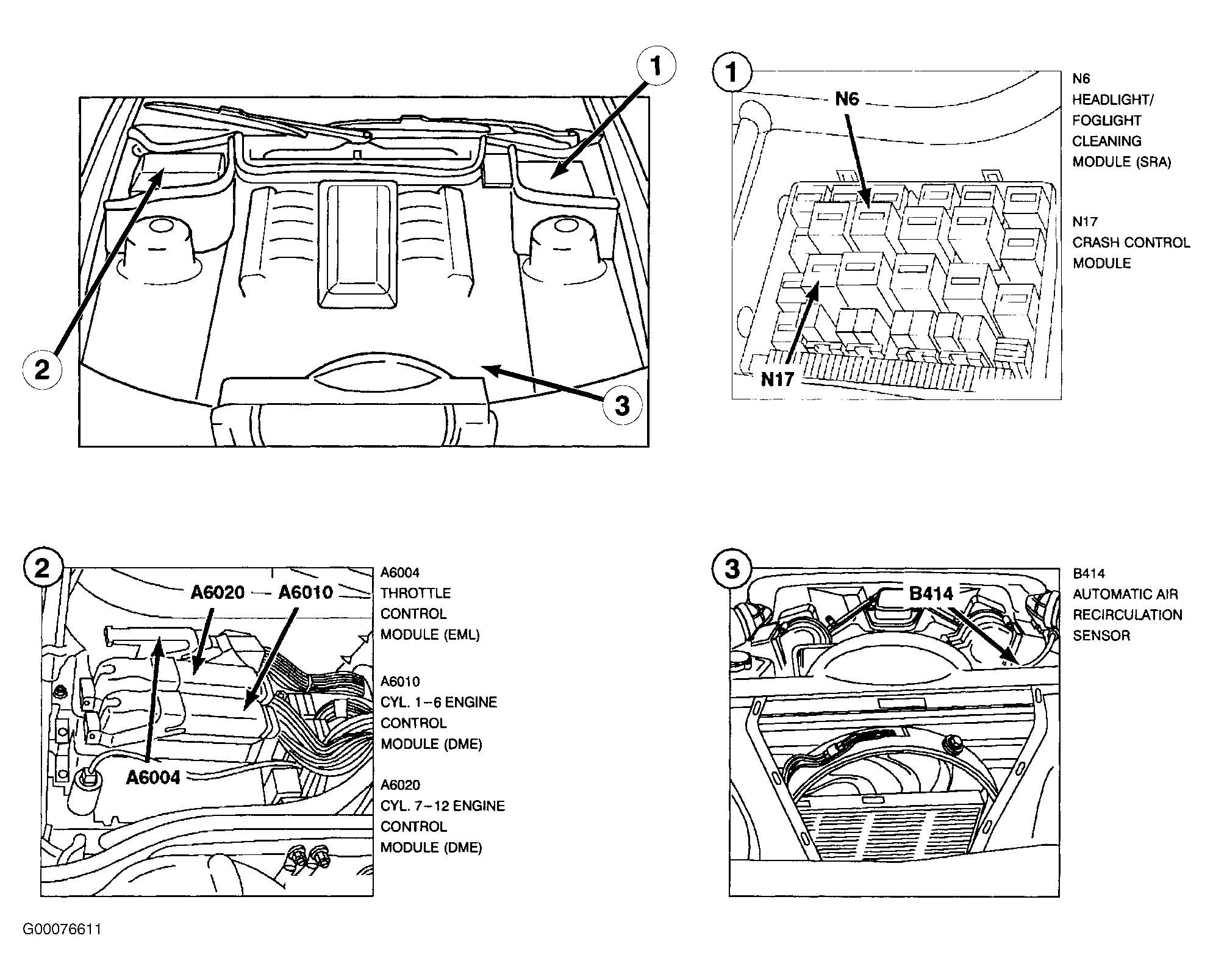

| Headlight/Foglight Cleaning Module (SRA) (N6) | Rear LH side of engine compartment in Front Power Distribution Box. See Figure & Figure . |
| Lamp Control Module (A3) | Below LH side of dash. See Figure & Figure . |
| Left Rear Light Assembly I (E46z) | In LH rear side of luggage compartment. |

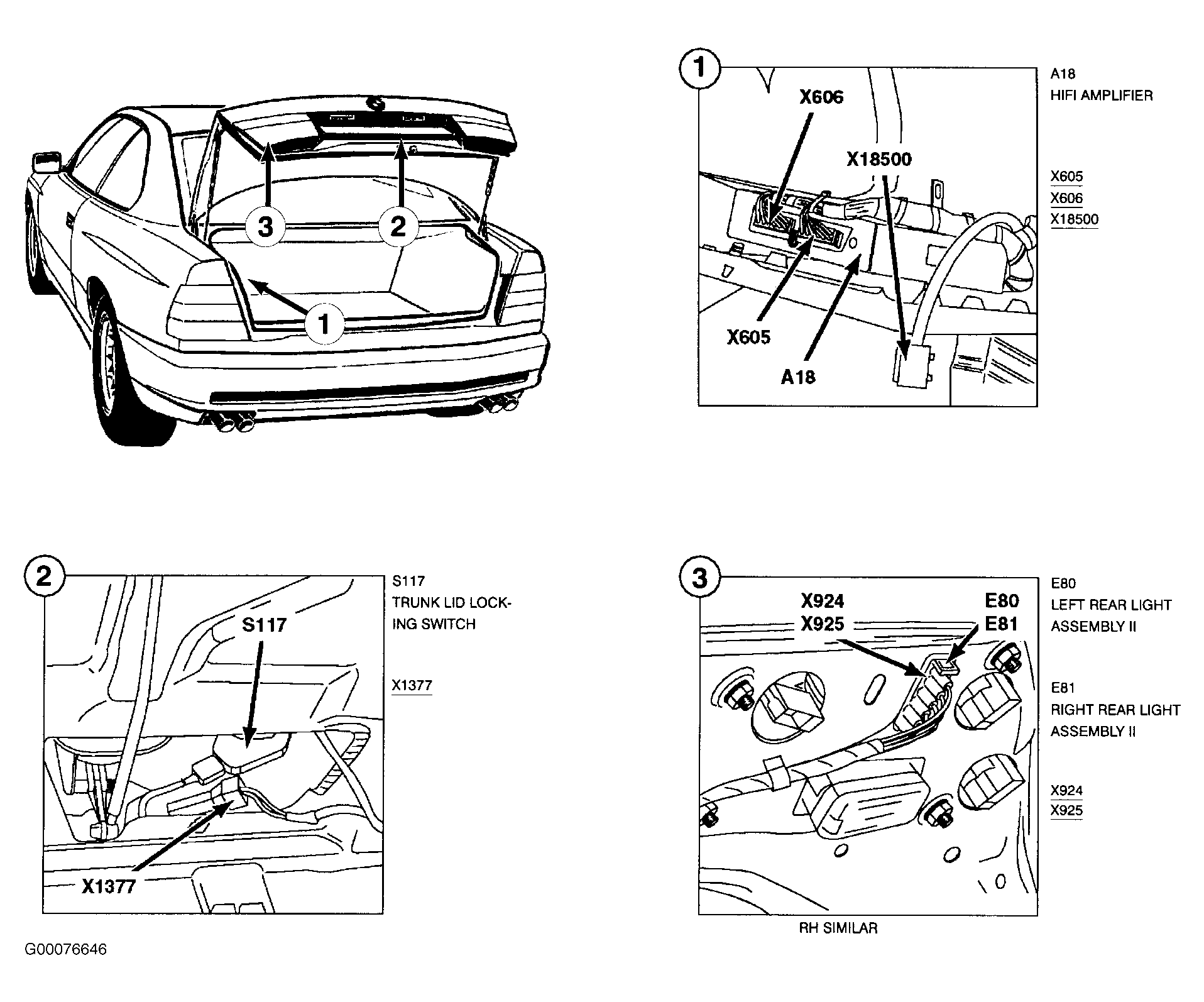

| Left Rear Light Assembly II (E80) | Underside of trunk lid left. See Figure . |
| Lock-Sensor Control Module (A26) | LH side of LH footwell. See Figure & Figure . |
| Passenger's Door Module (A24) | In lower RH front door. See Figure & Figure . |
| Power Sun Shade Electronic Control Module (A82) | At back of rear window shelf. |
| Relay Module (A5) | Inside box on interior side of LH door sill. See Figure & Figure . |
| Right Rear Light Assembly I (E47z) | In RH rear side of luggage compartment. |
| Right Rear Light Assembly II (E81) | Underside of trunk lid right. See Figure . |
| Seat/Mirror Memory Control Module (A21) | Underside of LH front seat. |
| Servotronic Control Module (A17) | LH side of LH footwell. |
| Slip Control Module (ABS) (A7) | LH footwell. |

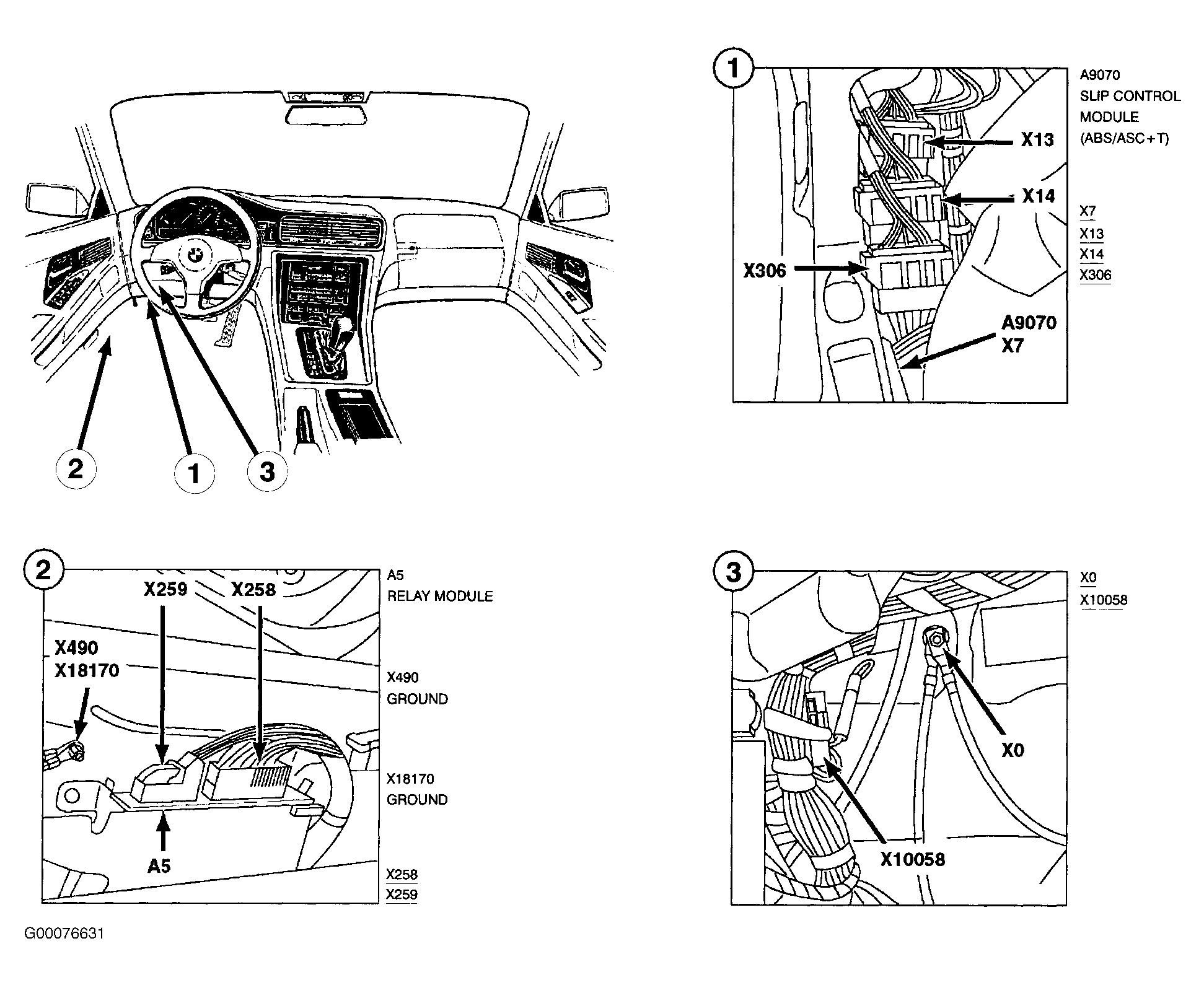

| Slip Control Module (ABS/ASC + T) (A9070) | LH footwell. See Figure & Figure . |
| Steering Column Memory Control Module (A34w & A34z) | Center of dash behind radio. |

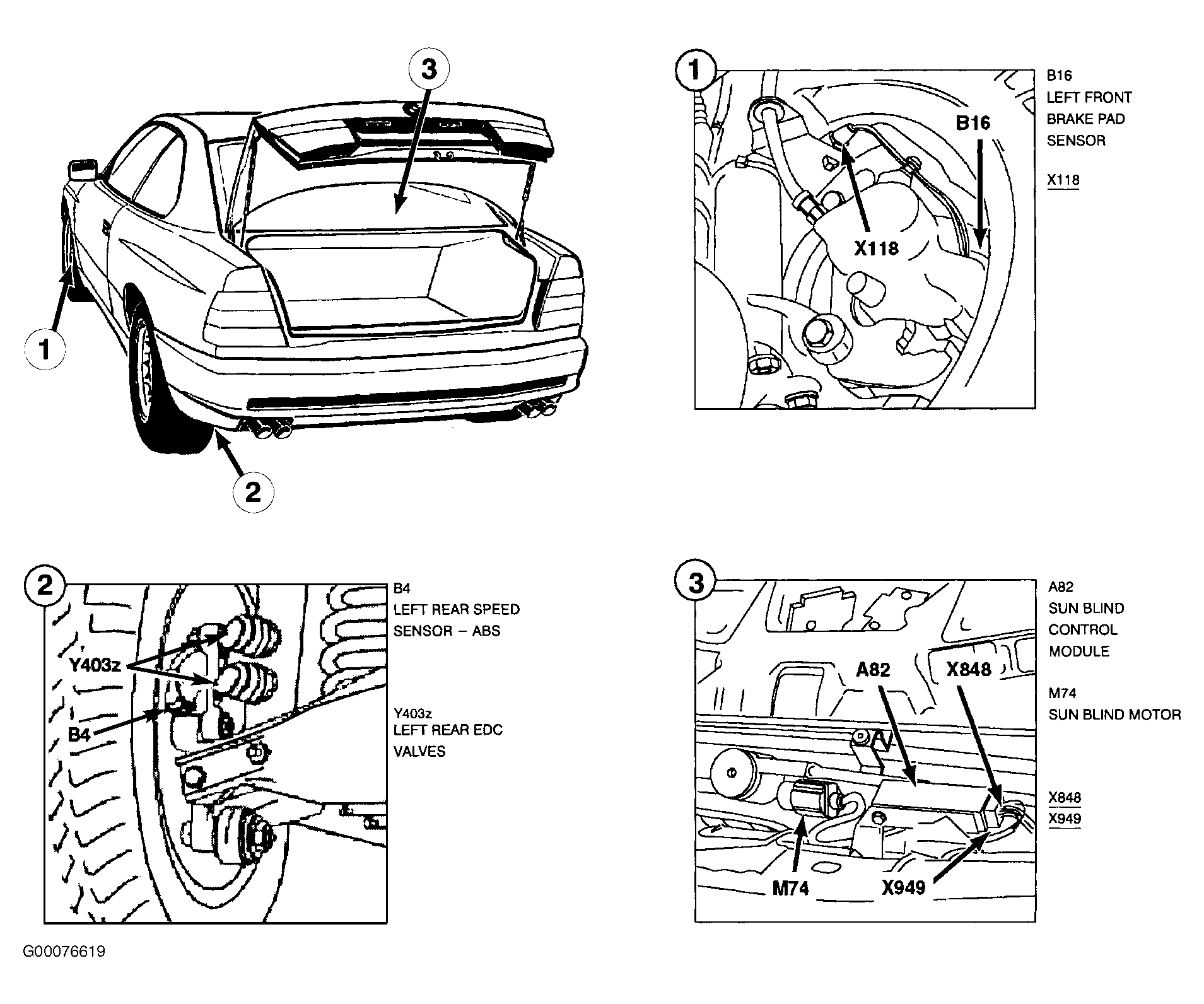

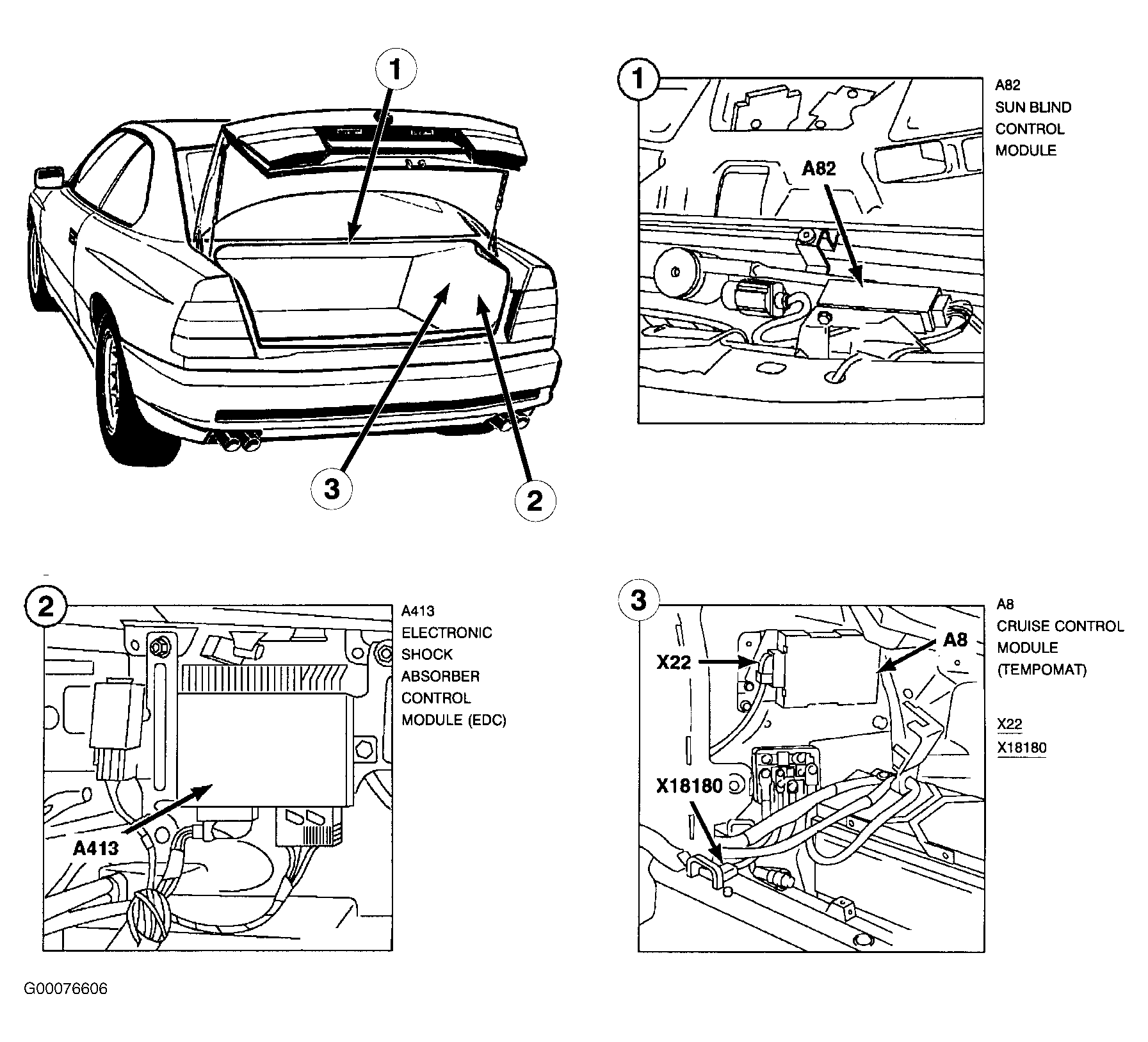

| Sun Blind Control Module (A82) | At back of rear window shelf. See Figure & Figure . |

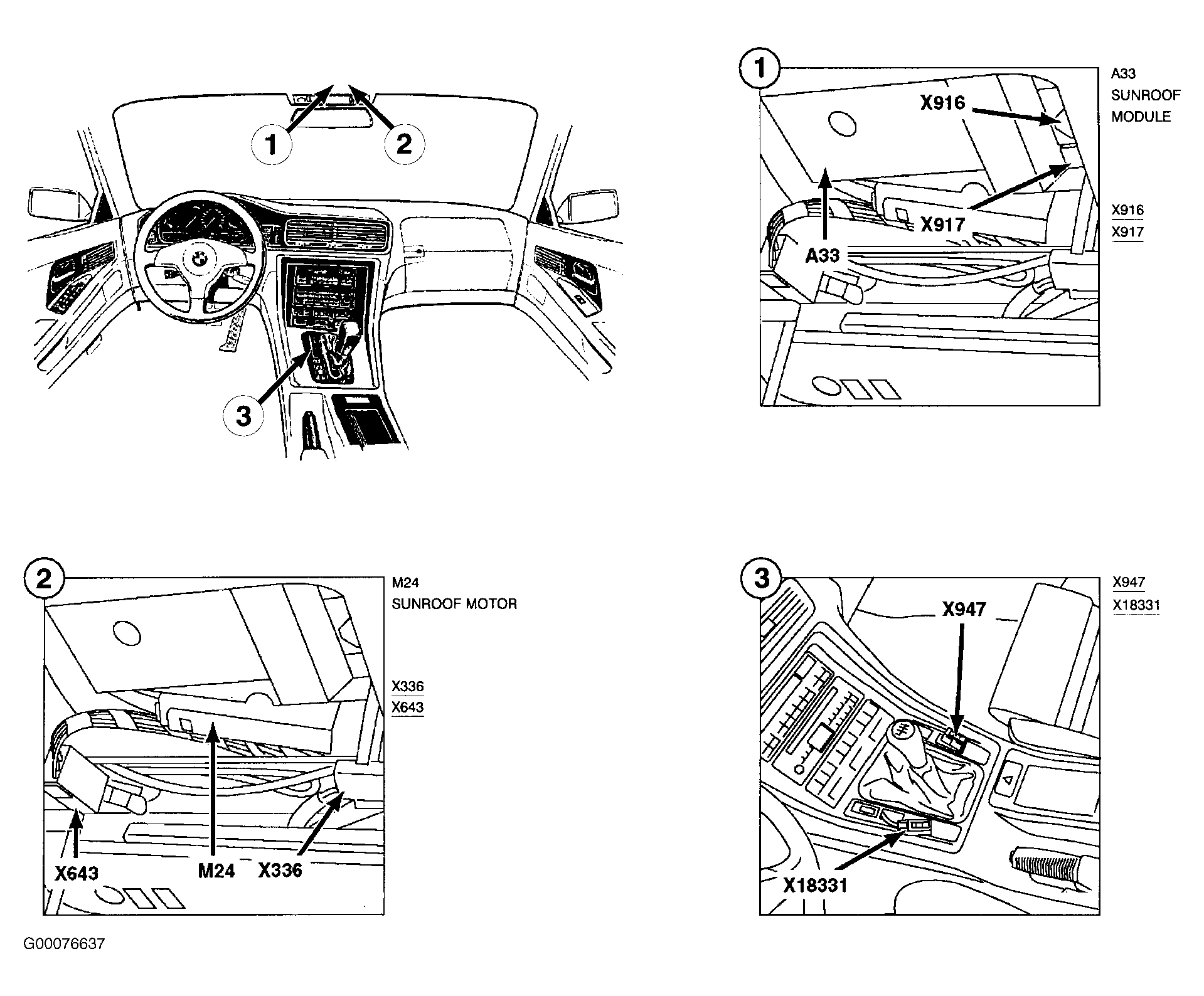

| Sunroof Module (A33) | Center of windshield header. See Figure & Figure . |
| Supplemental Restraint System Control Module (A12) | Below ashtray. |
| Throttle Control Module (EML) (A6004) | Rear RH side of engine compartment in E-Box (850Ci, 850CSi). See Figure . |
| Transmission Control Module (EGS) (A8500) | In RH rear side of luggage compartment (850Ci, 850CSi). |
| Transmission Control Module (EGS) (A8500) | Rear RH side of engine compartment in E-Box. See Figure . |
| Transmission Control Module (AGS) (A8600) | Rear RH side of engine compartment in E-Box. |
| Transmitter Module (EWS II) (A835) | RH side of steering column. |

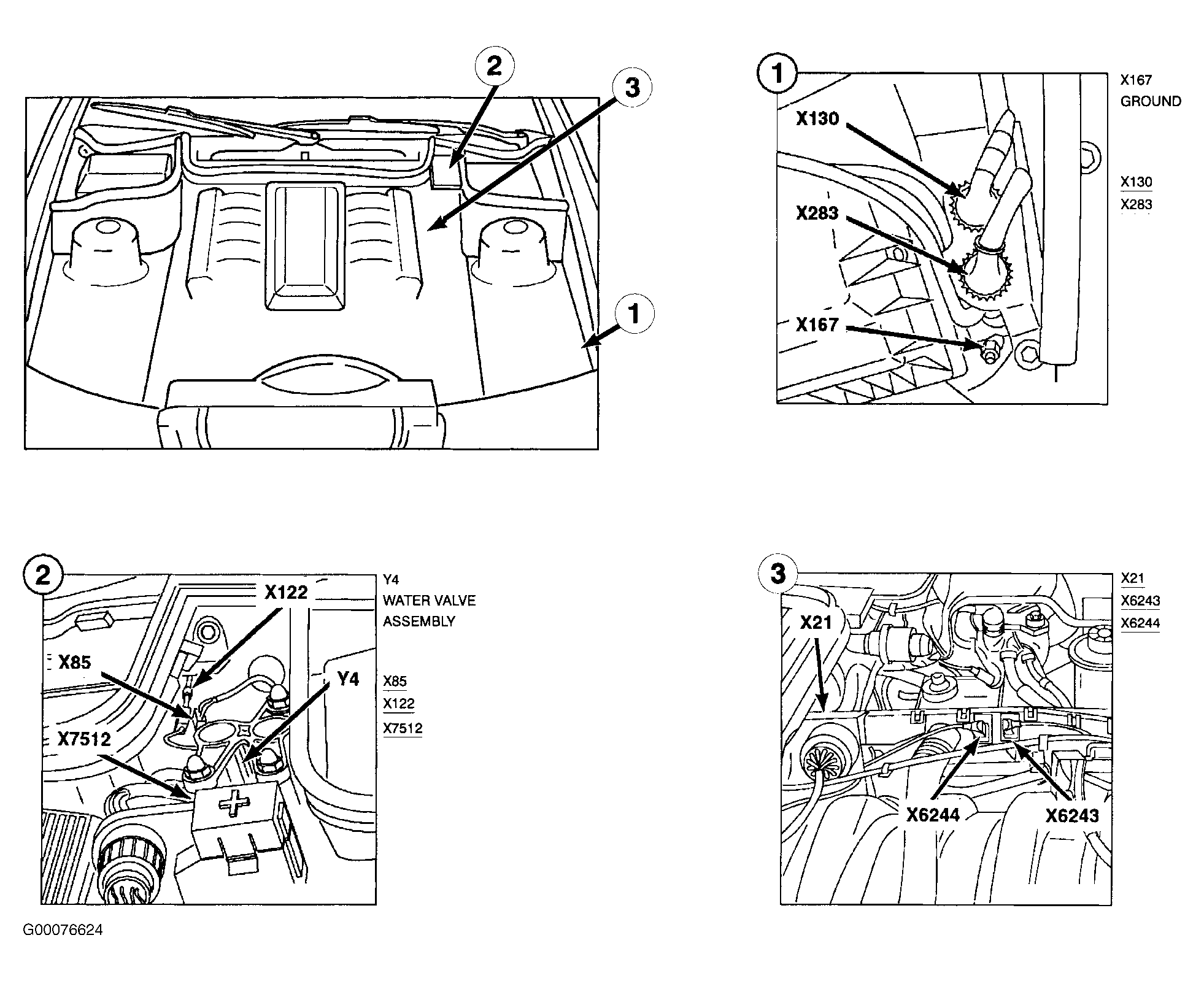

| Water Valve Assembly (Y4) | Rear LH side of engine compartment. See Figure . |
