Component Locations

COMPONENT LOCATIONS

Component Location
Body Computer Module (BCM) Behind Top Right Side Of Instrument Panel, Behind Glove Box. See Fig 1 .
Fuse Block Left Front Of Console. See Fig 2 .
Interior Relay Center Right Front Of Console. See Fig 3 .
Power Window Motor In Front Of Respective Door. See Fig 4 .
C200 (56 Cavities) Behind Right Side Of Instrument Panel, Near Right Shroud. See Fig 5 .
G301 Top Of Left Shroud. See Fig 7 .
P500 Center Front Of Left Door. See Fig 4 .
P600 Center Front Of Right Door. See Fig 4 .
S226 In Dash Harness, Behind Center Of Instrument Panel, In Interior Relay Center Breakout.
S227 In Dash Harness, Behind Right Side Of Instrument Panel, At Shroud, In Dash Channel. See Fig 1 .
S317 In Main Body Harness, Below Right Side Of Right Front Seat. See Fig 6 .
S535 In Main Body Harness, In Front Portion Of Left Door. See Fig 4 .

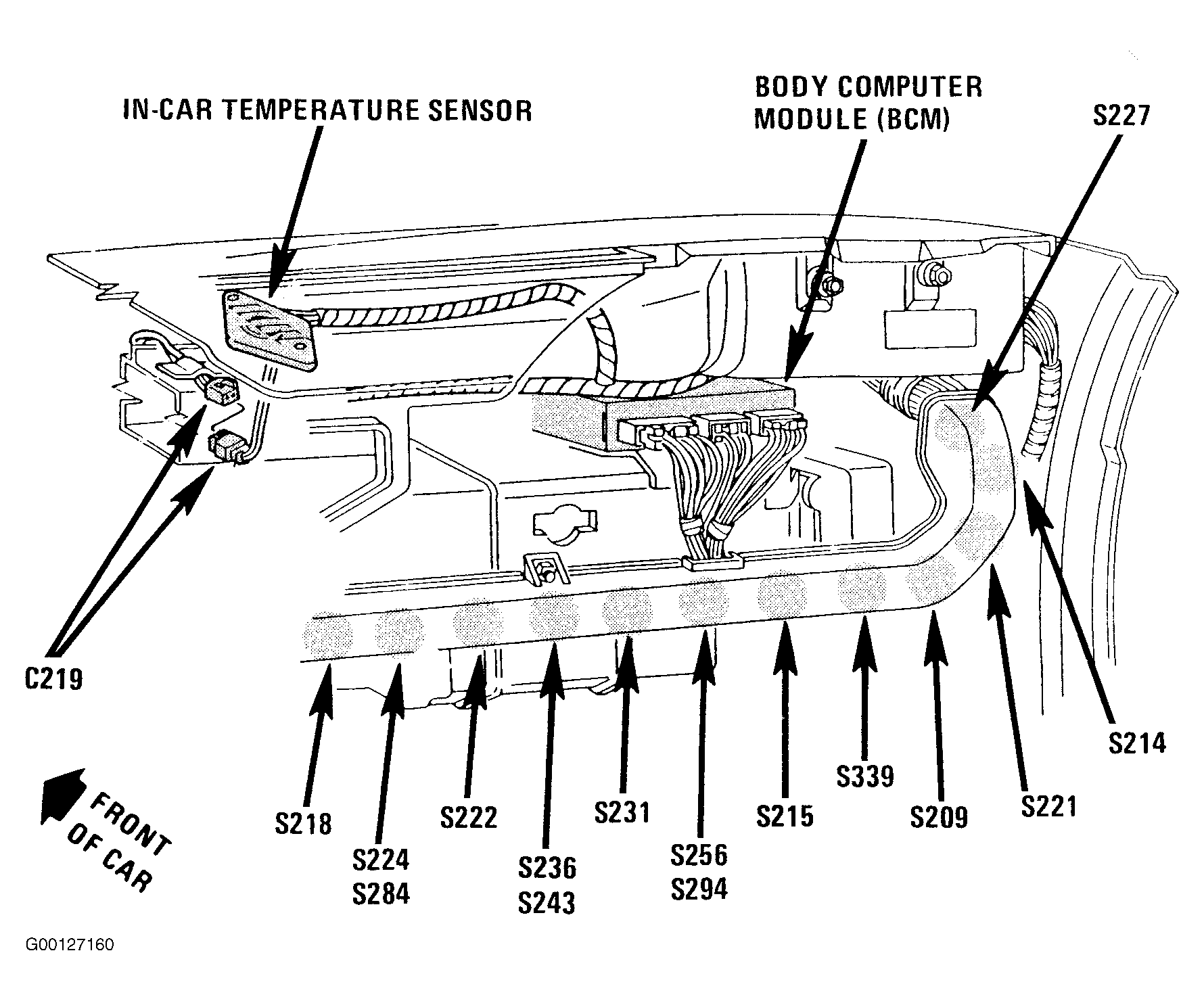

Fig 1: Locating Body Computer Module (BCM) & Splice S227
G00127160Courtesy of GENERAL MOTORS CORP.

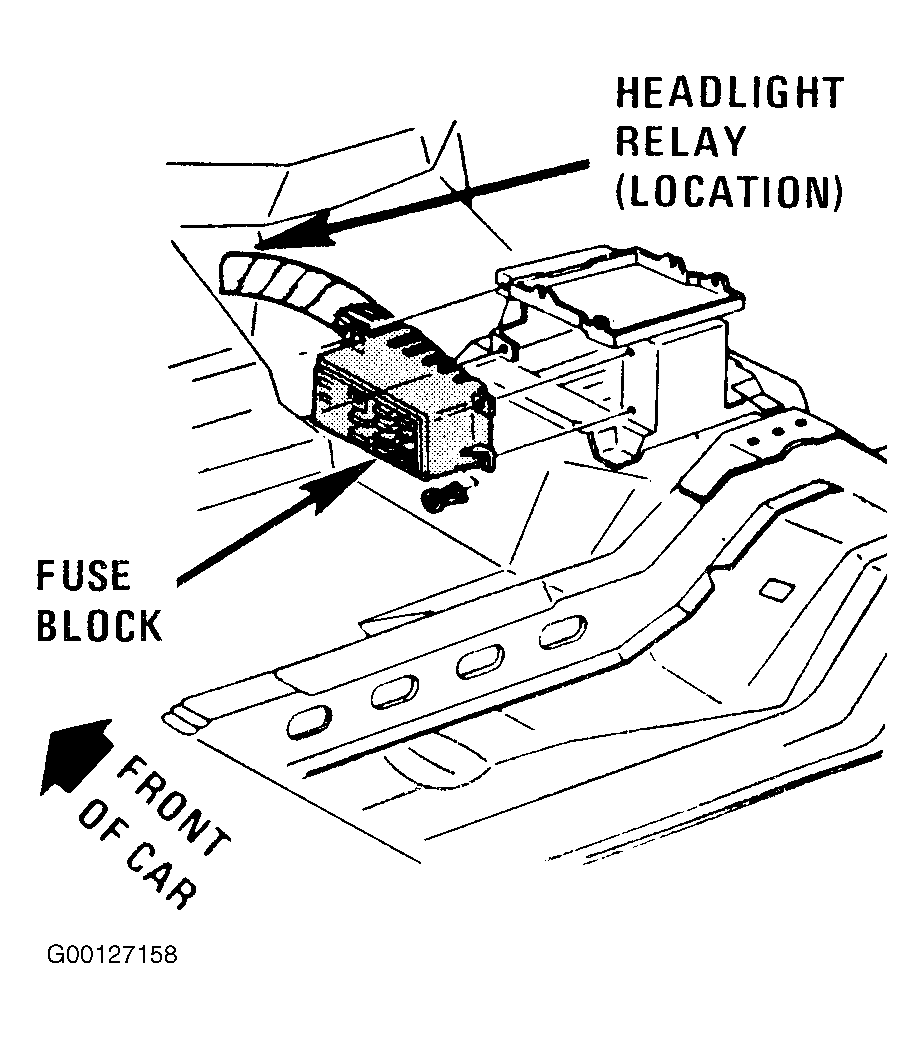

Fig 2: Locating Fuse Block
G00127158Courtesy of GENERAL MOTORS CORP.

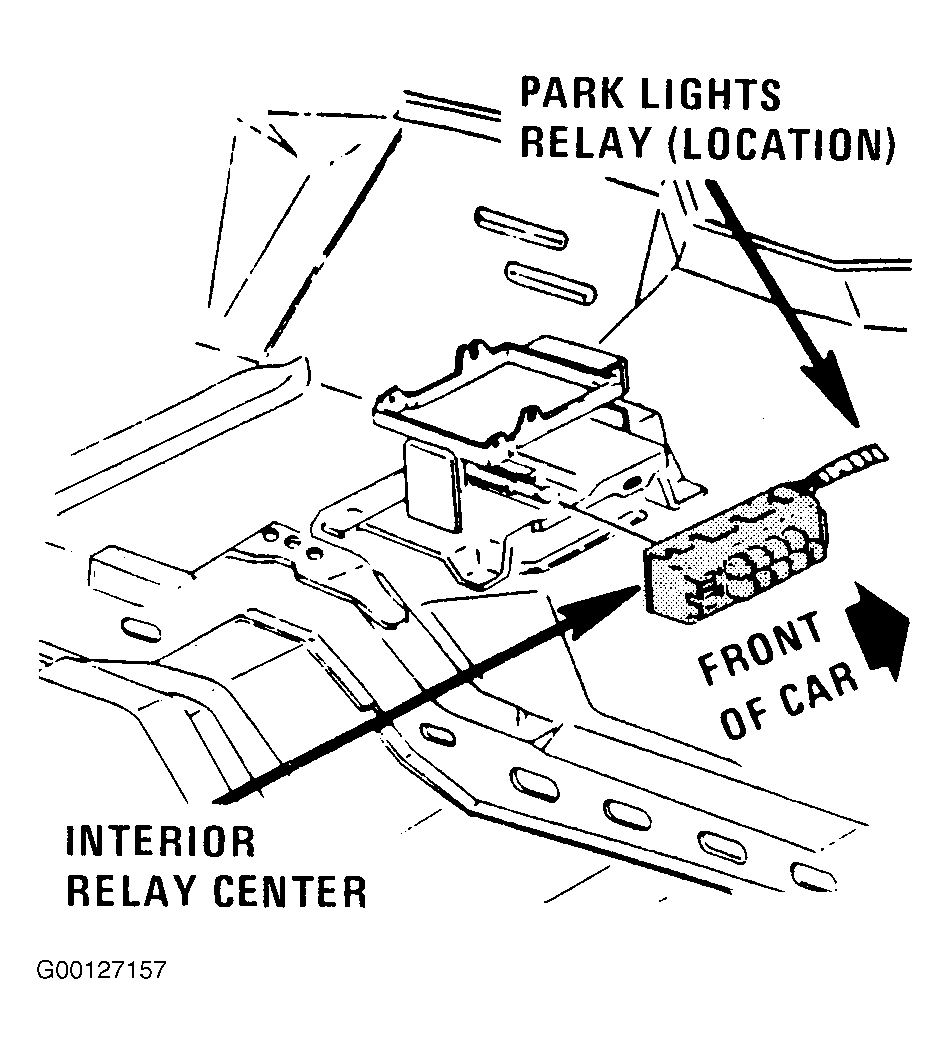

Fig 3: Locating Interior Relay Center
G00127157Courtesy of GENERAL MOTORS CORP.

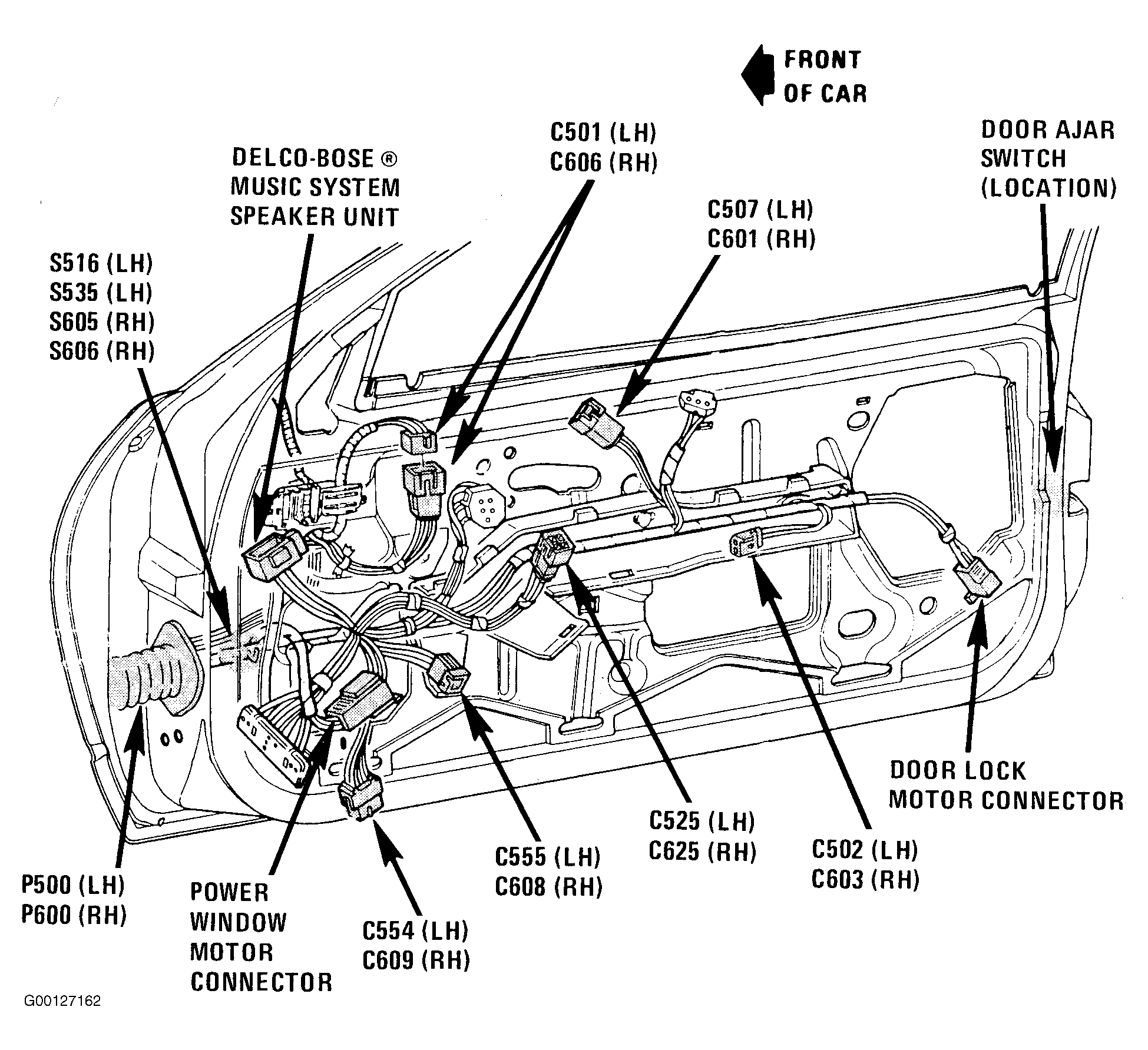

Fig 4: Locating Power Window Motor Connectors, Pass Though Grommets P500 & P600, & Splice S535
G00127162Courtesy of GENERAL MOTORS CORP.

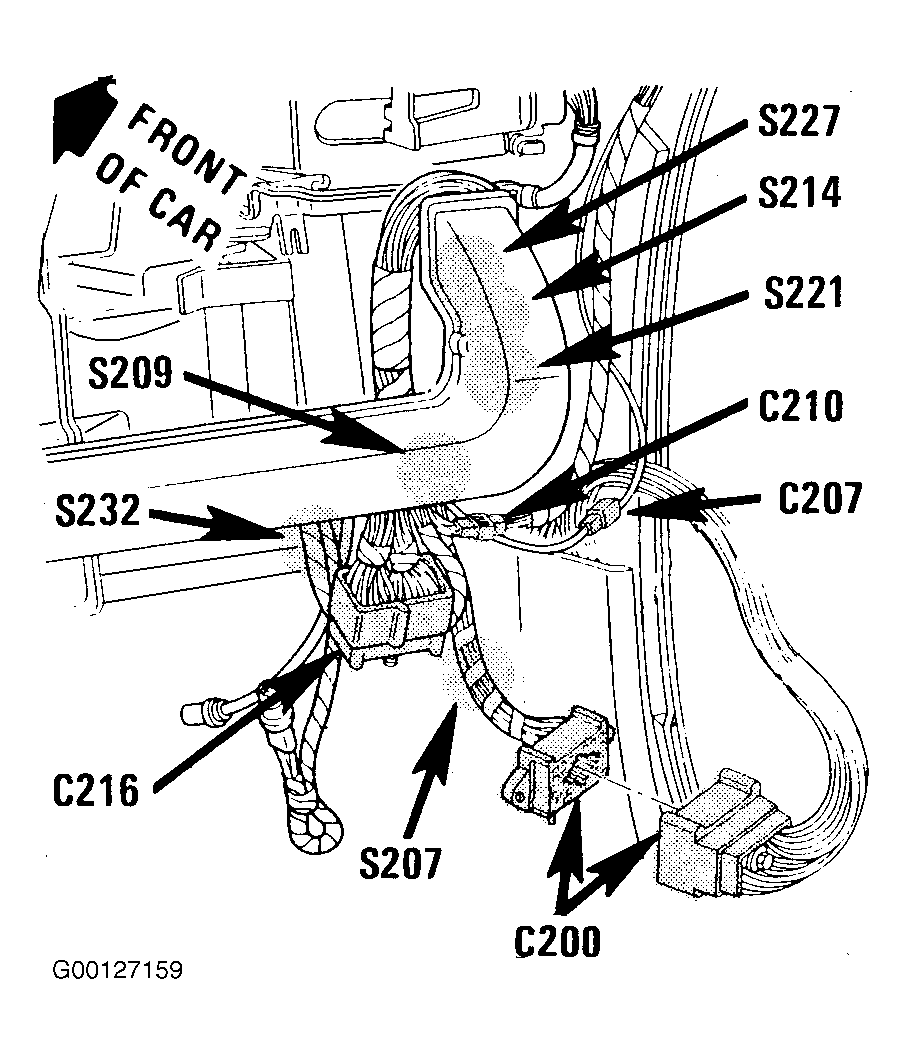

Fig 5: Locating Connector C200
G00127159Courtesy of GENERAL MOTORS CORP.

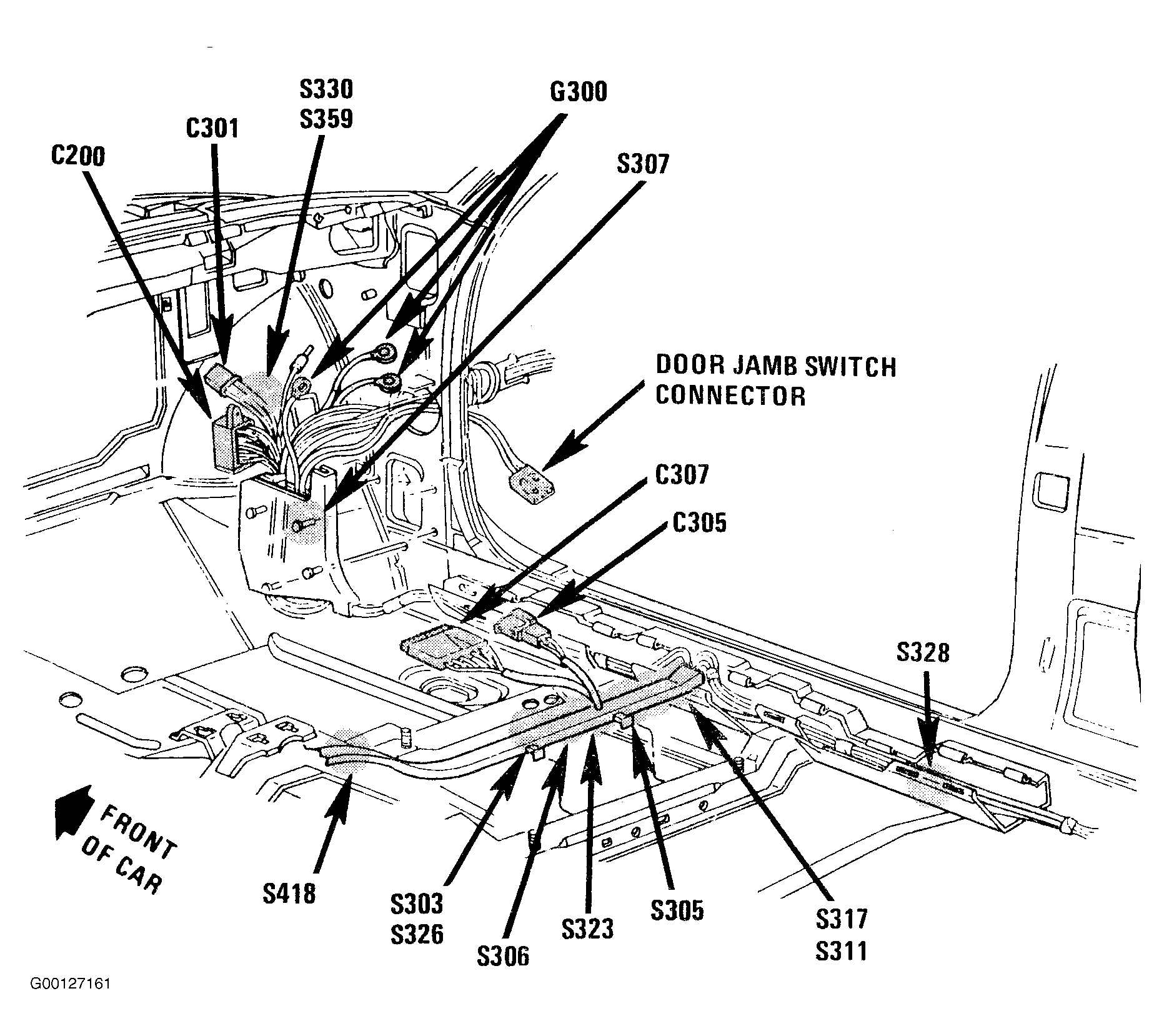

Fig 6: Locating Splice S317
G00127161Courtesy of GENERAL MOTORS CORP.

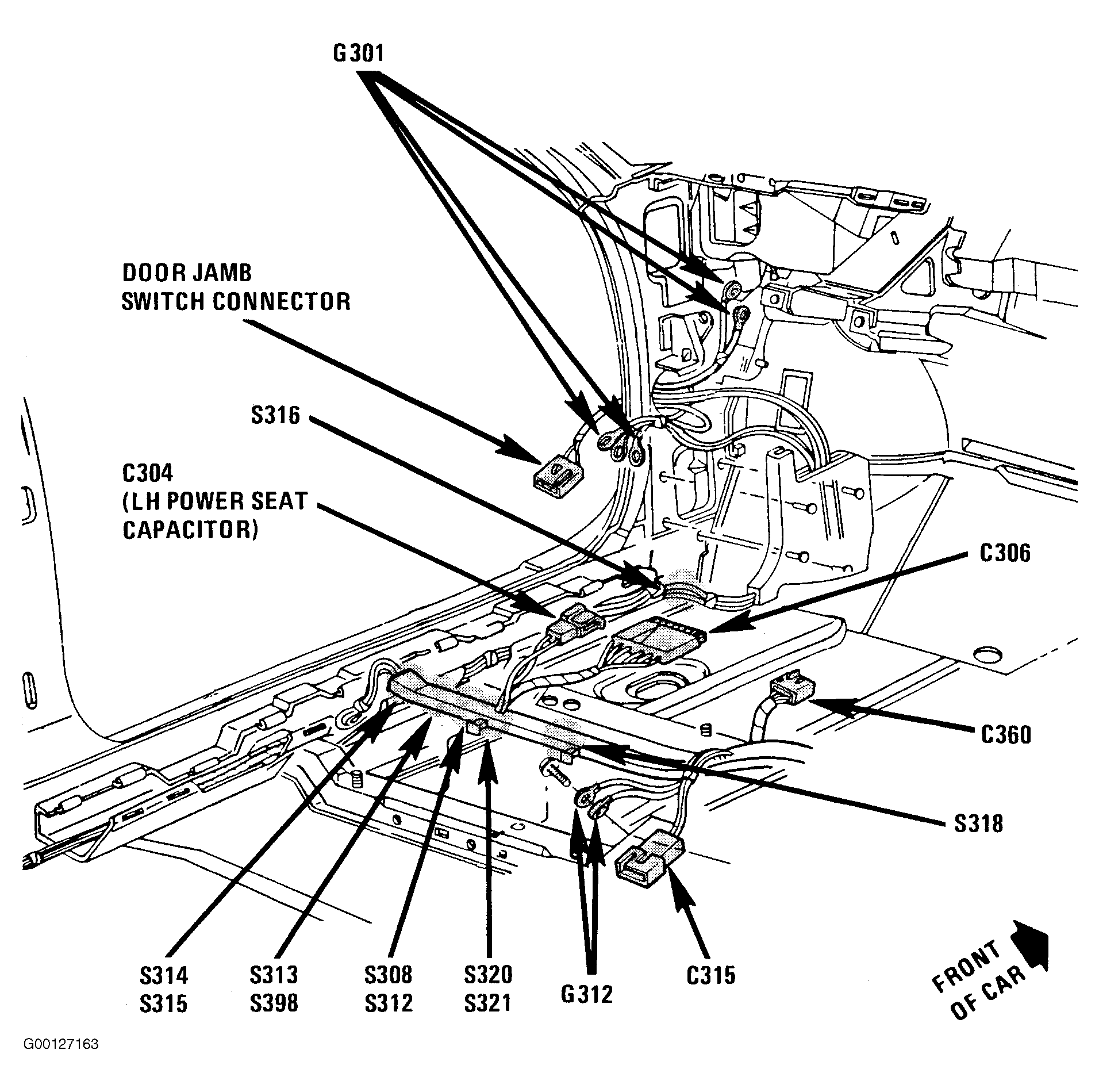

Fig 7: Locating Ground G301
G00127163Courtesy of GENERAL MOTORS CORP.
