Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

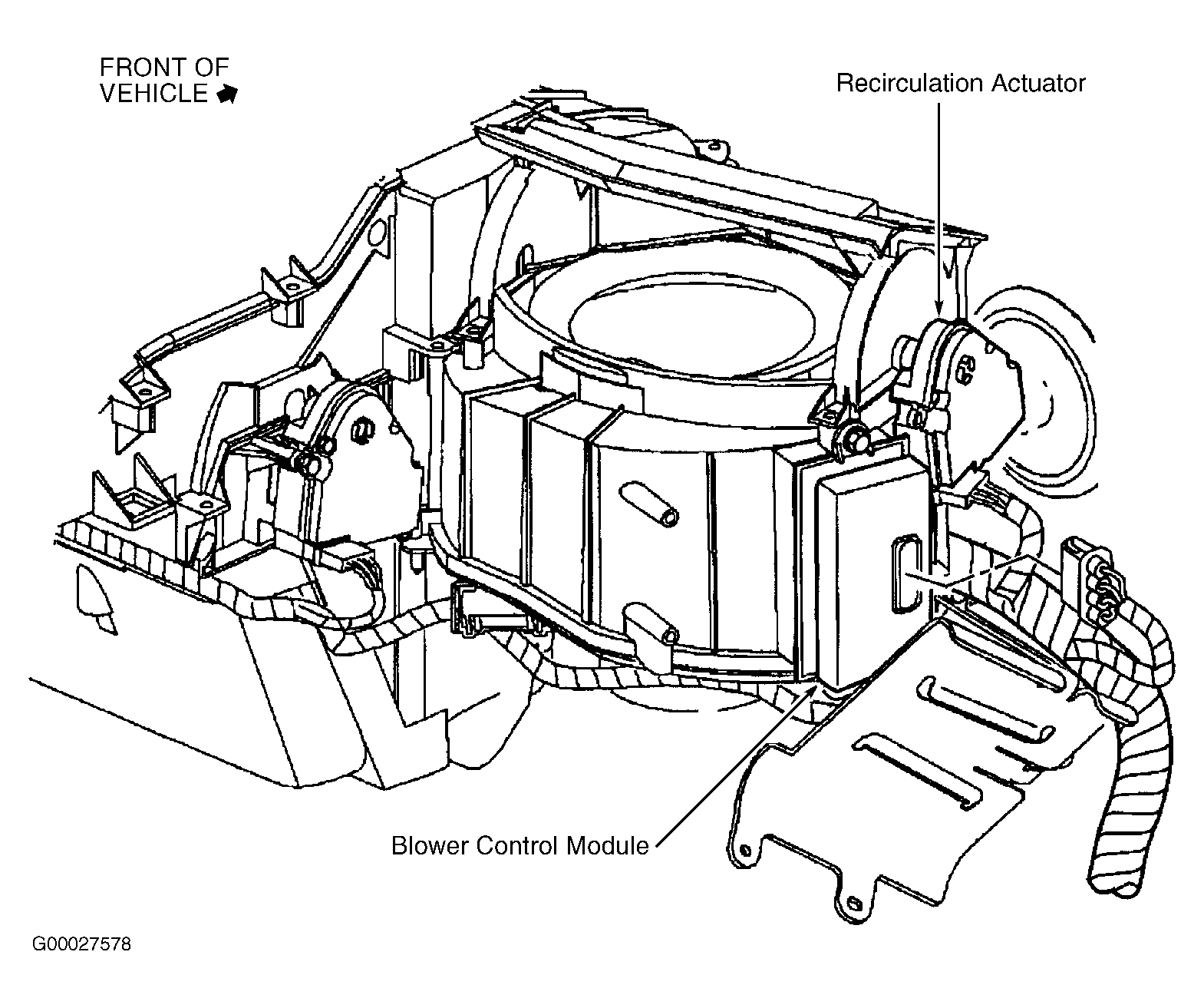

| Blower Control Module | Under right side of dash, right of blower motor. See Figure . |
| Communiport Cellular Telephone Module | Behind right rear seat back. See Figure . |
| Cruise Control Module | Near power brake booster. See Figure . |
| Dash Integration Module (DIM) | Behind right side of dash, near blower motor. |
| Electronic Brake Control Module (EBCM) | Under air cleaner housing. |
| Electronic Suspension Control Module | Behind right rear seat back. |
| Ignition Control (IC) Module (Bank 1) | On top right side of engine, under intake manifold top cover. |
| Ignition Control (IC) Module (Bank 2) | On top left side of engine, under intake manifold top cover. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under rear of center console. |
| Instrument Panel Integration Module (IPM) | Above radio. |
| Left Rear Heated Seat Module | In center of rear seat back. See Figure . |
| Memory Seat Module (MSM) | Under driver's seat. |
| Navigation Data Processor | Behind left rear seat back. |
| Powertrain Control Module (PCM) | At left side of engine compartment, inside air cleaner. |
| Radio Antenna Module | Behind rear center of headliner. |
| Rear Integration Module (RIM) | Behind right rear seat back. See Figure . |
| Rear Object Sensor Control Module | At right side of rear compartment. See Figure . |
| Rear Window Sunshade Module | Under center of rear package shelf. |
| Remote Function Actuator (RFA) Module (W/ B9Q) | Above left rear wheelwell. |
| Remote Function Actuator (RFA) Module (W/O B9Q) | Under center of rear package tray. |
| Right Rear Heated Seat Module | In center of rear seat back. See Figure . |
| Seat Belt Control Module | In center of rear seat back. See Figure . |
| Steering Column Module | In steering column. |
| Sun Roof Control Module | Near rear of sun roof. |
| Theft Deterrent Module | In steering column. |
