Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

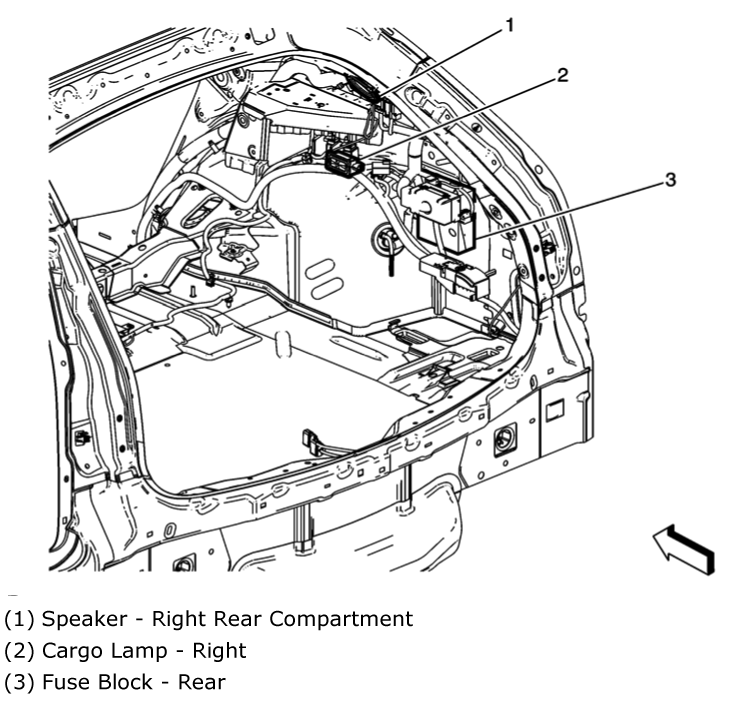

| Fuse Block - Rear (Sedan) | Right rear of luggage compartment. See Figure. |
| Fuse Block - Rear (Wagon) | Right rear of luggage compartment. See Figure. |

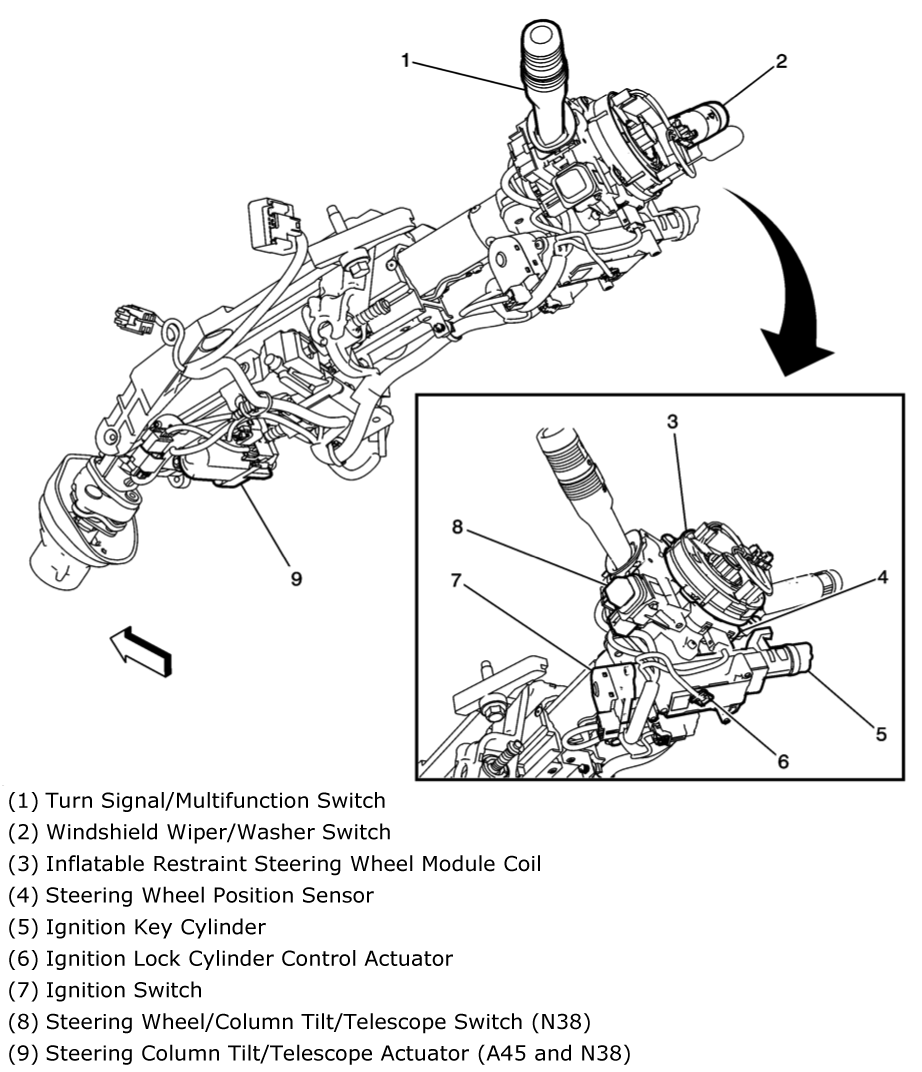

| Fuse Block (Steering Column) (12) | Base of steering column. See Figure. |

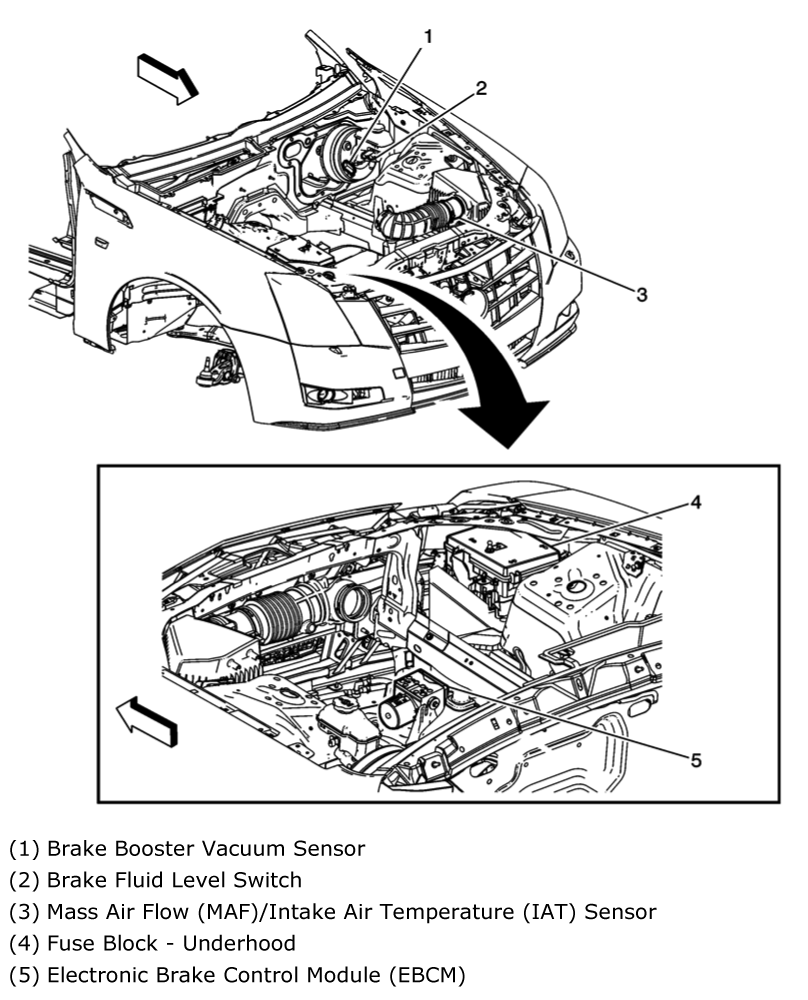

| Underhood Fuse Block | Right front of engine compartment. See Figure. |
