Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

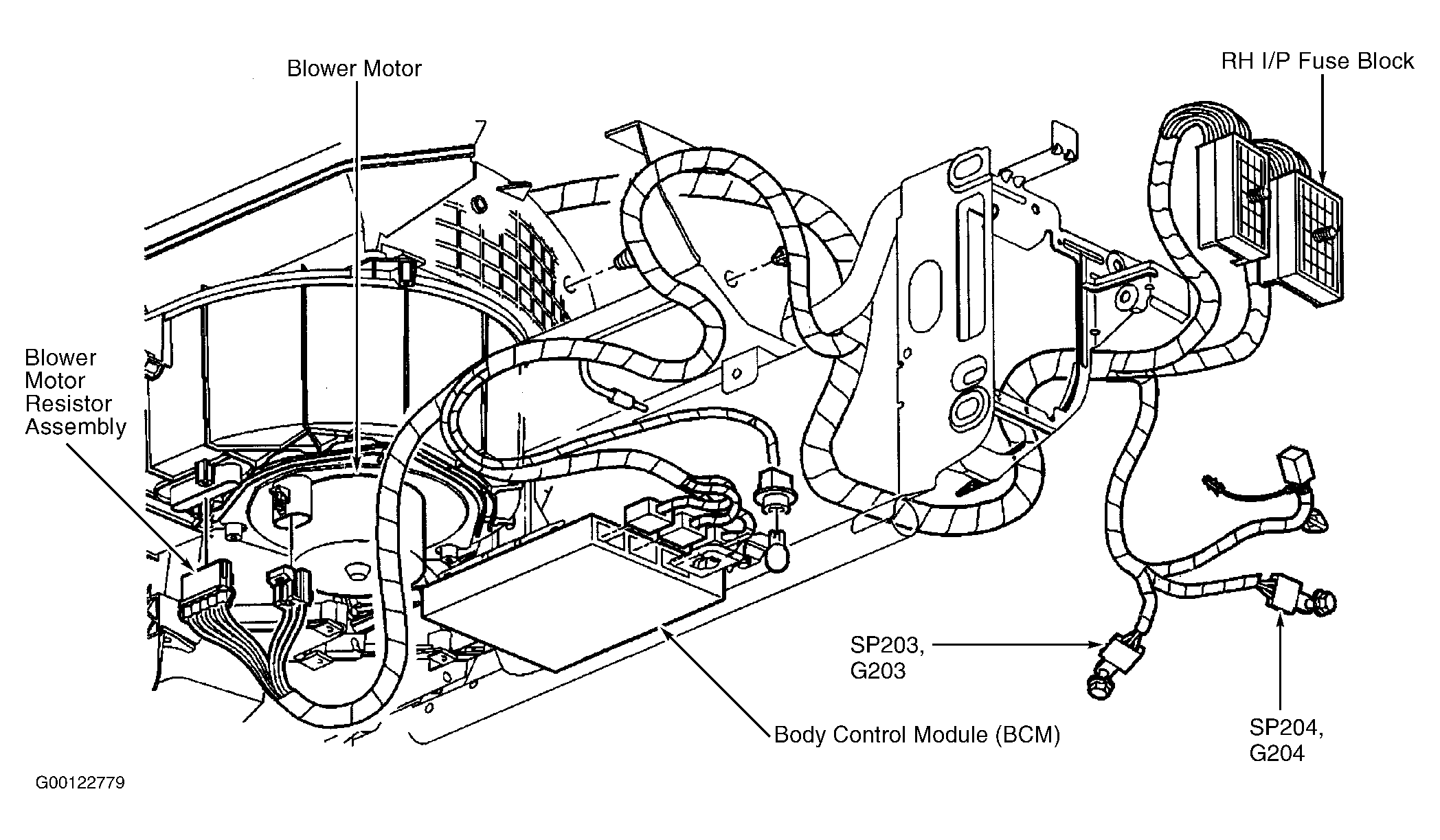

| Body Control Module (BCM) | Below right side of dash, near blower motor. See Figure. |
| Brake Pressure Modulator Valve (BPMV) | At lower left front of engine compartment. |

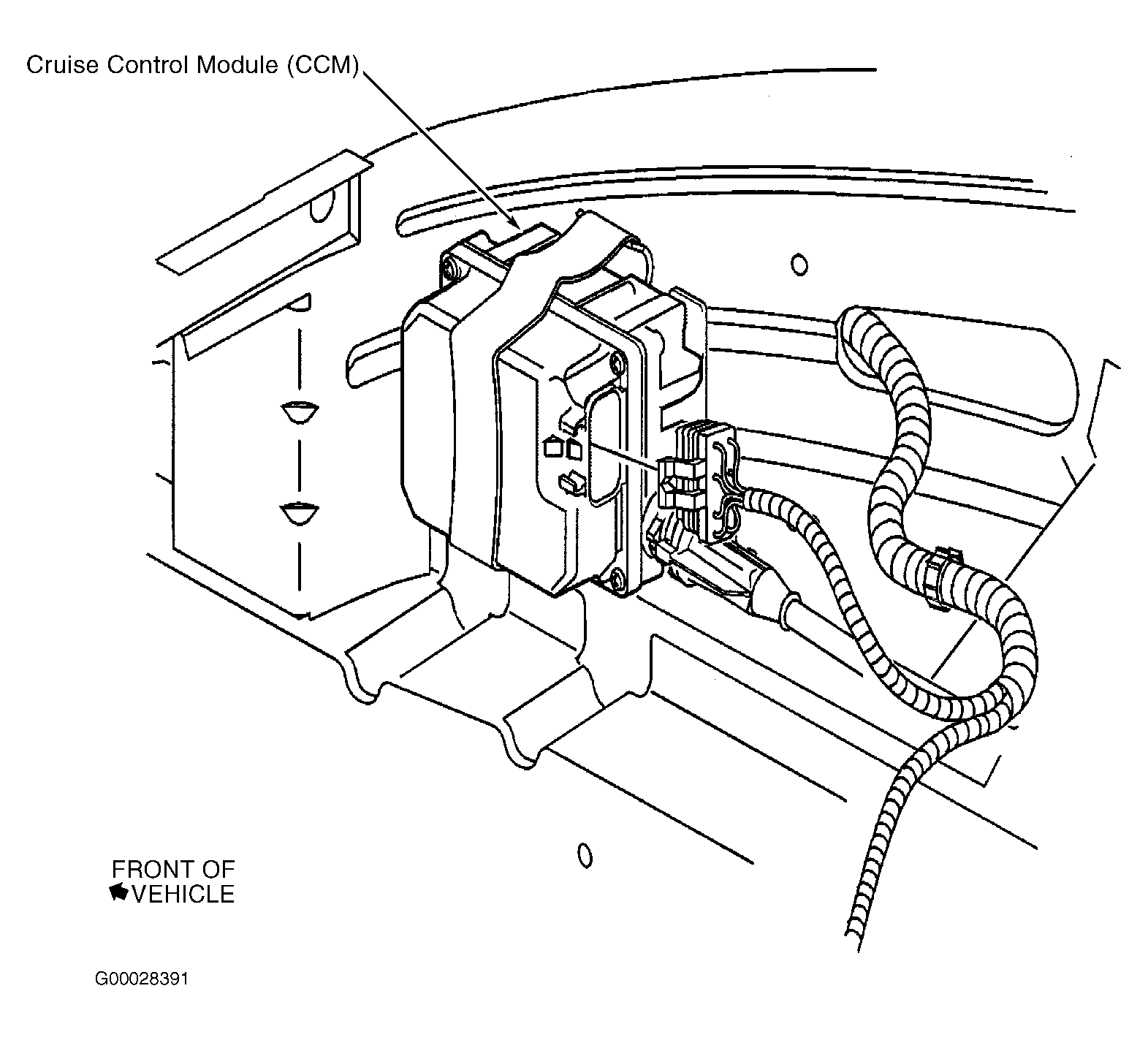

| Cruise Control Module (CCM) | On right side of engine compartment. See Figure. |
| Electronic Brake Control Module (EBCM) | Inside left front fender. |

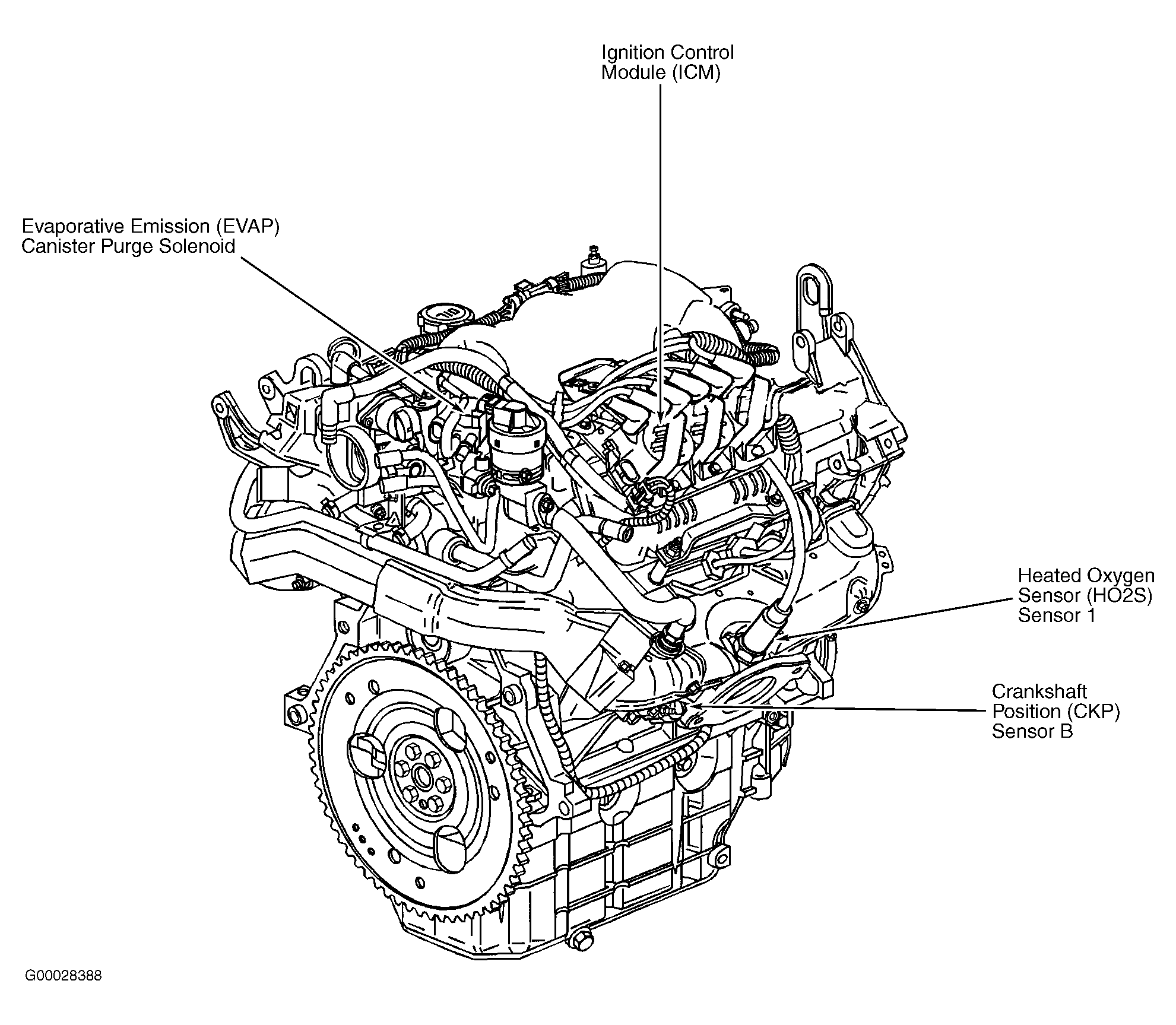

| Ignition Control Module (ICM) | On top right side of engine. See Figure. |
| I/P Dimmer Module | On left side of dash. |
| Powertrain Control Module (PCM) | Below left side of dash, near steering column. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | On rear package shelf. |
| Sensing & Diagnostic Module (SDM) | Under right front seat. |
