Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Fuse Block Connector - Underhood | Below underhood fuse block. See Figure. |
| Fuse Block - I/P | On lower left side of dash. See Figure. |
| Fuse Block - Mobile Radio | Right side of dash. |

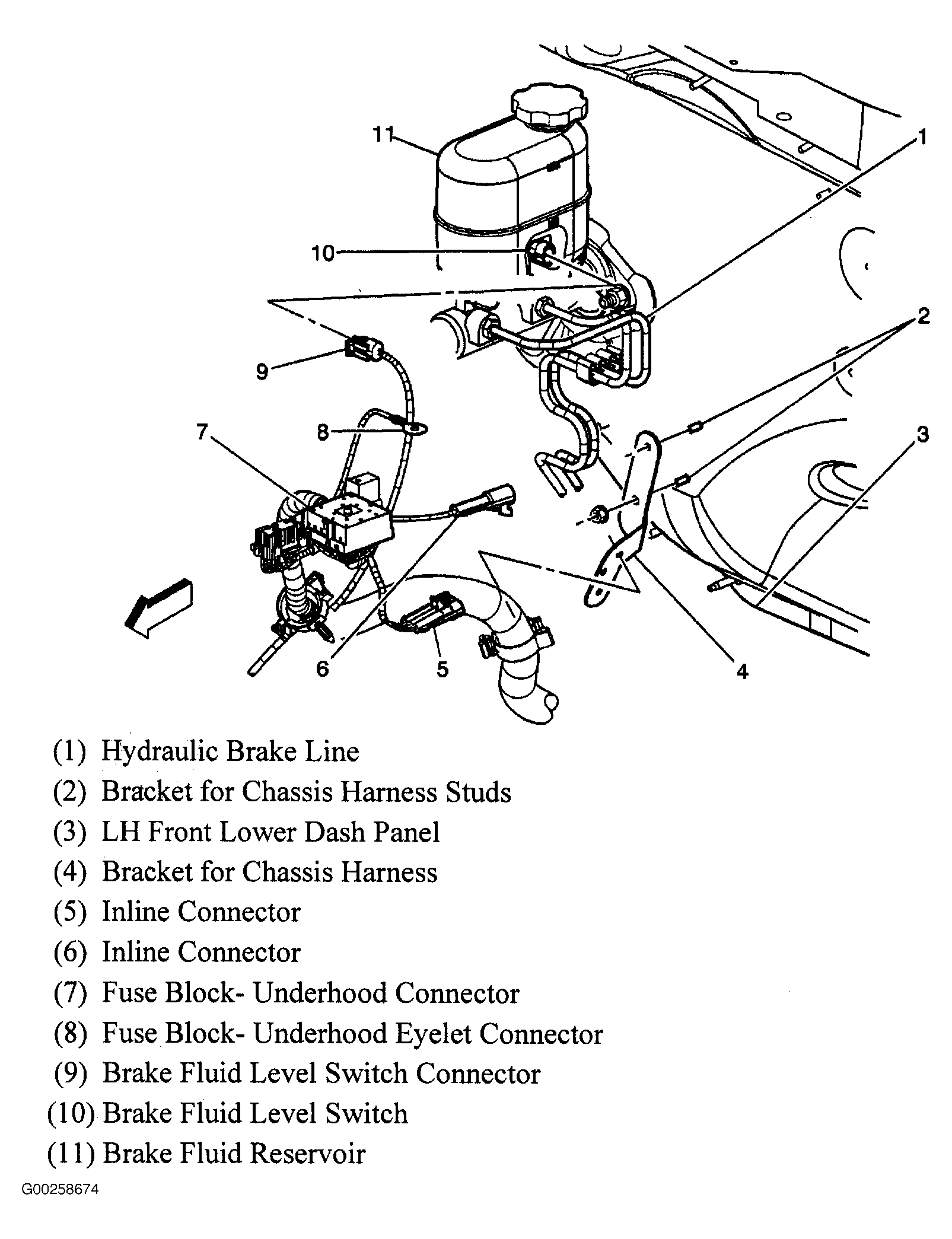

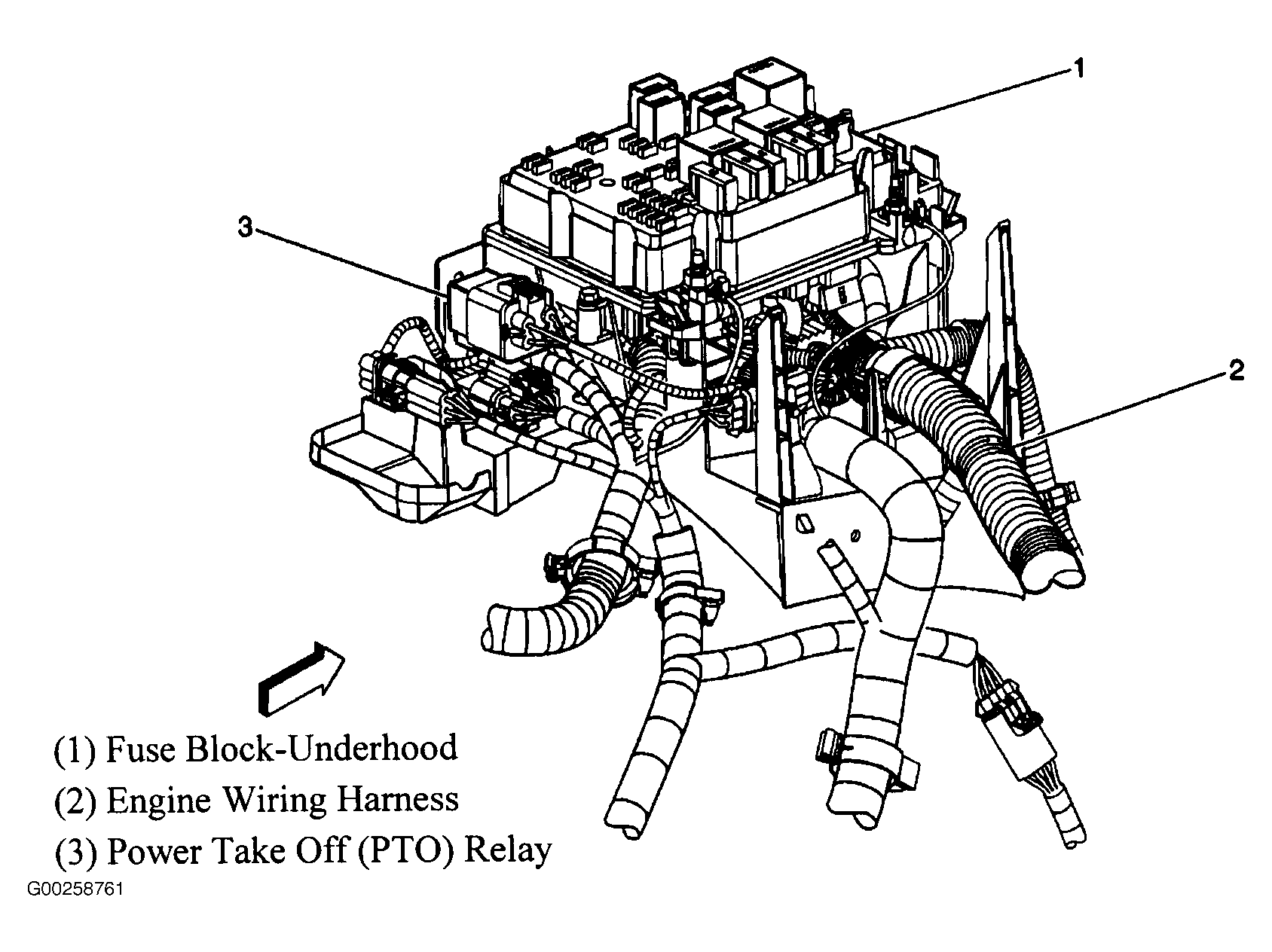

| Fuse Block - Underhood | At left side of engine compartment. See Figure. |
| Fuse Block - Underhood Cooling Fan (10 Series) | Left side of engine compartment, rear of battery. |
| Fuse Block - Underhood Secondary (HP2) | Left side of engine compartment, rear of battery. |

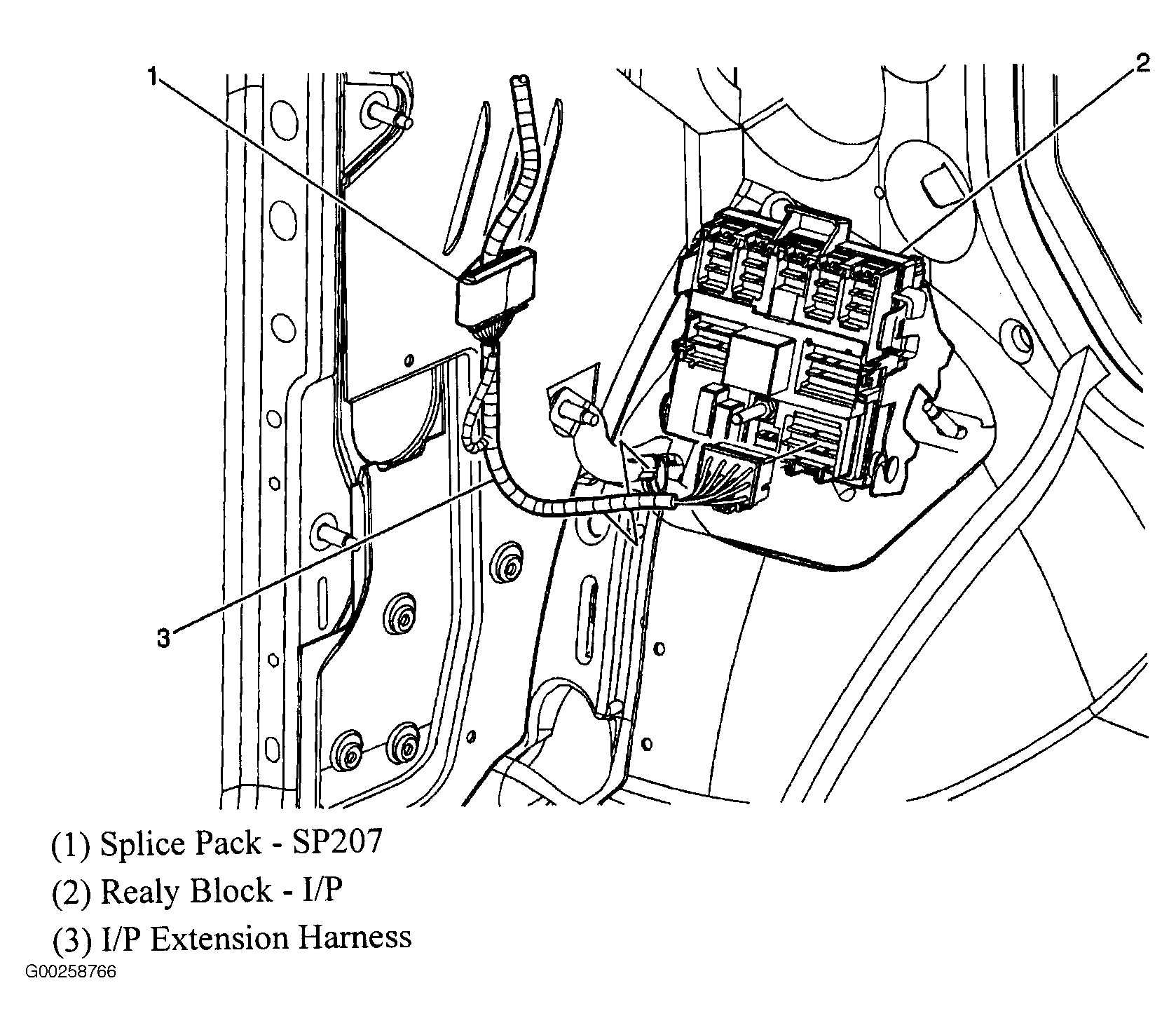

| I/P Relay Block | Near left kick panel. See Figure. |
| Junction Block - I/P | Right side of dash, behind access panel. |
| Junction Block - Rear | Inside left frame rail, near rear of vehicle. |
| Underhood Fuse Block Eyelet Connector | On underhood fuse block. See Figure. |
