Valve Body: Installation

  1. Install valve body into position and start bolts. Torque valve body to transaxle case bolts to 12 N.m (105 in. lbs.) torque. See Fig 1.

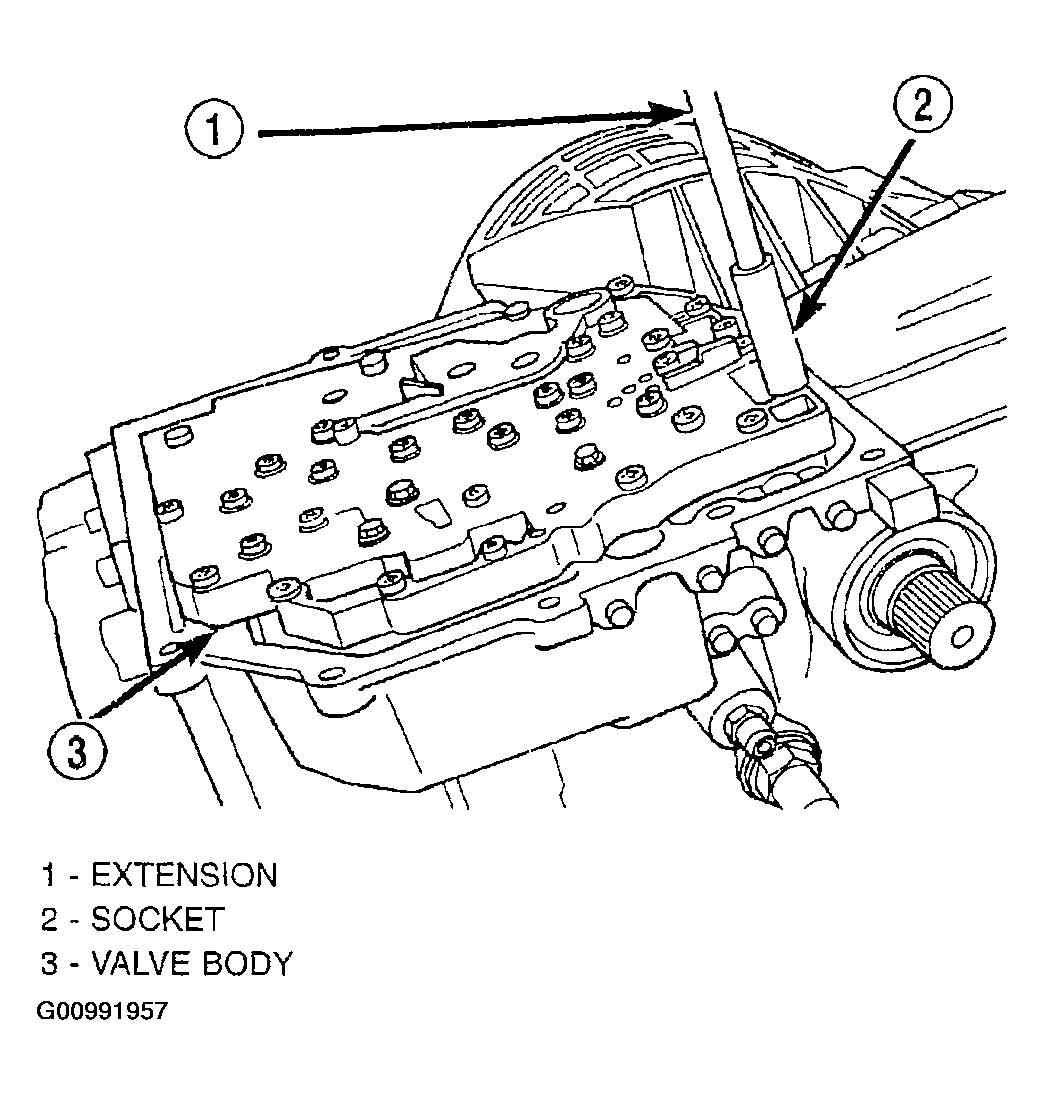

    Fig 1: Installing Valve Body Bolts
    G00991957Courtesy of DAIMLERCHRYSLER CORP.
  2. Install transaxle oil filter. See Fig 2.

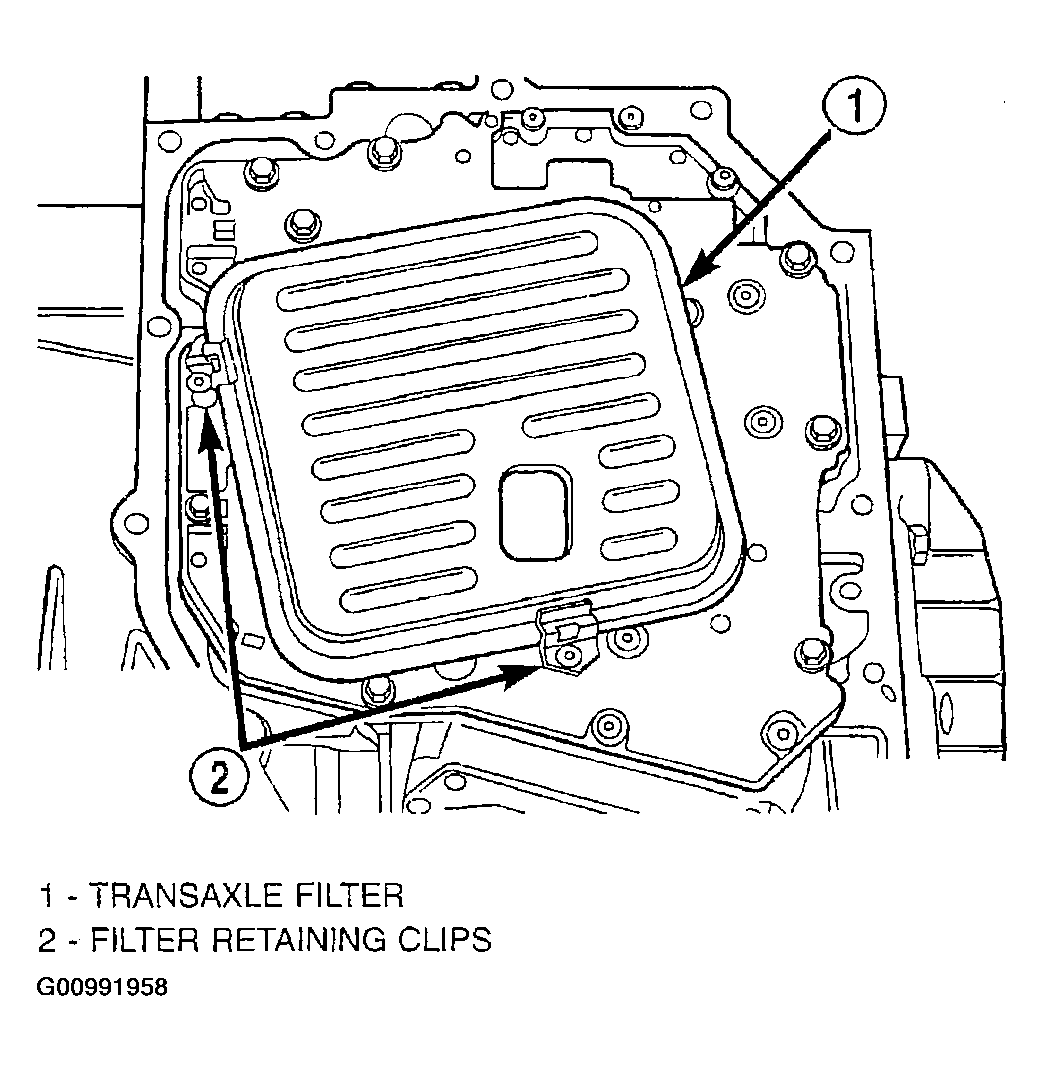

    Fig 2: Installing Transaxle Oil Filter
    G00991958Courtesy of DAIMLERCHRYSLER CORP.
  3. Make sure oil pan and case rail are clean and dry. Install an 1/8" bead of RTV to the transaxle oil pan and install to case. Tighten bolts to 23 N.m (17 ft. lbs.). See Fig 3.

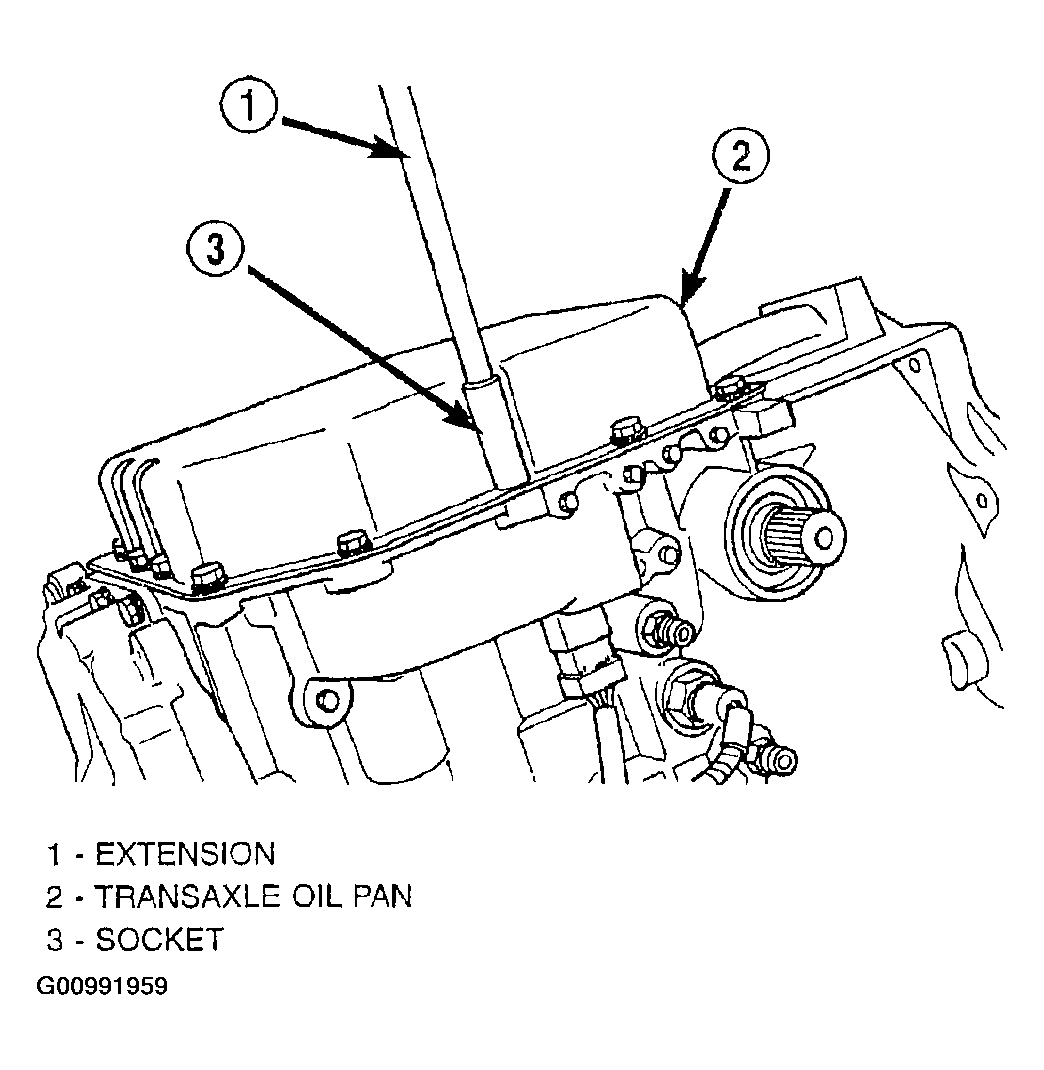

    Fig 3: Installing Transaxle Oil Pan Bolts
    G00991959Courtesy of DAIMLERCHRYSLER CORP.
  4. Lower vehicle and connect the TRS connector.
  5. Connect solenoid/pressure switch assembly connector.
  6. Lower vehicle.
  7. Fill transaxle with ATF+4 (Automatic Transmission Fluid-Type MS-9602). Verify proper fluid level. (Refer to STANDARD PROCEDURE - FLUID LEVEL AND CONDITION CHECK )
NOTE: If the valve body has been reconditioned or replaced, it is necessary to perform the Quick Learn Procedure. (Refer to SHIFT QUALITY QUICK-LEARN PROCEDURE (2002) or TRANSAXLE SHIFT QUALITY QUICK LEARN PROCEDURE (2003))
