Shift Mechanism: Installation

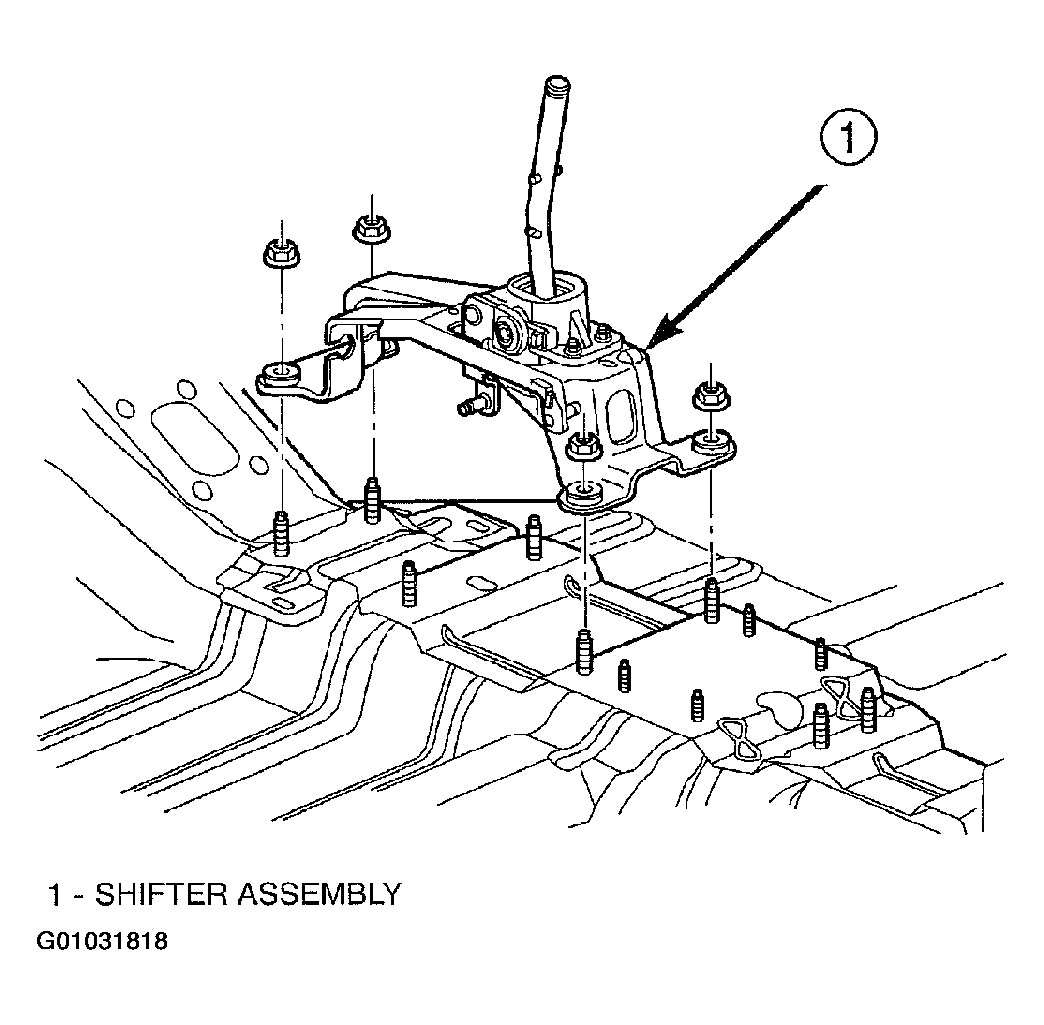

  1. Install shifter assembly. to floor pan. (Figure). Install and tighten four nuts to 12 N.m (105 in. lbs.).

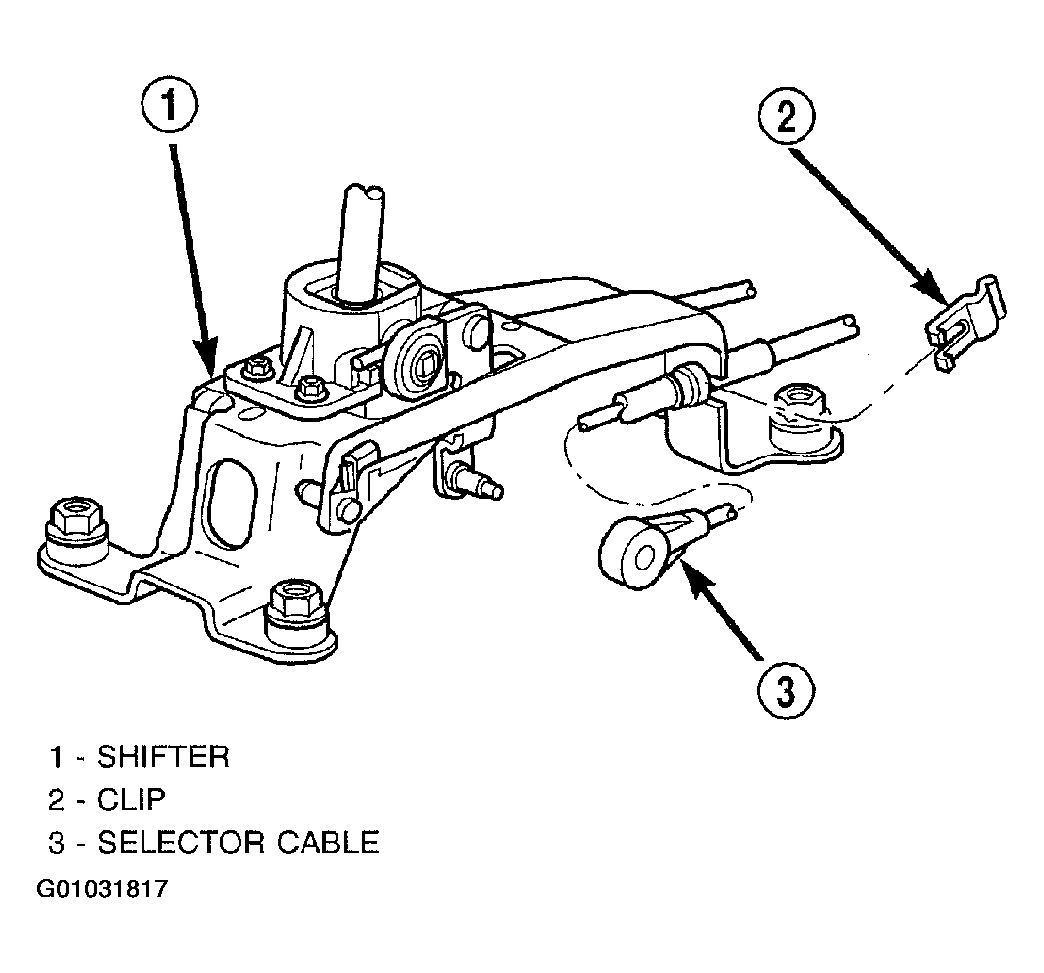

  2. Install selector cable to shifter lever and secure cable to shifter bracket. Install clip. (Figure).

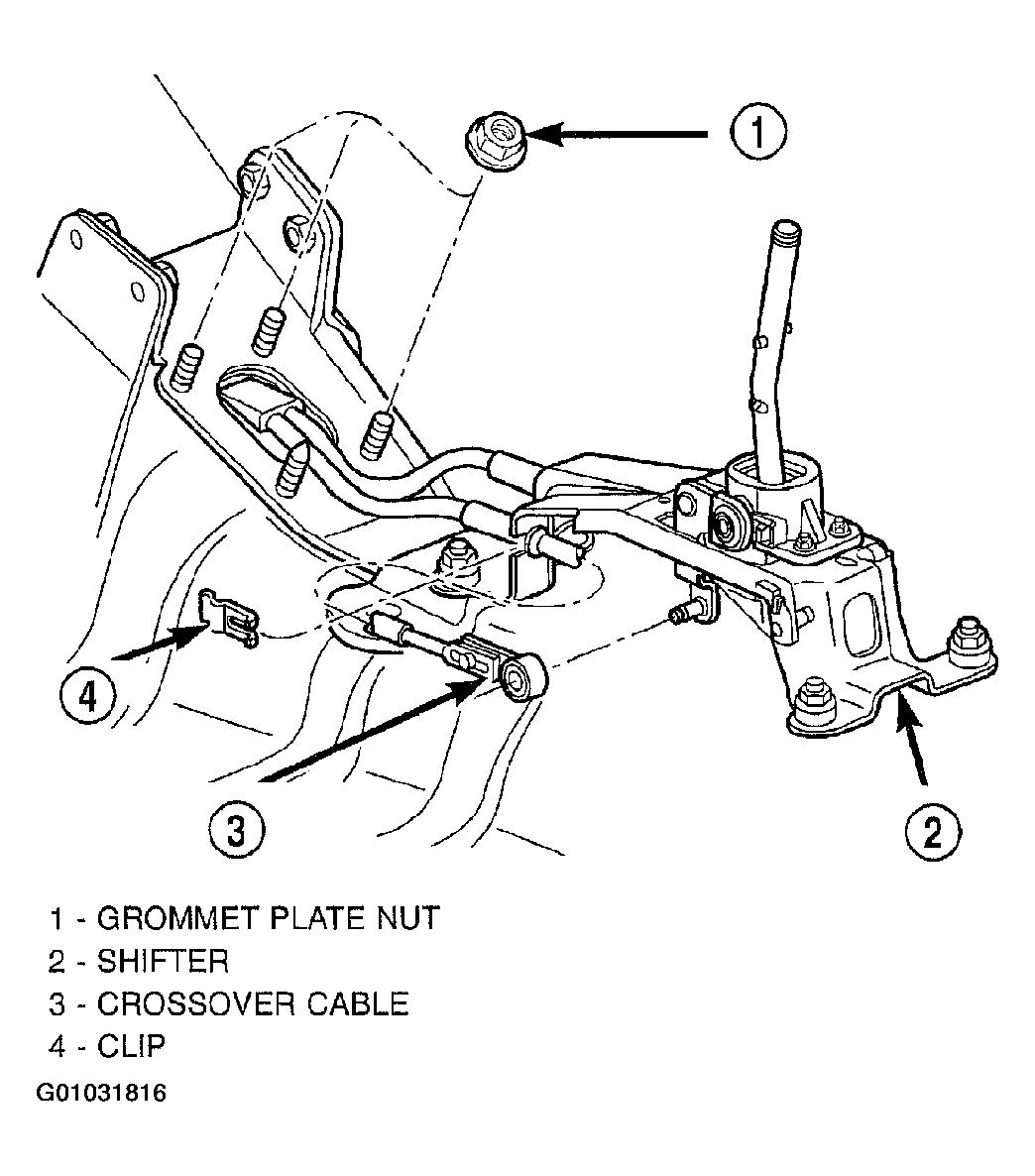

  3. Install crossover cable to shifter lever and secure cable to shifter bracket. Install clip. (Figure).

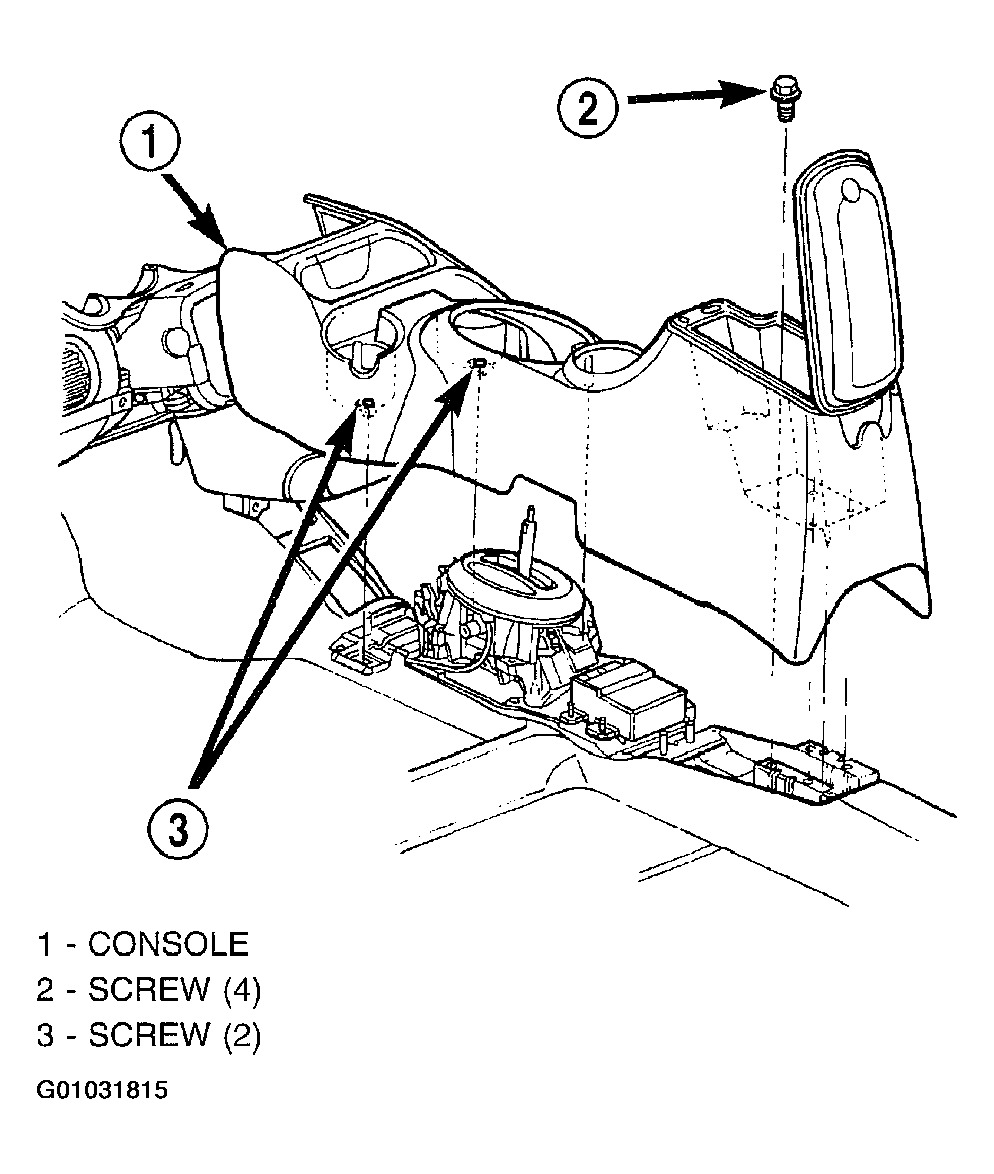

  4. Install center console assembly. (Figure).
  5. Install knob/boot assembly to shifter lever, align knob to three o'clock position, push knob down to engage spring and rotate counter clockwise.
  6. Locate boot to console at forward tab and secure to console with retaining tabs.
