Charging System: Generator: Removal

  1. Disconnect negative battery cable.
  2. Remove the body side panel.
  3. Remove headlamp assembly, refer to the LAMP for more information.
  4. Remove power steering reservoir (Fig 1 ).

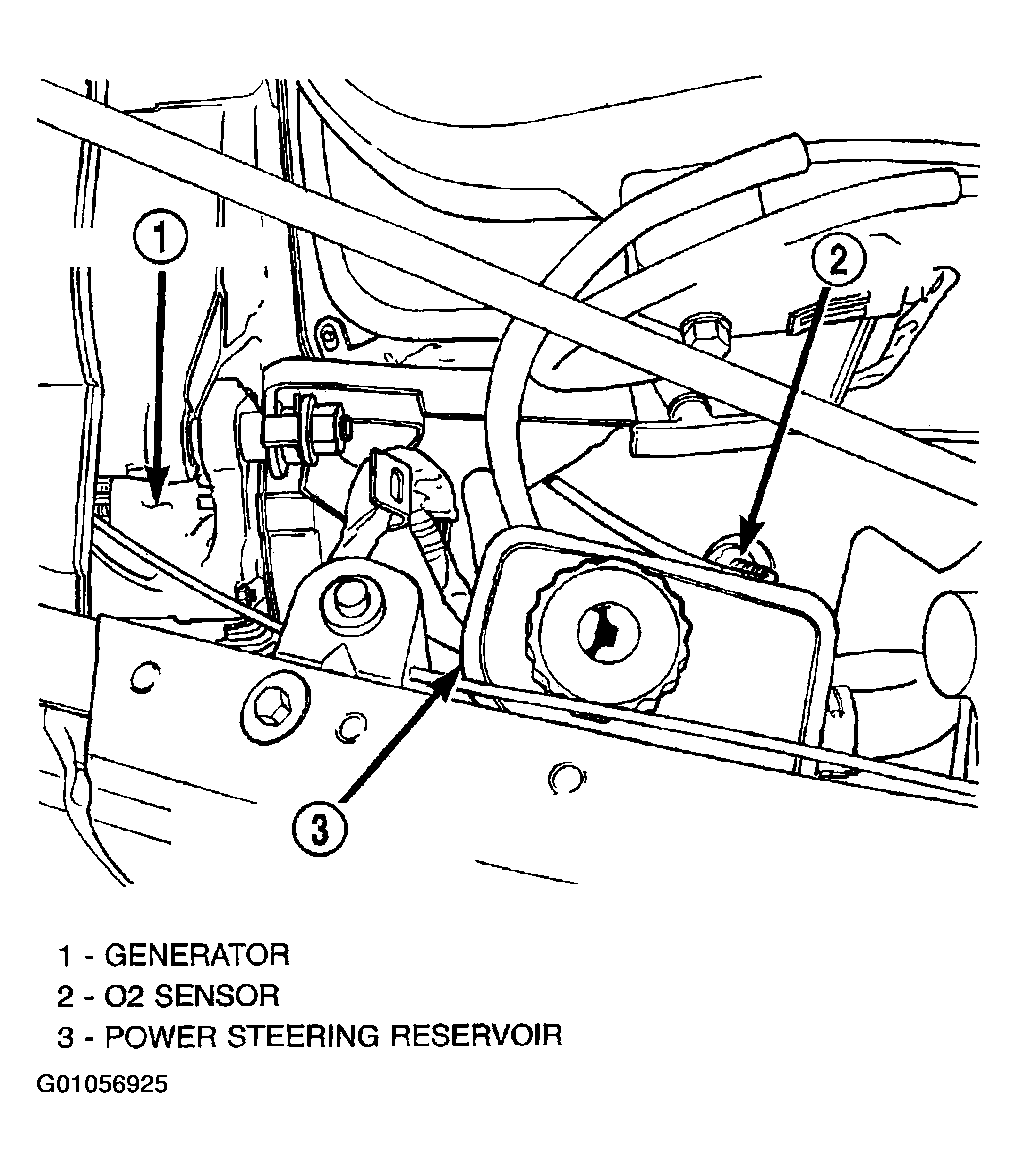

    Fig 1: Identifying Power Steering Reservoir
    G01056925Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove wiring harness from body brace.
  6. Remove body brace (Fig 2 ).

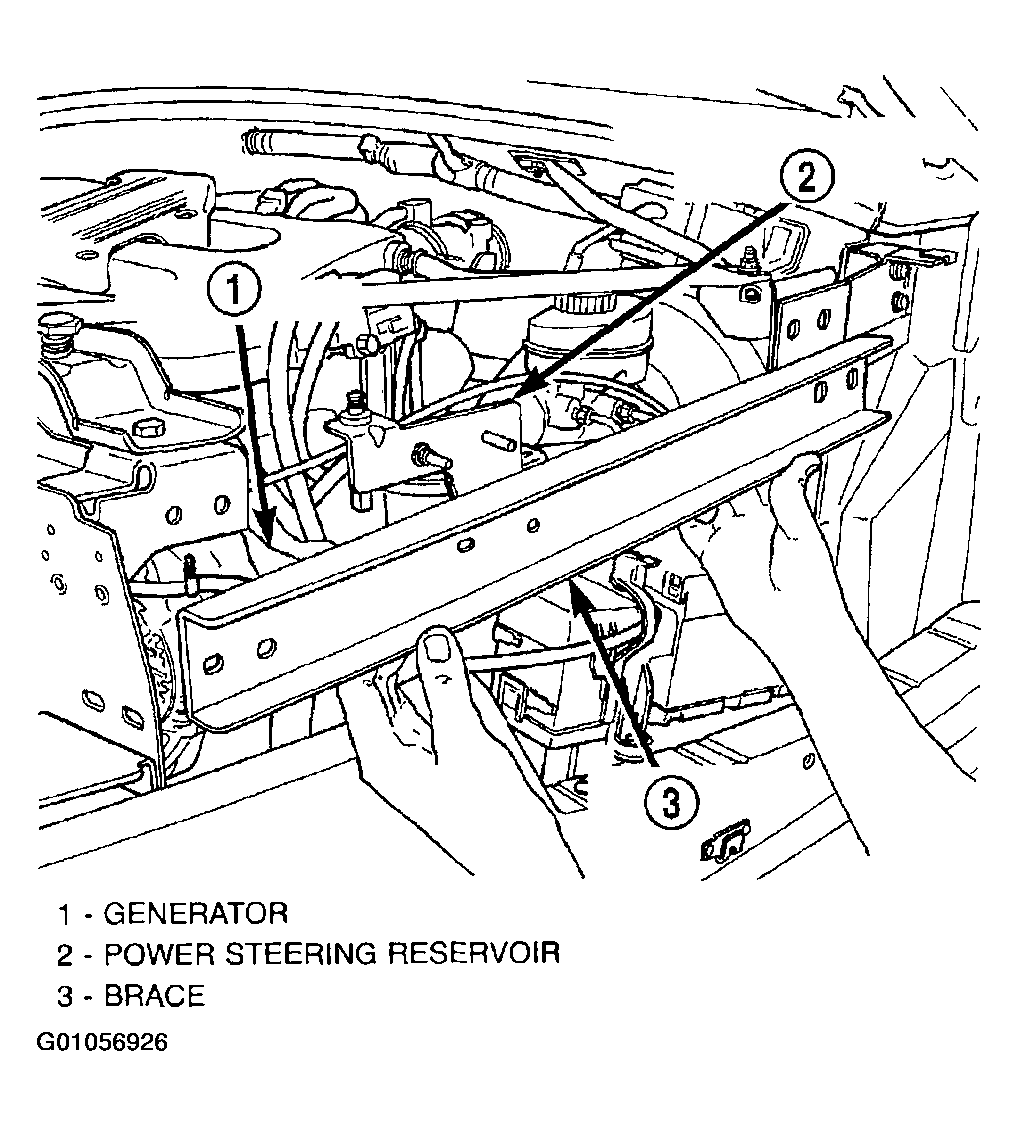

    Fig 2: Removing Body Brace
    G01056926Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove generator drive belt, refer to the COOLING for more information.
  8. Remove generator field circuit from generator (Fig 3 ).

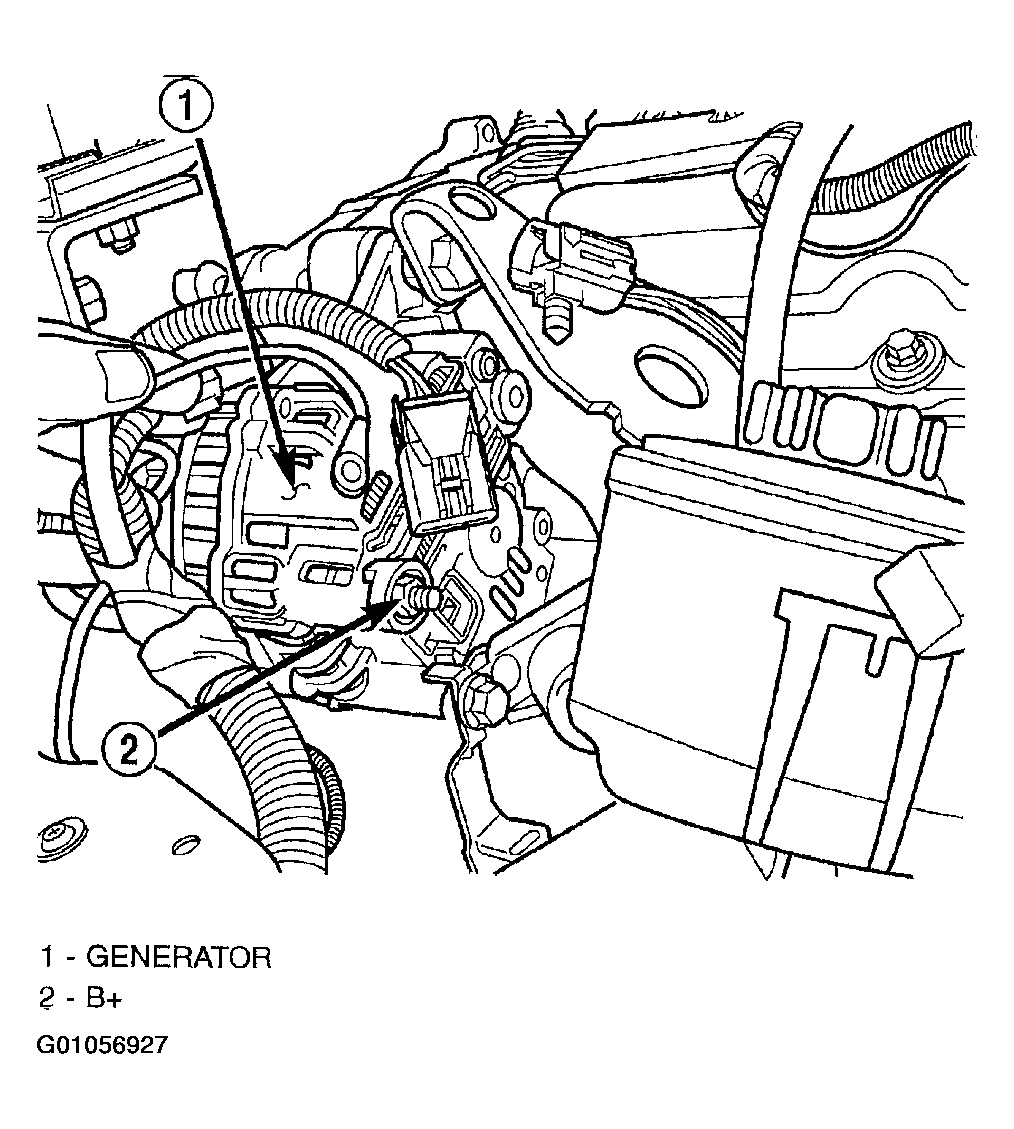

    Fig 3: Identifying Generator Connections
    G01056927Courtesy of DAIMLERCHRYSLER CORP.
  9. Remove the B+ terminal nut and wire.
  10. Loosen lower mounting bolt do not remove.
  11. Loosen pivot bolt, but do not remove (Fig 4 ).
    Fig 4: Identifying Mounting Bolts
    G01056928Courtesy of DAIMLERCHRYSLER CORP.
  12. Remove rear bracket and pencil brace from generator (Fig 5 ).
    Fig 5: Removing Rear Bracket And Pencil Brace
    G01056929Courtesy of DAIMLERCHRYSLER CORP.
  13. Remove lower mounting bolt.
  14. Remove pivot bolt.
  15. Remove generator (Fig 6 ).

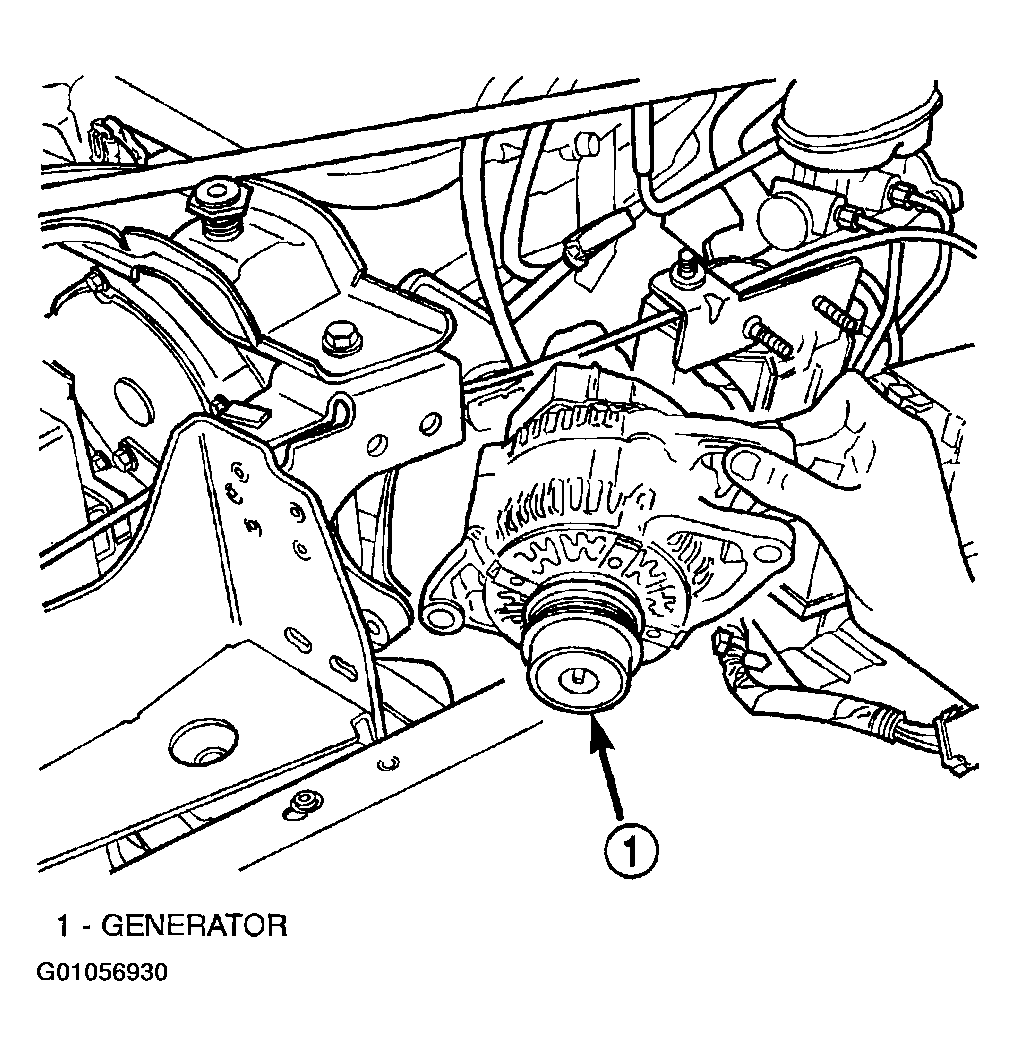

    Fig 6: Removing Generator
    G01056930Courtesy of DAIMLERCHRYSLER CORP.
