Check Strap: Installation

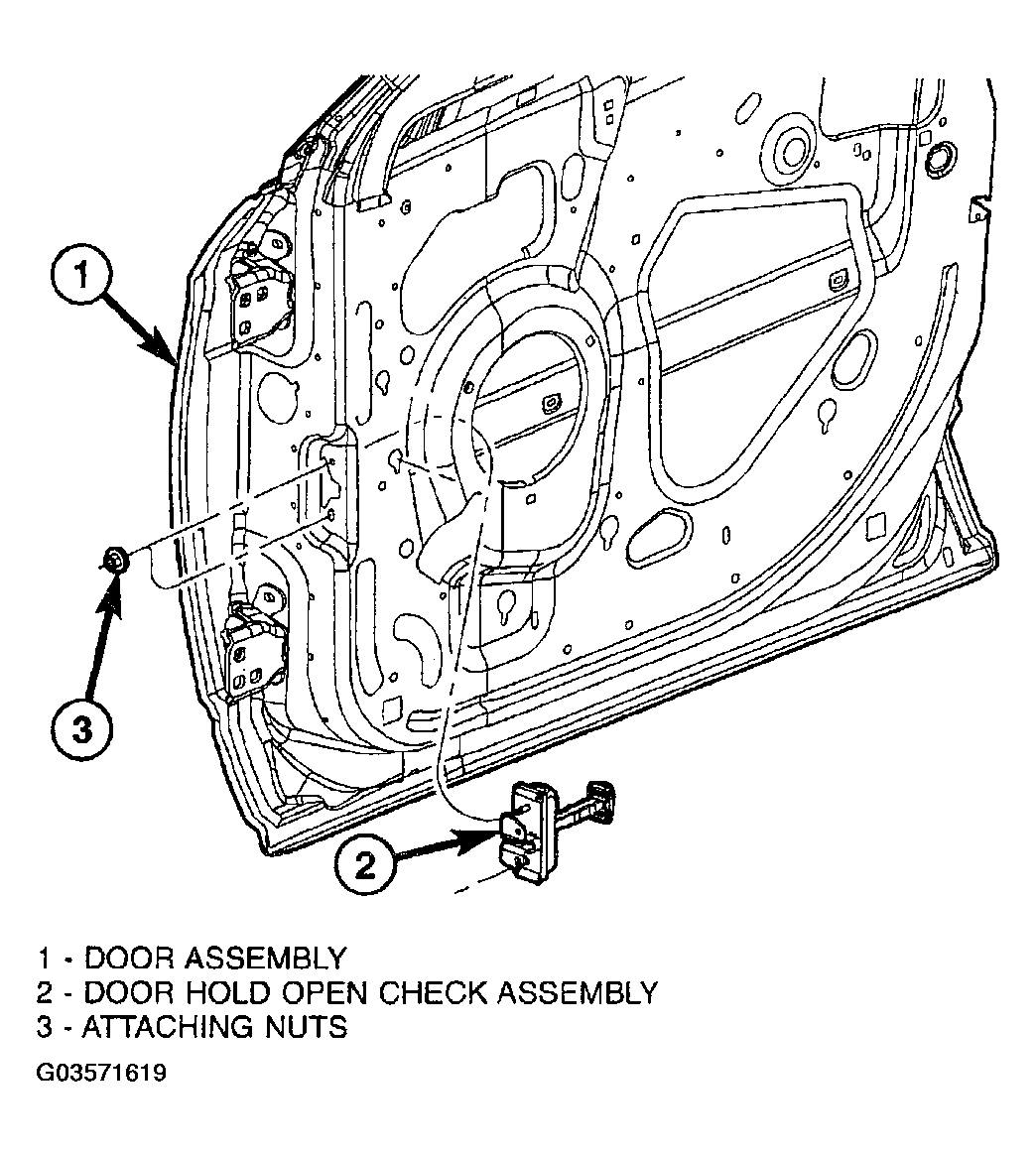

  1. Position check strap on door through speaker hole (Figure ).
  2. Install nuts attaching check strap to door end frame. Tighten nuts to 11 N.m (90 in. lbs.) torque.
  3. Install door speaker, if equipped.
  4. Install front door watershield. (Refer to INSTALLATION  ).
  5. Install front door trim panel. (Refer to INSTALLATION  )
  6. Place check strap into position on A-pillar.

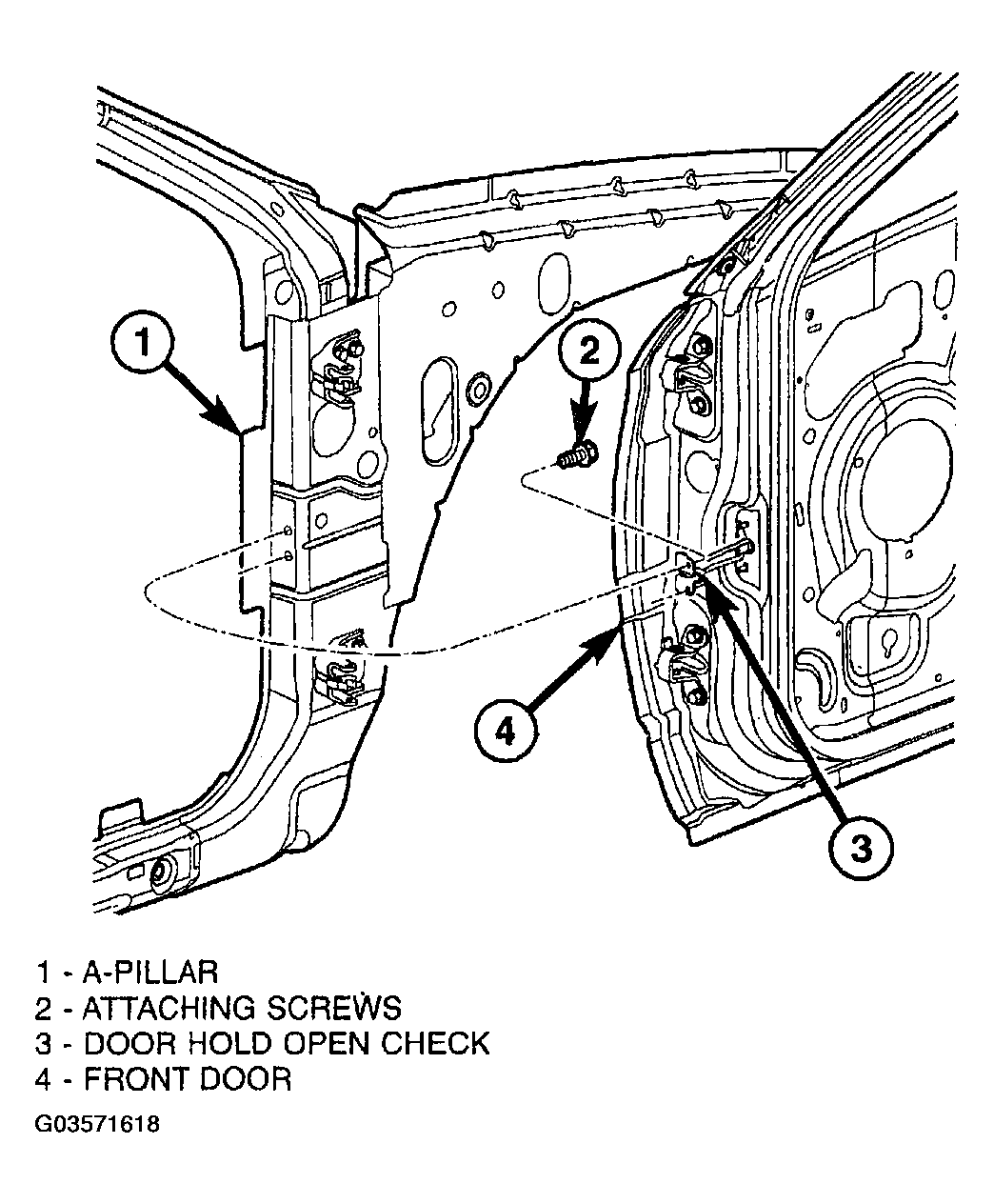

  7. Install screws attaching check strap to A-pillar (Figure ). Tighten screws to 12 N.m (105 in. lbs.) torque.
