Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Behind right quarter trim panel. |
| Cruise Control Unit | Behind left side of dash, above accelerator pedal bracket. |

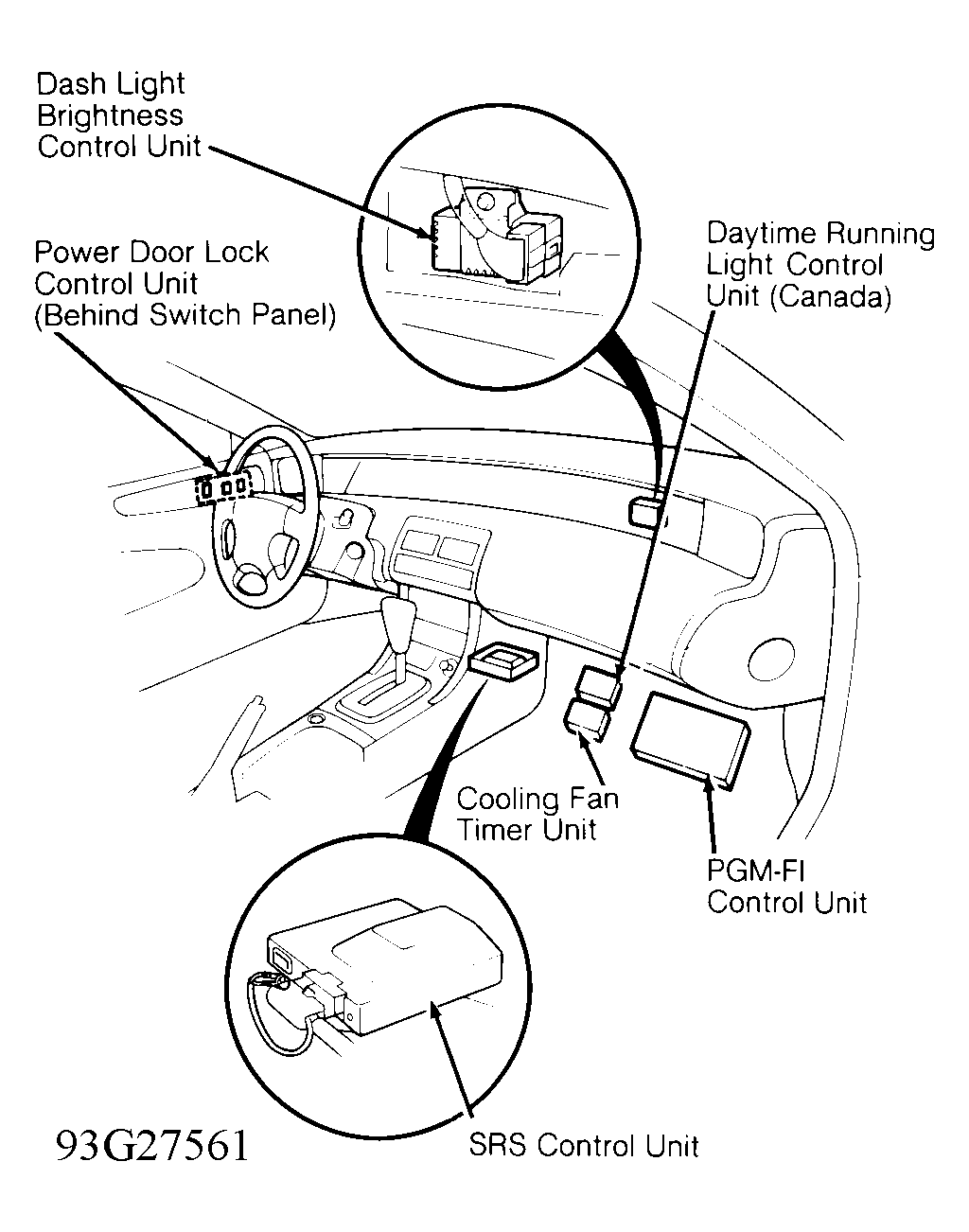

| Dash Light Brightness Control Unit | Behind right side of dash. See Figure . |
| Daytime Running Light (DRL) Control Unit (Canada) | On passenger-side footwell, under carpet. See Figure . |

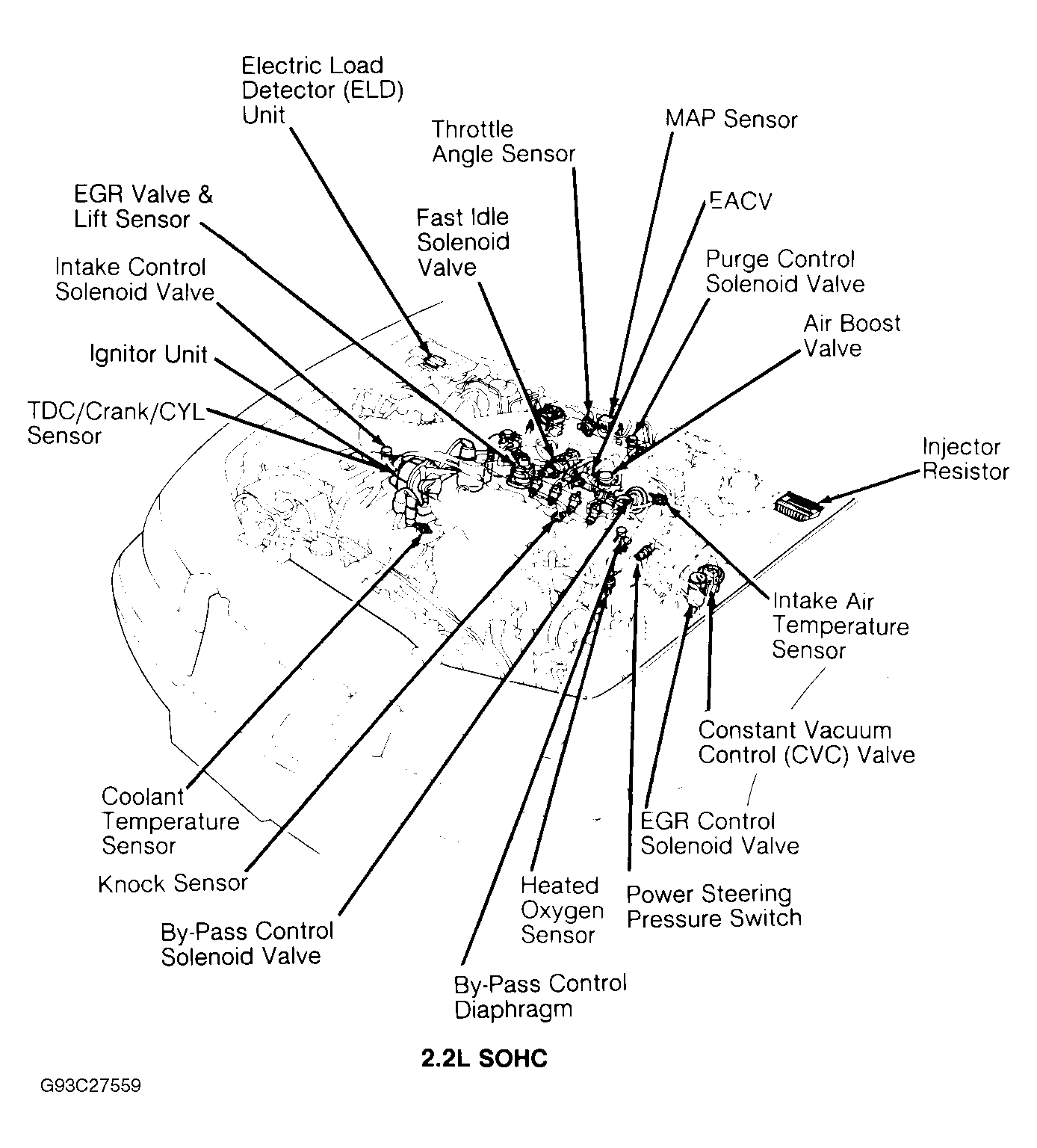

| ELD (SOHC) (Electric Load Detector) | On bottom of engine compartment fuse/relay block. See Figure . |

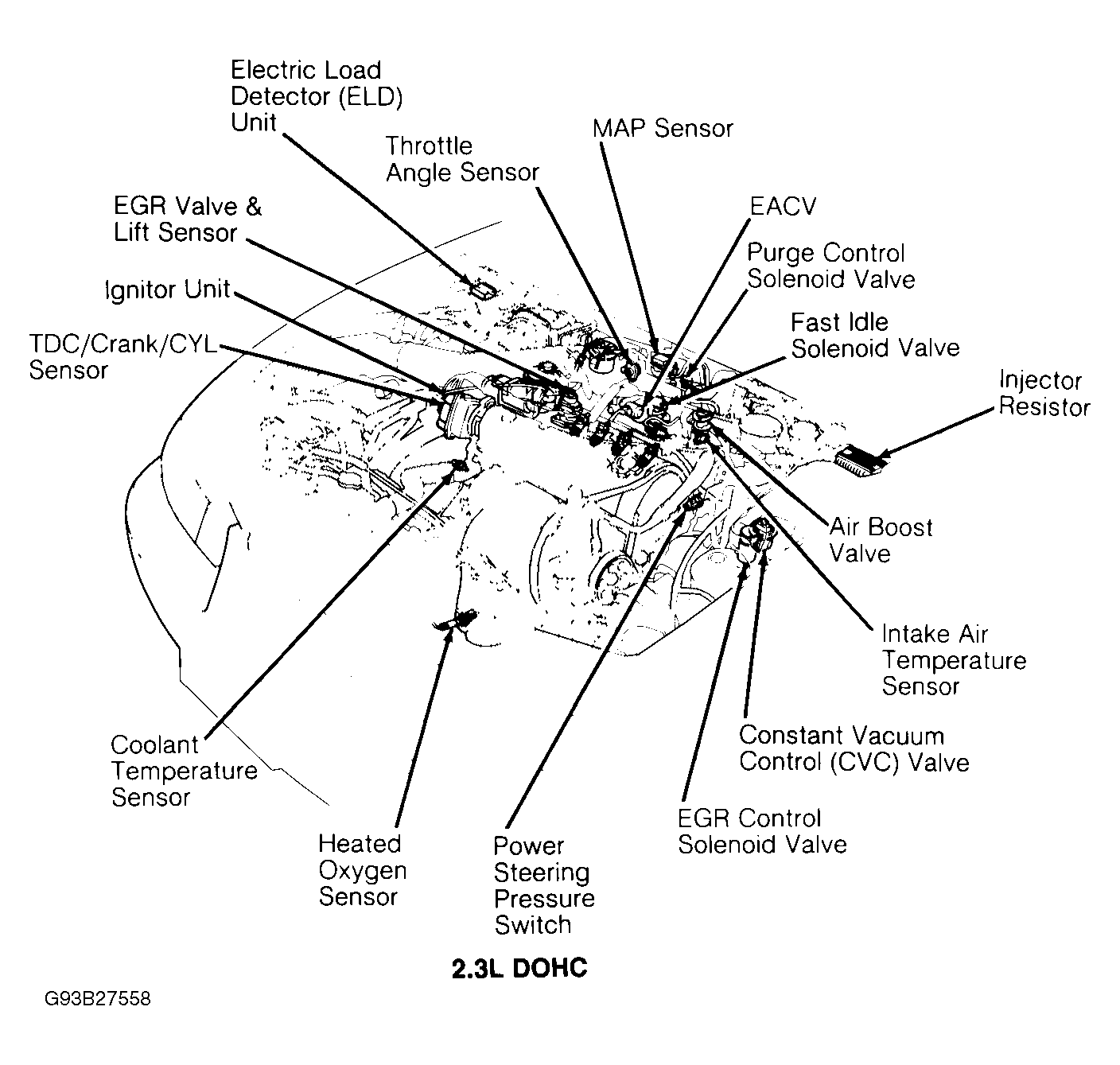

| ELD (DOHC) (Electric Load Detector) | On bottom of engine compartment fuse/relay block. See Figure . |
| Engine Control Module (ECM) | On passenger-side footwell, under carpet. See Figure . |
| ICM (SOHC) (Ignition Control Module) | In distributor assembly. See Figure & Figure . |

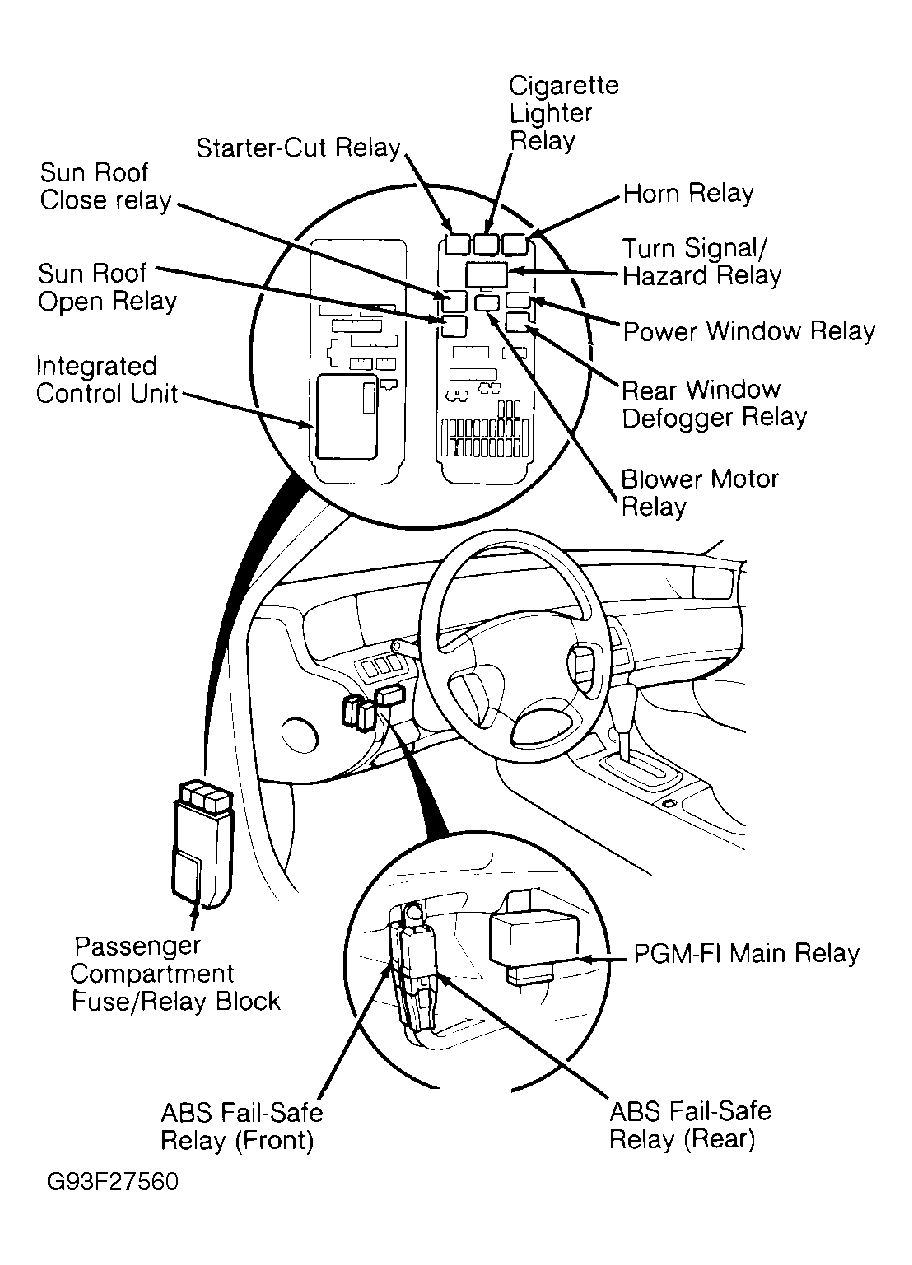

| Integrated Control Unit | Behind passenger compartment fuse/relay block. See Figure . |
| Interlock Control Unit (A/T) | Behind left side of dash, above kick panel. |
| Power Door Lock Control Unit | In driver's door, behind door panel. See Figure . |
| Radiator Fan Control Module | On passenger-side footwell, under carpet. See Figure . |
| SRS (Air Bag) Control Unit | Under center of dash, forward of floor console. See Figure . |
| Transmission Control Module | Behind right kick panel. |
| 4WS Control Unit | Behind left side of rear seat. |
